USER MANUAL RB3CJ3315WW SAMSUNG

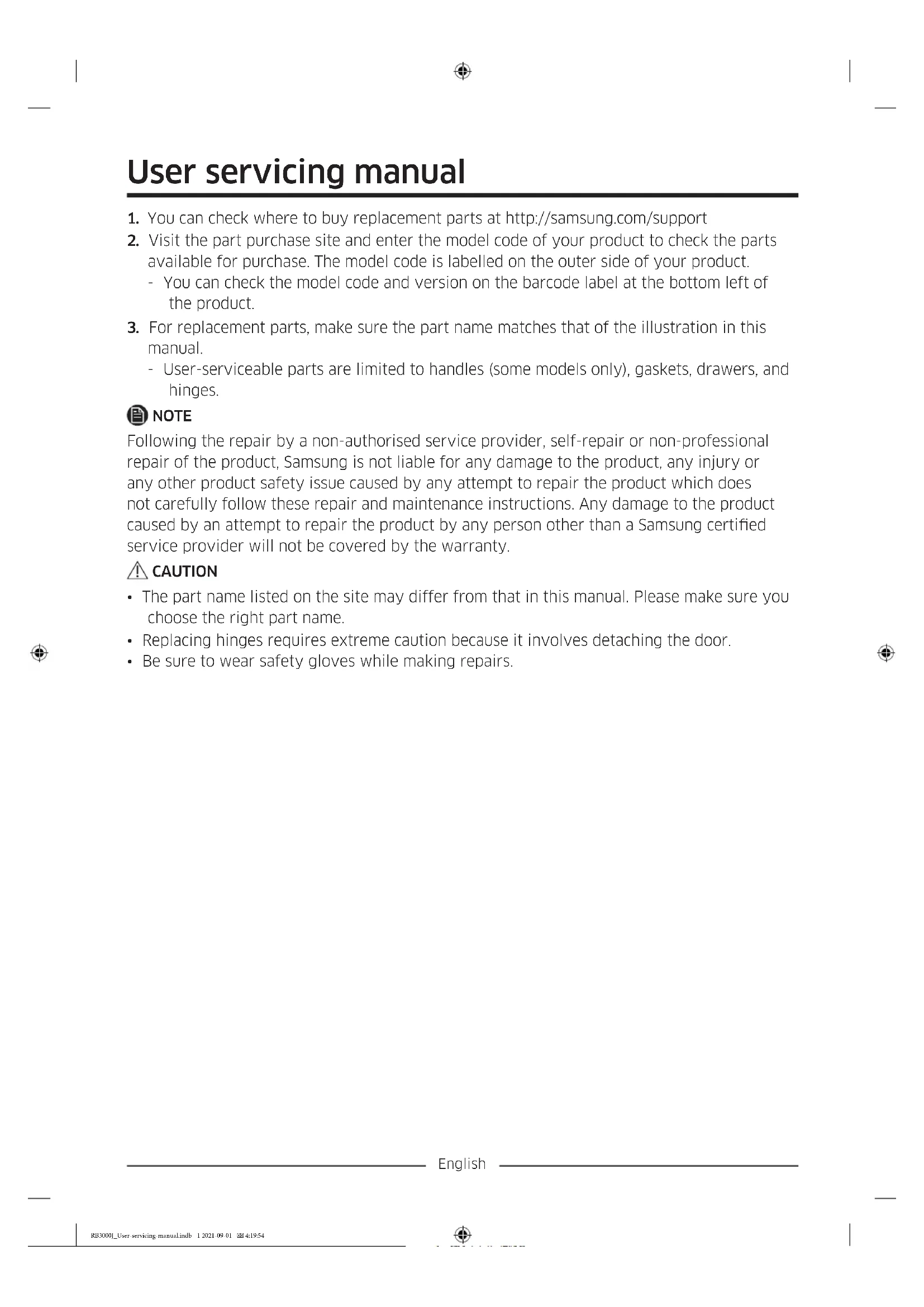

English User servicing manual

1. You can check where to buy replacement parts at http://samsung.com/support

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product. - You can check the model code and version on the barcode label at the bottom left of the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual. - User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges. NOTE Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certied service provider will not be covered by the warranty. CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs. RB3000J_User-servicing-manual.indb 1 2021-09-01 4:19:54English The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

• When replacing the door handle, take care not to scratch the front of the door.

• Firmly press the handles at the supports. Make sure there is no gap between the supports and the door.

• Tightly fasten the screws when attaching the handle.

• Check that the handle is rmly attached before using the product. Tools required (not provided) Phillips screwdriver Flat-head screwdriver To detach the handles (1) (2) (1) (2) (3) Remove the Cap Handle and the Screws by Flat-Head (-) screwdriver. NOTE Remove the Cap by Flat-Head (-) screwdriver and assemble the Handle and Cap-Handle. RB3000J_User-servicing-manual.indb 3 2021-09-01 4:19:55English Gasket replacement CAUTION Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak. To remove the gasket Open the door and remove the gasket from the door. To replace the gasket Attach a new gasket to the refrigerator door. Make sure there is no gap between the newgasket and the door. RB3000J_User-servicing-manual.indb 4 2021-09-01 4:19:55English Drawer replacement CAUTION Check that the drawer is inserted properly into the rail during assembly. To remove the drawer

1. Pull out the drawer as far as it goes.

2. Tilt the drawer up and pull it out until it is

removed. To reattach the drawers Reattaching the drawers follows the reverse order of their respective removal steps. RB3000J_User-servicing-manual.indb 5 2021-09-01 4:19:55English Hinge replacement To replace the hinges, you must remove the doors rst. CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover. WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors. Tools required (not provided) Phillips screwdriver Flat-head screwdriver 11 mm spanner 8 mm socket wrench (for bolts) Allen wrench (5 mm) Reversing the door Cover Wire Door *RB37* model only Cover Wire Door

1. Remove the Cover Wire Door.

RB3000J_User-servicing-manual.indb 6 2021-09-01 4:19:55English Cap space Door *RB37* model only Cap space Door

3. Remove the Cover Hinge to push a hook

like below Pictures.

• Insert a at-head screwdriver and put it back as shown in Figure #1.

• As shown in Figure #2, Lever up the cover and push a hook as shown in Figure #3. (Take care not to damage the Cover Hinge Wire by pushing it too hard)

• Disassemble it by pushing the A in Figure #4 by hand as Figure #5.

4. Disconnect the wiring connector for the

fridge door. (Only on models with external display).

5. Remove the screws. (Be careful not to drop

the door when you disassemble it.) RB3000J_User-servicing-manual.indb 7 2021-09-01 4:19:55English

6. Remove the fridge door from the middle

hinge by carefully lifting the door straight up. CAUTION The door is heavy, be careful not to injure yourself when removing the door.

7. Disassemble the middle hinge by

removing the screws using a Phillips Head (+) screwdriver. CAUTION The freezer door may fall forward so please support the door.

8. Remove the freezer door from the bottom

hinge by carefully lifting the door straight up. RB3000J_User-servicing-manual.indb 8 2021-09-01 4:19:56English Hinge Low Leg

9. Lay the refrigerator carefully on it’s back.

Remove the leg (unscrew in an anti- clockwise direction) and the Hinge Low. NOTE To protect the refrigerator damage, cut a large section of the cardboard carton and place it under the refrigerator.

10. Reassemble in the opposite order of

disassembly after replacing the Hinge Up, Hinge Mid, and/or Hinge Low. CAUTION

• Make sure the wire connectors are connected properly.
