USER MANUAL PPA44BTW PEAQ

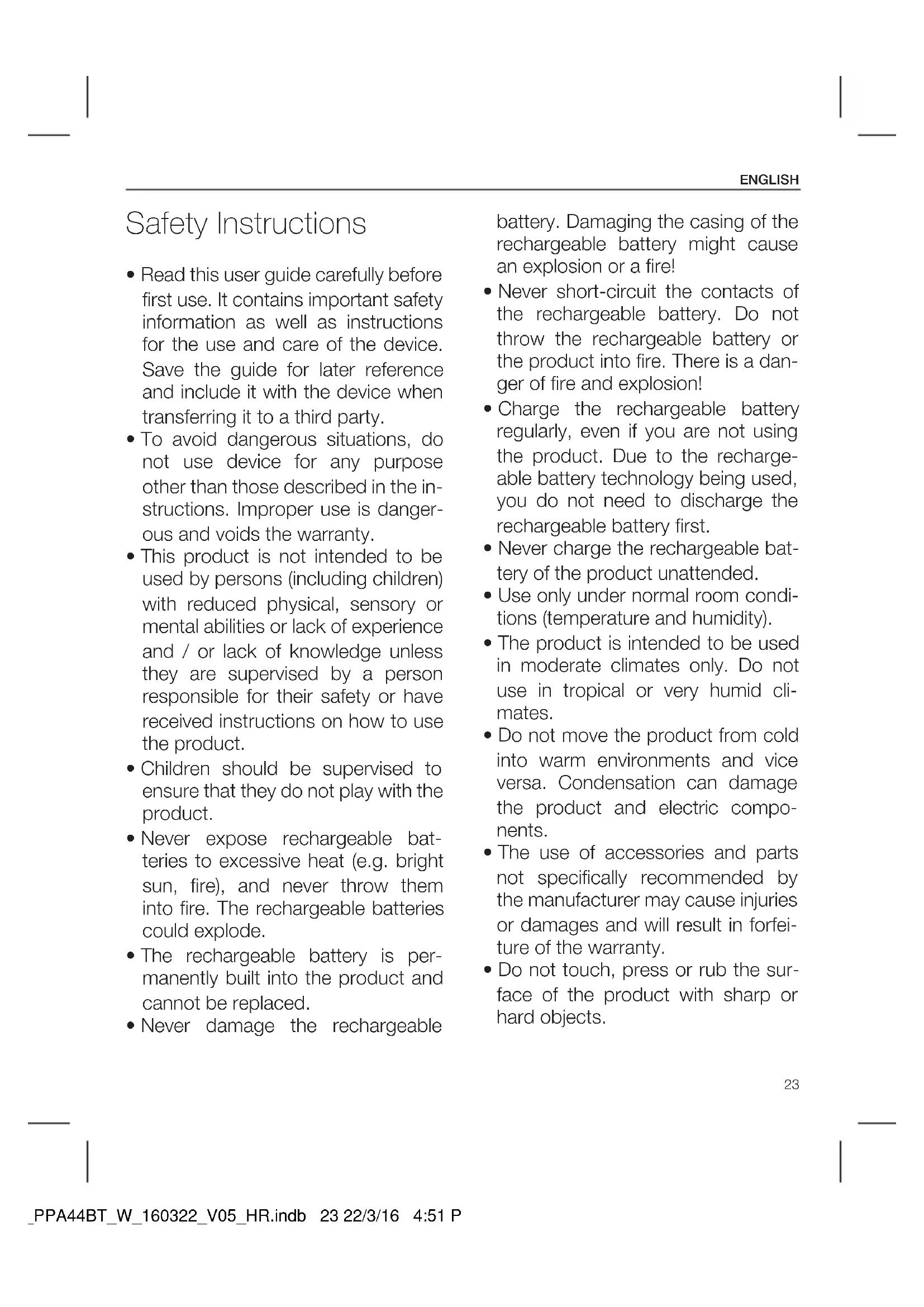

• Read this user guide carefully before first use. It contains important safety information as well as instructions for the use and care of the device. Save the guide for later reference and include it with the device when transferring it to a third party.

• To avoid dangerous situations, do not use device for any purpose other than those described in the in- structions. Improper use is danger- ous and voids the warranty.

• This product is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the product.

• Children should be supervised to ensure that they do not play with the product.

• Never expose rechargeable bat- teries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The rechargeable batteries could explode.

• The rechargeable battery is per- manently built into the product and cannot be replaced.

• Never damage the rechargeable battery. Damaging the casing of the rechargeable battery might cause an explosion or a fire!

• Never short-circuit the contacts of the rechargeable battery. Do not throw the rechargeable battery or the product into fire. There is a dan- ger of fire and explosion!

• Charge the rechargeable battery regularly, even if you are not using the product. Due to the recharge- able battery technology being used, you do not need to discharge the rechargeable battery first.

• Never charge the rechargeable bat- tery of the product unattended.

• Use only under normal room condi- tions (temperature and humidity).

• The product is intended to be used in moderate climates only. Do not use in tropical or very humid cli- mates.

• Do not move the product from cold into warm environments and vice versa. Condensation can damage the product and electric compo- nents.

• The use of accessories and parts not specifically recommended by the manufacturer may cause injuries or damages and will result in forfei- ture of the warranty.

• To reduce the risk of fire or electric shock, do not expose the device to rain or humidity.

• The product may not be exposed to dripping or splashing water, and liq- uid filled objects such as vases must not be placed on the product.

• Do not impede ventilation by cov- ering the ventilation openings with items, such as newspapers, table- cloths, curtains, etc. Do not insert any objects.

• No naked flame sources, such as lighted candles, should be placed on the product.

• Make sure no objects or liquids penetrate through openings into the housing.

• Never immerse electric parts of the product in water or other liquids while cleaning or using it. Never place the product under running water.

• Do not place the product in the vi- cinity of devices producing strong magnetic fields (for example motors, loudspeakers, transformers).

• Do not expose the product to di- rect sunlight, humidity, dirt, hot light sources or strong magnetic fields. Do not expose the product to high temperatures and strong vibrations and avoid high mechanical stress.

• The product may not function prop- erly or not react to the operation of any control due to electrostatic dis- charge. Switch o and disconnect the product; reconnect/switch on after a few seconds.

• If the product shows damages, do not use it any longer and have it re- paired by a qualified technician, or contact our customer service depart- ment. Do not disassemble the prod- uct, and do not try to repair it yourself.

• LED’s are not replaceable.

• When the light source reaches its end of life the whole product shall be replaced.

• Attention! Please do not look di- rectly into the light emanating from the LED. Do not point the LED light directly into the eyes.

• The LED light of this product is for decoration use only and not suitable for household room lighting.

• The LED light is not intended for use in other applications.

• For indoor use only.

• This product shall be charged by an approved independent SELV power supply.

• Remove the batteries from the product before disposal.

• The product must be disconnected from the supply mains when remov- ing the battery.

• Battery must be disposed safely and environmentally friendly manner. IM_PPA44BT_W_160322_V05_HR.indb 24 22/3/16 4:51 PM25 ENGLISH Intended use The product is intended only for sound reproduction, phone call re- ception via Bluetooth

, sound repro- duction via audio cable inlet (AUX IN) and microSD card. Use the product only as described in this manual. The Imtron GmbH assumes no liability for damage to the product, for prop- erty damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer’s specified purpose. Components A. Speaker grid / Touch button for light B. Operation LED C. MODE selection button D. Skip back/ volume – E. Play/Pause/ answer and end call button F. Skip forward/ volume + G. On/o switch H. Microphone

Compatibility This product is compatible with Blue- tooth

enabled mobile phones and music devices. It features Bluetooth

version 3.0+EDR. It also works with devices featuring other Bluetooth

versions that support e.g. Wireless Hands-Free communication

• HFP (Hands-free Profile) Wireless stereo listening

• A2DP (Advanced Audio Distribution Profile) Wireless music control

• AVRCP Before first time use

• Read this user guide carefully to avoid damages or injuries due to improper use. Pay special attention to the safety instructions. Keep the instructions for future reference and include them when transferring the device to third persons.

• The device must be charged be- fore the first use. Please refer to the chapter “Charging the battery”.

• Carefully remove all packaging materials and check the device for completeness and integrity. Do not use a damaged device.

• Pair the speaker with a Bluetooth

mobile phone first. Please refer to the chap- ters “Pairing”.

To turn on, press and hold the but- ton for approx. 3-5 seconds. Press the button until the speaker turns

ADJUSTING THE VOLUME

Press and hold the button or to adjust the volume. CLIP There is a pop up clip at the bottom of speaker. If you want to hang the speaker, e.g. on a hook, pop up the clip. Charging the battery

1. Connect the USB cable (included)

2. Connect the other end of the USB

cable to the USB port of the com- puter or a USB-charger.

3. During the battery charging the

LED indicator lights continuously red. LED Status

• Red: LED turns on continuously: Bat- tery charging. LED turns o: Battery charging complete. Note During the battery charging process the speaker cannot be operated. It will take approx. 4 hours to be fully charged the battery.

• Blue: LED flashing: Turn on and ready for Bluetooth

pairing. LED continously on: Paired with a Bluetooth

button until a sound sounds and the LEDs of the speaker light on. The speaker is ready for pairing.

function on the audio device. Connect the Bluetooth

-AV-source with the speaker via Bluetooth

3. A short melody will indicate that

both devices are successfully paired. LEDs inside the speaker lights on.

source to disconnect. A sound indicates that the Bluetooth

is deactivated. You can also long press to unpair. Note:

• Keep the range of 1 meter when pairing.

• Up to 10 meters reception range while music playback via bluetooth

source, refer to the AV source user guide regarding safety instructions and use with other devices. MOBILE PHONE

1. To pick up an incoming call, press

once button shortly.

2. To end a call, press button

again or end the call directly on your mobile phone. Note Phone calls will always be the top pri- ority. When an incoming/outgoing call is being progressed, it actively inter- rupts the music playback. As soon as the call has been ended, the music resumes. MUSIC PLAYBACK

1. Start the music playback on the

to skip title forward or back. IM_PPA44BT_W_160322_V05_HR.indb 28 22/3/16 4:51 PM29 ENGLISH microSD card

1. Insert a micro SD card into the

micro SD card slot. The speaker will read the card immediately and starts the music playback. Note: Support micro SD cards up to 32 GB.

2. Press the button or

to skip title forward or back.

3. Use the button to start or

pause the playback. Note: Press the MODE button shortly to switch manually be- tween BT, AUX IN or microSD card mode. Audio input (AUX IN) Attention: Before you connect your external player (for example an MP3 player), refer to its user guide regarding safety instructions and use with other de- vices.

1. Connect the stereo cable to the

into the headphone or LINEOUT jack of the external device. Note:

con- nection with audio sources before connecting an external device via AUX IN.

• Switch the external player on and turn its volume to zero.

• Turn the speaker system on and regulate the volumes of both de- vices. IM_PPA44BT_W_160322_V05_HR.indb 29 22/3/16 4:51 PMENGLISH

LED light If the product is power on you can switch on light by touching the speaker grid. Each touch will lead to the next higher light level. There are 3 light level available. When touching the speaker grid the 4. time the light is switched o. Reset Press the RESET button with a suit- able item (e.g. paper clip) to reset the product. Cleaning and care

• Switch o the device before cleaning.

• Clean the device with a soft, damp cloth and a mild cleaning agent. Fin- ish by wiping it with a dry cloth.

• Do not use alcohol, acetone, ben- zene, scouring cleansers etc. to clean the device. Do not use hard brushes or metal objects. IM_PPA44BT_W_160322_V05_HR.indb 30 22/3/16 4:51 PM31 ENGLISH Troubleshooting If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer. Problem Possible causes Solution Product does not function

• Battery empty •Recharge batteries Light does not work

• Light was not activated

• Touch speaker and grid using both hands No Sound •Volume is very low

• External device is muted

• Check and turn o mute on the external device. Poor audio quality with Bluetooth

• Move both devices closer together or remove any obstacles between. No Bluetooth

• The external device does not support the profiles for this product

• Try to pair with another external device.

Technical Data Power supply : 5 V , 1 A Speaker unit : 2.0” x 1 Output power of speaker : 3 W Power consumption : Max. 7.5 W Operating temperature : Max. 40 °C Memory card : microSD card: max. 32 GB Chromaticity coordinates : x < 0.270 Disposal Do not dispose of this appli- ance as unsorted municipal waste. Return it to a desig- nated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more in- formation. Please dispose of batteries in an environmentally friendly manner Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product. IM_PPA44BT_W_160322_V05_HR.indb 32 22/3/16 4:51 PM33 ESPAÑOL Instrucciones de seguridad
