Technical Specifications	PEAQ PPA34BTB Bluetooth speaker, 20W power, Bluetooth range up to 10 meters, built-in rechargeable battery.
Usage	Ideal for wireless listening to music, podcasts, or audiobooks, compatible with smartphones, tablets, and computers.
Maintenance and Repair	Regularly clean with a soft cloth, avoid exposure to water, for repairs refer to customer service or a professional.
Safety	Do not use near water sources, avoid extreme temperatures, do not disassemble the device.
General Information	Compact dimensions, lightweight, available in multiple colors, 2-year warranty.

Frequently Asked Questions - PPA34BTB PEAQ

How do I connect my PEAQ PPA34BTB to my Bluetooth device?

To connect your PEAQ PPA34BTB to a Bluetooth device, enable Bluetooth on your device, turn on the speaker, then press and hold the Bluetooth button until the indicator light flashes. Select "PEAQ PPA34BTB" from the list of available devices on your device.

Why won\u0027t my speaker turn on?

Check that the speaker is charged. Connect it to a power source using the supplied cable. If the indicator light does not turn on after a few minutes of charging, contact customer service.

How do I adjust the volume on my PEAQ PPA34BTB?

Use the volume buttons on the speaker to increase or decrease the volume. You can also adjust the volume via the connected device.

My speaker is crackling, what should I do?

Crackling may be caused by a poor connection or Bluetooth interference. Ensure the speaker is close to the connected device and there are no obstacles. Try disconnecting and reconnecting Bluetooth.

Can I use the PEAQ PPA34BTB with an audio cable?

Yes, the PEAQ PPA34BTB has an auxiliary audio input. You can connect it to a device using a 3.5 mm audio cable for a wired connection.

How do I reset my PEAQ PPA34BTB speaker?

To reset your speaker, turn it off, then press and hold the "Power" and "Bluetooth" buttons simultaneously for about 5 seconds until the indicator light flashes. This will reset the speaker to factory settings.

What is the battery life of the PEAQ PPA34BTB?

The battery life of the PEAQ PPA34BTB is approximately 10 hours, depending on volume and feature usage.

How do I clean my PEAQ PPA34BTB speaker?

To clean your speaker, use a soft, dry cloth. Avoid using chemicals or liquids that could damage the speaker.

What should I do if my speaker won\u0027t connect to my device?

Ensure your device is Bluetooth compatible. Restart your speaker and device, then try connecting again. If the problem persists, reset the speaker.

The speaker is connected but no sound is coming out, what should I do?

Check the volume level on both the speaker and the connected device. Make sure the audio source is correct and the sound is not muted.

USER MANUAL PPA34BTB PEAQ

PAA34BT E/171026V08_HR/ndo 126017227pn

IM_PPA34BT_E_W_171026_005_HR_nbd 2

2010/17 2:27 pm

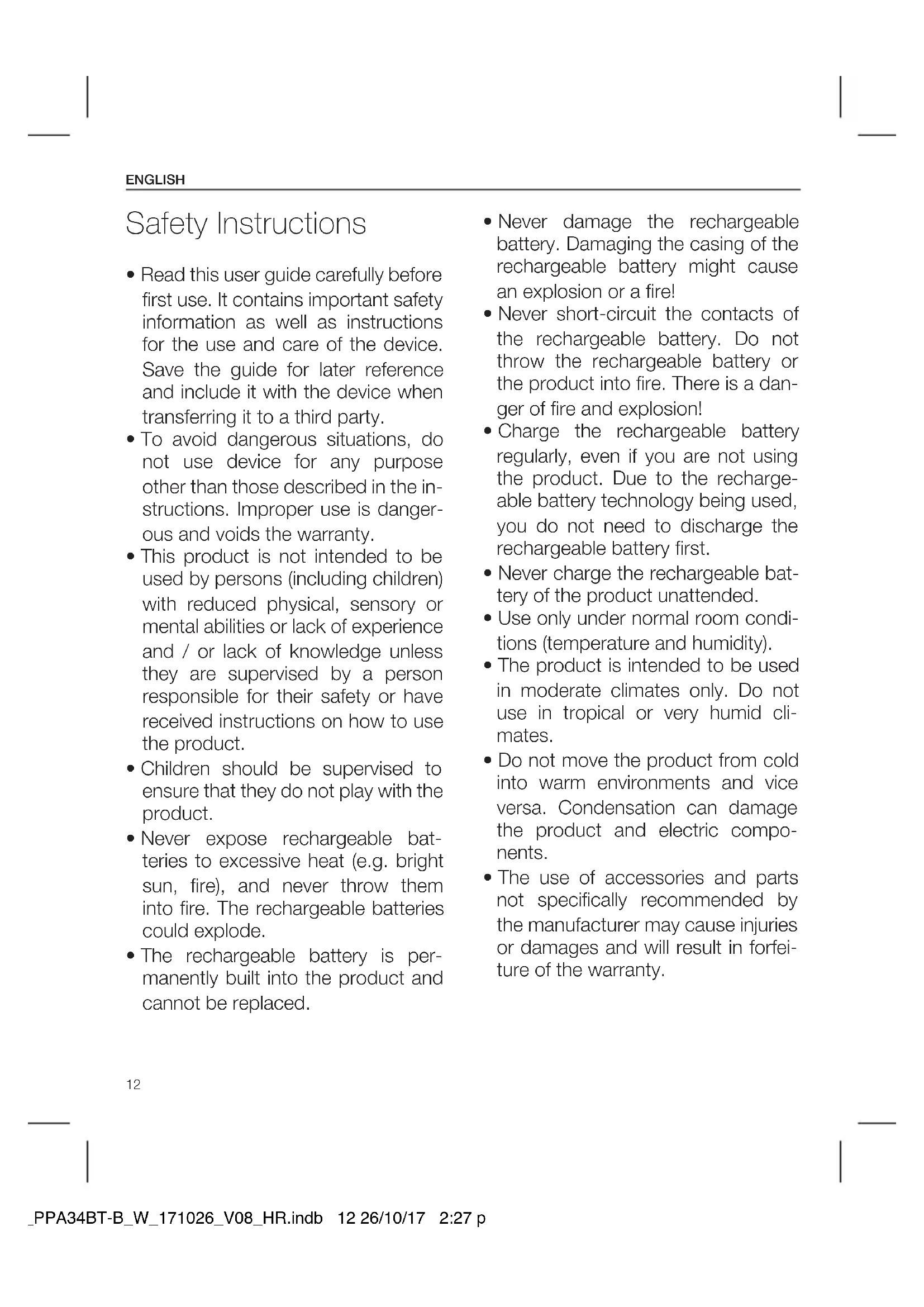

Sicherheitshinweise

• A2DP (Advanced Audio Distribution Profile)

• Read this user guide carefully before first use. It contains important safety information as well as instructions for the use and care of the device. Save the guide for later reference and include it with the device when transferring it to a third party.
• To avoid dangerous situations, do not use device for any purpose other than those described in the instructions. Improper use is dangerous and voids the warranty.
• This product is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the product.
• Children should be supervised to ensure that they do not play with the product.
• Never expose rechargeable batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The rechargeable batteries could explode.

• The rechargeable battery is permanently built into the product and cannot be replaced.

• Never damage the rechargeable battery. Damaging the casing of the rechargeable battery might cause an explosion or a fire!

• Never short-circuit the contacts of the rechargeable battery. Do not throw the rechargeable battery or the product into fire. There is a danger of fire and explosion!
• Charge the rechargeable battery regularly, even if you are not using the product. Due to the rechargeable battery technology being used, you do not need to discharge the rechargeable battery first.
• Never charge the rechargeable battery of the product unattended.
• Use only under normal room conditions (temperature and humidity).
• The product is intended to be used in moderate climates only. Do not use in tropical or very humid climates.
• Do not move the product from cold into warm environments and vice versa. Condensation can damage the product and electric components.

• The use of accessories and parts not specifically recommended by the manufacturer may cause injuries or damages and will result in forfeiture of the warranty.

• Do not touch, press or rub the surface of the product with sharp or hard objects.

• To reduce the risk of fire or electric shock, do not expose the device to rain or humidity.
• The product may not be exposed to dripping or splashing water, and liquid filled objects such as vases must not be placed on the product.
• Do not impede ventilation by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc. Do not insert any objects.
• No naked flame sources, such as lighted candles, should be placed on the product.
• Make sure no objects or liquids penetrate through openings into the housing.
• Never immerse electric parts of the product in water or other liquids while cleaning or using it. Never place the product under running water.

• Do not place the product in the vicinity of devices producing strong magnetic fields (for example motors, loudspeakers, transformers).

• Do not expose the product to direct sunlight, humidity, dirt, hot light sources or strong magnetic fields. Do not expose the product to high temperatures and strong vibrations and avoid high mechanical stress.

• The product may not function properly or not react to the operation of any control due to electrostatic discharge. Switch off and disconnect the product; reconnect/switch on after a few seconds.
• If the product shows damages, do not use it any longer and have it repaired by a qualified technician, or contact our customer service department. Do not disassemble the product, and do not try to repair it yourself.

Intended use

The product is intended only for sound reproduction & phone call reception via Bluetooth® and sound reproduction via audio cable inlet (AUX). Use the product only as described in this manual.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

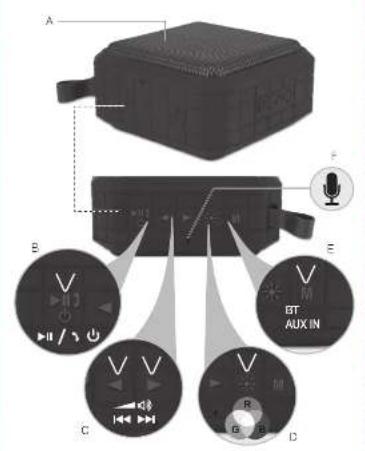

Components

A. Speaker grid with LED light effect
B. On/Off /Play/Pause/answer and end call
C. Skip title back and forward/volume decrease and increase button
D. LED light effect button
E. M Mode button
F. Microphone
G. Carrying loop
H. AUX audio in jack
I. Micro USB charging socket
J. RESET default setting
K. Water resistant cover
L. Operation LED
M. AUDIO IN cable (not shown)
N. Micro-USB cable (not shown)

Accessories

1 x Bluetooth® Speaker
1 x Micro-USB-cable
1 x Audio-IN cable
1 x User manual

Compatibility

This product is compatible with Bluetooth® enabled mobile phones and music devices. It features Bluetooth® version 4.2+EDR. It also works with devices featuring other Bluetooth® versions that support e.g.

Wireless Hands-Free communication

HFP (Hands-free Profile)

Wireless stereo listening

• A2DP (Advanced Audio Distribution Profile)

Wireless music control

AVRCP

Before first time use

• Read this user guide carefully to avoid damages or injuries due to improper use. Pay special attention to the safety instructions. Keep the instructions for future reference and include them when transferring the device to third persons.
• The device must be charged before the first use. Please refer to the chapter "Charging the battery".
• Carefully remove all packaging materials and check the device for completeness and integrity. Do not use a damaged device.
• Pair the speaker with a Bluetooth® AV source or Bluetooth® mobile phone first. Please refer to the chapters "Pairing".
• The Bluetooth® Speaker ID is PPA34BT-B.

Operation

TURNING ON/OFF

To turn on, press and hold the button for approx. 3 seconds. Press the button until the speaker turns off.

ADJUSTING THE VOLUME

Press and hold the button or to adjust the volume. The adjusted level will be shown through the increasing or decreasing white LED light effect.

CARRYING STRAP

You can use the carrying strap to hang the speaker, e.g. on a hook.

MODE

Press the M (MODE) button shortly to switch manually between BT or AUX mode.

The mode will be announced.
AUX mode will only be announced, when the product is connected with an external player via an AUX IN cable.

Charging the battery

1. Connect the USB cable (included) to the speaker.
2. Connect the other end of the USB cable to the USB port of the computer or a USB-charger.
3. During the battery charging the LED indicator lights continuously red.

LED Status

Red:

LED turns on continuously: Battery charging.

LED turns off: Battery charging complete.

Note

During the battery charging process the speaker can be operated in Bluetooth® mode. It will take approx. 4 hours to be fully charged the battery.

- Blue:

LED flashing: Turn on and ready for Bluetooth® pairing.

LED continuously on: Paired with a Bluetooth® device.

Bluetooth®

PAIRING

1. Press the button until a sound sounds and the LEDs of the speaker light on. The speaker is ready for pairing.
2. Activate the Bluetooth® function on the audio device. Connect the Bluetooth®-AV-source with the speaker via Bluetooth® pairing.
3. A short melody will indicate that both devices are successfully paired.
4. Unpair at the Bluetooth® source to disconnect. A sound indicates that the Bluetooth® is deactivated.

Note:

• Keep the range of 1 meter when pairing.
• Up to 10 meters reception range while music playback via Bluetooth®.
• Before pairing a Bluetooth® AV source, refer to the AV source user guide regarding safety instructions and use with other devices.

MOBILEPHONE

1. To pick up an incoming call, press once button shortly.
2. To end a call, press button again or end the call directly on your mobile phone.

Note:

Phone calls will always be the top priority. When an incoming/outgoing call is being progressed, it actively interrupts the music playback. As soon as the call has been ended, the music resumes.

MUSIC PLAYBACK

1. Start the music playback on the Bluetooth® AV source or press button at the speaker (if supported).
2. Press the button or shortly to skip title forward or back.

Audio input (AUX)

Attention:

Before you connect your external player (for example an MP3 player), refer to its user guide regarding safety instructions and use with other devices.

1. Connect the stereo cable to the AUX jack.
2. Insert the other end of the cable into the headphone or LINE OUT jack of the external device.

Note:

• Disconnect the Bluetooth® connection with audio sources before connecting an external device via AUX.
• Switch the external player on and turn its volume to zero.
• Turn the speaker system on and regulate the volumes of both devices.

LED light effects

You can set different light effects with this speaker. Press the button to choose continuously light, slow or fast color changing, color changing according to the rhythm of the music or without light effect.

Reset

Press the RESET button with a suitable item (e.g. paper clip) to reset the product.

Cleaning and care

• Switch off the device before cleaning.
• Clean the device with a soft, damp cloth and a mild cleaning agent. Finish by wiping it with a dry cloth.
• Do not use alcohol, acetone, benzene, scouring cleansers etc. to clean the device. Do not use hard brushes or metal objects.

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible	causes Solution
Product does not function	·Battery empty ·Recharge batteries
Light does not work	·Battery empty ·Light was not activated	·Recharge batteries ·Press the light button to activate the light function.
No Sound · Volume	·Adjust the volume ·Check and turn off mute on the external device.
Poor audio quality with Bluetooth® connection	·Poor Bluetooth® reception	Move both devices closer together or remove any obstacles between.
No Bluetooth® connection	·The external device does not support the profiles for this product. ·Bluetooth® function is disable.	·Try to pair with another external device. ·Enable the Bluetooth® function.

Technical Data

Power supply : 5 V 1 A

Speaker unit : 45 mm x 1

Output power of speaker : 5 W

Power consumption : Max. 7.5 W

Bluetooth®

Frequency range : 2.4 GHz - 2.4835 GHz

max RF : -9 dBm

Declaration Of Conformity

Hereby, [Imtron GmbH] declares that the radio equipment type [PPA34BT-B] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.peaq-online.com/nc/suche/

Disposal

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product.
