USER MANUAL PPA40BTB PEAQ

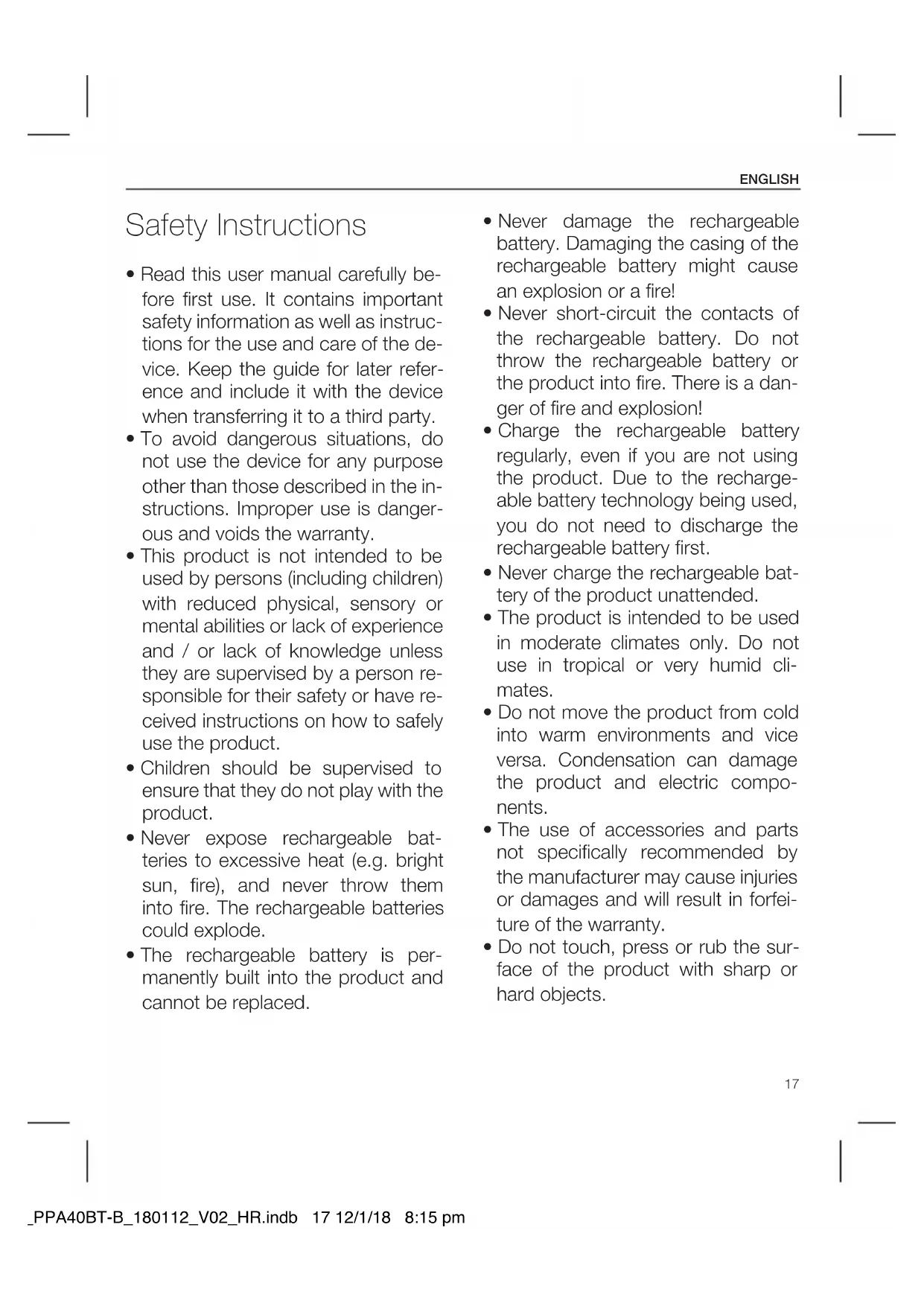

• Read this user manual carefully be- fore first use. It contains important safety information as well as instruc- tions for the use and care of the de- vice. Keep the guide for later refer- ence and include it with the device when transferring it to a third party.

• To avoid dangerous situations, do not use the device for any purpose other than those described in the in- structions. Improper use is danger- ous and voids the warranty.

• This product is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person re- sponsible for their safety or have re- ceived instructions on how to safely use the product.

• Children should be supervised to ensure that they do not play with the product.

• Never expose rechargeable bat- teries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The rechargeable batteries could explode.

• The rechargeable battery is per- manently built into the product and cannot be replaced.

• Never damage the rechargeable battery. Damaging the casing of the rechargeable battery might cause an explosion or a fire!

• Never short-circuit the contacts of the rechargeable battery. Do not throw the rechargeable battery or the product into fire. There is a dan- ger of fire and explosion!

• Charge the rechargeable battery regularly, even if you are not using the product. Due to the recharge- able battery technology being used, you do not need to discharge the rechargeable battery first.

• Never charge the rechargeable bat- tery of the product unattended.

• The product is intended to be used in moderate climates only. Do not use in tropical or very humid cli- mates.

• Do not move the product from cold into warm environments and vice versa. Condensation can damage the product and electric compo- nents.

• The use of accessories and parts not specifically recommended by the manufacturer may cause injuries or damages and will result in forfei- ture of the warranty.

• To reduce the risk of fire or electric shock, do not expose the device to rain or humidity.

• Do not impede ventilation by cov- ering the ventilation openings with items, such as newspapers, table- cloths, curtains, etc. Do not insert any objects.

• No naked flame sources, such as lighted candles, should be placed on the product.

• Make sure no objects or liquids penetrate through openings into the housing.

• Never immerse electric parts of the product in water or other liquids while cleaning or using it. Never place the product under running water.

• Do not place the product in the vi- cinity of devices producing strong magnetic fields (for example motors, loudspeakers, transformers).

• Do not expose the product to di- rect sunlight, humidity, dirt, hot light sources or strong magnetic fields. Do not expose the product to high temperatures and strong vibrations and avoid high mechanical stress.

• The product may not function prop- erly or not react to the operation of any control due to electrostatic dis- charge. Switch o and disconnect the product; reconnect/switch on after a few seconds.

• If the product shows damages, do not use it any longer and have it re- paired by a qualified technician, or contact our customer service depart- ment. Do not disassemble the prod- uct, and do not try to repair it yourself.

• When disposing of the product, please consult an electrician or your retailer to remove and dispose of the built in batteries in an environmen- tally friendly manner. Disposal Do not dispose of this appli- ance as unsorted municipal waste. Return it to a desig- nated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more in- formation. Please dispose of batteries in an environmentally friendly manner Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product. IM_PPA40BT-B_180112_V02_HR.indb 18 12/1/18 8:15 pm19 ENGLISH Intended use The product is intended only for sound reproduction, phone call reception via Bluetooth

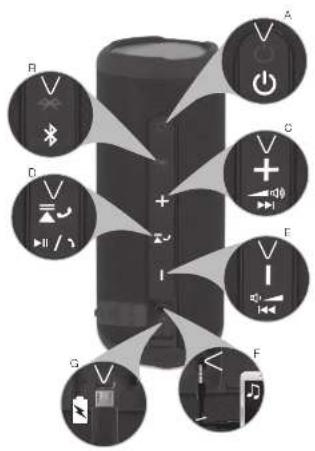

and sound reproduction via audio cable inlet (AUX IN). Use the product only as described in this manual. The Imtron GmbH assumes no liability for damage to the product, for prop- erty damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer’s specified purpose. Components A. Power button B. Bluetooth

button with control LED C. Volume +/ title skip forward D. Playback/ Pause/ Call answer/ hang up E. Volume –/ title skip back F. Audio input AUX-IN G. Micro-USB-input H. Water resistant cover

J. Anti-slip stand Accessories 1 x Bluetooth

Speaker 1 x Micro-USB-cable 1 x User manual Compatibility This product is compatible with Blue- tooth

enabled mobile phones and music devices. It features Bluetooth

version 4.1+EDR. It also works with devices featuring other Bluetooth

versions that support e.g. Wireless Hands-Free communication

• HFP (Hands-free Profile) Wireless stereo listening

• A2DP (Advanced Audio Distribution Profile) Wireless music control

• Read this user guide carefully to avoid damages or injuries due to improper use. Pay special attention to the safety instructions. Keep the instructions for future reference and include them when transferring the device to third persons.

• The device must be charged be- fore the first use. Please refer to the chapter “Charging the battery”.

• Carefully remove all packaging materials and check the device for completeness and completeness. Do not use a damaged device.

• Pair the speaker with a Bluetooth

mobile phone first. Please refer to the chap- ters “Pairing”.

Speaker ID is PPA40BT-B. Operation

To turn the speaker on, press and hold the On/o switch for approx. 2-3 seconds. The Bluetooth

button LED flashes in red and blue. Press the On/o switch until the speaker turns itself o.

ADJUSTING THE VOLUME

Press the button or to adjust the volume. Danger! Excessive sound pressure from earphones and headphones can cause hearing loss. If you listen to loud mu- sic for a long time, your hearing may be impaired. Set to a moderate vol- ume. Charging the battery

1. Connect the USB cable (included)

2. Connect the other end of the USB

cable to the USB port of the com- puter or a USB-charger.

3. During charging the control LED of

the power button shines continu- ously red. Note During the battery charging process the speaker can be operated. It will take approx. 4 hours to fully charge the battery. LED Status Power LED (color: red) LED shines continuously: Battery charging.

• LED flashes in red: Battery level is lower than 20%. Battery must be re-charged.

• LED turns o: Battery charging complete. IM_PPA40BT-B_180112_V02_HR.indb 20 12/1/18 8:15 pm21 ENGLISH

• Bluetooth button: LED flashing in red and blue: Turned on and ready for Bluetooth

• LED shines continuously in blue: Paired with a Bluetooth

1. Press and hold the power button

until a sound sequence rings and the Bluetooth

control LED starts flashing in red and blue. The speaker is ready for pairing.

function on the audio device. Connect the Bluetooth

-AV-source with the speaker via Bluetooth

3. A short melody will indicate that

both devices are successfully paired. The Bluetooth

control LED turns on continuously in blue.

source to disconnect. A sound indicates that the Bluetooth

connection is deactivated. You can also long press to unpair. Note:

• Keep both devices within the range of 1 meter when pairing.

• Up to 10 meters reception range while music playback via Bluetooth

source, refer to the AV source user guide regarding safety instructions and use with other devices. MOBILE PHONE

1. To pick up an incoming call, short-

again or end the call directly on your mobile phone. Note: Phone calls will always be the top pri- ority. When an incoming/outgoing call is being progressed, it actively inter- rupts the music playback. As soon as the call has been ended, the music resumes. MUSIC PLAYBACK

1. Start the music playback on the

Audio input (AUX IN) Attention: Before you connect your external player (for example a MP3 player), re- fer to its user guide regarding safety instructions and use with other de- vices.

1. Connect the stereo cable to the

into the headphone or LINE OUT jack of the external device. Note:

con- nection with audio sources before connecting an external device via AUX-IN.

• Switch the external player on and turn its volume to zero.

• Turn the speaker system on and regulate the volumes of both de- vices. IPX7 - Protection against rain, splashing and accidental submersion The product is protected from ac- cidental immersion in water with a depth up to 1m for up to 30 minutes. Note: Protection only when the water resist- ant cover is correctly closed. Cleaning and care

• Switch o the device before cleaning.

• Clean the device with a soft, damp cloth and a mild cleaning agent. Fin- ish by wiping it with a dry cloth.

• Do not use alcohol, acetone, ben- zene, scouring cleansers etc. to clean the device. Do not use hard brushes or metal objects. Declaration of conformity Hereby, [Imtron GmbH] declares that the radio equipment type [PPA 40BT- B] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.peaq-online.com/nc/ suche/ IM_PPA40BT-B_180112_V02_HR.indb 22 12/1/18 8:15 pm23 ENGLISH Troubleshooting If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer. Problem Possible causes Solution Product does not function

• Battery empty •Recharge batteries No Sound •Volume is very low

• External device is muted

• Check and turn o mute on the external device. Poor audio quality with Bluetooth

• Move both devices closer together or remove any obstacles between. No Bluetooth

• The external device does not support the profiles for this product

• Try to pair with another external device.
