USER MANUAL SIG 2400 Basic STANLEY

www.matrix-direct.net Stanley is a registered trademark of The Stanley Works or its affiliates and is used under license. Produsert under lisens av: MATRIX GmbH

The generator must not be connected to the public power supply. In case of improper connection there is a risk of fire and damage to property including electrocution to persons using the generator and working on the public power supply. Warning hazardous voltages are present when the generator is in use, Always switch the generator off before performing maintenance. Wear ear protection when using the generator. Earth connection Disconnect all equipment from the socket outlets when performing maintenance or when left unattended and switched off. Choke lever Petrol cock

Warning: the gasoline is highly

volatile, flammable and explosive.

Warning: Check the oil level

before operation. Important! When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

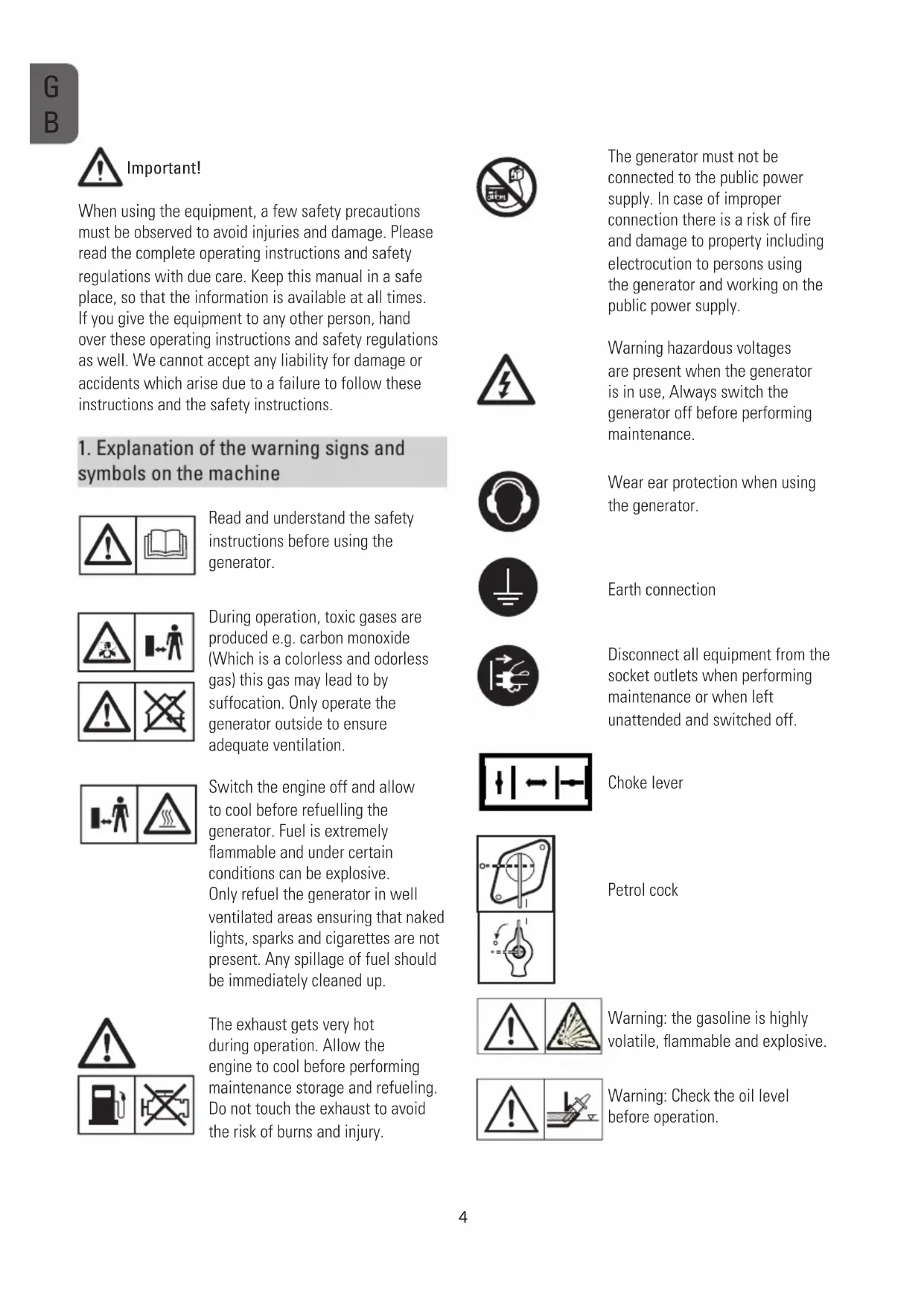

1. Explanation of the warning signs and

symbols on the machine Read and understand the safety instructions before using the generator. During operation, toxic gases are produced e.g. carbon monoxide (Which is a colorless and odorless gas) this gas may lead to by suffocation. Only operate the generator outside to ensure adequate ventilation. Switch the engine off and allow to cool before refuelling the generator. Fuel is extremely flammable and under certain conditions can be explosive. Only refuel the generator in well ventilated areas ensuring that naked lights, sparks and cigarettes are not present. Any spillage of fuel should be immediately cleaned up. The exhaust gets very hot during operation. Allow the engine to cool before performing maintenance storage and refueling. Do not touch the exhaust to avoid the risk of burns and injury.

2. General safety instructions

- No changes may be made to the generator. - Only original parts may be used for maintenance and accessories. - Important: Danger of poisoning, do not inhale emissions. - Children are to be kept away from the generator. - Important: Risk of burns. Do not touch the exhaust system or drive unit. - Wear suitable ear protection when in the vicinity of the equipment. - Important: Petrol and petrol fumes are highly combustible or explosive. - Never operate the generator in non-ventilated rooms or in easily inflammable adjacency. When operating the generator in rooms with good ventilation, the exhaust gases must be channeled directly outdoors through an exhaust hose. Important: Toxic exhaust gases can escape despite the exhaust hose. Due to the fire hazard, never direct the exhaust hose towards inflammable materials. - Risk of explosion: Never operate the generator in rooms with combustible materials. - The speed preset by the manufacturer is not allowed to be changed. The generator or connected equipment may be damaged. - Secure the generator against shifting and toppling during transport. - Place the generator at least 1m away from buildings and the equipment connected to it. - Place the generator in a secure, level position. Do not turn, tip or change the generator's position while it is working. - Always switch off the engine when transporting and refueling the generator. - Make sure that when you refuel the generator no fuel is spilt on the engine or exhaust pipe. - Never operate the generator in rain or snow. - Never touch the generator with wet hands. - Guard against electric danger. When working outdoors, use only extension cables that are approved for outdoor use and which are marked accordingly (H07RN..). - The overall length of the extension cables used may not exceed 50 m for 1.5 mm

and 100 m for 2.5 mm

- No changes may be made to the settings of the motor or generator. - Repairs and adjustment work may only be carried out by authorized trained personnel. - Do not refuel or empty the tank near open lights, fire or sparks. Do not smoke! - Do not touch any mechanically driven or hot parts. Do not remove the safety guards. - Do not expose the tools to damp or dust. Permissible ambient temperature – 10 to + 40°C, max. altitude above sea level 1000 m, relative humidity: 90 % (non- condensing) - The generator is driven by a combustion engine, which produces heat in the area of the exhaust (on the opposite side of the sockets) and the exhaust outlet. You should therefore keep clear of these surfaces because of risk of skin burns. - The values quoted in the technical data for sound power level (LWA) and sound pressure level (LWM) are emission values and not necessarily reliable workplace values. As6

there is a correlation between emission and immission levels, the values are not a reliable basis for deciding on any additional precautions which may be needed. Factors influencing the actual user immission level include the properties of the work area, other sound sources etc., the number of machines and other processes in the vicinity, as well as the time span in which the operator is subjected to the noise. Also, the permitted immission level can vary from country to country. Nevertheless, with this information the user is able to make a better assessment of the dangers and risks involved. - Never use faulty or damaged electrical equipment (this also applies to extension cables and plug connections). CAUTION! Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

The device is designed for applications operated with a 230 V alternating current source. Be sure to observe the restrictions in the safety instructions. The generator is intended to provide electric tools and light sources with electricity. When using the device with household appliances, please check their suitability in accordance with the relevant manufacturer’s instructions. In case of doubt, ask an authorized dealer of the respective appliance. The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

SG 2400 Basic Generator type: Synchronous Protection type: IP 23M Continuous rated power Prated (S1): 2.1 kW Maximum power Pmax : 2.4 kW Rated voltage Urated: 2* 230 V~ Rated current Irated: 9.1 A Frequency Frated: 50 Hz Drive engine design: Single-cylinder forced air-cooled 4-stroke OHV Displacement: 196 cm

Fuel type: Normal unleaded petrol Tank capacity: 15 l Engine oil: Appox.0.6 l (15W40/<0

C: 5W30) Consumption at 2/3 load: 1.5 L/h Weight: 37 kg Guaranteed sound power level L

: 1 Power class: G1 Max. temperature: 40 °C Max. altitude (above mean sea level): 1000 m Spark plug: LD F7RTC/ F6TC Operating mode S1 (continuous operation) The machine can be continuously operated with the quoted power output. Operating mode S2 (temporary operation) The machine may be temporarily operated with the quoted power output. Afterwards the machine must be stopped for a while to prevent it from overheating

6. Before putting the machine into operation

6.1 Electrical safety

- Electric supply cables and connected equipment must be in perfect condition. - The generator is to be operated only with equipment whose voltage specifications conform to the generator's output voltage. - Never connect the generator to the power supply (socket-outlet). - Keep the cable length to the consumer as short as possible.

6.2 Environmental protection

- Dispose of soiled maintenance material and operating materials at the appropriate collection point. - Recycle packaging material, metal and plastics.

6.3 Connecting to earth

The housing is allowed to be connected to earth in order to discharge static electricity. To do this, connect one end of a cable to the earth connection (5) on the generator and the other end to an external earth (for example an earthing rod).

Important! You must fill up with engine oil (see Fig 2) and fuel before you can start the engine.

- Check the fuel level and top it up if necessary. - Make sure that the generator has sufficient ventilation. - Make sure that the ignition cable is secured to the spark plug. - Inspect the immediate vicinity of the generator. - Disconnect any electrical equipment which may already be connected to the generator.

7.1 Starting the engine

- Do not connect the power tool before starting the motor. - Open the petrol cock (14) by turning it down. - Move the ON/OFF switch (11) to position "I”. - Move the choke lever (12) to position IØI. - Start the engine with the pull cord (13) by pulling the handle forcefully. If the engine does not start, pull the handle again. - Push the choke lever (12) back again after the engine has started. Important! When starting with the pull cord, the motor may recoil suddenly as it starts up, resulting in hand injuries. Wear protective gloves when starting the equipment.

7.2 Connecting consumers to the generator

Connect the equipment you want to use to the socket- outlets (3) Important: - These sockets may be loaded continuously (according S1value) and temporarily (according S2 value). - Do not connect the generator to the domestic power network as this may result in damage to the generator itself or to other electrical appliances in your home. Note: Some electrical appliances (power jigsaws, drills, etc.) may have a higher level of power consumption when used in difficult conditions.

7.3 Switching off the engine

- Before you switch off the generator, allow it to run briefly with no consumers so that it can "cool down”. - Move the ON/OFF switch (11) to position "O”. - Close the petrol cock.8

7.4 Overload cut-out for socket-outlets

Important! The generator is fitted with an overload cut- out. This shuts down the sockets (3). You can restart the sockets (3) by pressing the overload cut-out (6). Important! If this happens, reduce the electric power you are taking from the generator or remove any defective connected appliances. Important! Defective overload cut-outs must be replaced only by overload cut-outs of identical design and with the same performance data. If repairs are necessary, please contact your customer service center.

8. Cleaning, maintenance and storage

Switch off the motor and pull the spark plug boot from the spark plug before doing any cleaning and maintenance work on the equipment. Important: Switch off the machine immediately and contact your service station: - In the event of unusual vibrations or noise. - If the engine appears to be overloaded or misfires.

- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure. - We recommend that you clean the device immediately each time you have finished using it. - Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

8.2 Air filter (Fig. 4)

In this connection, please also read the service information. - Clean the air filter at regular intervals, and replace it if necessary. - Open both clips and remove the air filter cover (Fig 4). - Remove the filter elements (Fig. 4). - Do not use abrasive cleaning agents or petrol to clean

the elements. - Clean the elements by tapping them on a flat surface. In cases of stubborn dirt first clean with soapy water, and then rinse with clear water and air dry. - Assemble in reverse order. 8.3. Spark plug (Fig. 5) Check the spark plug (item 19) for dirt and grime after 20 hours of operation and if necessary clean with a copper wire brush. Thereafter service the spark plug after every 50 hours of operation. - Pull off the spark plug boot with a twist. - Remove the spark plug with the supplied spark plug wrench. - Assemble in reverse order.

8.4 Changing the oil and checking the oil level

(before using the machine) (Fig. 2) The motor oil is best changed when the motor is at working temperature. - Only use motor oil (15W40/<0

C: 5W30). - Place the generator on a slightly inclined surface so that the oil drain plug is at the lower end. - Open the oil filler plug (8). - Open the oil drain plug (9) and let the hot engine oil drain out into a drip tray. - After the old oil has drained out, close the oil drain plug and place the generator on a level surface again. - Fill in engine oil up to the top mark on the oil dip stick. - Important: Do not screw the dipstick in to check the oil level, simply insert it up to the thread. - Dispose of the waste oil properly.

8.5 Oil shortage cut-out

The oil shortage cut-out (10) responds if there is too little oil in the engine. In this case it will not be possible to start the engine or it will cut out automatically after a short period of time. It cannot be started again until the engine oil has been topped up (see point 8.4).9

9. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

These requirements must be met:

• Generator is turned off

• Generator is cooled down

• Petrol cock (14) is at "OFF" position

• At least one person per transportation handle (15) ATTENTION! Slipping or falling unit can crush hands and feet. Carry the generator on transportation handles:

• Lift the generator evenly

• Carry the generator to the operating place

• Drop the generator evenly

Fault Cause Remedy Engine does not start Oil shortage cut-out has not responded Spark plug fouled No fuel Battery voltage too low Check oil level, top up engine oil Clean or replace spark plug (electrode spacing 0.6 mm) Refuel / check the petrol cock Charge the battery Generator has too little or no voltage Controller or capacitor defective Overload cut-off has triggered Air filter dirty Contact your dealer Actuate the circuit-breaker and reduce the consumers Clean or replace the filter

12. Maintenance schedule

Regular service period Perform at every indicated month or operating hour interval, whichever comes first. ITEM Each use First month

200 Hrs. Engine oil Check level Change

hereby declares the following conformity under the EU Directive and standards for the following article

This appliance is a quality product. It was designed in compliance with current technical standards and made carefully using normal, good quality materials. The warranty period is 24 months and commences on the date of purchase, which can be verified by the receipt, invoice or delivery note. During this warranty period all functional errors, which, despite the careful treatment described in our operating manual, are verifiably due to material aws, will be rectified by our after-sales service staff. The warranty takes the form that defective parts will be repaired or replaced with perfect parts free of charge at our discretion. Replaced parts will become our property. Repair work or the replacement of individual parts will not extend the warranty period not will it result in a new warranty period being commenced for the appliance. No separate warranty period will commence for spare parts that may be fitted. We cannot offer a warranty for damage and defects on appliances or their parts caused by the use of excessive force, improper treatment and servicing. This also applies for failures to comply with the operating manual and the installation or spare and accessory parts that are not included in our range of products. In the event of interference with of modifications to the appliance by unauthorised persons, the warranty will be rendered void. Damages that are attributable to improper handling, over loading, or natural wear and tear are excluded from the guarantee. Damages caused by the manufacturer or by a material defect will be corrected at no charge by repair or by providing spare parts. The prerequisite is that the equipment is handed over assembled, and complete with the proof of sale and guarantee. For a guarantee claim, only use the original packaging. That way, we can guarantee quick and smooth guarantee processing. Please send us the appliances post-paid or request a Freeway sticker. Unfortunately we will be unable to accept appliances that are not postpaid. The warranty does not cover parts that are subject to natural wear and tear. If you wish to make a warranty claim, report faults or order spare parts or accessories, please contact the after-sales centre below: Subject to change without prior notice. Please check our service centres at www.matrix-direct.net. GARANTIE

WARRANTY Purchased at: in (city, street): Name of customer: Street address: Postal code, city: Telephone: Date, signature: Fault description:
