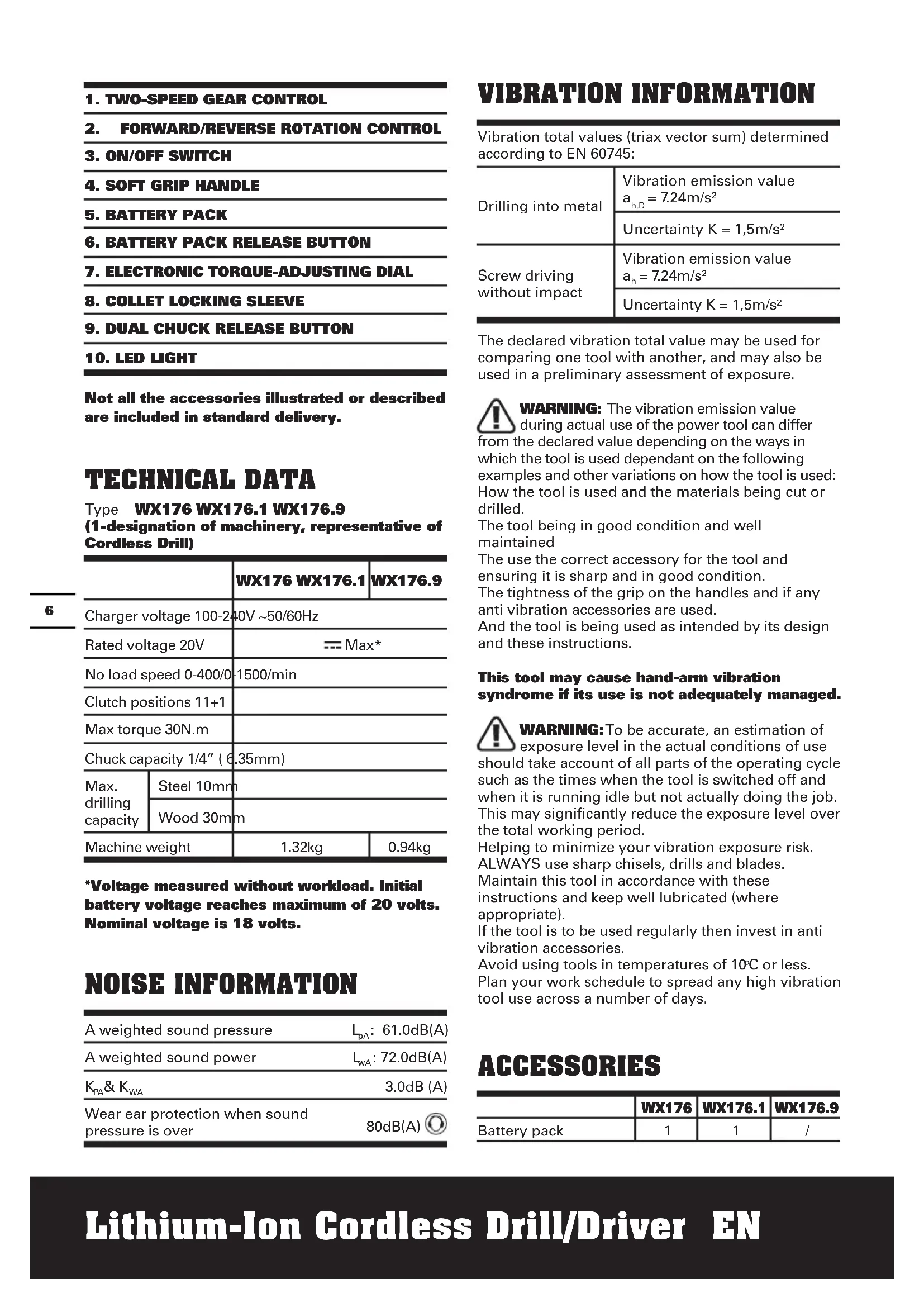

Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type WX176 WX176.1 WX176.9 (1-designation of machinery, representative of Cordless Drill) WX176 WX176.1 WX176.9 Charger voltage 100-240V ~50/60Hz Rated voltage 20V Max* No load speed 0-400/0-1500/min Clutch positions 11+1 Max torque 30N.m Chuck capacity 1/4” ( 6.35mm) Max. drilling capacity Steel 10mm Wood 30mm Machine weight 1.32kg 0.94kg *Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts. NOISE INFORMATION A weighted sound pressure L

3.0dB (A) Wear ear protection when sound pressure is over 80dB(A) VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745: Drilling into metal Vibration emission value

h,D = 7.24m/s² Uncertainty K = 1,5m/s² Screw driving without impact Vibration emission value

= 7.24m/s² Uncertainty K = 1,5m/s² The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value

during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of

exposure level in the actual conditions of use should take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period. Helping to minimize your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories. Avoid using tools in temperatures of 10

C or less. Plan your work schedule to spread any high vibration tool use across a number of days. ACCESSORIES WX176 WX176.1 WX176.9 Battery pack 1 1 /7 Lithium-Ion Cordless Drill/Driver EN Charger 1 1 / 16pc Drill bit set (WA1115) 1 / 1 100pc Drill bit set (WA1114) / 1 / We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. Recommended pilot-hole size for Screws

1. Use auxiliary handle(s), if supplied with the

tool. Loss of control can cause personal injury.

2. Hold power tool by insulated gripping

surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

1. Hold power tool by insulated gripping

surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

BATTERY PACK a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Seek medical advice immediately if a cell or battery pack has been swallowed. g) Keep battery pack clean and dry. h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure. j) Do not maintain battery pack on charge when not in use.

After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.

Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C). m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. o) Do not use any battery pack which is not designed for use with the equipment. p) Keep battery pack out of the reach of children. q) Retain the original product literature for future reference. r) Remove the battery from the equipment when not in use. s) Dispose of properly. SYMBOLS To reduce the risk of injury, user must read instruction manual8 Lithium-Ion Cordless Drill/Driver EN Warning Wear ear protection Wear eye protection Wear dust mask Do not expose to rain or water. Do not burn Wear protective gloves Li-I on Do not dispose of batteries, Return exhausted batteries to your local collection or recycling point. Great torque Small torque Wood Metal High speed Low speed Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. xINR18/65-y: Cylindrical lithium Ion battery cells with max diameter of 18mm and max height of 65mm; “x” represents a number cells serial connected, blank if 1; “-y” represents a number of cells paralleled connected, blank if 1. OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE The machine is intended for drilling (including pilot hole) in wood, metal and plastic as well as for driving and removing fasteners. ASSEMBLY AND OPERATION ACTION FIGURE BEFORE OPERATION Removing the Battery Pack See Fig. A1 Charging the Battery Pack More details can be found in charger’s manual See Fig. A2 Installing the Battery Pack See Fig. A3 ASSEMBLY Inserting the Bits See Fig. B Removing the Bits See Fig. C9 Lithium-Ion Cordless Drill/Driver EN OPERATION Rotating the Dual Chuck See Fig. D FORWARD/REVERSE ROTATION CONTROL

WARNING: Never change

the direction of rotation when the chuck is rotating, wait until it has stopped! See Fig. E1, E2, E3

gear damage, always allow the chuck to come to a complete stop before changing gears. See Fig. F Drilling/driving Torque Setting See Fig. G

operate for long periods at low speed because excess heat will be produced internally. See Fig. H USING THE LED LIGHT(See Fig. H)

WARNING: To turn on the light, press the On/

Off Switch and make sure the Forward/Reverse Rotation Control is on right/left position. The LED Light is also a battery capacity indicator. It will flash when power gets low. LED lighting increases visibility-great for dark or enclosed area. LED is also a battery capacity indicator. It will flash when power gets low. The tool and battery pack are equipped with a protection system. When the LED Light is quickly flashing and turn off, the system will automatically cut off power to the tool to extend battery life. The tool will automatically stop during operation if the tool and/or battery pack are placed under one of the following conditions:

• Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, release the Trigger Switch on the tool and stop the application that caused the tool to become overloaded. Then pull the Trigger Switch again to restart.

• Overheated: Under the condition above, if the tool does not start, the Tool and Battery Pack are overheated. In this situation, let the Tool and Battery Pack cool before pulling the Trigger Switch again.

• Low battery voltage: The remaining Battery capacity is too low and the tool will not operate. In this situation, remove and recharge the Battery Pack. TROUBLESHOOTING

1. WHY DOES THE DRILL NOT TURN ON WHEN

YOU PRESS THE SWITCH? The Forward/Reverse Rotation Control, which is on top of the trigger, is positioned in the lock function. Unlock the Forward/Reverse Rotation Control by putting it into the required rotation position. Push the trigger and the drill will start to rotate.

2. THE DRILL STOPS BEFORE THE SCREW IS

COMPLETELY TIGHTENED. WHY? Verify the torque position of the Electronic Torque- Adjusting Dial. Find the Electronic Torque-Adjusting Dial (7) at the end of the soft grip handle. Position 1 is the lowest torque (screw driving force) and position 11 is the highest torque (screw driving force). Position is for drilling operation. Regulate the Electronic Torque-Adjusting Dial to a higher position to reach better result.

3. REASONS FOR DIFFERENT BATTERY PACK

WORKING TIMES Charging time problems, and having not used a Battery Pack (8) for a prolonged time will reduce the Battery Pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the Battery Pack energy faster than lighter working conditions. Do not re-charge your Battery Pack below 0°C(32°F) and above 45°C (113°F)word as this will affect performance.

4. WHY DRILL BITS CAN NOT BE INSERTED

INTO THE COLLET ? Only 1/4” hex bits will work with this collet. We recommend that you use the dills/bits like those supplied with your Switchdriver.

5. WHY DOES THE DRILL NOT WORK AFTER

ROTATING THE DUAL CHUCK? The drill can work only when the Dual Chuck is in right position as shown in Fig. H. When the Dual Chuck reaches proper position, you can hear a “click” sound.111010 Lithium-Ion Cordless Drill/Driver EN MAINTENANCE Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance. Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool. ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. DECLARATION OF CONFORMITY We, POSITEC Germany GmbH Konrad-Adenauer-Ufer 37 50668 Köln Declare that the product, Description WORX Lithium-ion cordless drill/ driver Type WX176 WX176.1 WX176.9 (1-designation of machinery, representative of Cordless Drill) Function Drilling/Tightening and loosening screws, nuts Complies with the following Directives, 2006/42/EC 2011/65/EU 2004/108/EC (before 2016/04/20) 2014/30/EU (since 2016/04/20) Standards conform to EN 55014-1 EN 55014-2 EN 60745-1 EN 60745-2-1 EN 60745-2-2 The person authorized to compile the technical file, Name Russell Nicholson Address Positec Power Tools (Europe)Ltd, PO Box 152, Leeds, LS10 9DS, UK Suzhou 2016/01/05 Allen Ding Deputy Chief Engineer,Testing & Certification1110 Schnurloser Lithium-Ionen-Bohrer/ Schraubendreher
