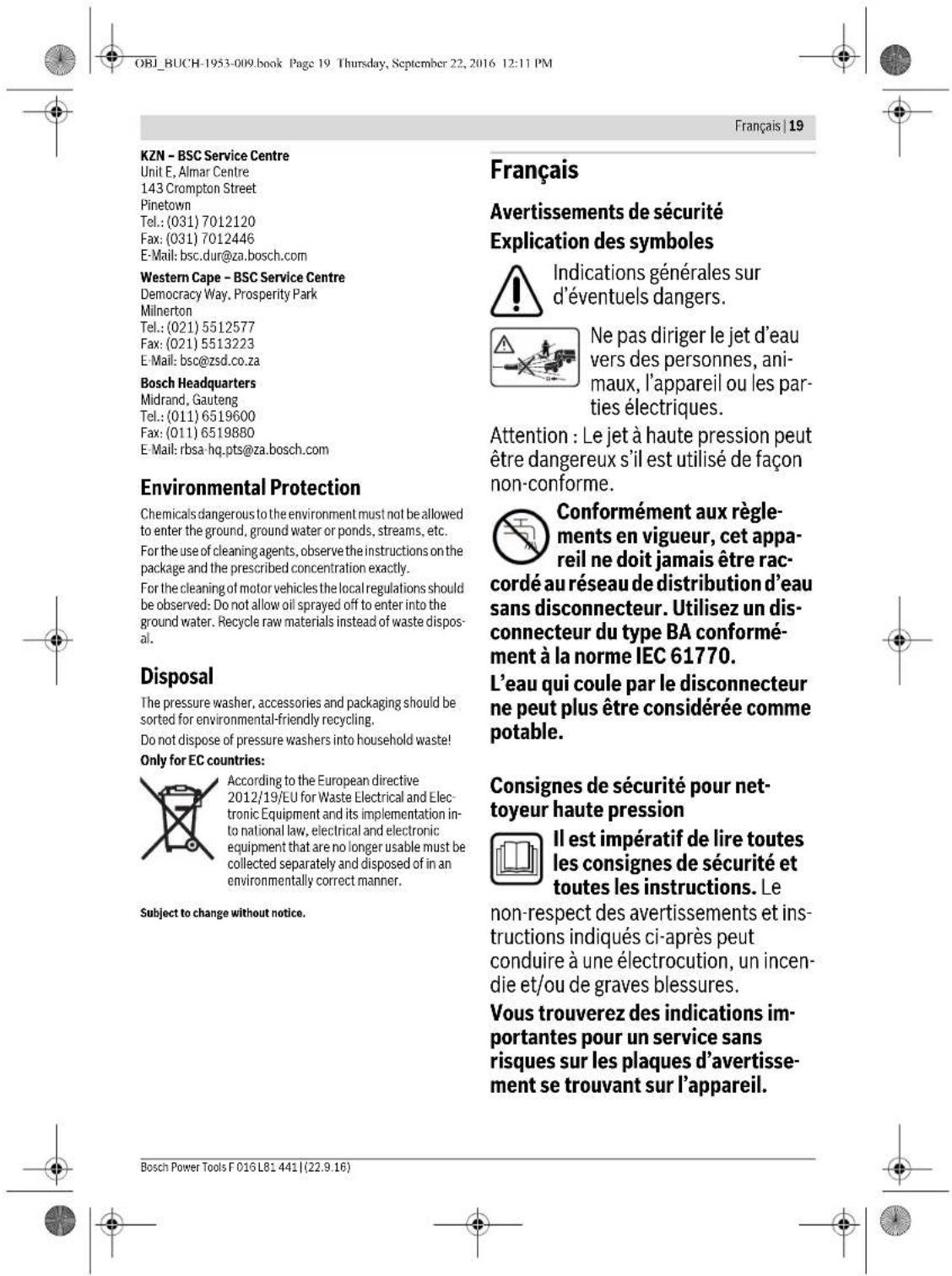

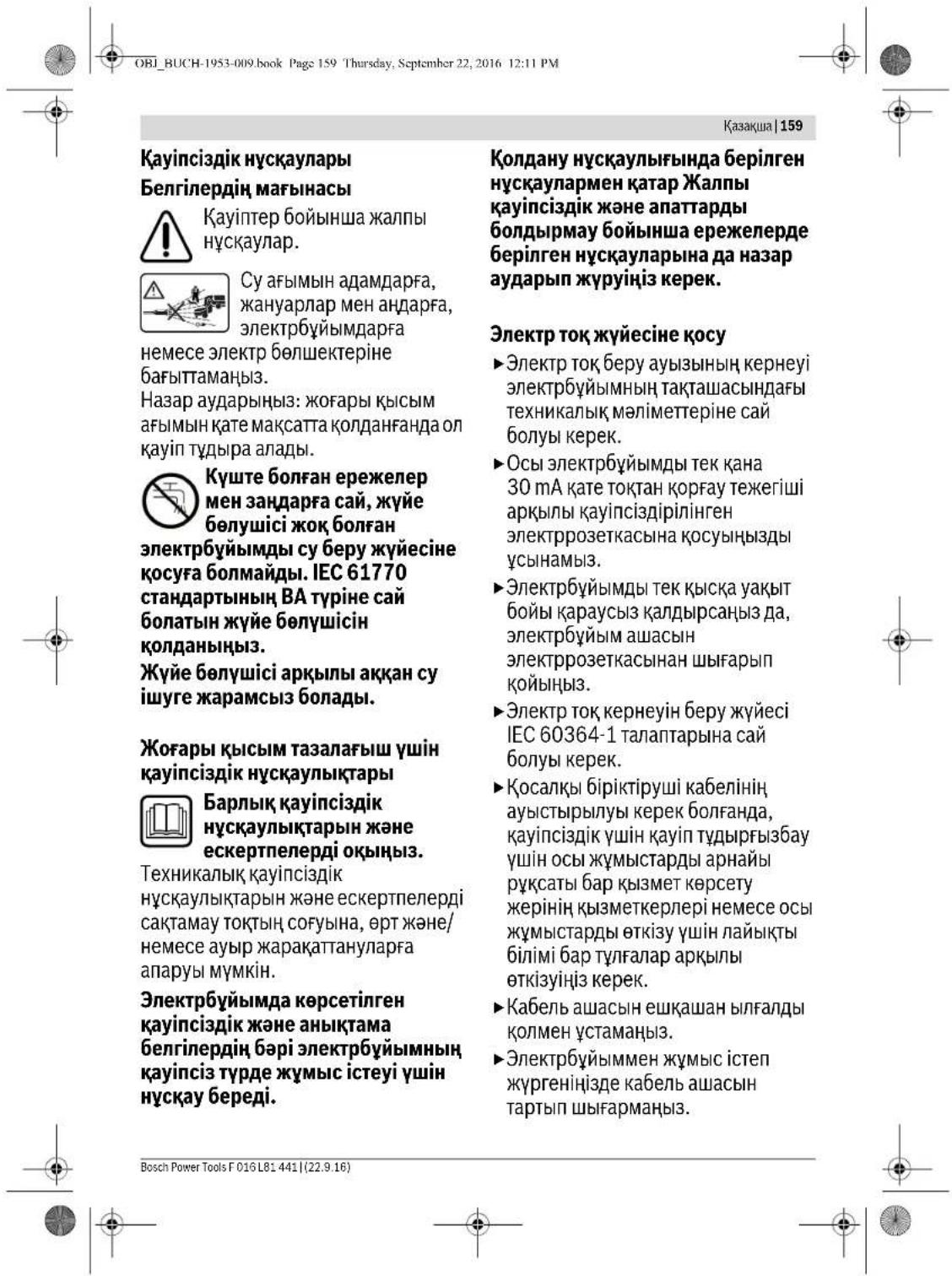

Explanation of symbols

General hazard safety alert.

Never direct the water jet at people, animals, the unit or electric components.

Warning: High pressure jets can be dangerous if subject to misuse.

According to the applicable regulations, the appliance must never be used on the

drinking water network without a system separator. Use a separator as per IEC 61770 Type BA.

Water flowing though a system separator is considered not drinkable.

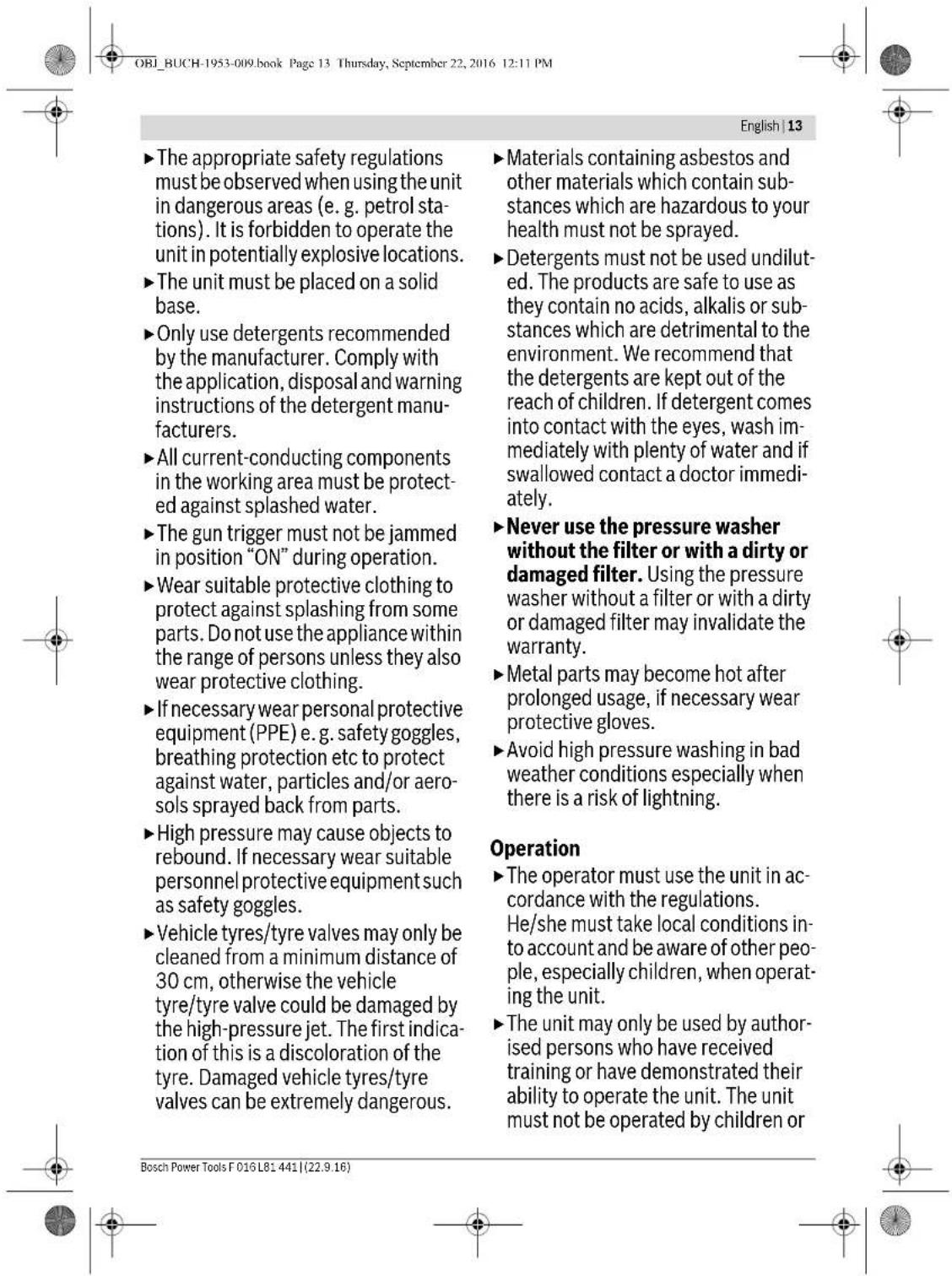

Safety Notes for pressure washer

Read all safety warnings and all instructions. Failure to follow the warnings and instruc

tions may result in electric shock, fire and/or serious injury.

The warning and information signs attached to the unit provide important information for safe operation.

Apart from the information in the operating instructions comply with the general safety regulations and regulations for the prevention of accidents.

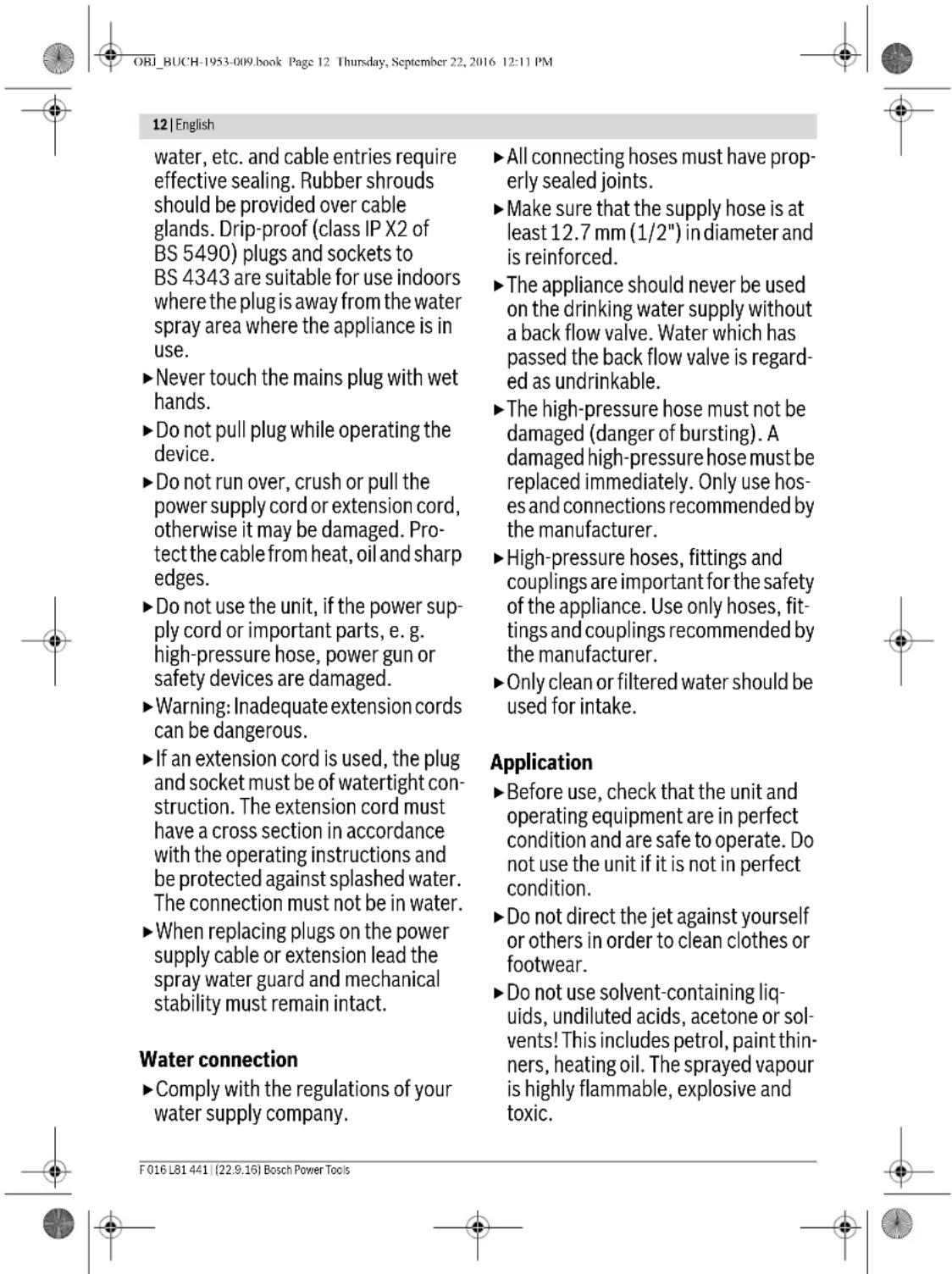

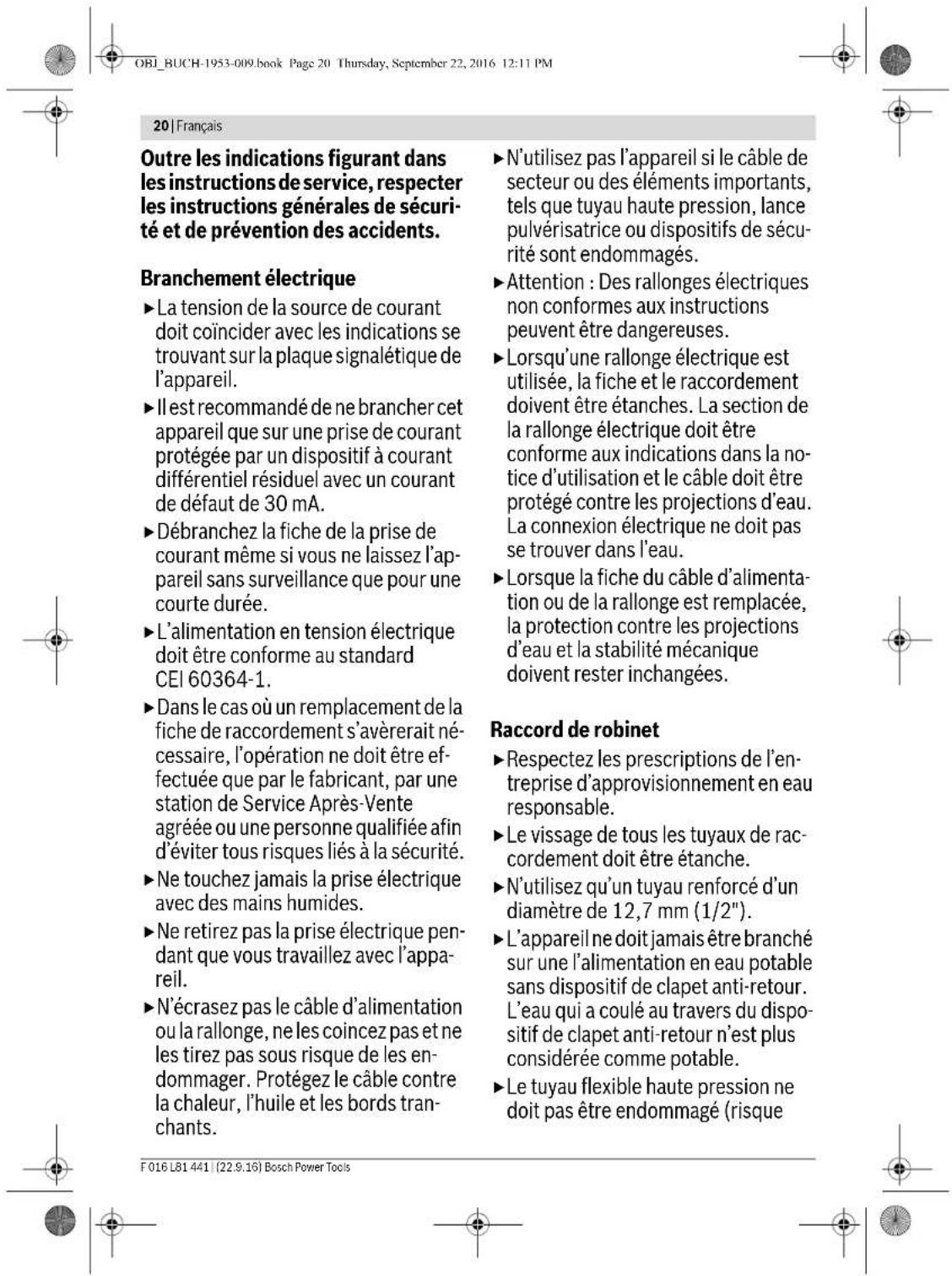

Connecting to the mains

The voltage indicated on the rating plate must correspond to the voltage of the power source.
We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30mA residual current.
- Remove the plug from socket whenever the machine is left unattended for any period.
The electric supply installation should comply with IEC 60364-1.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
If the plug is damaged, pay attention to the following:
Plugs and sockets situated near the work site or outdoors should be to class IP 55 of BS 5490 to provide adequate protection against ingress of

14|English

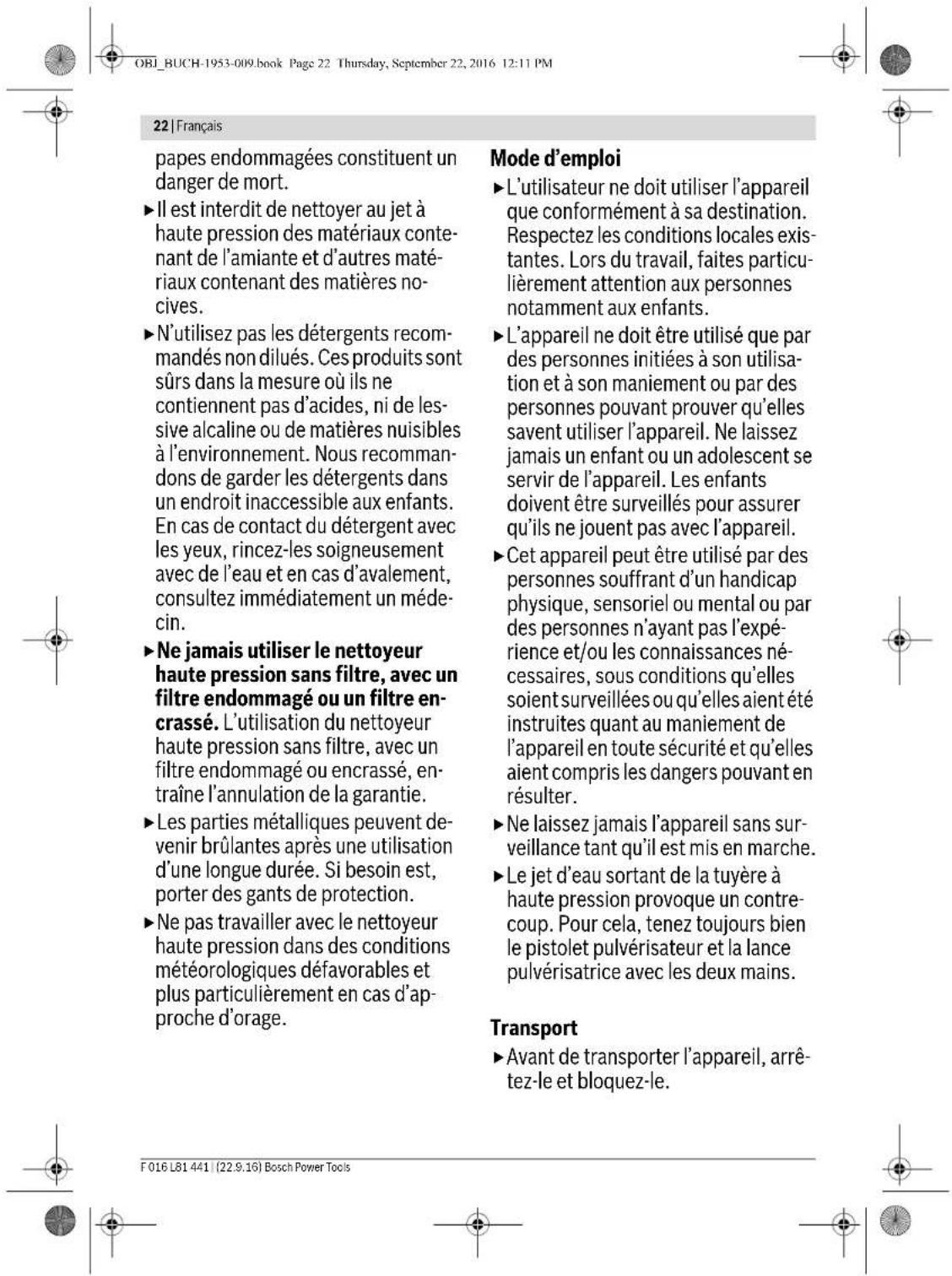

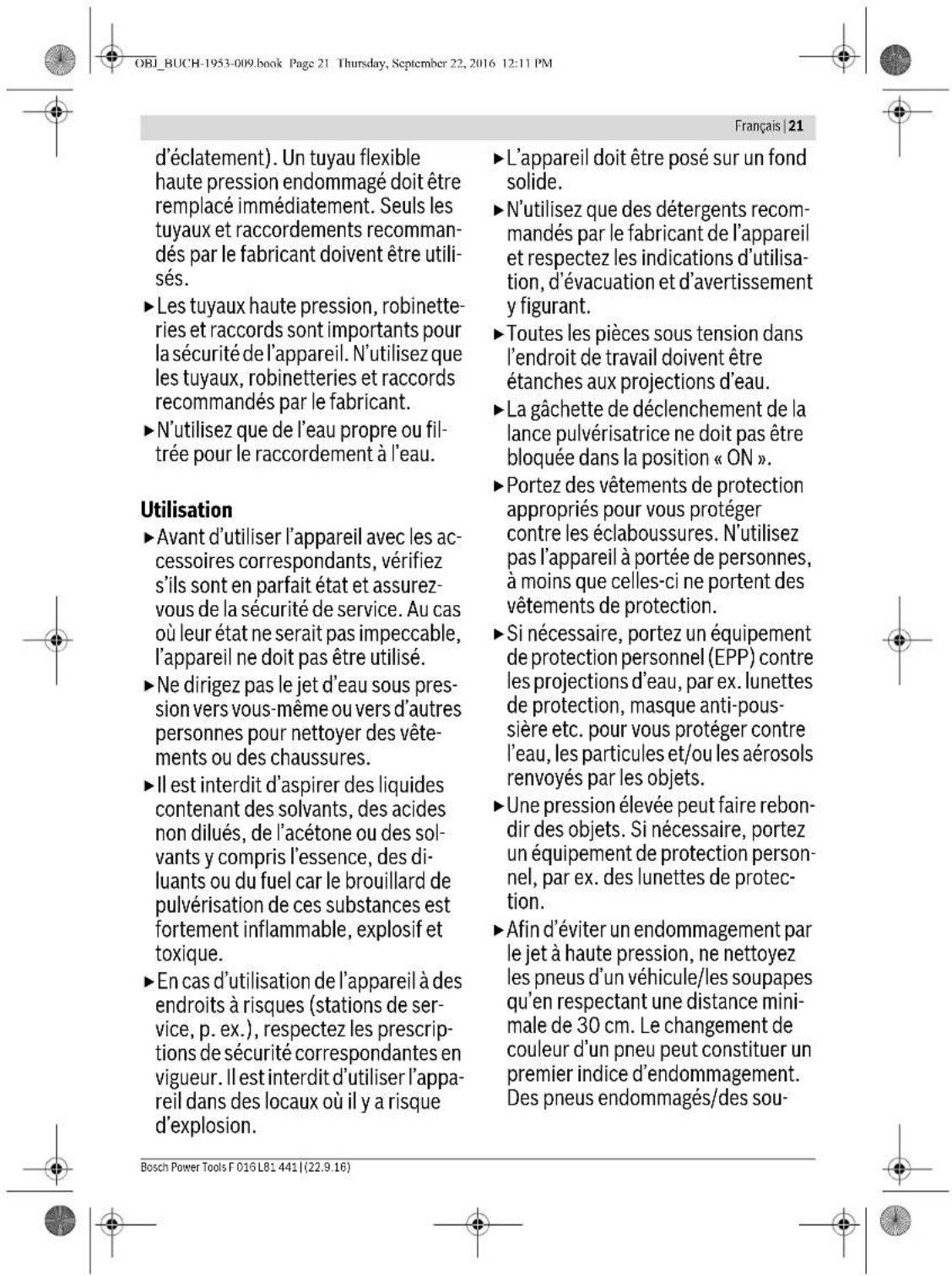

juveniles (danger of accidents due to incorrect use of the unit). Children should be supervised to ensure that they do not play with the appliance.

This machine can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the machine in a safe way and understand the hazards involved.
The unit must never be left unsupervised while the unit is switched on.
The water jet from the high-pressure nozzle produces a recoil on the gun. You should therefore hold the gun and spray lance firmly with both hands.

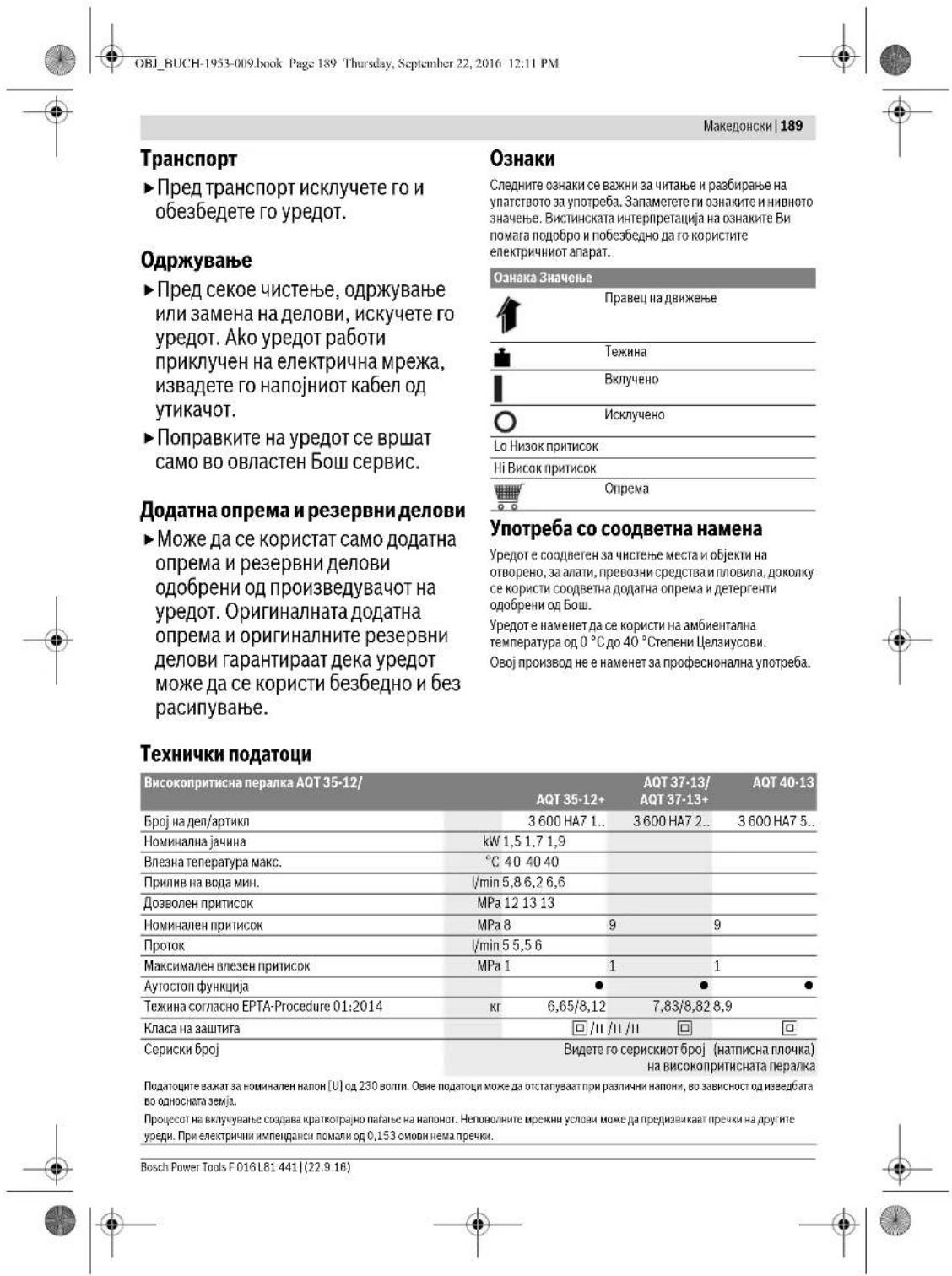

Transport

• Switch off the motor and secure the unit before transporting.

Maintenance

• Switch off the unit prior to all cleaning and maintenance work and before replacing components. Pull out the mains plug if the unit is mains-operated.
  Repairs may only be carried out by authorised Bosch Service Centres.

Accessories and spare parts

• Accessories and spare parts which have been approved by Bosch must be used. Original accessories and spare parts guarantee that the unit can be operated safely and without any breakdowns.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.

Symbol Meaning

Movement direction

Weight

On

Off

Lo Low pressure

Hi High pressure

Accessories

Intended Use

The product is intended for cleaning areas and objects outside the house, tools, vehicles and boats, if the appropriate accessories such as cleaning agents approved by Bosch are used.

Intended use is related to operation within 0^ and 40^ ambient temperature.

This product should not be used for professional use.

English | 15

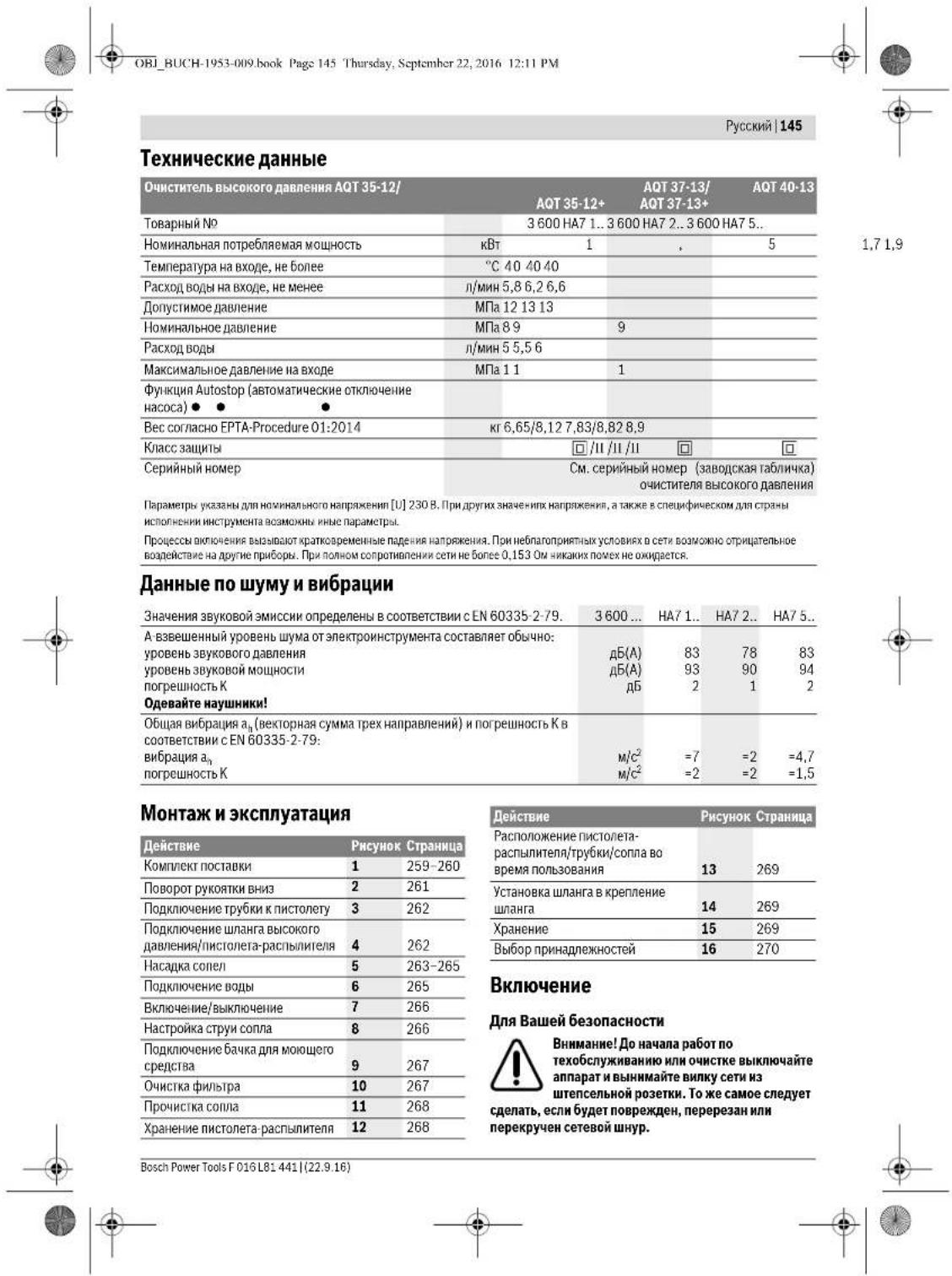

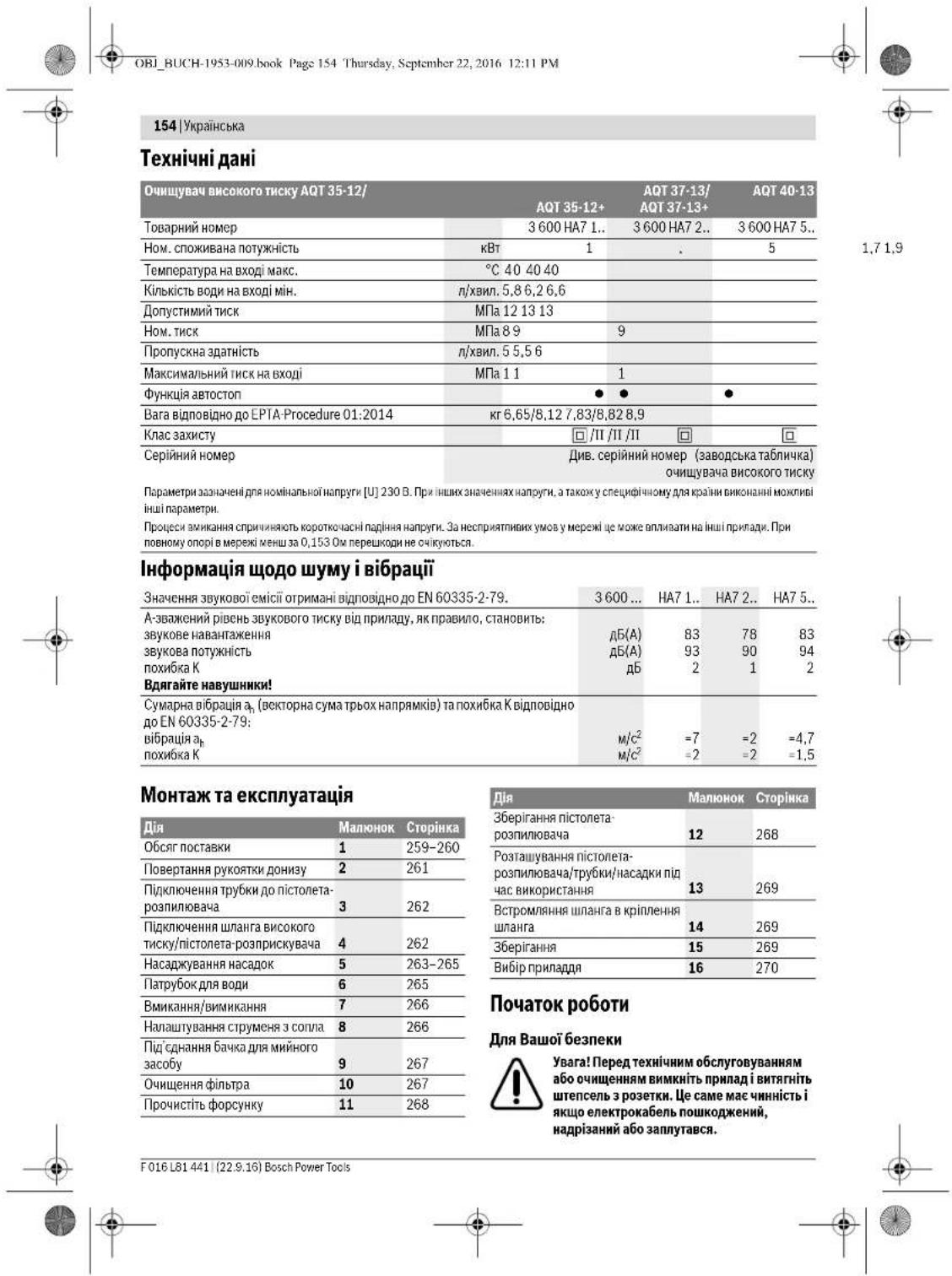

Technical Data

Pressure washer AQT 35-12/	AQT 35-12+	AQT 37-13/ AQT 37-13+	AQT 40-13
Article number	3600 HA7 1..3600 HA7 2..3600 HA7 5..
Rated power	kW 1.5 1.7 1.9
Supply temperature max.	°C 40 40 40
Supply rate min.	l/min 5.8 6.2 6.6
Allowable pressure	MPa 12 13 13
Rated pressure	MPa 8.9	9
Rated Flow	l/min 5 5.5 6
Maximum inlet pressure	MPa 1 1	1
Autostop function		● ●	●
Weight according to EPTA-Procedure 01:2014	kg 6.65/8.12 7.83/8.82 8.9
Protection class	☐/II /II /II ☐
Serial number	See serial number (rating plate) on pressure washer.
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary. Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0.153 ohm.

Noise/Vibration Information

Sound emission values determined according to EN 60335-2-79.	3600 ...	HA7 1..	HA7 2..	HA7 5..
Typically the A-weighted noise levels of the product are:
Sound pressure level	dB(A)	83	78	83
Sound power level	dB(A)	93	90	94
Uncertainty K	dB	2	1	2
Wear hearing protection!
Vibration total values \( a_h \) (triax vector sum) and uncertainty K determined according to EN 60335-2-79:
	\( m/s^2 \)	=7	=2	=4,7
Vibration emission value \( a_h \)
Uncertainty K	\( m/s^2 \)	=2	=2	=1.5

Mounting and Operation

Action	Figure	Page
Delivery Scope	1	259-260
Fold down handle operation	2	261
Connecting high pressure gun to lance	3	262
Connecting high pressure water supply hose/nozzle	4	262
Attaching Nozzles	5	263-265
Connecting to the water supply	6	265
Switching On and Off	7	266
Adjust water jet	8	266
Connect detergent bottle	9	267
Clean the water filter	10	267
Clean nozzle	11	268
Gun storage	12	268
Gun/lance/nozzle is stored in action	13	269

Action	Figure	Page
Hose into the hose holder	14	269
Storage	15	269
Selecting Accessories	16	270

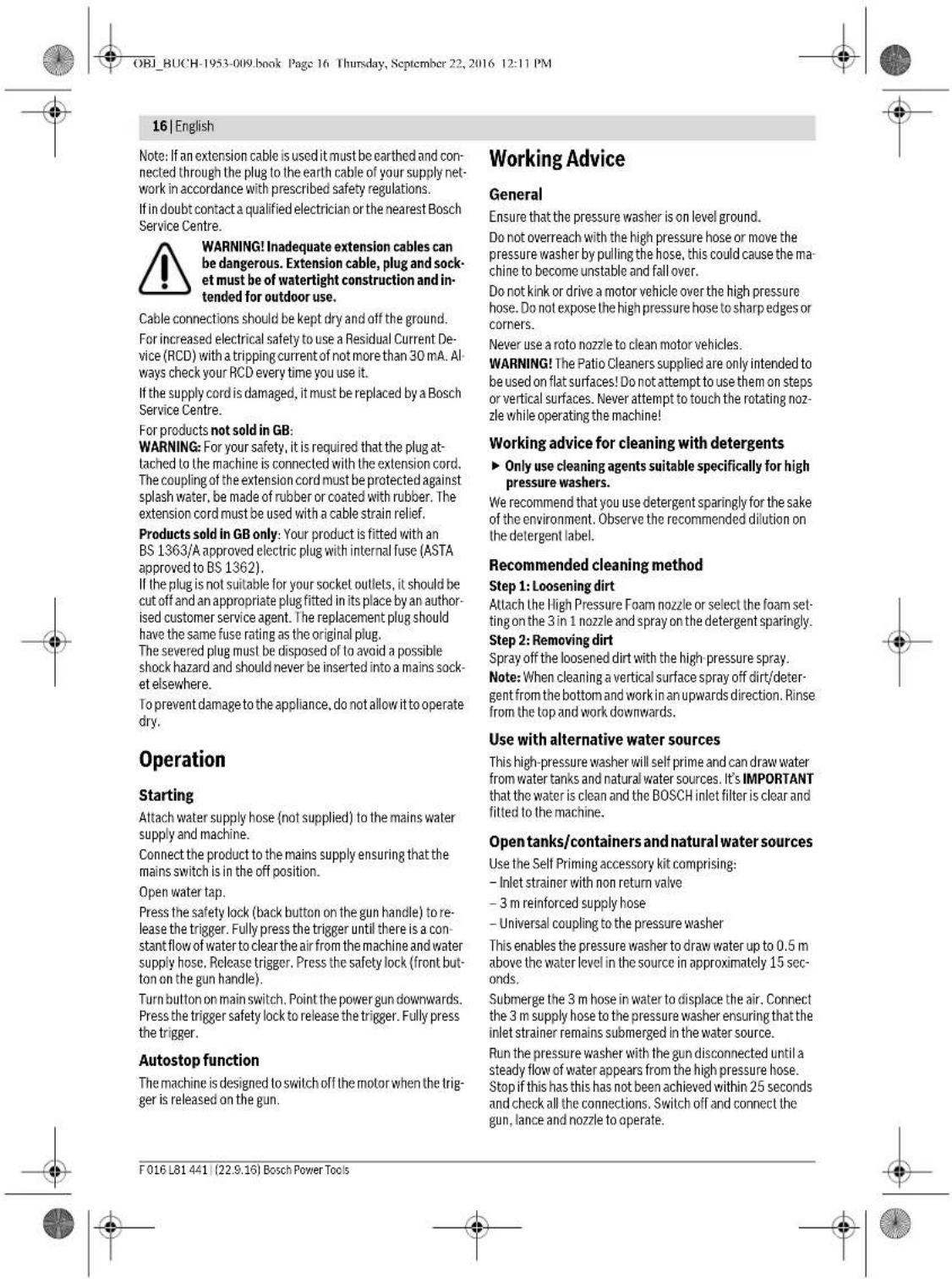

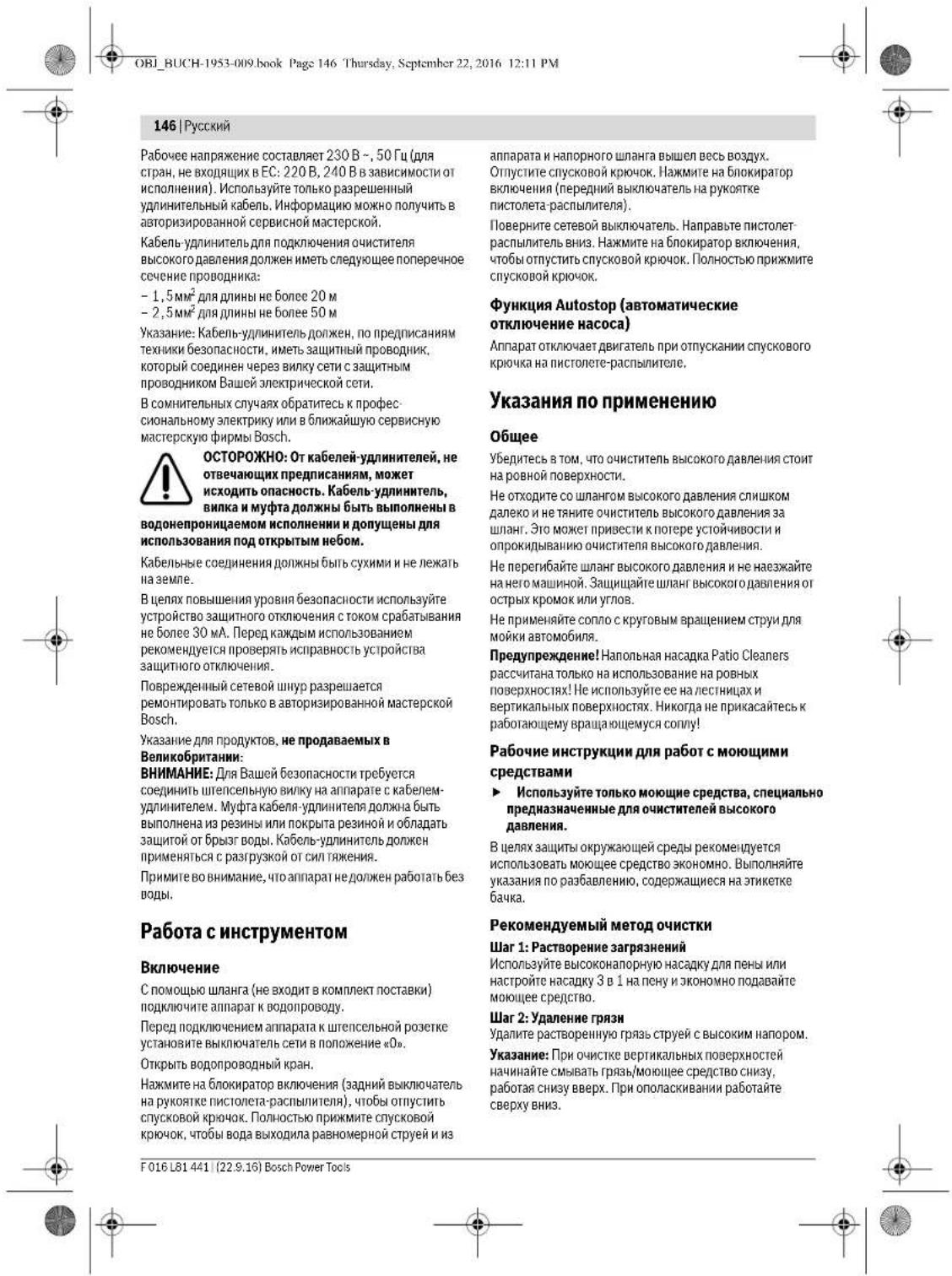

Starting

For Your Safety

Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.

The operating voltage is 230V AC, 50Hz (for non-EU countries 220V , 240V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details.

If you want to use an extension cable when operating your high pressure washer, only the following cable dimensions should be used:

-1.5mm-maxlength20m
-2.5 mm² - max length 50 m

OBI_BUCH-1953-009.book Page 18 Thursday, September 22, 2016 12:11 PM

18|English

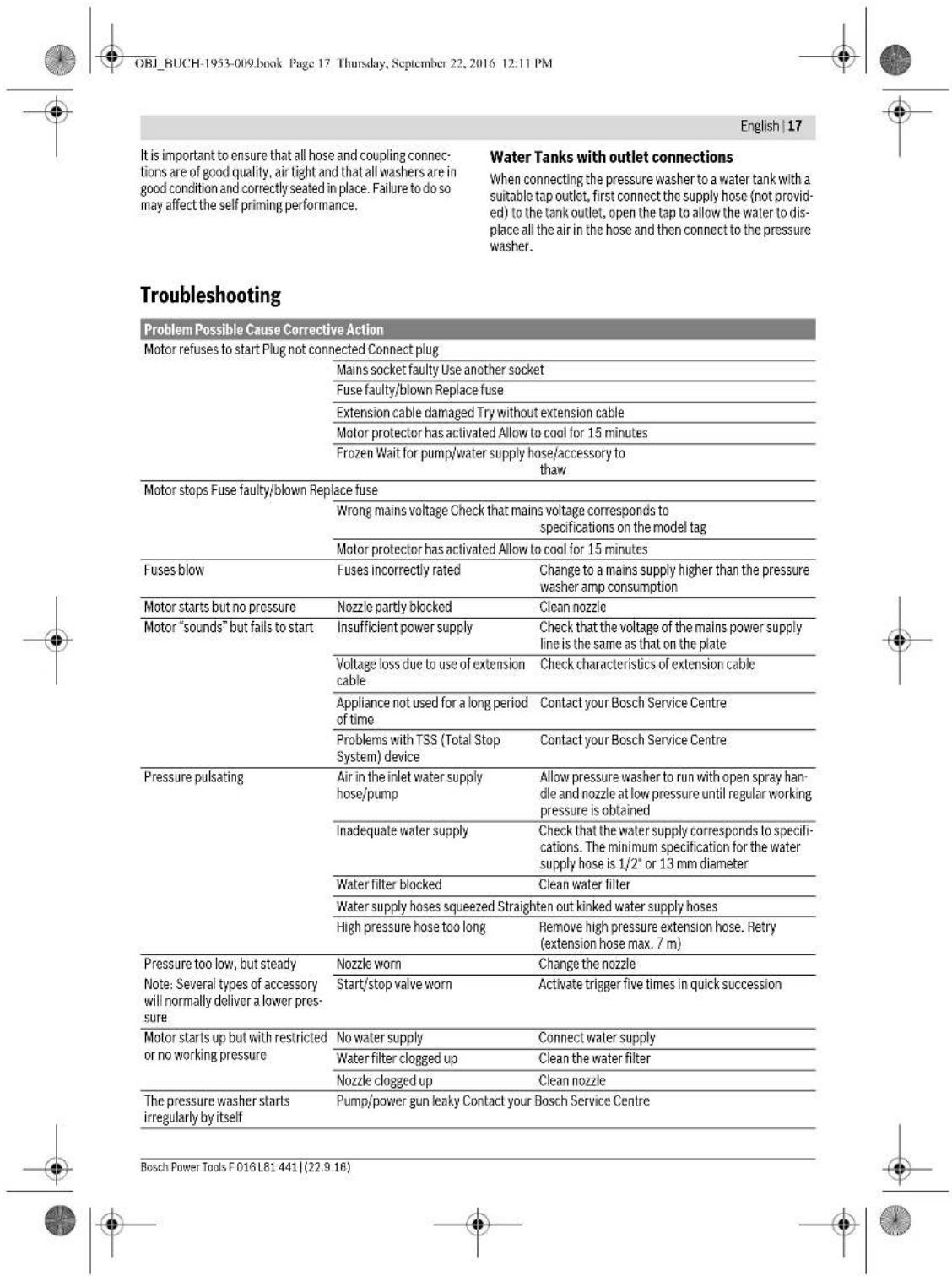

Problem Possible Cause Corrective Action

Water leaks from machine Leaking pump A slight water leak is permissible; in case of

excessive leak, contact Bosch Service Centre

No detergent taken in Adjustable nozzle on high pressure

setting

foam setting on the 3 in1 nozzle

Detergent too dense Dilute with water

Fit original hose

High pressure hose extension being

Fit original hose

used

Deposits or restriction in detergent

circuit

Flush with clean water and eliminate any restric

tions.If the problem persists, contact your Bosch

Service Centre.

Maintenance and Service

Maintenance

• Stop, remove plug from the power supply and disconnect from water supply.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Regularly check for obvious defects such as loose fixings, and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

After use/Storage

Turn the main switch off and operate the trigger to drain the water from the high pressure hose.

Clean the exterior of the machine thoroughly using a soft brush or cloth. Do not use water, solvents or polishes. Remove all debris, especially from the ventilation slots.

End of season storage: Drain water out of pump running motor for a few seconds. Pull trigger to release all water.

Do not place other objects on top of the machine.

Store in a frost-free area.

Ensure cables are not trapped when storing. Do not kink high pressure hose.

After-sales Service and Application Service

www.bosch-do-it.com

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the machine.
