USER MANUAL 00054891 HAMA

G Quick Guide Controls and Displays Radio Front

9. Infrared receiver

2. Mains power supply

4. Optical connection

Note *This radio has achangeable antenna. Youcan use an active or passive antenna equipped with acoaxial connection. ** Youcan adjust the volume, or navigate through the menu structurebyturning the rotary controller.You can switch the device to standby mode by pressing the volume controller,oryou can conrm aselection by pressing the navigation controller. Important note –Operating instructions:

• This is aquick guide to provide you with the most important basic information, such as safety warnings and how to get started using the product.

• Forthe sake of protecting the environment and saving resources, Hama dispenses with printed operating instructions and provides them only in the form of PDF les /eManuals on www.hama.com.

• Use the search function with the item number of your product to easily nd the product documentation.

• Save the operating instructions to your computer’sharddrive for futurereference, or print it out if necessary. Remote Control

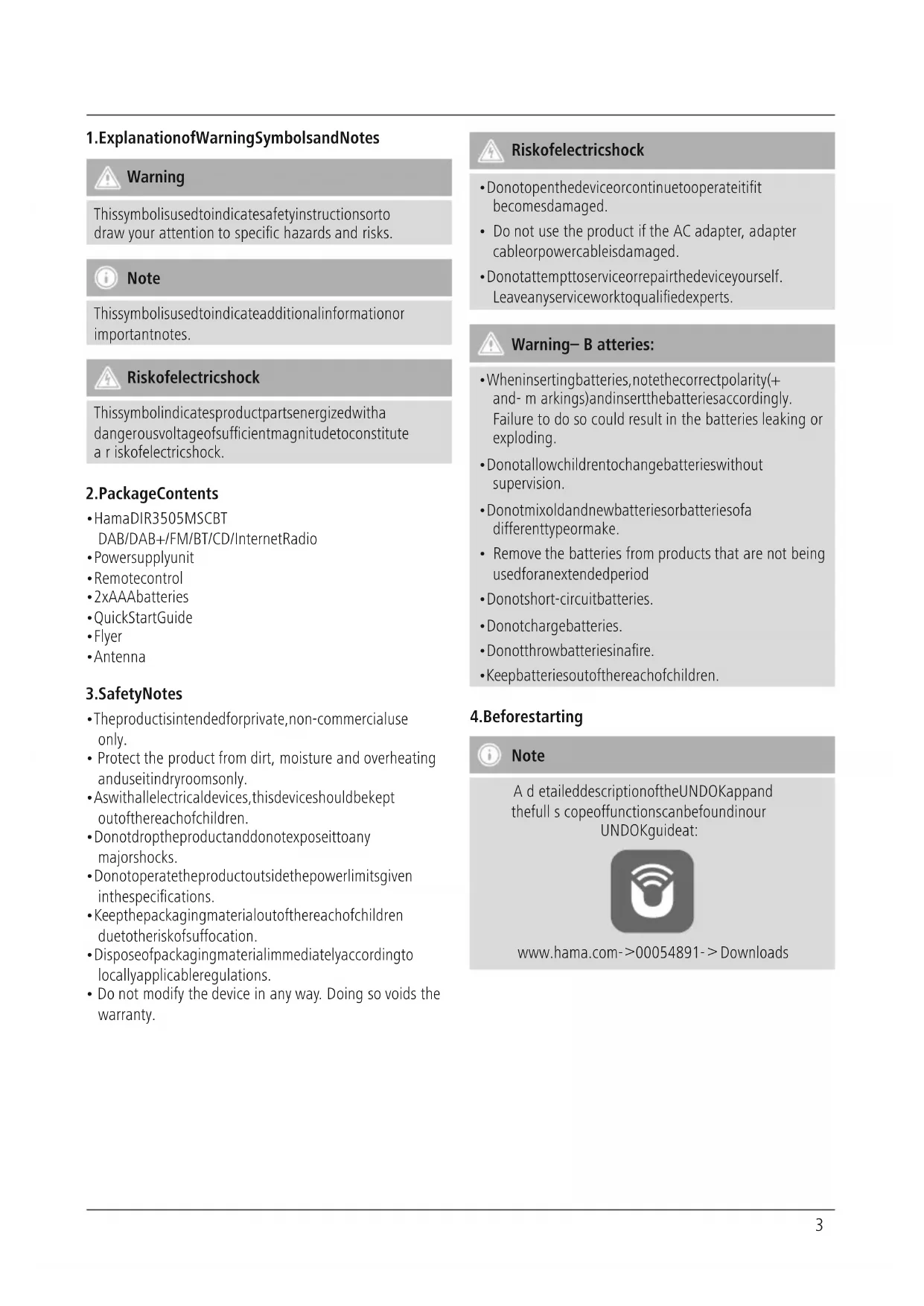

1. Explanation of Warning Symbols and Notes

Warning This symbol is used to indicate safety instructions or to draw your attention to specichazards and risks. Note This symbol is used to indicate additional information or important notes. Risk of electric shock This symbol indicates product parts energized with a danger ous voltage of sucient magnitude to constitute arisk of electric shock.

• The product is intended for private, non-commercial use only.

• Protect the product from dirt, moistureand overheating and use it in dry rooms only.

• As with all electrical devices, this device should be kept out of the reach of children.

• Do not drop the product and do not expose it to any major shocks.

• Do not operate the product outside the power limits given in the specications.

• Keep the packaging material out of the reach of children due to the risk of suffocation.

• Dispose of packaging material immediately according to locally applicable regulations.

• Do not modify the device in any way.Doing so voids the warranty. Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.

• Do not use the product if the AC adapter,adapter cable or power cable is damaged.

• Do not attempt to service or repair the device yourself. Leave any service work to qualied experts. Warning –Batteries:

• When inserting batteries, note the correct polarity (+ and -markings) and insert the batteries accordingly. Failuretodosocould result in the batteries leaking or exploding.

• Do not allow children to change batteries without supervision.

• Do not mix old and new batteries or batteries of a different type or make.

• Remove the batteries from products that arenot being used for an extended period

• Do not short-circuit batteries.

• Do not charge batteries.

• Do not throw batteries in a re.

• Keep batteries out of the reach of children.

Note Adetailed description of the UNDOK app and the fullscope of functions can be found in our UNDOK guide at: www.hama.com -

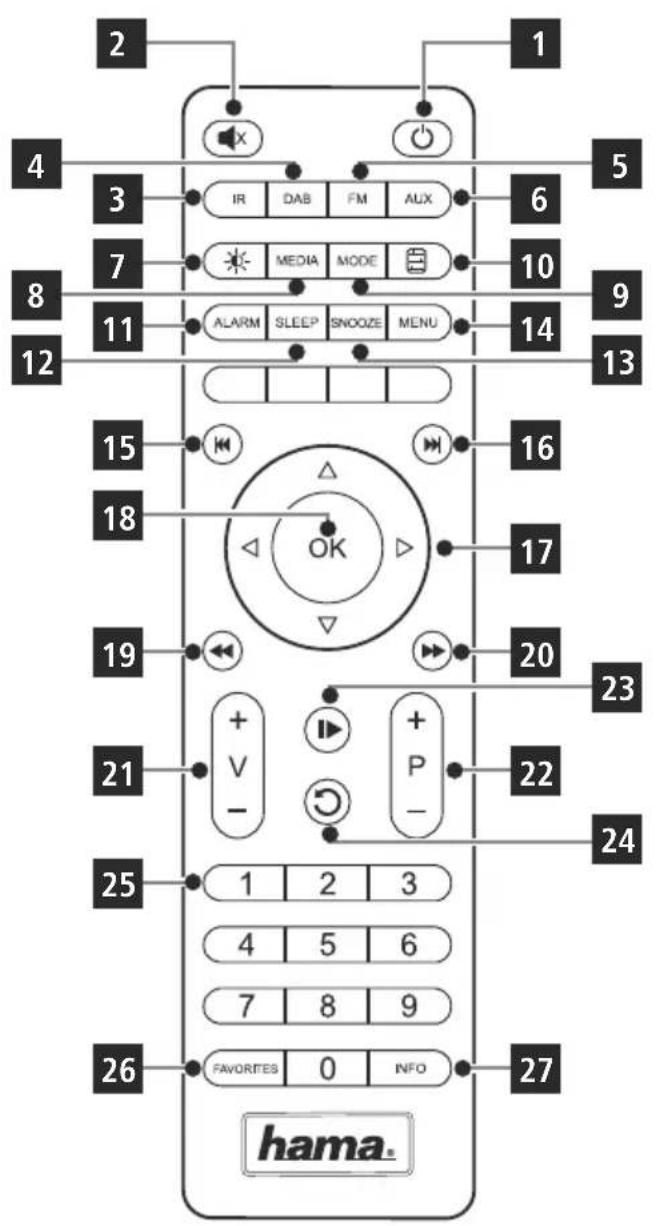

• The [OK] and ¥ button on the remote control have the same function as the [ENTER] button on the front of the radio.

• The button on the r emote control has the same function as the [BACK] button on the front of the radio.

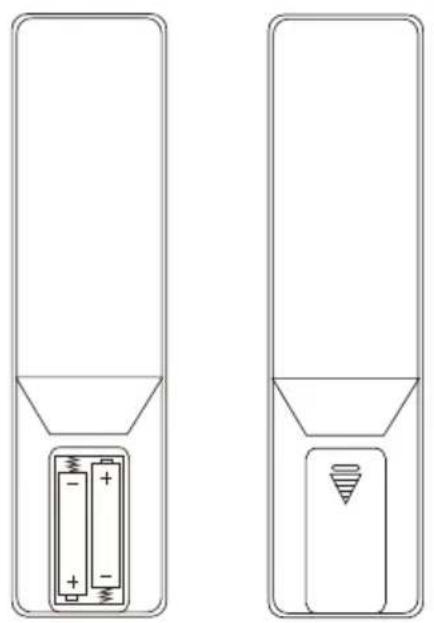

• The ¨¢buttons on the remote control have the same function as turning the navigation controller on the front of the radio to the left and right. Activating the remote control Open the battery compartment cover.Itis located on the rear of the remote control and can be opened by sliding it in the direction indicated. TwoAAA batteries areincluded in the delivery,they should be inserted in the battery compartment of the remote control. Observe the correct polarity when inserting batteries. The polarity (+ /-)is indicated in the battery compartment.). Setting up anetwork connection

4.1 LAN (wired network)

• Connect the LAN connection of your router to the LAN connection on your radio. Youwill requireanEthernet cable, which is not included in the delivery,todothis.

• Make surethat the router is on and working properly,and that you have an Internet connection.

• See the operating instructions for your router regarding a properly functioning LAN connection.

• Then proceed as described in point 5, “Getting Started”.

4.2 WLAN (wireless network)

• Ensurethat the router is switched on, is functioning correctly and that thereisaconnection to the internet.

• Activate the WLAN function of your router.

• Follow your router‘s operating instructions as regards the correct functioning of the WLAN connection.

• Then proceed directly as described under section 5 ‚Getting started‘.

Note -Optimal reception This product is equipped with an antenna connection for external antennas with coaxial connection. Atelescopic antenna that enables DAB, DAB+ and FM reception is included in the delivery.Alternatively,you can use an active or passive antenna to improve reception, or according to your requirements. Note the following:

• Pullthe antenna out completely.

• We recommend you adjust the antenna vertically to ensureoptimal reception.

5.1 Switching the device on

• Connect the power cable to aproperly installed power socket. Warning

• Only connect the product to asocket that has been approved for the device. The electrical socket must always be easily accessible.

• Disconnect the product from the power supply using the on/off switch –ifthis is not available, unplug the power cordfromthe socket.

• Switch the power on using the power switch.

• Wait until the radio initialisation procedurehas nished.

• Press the [POWER] button to switch the radio on.

5.2 Language and setup wizard

The rsttimethe system startsthe radio uses English. To changethis, proceed as follows: Press [MENU] > System settings > Language >Select language Conrm your selection by pressing the [ENTER] or [OK] button. Note

• You can choose from the following languages: English, German, Danish, Dutch, Finnish, French, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish,Turkish, Czech and Slovak.5

6. Care and Maintenance

• Only clean this product with aslightly damp, lint-free cloth and do not use aggressive cleaning agents.

• If you do not use the product for along time, turn off the device and disconnect it from the power supply. Storeitinaclean, dry place out of direct sunlight.

7. Warranty Disclaimer

Hama GmbH &CoKGassumes no liability and provides no warranty for damage resulting from improper installation/ mounting, improper use of the product or from failureto observe the operating instructions and/or safety notes.

8. Service and Support

Please contact Hama Product Consulting if you have any questions about this product. Hotline: +49 9091 502-115 (German/English) Further support information can be found here: www.hama.com

9. Recycling Information

Note on environmental protection: After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be disposed of with household waste. Consumers areobliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this aredened by the national law of the respective country.This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you aremaking an important contribution to protecting our environment.

10. Declaration of Conformity

Hereby,Hama GmbH &CoKGdeclares that the radio equipment type [00054891] is in compliance with Directive 2014/53/EU.The fulltext of the EU declaration of conformity is available at the following internet address: www.hama.com-

Downloads. Frequency band(s) Bluetooth: 2.402 -2.480GHz WiFi: 2.412 -2.472GHz WiFi: 5.150 -5.350 GHz WiFi: 5.470 -5.725 GHz Maximum radio-frequency power transmitted Bluetooth: 6dBm (EIRP) WiFi: 2.4GHz /17dBm (EIRP) WiFi: 5GHz /16.5dBm (EIRP) Restrictions or Requirements in Belgium, Bulgaria, Czech Republic, Denmark, Germany, Estonia, Ireland, Greece, Spain, France, Croatia, Italy, Cyprus, Latvia, Lithuania, Luxembourg, Hungary,Malta, the Netherlands, Austria, Poland, Portugal, Romania, Slovenia, Slovakia, Finland, Sweden, United Kingdom Note If channels 36–64 (frequency 5.150–5.350 GHz) are used in a5-GHz WLAN, the product may only be used in closed rooms.6 D Schnellstartanleitung Bedienungselemente und Anzeigen Radio Frontseite
