USER MANUAL RPBTD10E PANASONIC

Line drawing of a pair of outdoor headphones with earbuds and front latches (no text or symbols)

Bluetooth®

E

Manufactured by:

Panasonic Corporation

Kadoma, Osaka, Japan

Importer for Europe:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Operating Instructions

Bedienungsanleitung

Mode d'emploi

Digital Wireless Stereo Headphones

Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

Table of contents

Before use

Accessories 2

Part names 2

Preparation

Charging....3

Turning the power on/off 3

Connecting a Bluetooth ^® device ..... 3

One-Touch Connection (Connecting by NFC) 4

Operation

Listening to music 4

Making a phone call.... 5

Useful functions 5

Other

Restoring to the factory settings ..... 5

Safety precautions 6

Maintenance....6

About Bluetooth ^® 7

Specifications 7

Troubleshooting guide 8

Copyright, etc. 9

To remove the battery when disposing of this unit .... 9

Limited Warranty (ONLY FOR AUSTRALIA)... Back cover

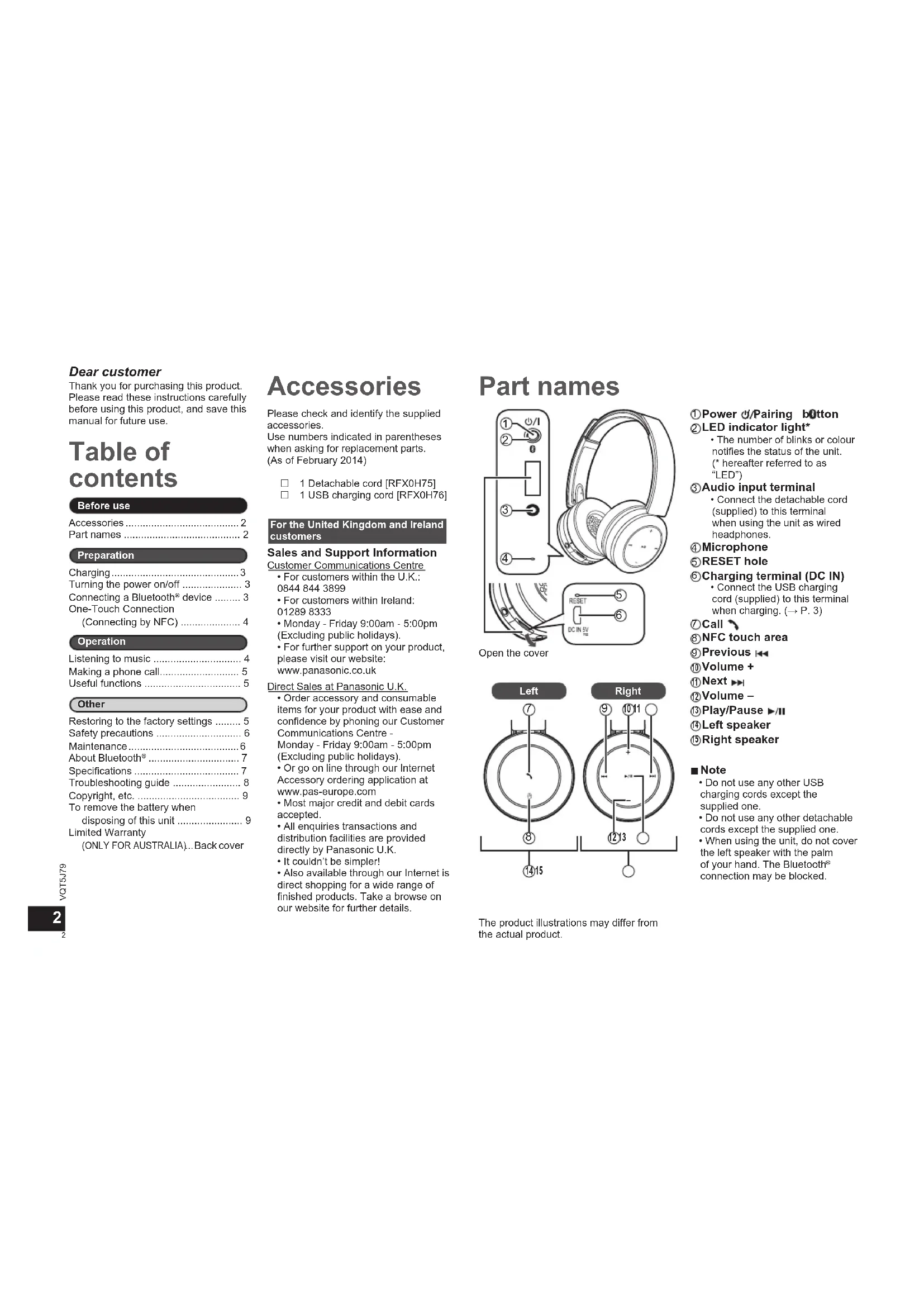

Accessories

Please check and identify the supplied accessories.

Use numbers indicated in parentheses when asking for replacement parts.

(As of February 2014)

□ 1 Detachable cord [RFX0H75]

☐ 1 USB charging cord [RFX0H76]

For the United Kingdom and Ireland customers

Sales and Support Information

Customer Communications Centre

- For customers within the U.K.:

0844 844 3899

• For customers within Ireland:

01289 8333

• Monday - Friday 9:00am - 5:00pm

(Excluding public holidays)

• For further support on your product,

please visit our website:

www.panasonic.co.uk

Direct Sales at Panasonic U.K.

- Order accessory and consumable

items for your product with ease and

confidence by phoning our Customer

Communications Centre -

Monday - Friday 9:00am - 5:00pm

(Excluding public holidays).

• Or go on line through our Internet

Accessory ordering application at

www.pas-europe.com

- Most major credit and debit cards accepted.

- All enquiries transactions and

distribution facilities are provided

directly by Panasonic U.K.

- It couldn't be simpler!

• Also available through our Internet is

direct shopping for a wide range of

finished products. Take a browse on

our website for further details.

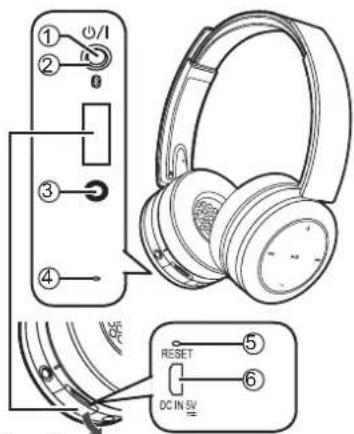

Part names

① ω/I ② θ ③ → ④ RESET DC IN 5V

Open the cover

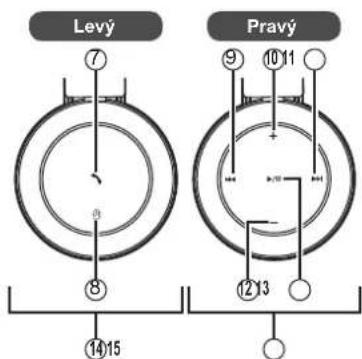

Left 7 8 14 15 Right 9 10 11 12 13

The product illustrations may differ from the actual product.

①Power ⬆/Pairing button

②LED indicator light\*

• The number of blinks or colour

notifies the status of the unit.

(* hereafter referred to as

"LED")

③Audio input terminal

- Connect the detachable cord

(supplied) to this terminal

when using the unit as wired

headphones.

④Microphone

⑤RESET hole

⑥Charging terminal (DC IN)

- Connect the USB charging

cord (supplied) to this terminal

when charging. (→ P. 3)

⑦Call

⑧NFC touch area

⑨Previous

⑩Volume +

⑪Next

⑫Volume -

⑬Play/Pause ▶/II

⑭Left speaker

⑮Right speaker

Note

- Do not use any other USB

charging cords except the

supplied one.

- Do not use any other detachable

cords except the supplied one.

- When using the unit, do not cover

the left speaker with the palm

of your hand. The Bluetooth

connection may be blocked.

Charging

The rechargeable battery (installed in the unit) is not charged initially. Charge the battery before using the unit.

1 Connect this unit to a computer using the USB charging cord

• During charging, the LED on the left speaker will light in red. When charging is completed, the LED will go out.
• Charging will take approximately 4.5 hours from empty state to fully charged.

Left Computer LED USB charging cord (supplied)

Note

• The Bluetooth feature cannot be used when this unit is connected to a computer using the USB charging cord.
• Recharge in a room temperature between 10 °C and 35 °C.
  • The power cannot be turned on while charging.
• Do not use any other USB charging cords except the supplied one.

Caution: Use only the supplied USB charging cord when connecting to a computer.

Turning the power on/off

1 Press and hold the power button for approximately 2 seconds

- A beep will sound and the LED on the left speaker will blink.

Power button

To turn the power off

- Press and hold the power button for 2 seconds or more. A beep will sound and the power will be turned off.

Note

- When the unit is not operated for approximately 5 minutes, the power will automatically turn off. (See "Auto power off" ( P.5) )

Connecting a Bluetooth® device

To establish a wireless connection, register the unit with Bluetooth ^® compatible devices.

Preparation on the Bluetooth ^® device

• Turn on the power, and enable the Bluetoothfeature.
• Place the device within 1 m from the unit.
• Check the device operation in its operation instructions, as required.

Power on for the first time

1 Turn on the unit

- The unit will start searching for the Bluetooth® device to connect to, and the LED on the left speaker will blink in blue and red alternately. (Only one operation after purchase)

2 When the unit ("RP-BTD10") is detected by the Bluetooth® device, select it

• If prompted for a passkey, input "0000 (four zeros)".
• If the Bluetooth profile selection screen appears, select the
  "A2DP" profile. If "A2DP" is not supported or if you want to just use phone calls, select the "HSP" or "HFP" profile. (For details on profiles, see "Listening to music" (→ P. 4) and "Making a phone call" (→ P. 5))

3 Check the connection with the Bluetooth® device on the unit

- First the LED on the left speaker lights in blue and repeats on and off. When the connection is established, blinking pattern will change.

Connection after the second time

When the unit is turned on, it will search for the previously setup Bluetooth ^® device and automatically start connecting to it. First the LED on the left speaker lights in blue and repeats on and off. When the connection is established, blinking pattern will change.

Disable the Bluetooth® feature on the previously connected device. Check that the unit is turned off. Press and hold the pairing ⚙button for approximately 5 seconds. The unit will start searching for other Bluetooth® device. The LED on the left speaker will blink in blue and red alternately. A beep will sound.

Continue steps 2 and 3.

Note

- If connection to a device is not established within approximately 5 minutes, the unit will be turned off. Start from step 1 again.

- 2 or more Bluetooth devices cannot be connected to the unit at the same time.

- You can pair up to 8 devices with this unit. If a 9th device is paired, the device with the oldest connection will be replaced. To use it, pair it again.

One-Touch Connection (Connecting by NFC)

For NFC-compatible Android™ devices only

The NFC (Near Field Communication) feature allows this unit to connect easily to an NFC-compatible Bluetooth ^® device. Just touch this unit with your Bluetooth ^® device to automatically turn on this unit, pair the Bluetooth ^® device, and establish a connection.

Preparation

Turn on the NFC feature of the Bluetooth® device.

1 Start the application to play music/video on the Bluetooth® device

- Follow on-screen instructions on your device.

2 Touch and hold your device on the NFC touch area of this unit (until a pop-up window on your device indicates that the connection is established)

• The unit is turned on. First the LED on the left speaker lights in blue and
  repeats on and off. When the connection is established, blinking pattern will change.
• If the connection is not established, change the position to touch.

3 Start playing music/video on your Bluetooth® device

Connecting to another device

Touch this unit with another device to establish a new Bluetooth® connection. The previously connected device will be automatically disconnected.

Listening to music

If the Bluetooth® compatible device supports the "A2DP" and "AVRCP" Bluetooth® profiles, music can be played back with remote control operations on the unit.

• A2DP (Advanced Audio Distribution Profile): Transmits audio to the unit.
• AVRCP (Audio/Video Remote Control Profile):
  Allows remote control of the device using the unit.

1 Connect the Bluetooth® device and the unit (→ P. 3)
2 Select and play the music on the Bluetooth ^® device • The selected music is output to the speakers of the unit.
2 Select and play the music on the Bluetooth® device
- The selected music is output to the speakers of the unit.

Operating time of battery

Battery type Operating time
Rechargeable battery (installed in the unit) Approx. 30 hours

Operating time may be less depending on the operating conditions.

Note

- Bluetooth® devices that support aptX® can transmit higher quality music.

Attention

• The unit might leak sound depending on the volume level.
• When the volume is increased to near maximum level, music may sound distorted. Decrease the volume until the distortion is cleared.

Remote controlling

You can control the Bluetooth® device using the unit.

- Depending on Bluetooth devices, some functions below do not work, or work differently via operation of the unit.

(Operation example)

Play/Pause
▶/II	Press Play/Pause

Previous/Next
	Press during playback	Return to the start of current track
	Press and hold Rewnd
	Press during playback	Forward to the start of next track
	Press and hold Fast forward

Volume
+	Press	Increase the volume
	Press and hold	Increase the volume continuously
-	Press	Decrease the volume
	Press and hold	Decrease the volume continuously

Right

Volume + Previous Play/Pause Volume - Next

Note

• The volume can be adjusted in 15 levels. When the maximum or minimum volume is reached, a beep will sound.

Making a phone call

With Bluetooth ^® enabled phones (cell phones or smartphones) that support the "HSP" or "HFP" Bluetooth ^® profile, you can use the unit for phone calls.

• HSP (Headset Profile):
This profile can be used to receive monaural sounds and establish two-way communication using the microphone on the unit.
• HFP (Hands-Free Profile):

In addition to the HSP functions, this profile has the incoming and outgoing calls function.

1 Connect the Bluetooth® enabled phone and unit (→ P. 3)
2 When answering an incoming call

Press Call on the unit and answer the call

• During an incoming call, ringtone will sound from the speaker and the LED will blink.
• ( HFP only) To reject the incoming call, press and hold Call until the ringtone stops.

Left

Call Microphone

When making an outgoing call

Make an outgoing call on the Bluetooth® enabled phone

- Also refer to the operating manual for the Bluetooth® enabled phone.

(Checking and operation steps on the unit are explained below)

• During an outgoing call, ringtone will sound from the speaker and the LED will blink.
• To cancel the outgoing call, press Call

A beep will sound.

• ( HFP only) When the phone is idle, press and hold Call 📋 for approximately 2 seconds. An outgoing call will be made to the last dialed number. One short click will sound from the speaker and the LED will blink.

3 Start talking

• The LED will repeatedly blink 2 times during a call.
- The volume can be adjusted during a phone call. For setting instructions, see page 4.

4 Press Call to end the phone call

• A beep will sound.

Note

• There may be instances when hands free setting needs to be done on the Bluetooth® enabled phone.
• Depending on the Bluetooth enabled phone, you may hear incoming and outgoing call ringtones of the phone from the unit.
• ( HFP only) Press and hold the Call on the unit for approximately 2 seconds. The calling device will be switched between the Bluetooth® enabled phone and the unit.

Useful functions

Resetting the unit

This unit can be reset when all operations are rejected. Connect the unit to a computer using the USB charging cord. Then press the RESET hole with a thin, pointed object. Check that the LED (red) goes out. Keep pressing the RESET hole ( P. 2) for approximately 5 seconds to reset the unit. All the previous operations will be cancelled. (The pairing device information will not be deleted.)

Auto power off

If the unit is silent for approximately 5 minutes and operations for Bluetooth ^® devices are idle during that period, a beep will sound and the power will be automatically turned off.

LED indicator light

When the battery level is low during use of the unit, the blue blinking LED on the left speaker will change to red. A beep will sound every 1 minute. When the battery runs out, the power will turn off.

Restoring to the factory settings

When you want to delete all pairing device information, etc., you can restore the unit to the factory settings (original settings upon purchase).

1 Turn off the unit
2 Press and hold the power ⏻/1 button and Previous for 5 seconds or more simultaneously

- The LED on the left speaker will light in red for approximately 2 seconds. The unit will restore to the factory settings.

Safety precautions

Unit

• Avoid using or placing this unit near sources of heat.
• Do not listen with this unit at high volume in places where you need to hear sounds from the surrounding environment for safety, such as at railroad
  crossings, and construction sites.
• Wide band characteristic voltage equal or larger than 75 mV.

WARNING:

To reduce the risk of fire, electric shock or product damage,

- Do not expose this unit to rain, moisture, dripping or splashing.

- Do not place objects filled with liquids, such as vases, on this unit.

- Use only the recommended accessories.

- Do not remove covers.

- Do not repair this unit by yourself. Refer servicing to qualified service personnel.

Allergies

• Discontinue use if you experience discomfort with the speakers or any other parts that directly contact your skin.
• Continued use may cause rashes or other allergic reactions.

Precautions for listening with the Headphones

• Do not use your headphones at a high volume. Hearing experts advise against continuous extended play.
• If you experience a ringing in your ears, reduce volume or discontinue use.
• Do not use while operating a motorised vehicle. It may create a traffic hazard and is illegal in many areas.
• You should use extreme caution or temporarily discontinue use in potentially hazardous situations.

This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

Maintenance

Clean this unit with a dry and soft cloth.

- Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off.

Declaration of Conformity (DoC)

Hereby, "Panasonic Corporation" declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Customers can download a copy of the original DoC to our R&TTE products from our DoC server:

http://www.doc.panasonic.de

Contact to Authorised Representative: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany

This product is intended to be used in the following countries.

The UK, FRANCE, GERMANY, ITALY, SWITZERLAND, AUSTRIA, NETHERLANDS, BELGIUM, SPAIN, SWEDEN, NORWAY, DENMARK, FINLAND, HUNGARY, CZECH REPUBLIC, SLOVAKIA, SLOVENIA, BULGARIA, POLAND, GREECE, PORTUGAL, ROMANIA

This product is intended for general consumer. (Category 3)

Complies with IDA Standards DB01017

About Bluetooth®

Panasonic bears no responsibility for data and/or information that is compromised during a wireless transmission.

Frequency band used

This unit uses the 2.4 GHz frequency band.

Certification of this unit

• This unit conforms to frequency restrictions and has received certification based on frequency laws. Thus, a wireless permit is not necessary.
  • The actions below are punishable by law in some countries:
  – Taking apart/modifying the unit.
  – Removing specification indications.

Restrictions of use

• Wireless transmission and/or usage with all Bluetooth equipped devices is not guaranteed.
• All devices must conform to standards set by Bluetooth SIG, Inc.
• Depending on the specifications and settings of a device, it can fail to connect
  or some operations can be different.
• This system supports Bluetooth security features. But depending on the operating environment and/or settings, this security may not be sufficient. Transmit data wirelessly to this system with caution.
• This system cannot transmit data to a Bluetooth device.

Range of use

Use this unit at a maximum range of 10 m.

The range can decrease depending on the environment, obstacles or interference.

interference from other devices

• This unit may not function properly and troubles such as noise and sound jumps may arise due to radio wave interference if this unit is located too close to other Bluetooth ^9 devices or the devices that use the 2.4 GHz band.
• This unit may not function properly if radio waves from a nearby broadcasting station, etc. is too strong.

Intended usage

• This unit is for normal, general use only.
• Do not use this system near an equipment or in an environment that is sensitive to radio frequency interference (example: airports, hospitals, laboratories, etc).

Specifications

general

Power supply	DC 5 V, 500 mA(Internal battery : 3.6 V (Li-ion 690 mAh))
Operating time*1(SBC mode) Approx. 30 hours
Charging time*2(25 °C) Approx. 4.5 hours
Charging temperature range 10 °C to 35 °C
Operating temperature range 0 °C to 40 °C
Operating humidity range 35%RH to 80%RH (no condensation)
Mass Approx. 198 g

^*1 It may be shorter depending on the operating conditions.
*2 Time taken to recharge from empty to full.

Bluetooth® section

Bluetooth® system specification Ver. 3.0
Wireless equipment classification Class 2 (2.5 mW)
Frequency band	2.4 GHz band FH-SS
Supported profiles	A2DP, AVRCP, HSP, HFP
Supported codec	SBC, aptX ^®
Operating distance	Up to 10 m

Speaker section

Driver units	40 mm
Impedance	32

Terminal section

DC IN	DC 5 V, 500 mA
Audio input	Stereo jack Φ 3.5 mm

Microphone section

Type

Mono

accessory section

USB charging cord	1.0 m
Detachable cord	1.5 m

• Specifications are subject to change without notice.

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated do not solve the problem, consult your dealer for instructions.

General

The unit does not respond

- Press RESET hole while connecting the USB charging cord to the charging terminal (DC IN). ( P. 5)

Power supply and charging

Cannot charge the unit

- Make sure the computer is turned on and is not on standby or sleep mode.

- Is the USB port you are currently using working properly? If your computer has other USB ports, unplug the connector from its current port and plug it into one of the other ports.

- If the measures mentioned above are not applicable, unplug the USB charging cord and plug it in again.

- Is the LED blinking in red? There is a charging malfunction if the LED is blinking.

- If the LED is blinking fast in red even when the unit is being recharged in a room temperature within 10^ and 35^ , the battery may have run down. (Number of recharging times of the included battery: Approximately 500.)

LED does not light during charging / Charging takes longer

- Is the USB charging cord (supplied) connected firmly to the USB terminal of the computer? ( P.3)

The power does not turn on

- Is the unit being charged? The power cannot be turned ON during charging. ( P.3)

- Is the detachable cord connected? The power cannot be turned on when the detachable cord is connected to the unit.

Bluetooth ^® device connection

The device cannot be connected

- Delete the pairing information for this unit from the Bluetooth device, then pair them again. ( P.3)

Sound and audio volume

No sound

• Make sure that the unit and the Bluetooth® device are connected correctly. (→ P. 3)
• Check if music is playing on the Bluetooth® device.
• Make sure that the unit is turned on and the volume is not set too low.
• Pair and connect the Bluetooth device and the unit again. ( P. 3)

Low volume

- Increase the volume of the unit. ( P.4)

- Increase the volume on the Bluetooth device.

Sound from the device is cut off / Sound quality is bad

• Sound may be disrupted if signals are blocked. Do not fully cover this unit with the palm of your hand, etc.
• The device may be out of the 10m communication range. Move the device closer to this unit.
• Remove any obstacle between this unit and the device.
• Switch off any wireless LAN device when not in use.
• A communication problem may arise if the battery is not fully charged. Charge the unit. (→ P. 3)

Phone Calls

You cannot hear the other person

• Make sure that the unit and the Bluetooth enabled phone are turned on.
• Check if the unit and the Bluetooth enabled phone are connected. (→ P. 3)
• Check the audio settings of the Bluetooth enabled phone. Switch the calling device to the unit if it is set to the Bluetooth ^ enabled phone. (→ P. 3)
• If the volume of the other person's voice is too low, increase the volume of both the unit and the Bluetooth® enabled phone.

Copyright, etc.

aptX® software is copyright CSR plc or its group companies. All rights reserved. The aptX® mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be registered in one or more jurisdictions.

The Bluetooth ^® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.

Other trademarks and trade names are those of their respective owners.

Other system names and product names appearing in this document are in general the registered trademarks or trademarks of the respective developer companies.

Note that the ™ mark and ® mark do not appear in this document.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

To remove the battery when disposing of this unit

1

1 A

3 D C D

2

2 B

4

Diagram of a circular electrical component with labeled pins and connection points, including a marked point E.

5

Diagram of a mechanical device with labeled components G and F, showing directional arrow indicating movement or force.

The following instructions are not intended for repairing purposes but for the disposal of this unit. This unit is not restorable once disassembled.

When disposing of this unit, take out the battery installed in this unit and recycle it.

• Disassemble after the battery runs out.
- Keep disassembled parts out of reach of children.

1 Take off the earpad A from the right speaker and remove the 3 screws

- Use a cross-slot screwdriver (commercially available).

2 Remove the front cover B
3 Lifting the 2 latches D, rotate the back cover C in the anticlockwise direction
4 Remove the 4 screws and remove the housing Ⓔ
5 Hold both sides of the battery at position G (away from the terminals F) and remove it

Regarding the handling of used batteries

• Insulate the terminals with adhesive tape or similar material.

- Do not disassemble.

Batteries

• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• Battery mishandling can cause electrolyte leakage which can damage items the leaked fluid comes into contact with. If electrolyte leaks from the battery, consult your dealer. Wash thoroughly with water if electrolyte comes in contact with any part of your body.
• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

Sehr geehrter Kunde

• A2DP (Advanced Audio Distribution Profile):

AVRCP (Audio/Video Remote Control Profile):

• HSP (Headset Profile):

Diagram of a mechanical device with labeled components G and F, showing directional arrow indicating movement or force.

⑬ Lecture/Pause ▶/II

⑭Écouteur gauche

⑮Écouteur droit

Note

Gauche Appel Microphone

Computer Sinistra LED

Diagram of a circular electrical component with labeled pins and connection points, including a marked point E.

5

Diagram of a mechanical device with labeled components and directional arrow indicating motion or force

• HSP (Headset Profile):

Diagram of a circular electrical component with labeled pins and connection points, including a marked point E.

5

Diagram of a mechanical device with labeled components G and F, showing directional arrow indicating movement or force.

Diagram of a circular electrical component with labeled pins and connection points, including a marked point E.

5

Diagram of a mechanical device with labeled components G and F, showing directional arrow indicating movement or force.

Technical diagram of headphones with labeled parts including switch, power switch, and reset button

Åbn dækslet

①Tænd/sluk-knap ♂/1 Parringsknap Ⓗ

• HSP (Headset Profile):

Diagram of a circular electrical component with labeled pins and connection points, including a marked point E.

5

Diagram of a mechanical device with labeled components G and F, showing directional arrow indicating movement or force.

• Undlad at demontere.

Batterier

Technical diagram of headphones with labeled parts including switch, dials, and reset button

Otevřete kryt

Levý Pravý 7 8 9 10 11 12 13 14 15

• HSP (Headset Profile):

aptX® software is copyright CSR plc or its group companies. All rights reserved.

The aptX ^® mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be registered in one or more jurisdictions.

Diagram of a circular electrical component with labeled pins and connection points, including a marked point E.

5

Diagram of a mechanical device with labeled components and directional arrow indicating motion or force

Technical diagram of headphones with labeled parts including switch, power connector, and reset button

Otwórz pokrywę

Lewy Praw ⑦ ⑧ ⑭ ⑩ 10 11 ⑫ 13 ⑭ 14 15

Diagram of a circular electrical component with labeled pins and connection points, including a marked point E.

5

Diagram of a mechanical device with labeled components G and F, showing directional arrow indicating movement or force.

Diagram of a circular electrical component with labeled pins and connection points, including a marked point E.

5

Diagram of a mechanical device with labeled components and directional arrow indicating motion or force

• HSP (Headset Profile):

Diagram of a mechanical assembly with labeled components G and F, showing directional arrows indicating movement or force.

亲爱的用户

感谢您购买本产品。

- aptX® software is copyright CSR plc or its group companies. All rights reserved.

The aptX® mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be registered in one or more jurisdictions.

1 A → e S

2

3 D C D

5 G F G

Safety information for customers in Finland and Norway

NORSK

ADVARSEL

PRO-031-FIT issue: 4.0

1 Innovation Road, Maquare Park NSW 2113

/81 765 100 S8 NBY /81 769 100 NAY

Panasonic Australia Pty. Limited

if providing in, please ensure you have your operating instructions available.

If you require assistance regarding warranty conditions or any other enquinities, please visit the

SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES

THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)

If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure than Panasonic may choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.

In addition to your rights under this warranty, Panasonic products with consent guarantees that cannot be reproduced if the product fails to be of acceptable quality and the failure does not amount to a major failure. And be composited for the drop in value of the goods. You are entitled to have the product repaired on and be prepared by those products or products and also to have a refund to have the product replaced or if you wish you may effect to keep the goods produced and lead to have a refund to have the product replaced or if you wish you may effect to keep the goods reproduced if the product fails to be of acceptable quality and the failure does not amount to a major failure.

Panasonic Authorsed Service Centres are located in major metropolitan areas and most regional centres of Australia, however, coverage will vary dependent on products. For advice on exact Authorsed Service Centres locations for your product, please telephone our customer care Centre on 132600 or visit our website and use the Service Centre Location.

The warnings hereby contrasted to not exceed, to and excide, any costs associated with the installation de-transit. The product or any part interest or replacement of and do not exceed to, and excide, any damage or loss of other scope (and any other acillary activities), delivery, handling, fueling, transpiration or assurance of installation or re-installation of a product, including related to the mounting, de-mounting or remounting of the product or any part interest or replacement of and do not exceed to, and excide, any costs associated with the installation de-transit.

- PlasmacLD televisions / displays (screen size greater than 103 cm) - areas of Australia or the normal operating areas of the nearest Authorised Service Centres

Note that home or pick-up/delivery service is available for the following products in the major metropolitan

the Service Center Location for the Healthcare of the Health and Professional Service Center. Send or take the product to a Panasonic Authorized Service Centre together with your proof of purchase receipt as a proof of purchase date. Please note that freight and insurance to and / or from your nearest although a Service Center provides publicly available by you.

• Telephone Panasonic's Customer Care Centre on 132600 or visit our website referred to below and use • To claim warranty service, when required, you should:

communication to the internet or any other device

(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its

(c) The use of incompatible software or software not specifically and

(a) Internet and or DLNA connection / setup related problems (b) Access fees and/or charges incurred for internet connection

and will not cover Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products

etc

(d) User replaceable Batteries (h) DTV reception issues caused by TV Rental / Cabling / Wall socket(s)

(c) SD cards or USB devices (a) Information stored on Hard Disk Drive, USB stick or SD card

(b) Video of Audio Tapes (f) Video / Audio Heads from Wear and tear to normal use

1. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:

This warranty only applies if the product has been installed and used in accordance with the manufacturer's requirements (noted in the operating instructions) under normal use and does not cover damage, opinion of Panasonic). The warranty covers normal domestic use only and does not cover damage. Build-up of dir or dust, abuse, maladaptive installation of incurred vortages, incorrect installation accident, misuse, mitigated, malfunction of failure resulting from use of incorrect vortages, incorrect installation accident, misuse, mitigated, information by ideas of norms, limiting or year by multihoracic persons (including unauthorised activity), information by ideas of norms, limiting or year by multihoracic persons (including unauthorised activity), introduction of sand, humidity or liquids, commercial use such as hole, off. fee, researant or other business or rental use of the product, exposure to abnormally corrosive conditions or any foreign object or later having entered the product.

and only if valid proof of purchase is presented when warranty service is requested.

i's territories. Warranty cover only applies to service carried out by a Panasonic Authored Service Centre

1. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorized Distributors for Dealers and only where the products are used and serviced within Australia or

parts of labour, in the opinion of Panasonic, the products is found to be ready within the warranty period.

1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its Authorized Service Centre will perform necessarily service on the product without charge for

Panasonic Warranty

Limited Warranty (ONLY FOR AUSTRALIA)
