USER MANUAL SC-EH590 PANASONIC

Operating Instructions

Model No. SC-EH790

SC-EH590

Diagram of various electronic devices including a remote, tower, and speaker (no text or labels)

The Illustration shows SC-EH790 for the United Kingdom and Eastern Europe.

Abstract digital illustration of a globe with a sunflower and CD/DVD graphics, no readable text or symbols present.

Technics®

"EB" on the outer packaging indicates the United Kingdom.

Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

RQT6866-B

Dear customer

Thank you for purchasing this product.

For optimum performance and safety, please read those instructions carefully.

These operating instructions are applicable to the following systems. These operating instructions, however, fundamentally explain the operation of system SC-EH790.

EH790: indicates a function which can be enjoyed with SC-EH790 only. EH580: indicates a function which can be enjoyed with SC-EH580 only.

System		SC-EH790	SC-EH590
Sound processor		SH-EH790	SH-EH590
Tuner / amplifier		SA-EH790	SA-EH590
CD changer		SL-EH790	—
CD player		—	SL-EH590
Cassette deck		RS-DV290	RS-DV290
Speakers	Front	SB-DV290	SB-EH590
	Center	SB-PC95	—
	Surround	SB-P595	—

CLASS 1 LASER PRODUCT

CD changer or CD player (Back of product)

D'AGC"	10000 LORATRIZIONAMACHOPES MARTICUMBERGIE
400WAL	10000 LORATRIZIONAMACHOPES MARTICUMBERGIE
500P	2000 LORATRIZIONAMACHOPES MARTICUMBERGIE
600KNE	10000 LORATRIZIONAMACHOPES MARTICUMBERGIE
700WAL	10000 LORATRIZIONAMACHOPES MARTICUMBERGIE
800KHL	10000 LORATRIZIONAMACHOPES MARTICUMBERGIE

(Inside of product)

For United Kingdom and Republic of Ireland

[e-mail] (for UK customers only)

• Order accessory and suitable items for your product with ease and confidence by telephoning our Customer Care Centre Men. Friday 900am £30pm. Leasing parking tickets.

• Or go on the through our internet Accessory ordering application.

• Most major credit and card cards accepted.

• All services transactions and distribution facilities are approved directly by Panasonic, UK Ltd.

• It is not a sampler.

Customer Care Centre

For UK customers 08793-267367

For Republic of Ireland customers 01 208 8533

Technical Support

For UK customers 0870 1 206810

This Technical Support Hot Line number Is for Panasonic PC software related products only.

For Republic of Ireland, please use the Customer Care Centre number listed above for all enquiries.

For all other product related enquiries, please use the Customer Care Centre numbers listed above.

Supplied accessories

Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts.

□ AC mains lead .... 1 For the United Kingdom For Australia and N. Z.
(BU40052-2X) (BU40025-2X)
For Eastern Europe
Note
The included AC mains lead is for use with this unit only. Do not use it with other equipment.
Remote control 1 EH750 for the United Kingdom EH750 for Australia and N.Z. and Eastern Europe (EUR7702280)
(EUR7702270)

EHS90
(EUR7702070)

□ Remote control batteries

☐ FM indoor antenna ....1 For the United Kingdom For Australia and N.Z. and Eastern Europe (RSA0006-J) (RSA0007)

□ AM loop antenna set .... 1

□Speaker leads
(REE1234)
(Red/Black) (Gray/Blue)
(EE1233)....2

Antenna plug adaptor 1
Only for the United Kingdom
(SJP9009)

Table of contents

Before use

Safety precautions 3 Caution for AC Mains Lead 4

Simple set-up and play

Locating 5

Speaker leads 6

Antennas 7

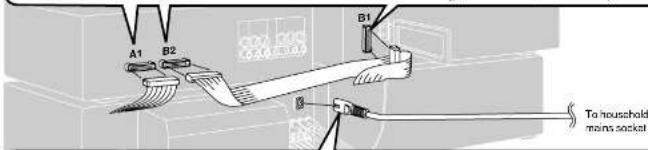

Flat cables and AC mains lead 7

Listening to a CD 8

Control guide and preparatory steps

Front panel controls 9

The remote control.... 11

Setting the time 12

Basic operations

CDs 13

The radio: manual tuning .... 17

The radio: preset tuning .... 1a

Changing sound field and quality

Boosting the super woofer 20

Using the super sound equalizer 20

hanging sound field and quality 20

Using the acoustic image equalizer (AI EQ) 21

Using the manual equalizer [M.EQ] 22

Enjoying surround sound 23

SCR DISCHETE INPUT 24

Recording operations

Before recording (Deck 2 only) 28

Recording CDs 29

Recording the radio....30

e-to-tape recording

Timer operations and convenient functions

Using the timers 31

Changing the sound range display 34

Muting the volume 34

Using headphones .... 34 Enjoying workplace (Far, Austria, and N.7: 25

Enjoying Karaoke (For Australia and N.Z.) 35 External unit connections 36

External unit connections .... 58 Optional antenna connections .... 37

Using other equipment 37

References

Troubleshooting guide 38

Maintenance 39 Carrolla tape selection and cars 20

Technical specifications Back cover

Technical specifications .... Back cover

Safety precautions

Placement

Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit's service life.
Place it at least 15 cm away from wall surfaces to avoid distortion and unwanted acoustical effects.
Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload the unit and cause a fire.
Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used.

AC mains lead protection

Ensure the AC mains load is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric shock. Do not pull, band, or place heavy items on the load.
Grasp the plug firmly when unplugging the load. Pulling the AC mains load can cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC mains lead and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

CAUTION!

THIS PRODUCT UTILIZES A LASER
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE. DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION!

•DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE, ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
•DO NOT OBSTRUCT THE UNIT'S VENTILATION OPENINGS WITH NEWS-PADERS TABLECLOTHS CURTAINS AND SIMULAR ITEMS
•DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES ON THE UNIT
•DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

Caution for AC Mains Lead

(For United Kingdom)

("EB" area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 📞 or the BSI mark 🌐 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be fitted please observe the wiring code as stated below.

If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral, Brown: Live.

As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue.

The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL ⊥ OR COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

1. Replace the fuse and close or attach the fuse cover.

Simple set-up and play

STEP 1 Locating

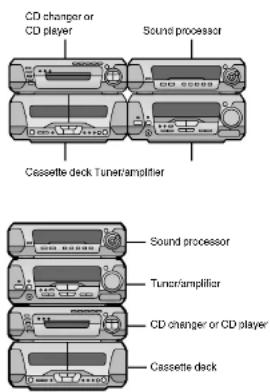

Components

Do not put the CD changer or CD player on the top of the tuner/simplifier. Heat can damage your CDs.

The illustrations show SC-EH790 for the United Kingdom and Eastern Europe.

Speakers

Optimum location Distance: A-B-C-D-E

Use only the supplied speakers.

Using other speakers can damage the unit and sound quality will be negatively affected.

Caution

• Use the speakers only with the recommended system. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire.
  Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.
• Do not attempt to attach these speakers to walls using methods other than those described in this manual.

Notes on speaker use

■You can damage your speakers and shorten their useful life if you play sound at high levels over extended periods.

■Reduce the volume in the following cases to avoid damage.

• When playing distorted sound.
• When the speakers are receiving howling from a microphone (for Australia and N.Z.) or record player, noise from FM broadcasts, or continuous signals from an oscillator, test disc, or electronic instrument.
• When adjusting the sound quality.
• When turning the unit on or off.

If irregular colouring occurs on your television

These speakers are designed to be used close to a television, but the picture may be affected with some televisions and set-up combinations. If this occurs, turn the television off for about 30 minutes.

The television's demagnetizing function should correct the problem.

If it consists, move the speakers further away from the television.

Front speakers

Left and right front speakers are exactly same.

Surround speakers

Place either side of the listening position, or slightly to the rear, about 1 meter higher than ear level with the Technics logo facing toward the listening position.

The effect varies with the type of music and the music source.

If you are unable to position the surround speakers as recommended. You can put them near the front speakers and still achieve a surround-like effect (→ page 26, VIRTUAL REAR SURROUND).

Set the speaker onto screws and slide through bracket to lock into position.

The wall or pillar on which the speakers are to be attached should be capable of supporting 5 kg per screw.

Simple set-up and play

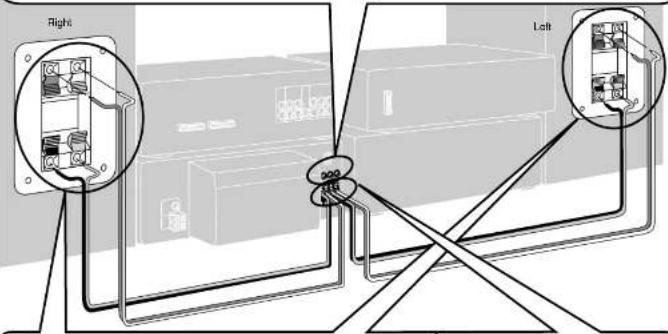

STEP2 Speaker leads

The illustrations show SC-EH790 for the United Kingdom and Eastern Europe. Do not connect the AC mains lead until all other connections are complete.

EH790
Surround and center speakers

Front speaker

Connect the leads to the terminals of the same colour.

LF and HF stand for low frequency and high frequency.

Connect the left (L) side in the same way.

Note

- Never short-circuit positive (+) and negative (−) speaker wires

- Be sure to connect only positive (red or grey) wires to positive (+) terminals and negative (black or blue) wires to negative (-) terminals.

Incorrect connection can damage the speakers.

Twist the vinyl tip and pull off.

Speaker side

Tuner/amplifier side

STEP3

Antennas

FM indoor antenna

Fix the other end of the antenna where reception is best.

For Australia and N.Z.

Twist the vinyl tip end pull off.

Diagram of a cable or connector connection between two electronic devices, showing wiring and components without any text or symbols.

AM indoor antenna

Twist the vinyl tip and pull off.

Keep loose antenna cord away from other wires and cords.

STEP4

Flat cables and AC mains lead

Flat cables

Keep the cables as flat as possible against the back of the unit. Connect the connectors to the terminals of the same colour. Incorrect connection can damage the unit.

Connecting Disconnecting

AC mains lead

(For the United Kingdom only) BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 4 BEFORE CONNECTION.

insertion of connector

Even when the connector is perfectly inserted, depending on the type of inlet used, the front part of the connector may cut out as shown in the drawing. However there is no problem using the unit

Appliance inlet

For your reference:

Information you enter into the unit's memory, except for time, remains intact for up to two weeks after the mains load is disconnected.

Simple set-up and play — Listening to a CD —

The illustrations show SC-EH790 for the United Kingdom and Eastern Europe.

2
EH790
Press DIRECT OPEN [DISC1]–[DISC5] and insert a CD.
1
Press [∅/l] to turn the unit on.

3
Press [▲, OPEN/CLOSE] to close the tray.

EH750 Repeat steps 2 and 3 to lead the other trays.
Displayed when the unit is in CD mode.
e.g. CD (CD-DA)

EH780
Disc number of tracks
Total playing time Total number
[Non-Text]
[Non-Text]
ress [▶] to start play.

Play starts from the first track on the disc in the play position and finishes at the end of the last track on the final disc (see below). You can start play from another disc by pressing [DISC. 1-6].

5
Adjust the volume.

To stop the disc

Press [■].

To pause play

Press [1] during play. The "IS" indicator flashes.

Press [1] or [b:] to resume play

Note

EH790

You can not change CDs in other trays while a disc is playing.

Final disc EH790

For example, if play starts from disc 4, disc 3 will be the final disc.

Order of progression: Disc 4→5→1→2→3

"NO DISC" is displayed

When the unit is in CD mode but a disc isn't in the play position*

(SC-EH790) or in the player (SC-EH580).

The disc in the play position is ready to play immediately when you

press [> ]

A
EH790

EH590

B
EH790

EH590

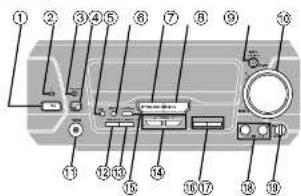

Front panel controls

A Tuner/amplifier

① Standby/on switch (CII)....8 Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

Standby Indicator (c5) When the unit is connected to the AC mains supply, this indicator lights up in standby mode and goes out when the unit is lumped on.

③Play timer/record timer button and indicator

(©PLAY/©REC) 31,32

④ Clock/timer button (CLOCK/TIMER) 12, 31, 32

(5) DEMO button (-DEMO) 12 (6) EN mode button (EN AUTO/ONO) 17

(7) Source input button (INPUTSELECTOR) 37

(3) Tuner/band button (TUNER/BAND) 17

⑤Digital super woofer button and indicator

(DIGITAL S.WOOFER) 20

Volume control (VOLUME) 8 Headphone lack (PHONES) 34

① Headphone jack (FHNES) 54 ② Tuning mode button (TUNING MODE) 17

Set button (SET) 12, 18

Tuning buttons (v, ∧ TUNING) 12, 17

EH720

6ch discrete input button (6CH DISCRETE INPUT)....24

EH790 for the United Kingdom and Eastern Europe

EH690

RDS display mode button (RDS, PS-DISP MODE-PTY) ..... 17

EH790 for Australia and N.Z.

(1) Karaoke and echo buttons (KARAOKE, ECHO) 35

(1) Microphone jacks (1-MIC-2) 35

(1) Microphone volume control (MIC VOL) 35

B CD changer/CD player

Random play button (RANDOM) 16

② Repeat play button (REPEAT) 16

(2) CD edit button (EDIT) 29

Disc tray open/close button (☐, OPEN/CLOSE)....8 Skin/search buttons (1:1/2:1/2/2)....13

Disc tray

Stop button (■) 8

⑳ Pause button (11) 8

② Play button and indicator (○) 8

The colour of the indicator depends on the operation taking place.

It stopped. orange

if playing: green

If paused, flashes

EN750

Disc select buttons and indicators (DISC, 1-5) 8

Green: Indicates that the tray is ready to play its CD or to be opened.

Disc direct open buttons 8

(DIRECT OPEN, DISC 1-DISC 5)

A

B
EH790

EH590

Front panel controls

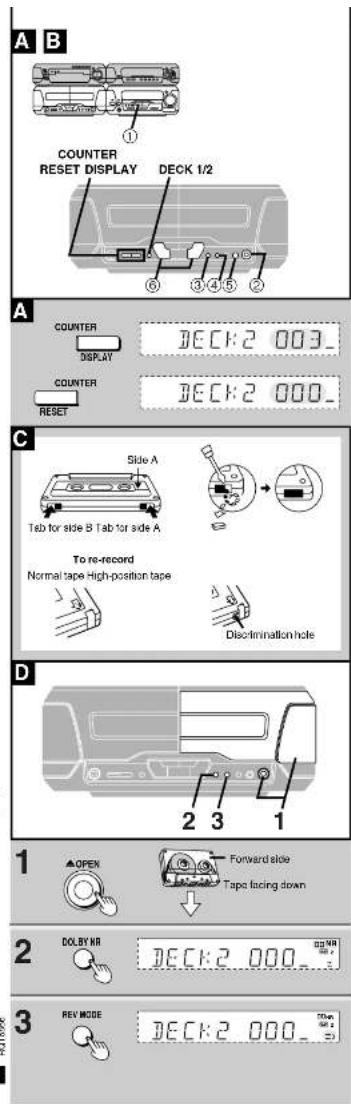

A Cassette deck

⑪ Deck 1 cassette holder open button (▲ OPEN) .... 19 ⑫Deck 1
① Fast forward/rewind, TPS buttons (◀◀, ▶▶).... 19
Deck 2 cassette holder open button (▲ OPEN) .... 19 Counter reset, display buttons
(COUNTER, RESET, DISPLAY) 25
① Deck 1/deck 2 select button (DECK 1/2) 19
The colour of the indicators depends on the operation taking place.
If stopped, last forwarding or rewinding; orange
If playing or recording: green
While carrying out TPS or recording is on standby, flashes
Stop button (■) 19 Dolby noise reduction button (DOLBY NR) 19
① Reverse mode button (REV MODE) 19
③ Tape edit button (TAPE EDIT)....30 ④ Record pause button (● REC RAUSE)....29

B Sound processor

Display mode button (DISPLAY MODE) 34

Super sound EQ button (SUPER SOUND EQ) 20

EH700

Jog control and joystick (◀, ▶, ▲, ▼, MULTI JOG) ..... 20 Virtual rear surround button and indicator

Multi rear surround button and indicator

(MOLT-REAR SURROUND) 24 ③ Seat position button and indicator (SEAT POSITION) 27

①Super 3D AI EQ button (SUPER 3D AI EQ) 21

©DOLBY PRO LOGIC button and indicator (PROLOGIC OFFION)

(2)PRO LOGIC, OFFION 24 (3)Super surround button and Indicator

(SUPER SURROUND) 24

Center focus button and indicator (CENTER FOCUS) 26

EH590

Multi control buttons

(▲, ▶, ▲, ▼, MULTI CONTROL) 21

A
The illustration shows the remote control for SC-EH790 for Australia and N.Z.

B

C

Tuner/amplifier

Front panel controls

A Remote control

Buttons such as ① function in the same way as the controls on the main unit.

② Sleep timer button (SLEEP) 33

5) Numbered buttons (1-9, 0, ≥10/-). 15 6) Cursor buttons (▲, ▲, ▼) 25.26

Tape select, deck 1/deck 2 select button

(TAPE/DECK 1/2)....19

CD pause/tape reverse playback button (◄/11) 8, 19

Mulling button (MUTING) 34 Program button (PROGRAM) 15

Program button (PROGRAM) 15 Cancel button (CANCEL) 15

CD button (CD) 15, 16

CD play/tape forward playback button (▶) 15, 19

CD tape stop button (■) 15, 19

(13.19)

EQ button (EQ) 20

111730

⑦ Input select button (VCR/AUX/6CH INPUT) 24,37

(9) Disc button (DISC) 15 (10) AV effect button (AV EFFECT) 28

(3) AV Effect button (AV EFFECT) 20 (3) Test button (TEST) 25

(7) Channel select button (CH SELECT) 25

@ Display button (DISPLAY) 14

Album skip buttons (v, -ALBUM) 13

EH580

AUX button (AUX) 37

The remote control

B Batteries

• Inser so the poles (+ and -) match those in the remote control.

- Do not use rechargeable type batteries

Do not;

• mix old and new batteries

• use different types at the same time

- heat or expose to flame.

•take apart or short circuit

- attempt to recharge alkaline or manganese ballenes

- Use batteries in the covering has been pooled off, almost preceding with metallic shivers such as each

- Keep together with additional objects such as necklaces. Misheading of batteries can cause electrode leakage which can damage

Mislanding of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

If electrolyte leaks from the batteries, consult your dealer.

Wash thoroughly with water if electrolyte comes in contact with any part of

your body.

Remove if the remote control is not going to be used for a long period of time. Store in a coal, dark place.

Replace if the unit does not respond to the remote control even when held close to the front panel.

C Use

Aim at the sensor, avoiding obstacles, at a maximum range of 7 meters directly in front of the unit.

- Keep the transmission window and the unit's sensor free from dust

- Operation can be affected by strong light sources, such as direct sunlight, and the glass doors on cabinets.

Do not;

- put heavy objects on the remote control.

•take the remote control apart

● spill liquids onto the remote control.

NO DEMO

A Turning DEMO off

A demonstration of the display is shown if you have not set the clock. You can reduce the power consumed in standby mode by turning the demonstration off.

While the unit is on.

Press and hold [-DEMO] until "NO DEMO" is displayed.

Each time you press end hold the button: NO DEMO (off) ▲ DEMO (on)

Setting the time

This is a 24 hour clock.

The example shows how to set the clock for 16:25 (4:25 p.m.)

1 Press [∅/l] to turn the unit on.

2 ①Press [CLOCK/TIMER] to display "CLOCK". Each time you press the button:

CLOCK→OPLAY→O REC→Original display

(1)

②Within 5 seconds

Press [SET].

3 ① Press [TUNING (√ or ∧)] to set the time. The time display can be changed in one minute units by tapping the buttons, and quickly by holding down the buttons. ②Press [SET].

The time is set and the original display is restored.

Displaying the clock

Press [CLOCK/TIMER]

The clock is shown for about 5 seconds.

Reset the clock regularly to maintain accuracy.

A

6

©

B

e

C

CDs

See page 8 for basic CD play.

CD selection

Choose discs with this mark (②).

Note on CD-R and CD-RW

This unit can play CD-R/RW (audio recording disc) recorded with CD-DA, WMA (SC-EH790) or MP3 (SC-EH790). Finalizes the disc after recording.

- A process that allows play on compatible equipment.

EH790

See page 14 for details about WMA and MP3

Do not;

- use irregularly shaped discs (1).

- attach extra labels and stickers

- use discs with labels and stickers that are coming off or with adhesive

exuding from undar labels and stickers (@).

- attach scratch-proof covers or any other kind of accessory.

- write anything on the CD.

- clean CDs with liquids. (Wipe with a soft, dry cloth.)

- use CDs printed with label printers available on the market.

To prevent damage

Always observe the following points.

- Load only 1 CD per tray (4).

- Load CDs as shown in figure (●).

An adaptor is not needed with 8 cm CDs (singles).

- Set the system on a flat, level surface.

●Always unload all CDs before moving the system.

Do not:

- set it on top of magazines, inclined surfaces, etc.

- moves the system while tray is opening/closing, or when loaded

- put anything except CDs in trays

- use cleaning CDs or CDs which are badly warped or cracked.

Skipping and searching through tracks

Skipping tracks

Press [◀◀/◀◀] (backward), or [▶▶/▶▶▶] (forward).

Skipping albums EH790 (WMA/MP3 only)

Press and hold [◀◀/◀◀] (backward), or [▶◀/▶◀] (forward) on the main

unit

Press and hold [-ALBUM (v or x)] on the remote control.

Searching through tracks

During play

Press and hold [◀◀/◀◀] (backward), or [▶◀/▶◀] (forward).

Note

- Skipping is done in the selected order in program play (= page 15). - You cannot skip to tracks already played in random play (= page 16).

- You can search only within tracks in program and random play.

EH790 (WMAMPS only)

- You cannot search through tracks.

CDs

EH750 (WMA/MPS only)

Changing the display

Remote control only

During play Press [DISPLAY].

The display will change as follows

Disc number, album number and track number
(b) Track name (Example: Track name is "LOVE")
Album name (Example: Album name is "ABC".)
d Disc number, track number and elapsed play time (Normal display)

To display the root (names of albums above the current one) Press and hold [DISPLAY] during play.

"ROOT", name(s) of album(s) above the current one, current album name and track name scroll across the display.

Host also appears when you move to another track (only when the display mode b or c above is selected).

The unit displays up to 12 characters each for album/track name.

WMA and MP3 Information

- Dece must conform to ISO9360 level 1 or 2 (except for extended formats). - This unit is compatible with multi-session but if there are a lot of sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.

Notes on WMA only

• Raises may be too when paying WMA less

- When creating a VMA disc, ensure the copyright feature is on.

Notes on MP3 only

- This unit is not compatible with ID3 tags.

- This unit is not compatible with fires with a sampling rate of 32 kHz.

- If you play all HPS track that includes still picture data, it will take some time before the music itself starts playing and the elapsed time will not be displayed during this time. Even after the track starts, the correct play time will not be displayed.

Order of play

MPEG Layer-3 audio decoding technology licensed from Fraunho-for IIS and Thomson multimedia.

Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3.

CDs

Program play

Select up to 24 tracks to play in the order you choose.

Remote control only

Preparation: Press [CD] to put the unit in CD mode.

EH790 (WMA-MPS only)

You can use program play only within a disc in the play position tray. Ensure a WMA/MP3 disc is in the play position tray.

1 Press [PROGRAM].

2 EH790

A For CD (CD-DA)

①Press [DISCI]

② Within 10 seconds or so

Press [1]-[5] to select the disc.

For WMA/MP3

Press and hold [-ALBUM (v or A)] to select the album.

1. Select the track with the numbered buttons.

To select a 2-digit number

e.g. To select track 21, press [≥10/-] ->[2] ->[1]

To select a 3-digit number [1]750

e.g. To select track 123, press |≥ 10x - | - |≥ 10x - | - [1] [2] [3]

EH790

Alternatively, press [◀◀/◀◀] or [▶▶/▶▶] then press

[PROGRAM].

Repeat steps 2 through 3 (SC-EH790) or step 3 (SC-EH590) to program additional tracks in the required order.

4 Press [▶].

To cancel

Press [■] while stopped.

EH590 Alternatively, press [PROGRAM]

All the tracks are canceled.

"FULL" is displayed

If 24 tracks have been programmed.

—" is displayed if:

• total playing time for the tracks is over 99 minutes and 59 seconds.

ck numbered 25 or over was programmed.

- a disc not in playing position was programmed (SC-EH790).

MA/MP3 disc was programmed (SC-EH790).

Tracks can still be programmed and played.

To check the contents of the program

⑤ EH590 After the playing lime appears on the display, press [CANCEL].

To add to the end of the program

Bereal steps 2 and 3 (SC-EH790) or step 3 (SC-EH590)

To cancel tracks

The last track (SC-EH750)	Press [CANCEL].
A particular track	1. Press [DISPLAY] (SC-EH750) or [CANCEL] (SC-EH590).2. Select the track with [ \ \ ] or [ \ \ ] then press [CANCEL].3. EH590 Press [CANCEL] again.
All tracks	Cancel program play (see above).

To program the track you are listening to CD (CD-DA) only

Press [PROGRAM]. The program mode engages and the current track is automatically recorded as program No. 1.

CDs

Preparation: Press [CD] on the remote control or [INPUT SELECTOR] on the tuner amplifier to select 'CD'.

Direct access play

EH710

Starts normal play from a selected track on a selected disc to the last track of the final disc (→ page 8).

EH580

Starts normal play from a selected track to the last track.

Remote control only

1

EH790

① Press [DISC].

⑤ Within 10 seconds or so

Press [1]-[5] to select the disc.

2

Press and hold [-ALBUM (v or ∧)] to select the album.

3

Select the track with the numbered buttons

Select the track with To select a 2-digit number

e.g. To select track 71, press [z10v1-1] -[21] -[11]

e.g. To select back 21, press |=10,40| = 4[2] - 4[1] To select a 3-digit number [1987]

a. To select track 123, press [5:10]

e.g. 14.2000, mask 126, profile [2-ter], and 2-ter]

Alternatively, press [1-/-] or [▶/▶]

B Random play

EH750

Plays the tracks on all discs once each in random order.

(For WMA/MP3, you cannot use random play.)

EH550

Plays the tracks once each in random order.

Press [RANDOM].

To cancel

Press (RANDOM)

"RANDOM" goes out.

For your reference:

For your reference. In the program play mode (→ page 15), the programmed backs are played

in the program play mode (— page 15), the program-red tracks are played randomly.

C Repeat play

EH720

Repeats all tracks on all discs or all programmed tracks.

EH590

Repeats all tracks or programmed tracks.

Press [REPEAT] before or during play.

To cancel

Press [REPEAT].
“(•) goes out.
To repeat only your favourite track(s)
① Program the track(s) you want (→ page 15).
② Press [REPEAT] and make sure * (→) is displayed.
③ Press [>]. Play will start.

PTY displays
NEWS	VARIED	FINANCE	COUNTRY
AFFAIRS	POP M	CHILDREN	NATIONAL
INFO	ROCK M	SOCIAL A	OLIDIES
SPORT	M.O.R.M2	RELIGION	FOLK M
EDUCATE	LIGHT M	PHONE IN	DOCUMENT
DRAMA	CLASSICS	TRAVEL	TEST
CULTURE	OTHER M	LEISURE	ALARM
SCIENCE	WEATHER	JAZZ

The radio: manual tuning

Radio stations can be tuned manually by selecting the station's frequency or they can be preset into channels to make it easy to tune (→ page 18).

Preparation: Press [5-7] to turn the unit on.

1 Press [TUNER/BAND] to select EM or AM.
Each time you press the button: FM+AM
2 Press [TUNING MODE] to select "MANUAL". Each time you press the button: MANUAL-PRESET
3 Press [TUNING (v or △)] to tune in the desired broadcast.
If you press and hold [TUNING (v or x)] for a moment, the frequency starts changing automatically. It stops when a station is found. It may also stop if there is outside interference. Press and hold [TUNING (v or x)] again to restart. You can also stop the frequency changing by pressing [TUNING (v or x)].
'TUNED' is displayed when a radio station is tuned
"ST" is displayed when a stereo FM broadcast is being received.

4 Adjust the volume.

A If noise is excessive in FM

Press [FM AUTO/MONO] to display "MONO".
This mode improves sound quality if reception is weak for some reason but broadcasts are heard in monsural.
Press [FM AUTOMONO] again to cancel the mode. "MONO" goes out. MONO is also canceled if the frequency is changed.

Turn off "MONO" for normal listening. Stereo and monaural broadcasts are automatically played as they are received.

Stations can be preset in monaural. Carry out presetting manually (→ page 18).

RDS broadcasting

This unit can display the text data transmitted by the radio data system (RDS) available in some areas.

If the station you are listening to is transmitting RDS signals, "RDS" will light up on the display.

Displaying the text data

Press IPS-DISP MODEI to display a station name.

Press [DISP MODE-PTY] to display a program type.

Each time you press the button:

Frequency display ± PS or PTY display

ROS displays may not be available if reception is poor.

"M.O.R.M"="Middle of the road music"

The radio: preset tuning

There are two methods of presetting stations.

Automatic presetting: The stations the tuner can receive are preset.

Manual presetting: You can select the stations to preset and the order

they are preset in. available for presetting

A Automatic presetting

Do the following once each for FM and AM.

Preparation: Tune to the frequency presetting is to begin at (→ page 17).

Hold down [SET].

Release the button when "AUTO MEMORY" appears

The tuner prasets all the stations it can receive into the channels in ascend

ing order. FM stations are preset into channels 1 to 39, and AM stations are preset into channels 21 to 39.

"SET OK" is shown when presetting is complete and the last station to be

proset is played.

"ERROR" is displayed if the tuner doesn't receive any stations. Do preset-

ting manually if this happens (see below).

AM stations replace any FM channels that were preset in channels 21 to 30.

B Manual presetting

Preset the stations one at a time.

①Tune to the required station.

②Press [SET].

Press [TUNING (v or ▲)] to select a channel.

④Press [SET].

The station occupying a channel is erased if another station is prosel in that channel.

C Selecting channels

Preparation: Press [+] to turn the unit on.

On the remote control

1 Press [TUNER/BAND].

2 Press the numbered buttons to select the

channel.

For channels 1 to 9 press the corresponding number.

For channels 10 or over press [≥10/-], then the two digits.

e.g. To select channel 21: [≥10+]→[2]→[1]

3 Adjust the volume.

On the main unit

①Select 'PRESET' with [TUNING MODE].

② Press [TUNING (× or ×)] to select the channel.

1

2

3

4

5

A

B

Cassette tapes

See page 39 for tape selection.

Preparation: Press I'd'll to turn the unit on

1 Press [▲ OPEN] on deck 1 or deck 2 and insert the cassette.
Close the holder by hand.
2 Press [DOLBY NR] to select Dolby NR on ("DONR" appears) or off.
3 Press [REV MODE] to select the reverse mode. Each time you press the button:
: One side is played
. * : Both sides are played.
: Both slices are played 8 times each.
4 Press [<] (reverse slice) or [>] (forward side). Play begins and the indicator changes to green.
5 Adjust the volume.

[Non-Text]

To stop the tape

Press [■].

A To change the deck to be used

Press [DECK 1/2] to select the dock you want to play.

To listen to 2 tapes consecutively

Insert a tape into each deck and select “(±)”. Both tapes will be played 8 times each.

Finding a place on a tape

To fast-forward and rewind

Press [◀◀] or [▶▶] while the tape is stopped.

To find the beginning of a track (TPS: Tape program sensor) Press [◀◀] or [▶▶] during play.

Play resumes from the beginning.

Tape direction rewind fast-forward
[>	◀◀	▶▶
<]	▶▶	◀◀

• Each deck's play direction is stored in the system's memory.
• You can fast-forward or rewind the laps while you are playing or recording a laps in another dock.
  ss [DECK 1/2] to switch to the dock not playing, and then press
  [◀◀] or [▶▶]. After the above operation, be sure to press [DECK 1/2] to reselect the deck playing.

Note

TPS may not operate correctly in the following situations:
If the interval between tracks is less than 4 seconds.
If there is noise between tracks.
If there are silent parts within tracks.

Dolby noise reduction

Dolby NR reduces 'hissing' when playing tapes. It increases the high frequency region when recording and then reduces it in playback. Use the same system during playback and recording. This unit has Dolby B NR which reduces noise to a third.

Prerecorded cassettes and equipment marked "DONR" use Dolby B NR.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

A

HIB

B
EH790 EH590

SUPER

SOUND EQ

C
EH790 EH590

HERI

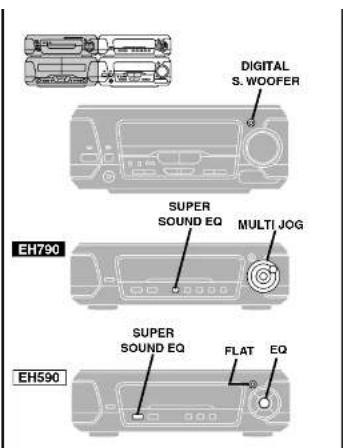

Boosting the super woofer

Boosting the super woofer adds power to the bass.

Press [DIGITAL S.WOOFER]

The indicator turns green.

Each time you press the button

MID (medium)→MAX (high)→cancel (off)

↑

There is only one level when listening through headphones

To cancel

Press [DIGITAL, S.WOOFER] to turn the indicator off.

Using the super sound equalizer

Turning on the super sound equalizer gives you a more powerful sound.

Press [SUPER SOUND EQ].

The indicator turns green

To cancel

Press [SUPER SOUND EQ] so the indicator turns orange (SC-EH790) or turns off (SC-EH590).

Changing sound field and quality

Turn [MULTI JOG] to select a setting.

Each time you turn:

HEAVY: Adds punch to rock.

CLEAR: Clarifies higher sounds

SOFT: Far background music

HALL: Expands sound to make you feel like you were in a hall.

AI-EQ: Adjust sound with the acoustic image equalizer (= page 21)

M EQ: Create your own effects (→ page 22).

FLAT: Canceled (no effect is added).

EH590

Press [EQ] to select a setting.

Each time you press the button.

HEAVY: Adds punch to rock.

CLEAR: Clarifies higher sounds

SOFT: For background music

On the remote control

Press [EQ]

To cance

EHow Turn [MULTI JOG] to select "FLAT".

EH500 Press [FLAT]

Note

EH750 Tum off the effect if sound quality reduces when using HALL with a source.

1
EH790

EH590

AI EQ

2
EH790

SUPER

3D RI 1

3
EH790

EH590

Changing sound field and quality

Using the acoustic image equalizer (AI EQ)

Achieve subtle sound quality settings with the soft, sharp, heavy, and light coordinates.

1 EH790

Turn [MULTI JOG] to select "AI EQ". EH590

Press [AI EQ] to select "AI EQ". The indicator turns green.

2 EH790

Press [SUPER 3D AI EQ] to select the surround level.

Each time you press the button: AI EQ→SUPER 3D AI 1→SUPER 3D AI 2

SUPER 3D AI 1: Adds a surround effect to the AI EQ. SUPER 3D AI 2: Adds a stronger surround effect to the AI EQ.

3 Chan

Adjust softness and sharpness with [◀, ▶]. Adjust heaviness and lightness with [▲, ▼].

The original display is restored on the display panel in about 5 seconds.

To cancel

E1780 Turn [MULTI JOG] to select "FLAT".

EH590 Press [FLAT]. The indicator turns off

The changes you make are stored and automatically recalled the next time you select AI EQ.

Note

- Turn off the effect if sound quality reduces when using SUPER 3D AI EQ with a source.

- You cannot select "SUPER 3D AI 1" or "SUPER 3D AI 2" while:

• Using a surround system (= page 23)

- Karaoke made is on (SC-EH790 for Australia and N.Z. only - page 35) - Listening to the radio

• Using headphones

Changing sound field and quality

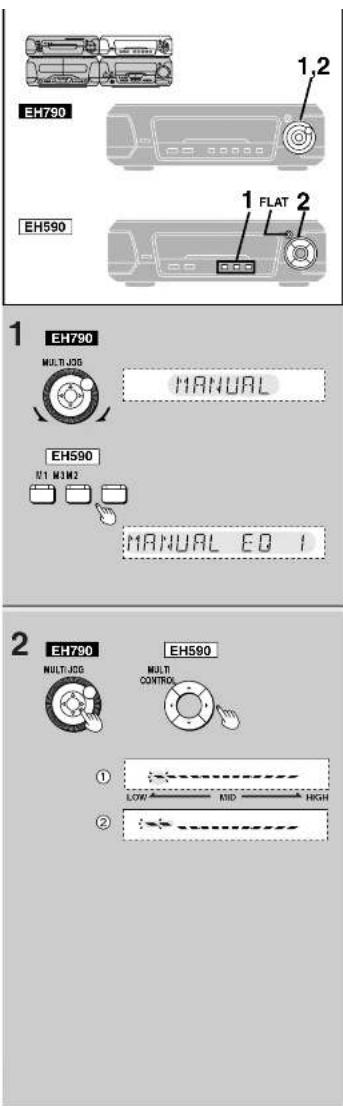

Using the manual equalizer (M.EQ)

Create your own sound quality effects.

SC-EH590 has three manual equalizers.

1 EH790

Turn [MULTI JOG] to select "MANUAL".

EH590

Press [M1], [M2], or [M3] to select the equalizer

you want to set.

The indicator turns green.

2 Change the sound quality with [◀, ▶, ▲, ▼].

① Select the sound range to be adjusted with [◀] or [▶].

② Adjust the level with [▲] or [▼].

Repeat step 2 to set the desired sound quality.

The original display is restored on the display panel in about

5 seconds.

To convert!

TO CANCEL EURO Turn (MULTILOG) to select 'EAT'

EH590 Press (FLAT). The indicator turns off

1.2.1

Note

The changes you make are stored and automatically recalled the next time you select the manual equalizer.

Enjoying surround sound

EH750

The following chart gives a summary of this unit's surround features. It also shows additional effects that can be used to enhance your enjoyment.

Note

- All the features are only effective if speakers are used. No discernible

effect will be heard through headphones.

- You may experience a reduction in sound quality when these surround systems and effects are used with some source, if this issue, try the

systems and effects are used with some bodies. In this occurrence, turn the surround system or effect off.

When you turn on one of the surround systems, the indicator for the

additional effects you can use also light

[NO TEXT]

Surround system

features Software

m = 311

(No text)

|

2014

6CH

DISCRETE

INPUT

- Use this input selector to enjoy

5.1 channel sources (e.g. Dolby Digital or

DTS) played on a DVD player with

5.1 channel output and a built-in Doby

Digital/TS decoder ( page 36 for consignment, page 24 for operation)

Consect a subscriber (not included) to

- Conmbo, a starkoster (for includes) to the SUBWOOEFER terminal to enhance

the surround effect (= page 36).

DVDs encoded with Dolby Digital or

DTS can be identified with these

marks.

DOLPH

DOLBY DIGITAL

DIGITAL

See the manual for the equipment you

have connected for details on 1

types of software you can use.

Additional effects

See below for details.

©Center locus

©Virtual rear surround

©Multi rear surround

① Seat position

(1)

[Non-Text]

[Non-Text]

[Non-Text]

(1)

©Center focus

©Virtual rear surround

©Mulli rear surround

② Seat position

(

1

(No text)

|

DOLBY PRO

LOGIC

(→ page 24)

1. 本次股东大会的决议

1

1

|

(

7

|

SUPER

SUPER

SUR-

ROUND

(→ page 24)

1

1

•This unit has built-in Delby Pro Logic

circuitry so you can enjoy Dolby

Surround.

- Delby Pro Logic is a decoding system that

was developed to get a better sense of

presence from sources encoded with

Lobby Surround. The feeling of passion

has been improved by the addition

Separate center speaker channels.

- If your DVD player only has 2-channel

output, you can still enjoy surround out what playing 5.1 channel software

sound when playing 5.1 channel software by using Delby Pro Logic

1. Using Ruby, a English

• This mode adds surround effects to

movie software that hasn't been recorded

with the above systems.

•in MOVIE mode you can adjust the

volume of the surround speakers to get

the best surround effect.

This mode adds surround effects to storage

sources.

Software encoded with Dolby

Surround can be identified with this

mark.

□

DOLBY SURROUND

• DVD

• Laser Disc

• Video tape

•CD

Any stereo sound source except for

the radio.

• Video tape

CD

•Tape

©Virtual rear surround

©Multi rear surround

⑤ Seat position

Additional effects

ⒶCenter focus (= page 26)

This mode makes it seem like the

sound from the center speaker is

coming from within the television.

■ The center speaker should be placed

above the television.

®Virtual rear surround

(→ page 26)

■This mode is useful if you have to

place your surround speakers near

the front speakers due to the layout

of your room.

• This mode makes it seem like the

sound from the surround speakers is

coming from behind you.

Virtual speakers

©Multi rear surround

i→page 26

This mode makes it seem like there

are multiple surround speakers in your

room, increasing the cinema-like

atmosphere.

Virtual speakers

① Seat position (- page 27)

This mode helps maintain the sound

position even if the listening position

itself is changed.

(二) 本次股东大会的决议

-6CH INPUT--

Enjoying surround sound

EH750

See page 25 for speaker level adjustments.

A 6CH DISCRETE INPUT

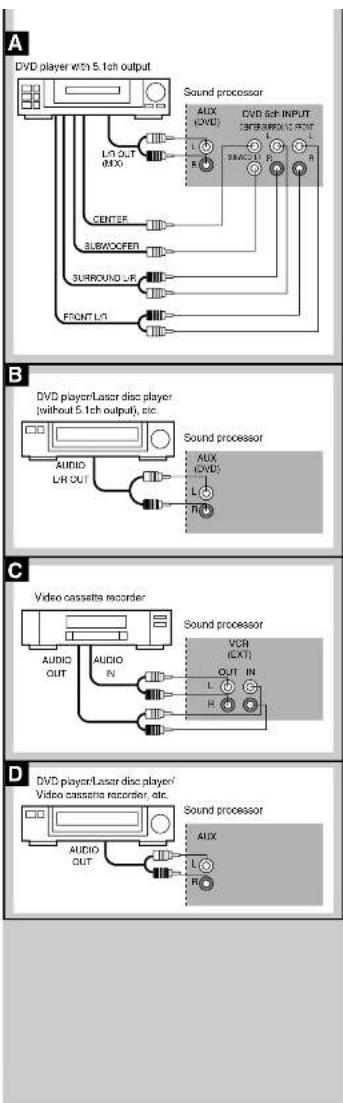

Preparation: Connect a DVD player with a built in Dolby Digital or DTS decoder (→ page 36).

1 Press [6CH DISCRETE INPUT].

2 Playback a Dolby Digital or DTS source.

On the remote control

Press [VCR/AUX/6CH INPUT] to select '6CH INPUT'.

To cancel

Press [INPUT SELECTOR] to select another source.

Note

You cannot record or enjoy karaoke (For Australia and N.Z.) when you are using BCH DISCRETE INPUT. To record or enjoy karaoke with DVDs, ensure the DVD player is also connected to the AUX (DVD) terminals and select "AUX (DVD)" with [INPUT SELECTOR] (= page 37).

B DOLBY PRO LOGIC

The indicator turns green,

Playback a Dolby Surround source.

To cancel

Press [☐☐ PRO LOGIC, OFF/ON] so the indicator turns off.

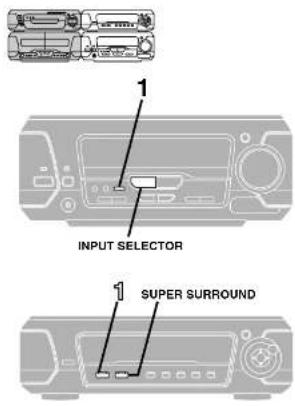

C SUPER SURROUND

Press [SUPER SURROUND] and select "MOVIE" or "MUSIC".

The indicator turns green

Each time you press the button

MUSIC→MOVIE→STEREO SOUND (off)

To cancel

Press [SUPER SURROUND] to select "STEREO SOUND".

The indicator turns off.

[ch 0dB]

TEST Cch

[ch -2d]

Enjoying surround sound

EH750

Speaker level adjustments

6CH DISCRETE INPUT, DOLBY PRO LOGIC

If the level of the speakers appears to be different while listening to a source, adjust the level of the speakers to the same apparent level.

Adjust while listening to a surround source.

If your DVD player is able to output a test signal,

DOLBY PRO LOGIC: Adjust while listening to a test signal.

Preparation: Set the volume level of the front speakers normally used for enjoying the source.

Remote control only

①6CH DISCRETE INPUT

Press [CH SELECT] to select the speaker.

The speaker channel changes each time you press the button.

DOLBY PRO LOGIC

Press [TEST].

A test signal is output from each speaker in order.

To stop the test signal, press [TEST] again.

Lch: Front Left

Cch Center

Bch: Frant nicht

BSch: Right surround

L.Sch: Left suture

Switch: Subwoofer (BCH DISCRETE INPUT: only when connected)

• The surround channel for Doibv Pro Logic is monaural so the indicator

appars as "Sch" instead.

(2) Press [▲] (to increase level) or [▼] (to decrease level).

SUPER SURROUND

While playing a source

1. Press [CH SELECT]

2. Press [▲] (to increase level) or [▼] (to decrease level).

VIRTUAL REAR SURROUND

CENTER FOCUS
MULTI REAR SURROUND

A

CENTER FOCUS

B

VIRTUAL REAR

C

MULTI REAR

Surround effects

EH750

These effects can be used with the surround systems described on page 24. Refer to the chart on page 23 for details on which effects can be used. These effects are available when the corresponding indicators are alight.

CENTER FOCUS

Press [CENTER FOCUS]. The indicator turns green.

To cancel

Press [CENTER FOCUS] so the indicator turns orange

On the remote control

①Press [AV EFFECT]

② Press [◀] or [▶] so the CENTER FOCUS indicator flashes

③ Press [▲] (ON) or [▼] (OFF).

The indicator lume green

To cancel

Press [VIRTUAL REAR SURROUND] so the indicator turns orange.

On the remote control

①Press [AV EFFECT]

② Press [◀] or [▶] so the VIRTUAL REAR SURROUND indicator

flashes

③ Press [▲] (ON) or [▼] (OFF).

MULTI REAR SURROUND

Press [MULTI REAR SURROUND].

The indicator turns green.

To cancel

Press [MULTI REAR SURROUND] so the indicator turns orange.

On the remote control

①Press [AV EFFECT]

(2) Press [◀] or [▶] so the MULTI REAR SURROUND indicator

flashee

③ Press [▲] (ON) or [▼] (OFF).

1

(On the sound processor)

SEAT → POSITION

2

Surround effects

EH750

SEAT POSITION

1 Press [SEAT POSITION].

The indicator flashes green

2 While the indicator is flashing (within 10 seconds) Adjust the seat position with [◀, ▶, ▲, ▼].

The indicator flashes for 10 seconds then lights green.

To cancel

1. Press [SEAT POSITION] so the indicator flashes.

2. Press [SEAT POSITION] again while the indicator is flashing so it turns

orange

On the remote control

①Press [AV EFFECT]

(2) Press [◀] or [▶] so the SEAT POSITION indicator flashes.

③Press [▲] (ON).

④ Adjust the seal position with [◀, ▶, ▲, ▼].

To turn it off, after stops ① and ② press [▼] so the indicator turns orange.

Note

- The seat position is remembered by the unit and is reactivated when you

turn shot position on again

- When used with virtual rear surround, seat position is changed in

3 horizontal steps.

Before recording (Deck 2 only)

See page 39 for tape selection.

arnot record when [ECH DISCRETE INPUT] is selected.

Volume, sound quality and surround effects have no effect on recording. Sound quality and surround effects are automatically set to flat when recording.

To display the tape counter while recording

Press [COUNTER DISPLAY].

The counter is displayed for about 5 seconds.

- Press [CCOUNTER RESET] to reset the counter

- To display or reset the tape counter for deck 1, first press [DECK 1/2].

Erasing recordings

①Press [INPUT SELECTOR] to select "TAPE"

②Insert the recorded tape into deck 2

③ Press [DOLBY NR] so the "DD NR" indicator goes out.

②Select the reverse mode ③Prove: ■ REC PAUSE!

⑧ Press [<1] or [1]>.

(四) 证券公司

Erasure prevention

The illustration shows how to remove the tabs to prevent recording. To record on the tape again, cover as shown, being careful not to cover the high position discrimination hole.

Your attention is drawn to the fact that recording pre-recorded tapes or discs or other published or broadcast material may infringe copyright laws.

D Preparatory steps

Do these steps before each recording.

Wind up the leader tape so recording can begin immediately.

1 Press [▲ OPEN] on deck 2 and Insert the

cassette.

Close the holder by hand.

2 Press [DOLBY NR] to select Dolby NR on ("DONR" appears) or off. (= "Dolby noise reduction", page 13)

3 Press [REV MODE] to select the reverse mode.

Each time you press the button

: One side only records.

and Both sides record (forward → reverse).

'→' automatically changes to →' when [● REC PAUSE], [EDIT]

or [TAPE EDIT] is pressed.

Recording CDs

Preparation:

- Do the preparatory steps (→ page 28).

- Insert the CD(s) you want to record (→ page 8).

• EHTO

Press [DISC, 1–5] on the CD changer to select the disc where you want to

start recording, then press [■] to stop the disk.

A Normal recording

1 Press [] (forward side) then [■] to set the tape direction.

2 Press [● REC PAUSE].

The deck goes into the recording standby mode and the indicator "<" or "> " starts flashing.

3 Press [>] on the CD changer or CD player. Recording starts automatically.

4 seconds after the CD(s) finishes, the deck goes into the recording standby mode.

To stop recording

EITHER

Press [■] on the CD changer or CD player.

The deck goes into the recording standby made 4 seconds later.

OR

Press [■] on the deck

Recording stops immediately but the CD continues to play.

To record programmed tracks

Program tracks before step 1 (= page 15).

B One touch CD editing

This function makes it easier for you to record from discs.

- When recording, if a track is cut off in the middle at the end of the front side, it is recorded from the beginning on the reverse side. (Ensure the reverse mode ) is selected.)

- At the end of the reverse side recording stops and the current track will be interrupted.

After pressing [<1] or [>] then [■] on the cassette deck to set the tape direction.

Press [EDIT].

Recording starts. In the meantime, "CD EDIT" will scroll across the display.

After odil-recording has finished, the cassette deck automatically stops.

To stop editing

Press ■] on the CD changer or CD player.

The cassette deck also stops. "EDIT OUT" scrolls across the display.

To edit programmed tracks

Program the tracks (→ page 15) and press [EDIT].

A Recording the radio

Preparation: Do the preparatory steps (→ page 28).

1 Tune to the required station. (i→ page 17 or 18)

2 Press [● REC PAUSE]. The deck goes into the recording standby mode and the play indicator "" starts flashing.

3 Press [◀] (reverse side) or [▶] (forward side) to start recording.

To stop recording

Press [■]

To temporarily stop recording

Press [● REC PAUSE].

The deck goes into recording standby mode. To resume recording press [<1] or [>] with the flashing indicator.

B Tape-to-tape recording

Preparation:

- Do the preparatory steps 1 and 3 (= page 28).

- Insert the tape to be recorded in deck 1.

1 Set the tape direction on both decks.

① Press [DECK 1/2] to select "DECK 2"

② First press [<1] or [>], and then [■]

Repeat steps (1) and (2) for deck 1.

2 Press [TAPE EDIT] to start recording.

The indicator "<1" or "C>" shows deck 2 direction.

If either deck 1 or deck 2 steps, the other deck also steps

To stop recording

Press [■].

Both decks will stop.

To enjoy another source while recording

Start playing the other sound source.

You can change the volume level and tone quality without affecting the recording.

Note

The recording level and the noise reduction effect of the original (playback) tape will be recorded on the new tape.

PLAY/2REC

1

2

⑧ ON 6:30

(b) OFF 7:40

©---TUNER---

1 FM 88.10

① VOLUME -48dB

ON 6:30

3

Using the timers

The play timer

This timer starts play of the selected source at the selected time. The example shows settings for preset radio channel 1 to play between 8:30 and 7:40 at -48 dB.

Preparation: Turn the unit on, set the time (→ page 12), preset radio stations if you want the timer to start playing the radio (→ page 18).

1 ① Press [CLOCK/TIMER] to select "◎PLAY". Each time you press the button: CLOCK→◎PLAY→◎REC→Original display

② Press [SET] within 3 seconds.

2 Follow these steps to set items (8) to (d). ① Press [TUNING (v or ▲)] to select the condition required and

② Press [SET].

Start time

Finish time

Source TUNER 02 TAP

TUNEN→00→1

Insert a CD or tape if you select these sources.

If you select TUNED

Select a preset channel.

Volume

The play timer is now on standby. The display shows each condition again then restores the original display.

3 Press [∅/l] to turn the unit off.

OPLAY/OREC indicator remains illuminated to show the play (or record) timer is on.

The timer starts at the set time with the volume increasing gradually to the set level.

To cancel the timer

Press [@PLAY?@REC] so "@PLAY" goes out

Each time you press the button:

SPAT SALE SPAT SALE Light on OH

The play timer will be canceled, but the settings stay in the memory.

For your reference:

When you insert cassettes in decks 1 and 2, deck 1 has priority.

Using the timers

The record timer

This timer records the radio at the set line.

The example shows settings for recording preset channel 1 from 18:30 to 19:30.

Preparation: Turn the unit on, set the time (→ page 12), preset radio stations (→ page 19).

1 ① Press [CLOCK/TIMER] to select "○REC".

Each time you press the button:

CLOCK→PLAY→BREC→Original display

②Press [SET] within 3 seconds.

2 Follow these steps to set items Ⓐ, ⓑ and Ⓔ. ① Press [TUNING (v or ∧)] to select the condition required and

②Press [SET].

④ Start time

Finish time

(2) Preset channel

o record timer is now on standby. The display shows each condi-

a again then restores the original display.

3 Prepare for recording.

①Insert a tape into deck 2.

②Select the Delta NR mods.

②Select the reverse movie

@Select the tape direction.

4 Press [☐/I] to turn the unit off.

@PLAY/3/REC indicator remains illuminated to show the record (or

play) timer is on.

Recording starts 30 seconds before the set time with the volume muted during the set time.

To cancel the timer

Press [@PLAY/OREC] so "OREC" goes out.

Each time you press the button:

PLAY→REC→PLAY REC→Light off (OFF)

The record timer will be canceled, but the settings stay in the memory.

A

B

Using the timers

A The play and record timers

Turning the timers on and off

The timers come on at the set times if the ②PLAY/②REC indicator is on. They can be turned on and off by pressing [②PLAY/②REC].

Checking the timers

Press |CLOCK/TIMER| to select "PLAY" (or "BREC")

The timer conditions are shown in the following order:

Play timer:

Start time→Finish time→Source→Volume

Record timer:

Start time→Finish time→Selected radio station

The timers can be checked even if the unit is off.

Playing the unit after the timers are set

The unit can be used after the timers are set. Make sure the unit is off before the set start time.

Note

- If you turn the unit off and on again while a timer is functioning, the finish time setting will not be activated.

- If the unit is on, the timer will not function. The system must be in the standby mode.

- This system retains the ON/OFF time settings until you make a new setting. If you make a new ON time setting, you must make a new OFF time setting.

- Do not turn DEMO on after setting a timer. The timers will not work while DEMO is on.

B The sleep timer

Remote control only

This timer turns the unit off after a set time.

While playing a source

Press [SLEEP] to select the time (minutes).

Each time you press the button

SLEEP 30 —→SLEEP 60 —→SLEEP 90

←SLEEP OFF←SLEEP 120←

To cancel the sleep timer

Press |SLEEP| to select "SLEEP OFF".

"SLEEP" goes out.

To confirm the remaining time

(While the timer is functioning)

Press [SLEEP].

The remaining time is shown for about 5 seconds.

To change the setting

Press [SLEEP] to display the remaining time, then press again to select the required time.

Using the timers together

Any of the timers can be used together, but ensure the unit is off before the start time for the record and play timers.

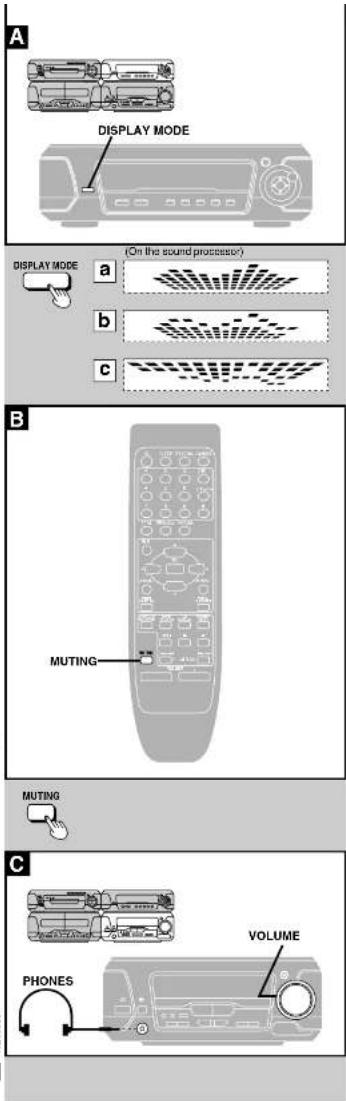

A Changing the sound range display

The sound processor shows the level of each sound range with the three types of display described below.

Press [DISPLAY MODE].

The spectrum display will change as follows.

a Normal display

This display indicates the strength of the sound in each tonal range.

b Peak-hold display

The peak sound value of each sound range is held on the display for about one second after it occurs.

c Aurora display

The peak sound value of each sound range is displayed in inverted form.

B Muting the volume

Remote control only

Press [MUTING].

Volume is reduced to minimum.

To cancel

Press [MUTING] again.

"MUTING" goes out and the volume is restored. To cancel from the transatlanticity turn D/OU

To cancel from the timer-all printer, turn [VOLUME] to minimum (--- dB), then raise it to the required level.

Muting is also canceled when the unit is turned off.

C Using headphones (not Included)

Reduce the volume before connection.

Avoid listening for prolonged periods of time to prevent hearing damage. Plug type: 3.5 mm stereo

1

3

A

Enjoying karaoke (For Australia and N.Z.)

You can do karaoke with CDs and tapes.

Preparation:

Lower the volume with [MIC VOL] and connect the microphone.

Use a dynamic microphone.

1 Press [KARAOKE] to select a voice mode.

Each time you press the button:

MONO L→MONO R→VOICE MUTE→off (Normal)

A

• Karaoke CDs and tapes

MONO L: Only left channel sound (No vocal)

MONO R: Only right channel sound (Vocal)

Select no vocal for karaoke. Vocal and no vocal may be reversed

- Normal music CDs and tapes

2 Start playing the CD or tape.

3 Adjust the main volume and microphone volume.

To cancel

Press [KARAOKE] to clear the display.

To record your performance

Start recording in deck 2 and then start singing.

Ensure the voice mode is set to off (at step 2 above) when playing the

recording.

Note

THE Karaoke Inbox cannot be used with the radio, SUPER 3D ATEC. 6CH DISCRBETE INPUT or output effects.

When using the VOICE MUTE function

- Voice mute may not function sufficiently or noise may interfere when using

the following software

- Monsural software

- Software With few musical instruments, including classic music and poetry recitations.

- Software with rua

•VOICE MUTE reduces the level of the vocals but does not cancel them

out completely

A Using the echo effect

Press [ECHO].

Each time you press the button

ECHO 1→ECHO 2→ECHO 3→OFF

↑

External unit connections

- Turn oil all units before making connections. - Refer to the manual of the other unit for details. (Cables and equipment not included.)

Connections to SC-EH790

A DVD player with 5.1ch output This unit has the input terminals for 5.1ch surround systems but it does not have the decoders necessary to play them back. The DVD player should have these decoders and 5.1ch output. To record sound from the DVD player Connected to AUX (DVD). Subwoofer The included front speakers have superwooters, but you can enhance surround sound from a unit connected to DVD 5ch INPUT by connecting another subwoofer to SUBWOOFERT terminal. B DVD player/Laser disc player (without 5.1ch output), etc. This unit has Dotby Pro Logic circuitry. The sound will be reproduced with the same powerful stereophonic effects found in movie theaters. C Video cassette recorder You can enjoy the sound from your video cassette recorder.

Connections to SC-EH590

DVD player/Laser disc player/Video cassette recorder, etc. You can enjoy the sound from your DVD player/Laser disc player/Video cassette recorder, etc.

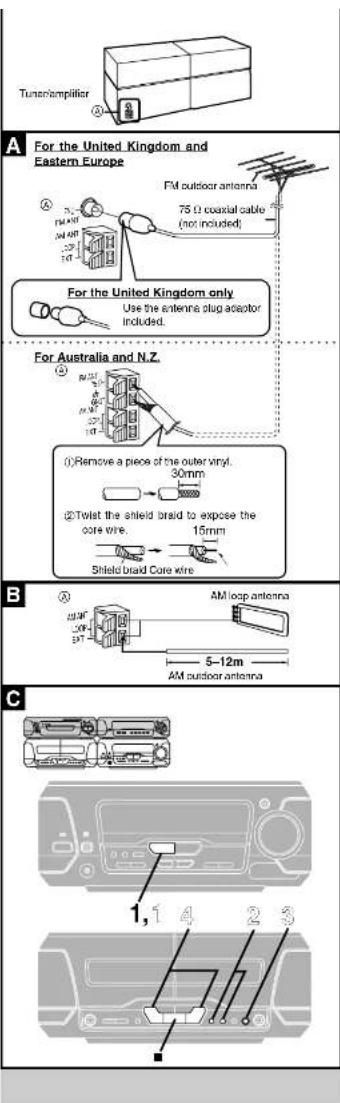

Optional antenna connections

Use outdoor antennas if radio reception is poor.

FM outdoor antenna

- Disconnect the FM indoor antenna. - The antenna should be installed by a competent technician.

AM outdoor antenna

Run a piece of vinyl wire horizontally across a window or other convenient location. I saw the long inches connected.

Note

Disconnect the antenna when the unit is not in use. Do not use the antenna during an electrical storm.

Using other equipment

Listening to an external source

1 Press [INPUT SELECTOR] to select the external source.
Each time you press the button
LU1780
TUNER→CD→TAPE→VCR(EXT)→AUX(DVD)
(1)
FH580
TUNER→CD→TAPE→AUX
1
On the remote control
Press [VCR/AUX/BCH INPUT] (SC-EH780) or [AUX] (SC-EH590).
2 Operate the unit. See the unit's manual for details on operation and connecting

EH790

To enjoy Dolby Digital and DTS = page 24

Recording an external source

Press [INPUT SELECTOR] to select the external source.

2 Select Dolby NR and reverse mode. (→ page 26)

3Press [● REC PAUSE].

4 Press [◀] or [▶] to start recording.

Start the source to be recorded. See the unit's manual for details on operation and connection.

To stop recording

Press [■] on the deck

To temporarily stop recording

Press [● REC PADD] The deck goes into the recording standby mode. To resume recording press [<1] or [>1] with the flashing indicator

Recording onto an external unit

Connect the external unit to VCR (EXT) OUT Select the source to be recorded with [INPUT SELECTOR] Start recording on the external unit and start playing the source to be recorded.

Troubleshooting guide

Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, consult your dealer for instructions.

Reference pages are shown as black circled numbers ③.

Common Problems

No sound.	Turn the volume up. Switch off the unit, determining and correct the cause, then switch the unit on. Causes include shooting of the positive and negative speaker wires, straining of the speakers through excessive volume or power, and using the unit in a hot environment.
Sounds unfixed, reversed or come from one speaker only.	Check the speaker connections. 8
Humming heard during play.	An AC mains load or fluorescent light is near the cables. Keep other appliances and loads away from this unit's cables. If possible in your area, turn the AC mains lead's plug or connector over to reverse the lead's polarity.
"ERROR" is displayed.	Incorrect operation performed. Read the instructions and try again.
"U70" is displayed.	Connect the flat cables firmly. If "U70" remains on the display, contact the dealer.
"F60" is displayed.	There is a problem with the amplifier. Consult your dealer.
"—" appears on the display.	You plugged the AC mains load in for the first time or there was a power failure recently. Set the time. 9
The display starts up even after the unit is turned off.	The demonstration feature (-DEMO) is on. Turn it off if it is not required. 10

The CD changer or CD player

The display is wrong or play won't start.	The disc may be upside down. ❶ Wipe the disc. Replace the disc if it is scratched, impact, or nonstandard. Condensation may have formed in the changer or player due to a sudden change in temperature. Wait about an hour for it to clear and try again.
SHWO "TAKE OUT/DISC" appears on the display.	There is a problem with the CD mechanism. (A power failure may have occurred.) The tray will open automatically. Remove the CD from the tray, and alter ensuring there is no CD in the tray, close it. The unit will make the disc changing noises for a few moments and then it should operate normally.

Listening to the radio

Noise is heard. The stereo indicator flickers or doesn't light. Sound is distorted.	Use an outdoor antenna. 2
A beat sound is heard.	Turn the TV off or separate it from the unit.
A low hum is heard during AM broadcasts.	Separate the antenna from other cables and loads.
The correct AM frequency can't be tuned in.	Change the frequency step. Hold [TUNER/BAND] down for 10 seconds to change the step to 9 kHz.

The cassette deck

Poor quality sound.	Clean the heads. 1 Check the Dolby NR setting. 2
Recording is not possible.	If the erasure prevention tabs have been removed, cover the holes with adhesive tape. 3
"DECK NO TAPE" is displayed during "One touch editing".	Load a cassette into deck 2. 4
"DECK CHANGE TAPE" is displayed during "One touch editing".	If the erasure prevention tabs have been removed, cover the holes with adhesive tape. 5

When there is a television set nearby

The picture on the TV disappears or stripes appear on the screen.

The location and orientation of the antenna are incorrect. If you are using an indoor antenna, change to an outdoor antenna.The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set from the system.

The remote control

The remote control doesn't work.

Check the batteries are inserted correctly. 1Replace the batteries if they are worn.

All components are required to service the system. If service is ever necessary, bring the entire system.

Maintenance

If the surfaces are dirty

To clean this unit, wipe with a soft, dry cloth.

- Never use alcohol, paint thinner or berzine to clean this unit.

- Before using chemically treated cloth, read the instructions that came with the cloth carefully.

For a cleaner crisper sound

Clean the heads regularly to assure good quality playback and recording. Use a cleaning tape (not included).

Cassette tape selection and care

The unit can correctly play or record on the following types. It identifies the type automatically.

Normal position/TYPE I √
High position/TYPE II √
Metal position/TYPE IV √

■ Tapes exceeding 100 minutes are thin and can break or get caught in the mechanism.

- Tape slack can get caught up in the mechanism and should be taken up before the tape is played.

- Endless tapes can get caught up in the deck's moving parts if used incorrectly. Use tapes appropriate to this unit's auto-reverse mechanism.

Technical specifications

SOUND PROCESSOR

■ED/SEP section

MANUAL GEO

ANUAL GE 5-Band FO

SABRIG LGA Gorber fr

Center frequency 70/85x + 28.15 N/10K Hz

Level control

ECVSpace mode HIVM

4 modes HEAVY, CLEAR, SOFT, HALL

mode

3 modes HEAVY, CLEAR, SOFT

JPER 3D AI EQ

3 modes ALEQ 81

3 Indices A/LQ, SOF

■Pre-amplifier section

put sensitivity/impedance

VCR (EXT) CHFRD 250 mW/16 kΩ

AUX(DVD) EXPO 250 mV/15 kΩ

OUX [SHEV] 250=V/15 kΩ

AHA | 21590 Level Level: EYES

upain level CHAD NOB PBO OLT 150 mV/4.5 kF

VCR REC OUT 150 mV/1.5 kJ

DOLBY PRO LOGIC section EHTPO

RO LOGIC mode SURROUND

ENTER mode NORMAL

ENTERMAGE NOTABLE ELAY TIME 20 mo (Fisuci)

LEAT TIME 2016 [ bed]

AV SURROUND section III 1730

V surround mode

Display mode NORMAL, PEAKHOLD, AURORA

■General

Dimensione (M×H×D) 200×80×970 mm

250×45×275 mm

×0.0×2.5×1mm

E-mail: 1.0 等

EH50|1.4kg

UNER AMPLIFIER

TOLER AMI EFFECT

■ Amplifier section ■H730

power output (L/R both channel driven)

Stereo Mode

DIN 1 kHz THD 1 %BΩ (High) 2×25 W

100 Hz THD 1 S/NΩ (L/cm) 2×15 W

105 Hz THD 1 (dB) 2×45 W RMS 1 kHz THD 10 S/5Ω (kHz) 2×35 W

HRS 1 KHE THD TO 30μs ^2 (High) 2×35 W 100 Hz TUR 40 μS/Hz ^2 (V) 2×65 W

100 H2 TH

PRO LOGIC mode

DIN

FRONT 1 kHz THD 1 %/6 Ω (High) 2×25 W

100 Hz THD 1 %/8 Ω (Low) 2×45 W

SUBROUND 1 kHz THO L SAB D 2×30 W

CENTER 1 kHz THD 1 SSB 80 Hz

GENERAL TIME AND SEAS 05:17

Hikis

FRONT 1 kHz THD 10 %6 Ω (High) 2×35 W

100 Hz THD 10 %/8 Ω (Low) 2×65 W

SURROUND 1 kHz THD 10%8Ω 2×40W

CENTER 1 kHz THD 10%AB Ω 83 W

PMPO 1 kHz/High 8 Ω, Low 8 Ω,

CENT 80 SUBB 80 3000 W

CENT: 0.13, CORN: 0.12 Total harmonic distortion

Rated power at 1 kHz

Hated power at 1 KHz 1 N (0.22)

Half power at 1 kHz 0.1% (6 L2)

and impedance

FRONT (High) 5Ω

FRONT (Low) 8Ω

SUBBOUND 80

CENTER 80

DIGITALS WOODER

GARLAL 5. WOOFER

Center frequency 60 Hz

LEVEL (VOL = 20 dB) MD +3 dB MAX +5 dB

■ Amplifier section EH580

Power output (L/R both channel driven)

DIN 1 KHz THD 1% N O (High) 2×25 M

LIN 1 KHE THD 1 Ga D (High) 2×25 W 100 Hz THD 1 S/BL (J/L avg) 3×85 W

100 Hz THD + .60 Ω (LOW) 2×65 W THP - 1.46V THP (2 N.T.) (W/m) 3×75 W

HMS 1 KHZ THD 10 %6 L2 (High) 2×35 W

100 Hz THD 10 %/8 Ω (Low) 2×65 W

otal harmonic distortion

Rated power at 1 kHz 1% (6Ω)

Half power at 1 kHz 0.1% (B Ci)

and Impedance Main (High) 9.0

Main (l not) 80

### (Law)

DIGITAL S. WOOFER

Center frequency 60 Hz

The time (1 min, day),

[Non-Text]

Setting Intervals (Play/Rec)

1 minute-23 h

■General

■ General

Power supply

(For the United Kingdom, Australia and N.Z.)

广力云智慧零售收银系统

(For Eastern Europe)

Power consumption

[Non-Text]

Standby

Dimensions (NOCHXD)

Sibenzolino (WCHMS)

Mass

[Non-Text]

CD PLAYER

■Dissie played (8 cm or 12 cm)

■Discs played (a

CD | CD BK

EHV30 CD-H/RW (CD-DA, MMA, MP3-formatted disc)

BH590

Pickup

Wavelength

Nasaring

■General

Dimensions (W×H×D)

[Non-Text]

Минки

(1) 本说明仅供参考。

2.1.2.2017年1月1日

CASSETTE DECK

Deck system

Track system

Recording

Recording system Rise frequency

Bias frequency

Wow and flutter 0.18% (GHMS)

Fast forward and rewind times

Anma, 110 specimens with C-80 cassella spp.

Евгенийск гидропан

TYPE /NORMAL) 20 Hz\~18 kHz /DIV

TYPE 1 (NONLINE) TYPE 2 (SHORT)

TYPE II (HIGH) 20HZ=16HZ (DIN) TYPE III (METAL) 20Hz=16Hz (DIN)

TYPE IV (METAL)

S/N (Signal level—max recording level, TYPE II type tape)

NR off

Dolby B NR on 96 dB (A weightc)

Input sensitivity and

REC (IN)

Cutoff unit

Output voltage and impedance

PLAY

■General

Dimensions (W×H×D)

Muse 2.1 kg

1.2.4.2.19

FRONT SPEAKER

Type 5 now 2 speakers. Recitation

Туры 5 кмр Срокири

Speaker(s)

Super woofer 17 cm core type

Wooler 1

Tweeter EH250 8 cm ring shaped name type

B490 6 cm car = type

Impedance

Input power (Music) High 80 V Low 120 V

Output sound pressure level 150117 dFLOX(1.1 m)

Output sound pressure level 10 cm × 0.24 (1.0 m)

(EBIT) 84 dBW (1.0 m)

Crossover frequency EPH20 120 Hz, 4 KHz

[Non-Text]

Frequency range EH00 42 Hz-50 kHz (-16 dB)

46 Hz-36 kHz (-10 dB)

FH500 42 Hz-22 kHz / 18 dB

45 Hz, 20 kHz (10 dB)

70

■General

Dimensions (W×H×D)

Mass 5.0 kg

CENTER BREAKER

CENTER SPEAKER

Type 2 way, 3 speakers, Bassellex

Speaker

Woofer(×2) 0 cm cone type

Tweeler

Impedance II (1)

Impedance 0.12 Input range (MHz) 180 V

Input power (Watts) 10.5 V

Output round pressure level on dB-W (1.0 m)

Crossover frequency 4 kHz

Frequency range 100 Hz-32 kHz (15 dB)

115 Hz-20 kHz ( 10 dB)

■General

■ General Dimensions (Mbit/Div) 100x20x100 mm

Dimensions (W×H×D) 150×35×100mm

Mass 1.8 kg

Type 1 now 1 speaker Closed

Type Snacken

Speaker

Full range 8 cm cone type

Impedance B:

Input power (Music) 70 W

Output sound pressure level 84 dB/W (1.0 ml)

Frequency range 130 Hz-20 kHz/-15 dB

Frequency range 150 Hz-18 kHz/-(10 dB)

■Sortheast

■General

Dimensions (WXH×D) 140×99×119 mm

Mass 0.9 kg

广力云智慧零售收银系统

Note

1. Cm

2. Specifications are subject to change without

notice.

Mass and dimensions are approximate

1. Total harmonic distorting is measured by the

2. Total magnetic stabilization is measured by the digital spectrum analysis

digital spectrum analyzer.

1. "Low" and "High" stand for low frequency and

high frequency.

Fig.10

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]
