USER MANUAL EasyGrassCut 18230 BOSCH

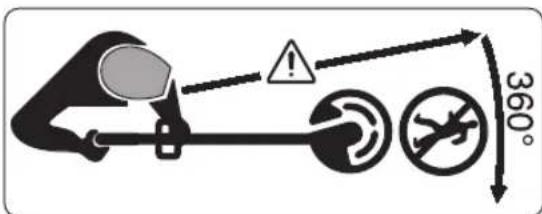

Warning: Keep a safe distance

to the product when operat- ing.

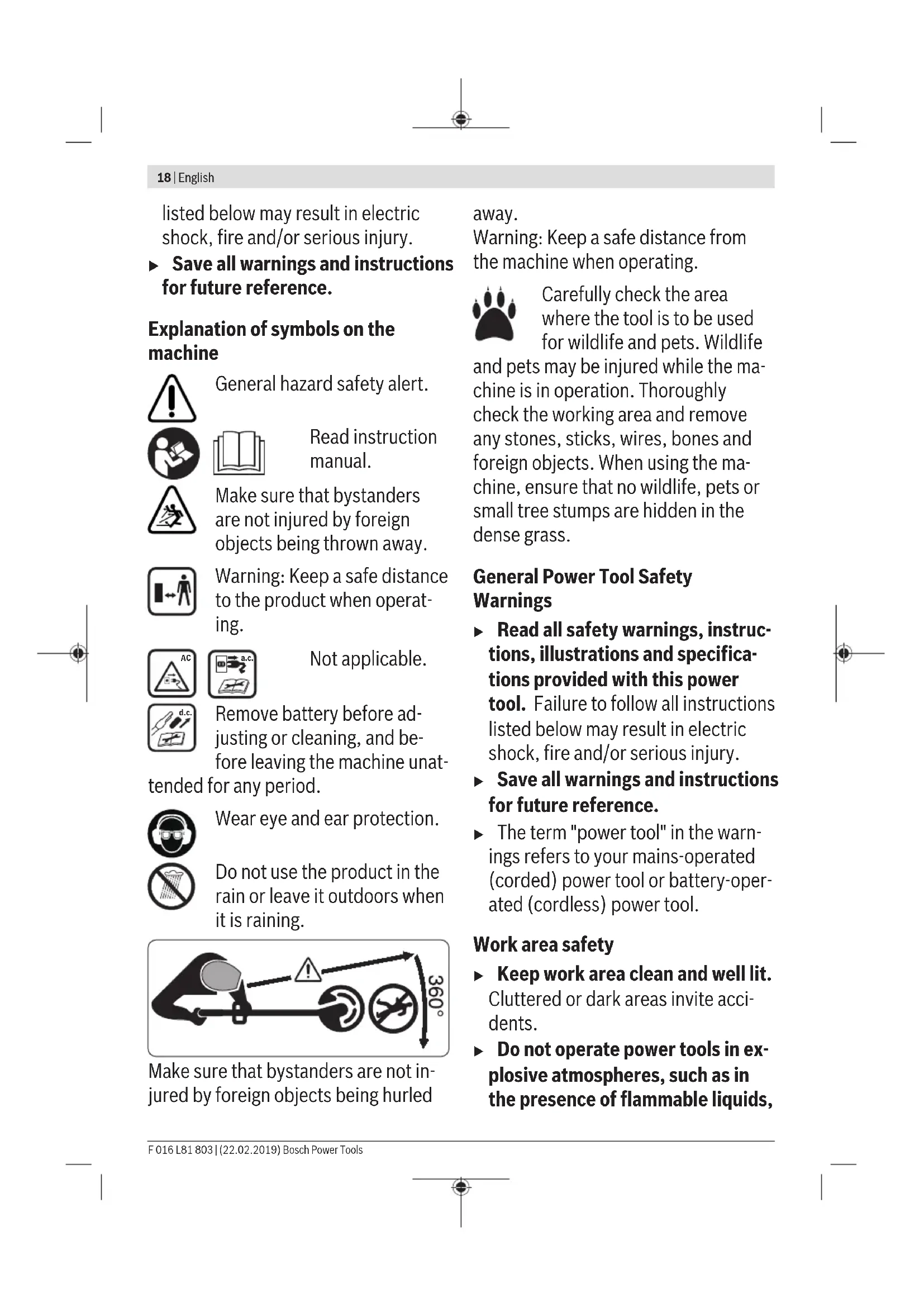

a.c. Not applicable. d.c. Remove battery before ad- justing or cleaning, and be- fore leaving the machine unat- tended for any period. Wear eye and ear protection. Do not use the product in the rain or leave it outdoors when it is raining. Make sure that bystanders are not in- jured by foreign objects being hurled away.

Warning: Keep a safe distance from

the machine when operating. Carefully check the area where the tool is to be used for wildlife and pets. Wildlife and pets may be injured while the ma- chine is in operation. Thoroughly check the working area and remove any stones, sticks, wires, bones and foreign objects. When using the ma- chine, ensure that no wildlife, pets or small tree stumps are hidden in the dense grass. General Power Tool Safety Warnings u Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. u Save all warnings and instructions for future reference. u The term "power tool" in the warn- ings refers to your mains-operated (corded) power tool or battery-oper- ated (cordless) power tool. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite acci- dents. u Do not operate power tools in ex- plosive atmospheres, such as in the presence of flammable liquids, F 016 L81 803 | (22.02.2019) Bosch Power ToolsEnglish | 19 gases or dust. Power tools create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Never operate the power tool while people, especially children, or pets are nearby. Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. u Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refri- gerators. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. u Do not abuse the cord. Never use the cord for carrying, pulling or un- plugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. u When operating a power tool out- doors, use an extension cord suit- able for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is unavoidable, use a re- sidual current device (RCD) pro- tected supply. Use of an RCD re- duces the risk of electric shock. Personal safety u Stay alert, watch what you are do- ing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alco- hol or medication. A moment of in- attention while operating power tools may result in serious personal injury. u Use personal protective equip- ment. Always wear eye protec- tion. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will re- duce personal injuries. u Prevent unintentional starting. En- sure the switch is in the off-posi- tion before connecting to power source and/or battery pack, pick- ing up or carrying the tool. Carry- ing power tools with your finger on the switch or energising power tools that have the switch on invites acci- dents. u Remove any adjusting key or wrench before turning the power Bosch Power Tools F 016 L81 803 | (22.02.2019)20 | English tool on. A wrench or a key left at- tached to a rotating part of the power tool may result in personal in- jury. u Do not overreach. Keep proper footing and balance at all times, never run. This enables better con- trol of the power tool in unexpected situations. u Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from mov- ing parts. Loose clothes, jewellery or long hair can be caught in moving parts. Always wear substantial foot- wear and long trousers while operat- ing the power tool. u If devices are provided for the con- nection of dust extraction and col- lection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust- related hazards. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. Power tool use and care u Do not force the power tool. Use the correct power tool for your ap- plication. The correct power tool will do the job better and safer at the rate for which it was designed. u Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be con- trolled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessor- ies, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool ac- cidentally. u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to oper- ate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If dam- aged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. u Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the power tool, accessories and tool bits etc. in accordance F 016 L81 803 | (22.02.2019) Bosch Power ToolsEnglish | 21 with these instructions, taking into account the working condi- tions and the work to be per- formed. Use of the power tool for operations different from those in- tended could result in a hazardous situation. u Keep handles and grasping sur- faces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care Remove the battery pack – whenever the machine is left by the user – before clearing a blockage – before checking, cleaning or work- ing on the machine – after striking a foreign object to in- spect the machine for damage – if the machine starts to vibrate ab- normally, for immediately check u Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. u Use power tools only with specific- ally designated battery packs.Use of any other battery packs may cre- ate a risk of injury and fire. u When battery pack is not in use, keep it away from other metal ob- jects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connec- tion from one terminal to another. Shorting the battery terminals to- gether may cause burns or a fire. u Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accident- ally occurs, flush with water. If li- quid contacts eyes, additionally seek medical help.Liquid ejected from the battery may cause irritation or burns. u Do not use a battery pack or tool that is damaged or modified. Dam- aged or modified batteries may ex- hibit unpredictable behaviour result- ing in fire, explosion or risk of injury. u Do not expose a battery pack or tool to fire or excessive temperat- ure. Exposure to fire or temperature above 130°C may cause explosion. u Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instruc- tions.Charging improperly or at tem- peratures outside the specified range may damage the battery and increase the risk of fire. Service u Have your power tool serviced by a qualified repair person using only identical replacement parts. This Bosch Power Tools F 016 L81 803 | (22.02.2019)22 | English will ensure that the safety of the power tool is maintained. u Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Safety Notes for Garden Tool Operation u The operator must use the product in accordance with the regulations. The local conditions must be taken into account. When working, pay atten- tion to other people, especially to children. u Never allow children, persons with physical, sensory or mental limita- tions or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the product. Local regulations may re- strict the age of the operator. u Children should be supervised to en- sure that they do not play with the product. Application u When working with the machine, always hold it firmly with both hands and provide for a secure stance. The garden tool is guided more secure with both hands. u Always wait until the machine has come to a complete stop before plac- ing it down. u Never operate the machine with a defective protection guard/cover or without safety device. Ensure that these are properly mounted. Never use the garden tool when incomplete or after unauthorised changes. u Never operate the machine if the cord is damaged or worn. u Never replace non-metallic cutting elements with metal cutting ele- ments. u Never repair the garden tool yourself unless you are qualified to do so. u Other persons and animals should remain or be kept a suitable distance away when using the garden tool. The operator is responsible for third parties in the work area. u Wait until the cutting head has com- pletely stopped before touching it. The cutting head continues to rotate after the trimmer is switched off; a rotating cutting head can cause in- jury. u Work only in daylight or in good arti- ficial light. u Avoid operating the trimmer in bad weather conditions especially when there is a risk of lightning. u Operating the trimmer in wet grass decreases the efficiency of perform- ance. u When transporting, switch the ma- chine off and remove the battery. u Always ensure a safe working posi- tion when working with the trimmer. F 016 L81 803 | (22.02.2019) Bosch Power ToolsEnglish | 23 Always keep your hands and feet at a safe distance from rotating parts. u Keep the balance all the time while trimming to prevent falling over. u Take care when placing product on floor, as it may become a trip hazard. u Remove the battery before replacing the spool. u Inspect and maintain the trimmer regularly. u Always wear gloves when cleaning product or replacing cutting means. u Be careful of injuries from the blade used for cutting the cutting line. After feeding cutting line, always re- turn the trimmer to a horizontal working position before switching on. Switch the machine off and remove the battery. – whenever you leave the machine unattended for any period of time – before replacing the cutting line – before cleaning or working on the trimmer – before storing the trimmer u Store the product in a secure, dry place out of the reach of children. Do not place other objects on top of the product. u Do not use the garden tool as a walk- ing stick. Recommendations for Optimal Handling of the Battery Pack u Do not open the battery. There is a risk of short-circuiting. Protect the battery against heat (e.g., against continu- ous intense sunlight), fire, water, and moisture. There is a risk of explosion. u In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. u Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous over- load. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u Do not short-circuit the battery. There is a risk of explosion. u Occasionally clean the venting slots of the battery using a soft, clean and dry brush. Safety Warnings for Battery Chargers Read all safety warnings and all instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury. Bosch Power Tools F 016 L81 803 | (22.02.2019)24 | English Save all safety warnings and instruc- tions for future reference. u Use the battery charger only when you fully understand and can per- form all functions without limitation, or have received appropriate instruc- tions. u Never allow children, persons with physical, sensory or mental limita- tions or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the battery charger. Local regulations may restrict the age of the operator. u Supervise children at all times. This will ensure that children do not play with the battery charger. u Charge only Bosch lithium-ion bat- teries with a capacity above 1.5 Ah (with at least 5 rechargeable battery cells). The battery voltage must match the battery charging voltage of the charger. Do not charge non-re- chargeable batteries. Otherwise there is a danger of fire and explo- sion. Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an elec- tric shock. u Keep the charger clean. Dirt poses a risk of electric shock. u Always check the charger, cable and plug before use. Stop using the charger if you discover any damage. Do not open the charger yourself, and have it repaired only by a qualified specialist using only original replacement parts. Dam- aged chargers, cables and plugs in- crease the risk of electric shock. u Do not operate the charger on an easily ignited surface (e.g. paper, textiles, etc.) or in a flammable en- vironment. There is a risk of fire due to the charger heating up during op- eration. u Do not cover the ventilation slots of the battery charger. Otherwise, the battery charger can overheat and no longer operate properly. u For increased electrical safety, we recommend using a residual current device with a max. tripping current of 30 mA. Before using, always check your residual current device. Symbols The following symbols are important for reading and under- standing the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner. Symbol Meaning Wear protective gloves Movement direction Reaction direction Weight Switching On Switching Off F 016 L81 803 | (22.02.2019) Bosch Power ToolsEnglish | 25 Symbol Meaning Permitted action Prohibited action CLICK! Audible noise Accessories/Spare Parts Recommended position for grass cutting Recommended position for edge trim- ming Recommended position for cutting under bushes Intended Use The garden tool is intended for domestic use, for trimming grass, weeds and nettles. It is designed for trimming grass growing on slopes, under obstacles and lawn edges that can- not be reached by the lawn mower. The garden tool is not designed for use as a brush cutter. The garden tool is not in- tended for commercial or industrial use. Deliver scope (see figure B) Carefully remove the garden tool from its packaging and check if the following parts are complete: – Grass trimmer – Protection guard – Wheel – Battery** – Charger** – Original instructions When parts are missing or damaged, please contact your dealer. ** country specific Product Features (see figure A) The numbering of the product features refers to the illustra- tion of the product on the graphics pages. (1) Battery unlocking button (2) Battery

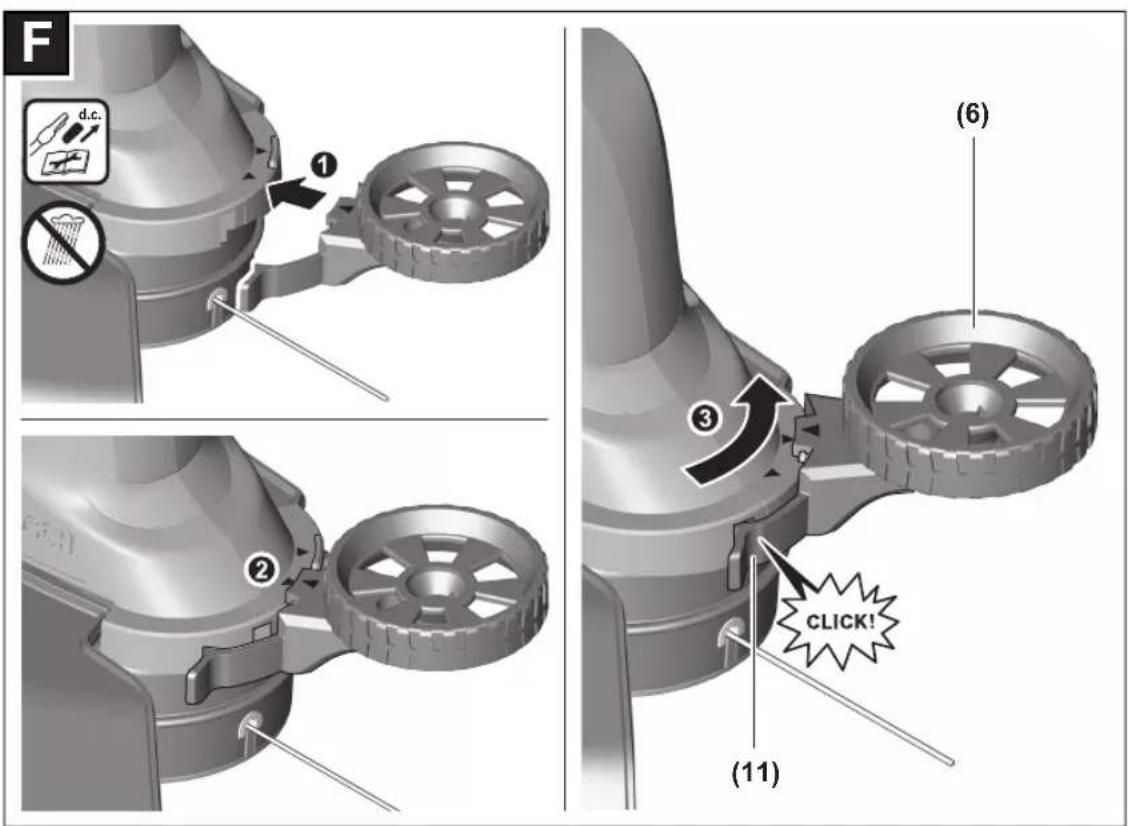

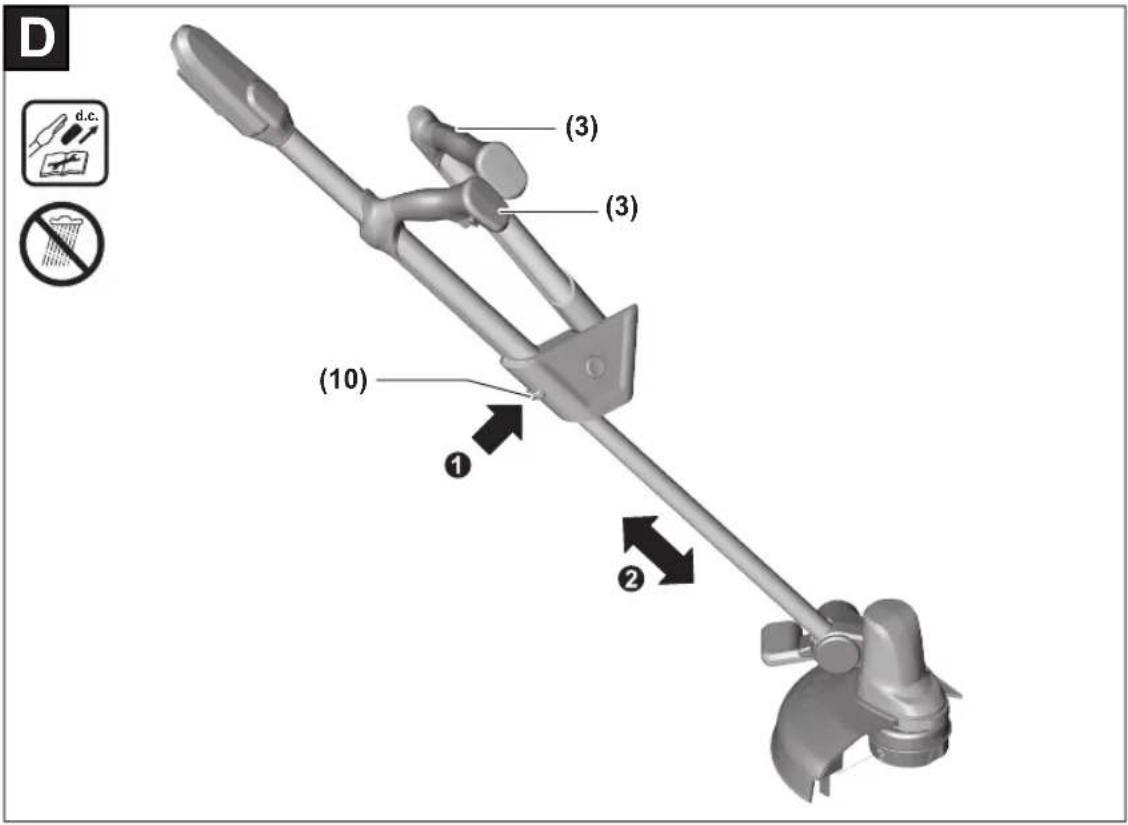

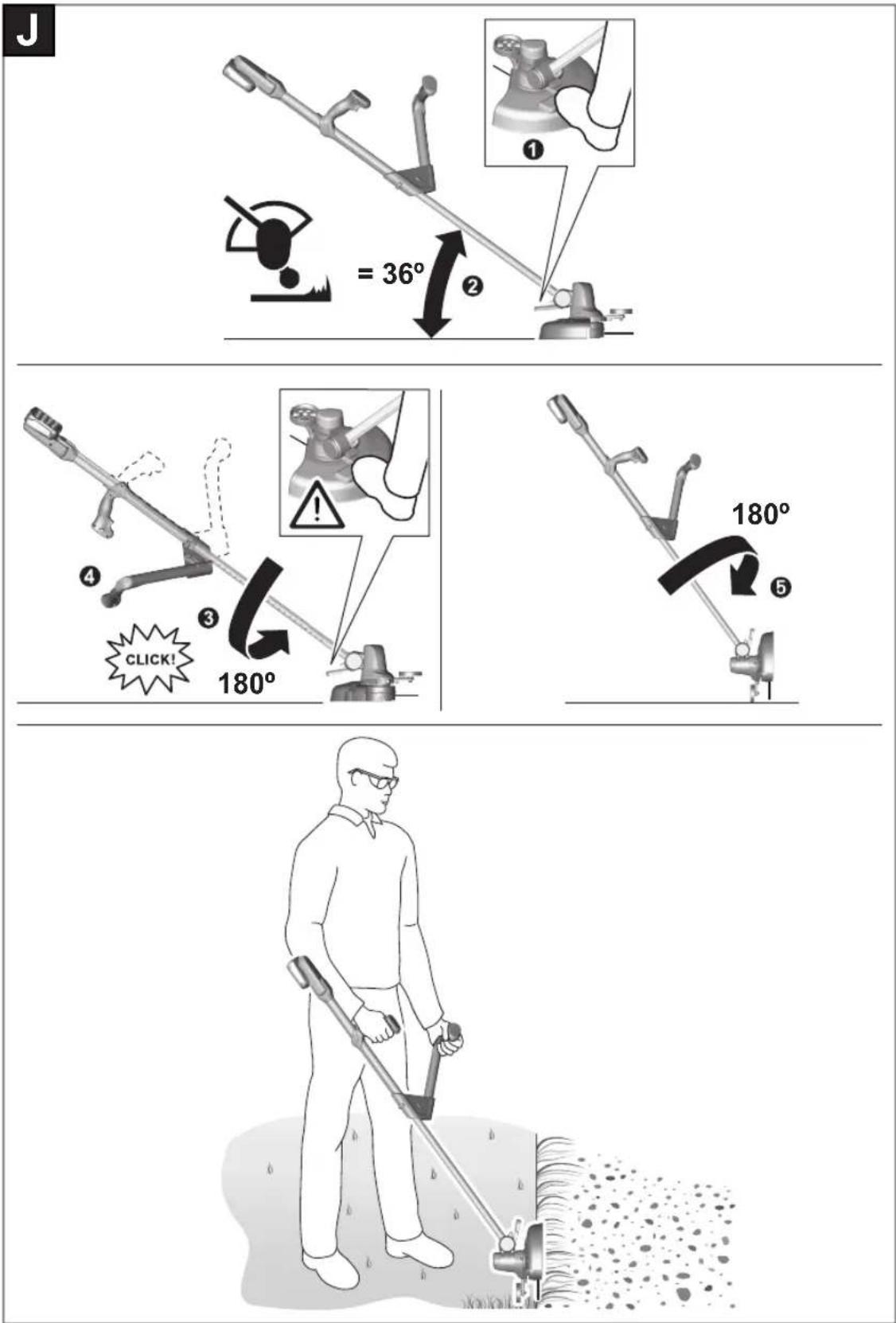

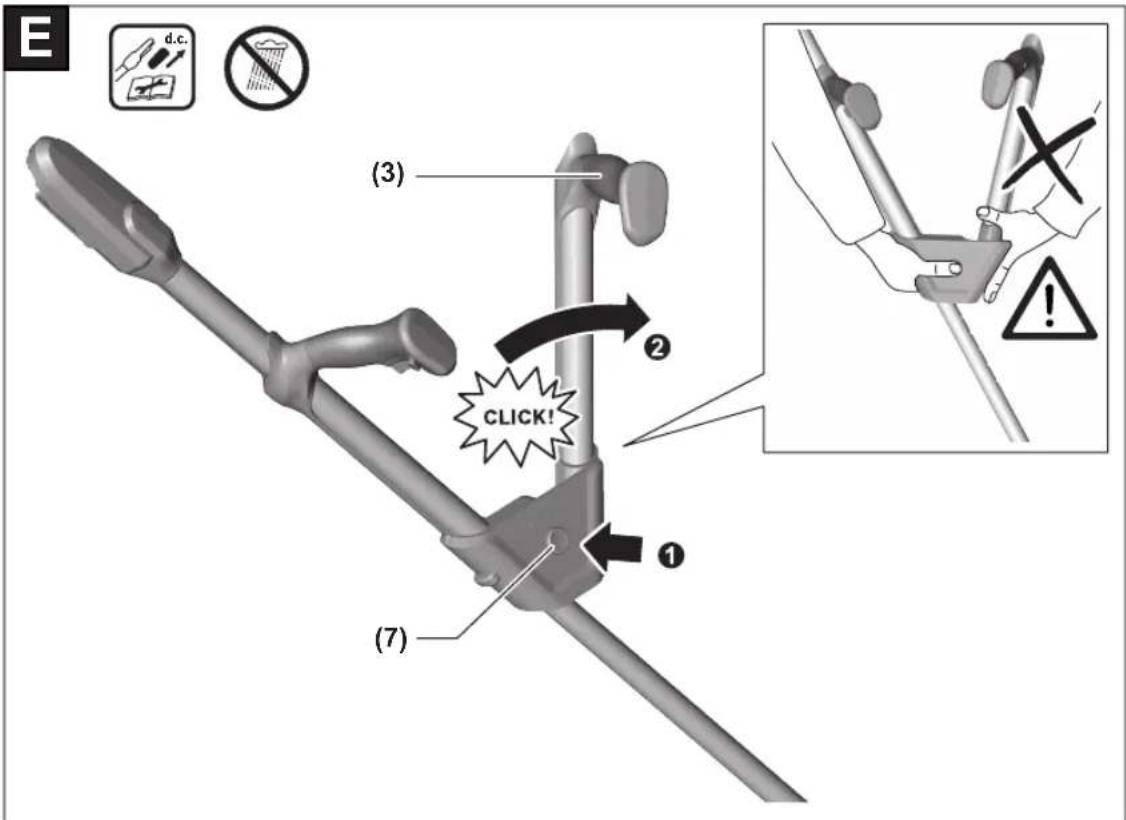

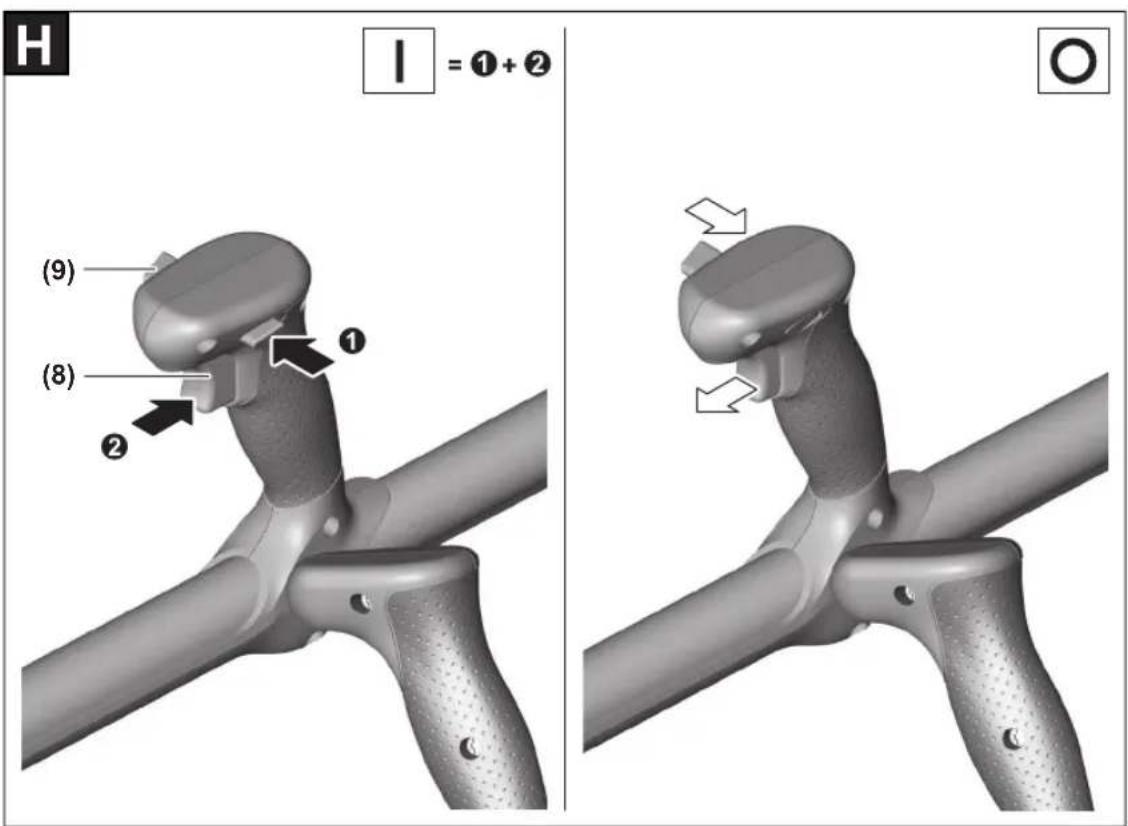

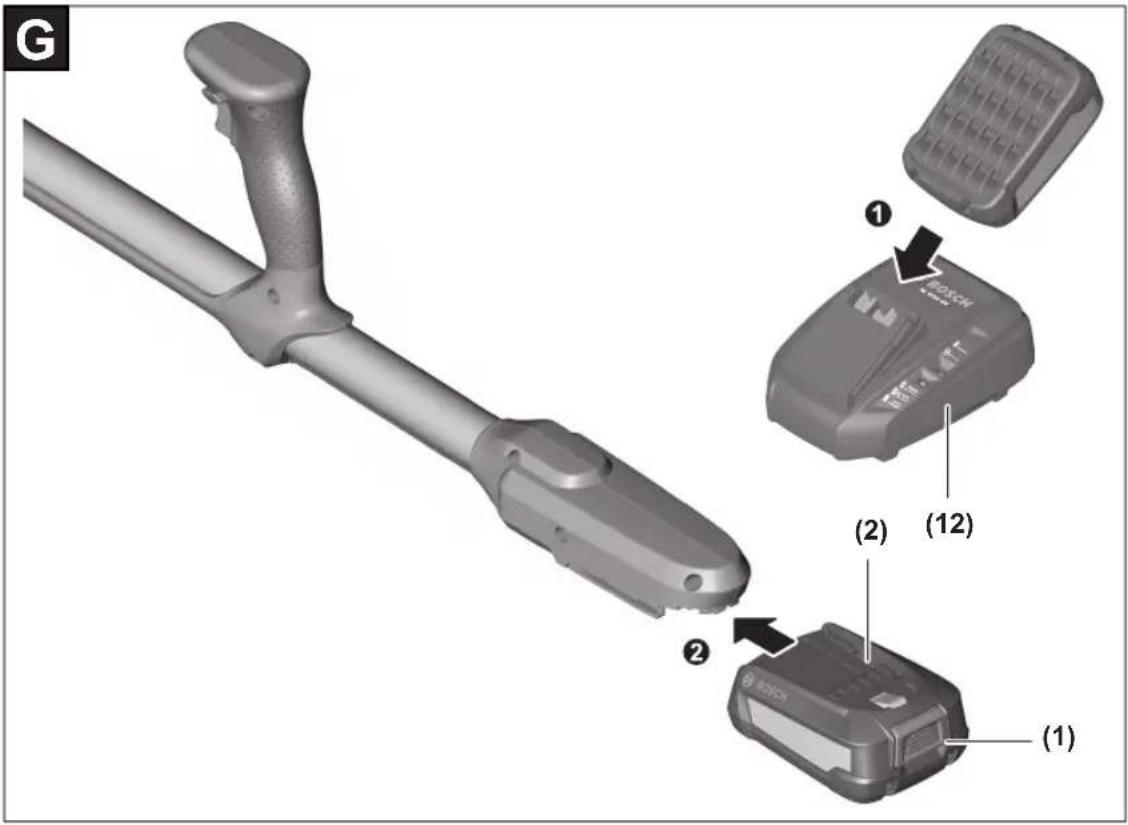

(3) Folding handle (4) Foot pedal for adjusting the working angle for lawn trimming/edge cutting (5) Protection guard (6) Wheel (7) Handle-adjustment release (8) On/Off switch (9) Lock-off button for On/Off switch (10) Button for adjustment of the working height (11) Lever (12) Charger

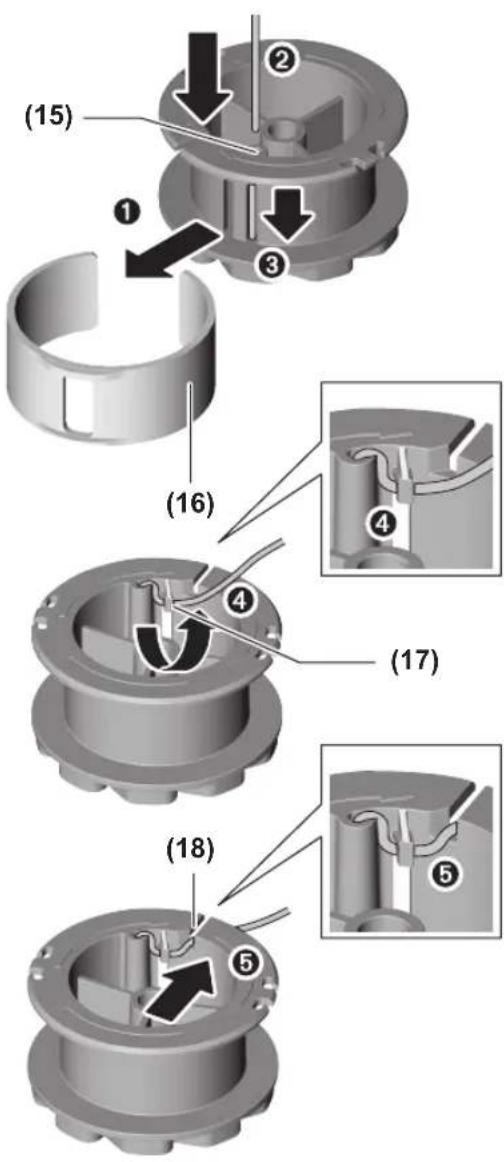

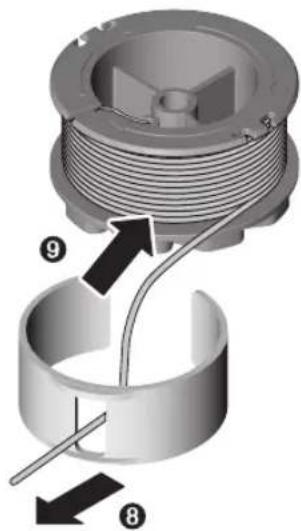

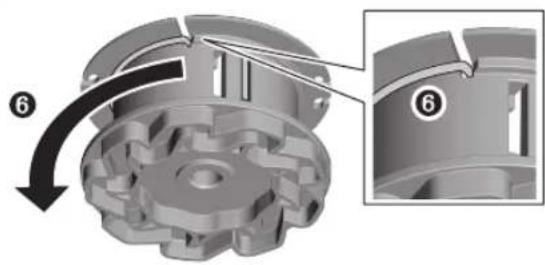

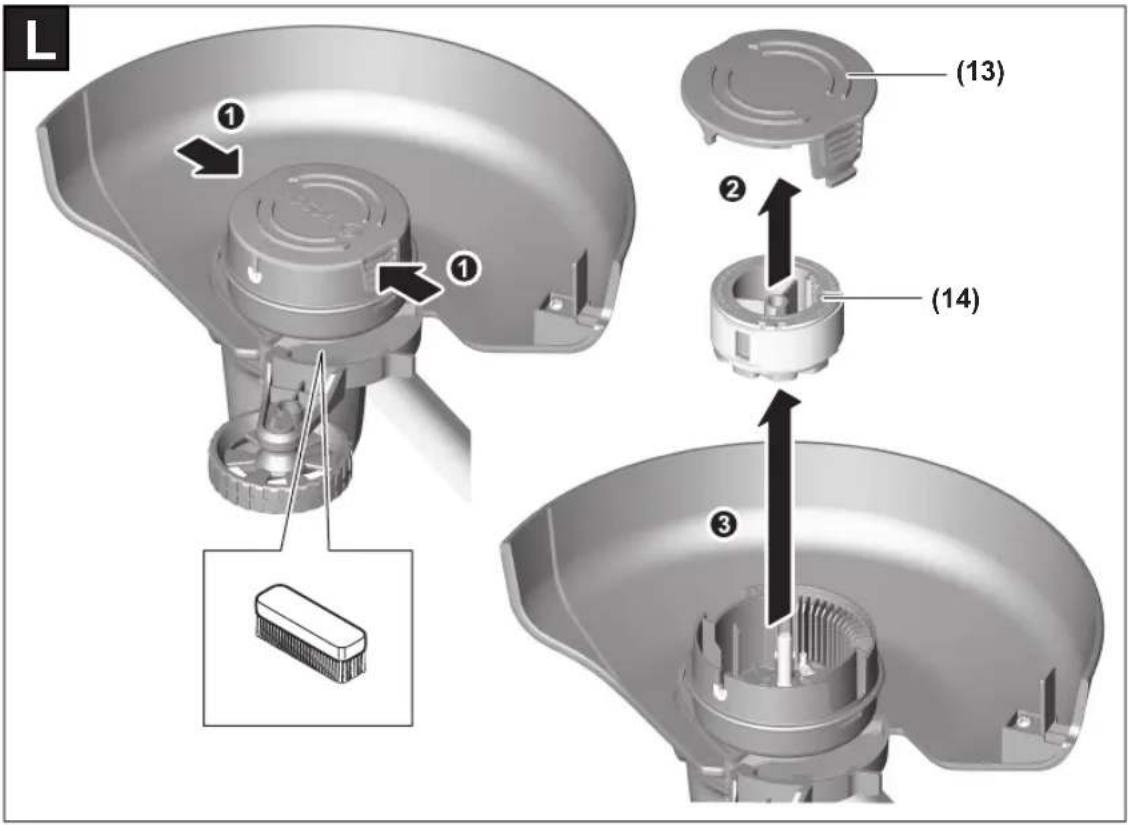

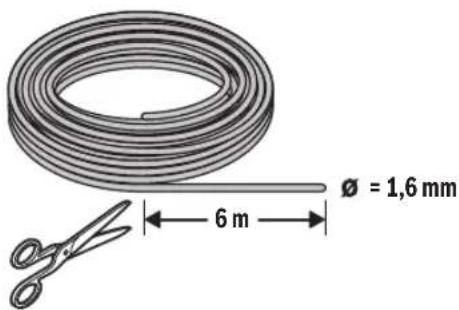

(13) Spool cover (14) Spool (15) Hole for line wind-up (16) Clamping ring (17) Hook for threading-in the cutting line (18) Slot for line guiding (19) Hole for line guiding

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Lawn Trimmer/Lawn Edge Trimmer UniversalGrassCut 18 UniversalGrassCut 18-260 UniversalGrassCut 18-26 Article number 3 600 HC1 D.. 3 600 HC1 E.. Rated voltage V= 18 18 No-load speed min

2,3 2,7 2,3 2,7 Serial number see type plate on garden tool Permitted ambient temperature – during charging

Limited performance at temperatures <0°C Charger AL 1815 CV AL 1830 CV AL 1880 CV Article number 2 607 226 … EU … 0.. … 965 … 1.. 2 607 226 … UK … 0.. … 967 … 1.. Charging current A 1.5 3.0 8.0 Charging period (battery discharged) – Battery with 1.5Ah min 63 33 27 – Battery with 2.0Ah min 84 45 30 – Battery with 2.5Ah min 105 60 36 – Battery with 4.0Ah min 168 95 35 – Battery with 6.0Ah min 260 130 62 Weight according to EPTA‑Procedure 01:2014 kg 0.38 0.40 0.60 Protection class / II / II / II Noise/Vibration Information Lawn trimming/ Cutting around trees and bushes Edge cutting Noise emission values determined according to EN 50636-2-91. Typically the A-weighted noise levels of the product are: – Sound pressure level dB(A)

– Uncertainty K dB = 3 = 3 Vibration total values ah (triax vector sum) and uncertainty K determined according to EN 50636-2-91 – Vibration emission value a

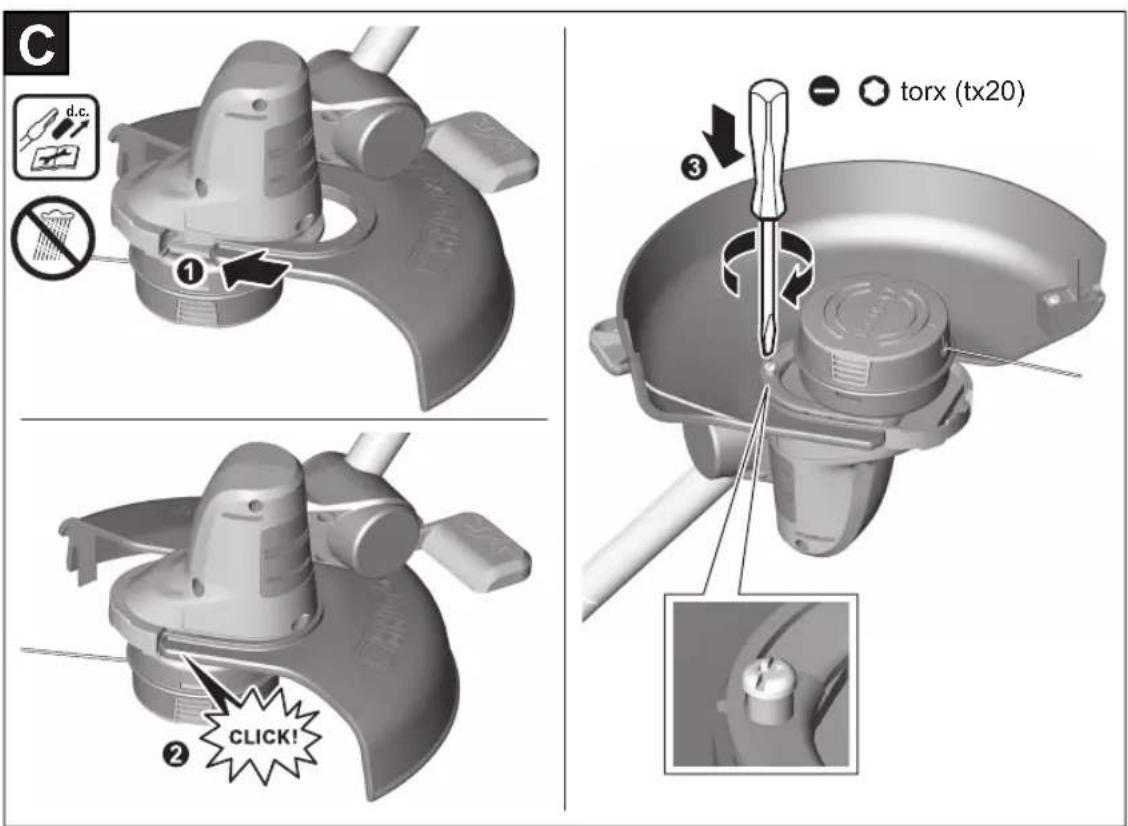

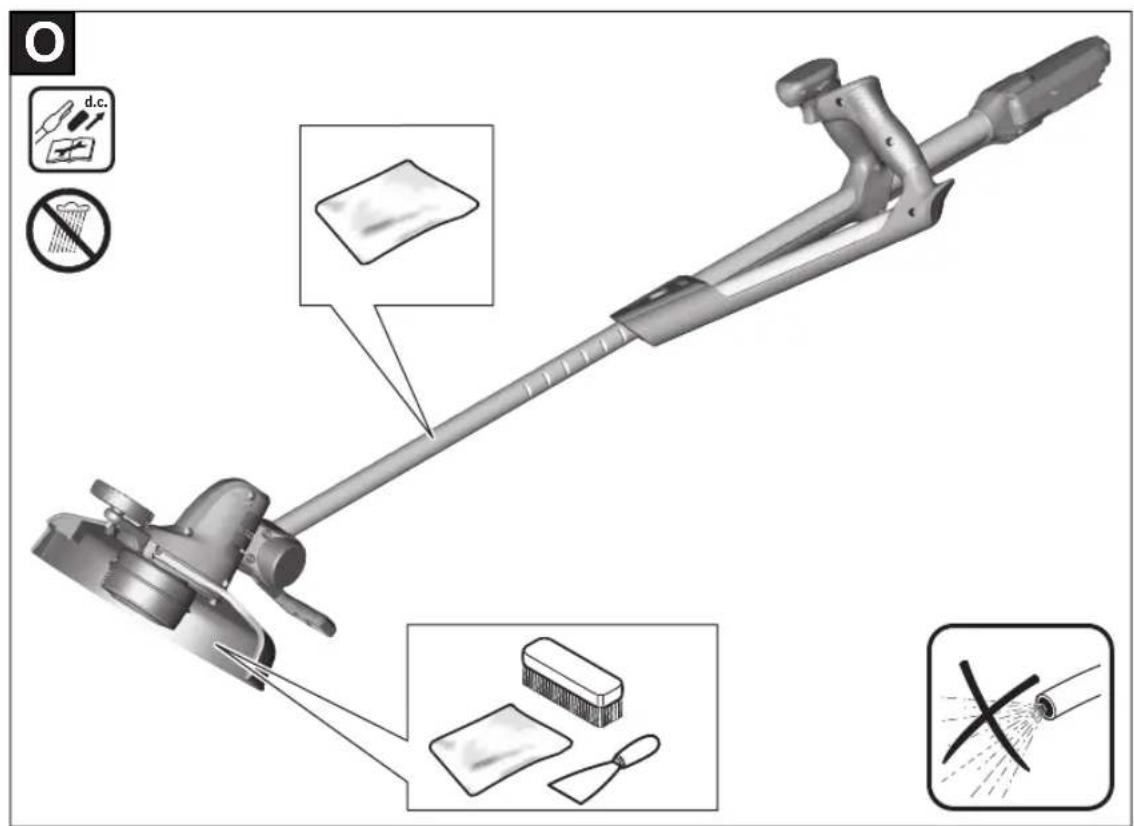

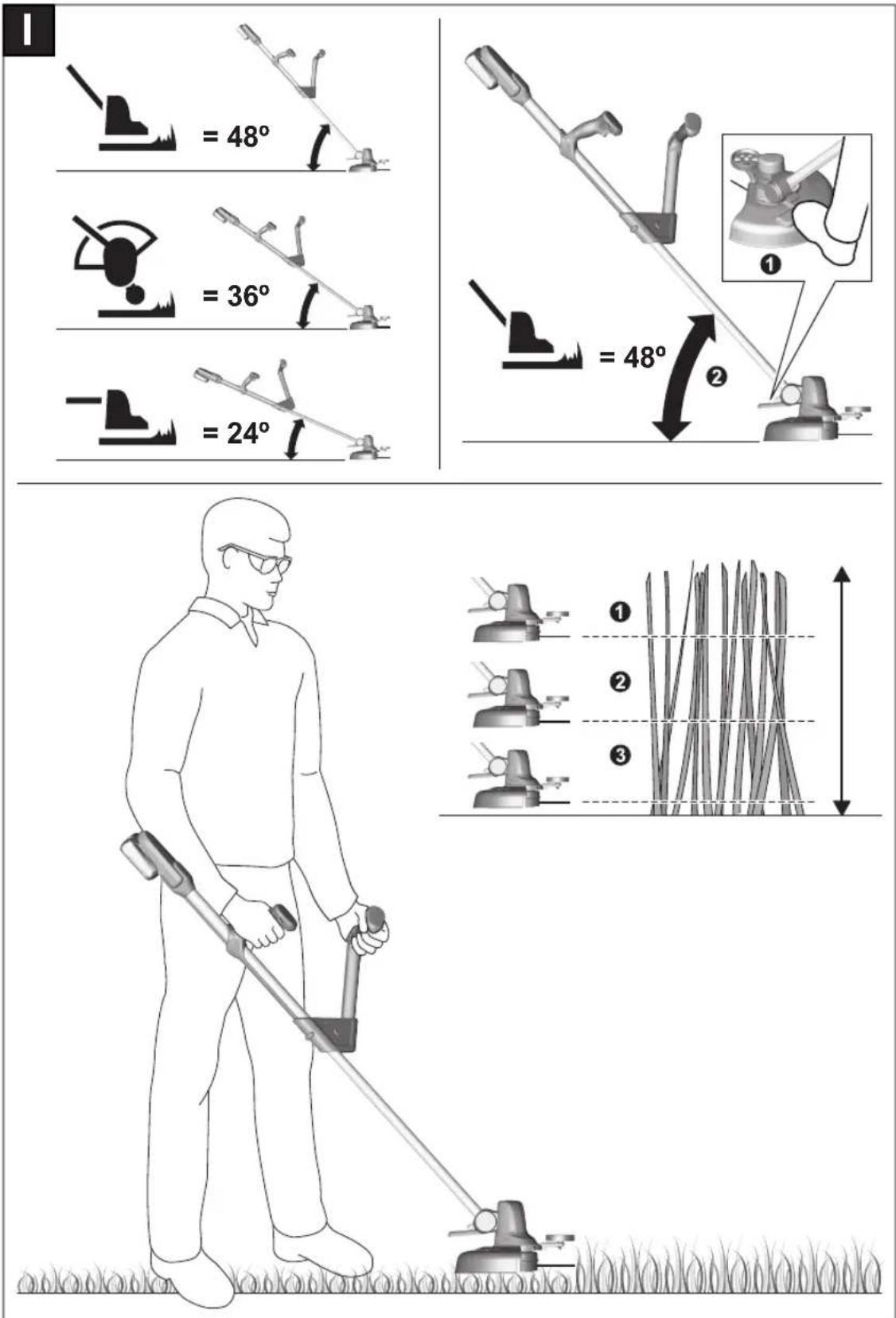

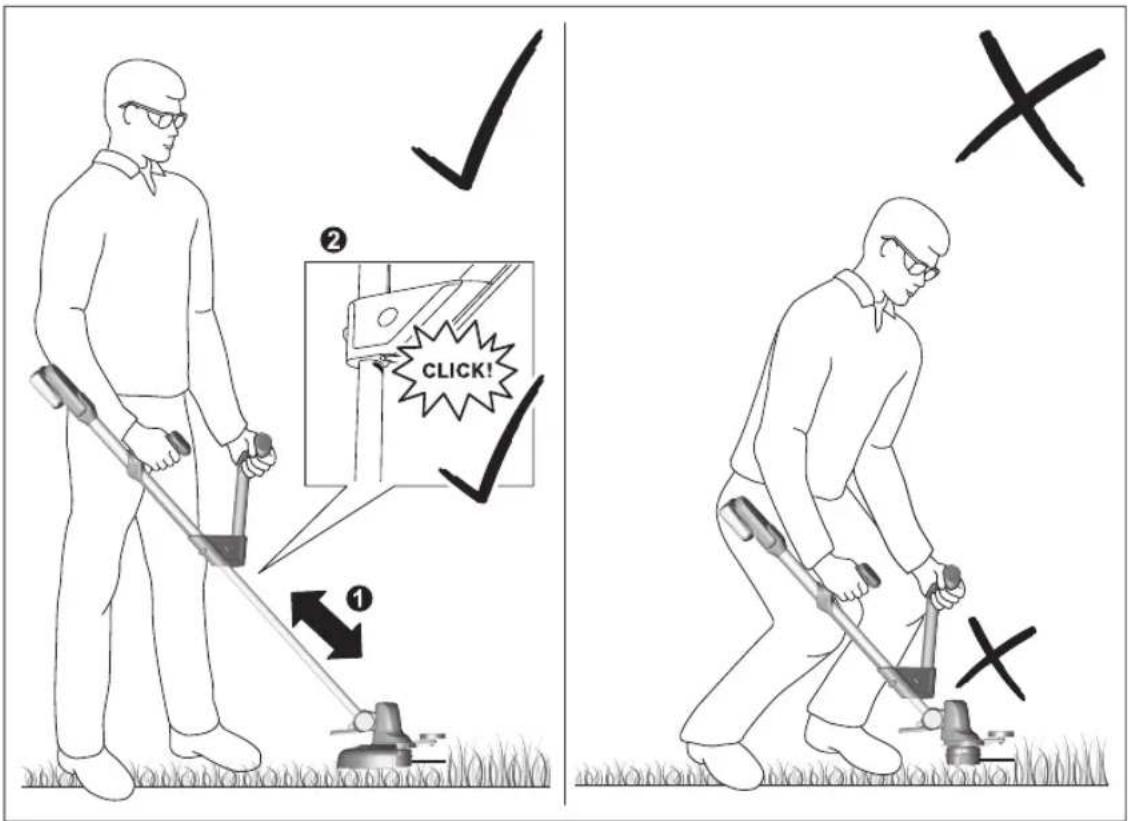

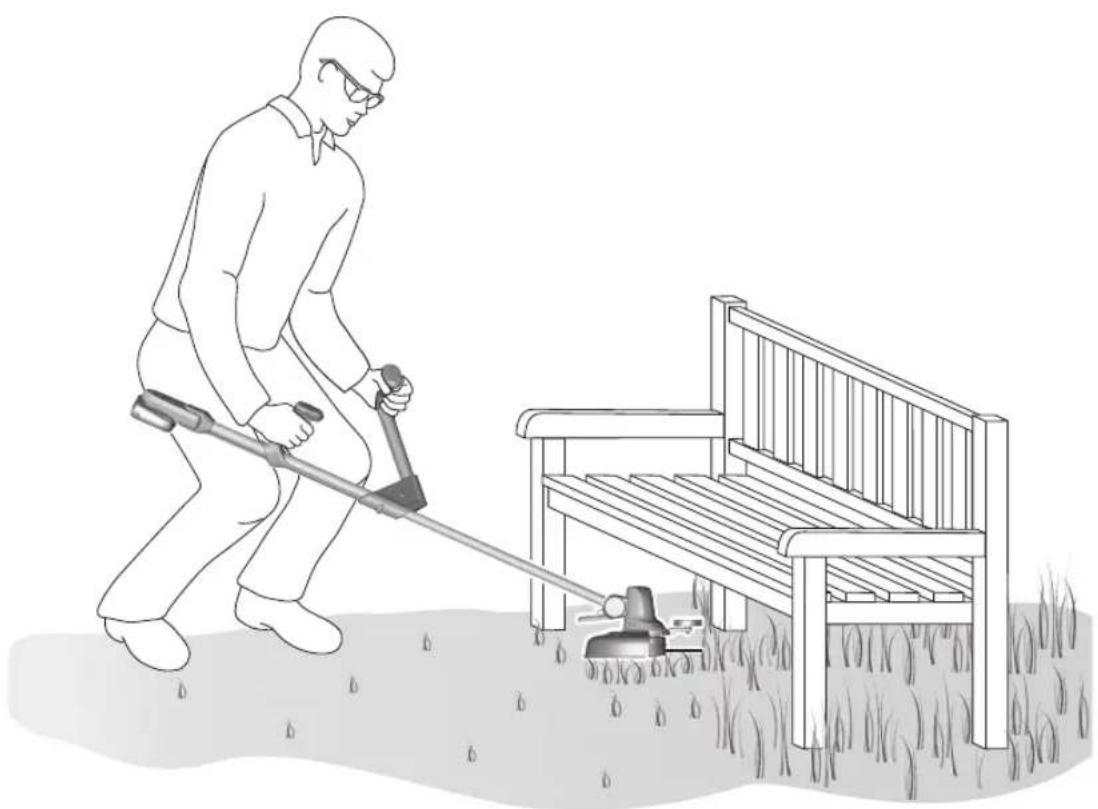

= 1.5 = 1.5 The vibration level given in these instructions has been measured in accordance with a standardised measuring pro- cedure and may be used to compare power tools. It can also be used for a preliminary estimation of exposure to vibra- tion. The stated vibration level applies to the main applications of the power tool. However, if the power tool is used for differ- ent applications, with different application tools or poorly maintained, the vibration level may differ. This can signific- antly increase the exposure to vibration over the total work- ing period. To estimate the exposure to vibration accurately, the times when the tool is switched off or when it is running but not ac- tually being used should also be taken into account. This can significantly reduce the exposure to vibration over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping the hands warm, and organising workflows correctly. Mounting and Operation Action Figure Page Product features A 473 Delivery scope B 474 Mounting the protection guard C 474 Adjusting the working height D 475 Folding out the handle E 476 Mounting the wheel F 476 Battery charging and inserting G 477 Switching On and Off H 477 Recommended position for grass cutting I 478 Recommended position for edge trimming J 479 Recommended position for cutting under bushes K 480 Removing the line spool L 481 Winding line on spool M 482 Mounting the line spool N 483 Maintenance, Cleaning and Stor- age O 483 Action Figure Page Accessories P 484 Assembly u Caution: Switch the garden tool off and remove the battery before performing any maintenance. Mounting the protection guard (see figure C) Slide the protection guard (5) onto the trimmer head until a click can be heard. Affix the protection guard (5) to the trim- mer head with the screw. The screw is already fitted to the bottom housing upon delivery. Never use the trimmer without the protection guard (5) mounted. After mounting, the protection guard (5) may not be removed from the trimmer. Adjusting the working height (see figure D) Press button (10) and adjust the trimmer to the desired height. Release button (10). Always use the trimmer in a working position, never in the storage position. The storage position is when the trimmer is fully retracted. When adjusting the working position, make sure that the mechanism for height adjustment is properly locked. A click can be heard when the mechanism engages. Folding out the handle (see figure E) Press and release button (7), fold out the handle (3) to the stop and then release button (7). Make sure that the handle (3) is properly locked. Do not put the pressure on the handle (3) while adjusting it. Mounting the wheel (see figure F) Mount wheel (6) to the trimmer head. Observe correct posi- tion of the arrows on the trimmer head. Ensure that the hook engages properly in the tab. Turn the wheel (6) against the trimmer head until the lever (11) can be heard to engage with a click. To remove, pull lever (11) until it disengages and remove the wheel (6) in opposite direction. Switching on u Caution: Switch garden tool off and remove battery from machine before adjusting or cleaning. Bosch Power Tools F 016 L81 803 | (22.02.2019)28 | English Charging the Battery The battery is equipped with temperature monitoring that al- lows charging only in the temperature range between 0 °C and 45 °C. In this manner, a high battery service life is achieved. Note: The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery. The “Electronic Cell Protection (ECP)” protects the lithium- ion battery against deep discharging. When the battery is discharged, the machine is switched off by means of a pro- tective circuit: The garden product no longer operates. Do not continue to press the On/Off switch after an auto- matic shut-off of the machine. The battery can be dam- aged. Observe the notes for disposal of the battery. u Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the charger. Inserting/Removing the Battery (see figure G) Note: Using unsuitable batteries can lead to malfunctions or damage the machine. Insert the charged battery (2). Ensure the battery is inserted correctly. To remove the battery (2) from the machine, press the bat- tery unlocking button (1) and pull the battery out. Charging Procedure The charging procedure starts as soon as the mains plug of the charger is plugged into a socket outlet and the battery (2) is inserted onto the charger (12). Due to the intelligent charging method, the charging condi- tion of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage. This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage. Understanding the Indicators (AL1815CV) Flashing battery charge indicator The charging process is indicated by the flash- ing of the battery charge indicator . Continuous lighting of the battery charge indicator Full Continuous lighting of the battery charge in- dicator indicates that the battery is fully charged or that the temperature of the battery is not within the allowable charging temperature range, and cannot be charged for this reason. The battery is charged as soon as the allowable charging temperature range is reached. When the battery is not inserted, continuous lighting of the battery charge indicator indicates that the mains plug is in- serted in the socket outlet and that the battery charger is ready for operation. Meaning of the Indication Elements (AL1830CV/AL1880CV) (Fast) Flashing of the Green Battery Charge Indicator The rapid-charging procedure is indicated by fast flashing of the green battery charge in- dicator . Note: The rapid-charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see section “Technical Data”. (Slow) Flashing of the Green Battery Charge Indicator When the charging condition of the battery is 80%, the green battery charge indicator flashes slowly. The battery can be removed for immediate use. Continuous Lighting of the Green Battery Charge Indicator Full Continuous lighting of the green battery charge indicator indicates that the battery is fully charged. When the battery is not inserted, continuous lighting of the battery charge indicator indicates that the mains plug is in- serted in the socket outlet and that the battery charger is ready for operation. Continuous Lighting of the Red Battery Charge Indicator Continuous lighting of the red battery charge indicator indicates that the temperature of the battery is not within the allowable charging temperature range, see section “Technical Data”. As soon as the allowable charging temperature range is reached, the battery charger automatically switches to rapid charging. Flashing Red Battery Charge Indicator A flashing red battery charge indicator indic- ates a different malfunction of the charging procedure, see section “Troubleshooting – Causes and Cor- rective Measures”. Operation u Caution: Switch the garden tool off and remove the battery before performing any maintenance. u The cutting line continues to rotate for a few seconds after the trimmer is switched off. Allow the motor/cut- ting line to stop rotating before switching on again. u Do not briefly switch off and on again several times in a row. u Only use Bosch approved cutting elements. Cutting performance will vary with different cutting elements. Switching On and Off (see figure H) To switch on, firstly press the lock-off button (9). Then press the On/Off switch (8) and keep it pressed. F 016 L81 803 | (22.02.2019) Bosch Power ToolsEnglish | 29 To switch off, release the On/Off switch (8). Lawn Trimming/Edge Cutting (see figures I − K) Lawn trimming (see figure I) Press the foot pedal (4) and set the 48° angle for lawn trim- ming. Move the trimmer left and right, keeping it well away from the body. Cut higher grass in steps. Edge cutting (see figure J) Press the foot pedal (4) and set the 36° angle for edge cut- ting. Rotate the handle by 180° and then turn the trimmer clockwise to the desired working position. Guide the trimmer along the edge of the lawn. By using the wheel, you avoid contact with solid surfaces or walls to pre- vent rapid wear of the cutting line. Cutting around trees and bushes (see figure K) Press the foot pedal (4) and set the 24° angle for cutting around trees and bushes. Carefully cut around trees and bushes so that they do not come into contact with the cutting line. Plants can die if you damage the bark. Dismounting the spool, winding up the cutting line and mounting the spool (see figures N to L) u Remove the battery before replacing the spool. Press both latches of the spool cover together and remove the spool cover (13). Afterwards, remove the empty spool (14). Cut off approx. 6 m line from the refill roll. Thread the end of the line into the spool's hole for line wind-up (15). Thread/ work the line under the hook (17). Then, thread/work the line up and through the slot (18) in the spool. Afterwards, wind up the thread on the spool uniformly and tightly. Slide the other end of the cutting line through the hole for line guiding (19) in the trimmer head and mount the spool back into the trimmer head. Affix the spool by mounting the spool cover (13). The spool cover (13) can only be mounted in one position. Line Feeding IntelliFEED The trimmer is equipped with the IntelliFEED system, which automatically rolls off the line to retain the cutting diameter. Troubleshooting d.c. Lawn Edge Trimmer/Grass Trimmer Problem Possible Cause Corrective Action Motor refuses to start Battery discharged Recharge battery. Battery too hot/cold Allow to cool/warm. Garden tool functions intermittently On/Off switch defective Contact Bosch customer service agent. Internal wiring of garden tool defective Contact Bosch customer service agent. Garden product la- bours Grass too high Cut in stages. Garden tool does not cut Cutting line too short/broken off Manually feed cutting line. Spool empty Replace line spool. Cutting line can no longer be fed Line inside the spool entangled Inspect the spool, rewind if necessary. Spool empty Refill line spool. Incorrect winding Rewind the spool. Excessive line Shorten line to correct length. Cutting line entangled Problems with the line feed system Contact Bosch customer service agent Cutting line retracts into spool Cutting line too short/broken off Remove spool – rethread line (see figures L − N). Line breaks frequently Line inside the spool entangled Remove spool – rewind line (see figures L − N). Trimmer used incorrectly Only trim with the tip of the line, avoid stones, walls and other hard objects. Feed the line regu- larly to maintain full cutting diameter. Trimmer vibrates ab- normally Clamping ring or spool cover not mounted to spool Mount clamping ring or spool cover onto spool. Bosch Power Tools F 016 L81 803 | (22.02.2019)30 | English Problem Possible Cause Corrective Action Clamping ring incorrectly positioned Reposition clamping ring. Cutting system damaged Contact Bosch customer service agent. Clamping ring worn Purchase new spool accessory with clamping ring. Battery and charger Problem Possible Cause Corrective Action Flashing red battery charge indicator No charging procedure possible Battery not (properly) inserted Properly insert battery in charger. Battery contacts contaminated Clean the battery contacts (e. g. by inserting and removing the battery several times) or replace the battery. Battery defective Replace the battery. Battery charge indicat- ors do not light up Mains plug of battery charger not plugged in (properly) Insert mains plug (fully) into the socket outlet. Socket outlet, mains cable or battery charger de- fective Check the mains voltage; have the battery char- ger checked by an authorised after-sales service agent for Bosch power tools. Maintenance and Service u Before any work on the garden product itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the garden product. There is danger of injury when uninten- tionally actuating the On/Off switch. Maintenance, Cleaning and Storage u For safe and proper working, always keep the product clean. For safe and proper working, always keep the garden tool and the ventilation slots clean. Never spray the garden tool with water. Never immerse the garden tool in water. Store the garden product in a secure, dry place, out of the reach of children. Do not place other objects on the garden product. Make sure that the clamping ring is always attached to the spool during use. Otherwise, high vibrations may occur. Battery Maintenance Use the following procedures to enable optimum usage of the battery: – Protect the battery against moisture and water. – Store the machine and battery only within a temperature range between –20°C and 50°C . As an example, do not leave the battery in the car in summer. – It is recommended that the battery is not stored within the product but stored separately. – Do not leave the battery in the product in direct sunlight. – The ideal storage condition for the battery is 5°C. – Occasionally clean the venting slots of the battery using a soft, clean and dry brush. A significantly reduced working period after charging indic- ates that the battery is used and must be replaced. After-sales Service and Application Service www.bosch-garden.com In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product. Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: (0344) 7360109 E-Mail: boschservicecentre@bosch.com Ireland Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: (01) 4666700 Fax: (01) 4666888 Australia, New Zealand and Pacific Islands Robert Bosch Australia Pty. Ltd. Power Tools Locked Bag 66 Clayton South VIC 3169 Customer Contact Center F 016 L81 803 | (22.02.2019) Bosch Power ToolsFrançais | 31 Inside Australia: Phone: (01300) 307044 Fax: (01300) 307045 Inside New Zealand: Phone: (0800) 543353 Fax: (0800) 428570 Outside AU and NZ: Phone: +61 3 95415555 www.bosch-pt.com.au www.bosch-pt.co.nz Republic of South Africa Customer service Hotline: (011) 6519600 Gauteng – BSC Service Centre 35 Roper Street, New Centre Johannesburg Tel.: (011) 4939375 Fax: (011) 4930126 E-mail: bsctools@icon.co.za KZN – BSC Service Centre Unit E, Almar Centre 143 Crompton Street Pinetown Tel.: (031) 7012120 Fax: (031) 7012446 E-mail: bsc.dur@za.bosch.com Western Cape – BSC Service Centre Democracy Way, Prosperity Park Milnerton Tel.: (021) 5512577 Fax: (021) 5513223 E-mail: bsc@zsd.co.za Bosch Headquarters Midrand, Gauteng Tel.: (011) 6519600 Fax: (011) 6519880 E-mail: rbsa-hq.pts@za.bosch.com Transport The contained lithium-ion batteries are subject to the Dan- gerous Goods Legislation requirements. The batteries are suitable for road-transport by the user without further re- strictions. When shipping by third parties (e.g.: by air transport or for- warding agency), special requirements on packaging and la- belling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is re- quired. Dispatch battery packs only when the housing is undam- aged. Tape or mask off open contacts and pack up the bat- tery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more de- tailed national regulations. Disposal The garden product, batteries, accessories and packaging should be sorted for environ- mental-friendly recycling. Do not dispose of garden products and batter- ies/rechargeable batteries into household waste! Only for EC countries: According to the European law 2012/19/EU, electrical and electronic equipments that are no longer usable, and accord- ing to the European law 2006/66/EC, defective or used bat- tery packs/batteries, must be collected separately and dis- posed of in an environmentally correct manner. Battery packs/batteries: Li-Ion: Please observe the instructions under Transport. Français Consignes de sécurité u Lire tous les avertissements de sé- curité, les instructions, les illustra- tions et les spécifications fournis avec cet outil électrique. Ne pas suivre les instructions énumérées ci- dessous peut provoquer un choc électrique, un incendie et/ou une blessure sérieuse. u Conserver tous les avertissements et toutes les instructions pour pou- voir s'y reporter ultérieurement. Explication des symboles se trouvant sur l’outil de jardin Indications générales sur d’éventuels dangers. Bosch Power Tools F 016 L81 803 | (22.02.2019)32 | Français Lire soigneuse- ment ces instruc- tions d’utilisation. Prendre les précautions né- cessaires pour que les per- sonnes se trouvant à proximi- té ne risquent pas d’être blessées par des projections provenant de l’outil.

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regu- lations listed below and are in conformity with the following stan- dards. Lawn Trimmer/Lawn Ed- ge Trimmer Article number
