USER MANUAL Everyday Slim IH2108 TEFAL

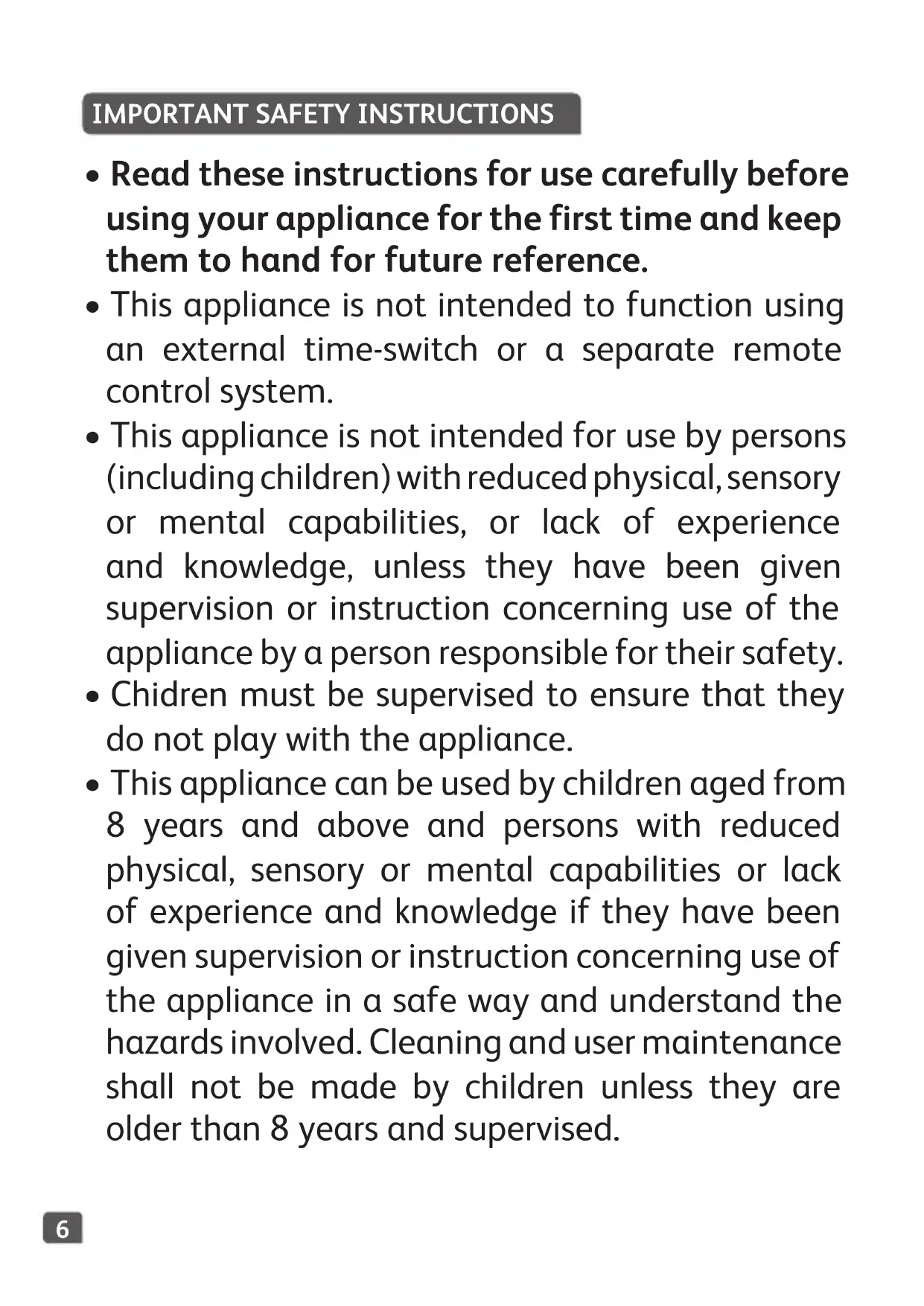

• Read these instructions for use carefully before using your appliance for the first time and keep them to hand for future reference.

• This appliance is not intended to function using an external time-switch or a separate remote control system.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Chidren must be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.7

• Keep the appliance and its cord out of the reach of children less than 8 years.

• As this appliance is for household use only, it is not intended for use in, and the guarantee will not apply for : – Staff kitchen areas in shops, offices and other working environments ; – Farm houses ; – By clients in hotels, motels and other residential type environments ; – Bed and breakfast type environments.

• If the power cord is damaged, it must be replaced by either the manufacturer, its approved service centre or similary qualified persons to avoid any danger.

• Please handle the ceramic plate with care to avoid breakage. In case of any crack on the surface, please immediately turn off the power, risk of electric shock. Do not use the appliance and contact an approved service centre.

• Do not place any metal objects, such a knife, fork, spoon, lid and aluminum foil etc … on the ceramic plate (as they may conduct heat and cause injury).

• Never immerse the appliance or its power cord in water or any other liquid.8

• Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged. To maintain safety, these parts must be replaced by an Approved Service Centre.

• Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.

• Never touch the hot surfaces of the appliance, they will remain so for a while after use.

• People fitted with cardiac pacemakers or similar medical devices should be kept away from the induction cooker when it is connected to the power supply. If in any doubt consult a medical practitioner before using this product to avoid any danger.

• Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Notice: the ceramic plate is hot after cooking, please do not touch

• This appliance is designed for indoor domestic household use only. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• For your safety, this appliance meets applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food articles, Environment, etc.).

• This appliance is designed to function on AC current only. Before using9

it for the first time, check that your mains supply voltage matches that indicated on the appliance data plate.

• Any connection error will invalidate your guarantee.

• Always plug the appliance into a dedicated socket outlet with an earth connection. Do not use a socket adaptor or connect any other appliance into the same socket simultaneously, to avoid electrical overloading and risk of fire.

• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.

• Remove all packaging materials, stickers and accessories from inside and outside of the appliance.

• The appliance must be placed and used on a flat, stable, heat-resistant work surface, away from water splashes.

• Do not place or use this appliance in high humidity environments.

• Do not place or use the induction plate on steel or aluminium surfaces.

• Maintain a gap of at least 10cm (4 inches) on all sides of the appliance to ensure adequate ventilation.

• Never place or use the appliance close to a wall or below a wall cupboard.

• Never place or use the appliance below or close to easily inflammable objects (e.g. curtains, etc.).

• Never place or use the appliance on or close to a cooking hob or other sources of heat.

• Unwind the power cord fully before use.

• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.

• Never leave the appliance unattended whilst connected to the power supply, even if for a few moments, especially where children are present.

• Do not let the power cord hang where children may reach it.

• The power cord must never be close to or in contact with hot parts of the appliance, close to sources of heat or resting on sharp edges.

• Take all necessary precautions to prevent anyone tripping over an extension cord.

• Switch off and disconnect the appliance from the power supply when not in use.

• Never disconnect the plug by pulling on the power cord.10

• Inspect the appliance and power cord for signs of wear or damage prior to connecting to the power supply.

• Never move the appliance when it is hot.

• Allow the appliance to cool down completely before you clean and store it.

• Always keep the induction cooker clean to avoid dust entering the fan motor and causing a malfunction.

• If parts of the appliance should catch fire, never try to extinguish flames with water. Disconnect the appliance and smother the flames with a damp cloth.

• Place the pan at the centre of the cooking circle.

• Do not overheat pan or preheat while empty for long periods.

• Do not heat the foodstuffs in tins or other airtight containers to avoid explosions caused by air expansion.

• This appliance can be used up to an altitude of 4000 meters.

KEEP THESE INSTRUCTIONS

Environmental protection first! Your appliance contains valuable materials that can be recovered or recycled. Leave it at a local civic waste collection point. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.11

A Ceramic glass B Air entry C Air exit D Control panel E Digital Display Screen F G/H/I programs selection button G Slow program H Stew program I Boil program J Boost program K Stir Fry program L Fry program M Timer button N «+/-» button / Slider O Pause Button P On/Off button Working Principle An induction hotplate works by heating a receptacle using the currents induced by a magnetic field. When an electric current passes through a coil, it generates a magnetic field. On an induction hotplate, this magnetic field is then induced into the base of the receptacle. Foucault currents of very low intensity pass through the base of the receptacle. Despite their low intensity, these currents generate heat in the receptacle as they pass through it. The principle behind the induction hotplate is to multiply these Foucault currents while changing the direction of the very high frequency field in order to heat the bottom of the receptacle. The heating process is instantaneous, because as soon as the coil power supply is activated, the receptacle is heated. Food is then heated through contact with the base of the pan. For the induction method to function properly, the cooking utensil must be ferromagnetic. (See details in the section Cooking utensils). Model Maximum Input Power Power Adjustment Range Display Type Applicable Power Supply IH2108 2100W 300W-2100W Digital Display 220V-240V/ 50Hz-60Hz Eddy current Ferromagnetic receptacle Cooker surface Magnetic field Magnetic field Coil see product view page 212 Characteristics Multiple Safety Protections

• Protection against voltage drops/surges.

• The induction cooker is only suitable for induction pots with a diameter between 10 and 26 cm (part in contact with the ceramic plate).

• Protection against appliance overheating.

• Detection of the risk of heating an empty cooking utensil and the risk of damaging the non-stick coating or igniting oil. Environmental Protection

• This induction hob complies with ErP Directive 2009/25/EC and its EU implementing regulation no. 66/2014.

• Induction is the most efficient method in terms of energy, with an energy yield of more than 90%.

• To reduce energy consumption, place a lid on the pan whilst cooking.

• Induction does not generate any flames.

• Induction does not need any fuel and reduces the risk of domestic accidents linked to gas leaks or fire due to its numerous controls.

• The cooking area on this induction hob has a working diameter of 230mm, and its energy consumption is EC (Wh/kg) = 195. Intelligent Control

• Multiple cooking functions: multiple cooking modes from low to high power to meet various cooking needs.

• Wide range of cooking temperatures: maintains and regulates the cooking temperature intelligently.

• Flexible timer function: allows you to programme the hotplate to stop cooking after between 1 minute and 3 hours (depending on the mode).

• Detection of the presence of induction receptacles: if no receptacle or an unsuitable receptacle is detected on the induction hotplate, the alarm is triggered.

• If the temperature of the ceramic glass plate exceeds 50° C at the end of cooking, the LCD screen flashes and displays “H”. The fan continues to run to cool the plate. Convenient Cleaning

• The ceramic glass plate is wear-resistant and does not easily tarnish. It is also easy to clean and maintain. Caution: the ceramic glass may be hot after being in contact with the receptacle.13

• Manual mode enables you to cook all types of food by manually adjusting your heating power.

• Below are the power levels that correspond to each program: P1 P2 P3 P4 P5 P6 P7 300 W 600 W 1200 W 1400 W 1600 W 1800 W 2100 W

• The timer is available in Manual Mode: Default time Maximum time 15 min 180 min PROGRAM SELECTION: Slow, Stew, Boil SLOW Mode

• Slow Cook Mode cooks food at a low temperature, without the need to add water or fats. This method of cooking helps food maintain its quality and flavour.

• Below are the power levels that correspond to each program: P1 P2 P3 300 W 600 W 1200 W

• The timer is available in Slow Cook Mode: Default time Maximum time 30 min 180 min STEW Mode

• This mode allows to make the food tender owing to a long cooking, just below the boiling point.

• Below are the power levels that correspond to each program: P1 P2 P3 P4 P5 P6 300 W 600 W 1200 W 1400 W 1800 W 2100 W

• The timer is available in Stew Mode: Default time Maximum time 45 min 45 min14 BOIL Mode

• This mode will boil between 0.4 L and 2.5 L of water in a pot. (Do not use this function for heating milk as it may burn).

• Below are the power levels that correspond to each program: P1 P2 P3 P4 P5 P6 P7 300 W 600 W 1200 W 1400 W 1600 W 1800 W 2100 W

• The timer is available in Boil Mode: Default time Maximum time 10 min 15 min BOOST Mode

• Boost raises the ring temperature very quickly. It can be used for cooking food, such as meat, very quickly at a high temperature.

• Below are the power levels that correspond to each program: P1 P2 P3 P4 P5 P6 P7 300 W 600 W 1200 W 1400 W 1600 W 1800 W 2100 W

• The timer is available in Boost Mode: Default time Maximum time 15 min 120 min STIR FRY Mode

• Stir Fry Mode cooks food in a little fat at a high temperature so as to brown the surface.

• Below are the power levels and oil temperatures that correspond to each program: P1 P2 P3 P4 P5 P6 P7 600 W 1200 W 1200 W 1400 W 1400 W 1800 W 2100 W 110 °C 125 °C 140 °C 155 °C 170 °C 185 °C 200 °C

• The timer is available in Stir Fry Mode: Default time Maximum time 15 min 180 min15

• This mode fries food in a large quantity of oil - maximum 2 L.

• Below are the power levels and oil temperatures that correspond to each program: P1 P2 P3 P4 P5 P6 P7 1200 W 1200 W 1400 W 1400 W 1600 W 1800 W 2100 W 100 °C 120 °C 140 °C 160 °C 180 °C 200 °C 220 °C

• The timer is available in Fry Mode: Default time Maximum time 15 min 180 min CLEANING ERROR CODES You must disconnect the power lead, wait until the ceramic glass plate has cooled, then follow the instructions below to clean the appliance:

1. Ceramic glass plate: if the ceramic glass plate is very dirty, clean

using a damp non-abrasive sponge or for more stubborn stains use an appropriate cleaning product which is designed for use on ceramic hobs.

2. Cooker body and control panel: Use a damp soft cloth to clean. In case

of any oil stains that are not easily removed, wipe away the stains with a soft cloth rinsed in warm water and a little washing-up liquid and then clean using a damp soft cloth.

3. Air entry/air exit surface: remove any dust with a cotton bud.

• Receptacle missing or not the correct type: If the pot base diameter is less than 10 cm or if the pot material is unsuitable, the buzzer will sound and the digital display shows “E1”. Change the cookware.

• Protection of the power source against overheating: If the power source overheats, the induction cooking appliance cuts off the incoming power supply and the screen displays “E2”. Allow the hotplate to cool: if the defect persists, please contact the customer service.

• Over or under- voltage protection: If the voltage is greater than 265 V - 285 V, the incoming power supply for16 the induction cooking appliance is cut off and the digital screen displays “E3”; if the voltage is between 150 V and 170 V, the incoming power supply for the induction cooking appliance is cut off and the digital screen displays “E4”. Check that your device’s specifications are compatible with your electric network.

• Temperature sensor: If the sensor is in an open circuit, the induction cooking appliance will continue to operate for one minute and the digital screen will display “E5”; if the sensor detects a short circuit, the induction cooking appliance will immediately display “E6”. Contact the customer service.17
