USER MANUAL IH700030 TEFAL

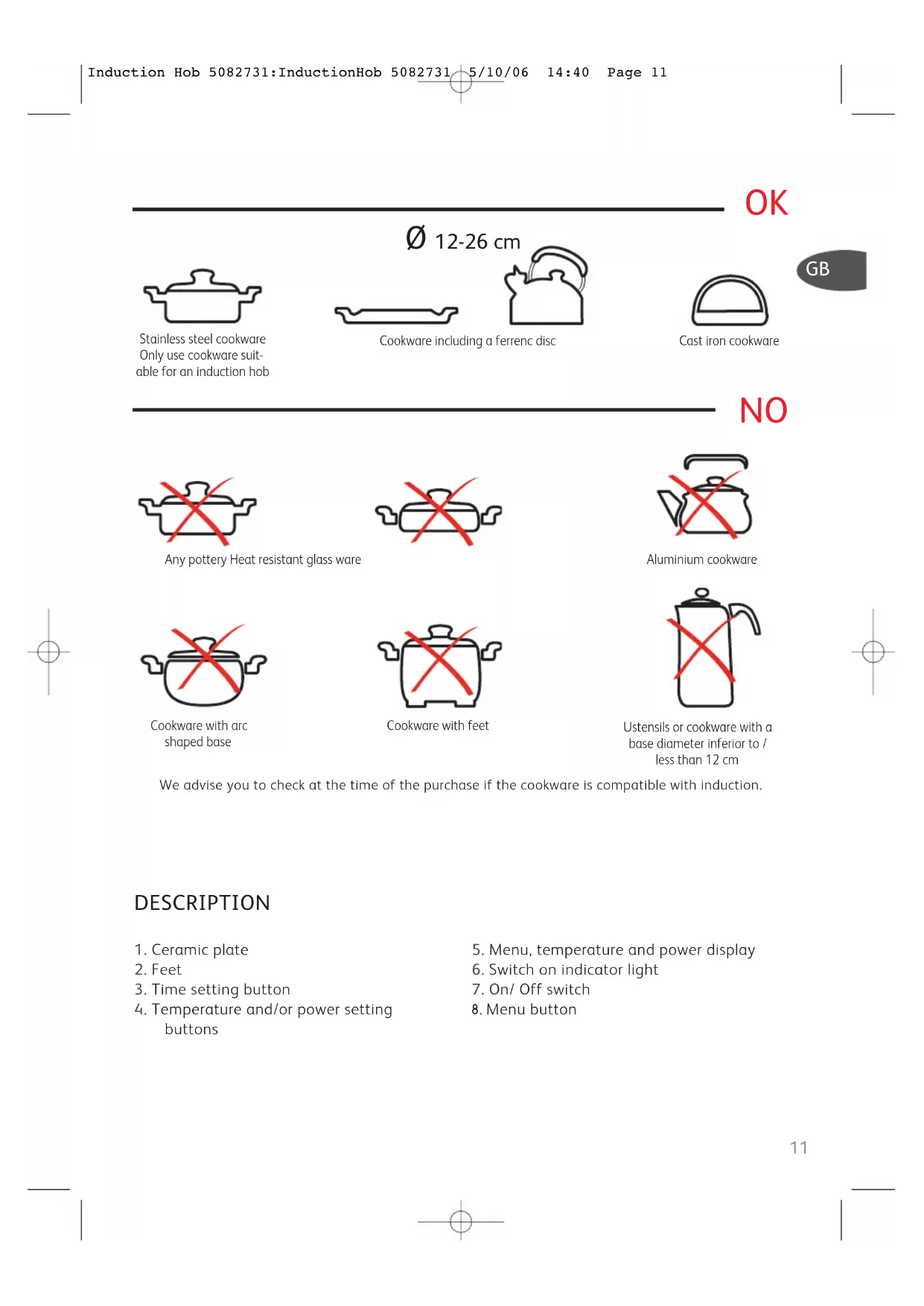

Stainless steel cookwareOnly use cookware suit-able for an induction hobCookware including a ferrenc discAny pottery Heat resistant glass wareCookware with arcshaped baseUstensils or cookware with abase diameter inferior to /less than 12 cmCookware with feetAluminium cookware Cast iron cookwareWe advise you to check at the time of the purchase if the cookware is compatible with induction. Ø 12-26 cm

DESCRIPTION 1. Ceramic plate 2. Feet 3. Time setting button4. Temperature and/or power settingbuttons5. Menu, temperature and power display6. Switch on indicator light7. On/ Off switch . Menu button Induction Hob 5082731:InductionHob 5082731 5/10/06 14:40 Page 1112 Heat By default, the induction hob works with this mode. When the appliance is switched on, it will be set to “HEAT”” mode by default.

• After selecting this cooking mode, the icon “HEAT” will appear on the display.

• The power will default to 1500W, but you can adjust the power from 300W to 1800W by pressing the power setting button.

• In this mode it’s also possible to preset the cooking time with the time setting button. Note : If you use the “TIMER” function, it is important, for safety reasons that you do not leave the appliance unattended during the cooking operation. Sauté

• Select the “SAUTE” mode by using the Menu button.

• After selecting this cooking mode, the “ SAUTE” icon will appear on the display.

• The power will default to 1200W, but you can adjust the power from 300W to 1800W by pressing the power setting button.

• In this mode it’s also possible to preset the cooking time with the time setting button. Note : If you use the “TIMER” function, it is important, for safety reasons that you do not leave the appliance unattended during the cooking operation. Fry

• Select the “FRY” mode by using the Menu button.

• After selecting this cooking mode, the icon “ FRY” will appear on the display.

• It will default to 240°C, but you can adjust the temperature from 80°C to 260°C by pressing the temperature setting buttons.

• In this mode, it is also possible to preset the cooking time by using the time setting button. Note : If you use the “TIMER” function, it is important, for safety reasons that you do not leave the appliance unattended during the cooking operation. Boil This menu should only be selected to boil water.

• Select the “ BOIL” mode by using the Menu button.

• After selecting this cooking mode, the icon “ BOIL” will appear on the display.

• The power will default to 1500W. You cannot adjust the power, the temperature, or the cooking time in this mode.

• When the water temperature reaches 100°C, it will remain at this level. Rice It is recommended to wash the rice first and then to add an appropriate amount of clean water (1 volume of rice for 2 - 2,5 volumes of water) and cover during cooking. You can adjust the quantity of water according to your taste. After cooking has completed it is recommended to let the rice stand for a while to improve the taste and texture.

• Select the “RICE” mode by using the Menu button.

• The time will default to 30 minutes.

• In this mode it’s also possible to preset the cooking time with the time setting button according to the rice and water quantity . Note : If you use the “TIMER” function, it is important, for safety reasons that you do not leave the appliance unattended during the cooking operation. MENUS Induction Hob 5082731:InductionHob 5082731 5/10/06 14:40 Page 1213

• Select the “SOUP” mode by using the Menu button.

• After selecting this cooking mode, the icon “SOUP” will appear on the display.

• The power will default to 1500W until it boils. The appliance brings the soup to a boil then stews for 2 hours (if the temperature drops during the cycle, the unit will pulse the power).

• Once stewing is completed, the unit will enter in keep warm mode.

• The keep warm mode will be active for up to 2 hours, and will then automatically switch off (if the temperature drops during the cycle, the unit will pulse the power).You may cancel the keep warm mode at any time by pressing the “ON/OFF” button. Stew

• Select the “STEW” mode by using the Menu button.

• After selecting this cooking mode, the “STEW” icon will appear on the display.

• The power will default to 1200W, but you can adjust the power from 300W to 1800W by pressing the power setting buttons.

• In this mode, it is also possible to preset the cooking time by using the time setting button. Note : If you use the “TIMER” function, it is important, for safety reasons that you do not leave the appliance unattended during the cooking operation. Barbecue

• Select the “BARBECUE” mode by using the Menu button.

• After selecting this cooking mode, the “BARBECUE” icon will appear on the display.

• The temperature will default to 240°C, but you can adjust the temperature from 160°C to 240°C by pressing the temperature setting buttons.

• In this mode, it is also possible to preset the cooking time by using the time setting button. Note : If you use the “TIMER” function, it is important, for safety reasons that you do not leave the appliance unattended during the cooking operation. Induction Hob 5082731:InductionHob 5082731 5/10/06 14:40 Page 1314 SAFETY PRECAUTIONS Read and follow the instructions for use. Keep them handy for future use. Safety Instructions

• This appliance complies with the safety regulations and conditions in effect at the time of manufacture.

• Check that the power supply voltage corresponds to that shown on the appliance (alternating current).

• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved service centre.

• This appliance is designed for domestic use only. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the warranty might not apply. Connecting to the power supply

• Do not use the appliance if: - It is faulty or its cord is faulty - the appliance has fallen or shows visible damage or does not work properly. In these cases, the appliance must be sent to an approved Service Centre. Do not take the appliance apart yourself.

• Always plug the appliance into an earthed socket.

• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has an earthed plug and is suited to the power of the appliance.

• Make sure that cord never comes into contact with the hot parts of the appliance.

• Do not leave the cord hanging.

• Do not unplug the appliance by pulling on the cord. Conditions for use

• Never leave the appliance in operation unattended.

• Keep out of the reach of children.

• Young children and certain disabled persons who are not familiar with these instructions should only use this appliance under surveillance of a responsible adult.

• Allow the appliance to cool completely before storing or cleaning

• Never immerse the appliance in water or any other liquid for any reasons

• Do not use the appliance outside and always store in a dry environment

• Place the appliance on a flat, stable, heat resistant surface, far away from ovens, electric or gas burners or any heating source. Keep within a minimum distance of 10 cm of the wall on the back and on sides of the appliance.

• Never place the appliance on an iron plate or iron table during operation.

• Never use aluminium paper during cooking, and never put packaged product with aluminium on the hob to avoid deterioration.

• Never use near flammable materials such as curtains, draperies, cabinets….

• The appliance doesn’t heat up itself during cooking, but the cook pot can transmit heat to the ceramic plate. Avoid touching the hob during cooking, or immediately after having taken off the pan.

• Never touch the hot parts of the appliance when operating. Use the insulated handles to hold the appliance. Keep away any iron accessory (such as forks, knives and so on) that could heat on the induction cooker.

• Never introduce anything in the air vent or air entry. Never obstruct these air entries

• Should any part of your appliance catch fire, do not attempt to put it out with water. Smother the flames with a wet linen.

• Never heat sealed food such as canned goods without opening them first.

• Always clean the appliance after use

• If the ceramic plate is damaged or cracked, unplug the appliance and contact a service centre immediately.

• Any intervention must be only made by any repairs should be made by an approved service centre.
