USER MANUAL AVANTI ELITE TEFAL

July 2003 - Ref. : 3304185b - Document subject to change - Safety instructions To prevent any accidents:

• This toaster complies with the safety rules and conditions in effect, and with the following directives - Electromagnetic Compatibility Directive 89/336/CEE modified by Directives 92/31/CEE and 93/68/CEE. - Low Voltage Directive 73/23/CEE modified by Directive 93/68CEE.
• Check that the electricity supply voltage corresponds to the voltage indicated on the appliance (ac current only).
• Given the many standards in effect, if this toaster is used in a country other than the country where it was purchased, have it checked by an approved service centre (see enclosed after sales service information).
• Check that the electricity installation is sufficient to supply the power required by this appliance.
• Always plug the toaster into an earthed socket.
• Do not let the cord hang over the edge of countertop or come in contact with hot surfaces.
• Do not store the cord or the plug between the slots in the appliance.
• Do not disconnect the appliance by pulling on the cord.
• Use extension cords which are in good condition, with an earthed connection, and with a minimum rating of 10A.
• In order to avoid electric shock, do not immerse the cord, the plug or the toaster in water or any other liquid.
• Do not use metal utensils in the toasting mechanism, which could cause short circuits or electric shock (spoon, knife...).
• Use a stable work surface, away from any contact with water and never in a built-in kitchen alcove.
• Do not move or carry the appliance when operating it. IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed: DO:
• Carefully read and follow all the instructions of use.
• Close supervision is necessary when the toaster is used by or near children.
• The toaster must always be used in the upright position, never on its side or tilted forward or back.
• Before each use make sure that the crumb tray is in its proper location.
• Regularly remove crumbs from the crumb tray.
• The bread control lever must be in the "Up" position before plugging in or unplugging the appliance.
• Unplug the appliance if it shows any working abnormalities.
• Unplug from the power socket when not in use and before cleaning. Allow to cool down before cleaning or storing it.
• To disconnect remove the plug from the wall socket (when the toasting cycle is finished).
• If the bread jams in the slots after toasting and the elements do not switch off, disconnect the plug immediately and wait for the appliance to cool before attempting to remove the bread.

3365- AVANTI SPEED2-M1

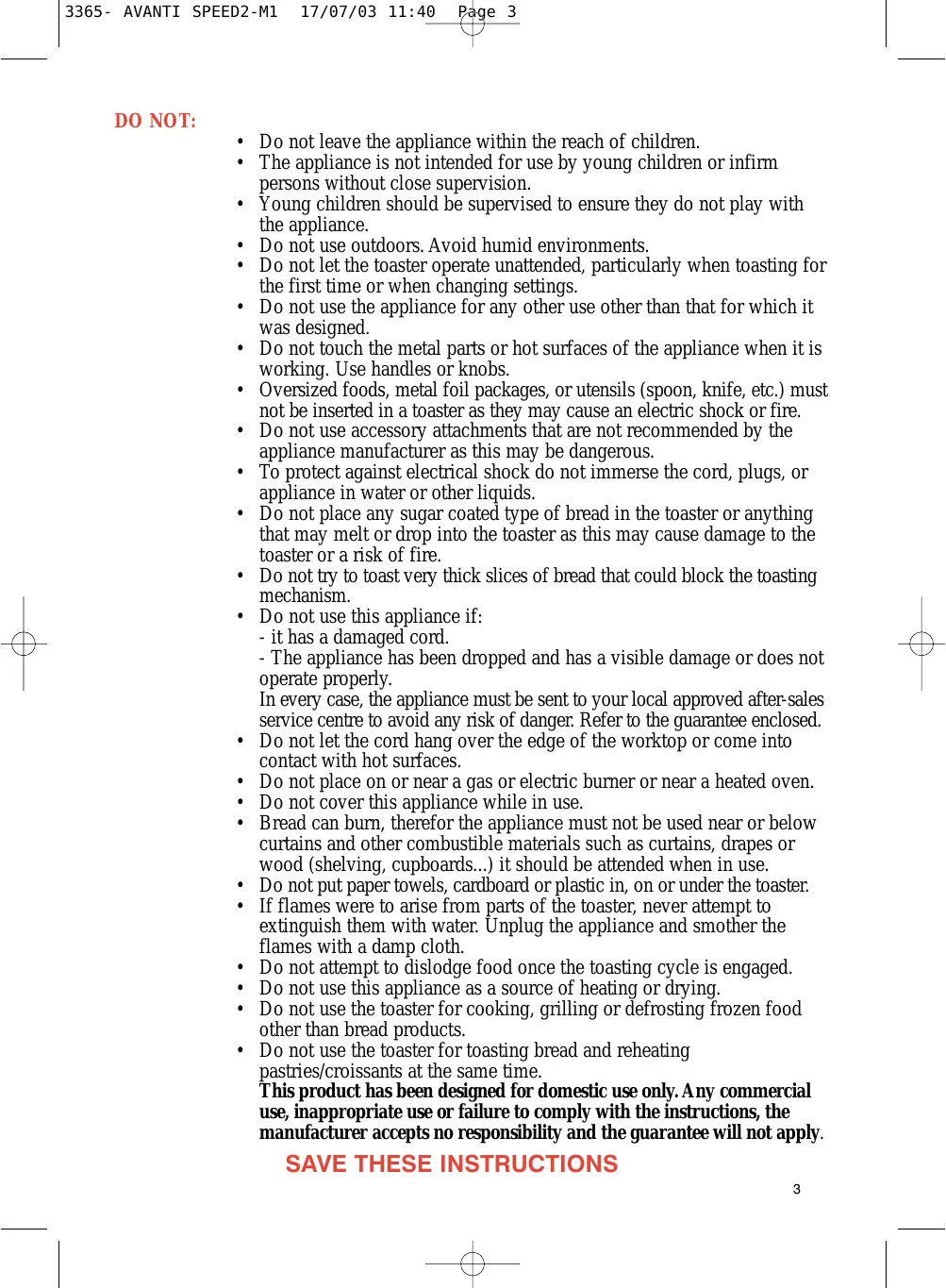

17/07/03 11:40 Page 91 DO NOT:

• Do not leave the appliance within the reach of children.
• The appliance is not intended for use by young children or infirm persons without close supervision.
• Young children should be supervised to ensure they do not play with the appliance.
• Do not use outdoors. Avoid humid environments.
• Do not let the toaster operate unattended, particularly when toasting for the first time or when changing settings.
• Do not use the appliance for any other use other than that for which it was designed.
• Do not touch the metal parts or hot surfaces of the appliance when it is working. Use handles or knobs.
• Oversized foods, metal foil packages, or utensils (spoon, knife, etc.) must not be inserted in a toaster as they may cause an electric shock or fire.
• Do not use accessory attachments that are not recommended by the appliance manufacturer as this may be dangerous.
• To protect against electrical shock do not immerse the cord, plugs, or appliance in water or other liquids.
• Do not place any sugar coated type of bread in the toaster or anything that may melt or drop into the toaster as this may cause damage to the toaster or a risk of fire.
• Do not try to toast very thick slices of bread that could block the toasting mechanism.
• Do not use this appliance if: - it has a damaged cord. - The appliance has been dropped and has a visible damage or does not operate properly. In every case, the appliance must be sent to your local approved after-sales service centre to avoid any risk of danger. Refer to the guarantee enclosed.
• Do not let the cord hang over the edge of the worktop or come into contact with hot surfaces.
• Do not place on or near a gas or electric burner or near a heated oven.
• Do not cover this appliance while in use.
• Bread can burn, therefor the appliance must not be used near or below curtains and other combustible materials such as curtains, drapes or wood (shelving, cupboards...) it should be attended when in use.
• Do not put paper towels, cardboard or plastic in, on or under the toaster.
• If flames were to arise from parts of the toaster, never attempt to extinguish them with water. Unplug the appliance and smother the flames with a damp cloth.
• Do not attempt to dislodge food once the toasting cycle is engaged.
• Do not use this appliance as a source of heating or drying.
• Do not use the toaster for cooking, grilling or defrosting frozen food other than bread products.
• Do not use the toaster for toasting bread and reheating pastries/croissants at the same time. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

SAVE THESE INSTRUCTIONS

3365- AVANTI SPEED2-M1

17/07/03 11:40 Page 4 For U.K. only Wiring instructions This appliance must be earthed Green Brown L and Eyellow or red Important: the wires in this lead are coloured in accordance with the or green Fit 13 amp fuse following codes: Blue or Green and Yellow: Earth Use cable black gripper Blue: Neutral Brown: Live Connect the Green/Yellow wire to the terminal in the plug marked “E” (or by the earth symbol) or coloured Green or coloured Green and Yellow. Connect the Brown wire to the terminal in the plug marked “L” or coloured Red. Connect the Blue wire to the terminal in the plug marked “N” or coloured Black. A 13 amp fuse should be fitted when the appliance is connected to a BS 1363 plug. Seek professional advice if you are unsure of the correct procedure for the above. About your factory fitted plug (supplied with certain models only) The lead is already fitted with a plug incorporating a 13 amp fuse. If the plug does not fit your socket outlet, see next paragraph. Should you need to replace the fuse in the plug supplied, a 13 amp approved BS 1362 fuse must be used. (refer to wiring instructions for use rating) If the plug supplied does not fit your socket outlet, it should be removed from the mains lead and disposed of safely. The flexible cord insulation should be stripped back as appropriate and a suitable alternative plug fitted. The replacement plug must be equipped with a 13 amp fuse. Important: If the electrical cord of this appliance is damaged, it must only be replaced by an authorised Service Dealer. The safety of this appliance complies with the technical regulations and standards in force. The fuse cover is an important part of the plug. Please ensure that it is always refitted. If you lose this cover please do not use the plug. You may contact TEFAL UK limited for a replacement. For help and advice please call our Customer Relations team on: 0845 602 1454 – UK (01) 4751947 – Ireland or consult our web-site: www.tefal.co.uk

3365- AVANTI SPEED2-M1

17/07/03 11:40 Page 5 ENGLISH Features A LCD screen: indicates toasting selection and remaining toasting time B Browning control button (9 positions) C Cancel/stop button D Reheat button E Defrost button F Bagel/baguette button* Before using for the first time Unpack the appliance and remove any labels. Read the manual and carefully follow the instructions. Unwind the supply cord completely. Wipe the outside of the toaster with a damp sponge. Dry thoroughly - Fig. 1 Plug in the toaster. Without inserting any bread select the minimum browning level - Fig. 2 Press the bread control lever down - Fig. 3 Operate the toaster 3 or 4 times while empty to eliminate “that new smell”. Open a window. Inserting the bread With the bread control lever in the raised position, place a slice of bread in each slot - Fig. 4 Toasting Select your desired toasting level depending on the type and freshness of your bread by pressing the browning control button. The selected level will appear on the screen - Fig. 5 1-2: very lightly toasted 3-4: moderately toasted bread, 5-6: well browned bread 7-8: very well browned bread 9: dark browned bread To begin toasting, press down on the bread control lever until it locks into the low position ; the bread slices are automatically centred and the toasting begins - Fig. 6 Once the toasting cycle is engaged the remaining toasting time appears on the screen. *on selected models only

Waffle/Crumpet/Brioche button* Bread control lever Hi-lift lever Crumb tray Carrying handle (on back panel) Cord storage (underneath) The toaster will automatically adjust the cycle length to accommodate any heat remaining in the toasting chamber from a previous toasting cycle. Any bread protruding out of the slots will not be toasted. The toaster must be plugged in for the control lever to stay down. When toasting raisin bread or tea-cakes, remove any loose raisins from the bread before placing them in the toaster. Loose raisins may fall into the appliance and create a fire hazard. It is advisable to reduce the browning level if you are toasting only slice. Regularly remove crumbs from the crumb tray. To open the crumb tray, press on it once. Press back in again to close - Fig. 7 To stop toasting When toasting is complete, the bread control lever will unlock and the toasted slices of bread will pop up. The toasting cycle may be interrupted at any time by pressing the cancel/stop button - Fig. 8 The digital screen is automatically deactivated after approximately 10 minutes. To activate the screen, press any of the buttons once or press down on the bread loading lever. Hi-lift function To remove small slices of bread after the toasting cycle is complete, put the bread control lever in the raised position and press the Hi-lift lever - Fig. 9

3365- AVANTI SPEED2-M1

17/07/03 11:40 Defrost function For toasting frozen bread, press the defrost button: the defrost symbol will appear on the screen - Fig. 10 Select the desired toasting level and press the bread control lever down. Extra time for toasting will automatically be selected in order to defrost and then toast your bread. Once the cycle is engaged the remaining toasting time will appear on the display. At the end of the cycle, the bread will pop up and the toaster will switch off. Leave the bread in the slots for approximately 30 seconds before removing it. Reheat function For reheating toast (short fixed time), press the “reheat” button: the reheat symbol will appear on the display - Fig. 11 Press the bread control lever down (you don’t need to select a toasting level). The appliance will operate for a preset period of time and will show the remaining toasting time on the screen. At the end of the cycle, the bread will pop up and the toaster will switch off. Bagel/baguette function* Insert your bagel or your baguette, cut in half, in the toaster with the cut sides facing the central divider. Press the “bagel” button. The LED will turn on. Select the desired toasting level and press the bread control lever down until it locks - Fig. 12 The browning time will be automatically adapted on the selected browning level and will appear on the display. At the end of the toasting cycle, the bread will pop up. If the bagel is too heavy, lift the lever up manually to remove the bread. Waffle, crumpet or brioche toasting feature* Insert your crumpets, your waffles or your slices of brioche in the toaster. Press the “waffle/crumpet/brioche button” - Fig. 13 . The LED comes on. Select the desired toasting level and press the bread control lever down until it locks.

Page 6 The remaining time for toasting your waffles, your crumpets or your slices of brioche will appear on the display. At the end of the toasting cycle, the bread will pop up. Child lock system* To turn the safety lock on: Press and hold the “Cancel/Stop” few seconds until the word “SEC” appears on the digital display - Fig. 14 The toaster will be completely disabled: all functions will be locked and inoperable. To turn the safety lock off: Just press and hold the “cancel/stop” button again for a few seconds until the “SEC” symbol disappears from the display. In the child safety mode, the function buttons are inactivated and the control lever no longer engages in the down position. Maintenance, cleaning and storage Clean your toaster regularly. Before any maintenance, unplug the appliance and leave the toaster to cool down completely. Remove the crumb tray and discard the crumbs - Fig. 7 Never insert a metal object inside the toaster as this is dangerous and may cause serious damage. Wipe the outside of the appliance and the cord with a damp cloth. Dry thoroughly - Fig. 1 Do not use abrasive or scouring cleaning products. Do not use bleach. Do not wind the cord around the body of the appliance. There is a cord storage area underneath the appliance. Storage To move the toaster, a carrying handle is located at the back of the appliance - Fig. 15 Always let your appliance cool down completely prior to storing, especially in a tightly enclosed space; heat may damage any type of flammable material. The packaging box may be recycled, but it may also be useful for returning the appliance to an approved Service Dealer if necessary (see enclosed leaflet). *on selected models only

3365- AVANTI SPEED2-M1

17/07/03 11:40 Page 7 FRANÇAIS

SPARA DESSA FÖRESKRIFTER

3365- AVANTI SPEED2-M1

17/07/03 11:40 Page 57 SVENSKA

TIETO POKYNY STAROSTLIVO USCHOVAJTE

3365- AVANTI SPEED2-M1

17/07/03 11:40 Page 75 SLOVENSKÝ

TYTO POKYNY PEČLIVĚ USCHOVEJTE

3365- AVANTI SPEED2-M1

17/07/03 11:40 Page 80 ČESKY
