Everyday IH2024 - Cooker TEFAL - Free user manual and instructions

Product Type	Induction Cooker
Brand	Tefal
Model	Everyday IH2024
Dimensions (W x D x H)	60 x 52 x 6 cm
Weight	8.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Total Power	7200 W
Number of Cooking Zones	4
Booster Function	Yes, on all zones
Timer	Yes, up to 99 minutes
Child Lock	Yes
Control Type	Touch control with LED display
Cleaning	Ceramic glass surface; wipe with damp cloth
Auto Shut-Off	Yes, programmable
Overheat Protection	Yes
Residual Heat Indicator	Yes
Spare Parts Availability	Through Tefal service centers
Repairability Index	8.2/10

Frequently Asked Questions - Everyday IH2024 TEFAL

What type of cookware is compatible with the Tefal Everyday IH2024?

This induction cooker requires ferromagnetic cookware such as iron, stainless steel with magnetic base. To test, hold a magnet to the bottom; if it sticks, the pan is suitable.

How do I clean the ceramic glass surface?

Allow the surface to cool, then wipe with a damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads to prevent scratches.

Can I use the booster function on all zones simultaneously?

No, the booster function can be activated on one zone at a time to avoid overloading the circuit.

What does the residual heat indicator mean?

An 'H' displayed on a zone indicates the cooking surface is still hot. Do not touch until it disappears.

How to activate the child lock?

Press and hold the key lock button (usually a padlock icon) for 3 seconds until the lock symbol appears on the display.

What should I do if the cooker shuts off unexpectedly?

This may be due to overheating or a power surge. Allow the appliance to cool for 5 minutes, then restart. If the issue persists, contact Tefal support.

Is the timer independent for each zone?

Yes, each cooking zone has its own timer that can be set from 1 to 99 minutes. The timer will automatically switch off the corresponding zone.

What is the total power consumption?

The total power is 7200 W. Ensure your electrical installation supports this load. Do not use extension cords.

Can I use aluminum or copper pans?

No, these materials are not magnetic and will not work on induction cooktops. You need pans with a magnetic base.

Where can I find the user manual?

The user manual is available for free on notice-facile.com. You can download it in PDF format or request a translation by email.

USER MANUAL Everyday IH2024 TEFAL

THANKS FOR CHOOSING TEFAL

At Tefal, we strive to be your day-to-day facilitator. We believe that you should not have to adapt to the product, but that the product should adapt to you.

For over 60 years, we have taken our inspiration from your daily life to provide you with a seamless path to the results you want with one unique goal: let you share more moments of happiness together with your family.

Thanks again for welcoming us to your home.

Now let's cook together!

目錄

Tefal 的安全至上理念 3

熟悉您的装置 8

適用鋼具指南 9

使用方法與清潔指南 10

疑難排解指南 17

限用物質含有情況標示聲明書 18

Tefal國際有限保固 19

CONTENTS

Tefal Recommends Safety First 20

Getting Familiar with Your Appliance 26

Compatible Cookware Guide 27

How To Use & Clean Guide 28

Technical Troubleshooting Guide 36

Tefal International Limited Guarantee 37

TEFAL 的安全至上理念

TEFAL RECOMMENDS SAFETY FIRST

Safety is our number one priority. We design and manufacture our product with high safety and technology standards. However, as with any electric appliance there are some potential risks, we therefore invite you to exercise a degree of care and to adhere to the following instructions.

SAFETY INSTRUCTIONS

Take the time to read all the following instructions carefully before using your appliance and save them for future reference.

• For your safety, this appliance meets applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food articles, Environment, etc.).
• This appliance is designed for indoor domestic household use only. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

1. Where to use safely?

• This appliance is for household use only. It is not intended for use in and the guarantee will not apply for:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;

• Bed and breakfast type environments.

• The appliance must be placed and used on a flat, stable, heat-resistant work surface, away from water splashes.

• Do not place or use the induction cooker on metallic or magnetizable surfaces. There must be not aluminum foil under the appliance.
• Never place or use the appliance on or close to a cooking hob or other sources of heat.
• Never place or use the appliance below or close to easily inflammable objects (e.g. curtains, etc.).
• The power cord must never be close to or in contact with hot parts of the appliance, close to sources of heat or resting on sharp edges.
• Maintain a gap of at least 10 cm (4 inches) on all sides of the appliance to ensure adequate ventilation.
• Never place or use the appliance close to a wall or below a wall cupboard.
• Do not place or use this appliance in high humidity environments.

2. Who to use safely?

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and supervised.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Keep the appliance and its cord out of the reach of children less than 8 years.
• Children should be supervised to ensure that they do not play with the appliance.
• People fitted with cardiac pacemakers or similar medical devices should be kept away from the induction cooker when it is connected to the power supply. If any doubt, consult a medical practitioner before using this product to avoid any danger.

3. How to use safely – before cooking?

• Remove all packaging materials, stickers, and accessories from inside and outside of the appliance.
• Inspect the appliance and power cord for signs of wear or damage prior to connecting to the power supply.
• Unwind the power cord fully before use.
• Do not let the power cord hang where children may reach it.
• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.
  • Take all necessary precautions to prevent anyone

tripping over an extension cord.

• Always plug the appliance into a dedicated socket outlet with an earth connection. Do not use a socket adaptor or connect any other appliance into the same socket simultaneously, to avoid electrical overloading and risk of fire.
• This appliance is designed to function on AC current only. Before using it for the first time, check that your mains supply voltage matches that indicated on the appliance data plate.
• Any connection error will invalidate your guarantee.
• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system

4. How to use safely – during cooking?

• Please handle the ceramic plate with care to avoid breakage.
• Place the cookware at the centre of the cooking zone.
• Do not overheat cookware or preheat while empty for long periods.
• Do not place anything between the ceramic plate and the cookware when cooking, it will affect the performance of the appliance.
• Do not place aluminium foil on the ceramic plate since it can get hot.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the ceramic plate since they can get hot.

• Do not heat foodstuffs in tins or other airtight containers to avoid explosion caused by air expansion.

• Never move the appliance when it is hot.
• Never leave the appliance unattended whilst connected to the power supply, even if for a few moments, especially where children are present.
• If parts of the appliance should catch fire, never try to extinguish flames with water. Disconnect the appliance and smother the flames with a damp cloth.

5. How to use safely – after cooking?

• The ceramic plate is hot after cooking, please do not touch
• This logo is to remind you that after cooking, the surface of the ceramic plate can be hot.
• Never touch the hot surfaces of the appliance, they will remain hot for a while after use.
• Allow the appliance to cool down completely before you clean and store it.
  • Always keep the appliance clean to avoid dust entering the fan
  • motor and causing a malfunction.
• Never immerse the appliance or its power cord in water or any other liquid.
• Never disconnect the plug by pulling on the power cord.
• Switch off and disconnect the appliance from the power supply when not in use.

6. How to repair safely?

- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Do

not use the appliance and contact an Approved Service Centre.

• Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged. To maintain safety, these parts must be replaced by an Approved Service Centre.

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

In accordance with current regulations, before disposing of an appliance no longer needed, the appliance must be rendered inoperative (by unplugging it and cutting off the supply cord).

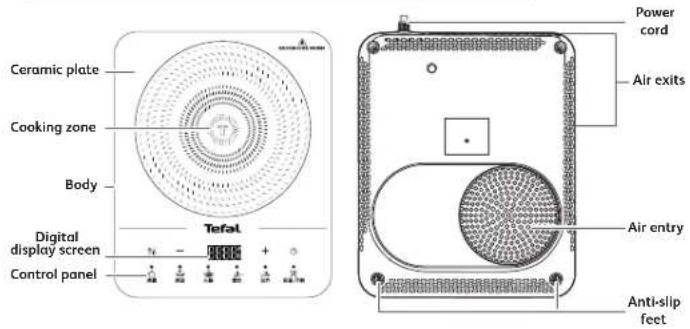

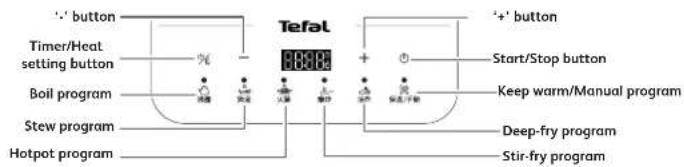

GETTING FAMILIAR WITH YOUR APPLIANCE

SPECIFICATIONS:

Model Maximum Input Power	Power Adjustment Range	Display Type Temperature Adjustment Range	Applicable Power Supply
IH202470 IH202570	1300W 180W – 1300W Digital	Display 140°C-200°C	110V – 60Hz

STATUS MESSAGES

Heating level display. In this example: heating level number 6.

Temperature display. In this example: 180 degrees Celsius.

Pre-heating animation. It indicates that temperature is rising during pre-heating phase.

Indicates that the program has a default automatic power level setting. It cannot be modified.

Timer display. In this example: 1 hour 30 minutes.

The temperature of the ceramic plate exceeds 50^ C while being in standby mode. This message is to in form users that the panel is still hot.

Indicates that the appliance is in standby mode.

Indicates that the is no pot or inappropriate pot placed on the ceramic plate.

These are the most common messages displayed on screen, for other error messages please refer to Technical Troubleshooting Guide.

COMPATIBLE COOKWARE GUIDE

WHICH MATERIAL IS COMPATIBLE?

Iron (enamel or cast) Compatible
Stainless steel	Most types are compatible but not all - check with compatibility test
Aluminum, copper, brass Not compatible
Glass, ceramic, porcelain Not compatible

If any doubt, check with compatibility test:

Use a magnet, if it sticks to the bottom of the cookware, it is compatible.

WHICH SIZE IS COMPATIBLE?

Any cookware with a flat double bottom diameter of over 12 cm and less than 24 cm.

GENERAL INFORMATION AND TIPS

• Refer to cookware manufacturer to confirm compatibility for induction cooking.
  • Always place the cookware at the centre of the cooking zone.
• Cookware with uneven bottom should not be used, it may impact the functionality and lead to glass crack.
• The bottom of the cookware should be as thick as possible for better heat diffusion.
• Certain cookware can make noises when being used on induction cooker. The appliance is not at fault and these noises do not affect operation in any way.

HOW TO USE & CLEAN GUIDE

1. Put a cookware on the appliance

• Make sure the appliance is placed on a flat, stable, heat-resistant, non-metallic surface with a gap of at least 10 cm on all sides of the appliance to ensure adequate ventilation.
• Place a compatible cookware with food/liquid at the centre of the cooking zone.

2. Turn on the appliance

• Fully unwind the power cord and plug it into the mains. The appliance makes a beep sound.
• Press [Start/Stop] button, the appliance makes a beep sound and all the lights of the control panel turn on. Then, the screen display ‘----’ waiting for program selection.
• After 5 minutes without any action, the appliance automatically turns off.

3. Select a cooking program

Boil program

This program allows to quickly boil water (do not use it for milk as it may burn, prefer manual program for milk).

- Turn on the appliance and press [Boil] program. The appliance automatically starts heating at preset heating level 6 and preset cooking time 20 minutes.

Boil program
Heating level 1 2	3 4 5 6
Power (approx.) 18	0W 260W	450W 700W	900W 1300W
Preset cooking time 0:20

This table is for your information using Tefal Ingenio cookware. The actual power may vary according to the type, shape, and material of the cookware used.

Optional: adjust the heating level by pressing [-] button to decrease the heat or [+] button to increase the heat.

Optional: adjust the cooking time using the timer function (refer to dedicated section after)

- At the end of the preset cooking time the appliance automatically turns off and the screen displays ‘----’ or ‘Hot’ if the ceramic plate is still hot (exceeds 50°C).

Optional: press [Start/ Stop] button to stop the appliance at any time.

Stew program

This program is intended to cook delicious stews.

- Turn on the appliance and press [Stew] program. The appliance automatically starts heating at preset heating level and the screen displays 'Auto'.

The preset heating level slowly heats up and then automatically controls and maintains an ideal temperature between 80^ C and 100^ C. Preset cooking time is 30 minutes.

Stew program
Heating level	Auto 1 2 3 4 5 6
Power (approx.)	Adjusts automatically from 450W to 900W	180W	260W	450W	700W	900W	1300W
Preset cooking time		0:30

This table is for your information using Tefal Ingenio cookware. The actual power may vary according to the type, shape, and material of the cookware used.

Optional: adjust the heating level by pressing [-] button to decrease the heat or [+] button to increase the heat.

Optional: adjust the cooking time using the timer function (refer to dedicated section after)

- At the end of the preset cooking time the appliance automatically turns off and the screen displays ‘- - -’ or ‘Hot’ if the ceramic plate is still hot (exceeds 50°C).

Optional: press [Start/ Stop] button to stop the appliance at any time.

Hotpot program

Use this program for a perfect hotpot experience.

- Turn on the appliance and press [Hotpot] program. The appliance automatically starts heating at preset power level 5 and preset cooking time 1 hour.

Hotpot program
Heating level 1 2	3 4 5 6
Power (approx.)	180W	260W	450W	700W	900W	1300W
Preset cooking time	0:20

This table is for your information using Tefal Ingenio cookware. The actual power may vary according to the type, shape, and material of the cookware used.

Optional: adjust the heating level by pressing [-] button to decrease the heat or [+] button to increase the heat.

Optional: adjust the cooking time using the timer function (refer to dedicated section after)

- At the end of the preset cooking time the appliance automatically turns off and the screen displays ‘- - -’ or ‘Hot’ if the ceramic plate is still hot (exceeds 50°C).

Optional: press [Start/ Stop] button to stop the appliance at any time.

Stir-fry program

This program allows to stir-fry any type of food in a small amount of oil.

- Turn on the appliance and press [Stir-fry] program. The appliance automatically starts heating at preset heating level 6 and preset cooking time 15 minutes.

Stir-fry program
Heating level 1 2	3 4 5 6
Power (approx.)	180W	260W	450W	700W	900W	1300W
Preset cooking time	0:15

This table is for your information using Tefal Ingenio cookware. The actual power may vary according to the type, shape, and material of the cookware used.

Optional: adjust the heating level by pressing [-] button to decrease the heat or [+] button to increase the heat.

Optional: adjust the cooking time using the timer function (refer to dedicated section after)

- At the end of the preset cooking time the appliance automatically turns off. It makes a beep sound and displays ‘- - -’ or ‘Hot’ if the ceramic plate is still hot (exceeds 50°C).

Optional: press [Start/ Stop] button to stop the appliance at any time.

Deep-fry program

Use this program to fry food in an oil bath at a stable temperature.

• For this program, place a pot containing 0.9L of oil at the centre of the cooking zone.
• Turn on the appliance and press [Deep-fry] program. The appliance automatically starts pre-heating to reach preset temperature 180°C. The screen displays alternatively targeted temperature and pre-heating animation.
• When the pre-heating phase is completed, the appliance makes a two beeps sound, and the screen displays fixedly temperature.
• Gently put your ingredients into the pot to avoid any splatch and start cooking.
• The preset cooking time is 20 minutes (including the pre-heating phase). At the end of the preset cooking time the appliance automatically turns off. It makes a beep sound and displays ‘--’ or ‘Hot’ if the ceramic plate is still hot (exceeds 50°C).

Deep-fry program
Heating level 1 2	3 4 5 6
Power (approx.) 140	°C 160	°C 170	°C 180	°C 190	°C 200	°C
Preset cooking time 0:20

This table is for your information using Tefal Ingenio cookware with 0.9L of oil. The actual temperature may vary according to amount of oil and the type, shape, and material of the cookware used.

Optional: adjust the temperature by pressing [-] button to decrease the temperature or [+] button to increase the temperature.

Optional: adjust the cooking time using the timer function (refer to dedicated section after)

Optional: press [Start/ Stop] button to stop the appliance at any time.

Keep warm/ Manual program

This 2 in 1 program allows to keep the food warm if used on heating level 1 and to cook food at the desired heat if changing to higher heating levels.

- Turn on the appliance and press [Keep warm/ Manual] program. The appliance automatically starts heating at preset heating level 1 and preset cooking time 1 hour.

Keep warm/ Manualf program
Heating level 1 2	3 4 5 6
Power (approx.) 18	0W 260W	450W 700W	900W	1300W
Preset cooking time	1:00

This table is for your information using Tefal Ingenio cookware. The actual power may vary according to the type, shape, and material of the cookware used.

Optional: adjust the heating level by pressing [-] button to decrease the heat or [+] button to increase the heat.

Optional: adjust the cooking time using the timer function (refer to dedicated section after)

- At the end of the preset cooking time the appliance automatically turns off. It makes a beep sound and displays ‘- - -’ or ‘Hot’ if the ceramic plate is still hot (exceeds 50°C).

Optional: press [Start/ Stop] button to stop the appliance at any time.

Timer function

The Timer function is available for all programs from 1 minute (screen displays '0:01') to 6 hours (screen displays'6:00').

• After selecting a program, press [Timer/Heat setting] button the timer indicator ⏻ turns on and the screen displays time flashing.
• Adjust the time by pressing [-] button to decrease the time or [+] button to increase the time. (If press short, the time will change 1 minute by 1 minute, if press long, the time will change 10 minutes by 10 minutes). After 3 seconds the time stops flashing and the countdown starts.
• At any moment of the cooking process the timer can be readjusted by pressing [-] or [+] button.
• To exit timer setting mode and return to heat setting mode, press [Timer/Heat setting] button the timer indicator ⏻ turns off and the heat indicator ⏻ turns on, the screen displays heating level or temperature (according to program). The timer is still running in the background.
• At the end of the countdown, the appliance stops automatically, it makes a beep sound and displays ‘----’ or ‘Hot’ if the ceramic plate is still hot (exceeds 50°C).

Note for all programs:

• Cookware detection: if no cookware or no suitable cookware is sensed on the ceramic plate when launching a program, the internal detection system will generate an alarm and error message E1 on screen.
• 1h automatic shut-off: if no timer has been set, the appliance will automatically stop after 1 hour.
• When the appliance stops, the fan may continue to operate, it is normal and aims at cooling down the ceramic plate.
• It is recommended to begin a cooking program when the appliance is cool, otherwise cooking results may be affected.

4. Turn off the appliance

• When the appliance is in standby mode (screen displays ‘----’ or ‘Hot’ if the ceramic plate is still hot), after 5 minutes without any action, the appliance automatically turns off.
• To turn off the appliance, press [Start/Stop] button for 3 seconds.

5. Clean the appliance

• Unplug the power cord and wait until the ceramic plate has cooled down before cleaning.
• Clean the ceramic plate and control panel with a damp soft cloth or a cleaning product which is designed for use on induction cookers. In case of tough stains, wipe away the stains with neutral detergent and then clean with damp soft cloth.
• Clean the body with a damp soft cloth making sure no water enters inside the appliance.
• Remove any dust from the air entry / air exits with a cotton bud.

Some scratches and dark stains on the ceramic plate may not be able to be removed. These however do not affect the operation of the appliance.

TECHNICAL TROUBLE SHOOTING GUIDE

Malfunction description	Causes Solutions
Screen displays E1	No cookware or unsuitable cookware.	Place a suitable cookware at the centre of the cooking zone of the ceramic plate.Cookware base diameter should be more than 12 cm and cookware material should be induction compatible.
Screen displays E2	Power source is overheating.	Turn off the appliance and allow it to cool down. If the defect persists, contact after-sale service.
Screen displays E3/E4	Voltage is not appropriate; the appliance will turn itself off.	Operation resumes after the voltage returns to normal.
Screen displays E5/E6	Product failure.	Turn off the appliance and contact after-sale service.
Screen displays Auto	Program has a default automatic power level setting. It cannot be modified.	Choose Manual program to modify power level.
Screen displays Hot	The temperature of the ceramic plate exceeds 50°C while being in standby mode.	This message is to inform users that the ceramic plate is still hot.
Appliance turns off automatically	The appliance did not receive any operation instruction for a period of more than 5 minutes while being on standby mode.	Turn on the appliance again.
Appliance turns off automatically during use	•Room temperature is too high•Air entry or air exit is blocked•Safety protection is on	•Check if the room temperature is too high•Make sure the appliance is placed on a flat, stable, heat-resistant, non-metallic surface with a gap of at least 10 cm on all sides of the appliance to ensure adequate ventilation.•Wait for 15 min and try to turn on the appliance again.
No beep sound when the appliance is plugged in, or no reaction or display when pressing the Start/Stop button	•Power cord or plug is damaged•No power	•Check if the ppower cord and plug are in good conditions•Check if power is cut off or try to plug the appliance in another socket

TEFAL/T-FAL\* INTERNATIONAL LIMITED GUARANTEE

: www.tefal.com

This product is repairable by TEFAL/T·FAL*, during and after the guarantee period.

Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the TEFAL/T-FAL internet site www.tefal.com

The Guarantee\*\*:

TEFAL/T-FAL guarantees this product against any manufacturing defect in materials or workmanship during the guarantee period within those countries*** as stated in the attached country list, starting from the initial date of purchase or delivery date. The International manufacturer's guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, though the repair or replacement of any defective part and the necessary labour. At TEFAL/T-FAL's choice, an equivalent or superior replacement product may be provided instead of repairing a defective product. TEFAL/T-FAL's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions:

TEFAL/T-FAL shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The product can be taken directly in person or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a TEFAL/T-FAL authorised service centre. Full address details for each country's authorised service centres are listed on TEFAL/T-FAL website (www.tefal.com) or by calling the appropriate consumer service centre set out in the attached country list. In order to offer the best possible after-sales service and constantly improve customer satisfaction, TEFAL/T-FAL may send a satisfaction survey to all customers who have had their product repaired or exchanged in a TEFAL/T-FAL authorised service centre. This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow TEFAL/T-FAL instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

—damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification

—using the wrong type of water or consumable

-mechanical damages, overloading

-ingress of water, dust or insects into the product (excluding appliances with features specifically designed for insects)

-scaling (any de-scaling must be carried out according to the instructions for use)

—damage as a result of lightning or power surges

—damage to any glass or porcelain ware in the product

-accidents including fire, flood, etc

-professional or commercial use

Consumer Statutory Rights:

This international TEFAL/T-FAL guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion. "Where a product purchased in a listed country and then used in another listed country, the international TEFAL/T-FAL guarantee duration is the period for the country of usage, even if the product was purchased in a listed country with a long guarantee duration. The repair process may require a longer time if the product is not locally sold by TEFAL/T-FAL in the country of usage. If the product is not repayable in the new country of usage, the International TEFAL/T-FAL guarantee is limited to a replacement by a similar or alternative product at similar cost, where possible." "TEFAL household appliances appear under the T-FAL brand in some territories like America and Japan. TEFAL/T-FAL are registered trademarks of Groupe SEB.

Please keep this document for your reference should you wish to make a claim under the guarantee.

Country Phone Number	Guarantee length	Address
Taiwan+886 2-7743-0640 1 Year		SEB ASIA Ltd.4F., No 37, Dexing W. RD.,Shilin Dist.,Taipei City 11158TAIWAN (R.O.C.)

Tefal®

www.tefal.com
