USER MANUAL MFH33004P SCHEPPACH

Petrol multi garden tool

Explanation of the symbols on the equipment Read the instruction manual. Warning! Gasoline is very ammable. Avoid smoking or bringing any ame or sparks near fuel. Warning! Denotes risk of personal injury, loss of life, or damage to the tool in case of nonobservance. Warning! Risk of injury! Do not let your hands or feet come in contact with the blades when the motor is running. Warning! Keep all children, bystanders and helpers 15 meters away from the brush cutter! Wear robust footwear when using the device! Wear protective helmet, ear and eye protection. Wear protective gloves when using the device! Warning! The exhaust and other parts of the engine will get very hot during use, do not touch! 40:1 Symbol for refuelling the “MIX GASOLINE” on fuel tank cap. Warning! Beware of thrown objects hit by cutting attachments. Never use without properly mounted blade guard. The product complies with the applicable European directives and an evaluation method of conformity for this directives was done. Caution kickback!

Electric shock can cause fatal injury. Keep a distance of at least 10 m from power cables. Grass trimmer Hedge trimmer Brush cutter Pole saw Guaranteed sound power Fuel tank capacity www.scheppach.com

Table of contents: Page:

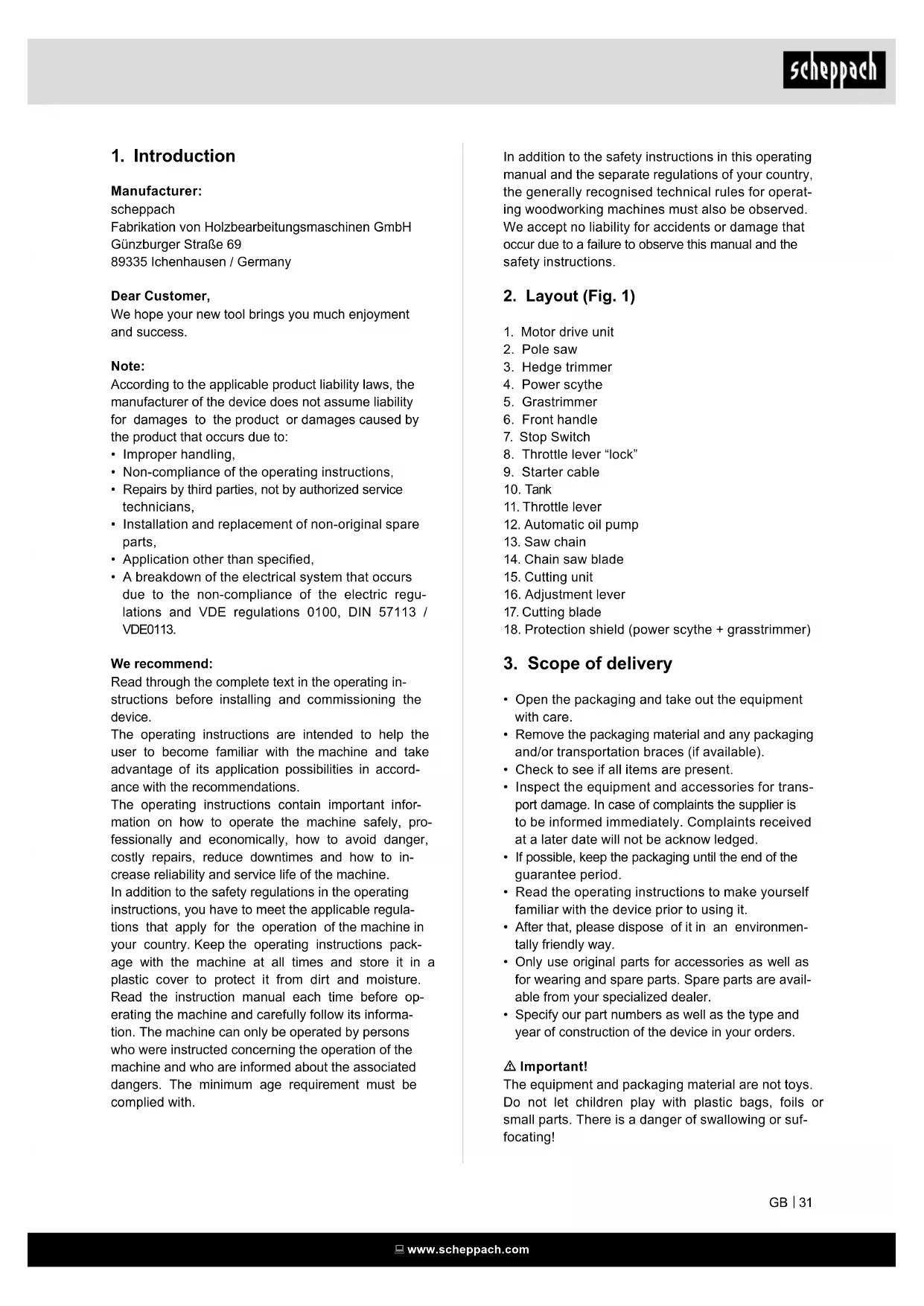

Manufacturer: scheppach Fabrikation von Holzbearbeitungsmaschinen GmbH Günzburger Straße 69 89335 Ichenhausen / Germany Dear Customer, We hope your new tool brings you much enjoyment and success. Note: According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Noncompliance of the operating instructions,

• Repairs by third parties, not by authorized service technicians,

• Installation and replacement of non-original spare parts,

• Application other than specied,

• A breakdown of the electrical system that occurs due to the noncompliance of the electric regu- lations and VDE regulations 0100, DIN 57113 / VDE0113. We recommend: Read through the complete text in the operating in- structions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accord- ance with the recommendations. The operating instructions contain important infor- mation on how to operate the machine safely, pro- fessionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to in- crease reliability and service life of the machine. In addition to the safety regulations in the operating instructions, you have to meet the applicable regula- tions that apply for the operation of the machine in your country. Keep the operating instructions pack- age with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before op- erating the machine and carefully follow its informa- tion. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules for operat- ing woodworking machines must also be observed. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

12. Automatic oil pump

16. Adjustment lever

3. Scope of delivery

• Open the packaging and take out the equipment with care.

• Remove the packaging material and any packaging and/or transportation braces (if available).

• Check to see if all items are present.

• Inspect the equipment and accessories for trans- port damage. In case of complaints the supplier is to be informed immediately. Complaints received at a later date will not be acknow ledged.

• If possible, keep the packaging until the end of the guarantee period.

• Read the operating instructions to make yourself familiar with the device prior to using it.

• After that, please dispose of it in an environmen- tally friendly way.

• Only use original parts for accessories as well as for wearing and spare parts. Spare parts are avail- able from your specialized dealer.

• Specify our part numbers as well as the type and year of construction of the device in your orders. m Important! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suf- focating! www.scheppach.com

• Spark plug wrench (19)

• Combined oil/petrol cylinder (24)

The brush cutter (using the cutting blade) is designed for cutting young trees, strong weeds and under- growth. The power trimmer (using the line spool with cutting line) is designed for cutting lawns, grassed areas and small weeds. The hedge trimmer is suitable for cutting hedges, bushes and shrubs. The polemounted petrolpowered pruner is de- signed for lopping o󰀨 tree branches. It is not suit- able for extensive sawing work, felling trees or saw- ing any materials other than wood. The operating instructions as supplied by the manu- facturer must be obeyed to ensure that the equip- ment is used properly. Any use which is not express- ly permitted in the manual may result in damage to the equipment and place the user in serious danger. Be sure to observe the restrictions in the safety in- structions. Please note that our equipment has not been de- signed for use in commercial, trade or industri- al applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes. Important! Due to the high risk of bodily injury to the user, the petrol power scythe must not be used to carry out the following work: to clean dirt and de- bris o󰀨 walkways, or to chop up tree or hedge clip- pings. Similarly, the petrol power scythe must not be used to level out high areas such as molehills. For safety reasons, the petrol power scythe must not be used as a drive unit for other work tools or toolkits of any kind. The equipment is allowed to be used only for its pre- scribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the man- ufacturer will be liable for any damage or injuries of any kind resulting from such misuse. Non-permitted users: People who are not familiar with the operating man- ual, children under the age of 16 and people under the inuence of alcohol, drugs and medication, as well as those who are tired or ill.

5. Important information

Safety instructions During transport of equipment

• During transport, always turn o󰀨 the motor.

• Never carry or transport the power tool with run- ning cutting tools.

• Only ever carry the power tool in work posture:

• Power tool on your back, left hand on the front handle and right hand on the operating lever (also applies to lefthanded people), with the cutting tools lowered towards the ground.

• In order to prevent damage and injury, or fuel from leaking, secure the tool against tipping over when transporting it in vehicles. Check the fuel tank for tightness. We recommend emptying the fuel tank before transport.

• The fuel tank must be emptied before shipment.

• Make sure that no persons or animals are close to the working area (minimum distance of 15 m). Grass being cut and thrown up may contain foreign objects such as stones. You are responsible for the safety in your working area, and you are liable for damages to persons or property.

• It is not permitted to either start or use the petrol brush cutter in the vicinity of persons or animals.

• Do not use the tool when you are tired or distracted, or your ability to react is impaired when you are under the inuence of alcohol or medication. Inat- tentiveness may cause serious injuries.

• Use approved safety goggles. Use approved ear protection. Use highquality safety gloves.

• Use highquality skidproof protective shoes with safety steel caps. Never operate the tool wearing sandals, or when barefoot.

• Always wear an approved safety helmet for work- ing in a forest.

• Do not wear wide clothing or jewelry. Wear long trousers to protect your legs. Wear safety helmet for long hair. Loose clothing, jewelry, and long hair can get caught in the moving parts. Wear suitable and durable tight working clothes.

• Keep body parts and clothing away from the cutting tool when you start the engine, or keep it running. www.scheppach.com

• Make sure you are standing in a stable and secure position during work. Avoid moving backwards with the tool due to risk of stumbling.

• Avoid any unnatural posture.

• When the petrol cutting blade has been operate for long hours, it may cause a circulatory disorder due to vibration (Raynaud‘s disease). In this case, it is impossible to specify any length of operation, because it may di󰀨er from person to person. The following factors can have an inuence on this phenomenon: Circulatory disorders in the hands of the operator, low outdoor temperatures, long hours of operation. Therefore, it is recommended to wear warm protective gloves, and to take breaks at regular intervals.

• Always adopt a stable and safe working posture with secure footing.

• Regularly change your working position to prevent getting tired.

• The exhaust of internal combustion engines is poi- sonous and can lead to su󰀨ocation, among others. It is not allowed to operate the petrol cutting blade in closed or poorly ventilated rooms.

• Rell the gasoline tank only outdoors, or in well- ventilated areas.

• Gasoline and gasoline vapors are highly am- mable. Keep away from ammable materials and sources of ignition, such as ovens or stoves.

• Do not smoke while refueling or operating the tool.

• Immediately wipe away spilled gasoline.

• Start the petrol cutting blade only at a location far away from the place of refueling.

• Always make sure that the cover of the fuel tank is well closed. Look out for possible leakage.

• When the engine is running or the engine is hot, it is not allowed to open the cap of the fuel tank or rell gasoline.

• Open the cap of the fuel tank slowly so that gaso- line vapor can escape.

• Make sure the handles are dry, clean, and free of gasoline mixed with oil.

• Do not use the tool without exhaust pipe and when the exhaust pipe guard is not properly installed.

• Do not touch the exhaust pipe, there is a risk of burns.

• Only use the fuel recommended in the manual. Keep gasoline only in containers designed for it, and store it at a safe location.

• While cutting on a slope, always stand below the cutting tool.

• Always make sure no objects or other debris is collecting in the trimmer head, in the protective hood, or in the engine.

• Always switch o󰀨 the tool before you put it down.

• Do not use any wire, or anything similar in the line spool.

• Only work during daylight, or when the area is il- luminated well using lighting.

• Subject the tool to a visual inspection before each use.

• Check, if all screws and connecting parts are tight- ened.

• Always use both hands to hold the tool.

• Check the tool, and its components and guards for damages, or wear and tear before each use, and have it repaired, if necessary. Never make the devices for protection and safety inoperable. Do not use the tool, when damages or signs of wear become apparent.

• Keep the tools clean and fully functional to ensure better and safer work.

• Always maintain a safe distance between the tool and your body during work.

• Always switch o󰀨 the tool when work will be inter- rupted or the location will be changed; wait until the cutting tools have completely stopped, and turn o󰀨 the engine.

• Never leave the tool without supervision at the place of work. Store the tool at a safe place when work will be interrupted.

• Persons operating the machine must not be dis- tracted, or one may lose control over the tool.

• Never use the tool during rain, in a humid or wet environment, and do not store it outdoors.

• Should the tool become wet, wait until it is com- pletely dry before you use it again.

• Avoid contact with metal objects, stones etc.

• Before starting work, it is recommended to check the objects to be cut for possible foreign objects and to remove them. When despite of this you en- counter a foreign object during cutting, switch o󰀨 the tool and remove this object.

• If the tool is jammed by a foreign object (stones, piles of grass), switch it o󰀨, and remove the object using a blunt item. Never use your ngers to re- move jammed foreign objects, because this may cause serious injuries.

• Always keep the running tool away from your body.

• Attention: the cutting tool still runs for some time after the tool is switched o󰀨!

• Do not overload the engine, and do not use it for work the tool is not designed for.

• Always make sure the ventilation openings are free of dirt.

• Store the tool out of the reach of children.

• Store the tool at a safe and dry location.

• Check the engine for damages after impact, or other damages.

• Keep body parts and pieces of clothing away from the trimmer head when you start the engine, or keep it running.

• Always keep in mind that especially during trim- ming of lawn edges, gravel enclosures, and similar locations stone and dirt can be hurled away from the cutting line. www.scheppach.com

• Never cross roads or paths when the tool is switched on.

• Never cut against hard objects such as stone, etc. This way you avoid injuries, and damages to the tool.

• When using metal cutting tools, there is a basic risk of kickback if the tool meets a xed obstruc- tion (stones, trees, branches etc.). In this event, the tool is whipped back in the opposite direction of rotation.

• Never use the tool without the guards attached.

• Never use your hands to stop the cutting device.

• Always wait until it stops on its own.

• Hold and guide the trimmer head as close to the ground as possible.

• Only cut grass growing on the ground. Do not cut grass in cracks in walls, growing or on rocks, etc.

• Always make sure no objects, or other debris is collecting in the trimmer head, in the protective hood, or in the engine.

• Only use the tool, when the guard is attached.

• Always switch o󰀨 the tool, before you put it down.

• Keep in mind that there is risk of injuries in the area of the cutting device intended to cut o󰀨 the line.

• CAUTION: The cutting tool continues rotating for a few seconds after the engine is turned o󰀨.

• Put the tool down only after the cutting tool has completely stopped and the motor is turned o󰀨.

• When the cutting tool is damaged, it must be re- placed at once.

• Always use the original line only. Never use a metal wire instead of the nylon line.

• Tool and cutting tools must be properly inspected and serviced periodically. Damages must be re- paired by a service center.

• Only use accessories recommended by the manu- facturer. See Maintenance/Accessories

• Never use metal multipiece cutting blades, cutting tools with spinning chains or ail blades.

• Have your tool serviced only by qualied person- nel and by use of original spare parts only. This ensures that the tool will work safely in the future. Residual risks There will always be residual risks, even if you use this equipment according to instructions. The follow- ing hazards can occur in connection with the con- struction and design of this tool:

• Health hazards resulting from swinging of hand and arm if the equipment is used for an extend- ed period and if it is not operated or maintained properly.

• Injuries and material damage caused by ejection of tool attachments which are unexpectedly thrown from the equipment because of sudden damage, wear and tear or improper attachment.

• Warning! This tool generates an electromagnetic eld during operation. Under certain circumstanc- es, this eld can a󰀨ect active or passive medi- cal implants. In order to reduce the risk of severe or fatal injuries, we recommend that people with medical implants consult their doctor and the man- ufacturer of the medical implant before operating the machine.

• Always start the cut with the saw chain running. Make the cut in such a way that the saw does not get jammed in the wood.

• Use the gripping spikes for every cut as the start- ing point and always start the cut with the saw chain running. Make the cut in such a way that the saw does not get jammed in the wood.

• Pay particular attention to branches under tension.

• Always pull the tool out of the wood when the saw chain is running.

• Never work with the tool above shoulder height or with only one hand.

• Always stand away from the falling direction. Posi- tion yourself on a slope above the tree to be felled.

• Always stand sideways when carrying out sawing work on a tree which is located on a slope, never work from above or below.

• Always look out for the falling direction of the parts which are cut o󰀨.

• Never start the cut with the bar tip and never cut with the bar tip.

• Risk of kickback! There is always a risk of kickback when the bar tip touches the wood or other objects. This makes the chainsaw uncontrollable and it may be thrown towards the operator with great force.

• Do not use the tool as a lever to move objects.

• Always use the chain guard during transport and storage.

• Secure the tool during transport in order to prevent loss of fuel, damage or injury.

• Warning! Keep passersby away from running equipment but never work by yourself.

• Keep within earshot of others in case you need help.

• Stop the engine immediately when someone ap- proaches you.

• Make sure that the saw chain does not come in contact with foreign objects such as stones, fenc- es, nails and similar. These objects could be eject- ed and injure the operator or passersby or dam- age the saw chain.

• National specications may restrict the use of the pole saw.

• Do not use the machine within 10 metres of a posi- tion from which it can reach highvoltage cables. Before working on the tool itself (e.g. transport, set-up, retooling, cleaning and maintenance), disconnect the spark plug cap! www.scheppach.com

Always attach the transport guard straight away.

Cutting data brush cutter Cutting circle diameter of blade 255 mm Cutter balde thickness

Oil tank capacity 125 cm

Fuel tank capacity 0,9 l Engine type 2stroke engine, air cooled Weight grass trimmer

Subject to technical changes! Information concerning noise emission measured ac- cording to relevant standards: Sound pressure L

= 3 dB(A) Wear earmu󰀨s. The impact of noise can cause damage to hearing. Grass trimmer: vibration A

Pole saw: vibration A

Reduce noise generation and vibration to a minimum!

• Use only equipment that is in perfect condition.

• Maintain and clean the equipment regularly.

• Adopt your way of working to the equipment.

• Do not overload the equipment.

• Have the equipment checked if necessary.

• Switch o󰀨 the equipment when not in use.

• Wear gloves. In these operating instructions we have marked the places that have to do with your safety with this sign: m

7. Before starting the equipment

Each time before use, check the following:

• That there are no leaks in the fuel system.

• That the equipment is in perfect condition and that the safety devices and cutting devices are com- plete.

• That all screws are securely fastened.

• That all moving parts move smoothly. Fuel and oil Recommended fuels Use only a mixture of unleaded petrol and special 2stroke engine oil. Mix the fuel mixture as indicated in the fuel mixing table. Important: Do not use a fuel mixture which has been stored for longer than 90 days. Important: Never use 2stroke oil with a recom- mended mixing ratio of 100:1. The manufacturer’s warranty will be voided in case of engine damage due to inadequate lubrication. Important: Only use containers designed and ap- proved for the purpose to transport and store fuel. Pour the correct quantities of petrol and 2stroke oil into the mixing bottle (see scale printed on the bot- tle). Then shake the bottle well. Never use oil for 4-cycle engine or use water cooled 2cycle engine. It can cause spark plug fouling ex- haust part blocking or piston ring sticking. Mixed fuels, which have been left unused for a pe- riod of one month or more, may clog the carburetor or result in the engine foiling to operate property. Put remained fuel into an airtight container and keep it in the dark and cool room. Fuel mixing table Mixing procedure: 40 parts petrol to 1 part oil Example: 1 l Petrol : 0,025 l 2stroke oil 5 l Petrol : 0,125 l 2stroke oil www.scheppach.com

Warning! Take care of the emission of exhaust gases. Always shut o󰀨 engine before fuelling. Never add fuel to a machine with a running or hot engine. Take care of re! Only fuel the unit outdoors or in well-ventilated rooms. Make sure that no fuel or chain oil is re- leased into the soil (environmental protection). Use a suitable surface.

8. Attachment and operation

ASSEMBLY When assembling this machine, please follow the instructions for assembly printed. 1 Assemble the handle on the machine. Fig. 2-3

• Install the front handle as shown on the image 2.

• Make sure that you align the pin with the hole. Tighten the screws only loosely before you have the most comfortable working position set to the risers. The front handle should be aligned as in pictures 2+3 shown, then tighten the screws.

2. Mounting the shaft. Fig. 4

• Pull out the locking pin (a) and press the lower part of the shaft (b) downward until the locking pin en- gages. The bolt (a) is in the right position when it is fully seated in the bore.

• Lastly, tighten the knob (d) securely.

3. Assemble the safe guard. Fig. 5-7

• Fix the safe guard with hex key and wrench en- closed as standard accessories for tightening the nuts enough. Please see the below pictures show- ing. m Warning! Never use the machine without the guard assembled!

4. Assemble and disassemble the cutting head

grass trimmer / nylon cutting head. Fig. 8-9

• Release the nut. Line up the two holes of ange and shield, use one screw driver to hold the ange as below and turn the socket wrench clockwise, the nut will be released.

• Fit the Nylon cutting head. Remove another shield after release the nut. Still hold the ange, take the Nylon cutting head on the shaft and rotate counterclockwise, the Nylon cut- ting head is tted. Fig. 19

• Release the Nylon cutting head. Use screw driver to hold ange and then rotate the Nylon cutting head clockwise, it will be replaced. Brush cutter / Cutter blade

• Fit the blade. Fig. 1012 Take the outer ange o󰀨 after release the nut, then put the blade (17), outer ange (17b), shield (17a) and nut according to priority as below picture. Note the blade rotation direction needs be same as be- low picture. Use screw driver to hold ange and tighten nut counterclockwise, ensure the nut is tightened enough.

• Release blade. Use screw driver to hold ange and release nut, the blade can be took o󰀨.

m Warning! Please make sure the cutting head has been assem- bled correctly before use! OPERATION When working with the equipment as grass trimmer and brush cutter, the appropriate plastic guard hood for cutting blade mode or cutting line mode must be tted to prevent objects being thrown out by the equipment. The integrated blade (A) in the cutting line guard hood automatically cuts the line to the optimum length. Fig. 18

5. Fit the belt. Fig. 13-17

• The Combined gasoline grass trimmer, pole saw, brush cutter must be used with the strap.

• Balance the machine when the tool is switched o󰀨.

• Wear the shoulder strap.

• Adjust the strap length so that the snap hook (k) is about a hand‘s breadth below the right hip. Hang the petrol multifunction tool on the karabiner

• Hang the petrol brush cutter on a hook.

• When standing in a normal working posture, the blade should touch the ground during normal work- ing position.

• Thereby, it is important that the petrol brush cutter is always well balanced.

• For operation, hook the petrol brush cutter into the snap hook (k) of the carrying strap while the engine is running. ATTENTION! In an emergency, the safety latch (l) can be pulled from the harness. The machine then detaches immediately from the carrying strap (9) and falls to the ground.

6. Mounting the hedge trimmer Fig. 40-42

• Remove the screw (d), align the holes (c) so that they are ush and screw the screw (d) back in.

• Place the hedge trimmer (15) precisely as shown in Figure 40 on the connecting rod (3).

• Tighten with screw (a).

• Adjust the slope by unlocking the lock (Fig. 41)

• The hedge trimmer can be tilted from 0° to 90° (Fig. 42). www.scheppach.com

7. Fitting the cutter bar and the chain

• Remove the chain wheel cover (Fig. 45/ Item J) by undoing the fastening nut (Item I). Lay the chain (Item F) as shown into the groove which runs around the cutter bar (Item E).

• Note the alignment of the chain teeth (Fig. 44). Insert the cutter bar as shown in Fig. 44 into the mount at the gear unit.

• Place the chain round the chain wheel (Item H). Make sure that the teeth of the chain engage se- curely in the chain wheel. The cutter bar must be hooked into the chain tensioning bolt (Item G).

• Fit the chain wheel cover Important! Do not fully tighten the fastening screw until after you have adjusted the chain tension (see

Tensioning the chain (Fig. 45-48) Important! Always pull out the spark boot plug be- fore performing any checks or adjustments.

• Undo the fastening screw (Item I) of the chain wheel cover by a few turns (Fig. 45).

• Adjust the chain tension with the chain tensioning screw (Fig. 47/ Item K). Turning the screw clock- wise increases the chain tension, turning it coun- terclockwise decreases the chain tension. The chain is correctly tensioned if it can be raised by around 2 mm in the middle of the cutter bar (Fig. 46).

• Tighten the xing screw of the chain wheel cover (Fig. 48).

• Important! All the chain links must lie properly in the guide groove of the cutter bar. Notes on tensioning the chain: The chain must be properly tensioned to ensure safe operation. When the saw chain can be raised by around 2 mm in the middle of the cutter bar, you know that the chain tension is ideal. During cutting, the temperature of the chain rises and its length changes. It is important therefore to check the chain tension at least every 10 minutes and to adjust it again as required. This applies in par- ticular to new saw chains. When you have nished working, slacken the chain again as it will shorten when it cools down. This will help to prevent dam- age to the chain.

8. Filling with fuel

m Danger of injury! Fuel is explosive! Turn the motor o󰀨 and let the machine cool down. Wear safety gloves. Avoid contact with skin and eyes. Make sure you observe the “Safety Instructions” par- agraph.

• Only ever refuel the tool outdoors or in su󰀩ciently ventilated rooms.

• Clean around the lling area. Contaminants in the tank will cause operating problems.

• Before refuelling, shake the container with the fuel mixture.

• Carefully open the fuel ller cap (B) so that poten- tial pressure can be release. Fig. 19

• Clean the fuel ller cap and the area around it.

• Check the tank and the fuel line for leaks. Before starting the motor, remove yourself from the fuelling place by at least three metres. Draining fuel. Fig. 36 Only ever empty the tank outdoors or in well- ventilated rooms. Make sure not to spill fuel or chain oil into the soil (environmental protection). Use a proper base.

• Hold a collection container beneath the fuel drain bolt.

• Unscrew the tank cap and remove it.

• Allow the fuel to run out completely.

• Screw the tank cap on rmly by hand.

9. Start on the unit

Do not start the unit until it has been completely as- sembled. m Danger of injury! Only start the petrol multi garden tool if an at- tachment is connected! Remove the appropriate transportation protection and inspect the unit in good working condition. Never use a damaged, poorly adjusted or serviced or not completely and securely assembled device. Check before use!

• Check the safe condition of the device:

• Check the device for leaks.

• Check the device for visual defects.

• Check that all parts of the device have been se- curely tted.

• Check that all safety devices are in proper condi- tion. Start Fig. 17, 19-23 Once the machine has been set up properly, start the engine as follow:

1. Turn the engine switch to the ON position. Fig. 20

2. Put the choke lever on the position. Fig. 20

3. Press the fuel pump more than 5 times. Fig. 19 www.scheppach.com

• Always so that the cutting tool no longer turns in a proper engine idle not press down the throttle.

• Always work with high speed so you have the best cutting results.

• Move the device with a uniform curved movement from left to right and back again. Then cut the next section. Fig. 39 Attention: Always move the device back into the original position before cutting the next path.

• Poke when working on a stone or a tree, turn o󰀨 the engine and remove the spark plug then exam- ine the petrol brush cutter for damage.

• Caution: Always be extra careful when working in di󰀩cult terrain and slopes. Cut tall grass gradually so as not to overload the unit.

• Always wear safety glasses and hearing protection and a safety helmet.

• Use the cutting blade to comb through brushwood, rank growth, young tree populations (trunk diameter of maximum 2 cm), and high grass.

• While using metal cutting tools, there is generally a risk of recoil, when the tool hits a solid obstacle (stones, trees, branches, etc.). Thereby, the tool is hurled backwards against the rotating direction.

• To cut rank growth and brushwood, you “immerse” the cutting blade from the top. This chops the ma- terial to be cut

• Attention! The cutting unit is still running! Do not stop the cutting unit with your hand.

• Keep the cutting unit of the string trimmer away from feet. CAUTION: Be especially careful, when using this working technique, because the further away the cut- ting tool is from the ground, the higher is the risk that objects to be cut and particles will be hurled side- ways. Mowing with grass trimmer

• Use the plastic line cassette for a clean cut also at uneven edges, fencing posts, and trees.

• Carefully advance the trimming line to an obstacle, and use the tip of the line to cut around the ob- stacle. When the trimming line comes into contact with stones, trees, and walls, the line wears out or breaks o󰀨 ahead of time.

• Never replace the nylon line with a metal wire. Risk of injuries Automatic thread trimming (Fig. 36) The petrol cutting blade is delivered with a lled line cassette. This line will wear out during work. To feed new line, forcefully press the head of the line cas- sette onto the ground while the engine is running at working speed. The line is automatically fed due to centrifugal force.

4. Pull the recoil starter handle (9) 35 times to start

the engine. Fig. 21 Never place feet on the shaft or kneel on it.

5. Once the motor is running, briey wait, then put

the choke lever into position. Fig. 22

6. To start the cutting tools, operate the release le-

ver (8) with the palm of your hand, and the throttle lever (11) with your ngers. The further you push the throttle lever, the higher the motor speed. When releasing the throttle lever, the motor be- comes idle and the cutting tools stop. Fig. 23. The cutting tools should not continue turning and should not move when the motor is idle.

7. If there are problems, immediately turn the mo-

tor switch (7) to “0” so the motor stops. Caution: The cutting tools may continue turning for a few seconds. Fig. 23

8. If any problem occurs, pull the pin of safety belt,

then release the brush cutter immediately. Fig. 17

9. If the motor is warm, you can leave the choke le-

ver in the “warm start and work” position. Note: If the engine does not start up even after sev- eral attempts, read the section „Engine troubleshoot- ing“. Note: Always pull the starter cord out in a straight line. If it is pulled out at an angle, then friction will oc- cur on the eyelet. As a result of this friction, the cable will become frayed and will wear away faster. Always hold the starter handle when the cable re- tracts. Never allow the cable to snap back when it has been pulled out. Note: Do not start the motor in tall grass. m Attention: When the engine has been switched o󰀨, the cutting unit continues running for several sec- onds therefore do not touch the cutting unit until it has come to a standstill!

9. Working instructions

Working with brush cutter / grass trimmer

• When you work with the petrol brush cutter for the rst time, familiarize yourself with the operation and control of the petrol cutting blade without run- ning engine.

• The design of the petrol brush cutter allows for op- eration only at the right side of the user's body.

• Keep the petrol brush cutter rmly with both hands on the handles.

• Hold the operating handle with your right hand and the handle on the shaft with your left hand.

• Always make sure that the cutting tool continues to rotate briey after the throttle has been released. www.scheppach.com

Oil the blades and the angle adjustment each time before starting work, with environmentally friendly lu- bricant. Regularly oil the blades during working hours as well. Warning! Oil the tool only when the motor has been turned o󰀨. CAUTION: Incorrect use and misuse can damage the bush cutter and cause severe injuries because of pieces hurled away. To minimize the risk of accidents by use of the cutting blade, take note of following points:

• Never cut shrubbery or wood whose diameter is larger than 2 cm.

• Avoid contact with metal bodies, stones, etc.

• Periodically check the cutting blade for damages. Never continue to use a damaged cutting blade.

• When the cutting blade becomes apparently blunt, it must be sharpened according to instructions. When the cutting blade is apparently out of bal- ance, it must be replaced. Working with pole saw Oiling of the chain and bar It is recommended to use commercial chain oil.

• Remove the oil tank cap. (Fig. 47 / L)

• Fill the chain oil tank (Fig. 47 / M) to 80% with chain oil.

• Close Oil tank cap (Fig. 47 / L) Oil Supply Control Always make sure that the automatic oil system is working properly. Always ensure the oil tank is full. During sawing work, the guide and the chain must always be su󰀩ciently oiled to reduce friction with the chain bar. The chain bar and the chain must never be without oil. If you operate the chain dry or with too little oil, the cutting performance will decrease, the service life of the chain bar will reduce, the chain will become blunt quickly and the guide will wear rapidly owing to overheating. You can detect a lack of oil from smoke development or the guide changing colour. To check the chain lubrication keep the chain on a piece of paper and give full throttle for a few seconds. On the paper the quantity of oil can be checked. The saw chain must always throw o󰀨 a little oil. After a few seconds, a slight oil trace must be visible. Make sure that there is always enough oil in the tank because chain lubrication is always on. The knife at the line guard will shorten the trimming line to the correct length. Run the trim line approach cautiously to an obstacle and cut with the tip of the line around the obstacle. Mowing with hedge trimmer

• Use the hedge trimmer to comb through brush- wood, rank growth and young tree populations

• Hold the string trimmer at a safe distance away from your body with two hands.

• The maximal diameter to cut depends on the wood’s type, age, moisture and hardness.

• Therefore cut very thick branches using branch shears to your desired length before trimming the hedge.

• Thanks to the its doublesided cutting unit, the string trimmer can be moved forward and back- ward or from one side to the other swinging it back and forth.

• Cut the sides of the hedges rst and then the top edge.

• Cut the hedges from bottom to the top.

• Cut the hedge in trapezium shape. This prevents the lower hedge area from becoming bare due to insu󰀩cient light.

• Stretch a guide over the complete length of the hedge when you want to shorten the upper edge of the hedge evenly.

• Trim in several passes if you have to cut down a large portion of the hedge.

• Make sure to remove any foreign objects from the hedges (e.g. wire), since it may damage the cutting unit of the hedge cutters.

• Attention! The blades are still running! Do not stop the blades with your hand. Best time for hedge trimming:

• Leaved hedge: June and October

• Conifer hedge: April and August

• Quickly growing hedge: from May and then every 6 weeks Pay attention to breeding birds in the hedge. If so, put o󰀨 hedge trimming or leave this area out. Angle adjustment By swivelling the cutter head, the hedge trimmer can be adjusted to the working conditions from +90° to 75°. Fig. 42.

• Warning! Adjust the angle only when the motor has been turned o󰀨.

• Push both levers down and put the cutter head in the required position. Fig. 41

• Release both levers until they click into place in the notch.

• Before use, check that the adjustment levers have clicked into place properly. Fig. 42 www.scheppach.com

• Saw until the branch breaks. The risk of injury on the trunk is no.

• Finally, remove with a clean cut from the top of the trunk along the remaining.

• Thus, the damage to the tree are kept as low as possible, we recommend the interface additionally to seal with grafting wax. Hazards by reactive forces Reactive forces occur during operation of the saw chain. The forces which are applied to the wood are against the operator. They occur when the moving chain comes into contact with a xed object such as a branch or is pinched. These forces can lead to a loss of control and injury. Understanding the origin of these forces can help you to avoid the scare and the loss of control. This saw is designed to make the return e󰀨ects are not as noticeable as with traditional chain saws. Always still keep a rm grip and a good level to main- tain control of the tool in doubt. The most common e󰀨ects are:

• retreat Kickback The setback can occur when the moving saw chain meets at the upper quarter of the guide rail on a solid object or is pinched. The cutting force exerted on the chain from the saw, a rotational force in the opposite direction to the chain travel. This leads to an upward movement of the guide rail. Avoid kickback The best protection is to avoid situations that lead to setbacks.

1. Keep the position of the upper guide rail always

2. Leave this place never come into contact with an

object. Cut anything with it. Be especially careful near wire fences and cutting small, hard knots, in which the chain can easily pinch.

3. Cut only one branch at a time.

Withdrawal The withdrawal occurs when the chain on the under- side of the bar suddenly stuck because it is jammed or encounters a foreign object in the wood. The chain then pulls the saw forward. The withdrawal often happens when the chain is not running at full speed when in contact with the wood. Avoid withdrawal Be aware of the forces and situations that can lead to jamming of the chain on the underside of the bar. Automatic chain lubrication - Settings possible! Fine adjustment, Fig. 49 You can reduce or increase the quantity of oil using the screw (S). Clockwise oil quantity is reduced () Anticlockwise oil quantity is increased (+) Precautions for Saw procedure Never stand under the branch you want to saw. Use special caution when working with branches under tension and splintering wood. Possible risk of injury caused by falling branches and catapulting pieces of wood. In general, it is recommended to set the prun- ing saw at an angle of 60° to the road. Keep both hands well with the device during the cut- ting process and pay you up to an equilibrium posi- tion and a good level.

• Never try to use your tool with one hand. The loss of control of your tool can cause serious injury or death. Never work on a ladder, a tree branch or other unstable surfaces.

• Never cut with the upper edge or the tip of the cut- ter bar.

• Make sure that the chain tension is always cor- rectly adjusted.

• Practice for guiding the device slight pressure, but you do not overload the motor. Clear the work area before cutting interfering branch- es and undergrowth. Then you create a retreat area, far from the spot where the cut branches fall on, and remove any obstacles there. Keep the work area clean, remove the cut branches immediately. Pay at- tention to your point, wind direction and the possible direction of fall of the branches. Be prepared that fallen branches can strike back. Place all other tools and equipment at a safe distance from the branches to be cut, but not in the retreat area. Always observe the condition of the tree. Look for rot and decay in the roots and branches. If they are rotten inside, they can break o󰀨 and fall down unexpectedly during cutting. You could also attend by fractured and dead branch- es out, which is solved by the shake and fall on you. For very thick or heavy branches you rst make a small incision below the branch before you work from the top down to avoid chipping. Basic cutting technique Heavy branches break o󰀨 easily when sawing. They tear long strips of bark away from the trunk, which damages the tree sustainably. The following section technique can signicantly reduce this risk:

• Saw the rst branch about 10 cm from the trunk.

• Put in about 15 cm from the base of the top of a further section. www.scheppach.com

• If necessary: Retighten accessible fastening screws and nuts. You will avoid excessive wear and tear and dam- ages of the tool, when you follow the instructions in this manual. Replacing the line spool/cutting line Fig. 24-29

1. Pull o󰀨 the line guard cap from the line spool

(5) by forcefully pressing between the retaining plates.

2. Remove the spool with line remaining and the

4. Take the new line spool and pull out 10 cm at both

5. Now, place the line spool (5) on the tapered

spring, and guide both lines each through the round metal lugs at the line spool housing.

6. Then place the spool cover on the new line spool

(5). Turn it so that the plates of the spool cover are pushed with the springs in the line spool housing.

7. Now, press the spool cover together with the line

spool, until it engages in the line spool housing.

8. The knife (A) in the protective hood (18) shortens

the trimming line to the correct length, when the engine starts again. Grinding the safety hood blade Fig. 18 (A) The safety hood blade can become blunt over time.

• When you notice this, undo the screw holding the safety hood blade on the safety hood.

• Clamp the blade in a vise.

• Sharpen the blade with a at le and make sure that the angle of the cutting edge is not altered in the process (~25°). File in one direction only.

• Important! Install the cutting knife again Grinding the cutting blade (17) If the blades become slightly dull, you can sharpen them yourself.

• Fasten the blade in a vice.

• Grind all 3 cutting unit blades using a at le and make sure to maintain the angle of the cutting edge. (~25°) Only le in one direction.

• Replace the blades after sharpening them ve times at the latest. Replacing and resharpening the cutting blade at the end of the mowing season always resharpen the cut- ting blade or, if required, replace the cutting blade with a new one. Unbalanced blades will cause the brush cutter to vibrate violentlyrisk of accident! Lubricate angle transmission, Brush cutter Fig. 8 (o) Lubricate with lithiumbased grease. Remove the screw and put in the grease, turning the shaft manu- ally until grease emerges, then replace the screw. Always start with running at full speed chain to cut. Recoil The recoil occurs when the chain on top of rail sud- denly stuck because it is jammed or encounters a foreign object in the wood. The chain can jerkily hold the saw against the operator. Rebounds happen of- ten if the top rail is used for cutting. Avoid recoil Be aware of the forces and situations that can lead to jamming of the chain on top of rail. Do not cut more than one branch at a time. Do not tilt the rail to the side when you pull them out of a cutting gap, since the chain could get caught otherwise.

WARNING: Always wear protective gloves when

working on or around cutting tools. For nonuse, transport or storage always attach the transport guard to all cutting tools. Fig. 1 (14a, 15a, 17c) Before performing any maintenance or cleaning work, always turn o󰀨 the engine and pull out the spark boot plug.

1. Do not spray the unit with water. It damages the

2. Clean the unit with a cloth, hand brush, etc.

3. Use a moist piece of cloth to clean the plastic

parts. Do not use any cleaning agents, solvents, or sharp objects.

4. During the course of work, wet grass and weed

wraps around the drive shaft below the cutting guard for technical reasons. Remove this, oth- erwise the engine will overheat because of too much friction. Regular checks Keep in mind that following specications relate to normal usage. Owing to circumstances (longer pe- riods of daily work, severe dust exposure, etc.), the specied intervals will become correspondingly shorter.

• Before starting work, after tank lling, after impact or dropping: Check the cutting tools for secure seating, general visual check for cracks and damage.

• Immediately replace damaged or blunt cutting tools, even in the event of minor hairline cracks.

• Sharpen cutting tools (also when required).

• Weekly inspection: Lubrication of gear (also, if necessary). www.scheppach.com

Attention! Fill only a small amount of grease. Do not overll. Change and clean the spark plug Fig. 30-31 Check the spark plug air gap at least once a year or when the engine starts poorly. The correct gap be- tween ignition ag and ignition contact is 0.25"/0.63 mm.

• Wait until the engine has cooled down completely.

• Pull the spark plug cap o󰀨 the spark plug, and use the supplied spark plug wrench to remove the spark plug by turning.

• When the electrode is severely worn out or reveals a strong incrustation, the spark plug must be re- placed with an equivalent plug.

• A strong incrustation of the spark plug can be caused by: Amount of oil is too high in the gasoline mix, poor oil quality, old gasoline mix, or plugged up air lter.

• Screw the spark plug by hand completely into the thread. (Avoid jamming it)

• Use the supplied spark plug wrench to tighten the spark plug.

• When using a torque wrench, the tightening torque is 1215 Nm.

• Plug the spark plug socket correctly on the plug. Clean the air lter Fig. 32-35 Soiled air lters reduce the engine power by sup- plying too little air to the carburetor. Dust and pollen plug up the pores of the lter made of foamed plastic. Regular checks are therefore essential.

• Unclip the air lter cover and remove the sponge lter element.

• To avoid objects falling into the air tank, replace the air lter cover.

• Wash the lter element in warm soap water, rinse and allow drying naturally. Important: Never clean the air lter with petrol or inammable solvents. In order not to shorten the service life of the engine, a damaged air lter must be replaced at once. m Warning! Never run the engine without the air lter ele- ment installed. Care of the guide rail Turn the rail around every time you have the chain sharpened or replaced. This will avoid a onesided wear of the rail, especially at the top and bottom. Regularly clean 1 = the opening for the oil supply 2 = the oil passage 3 = the raceway groove of the rail Servicing and sharpening of saw chain The correct sharpened chain Working e󰀨ectively with the chainsaw is only pos- sible if the chain is in good condition and sharp. This also reduces the risk of kickback. The chain can be resharpened by any dealer. Do not at- tempt to sharpen the chain yourself unless you have the necessary special tools and experience. A properly sharpened chain goes way through the wood and it requires very little pressure. Do not work with a dull or damaged chain. It increases physical exertion, increase the vibrations and leads to unsat- isfactory results and higher wear.

• Replace damaged or worn parts with matching spare parts they are in the shape and size of the original parts as necessary.

• Sharpening a chain should be performed only by experienced users!

• Notice. Below the angle and dimensions If the chain is not properly sharpened or the depth is too small, there is a higher risk of reversion e󰀨ects and resulting injuries!

• The chain cannot be xed on the guide rail. It is therefore best to remove the chain from the rail and then sharpen.

• Select the appropriate tools for the chain pitch sharpening tool. See "Specications" for the al- lowed chain pitches. The chain pitch (for example 3/8 ") is highlighted in the depth of each blade. Use only special les for chain saws! Other les have the wrong shape and the wrong cut. Select the le according to the diam- eter of your chain pitch. Make sure to observe the following angle when sharpening the chain diameter. A = ling angle B = the angle of the side plate The angle must also be maintained for all knives.

Setting the idle speed Fig. 50 If the cutting tool is still moving when the device is in idle, change the idle speed.

1. Let the motor warm up for 35 minutes

(not at high speed!).

2. Turn the adjusting screw (S):

clockwise The idle speed will increase (+) anti-clockwise The idle speed will decrease () The idle speed is 3000 rpm. Contact the manufacturer if the cutting tool still con- tinues to move in idle. Do not continue working with the tool! The user is responsible for all damages caused by non-compliance with instructions in this manual. This also applies to non-authorized modications of the tool, use of non-authorized spare parts, accessories, working tools, unre- lated and not intended use, secondary damages due to use of faulty components. Wear Parts Even when used in the intended way, some compo- nents are subject to normal wear. They have to be replaced depending on the kind of duration of usage. These parts include, among others, the cutting tool and the retaining disk. m Warning! Use only original manufacturer‘s replacement parts, accessories and attachments. Failure to do so can cause poor performance, possible injury and may void your warranty. Important hint in case of sending the equipment to a service station: Due to security reasons please see to it that the equipment is sent back free of oil and gas! Ordering replacement parts Please quote the following data when ordering re- placement parts:

• Article number of the machine Replacement parts / accessories: For the cutting equipment listed here, you can always use the safety guards provided with the unit. Grass trimmer/brush cutter: Spool with Ø 450 7910700701 Blade with 3 teeth Ø 255 x 1.4 7910700702 Transport guard for blade 3 teeth 3904801065 Blade with 4 teeth Ø 255 x 1.4 7910700705 Transport guard for blade 4 teeth 3904801066 For irregular angles, the chain is run irregularly, wear quickly and break down prematurely. Since these requirements can only be met with suf- cient and regular exercise:

• A File Holder must be used when sharpening the saw chain by hand. The correct ling angle marked on it.

• Hold the le horizontally (at a right angle to the guide rail) and le according to the angle mark on the le holder. Support the le holder on the top plate and depth gauge.

• File down. The knife is always from the inside to the outside

• The le sharpens only in forward motion. Lift it o󰀨 in the backward motion.

• Do not touch the dynamic links with the le.

• Turn the le regularly continue to avoid a onesided wear.

• Remove to remove a piece of hard wood, bones raw edges. All knives must have the same length, otherwise they will also vary. As a result, the chain is irregular and it increases the risk of going broke. Lubricate the drive, pole prunner Lubricate the drive every 10 to 20 operating hours.

1. Apply the grease gun to the grease nipple g .47

2. Squeeze some grease into it.

Attention! Fill only a small amount of grease. Do not overll. Check the hedge trimmer for obvious faults such as:

• worn or damaged components

• bent, broken or damaged cutting tools

• correctly attached and working covers and safety devices

• wear, in particular, cutting tool play Immediately replace damaged or blunt cutting tools, even in the event of minor damage. Oiling the gears Oil the gears every 10 to 20 operating hours. 1 Position the grease gun at the lubricating nip- ples (10). 2 Insert some grease. Attention! Fill only a small amount of grease. Do not overll. Oil the cutting tools and the angle adjustment with environmentally friendly lubricant. www.scheppach.com

away from possible ignition sources such as an oven, a gasred hot water boiler, a gasred dryer, etc. Transport If you want to transport the tool, empty the petrol tank as described in Chapter 8. Remove major dirt from the unit with a brush. Always attach the transport guard to all cutting tools. Fig. 1 (14a, 15a, 17a) In order to prevent damage and injury, secure the tool against tipping over and sliding when transporting it in vehicles. Putting the equipment back into operation 1 Remove the spark plug (see section 10 Change and clean the spark plug). 2 Quickly tug on the starter cord to remove excess oil from the combustion chamber. 3 Clean the spark plug and check that the electrode gap is correct, or insert a new spark plug with the correct electrode gap. 4 Prepare the equipment for operation.

12. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equip- ment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop. Blade with 8 teeth Ø 255 x 1.4 7910700711 Transport guard for blade 8 teeth 3904801066 Safety shield for grass trimmer 3904801023 Pole pruner: Saw chain ProCut 3/8.5039 7910100732 Guide rail ProCut AL1039507P 7910100731 Saw chain Oregon 91PJ040X 7910700704 Guide rail Oregon 100SDEA318 3904801037 Transport guard for chain 3904801039 Extension for pole pruner 7910700710 Hedge trimmer: Blade for hedge trimmer 400 mm 7910700703 Transport guard for blade 3904801043

• Keep handles free of oil, so you always have a se- cure hold.

• Clean the equipment as required with a damp cloth and, if necessary, mild washing up liquid. m Important!

• Always pull out the spark boot plug each time be- fore carrying out any cleaning.

• Never immerse the equipment in water or other liq- uids in order to clean it.

• Store the petrol multi garden tool in a safe and dry place out of the reach of children. Storage Important: Never put the equipment into storage for longer than 30 days without carrying out the follow- ing steps. Storing the equipment If you intend to store the equipment for longer than 30 days, the equipment must be prepared accordingly. Otherwise the fuel still remaining in the carburetor will evaporate and leave a rubbery sediment. This can cause problems when starting up the equipment and may require expensive repairs. 1 Slowly remove the fuel tank cap to release any pressure that may have formed in the tank. Care- fully empty the tank. Only empty the tank out- doors or in well-ventilated rooms. Make sure that no fuel or chain oil is released into the soil (en- vironmental protection). Use a suitable surface. 2 To remove the fuel from the carburetor, start the engine and let it run until the equipment stops. 3 Leave the engine to cool (approx. 5 minutes). 4 Remove the spark plug 5 Add one teaspoon of 2stroke engine oil into the combustion chamber. Slowly pull the starter cord several times to apply a layer of oil to all internal components. Fit the spark plug again. Note: Store the equipment in a dry place and far www.scheppach.com

Fault Possible cause Remedy Machine does not start.

• Air lter is contaminated.

• Fuel lter is blocked.

• Lack of fuel supply.

• Fault in the fuel line.

• Starting device is faulty.

• Spark plug cap not attached.

• Clean/replace the air lter.

• Clean or renew the fuel lter.

• Check the fuel line for kinks or damage.

• Contact the service centre.

• Remove the spark plug, clean and dry it; then pull the starter rope several times; rex the spark plug.

• Check the correct position of the spark plug cap.

• Clean the spark plug or replace it, if applicable.

• Check the ignition cable for damage.

• Contact the service centre. Machine starts but stops again.

• Wrong carburetor setting (idle speed). • Contact the service centre. Engine starts but the cutting tool stops.

• Cutting tool blocked.

• Internal fault (drive shaft, gearbox).

• Turn o󰀨 engine and remove object.

• Contact the service centre.

• Contact the service centre. Machine works with interruptions (sputter- ing).

• Carburetor set up incorrectly.

• Spark plug is sooty.

• On/o󰀨 switch faulty.

• Contact the service centre.

• Clean the spark plug or replace it.

• Contact the service centre. Smoke is generated.

• Use twostroke mixture at a ratio of 40:1.

• Contact the service centre. Machine does not work at full power.

• Machine is overloaded.

• Air lter is contaminated.

• Carburetor set up incorrectly.

• Silencer is blocked.

• Do not use force during mowing/trimming.

• Clean the air lter or replace it.

• Contact the service centre.

• Check the exhaust. Brush cutter does not work at full power.

• Blades are blunt or damaged.

• Cut material is too high (machine overload).

• Sharpen or replace blades.

• Cut the grass in phases. Grass trimmer does not work at full power.

• Cutting line too short or damaged.

• Machine is overloaded because the grass is too high.

• Feed more cutting line through or replace it.

• Cut the grass in phases. Cutting line cannot be fed through.

• Spool empty. • Replace spool. Pole saw does not saw, it plucks or vibrates.

• Chain tension too high.

• Chain attached incorrectly.

• Check and reset chain tension.

• Have the chain sharpened or replace it.

• Replace the chain. Saw chain becomes hot or saw chain lubri- cation does not work.

• Chain tension too high.

• Set the chain tension.

• Have the chain sharpened or replace it. www.scheppach.com

• Storing in de brandstoeiding.

• Startinrichting is defect.
