CTM1012 - Multitools Ferm - Free user manual and instructions

Product type	Multi-function tool (Combitool)
Brand	Ferm
Model	CTM1012
Power consumption	160 W
No-load speed	15,000 - 35,000 rpm
Clamping capacity (collet)	3.2 mm / 2.4 mm
Weight	0.6 kg
Sound pressure level	70+3 dB(A)
Sound power level	83+3 dB(A)
Vibration value	1.7 m/s²
Power supply	Mains 230 V ~ 50 Hz
Protection class	Double insulation (Class II)
Speed adjustment	Electronic by thumbwheel
Included accessories	40 accessories, collet key, case, manual, safety booklet, warranty card
Accessory compatibility	Dremel®, Black & Decker®, Bosch®, Proxxon®
Maintenance	Regular cleaning, no lubrication required
Safety	Use ear protection, safety glasses and dust mask
Warranty	See provided warranty certificate

Frequently Asked Questions - CTM1012 Ferm

How to adjust the speed of the CTM1012?

The speed is adjusted electronically using the thumbwheel (B) located on the tool. Turn it to adjust the speed from 15,000 to 35,000 rpm depending on the material and accessory used.

What types of accessories can I use with the CTM1012?

The tool accepts standard accessories from brands like Dremel, Black & Decker, Bosch and Proxxon. You can use sharpening stones, felt discs, sanding bands, brushes, router bits, drill bits, and cut-off wheels.

How to change an accessory?

Unplug the tool. Press the spindle lock button (2) and hold it. Unscrew the collet (1) with the supplied key. Place the new accessory, then retighten the collet while holding the spindle lock button.

What safety precautions should be taken during use?

Wear ear protection, safety glasses, and a dust mask. Keep your hands away from the workpiece. Use a clamping device to secure the workpiece. Check that the power cord is not damaged.

How to clean the multi-function tool?

Clean the housing regularly with a soft cloth, preferably after each use. For stubborn dirt, use a damp cloth with soapy water. Avoid solvents like gasoline or alcohol as they attack plastic parts.

What to do in case of tool jamming?

Stop the machine immediately and unplug it from the mains. Remove the jammed accessory after ensuring the motor has completely stopped.

Does the CTM1012 require lubrication?

No, the tool does not require additional lubrication. Minimal maintenance is sufficient: regular cleaning and careful use.

Can I use accessories from other brands?

Yes, the Combitool is designed to use standard accessories from Dremel, Black & Decker, Bosch and Proxxon. Always check that the accessory's rated speed matches the tool's maximum speed (35,000 rpm).

What is the power of the tool?

The CTM1012 has a power consumption of 160 W with a mains supply of 230 V ~ 50 Hz.

How to reduce vibrations during use?

Keep the tool and its accessories in good condition, keep your hands warm, and structure your work patterns. Use the tool at the appropriate speed and avoid excessive load at low speed.

USER MANUAL CTM1012 Ferm

Black and white photo of a FERN FLOW electric tool with a pink tip, no visible text or symbols on the device body.

CTM1012

EN Original instructions 04
DE Übersetzung der Originalbetriebsanleitung 07
NL Vertaling van de oorspronkelijke gebruiksaanwijzing
FR Traduction de la notice originale 14
ES Traducción del manual original 18
PT Tradução do manual original 21
IT Traduzione delle istruzioni originali 25
SV Översättning av bruksanvisning i original 29
FI Alkuperäisten ohjeiden käännös 32
NO Oversatt fra orginal veiledning 35
DA Oversættelse af den originale brugsanvisning 39

11

Line drawing of a handheld electric shaver with ventilation slots and handle (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Fig. 2

Three line drawings of a hand holding a syringe, with no text or symbols present.

Fig. 3

Fig. 4

Illustration of various electronic components including a cylindrical, triangular, spherical, and rectangular parts (no text or symbols)

Fig. 5

Three simple line drawings of different objects or tools, including a circular base, a cylindrical top, and a pointed tip (no text or symbols)

Fig. 6

Fig. 7

Two identical round objects with textured surfaces, each mounted on a vertical post (no text or symbols visible)

Fig. 8

Three simple line drawings of cylindrical objects with different top and bottom surfaces (no text or symbols)

Fig. 9

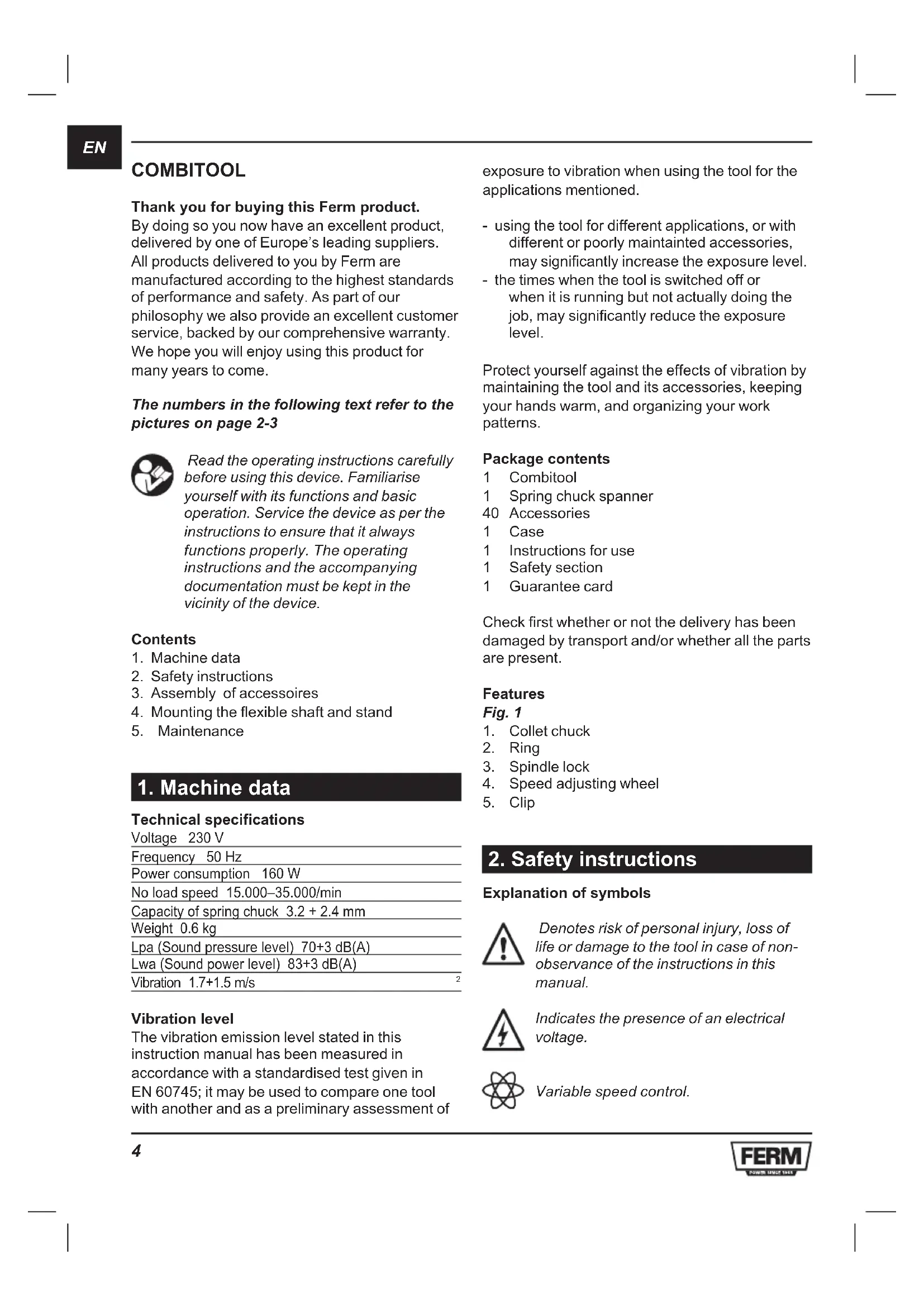

COMBITOOL

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

The numbers in the following text refer to the pictures on page 2-3

Read the operating instructions carefully before using this device. Familiarise yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Contents

1. Machine data
2. Safety instructions
3. Assembly of accessoires
4. Mounting the flexible shaft and stand
5. Maintenance

1. Machine data

Technical specifications

Voltage 230 V

Frequency 50 Hz

Power consumption 160 W

No load speed 15.000–35.000/min

Capacity of spring chuck 3.2 + 2.4 mm

Weight 0.6 kg

Lpa (Sound pressure level) 70+3 dB(A)

Lwa (Sound power level) 83+3 dB(A)

Vibration 1.7+1.5 m/s

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

Package contents

1 Combitool
1 Spring chuck spanner
40 Accessories
1 Case
1 Instructions for use
1 Safety section
1 Guarantee card

Check first whether or not the delivery has been damaged by transport and/or whether all the parts are present.

Features

Fig. 1

1. Collet chuck
2. Ring
3. Spindle lock
4. Speed adjusting wheel
5. Clip

2. Safety instructions

Explanation of symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates the presence of an electrical voltage.

Variable speed control.

Wear ear and eye protection.

Wear a dust mask.

Special safety instructions

• Always keep the cord away from the moving parts of the machine.
- In the case of locking, switch the machine off immediately and remove the plug from the mains.
• Compare the maximum number of revolutions allowed of the accessories with the number of revolutions of the machine.
- When you put the machine away the engine must be switched off and moving parts must have reached a standstill.
- Never attach an assembly spanner to your machine with a piece of string or anything similar.
- Never use the axle locking button if the machine is operating.
- Make sure that the spring chuck diameter is the same as the axle diameter of the accessory.
- Use a clamping device for securing the work piece.
- Keep your hands away from the work piece.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the power supply corresponds to the voltage on the rating plate.

Your machine is double insulated, therefore no earthwire is required.

Replacing cables or plugs

If the mains cable becomes damaged, it must be replaced with a special mains cable available from the manufacturer or the manufacturer's customer service. Dispose of old cables or plugs immediately after replacing them with new ones. It is dangerous to connect the plug of a loose cable to a socket.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm^2 . When using a cable reel always unwind the reel completely.

3. Assembly of accessories

Before assembly always remove the plug from the mains.

Warning! Change accessories by inserting an accessory into the collet (or chuck) as far possible to minimize run out and unbalance.

Assembly of accessories

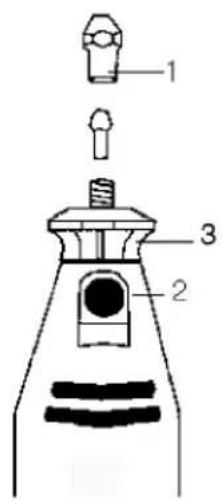

Fig. 2

Press down the axle locking button (2) and hold it down. Using the spring chuck spanner you can undo the spring chuck (1). Put the accessory in its place. Hold down the axle locking button when you fasten the spring chuck with the spring chuck spanner.

Operation

Switch on the machine by engaging the on/out switch (A) By adjusting the adjusting wheel (B) you can regulate the speed of the Combitool. Do not put the machine down when the motor is still running. Do not place the machine on a dusty surface. Dust particles may enter the mechanism.

Too high a load at a low speed of the Combitool can burn out the engine.

Holding and guiding the tool

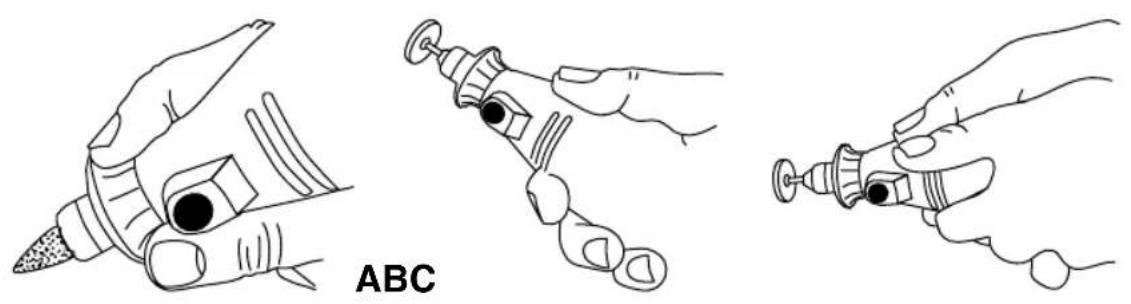

Fig. 3

• For precision work (engraving): pencil grip (A)
- For rough work (grinding): paring knife hand grip (B)
- When you need to keep the tool parallel to the work surface (e.g. using a cut-off wheel): 2 hand golf grip (C)

4. Accessories for the Combitool

Ferm does not deliver spare accessories for the Combitool. The Combitool is designed to use the standard accessories of Dremel, Black & Decker, Bosch or Proxxon. Always check that the maximum rpm of the accessory is suitable for the maximum speed of the Combitool.

Grinding stones

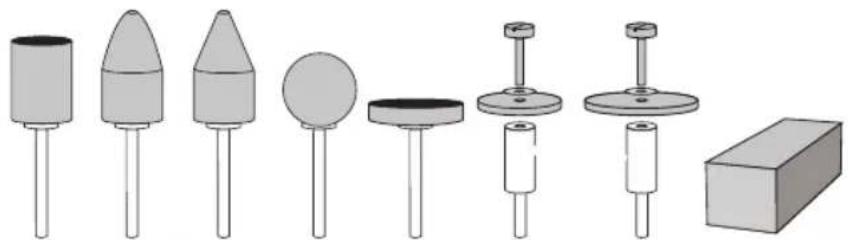

Fig. 4

When using a grinding stone the first time, use the dressing stone to balance it. The dressing stone can also be used for cleaning the surface or to give the grinding stone a special shape.

Material Speed setting

Stone, shell -
Steel	+
Aluminium, brass + -
Plastic	-

Felt wheels and tip

Fig. 5

The felt wheels or tip should be screwed on the mandrel.

Material Speed setting

Steel	+
Aluminium, brass + -
Plastic	+

Sanding bands and disc Fig. 6

Material Speed setting

Wood ++
Steel	-
Aluminium, brass +-
Plastic	-

Stainless steel brushes and bristle brush Fig. 7

Material Speed setting

Stone, shell + -

Aluminium, brass + -

High speed cutter, Diamond wheel point and Drill

Fig. 8

Material Speed setting

Stone, shell Max

Steel + -

Aluminium, brass ++

Plastic -

Abrasive disc

Fig. 9

Material Speed setting

Steel	+
Aluminium, brass + -
Plastic	-

5. Maintenance

Make sure that the machine is not live when carrying out maintenance work on the motor.

This machine has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Cleaning

Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts. Please clean the tool immediately after use.

Lubrication

The machine requires no additional lubrication.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Damaged and/or disposed of electrical or electronic devices must be dropped off at recycling stations intended for that purpose.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

Warranty

Read the warranty conditions on the separately supplied warranty card.

The product and the user manual are subject to change. Specifications can be changed without further notice.

COMBITOOL

1. Specifications techniques

Caracteristeques techniques

Tension 230 V

Fréquence 50 Hz

High speed cutter, Diamond wheel point and Drill

Fig. 7
Material Hastighet

Sten, snäckskal Max

Stål + -

Aluminium, mässing ++

Plast -

Kapning

Fig. 8
Material Hastighet

Stål	+
Aluminium, mässing	+-
Plast	-

5. Underhåll

Stål	+
Aluminium, messing + -
Plastic	+

Stål	+
Aluminium, messing	+-
Plastic	-

5. Vedligeholdelse

Position Description No.

406894	Switch 1
406895	Carbon brush (set) 2
406896	Collet nut 3
406709	Ring 4
406683	Collet chuck 3.2 MM 5
406684	Collet chuck 2.4 MM 5
406897	Spindle lock 6
406708	Flexible shaft -

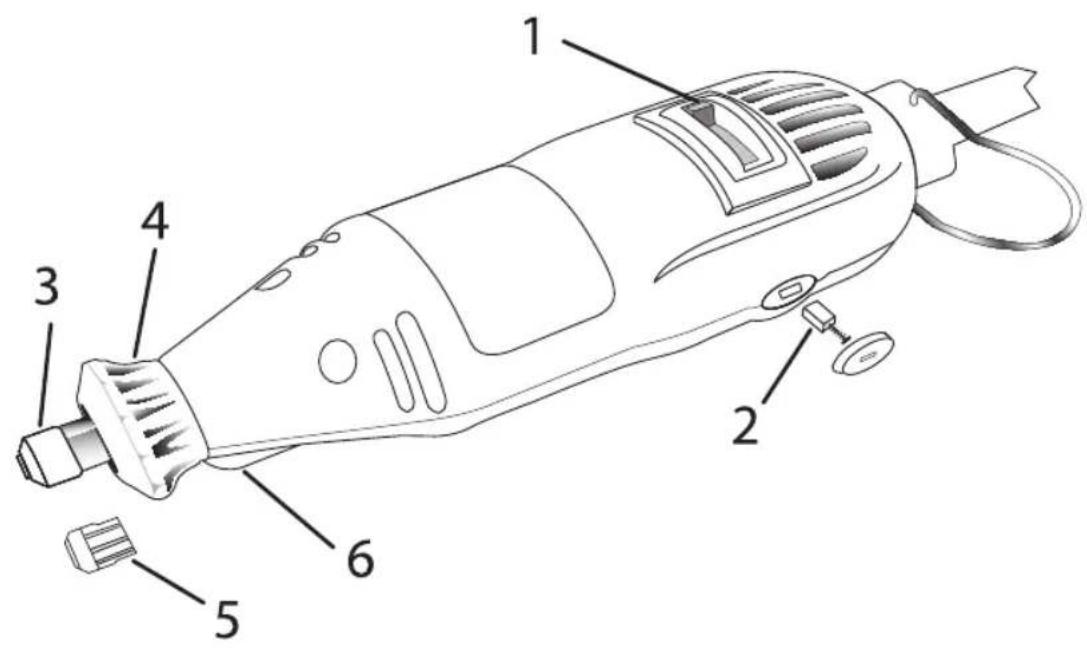

Exploded view

Technical diagram of a power tool with numbered parts labeled 1 through 6
