G Quick Guide Controls and Displays Front

Important note – Operating instructions:

• This is a quick guide to provide you with the most important basic information, such as safety warnings and how to get started using the product.

• For the sake of protecting the environment and saving resources, Hama dispenses with printed operating instructions and provides them only in the form of PDF les / eManuals on www.hama.com.

• Use the search function with the item number of your product to easily nd the product documentation.

• Alternatively, scan the QR code below to be taken directly to the location of the operating instructions.

• Save the operating instructions to your computer’s hard drive for future reference, or print it out if necessary. Remote Control

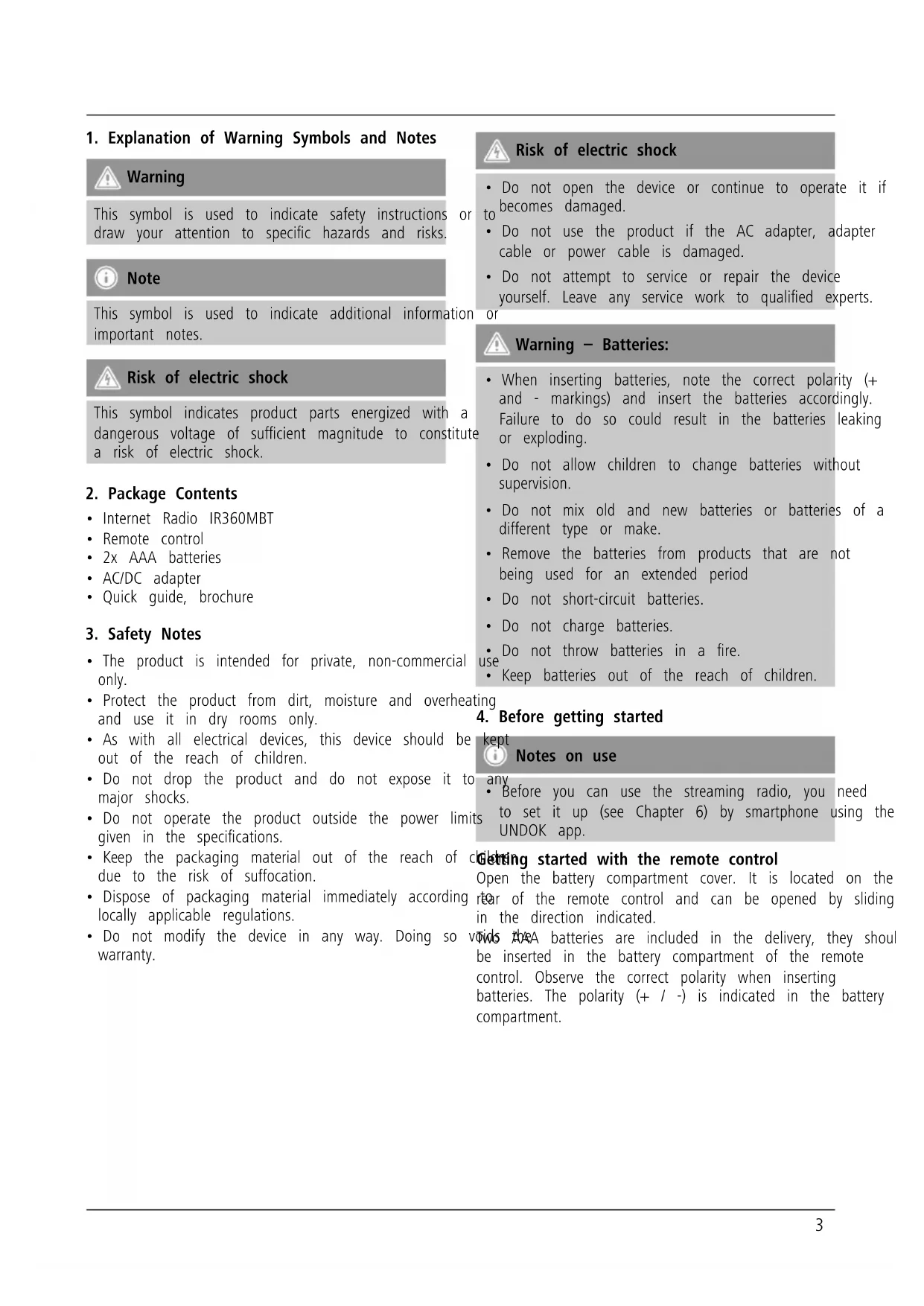

1. Explanation of Warning Symbols and Notes

Warning This symbol is used to indicate safety instructions or to draw your attention to specic hazards and risks. Note This symbol is used to indicate additional information or important notes. Risk of electric shock This symbol indicates product parts energized with a danger ous voltage of sucient magnitude to constitute a risk of electric shock.

• Internet Radio IR360MBT

• Quick guide, brochure

• The product is intended for private, non-commercial use only.

• Protect the product from dirt, moisture and overheating and use it in dry rooms only.

• As with all electrical devices, this device should be kept out of the reach of children.

• Do not drop the product and do not expose it to any major shocks.

• Do not operate the product outside the power limits given in the specications.

• Keep the packaging material out of the reach of children due to the risk of suffocation.

• Dispose of packaging material immediately according to locally applicable regulations.

• Do not modify the device in any way. Doing so voids the warranty. Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.

• Do not use the product if the AC adapter, adapter cable or power cable is damaged.

• Do not attempt to service or repair the device yourself. Leave any service work to qualied experts. Warning – Batteries:

• When inserting batteries, note the correct polarity (+ and - markings) and insert the batteries accordingly. Failure to do so could result in the batteries leaking or exploding.

• Do not allow children to change batteries without supervision.

• Do not mix old and new batteries or batteries of a different type or make.

• Remove the batteries from products that are not being used for an extended period

• Do not short-circuit batteries.

• Do not charge batteries.

• Do not throw batteries in a re.

• Keep batteries out of the reach of children.

4. Before getting started

• Before you can use the streaming radio, you need to set it up (see Chapter 6) by smartphone using the UNDOK app. Getting started with the remote control Open the battery compartment cover. It is located on the rear of the remote control and can be opened by sliding it in the direction indicated. Two AAA batteries are included in the delivery, they should be inserted in the battery compartment of the remote control. Observe the correct polarity when inserting batteries. The polarity (+ / -) is indicated in the battery compartment.4

5.1 Turning on the product

• Connect the power cable to a properly installed socket. Warning

• Only connect the product to a socket that has been approved for the device. The electrical socket must always be easily accessible.

• Disconnect the product from the power supply using the on/off switch – if this is not available, unplug the power cord from the socket.

• Wait until the speaker initialisation procedure has nished.

• Press the [PLAY/PAUSE] button ►I I to turn on the speaker. Note – Turning on for the rst time

• When you turn on the device for the rst time, the speaker starts in SETUP mode.

• The LEDs (6-8) begin to ash, the LEDs (9) are constantly lit and the speaker can be connected to your smartphone using the UNDOK app.

6. UNDOK – everything in the palm of your hand

The UNDOK app, developed by Frontier Silicon, gives you full control of radios and speakers from your smartphone. Whether you are setting up the device for the rst time, specifying settings for the equaliser and multi-room, or managing your favourite stations – the UNDOK app lets you access all the features from your smartphone or tablet, thereby offering you greater convenience.

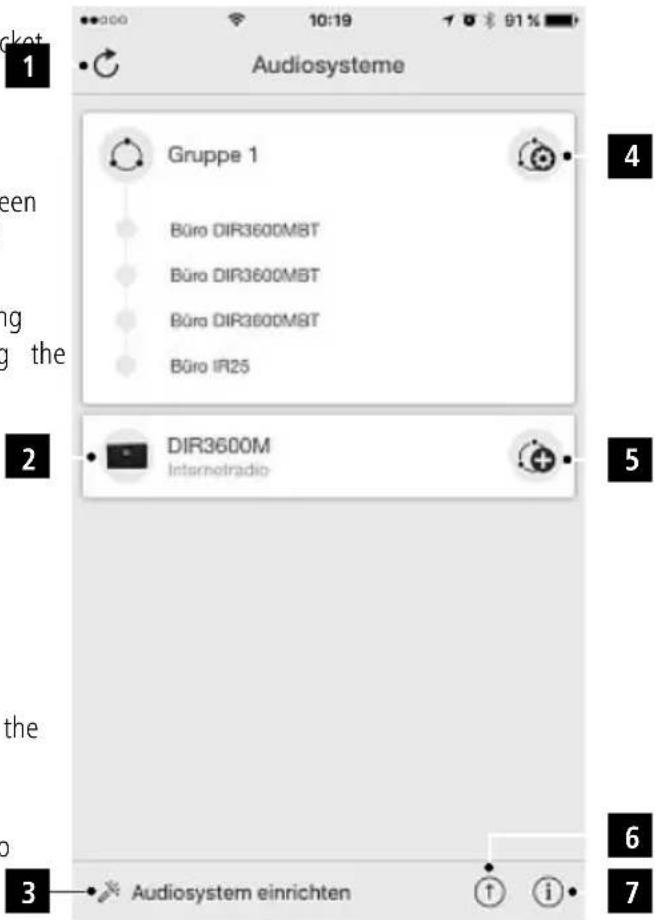

6.1 Interface/layout of the UNDOK home screen

1 Update the audio system list 2 Preview for ungrouped radios 3 Set up new audio system

Icon for managing an existing multi-room group

Create a new multi-room group with this device 6 Check for system update for all devices

Further information, such as app info, change app theme, and data logging

6.2 First-time setup of the device with UNDOK

The rst time you switch on an UNDOK-enabled product from Hama, or when you have set it to the factory settings, it creates a micro access point – a separate WiFi network that you can connect to with your tablet or smartphone. Note

• The UNDOK app uses the language selected in your smartphone’s system.5

6.2.1 Procedure for iOS users

• Open the UNDOK app on your iPhone or iPad.

• Tap the Set up audio system menu item.

• Make sure that the radio or speaker is in SETUP mode. Set the product to the factory settings, if necessary. Conrm the query with Next.

• The UNDOK app now prompts you to connect to the product’s WiFi network using the iPhone/iPad settings – to do so, switch to the system settings on your iPhone and select the WiFi network (for example, Setup Hama DIR3120LED). Then return to the UNDOK app and tap Next.

• Now choose a name for the radio (for example, Oce DIR3120) and conrm your entry with Next.

• The various network conguration options are then offered to you (where applicable, WiFi, WPS and Ethernet). Tap the desired method; the UNDOK app switches to the next window.

• Depending on the selected method, you can now select and congure the desired WiFi network, set up a WPS connection or set up the connection using a LAN cable.

• Finally, the radio connects to the network; by tapping Start using my audio system, you will be able to use the device in the UNDOK app.

• The network connection LED indicator (7) is now constantly lit.

6.2.2 Procedure for Android users

• Open the UNDOK app on your tablet or smartphone.

• Tap the Set up audio system menu item.

• Make sure that the radio or speaker is in SETUP mode. Set the product to the factory settings, if necessary. Conrm the query with Next.

• On the following page, you will nd a list of all available WiFi networks as well as the suggested audio systems; the Hama product (for example, Setup Hama DIR3120LED) should be listed here. Tap the corresponding WiFi network.

• Now choose a name for the radio (for example, Oce DIR3120) and conrm your entry with Next.

• The various network conguration options are then offered to you (where applicable, WiFi, WPS and Ethernet). Tap the desired method; the UNDOK app switches to the next window.

• Depending on the selected method, you can now select and congure the desired WiFi network, set up a WPS connection or set up the connection using a LAN cable.

• Finally, the radio connects to the network; by tapping ‘Start using my audio system’, you will be able to use the device in the UNDOK app.

• The network connection LED indicator (7) is now constantly lit.

You can use the analogue audio input (AUX IN socket) to connect mobile devices (for example, smartphone, tablet PC, MP3 player, etc.) to the radio and play your audio les using the radio.

• Repeatedly press [M] / [MODE] to activate the Auxiliary Input (Aux in) mode on the speaker:

Alternatively, press [AUX] on the remote control to switch directly to this operating mode.

• The AUX-In connection LED indicator (8) begins to ash.

• Connect your mobile device to the audio input (the AUX IN socket) of the radio using a 3.5-mm audio cable (jack cable).

• The AUX-In connection LED indicator (8) is now constantly lit.

• Start and control audio playback using the controls of the connected terminal device.

You can pair your terminal device with the radio using Bluetooth

and use it as a playback device. You can control playback directly on the terminal device. You can adjust the volume on the radio, as well. Note – Bluetooth

• Check whether your mobile device (smartphone, tablet, etc.) is Bluetooth

• Note that the maximum range for Bluetooth

is 10 metres without obstacles such as walls, people, etc.

connection may be disrupted by other Bluetooth

devices/connections in the vicinity.

• It is only possible to connect the radio to one terminal device.

• Note that compatibility depends on the supported Bluetooth

proles as well as the Bluetooth

versions being used. (See Technical specications, operating instructions of the terminal device in use) Repeatedly press [M]/[MODE] to activate the Bluetooth

operating mode on the radio:

first connection (pairing)

• Make sure that your Bluetooth

-capable terminal device is on and Bluetooth

• Repeatedly press [M] /[MODE] to activate the Bluetooth

operating mode on the radio:

connection LED indicator (6) begins to ash.

settings on your terminal device and wait until IR360MBT appears in the list of Bluetooth

devices on your terminal device.

• Select IR360MBT and wait until the radio is shown as connected in the Bluetooth

settings on your terminal device.

connection LED indicator (6) is now constantly lit.

• Start and control audio playback using the controls of the terminal device. Note – Bluetooth

• Some terminal devices require a password in order to connect to another Bluetooth

• If your terminal device requests a password for connection to the speaker, enter 0000.

6. Care and Maintenance

• Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

• If you do not use the product for a long time, turn off the device and disconnect it from the power supply. Store it in a clean, dry place out of direct sunlight.

7. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

8. Service and Support

Please contact Hama Product Consulting if you have any questions about this product. Hotline: +49 9091 502-115 (German/English) Further support information can be found here: www.hama.com7

9. Recycling Information

Note on environmental protection: After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are dened by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.

10. Declaration of Conformity

Hereby, Hama GmbH & Co KG declares that the radio equipment type [00054837] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.hama.com -

Downloads. Frequency band(s) 2412 - 2472 MHz Maximum radio-frequency power transmitted 60 mW EIRP
