USER MANUAL NSG uClean ARDL1432 Starmix

Operating instructions

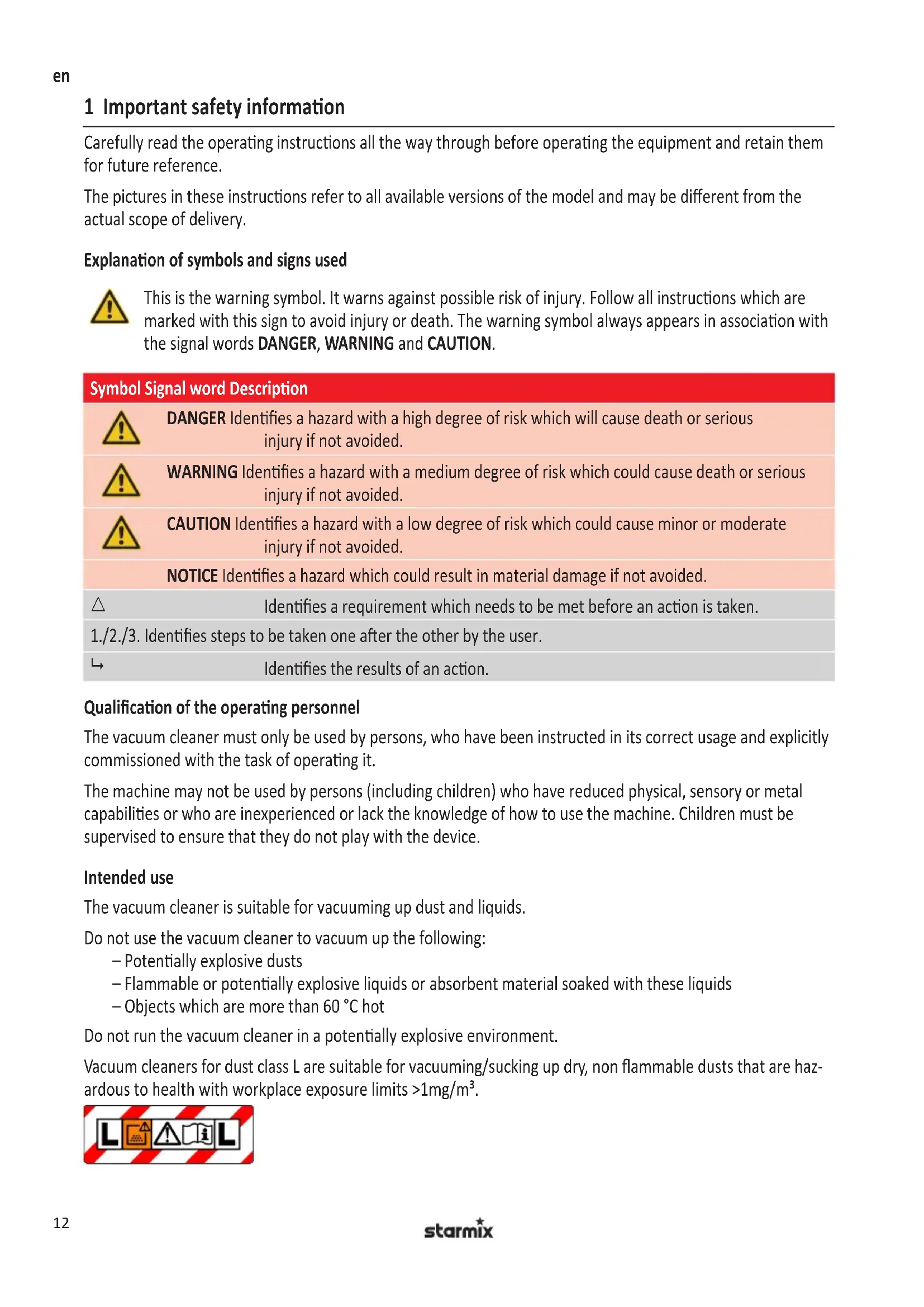

1 Important safety information

Carefully read the operating instructions all the way through before operating the equipment and retain them for future reference.

The pictures in these instructions refer to all available versions of the model and may be different from the actual scope of delivery.

Explanation of symbols and signs used

This is the warning symbol. It warns against possible risk of injury. Follow all instructions which are marked with this sign to avoid injury or death. The warning symbol always appears in association with the signal words DANGER, WARNING and CAUTION.

Symbol Signal word Description

DANGER Identifies a hazard with a high degree of risk which will cause death or serious injury if not avoided.

WARNING Identifies a hazard with a medium degree of risk which could cause death or serious injury if not avoided.

CAUTION Identifies a hazard with a low degree of risk which could cause minor or moderate injury if not avoided.

NOTICE Identifies a hazard which could result in material damage if not avoided.

Identifies a requirement which needs to be met before an action is taken.

1./2./3. Identifies steps to be taken one after the other by the user.

Identifies the results of an action.

Qualification of the operating personnel

The vacuum cleaner must only be used by persons, who have been instructed in its correct usage and explicitly commissioned with the task of operating it.

The machine may not be used by persons (including children) who have reduced physical, sensory or metal capabilities or who are inexperienced or lack the knowledge of how to use the machine. Children must be supervised to ensure that they do not play with the device.

Intended use

The vacuum cleaner is suitable for vacuuming up dust and liquids.

Do not use the vacuum cleaner to vacuum up the following:

• Potentially explosive dusts
• Flammable or potentially explosive liquids or absorbent material soaked with these liquids
• Objects which are more than 60^ C hot

Do not run the vacuum cleaner in a potentially explosive environment.

Vacuum cleaners for dust class L are suitable for vacuuming/sucking up dry, non flammable dusts that are hazardous to health with workplace exposure limits >1mg / m^3

Vacuum cleaners which are not identified as being suitable for dust class L are only suitable for vacuuming/ sucking up non-hazardous to health dusts.

Only operate the vacuum cleaner under supervision. Do not climb onto or sit on the vacuum cleaner.

This machine is intended for commercial use, for example, in hotels, schools, hospitals, factories, shops, offices and in the rental business.

The manufacturer does not accept liability for damages caused by misappropriation, inappropriate usage or incorrect repairs.

Avoid danger from electric shocks

The voltage on the rating plate must match the mains voltage. Only connect the vacuum cleaner to a sufficiently protected electric socket.

Do not pull the mains connection cable over sharp edges, do not bend it or clamp it. Only replace a damaged mains connection cable with one meeting the specifications in the Technical Data chapter.

Do not use the vacuum cleaner including accessories in the following cases:

• Mains connection cable or extension cable is defective or showing cracks.
• There is visible damage to the vacuum cleaner, e.g.cracks in the housing.
• If you suspect an invisible defect, e.g. after a fall.

In the following cases, switch the vacuum cleaner off and unplug it from the mains:

If any foam or liquid is discharged
- In the event of a longer work interruption and after every use
- Before carrying out any maintenance or retooling

When unplugging, only pull on the mains plug and not on the mains connection cable. Never touch the mains plug with wet hands.

Do not open the vacuum cleaner outdoors in the rain or during a thunderstorm. Always keep the inside of the lid dry.

Only use the brushes supplied with the vacuum cleaner or those specified in the operating instructions. Using other brushes can compromise safety. Never allow electrical brushes to come into contact with the mains connection cable.

Avoid any danger during operation

Only for vacuum cleaners in dust class L: Make sure that the air exchange rate is high enough if the exhaust air is being fed back into the room (pay attention to applicable national regulations).

Inform operating personnel about the following points before work starts:

• Handling the vacuum cleaner
• Dangers originating from the material to be sucked up
• Safe disposal of the material sucked up

Do not use the blowing function in closed rooms. Only work with a clean suction hose. Do not stir up any dusts which are hazardous to health. Do not inhale dusts.

When being used in food processing businesses: Immediately clean the vacuum cleaner after use and disinfect it to avoid microbial contamination.

Avoid any danger during maintenance and repair

Only have repairs carried out by experts. Only use original accessories and spare parts.

2 Before the first start-up

Assembly

See Fig. B.

1. When unpacking, make sure everything is complete.
2. Immediately report any transport damage to the retailer.

3 Operation

Before every use, please note

Make sure that the following conditions are met:

Vacuum cleaner, mains cable, suction hose and accessories are not damaged.

All filters have been inserted and are not damaged.

Operating modes

Operating mode (depending on equipment) Description Switch position
Off Wall socket under voltage 0
On Wall socket under voltage, manual operation		I
Minimum suction power Vacuum cleaner operates at low power ECO
Maximum suction power Vacuum cleaner operates at maximum power		MAX
Standby mode for automatic switch-on, infinitely adjustable speed control ECO-MAX	Vacuum cleaner is switched on and off by the electrical tool	A
Standby mode for automatic switch-on, infinitely adjustable speed control ECO-MAX, automatic filter cleaning	If the suction power drops, the filter is cleaned in breaks between work (= switched off electrical tool)	A

Automatic filter cleaning (depending on the equipment variant)

The vacuum cleaner is fitted with an electromagnetic filter cleaning system with which any attached dust is automatically shaken from the filter cartridge.

Suck up dry materials

Tools required	Notes
Main filter (filter cartridge)	Vacuum cleaner, filter and accessories need to be dry. If frequently changing between wet and dry vacuuming, use a separate main filter.
Filter bag for dust-free disposal of fine-grained material to be sucked up	When vacuuming soot, cement, plaster, flour or similar dusts: Insert a filter bag in the dirt container so that the dust does not stick and or cake.
Accessories depending on the area of application

1. Set required operating mode on the switch.

Vacuum cleaner is ready for vacuuming.

1. To adjust the suction power, select from the following options (depending on equipment):

2. Move switch to ECO position

3. Set speed on the switch
4. Set auxiliary air slide on the handle tube

Suck up liquids

Volume of liquid Tools required

Small volume of liquid Main filter (filter cartridge)

Water nozzle

Large volume of liquid Main filter (foam)

Water nozzle

1. Remove filter bag from the dirt container before sucking up liquids.
2. Slightly open auxiliary air slide on the handle.
3. Move switch to position I.

Before switching off the vacuum cleaner:

1. Remove suction nozzle from the liquid.

Residual water in the suction hose is sucked into the container and cannot leak out.

If there is a sudden loss of suction power and increased motor speed (changed motor noises), the float valve has interrupted the suction process: The container is full.

1. Switch vacuum cleaner off.
2. Empty dirt container and filter cartridge.

Connect an electrical tool

See Fig. C.

Use socket on vacuum cleaners with automatic switch on/off (switch position A) to connect electrical tools. The vacuum cleaner is switched on and off by the electrical tool. In switch position 0, the socket can be used as an extension cable, e.g. for a light.

Connection value: Vacuum cleaner + electrical tool = max. 16 A (value depends on the country version, pay attention to technical data).

WARNING!

The socket on the vacuum cleaner is always live.

Risk of injury due to electrical tool automatically starting up.

1. Before plugging in: Switch off electrical tool.

Smart Stop

See Fig. D.

1. Apply the brake with your foot.

The vacuum cleaner is prevented from rolling away.

Smart Stop offers further functions:

• Handle to empty the dirt container
  Ramp function to drive over obstacles

Blowing function

See Fig. E.

Only use the blowing function for cleaning, removing dust from and drying machines and appliances.

Flow volume display

See fig. F.

If the container is full or if there is a blockage in the suction hose, the flow volume display lights up.

After work

See Fig. G.

1. Roll up mains connection cable and suction hose.
2. Store the accessories in the accessories holder.

Transport and storage

1. Before transport, close the locks on the upper part of the vacuum cleaner.
2. Pay attention to the weight of the vacuum cleaner, particularly if the dirt container is full.
3. Do not tilt the vacuum cleaner if there is liquid in the dirt container.
4. Store the vacuum cleaner dry and indoors, protected from frost.

4 Troubleshooting and repair

Fault Cause Remedy
Suction power drops Lid not properly closed Close lid
	Filter dirty Clean
	Filter bag full Change
	Container full Empty
	Motor protection filter blocked Clean
	Nozzle, tube or hose blocked Clean
Vacuum cleaner does not start Mains plug not in socket Plug in
	No mains voltage	Check fuse
	Mains connection cable defective	Have it replaced
	Water sensor/floater has switched off	Empty container
	Switch in position A	Move switch to I
Vacuum cleaner does not start when the electrical tool is switched on	Electrical tool not plugged into socket on the vacuum cleaner	Plug mains plug into socket on the vacuum cleaner
	Switch not in position A	Move switch to A

Do not try anything else, contact customer services.

5 Maintenance

See Fig. H-I-J-K.

When maintaining and cleaning the vacuum cleaner, handle it in such a way that there is no danger for maintenance personnel and other people.

Only for vacuum cleaners in dust class L

For maintenance by the user, the vacuum cleaner must be

-dismantled,
cleaned and
maintained,

as far as possible without creating any danger to the maintenance personnel or other.

Suitable precautionary measures include

• Cleaning before dismantling,
• Provide local filtered positive ventilation where the vacuum cleaner is to be dismantled,
• Clean the maintenance area and
• suitable personal protection equipment.

Have a technical inspection carried out at least once a year by specialist personnel, e.g. checking for damage to the filter, air tightness of the vacuum cleaner and that the control equipment is working properly.

Contaminated items

When carrying out maintenance or repair work, all contaminated items which have not been adequately cleaned must be disposed of. Such items must be disposed of in impermeable bags in accordance with the applicable regulations concerning the disposal of such waste.

Emptying the container

Only permitted for dust with workplace exposure limits >1mg / m^3

1. Switch the vacuum cleaner off, pull the mains plug out.
2. Open the latches.
3. Remove the cover and suction hose from the container.
4. Empty the container by pouring out.

Replacing filter cartridge

See Fig. J.

1. Switch the vacuum cleaner off, pull the mains plug out.
2. Open the latches.
3. Remove the cover from the container.
4. Loosen the locking screw.
5. Removing the filter cartridge.
6. Push new filter cartridge in a straight manner over the case, right up to the stop point.
7. Tighten the locking screw.

Dispose of filter cartridges, filter bags or disposal bags

Dispose of the filter cartridge, filter bag or disposal bag in accordance with national regulations.

Cleaning

Do not clean the vacuum cleaner with a high pressure cleaner. Only use a wet cloth and mild cleaning agents to clean it. Acids, acetone and solvents can etch parts of the vacuum cleaner.

Clean the filter cartridge regularly, do not damage the fins while doing so. Only re-insert filter cartridges which you have cleaned using water when they are completely dry. Do not clean or dry filter cartridges using compressed air.

6 Disposal

Old equipment contains valuable materials which are designed for re-processing. The vacuum cleaners must not be thrown away in the normal household waste, but should be disposed of at a suitable proper collection system, e. g. via your communal disposal location.

7 Genuine accessories

Description Order No.	NSG uClean 14.. / LD 14.. / ADL 14..	Order No. NSG uClean ARDL 14..
Filter cartridge FPP 3600 415	109 (540986)
Filter cartridge FPPR 3600	413464 (529776)

8 Technical Data

		NSG uClean 14..	NSG uClean LD 14..	NSG uClean ADL / ARDL 14..
Voltage V 220-240 220-240 220-240
Frequency Hz 50/60 50/60 50/60
Power consumption (max.) W		1400	1400	1400
Protection class		II ☐	II ☐	I ☒
Air flow rate: at the fan m³/h		248,4	248,4	248,4
Air flow rate: at the hose m³/h		147	147	147
Negative pressure: at the fan kPa		26	26	26
Negative pressure: at the hose kPa		20	20	20
Filter surface area cm²		2950	2950	2950 / 3400
Noise level dB(A)		85	84	85
Power cord: type		H05VV-F 2x1,0	H05VV-F 2x1,0	H05VV-F 3G1,5
Power cord: length m		8	12	8
		Tank volume I	Dimensions cm (l x w x h)	Weight kg
NSG 1420		20	41,7 x 39 x 55	8,9
NSG 1432		32	41,7 x 39 x 64	9,3
NSG 1445		45	48,3 x 48,3 x 79	12,4

en

	Tank volume l	Dimensions cm (l x w x h)	Weight kg
NSG LD-1422 22 46,1 x 43 x 57 10,3
NSG LD-1420 20 42,5 x 39 x 55 9,2
NSG LD-1432 32 42,5 x 39 x 64 9,5
NSG LD-1435 35 46,1 x 43 x 70,3 11,0
NSG LD-1445 45 48,3 x 48, x 79 12,8
NSG ADL-1420 20 42,5 x 39 x 55 8,9
NSG ADL-1432 32 42,5 x 39 x 64 9,3
NSG ADL-1445 45 48,3 x 48,3 x 79 12,6
NSG ARDL-1432 32 42,5 x 39 x 64 10,2
NSG ARDL-1435 35 46,1 x 43 x 70,3 11,8
NSG ARDL-1445 45 48,3 x 48,3 x 79 13,3
NSG ARDL-1455 KFG 55 53 x 51 x 99 20,0

9 Declaration of conformity

Declaration of conformity
We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EC Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.
Product: Vacuum cleaner for wet and dry operation
Type: NSG
The design of the appliance corresponds to the following pertinent regulations:	EC Machinery Directive 2006/42/EU EMC Directive 2014/30/EC
Applied harmonized standards: EN 60335-1:2012, EN 60335-2-69:2012, EN 62233:2008, EN 62233 BER.1:2008, EN 55014-1:2006+A12009+A2:2011, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2013, EN 55014-2:1997+A1:2001+A2:2008
Applied national standards and technical specifications:	DIN EN 60335-1 (VDE 0700-1):2012-10, DIN EN 62233 (VDE 0700-366):2008-11, DIN EN 62233 Ber.1 (VDE 0700-366 Ber.1):2009-04, DIN EN 55014-1 (VDE 0875-14-1):2012-05, DIN EN 61000-3-2 (VDE 0838-2):2010-03, DIN EN 61000-3-3 (VDE 0838-3):2014-03, DIN EN 55014-2 (VDE 0875-14-2):2009-06
Authorized documentation representative: ELECTROSTAR GmbH, Stuttgarter Straße 36, 73262 Reichenbach/Fils, Germany
01.09.2016	Carsten GresserHead of Quality Assurance

Symbole Mention Description

Unngå fares under driften

1 BaxHHn HNctpyKcnn 3a 6e3oNaCHOCT

IpoueTe BHNMaTeJIHO pBKOBoDCTBOTO 3a yNOTpe6a npEi NyckaHe B eKcNloaTaunr I rO 3ana3e Te 3a NO-Kbc-Ha cnpaBka.

ФигурптБТОВа рькOBODCTBO ce OTHACT 3a BCNUHn HAnuHn BapnaHTn Ha MOneJa N Morat da ce pa3NuaBaT OT DeiCTBNTeHnO6XBaT Ha DoCTaBkata.

IorcheHne Ha n3noJ3BaHHTe CnMBOJI N 3HaU

Toba e npdeynpeinteHcMbOJ. Toi npdeynpejdaBa 3a Bb3MOxHa onachoc T HopaHbaHe. CLeDbaiTe BCnKu yka3aHnra, KOIO Ca o6o3NaeHc T03N cMbOJ, 3a da npdeotbpaTne HapahBaanr nn Cmbpt. PnpdeynpeinteHNrT cMbOJI ce nOBRA BnHarn B KOMbHaunr Cbc CnHaHnTe dymOnACHOCT, PNPyPExDEHNE u BHIMAHNE.

CnmboI CnHaJIHa dyma OnncanHe

	ОПАС"HОCT标明ача обанс"HОCT с ВИСК риск, каято ще за послениca标明п".<|rotate_left|>пожки наразовеня, по не SFБду п徴отвратега.
	ПРЕДУПЕЖДЕНЕ标明ача обанс"HОCT сбс среden риск, каято моче заinghamа за послениca标明п".<|rotate_left|>пожки наразовеня, по не SFБду п徴отвратега.
	ВНIMAHINE标明ача обанс"HОCT с MaJIьк риск, каято моче заinghamа за послениca标明п".<|rotate_left|>пожки наразовеня, по не SFБду п徴отвратега.
	OBbPHETEBHIMAHINE标明ача обанс"HОCT, каято моче заinghamа за послениca标明п".<|rotate_left|>пожки наразовеня, по не SFБду п徴отвратега.
\( \bigtriangleup \)	标明ача усанове, koeto trябва да SFБду пзпльно, п徴ни за моче за SFБду пзпльно.
1./2./3.标明ача pa6OTNHITE CTbПКи,标明чТурбва дa SFБду пзпльно.标明данурел.	标明ача re3PITaTbT OTnotpebntel.
L	标明ача re3PITaTbT OT edna onepaць.

KbannnkaaHa ha 06cnykBaunn nepcoHaI

YcTpoIcTBOTrpa6Ba da ce n3noJ3Ba cAmO OT Iuca, KOInTO ca oByeHN B n3noJ3BaHeTo My n n3pHNO Bb3NoJxEHn Ha Ta3n 3aJa4a.

Ta3n MaunHa He Tp86Ba Da ce n3noJ3Ba OT Iuca (BkIIOHTeHNO Deua) C OrpaHnueHN fN3UeCKN, CeTbHN IyMCTBeHn Bb3MOxHocTn IIN 6e3 ONIT N 3HaHn. Deuata Tp86Ba Da ce HarLeKdaT, 3a da ce rapaHTnpa, Ye He IrpaT C ypeDa.

N3cMyKBaHe Ha cyxN BeuecTba

N3CMyKBAHe Ha TeuHOCTN

He npednpnemaiTe dpyn HaMeCN, a ce cbbpkTe c eHTbpa 3a o6cnykBaHe Ha KIneHTN.

5 Texnuecko obcnyxbahe

BuxΦnH-H-J-K.

Ipn Texnuecko obcnykbahe n nouuctbahe Ha cmykaukata pa6oTe TaKa, ye da He Bb3HnKBa onaCHOCT 3a o6cnykbaunepcoHaI npyTu n npu.

Camo 3a cmykauka 3a Knaac Ha npaxa L

3a texnuecko obcnykbahe ot notpe6nte npaxocmykaqkata

• cepa3rno6yBa,
• NOUINCTBaN
  -06cnyxBa,

DOKOKKOTO TOBa e Bb3MOxHOb6e3 da npedctablaBa onacHOCT 3a o6cnyXbaunn nepcoHa n npyrn xopa.

POnxOJaTe npEa3Hm MepKn BkIIOuBaT

• NOUcTBaHe npeDn DEmoHTaK,
• npedBapntHa MApka 3a MeCTHa npHcyteHa nItbphA BeHTnlaun, Bbpy KOrTo Da Ce demoHTnpa npaxocmykaKaTata,

• NOUCTBaHe Ha CbOTBeTHaTa YAcT, N3NcKBaUa TeXHnuecko O6CnyKBaHe

• noDxOJaHa IuHa npedna3Ha eKnnpoBka.

Ha-manko BeinbIX roDnHNO ocNpyraBte TexHuecka npOBepka OT cneuaHn3npaH nepcoHaI, Happ. 3a NobpeDa Ha fHNTbpa, TeOBe Ha Bb3dYx OT cMyKaUkata N fYHKcHOnHpaHe Ha KOHTPOHNTE yCTpoiCTBa.

3ambpceH npedMeTn

Ipi npobexdahe Ha texnuecka noidpbska nnpeMOHT BCNUK3aMbpcEHn ppeMeTN, KOIO He MoarT da 6bDat nouchteHn 3aIOBOJIteHNO, cIeDba Da ce I3XBpbIaT. TaKNBa npdeMeTN Tpa6Ba Da ce INXBbPJIaT B Henpo-nycklnBn Top6n B cbOTBeCTBne C BaIIaNHe TpeDNscaHna 3a OTCTpaHraBaHe Ha TaKNBa OTNaDbuN.

N3npa3BaHe Ha pe3epBoapa

7 OpnHaHn npHaJexHoCTN

Описиме № на поьчka	NSG uClean 14.. / LD 14.. / ADL 14..	№ на поьчka NSG uClean ARDL 14..
Фильpen патон FPP 3600 415109 (540986)
Фильpen патон FPPR 3600 413464 (529776)

8 TexHnueckn daHHN

	NSG uClean 14..	NSG uClean LD 14..	NSG uClean ADL / ARDL 14..
Нар每一天е V 220-240 220-240 220-240
Чебта Hz 50/60 50/60 50/60
Консулиа на мошост W 1400 1400 (makc.)	1400
Клас на зашистовost	II ☐	II ☐	I ♂
Дeбит на Вьздунияnotok: m³/h при венилatable	248,4	248,4 248,4
Дeбит на Вьздунияnotok: m³/h В маркуа	147	147	147
Понижень на лягане: kPa при венилatable	26	26	26
Понижень на лягане: kPa В маркуа	20	20	20
Фильър поьрхост cm²	2950	2950	2950 / 3400
Нимо нашиma dB(A)	85	84	85
Зхсанваш кавел: тип	H05VV-F 2x1,0	H05VV-F 2x1,0 H05VV-F 3G1,5
Зхсанваш кавел: дыжина m	8	12	8

	Овem на pezerва对接а за мьротя |	Габарити см (Д x Ш x В)	Тер lo kg
NSG 1420	20	41,7 x 39 x 55	8,9
NSG 1432	32	41,7 x 39 x 64	9,3
NSG 1445	45	48,3 x 48,3 x 79	12,4
NSG LD-1422	22	46,1 x 43 x 57	10,3
NSG LD-1420	20	42,5 x 39 x 55	9,2
NSG LD-1432	32	42,5 x 39 x 64	9,5
NSG LD-1435	35	46,1 x 43 x 70,3	11,0
NSG LD-1445	45	48,3 x 48, x 79	12,8
NSG ADL-1420	20	42,5 x 39 x 55	8,9
NSG ADL-1432	32	42,5 x 39 x 64	9,3
	Обем на pezerвараза за мьрсOTЯ	Габарити см (Д x Ш x В)	Тер lo kg
NSG ADL-1445 45 48,3 x 48,3 x 79 12,6
NSG ARDL-1432 32 42,5 x 39 x 64 10,2
NSG ARDL-1435 35 46,1 x 43 x 70,3 11,8
NSG ARDL-1445 45 48,3 x 48,3 x 79 13,3
NSG ARDL-1455 KFG 55 53 x 51 x 99 20,0

9 Deklapaun 3a cboTBeTCTBne c n3nCKBaHnraHa EO

He nCnoB3yIe nbIeococ Ia BcacbBaHn CJeDyUOx BeueCTB:

-B3pbIBOONacHnIbIb;

• ropuoyne nnB3pbIBOONaChbIe KndKoCTn nnMaTePuaNbl, npOnNTaHHbIe daHHbIMN KNDKOCTaMn;

-MaTePnaiIbI, TempepaTpa KOTOpbIX npebblwaet 60^

He 3KcnIyatnpyTe nbIeoc Bo B3pbBoOnaChOM OkpyKeHN.

IbilecoBcI Klacca L npedHa3NaeHb Iy BcabIBaHn cyxO, HeropUoye, onachoI y 3doobBy nbilnc npe- DeIbHO donyCTmOJ KOHcHTpaunE Ha pa6ooh MeTe >1M / ^3

NJIeocob,HaKOTopbIXHeyka3aHKnacc nbIINL,npedHa3NaYeHbToIbKOdlaBCacbBaHnHeonacHOIbI.

3KcnnyatnpyTe nbilecoc TolbKO noHad3Opom. He cTaHOBnTEcb Hc aadntecb Ha nbilecoc.

DaHnoe yctpoiCTBO npedHa3NaeHo dIy KOMMepueckoro nCnoJbObaHn, HApnpMeP, B OTeJax, 6KoJax, 60JIbHnUax, MaRa3NHaX, oHncax, Ha npOn3BODCTBe, a TaKxE dIy cDaun B apEndy.

Ipon3BODntelb He Hecet OTBeTCTBeHHOCTn 3a yuep6, YBIAUoNcCneDCTBnEM NcnoB3OBaHnA He nO Ha3Ha-yeHIO, HeNaJExkaUero OcbnyKuBaHnI IIN HeKOMNeTeHTHO peMOHTa.

PpeDToBpaueHHe onachoCTn nopaxeHn 3LeKtpuyeckm TOKOM

HanpajkeHne, yka3aHHoe Ha nprMeHHo Ta6nueKe, dOJIxHO COBnaDaTb c HaprajKeHem cTeN. IodKIOUaTe Nblncoc TolbKO K p03eTKe, 3aunuEHHo npn NOMOUs NOXODJeero npedeoxpaHNTeJ.

He TaHnTe Ka6eBc CeTeBOrO NHTaHnI NO OCTpbIM KpOMKaM, He 3aJIaMbIbAaIte H He 3aJHMaIte erO. NobpeXdHbI Ka6eBc CeTeBOrO NHTaHnI ZameHraIe ToIbKO Ka6eIeM, Yka3aHHbIM B rIabe «TexHnueckne XapaKTePncTNIKN».

He BBOHnTE B 3Kcnpnyatauio nbileoc, BKIOUOa npHaIeXHOCTN, B CNe dyUoX CNyuaX:

• Ka6eIb ceTeBOrO nITaHnIyUdInHHTeIbHbI Kα6eIb IMeET deΦeKtbl IIN TpeuHbI.
  -Пылесoc ИмeelТЯньгдпсн，在HapnMep，TpeuHbВ KOpnyce.
• Ppi noo03peHn Ha haJIyue HeBvIMbIX DeeKToB, HAnpMep, nocIe naDeHn.

BbIKIOaHTe nbIeocn H3BleKaIte WTeNCeIbHyIO BILKy B cJeDyOuXn ClyuaX:

B Cnyae BbyXoDa neHbI INN KINKoCTN;
B Cnyuae dIInTeIbHbIX nepepbIOB B pa6Ote n noce KaKdoRo IcNoIb3OBaHHa;
- nepei KaKdbim TexHnueckm 06cIyKnBaHHeM nIepeo6OpyObaHHeM.

N3BneKa6eJIb cTeBOrO nHTaHnI, TAHnte TOJbKO 3a WTeNCeJIbHyIO BnIKy, HO H N B Koem clyuae He 3a cam Ka6eJIb. H N B KOeM clyuae He npKacaiTecb K WTeNCeJIbHO BnIKe BlaxHbIMn pyKaMI.

He OTKpbIbAte nbilecoc BO BpeMa DOXJa nn rpo3bl NOD OTKpbITbIM He6om. BHyTpehnna Yactb KpbIshKn DoJHKHa 6bITb Bcerda cyxoi.

IcnoIb3yIte ToIbKO 5eTK, NoCTaBLeHHbIe BMeCTe C NblncOCOM nH yKa3aHHbIe B HNCTpyKcHn NO 3KcNlyaTaU. IprimeHeHne Dpynx 5eTOK MoKet HeratNBHO Otpa3nTbcra Ha 6e3oNaChocTn. He dOnyckaIte cOpnKocHOBeHna 3JIeKTPOSeTOK C Ka6elem CeTeBOrO nHTAHn.

PpeDorBpaueHne onaChOteB BO BpeM 3KcnIyatauN

ToIbKO IyIbIeCOCOB KlaCCa L: ecnO OTPa6oTaHHbI BO3dyx OTBODITcB NOMEueHne, cIeIte 3a DOCTaTOHON KpaTHocTbIO BO3dyXoo6MeHa (co6IIOdaIte DeIeCTByIOUne HaUNOHaJIbHbIe NOLOKeHna).

Ipeed hauaIom pa6oTb npouHΦOpMpyuTe o6cnyKnBaIoUuN nepcoHaI O cJeDyUoUeM:

-06paueHnnc nblIecocom;
- onachoctn, nCXOJnne OT BCacbIbAemORo MaTepeNaJa;
-6e30nacHoe n3BneueHne BCaCbBaemoro MaTePnaJa.

He nCnoJb3yIe fynKcNIO npOdyBKn B 3aKpbItbIX NOMeueHnax. Pa6oTaIe TOnbKO C YnCTbIM BCacbIBaIOUm
7laHrom.He noDnHaMe Te onachny O Jn 3doPobBy nbIb.He BdbIxAte nbIb.

Ipnncnojb3OBAHnHa npednpraTnx nue Bo npomblJeHHoCTn: nocne nCnoJb3OBaHn cpa3y ouuuaTe n De3nHphiu npyTe nbIeoc, yTo6bl npedotBpataTb ero 3arpa3HeHne MnkpoopraHn3MaMn.

IpeodTbpaueHne onaHocTeB O BpeMraTexnueckoro 6cnyKuBaHHN npMOHTa

Pemont doljkeh BbInonHraTbcra Toblko KBaIINΦuNpOBAHHbIMn CneuaJIncTamn. NcnoJb3yIe Toblko opurnHaJIbHbIe npHaadJeXHOCTn n 3anYactn.

BcacbBaHne cyxnx BeueCTB

L Pblneoc roTOB K pa6oTe.

2.ДЯнстpoик cnbl BCacbBaHnma MOxHo BocnoJb30BaTbcra OHOI N3 CneDyUOux BO3MOxHOCTei (B 3aBNCIMoCTn OT OChaSeHnA):

• yCTaHOBka BbIKIOuTeIaB NoIOKeHne ECO;
• HacTpoKa yaCToTbI BpaSeHnI Prn NOMOuN BbIKIOUaTeJIa;
• NaCTPOKka 3aDbBnKKN DnB BnYcKa BO3DyXHa Ha Tpy6Ke.

BcacbBaHne KndKocTei

HadJIeXaIe MepeI npedocToPOXHOCTN BkIoUaIOT Bce6A

-NTKypeepdMeMOHTaKeM,
- 3ablaorobpeMeHHyIO NOIROTOBky npHHyDnteJIbHOB BeHTnIaUN B TOM MeCTe, rJe 6yDet dEmoHTnpOBaTbcNpbIleoc,
- y60pky Mecta npoBeHnTexHnueckoro 6cbnykBaHHN
-COOTBETCTBYUOUIneIINHbIEcpeCDTa3aUNTbl.

IIO MeHbWe Mpe Odn pa3 B roD nOpyuAte KBaInnOuropoAHOMy nepcoHaLy BblOnHeHne TexHnuecko InpOBepKn, HApPmEp, Ha npEdMeT NobpeKdEHHa FInbTpTa, repMeTuHOCn PbIeCoc a NcnpaBHOCTN KOHTpOJIbHbIX yCTpOiCTB.

3arpa3HeHHbI npeDMeTbi

Ipn npoBeHn pa60 nO texHnueckomy o6cIyXnBaHIO nn peMOHTy BCE 3aqr3HeHHbI nepeMeTbI, KOToPbIE HeBO3MOxH OunchTb DO yDObLeTBOpntelbHorO COCTOHN, DoJXHbI 6bITb YTNl3nPoBaHbI. TaKne npEeMeTbI dOLXHbI yTNlN3nPoBaTbcraB repMeTuHbIX MeXkax B COOTBeTCTBnC DeiCTByUOuIMn HopMaMn no yTNlN3aun TAKnx OTXODOB.

OuNTka KOHTeHepa

DonyckaetcTolbKOnIbIN C npedeHbIM NOKa3aTeIeM KOHcEHTpaIIN BpeHbIX BeIecTB>1Mr/M3.

1. BbIKIOHTe nbIeCoc n3 cETn.
2. OtkpoIte 3aueJIKN.
3. CHIMMTE c KOHTeHepa KpbIuKy N BbIHbTe UJHaHR.
4. Ounchte KOHTeHep oT copeKIMoro.

3aMeHaΦnIbTpUoUni NaTPOH

Cm.pnc.J.

1. BbIKIOHTe nbIleCoc n3 cETn.
2. OtkpoITe 3aueJIKN.
3. CHIMMTE c KOHTeHepa KpbIiKy.
   4.Ocna6ntbΦHKCnpyUoUmBnHT.
4. YdaJIeHHe 0nIbTpUoUsn naTPOH.
5. Haxmte HObI ΦnIbtpyOuI NaIPOH B npAmo FOpMe HaK KOpNycOM, BnIOTb DO TOUKN OCTaHOBKn.
6. 3aTaNHyTb ΦNkCnpyUoUuBnHT.

YtInn3aunf HnIbtpyIOx nATpoHOB, HnIbtpoBaIbHbIX MeWKOB nn MeWKOB dIy YtINn3aun

YtInn3npyIte fInbTpuyoun nNaTPOH, fInbTpOBAhBbIM MeWOK nn MeWOK dJa YtInn3aun B COOTBeTCTBn C NaUHOHaJIbHbIMN HopMaTINBaMn.

OuInCTka

He ouhiaTe nbilecoc npn nomoOn ouhctnteBbICOKo DaBleHna. IJI ouhCTKn NcnoIb3yIte TolbKO BnaKHyIO TpAnky MraKoe MoIoOee cpeCTBO.KncloTa, aueToH paCTBOpHT bMOrTy pa3beCTdEtAIn NblneCoca.

PeryIaHPO ouuauTe fNbtpyUoenn 3JeMeHT, He nobpeDte npn 3OM nlaactnHKn. IpexKe yem ycTaHaBnBaTb fNbtpyUoenn 3JeMeHT nocne erO BnaXHO ONUCTKn, daTe emy noJIHOCTbIO BBICOXHyTB. He ouuauTe Hc cyuNTe fNbtpyUoenn 3JeMeHT cKaTbIM BO3dYxOM.

6ytnln3aun

B cTapbIX npu6opax copekataC dparoueHHbIe MaTePnAbl, npirohblie nI nepepa60Kn. He bI6pa-cbIaIte nbIeoc BC MeCTe C 6bIuHbIM 6bITOBbIM MycOpOM. IcnoJIb3yIte nI aTOrO cneuaNbHbIe MeCTa dIra cbopa aHaIoruHbIX OTxOIOB.
