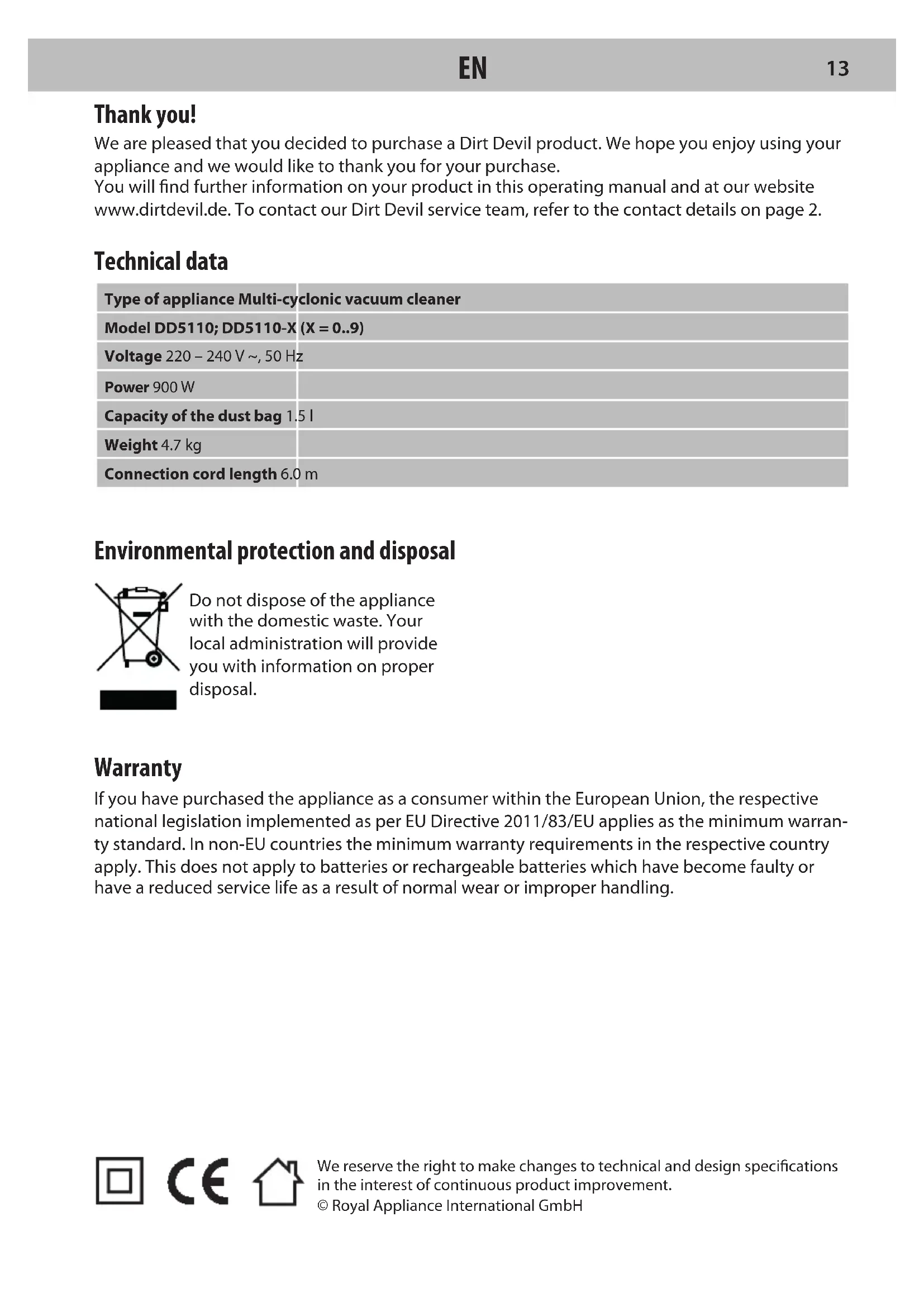

DEWe reserve the right to make changes to technical and design specications in the interest of continuous product improvement. © Royal Appliance International GmbH Thank you! We are pleased that you decided to purchase a Dirt Devil product. We hope you enjoy using your appliance and we would like to thank you for your purchase. You will nd further information on your product in this operating manual and at our website www.dirtdevil.de. To contact our Dirt Devil service team, refer to the contact details on page 2. Technical data Type of appliance Multi-cyclonic vacuum cleaner Model DD5110; DD5110-X (X = 0..9) Voltage 220 – 240 V ~, 50 Hz Power 900 W Capacity of the dust bag 1.5 l Weight 4.7 kg Connection cord length 6.0 m Environmental protection and disposal Do not dispose of the appliance with the domestic waste. Your local administration will provide you with information on proper disposal. Warranty If you have purchased the appliance as a consumer within the European Union, the respective national legislation implemented as per EU Directive 2011/83/EU applies as the minimum warran- ty standard. In non-EU countries the minimum warranty requirements in the respective country apply. This does not apply to batteries or rechargeable batteries which have become faulty or have a reduced service life as a result of normal wear or improper handling.

13SAFETY INSTRUCTIONS About the operating manual Read the operating manual completely be- fore working with the appliance. Keep the operating manual for reference. If you pass the appliance on to third parties, it must be accompanied with this operating manual. Failure to adhere to this operating manual can lead to serious injuries or damage to the appliance. We assume no liability for dam- age caused as a result of failure to adhere to this operating manual. Important information not included in this chapter is indicated as follows: WARNING! Warns of health hazards and identies possible risks of injury. CAUTION! Indicates possible dangers to the appliance or other objects. NOTE Highlights tips and information. You can also download this operating manu- al from our website at any time: www.dirtdevil.de Concerning certain groups of persons The appliance can be used by children of 8 years and upwards and persons with impaired physical, sensory or mental abili- ties, or insucient experience or knowledge, providing they are supervised or have been instructed in the proper use of the appliance and understand the risks involved. Children must not perform cleaning or user maintenance tasks without supervision. Children must not play with the appliance. Packing material and small parts must not be used as toys. There is risk of asphyxi- ation. Children under the age of 8 years should be kept away from the appliance and the connection cord whilst the appliance is swit- ched on, plugged in at the mains socket or cooling down. Information on the power supply The appliance is operated with electrical current. Thus there is always a risk of electri- cal shock. You must therefore observe the following: Never immerse the appliance in water or other liquids. If you want to pull the connection cord out of the mains socket, always pull directly on the plug. Never pull on the connection cord. Make sure that the connection cord is not kinked, trapped or run over and does not come into contact with heat sources.

EN Always check the connection cord for possible damage before using the appliance. Do not use a connection cord with a dama- ged plug or cord. Before cleaning or performing main- tenance on the appliance, ensure that the appliance is switched o and that the connection cord is not connected. Information on the rotating brush roller The brush roller in the mini turbo nozzle (optional) rotates at high speed. This poses various hazards to people, animals and objects: Never vacuum clean people, animals or plants. Keep parts of the body and items of clothing away from the moving parts and openings on the appliance when it is in ope- ration. They may otherwise be drawn in and may cause injuries. Before you detach or attach, open or cle- an the oor nozzle, switch o the appliance. Do not run over cords, cables etc. as there is a risk of them becoming tangled in the rotating brush roller and may become damaged. Keep the rotating brush roller away from all delicate surfaces. Otherwise there is a risk of damage. Comply with the care and cleaning instructions provided by the manufacturer. Also keep the rotating brush roller away from curtains, long tassels and the like. The objects may otherwise become drawn in and damaged. If the appliance is faulty If the appliance or the connection cord are damaged, they will need to be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualied person in order to prevent hazards. Hand over a faulty appliance to an au- thorised dealer or send it to the Dirt Devil customer service department for repairs, > "International Service" on page 2. Never use a faulty appliance or a faulty connection cord. Information on proper use This appliance is intended for domestic use only. It is not suitable for industrial or commercial use. Only use the appliance for cleaning lightly soiled, dry hard oors, car- pets or upholstered furniture. Any other use is considered improper use and is prohibited. In particular, the following is prohi- bited: Vacuuming: – People, animals, plants or items of clothing on the body High risk of injury! – Hot ash, burning cigarettes, matches and highly ammable substances Risk of re!

15– Water and other liquids Risk of short circuit! – Toner (for laser printers, copying ma- chines, etc.) Risk of re and explosion! Use – in the vicinity of explosive or highly ammable substances Risk of re and explosion! – outdoors Risk of damage due to rain and dirt! – of non-original accessories Impair- ment of appliance safety! Carrying out repairs yourself Risk of injury and loss of entitlement to free replacement! Concerning disposal After its service life, dispose of the appli- ance in an environmentally friendly manner, as described, >„Environmental protection and disposal“ on page 13.

ENPreparatory work Getting to know the appliance Fig.

dirt container release button;

power cord with plug;

telescopic tube release catch;

), make sure that the surface can with- stand the rotating brush roller without becoming damaged. NOTE: If you intend to use one of the small accessory nozzles: We recommend to mount them directly to the hose handle (Fig.

Check that the unpackaged contents are com- plete (Fig.

). If you notice any transport damage or if anything is missing, contact your dealer immedi- ately.

Insert the hose connector into the hose inlet of the appliance (Fig.

). Ensure the hose connec- tor has clicked into place. Check for proper assembly.

Slot the telescopic tube and hose handle together (Fig.

Adjust the length of the telescopic tube as indicated (Fig.

Mount one of the oor noz- zles to the telescopic tube. When connecting the two parts, you might need to twist them a little against each other (Fig.

Vacuum cleaning CAUTION! Especially when vacuum-cleaning stairs make sure that you always stand on a higher level than the appliance. Otherwise there is a risk that the appliance will fall and injure you. NOTE: In normal situations the bypass vent must be completely closed. With the bypass vent (Fig.

) you can quickly reduce the suction power, e.g. to release curtains that have acciden- tally been sucked in. To close the bypass vent, push it down. To open the bypass vent, push it up.

Unwind the power cord but be sure not to pull the cord beyond the yellow mark. If exceeded, press the cord rewind button (Fig.

Insert the plug into an electrical outlet with ground/safety contact.

Switch o the appliance and pull the plug from the mains socket.

), until the connection cord has been fully re- wound.

Insert the oor or parquet nozzle which is connected to the telescopic tube or handle into the parking slot (Fig.

Maintaining the appliance Emptying and cleaning the dirt container NOTE: The motor is equipped with a thermal cut-out. If for any reason the appliance should overheat, the thermostat will automatically turn the appliance off.

Hold dirt container low over a bin and press dirt release button to open, al- lowing dirt to fall out (Fig.

). Rinse it clean and leave it dry- ing.

Hold the container and turn the shroud an- ti-clockwise (Fig.

). Rinse it clean and leave it dry- ing. Remove all residual dust from the dirt contain- er.

After cleaning insert the shroud again and lock it by turning clockwise.

After cleaning insert the separator again and lock it by turning anti-clockwise. Close the bottom plate of the dirt container.

Press the dirt container rmly into the appliance until you feel or hear it locking into place (Fig.

17Cleaning the pre-motor lters CAUTION! Filters need to be cleaned every time you emp-ty the dirt container for best cleaning results. The pre-motor lters can be washed by hand. Clean the pre-motor lters with water only. The post-motor lter may not be washed or re-used. Do not use your vacuum cleaner without all of the lters in place. Hold the dirt container and twist the lid an-ti-clockwise (Fig.

Lift the lid to reveal the pre-motor lter. Lift out the pre-motor lter (Fig.

Check the secondary pre-motor lter mesh for dirt. If dirty, lift it out as well (Fig.

Tap excess dirt from the lters or rinse them and leave to dry for 24 hours. Insert them and close the lid by turning it clockwise (Fig.

Cleaning the exhaust lter

Post-motor lter is located in the right wheel. Hold the centre of the wheel over and twist wheel cover anti-clockwise (Fig.

With the wheel cov-er o the post-motor lter is easily removed. (Fig.

Tap all excess dirt o the lter. It might become necessary to use the 3-in-1 combo nozzle for ad-vanced cleaning. Do not wash (Fig.

Re-insert the post-motor lter. Hold the centre of the wheel cover and twist wheel cover anti-clockwise, until it clicks into place (Fig.

Disconnect the mini turbo brush from the han-dle or the telescopic tube. Unscrew the retaining ring by turning it anti-clockwise (Fig.

Care-fully open up the top of the housing of the mini tur-bo brush (Fig.

Thoroughly clean the brush by hand. In case of stubborn soiling, carefully use twee-zers or scissors. Place the top of the housing on the 3 tabs on the bottom of the housing and then carefully close the top of the housing (Fig.

Screw the retaining ring back on by turning it clockwise (Fig.

Accessory parts and spare parts

/E) Troubleshooting Before you contact our Dirt Devil service team or send the appliance to the Dirt Devil customer service department, you will nd a lot of additional informa-tion in the service area of our website which will help you solve problems. www.dirtdevil.de/service WARNING! Always switch o the appliance and disconnect it from the mains socket before starting trouble-shooting. Never use a faulty appliance.

• 1 mini-turboborstel “Fellino” – M219 (afb.

• 1 turboszczotka midi – M221 (rys.

Blocare tub telescopic;

*Indicative annual energy consumption (kWh per year), based on 50 cleaning processes. The actual annual energy consumption depends on how the appliance is used. The data is based on the Delegated Regulation (EU) No. 665/2013 of the commission of 3rd May 2013 which supplements Directive 2010/30/EU. All the methods which are not described in more detail in these instructions have been implemented based on DIN EN 60312-1:2014. Date: July 2017 Information on the energy label This universal vacuum cleaner achieves the declared energy eciency class and the specied cleaning class on carpet with the supplied exible oor nozzle when the brush is retracted. The cleaning class on hard oor with joints and crevices is achieved with the supplied oor nozzle when the switch is set to “hard oor” (Fig.
