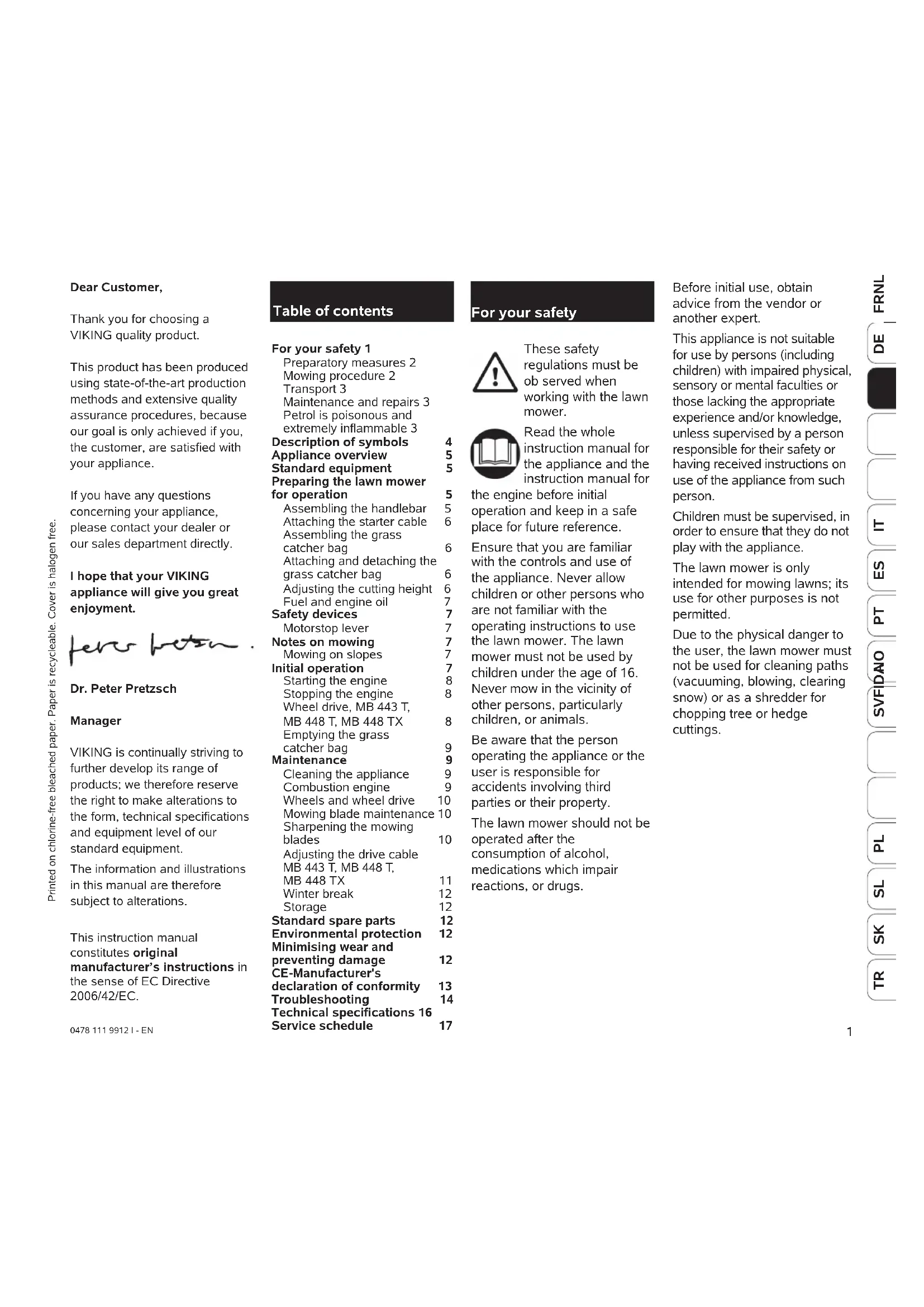

These safety regulations must be ob served when working with the lawn mower. Read the whole instruction manual for the appliance and the instruction manual for the engine before initial operation and keep in a safe place for future reference. Ensure that you are familiar with the controls and use of the appliance. Never allow children or other persons who are not familiar with the operating instructions to use the lawn mower. The lawn mower must not be used by children under the age of 16. Never mow in the vicinity of other persons, particularly children, or animals. Be aware that the person operating the appliance or the user is responsible for accidents involving third parties or their property. The lawn mower should not be operated after the consumption of alcohol, medications which impair reactions, or drugs. Dear Customer, Thank you for choosing a VIKING quality product. This product has been produced using state-of-the-art production methods and extensive quality assurance procedures, because our goal is only achieved if you, the customer, are satisfied with your appliance. If you have any questions concerning your appliance, please contact your dealer or our sales department directly. I hope that your VIKING appliance will give you great enjoyment. Dr. Peter Pretzsch Manager VIKING is continually striving to further develop its range of products; we therefore reserve the right to make alterations to the form, technical specifications and equipment level of our standard equipment. The information and illustrations in this manual are therefore subject to alterations. This instruction manual constitutes original manufacturer’s instructions in the sense of EC Directive 2006/42/EC. Table of contents For your safety 1 Preparatory measures 2 Mowing procedure 2 Transport 3 Maintenance and repairs 3 Petrol is poisonous and extremely inflammable 3 Description of symbols 4 Appliance overview 5 Standard equipment 5 Preparing the lawn mower for operation 5 Assembling the handlebar 5 Attaching the starter cable 6 Assembling the grass catcher bag 6 Attaching and detaching the grass catcher bag 6 Adjusting the cutting height 6 Fuel and engine oil 7 Safety devices 7 Motorstop lever 7 Notes on mowing 7 Mowing on slopes 7 Initial operation 7 Starting the engine 8 Stopping the engine 8 Wheel drive, MB 443 T, MB 448 T, MB 448 TX 8 Emptying the grass catcher bag 9 Maintenance 9 Cleaning the appliance 9 Combustion engine 9 Wheels and wheel drive 10 Mowing blade maintenance 10 Sharpening the mowing blades 10 Adjusting the drive cable MB 443 T, MB 448 T, MB 448 TX 11 Winter break 12 Storage 12 Standard spare parts 12 Environmental protection 12 Minimising wear and preventing damage 12 CE-Manufacturer's declaration of conformity 13 Troubleshooting 14 Technical specifications 16 Service schedule 17 For your safety Before initial use, obtain advice from the vendor or another expert. This appliance is not suitable for use by persons (including children) with impaired physical, sensory or mental faculties or those lacking the appropriate experience and/or knowledge, unless supervised by a person responsible for their safety or having received instructions on use of the appliance from such person. Children must be supervised, in order to ensure that they do not play with the appliance. The lawn mower is only intended for mowing lawns; its use for other purposes is not permitted. Due to the physical danger to the user, the lawn mower must not be used for cleaning paths (vacuuming, blowing, clearing snow) or as a shredder for chopping tree or hedge cuttings. Printed on chlorine-free bleached paper. Paper is recycleable. Cover is halogen free.2 0478 111 9912 I - EN

• Only give (or lend) the appliance to persons who are familiar with this model and how to operate it - always provide them with the instruction manual. Preparatory measures

• Always wear robust shoes with high-grip soles and long trousers when mowing. Never mow barefoot or, for instance, in sandals.

• Carefully inspect the complete area on which the appliance is to be used and remove any stones, sticks, wires, bones and other foreign objects.

• Before using, always ensure that the cutting tool, the fastening bolt and the entire cutting unit are in good condition.

• Please observe the local regulations regarding permitted operation times for lawn mowers. Mowing procedure

• Avoid mowing wet grass. The risk of accidents is higher if the grass is wet (Danger of slipping).

• The switch mechanisms installed in the appliance must not be removed or bypassed, e.g. by fixing a control lever to the handlebar.

• Only mow during the day or when there is enough light.

• Always ensure good stability on slopes. Avoid mowing on excessively steep slopes in order to prevent loss of control of the appliance.

• Only mow at walking speed. Mowing quickly with the appliance increases the risk of injury due to stumbling, slipping etc.

• Only mow at right-angles to the slope and never up or down the slope, in order to avoid being run over by the running lawn mower should you lose control of it.

• Be particularly careful when changing direction on a slope in order to prevent loss of control.

• Be particularly careful when moving backwards and when pulling the lawn mower. Risk of stumbling!

• Be particularly careful when turning the mower around or pulling it towards you.

• Stop the engine or disengage the mowing blade if tilting of the mower is necessary when pushing or driving over surfaces other than grass, and when pushing or driving the mower to and from mowing areas.

• Never use the mower with damaged safety devices or safety grids or without installed safety devices, e.g. without the grass ejection flap or the grass catching unit.

• Care must be taken when starting the mower. Ensure that you keep your feet far enough away from the cutting tool.

• Place the appliance on an even surface for start-up. The appliance must not be tilted when starting the motor.

• Keep other persons away from the danger area.

• Never open the grass ejection flap or empty the grass catcher bag when the engine is running. A rotating blade can cause injury.

• Risk of injury. Never put your hands or feet on or underneath cutting deck. Always keep away from the ejection aperture. Always observe the safety distance indicated by the handlebar.

• Never lift or carry a mower with the engine running.

• Never attach any objects to the handlebar (e.g. work clothing).

• Switch off the engine and detach the spark plug socket: - Before blockages are removed, including those in the ejection chute.3 0478 111 9912 I - EN DEENFRNL

- If the blade has hit a foreign object. If the cutting tool needs to be checked for possible damage. - Before checking, cleaning or working on the mower. - If the mower begins to vibrate excessively. It must be checked immediately. - If you leave the mower unattended. - Before re-filling the tank.

• Beware of the cutting tool running on for several seconds before coming to a standstill.

• Local regulations may specify a minimum age for using the mower.

• In order to prevent fire hazards, keep the engine and exhaust free from grass, leaves or leaking oil (or grease).

• For safety reasons, VIKING mowers with petrol engines must not be used on slopes with an incline of more than 25° (46.6 %). It is only permitted to mow across the direction of the gradient and never up or down the slope, in order to prevent loss of control of the lawn mower. Risk of injury! A slope inclination of 25° corresponds to a vertical height increase of 46.6 cm for a 100 cm horizontal surface. In order to ensure an adequate oil supply for the engine, the information in the accompanying engine instruction manual must be additionally observed when using the machine on slopes. Transport Always wear gloves in order to prevent injuries due to sharp-edged and hot components.

• Switch off the mower prior to transport, disconnect spark plug socket and allow the blade to come to a stop.

• Only transport the appliance once the engine has cooled down and the fuel tank is empty.

• The mower must always be carried by two persons.

• Use suitable loading aids (loading ramps, lifters).

• Secure the appliance on the load floor using adequately- dimensioned fastening material (belts, ropes etc.).

• When transporting the machine, always observe regional legislation, especially regarding load security and the transport of objects on load floors. Maintenance and repairs Detach the spark plug socket before performing any work on the appliance. Only carry out maintenance work which is described in the instruction manual. All other procedures should be carried out by a specialist dealer. VIKING recommends that you have maintenance operations and repairs performed exclusively by a VIKING specialist dealer. Only use high-quality tools, accessories and spare parts. Otherwise, there may be a risk of accidents resulting in personal injury or damage to the appliance. VIKING recommends the use of original VIKING tools, accessories and spare parts. Their properties are optimally adapted to the appliance and the user’s requirements

• Ensure that all nuts, pins and bolts are securely tightened, so that the appliance is in a safe operating condition.

• If the cutting tool or the lawn mower hits an obstacle or a foreign object, the mower must be switched off and a specialist inspection must be performed.

• The lawn mower must not be operated with a damaged or bent crankshaft. Risk of injury through defective parts!

• Check the grass catching unit regularly for wear, damage or for loss of functionality.

• In the interests of safety, replace all worn or damaged parts.

Warning: petrol is poisonous

and extremely inflammable

• Petrol must only be stored in appropriate containers.

• Keep petrol away from sparks, naked flames, pilot lights, heat sources, and other ignition sources. Angle of inclination 25°4 0478 111 9912 I - EN Detach the spark plug socket before carrying out work on the cutting tool or maintenance and cleaning work and before leaving the mower unattended. Read instruction manual before initial use. Description of symbols Keep other persons away from the danger area. Blades run on. MB 443 T, MB 448 TX Start the engine MB 448, MB 448 T Start the engine MB 443 T, MB 448 TX Stop the engine MB 448, MB 448 T Stop the engine MB 443 T, MB 448 TX Switch on the wheel drive MB 448 T Switch on the wheel drive

• Transport the appliance with an empty fuel tank or closed fuel cock (if fitted).

• Re-fill the tank out of doors and do not smoke during re- filling.

• Do not fill fuel tank completely, but fill to approx. 4 cm below the edge of the filler neck so that the fuel has room to expand.

• Re-filling with petrol must be performed before the engine is started. When the engine is running or is hot, the tank cap must not be removed and the tank must not be re- filled with petrol.

• If petrol is spilled, the engine must only be started after the petrol-contaminated area has been cleaned. All attempts at starting must be avoided until the petrol fumes have dispersed (wipe dry).

• For safety reasons, fuel line, fuel cock, fuel tank, tank cap and connections must be checked regularly for cracks and leaks and replaced if damaged. (Consult a specialist dealer; VIKING recommends a VIKING specialist dealer).

• Replace damaged exhaust silencers and safety grids.

• Never store the appliance with petrol in the tank inside a building. The resulting petrol fumes could come into contact with naked flames or sparks and could be ignited.

• Allow the engine to cool before storing the appliance in an enclosed space.

• Do not alter the basic setting of the engine or run at excessive engine speeds.

• The engine-powered appliance generates poisonous exhaust gases as soon as the engine is running. These gases may be odourless and invisible. Never work with the engine-powered appliance in a closed or poorly ventilated room. Danger to life through poisoning!

• If it is necessary to drain the tank, this must be done out of doors (drive until empty).5 0478 111 9912 I - EN DEENFRNL

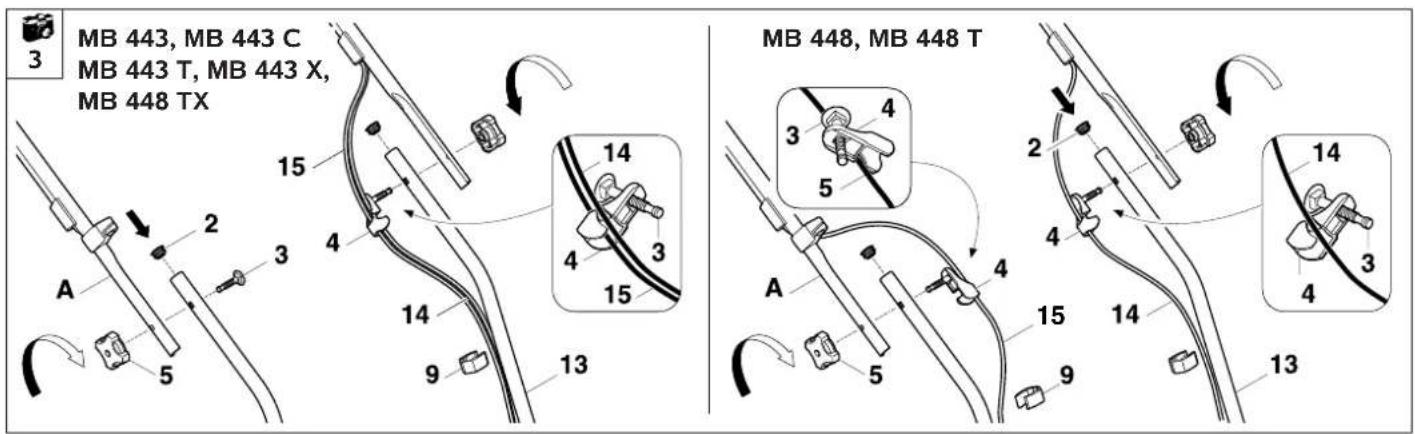

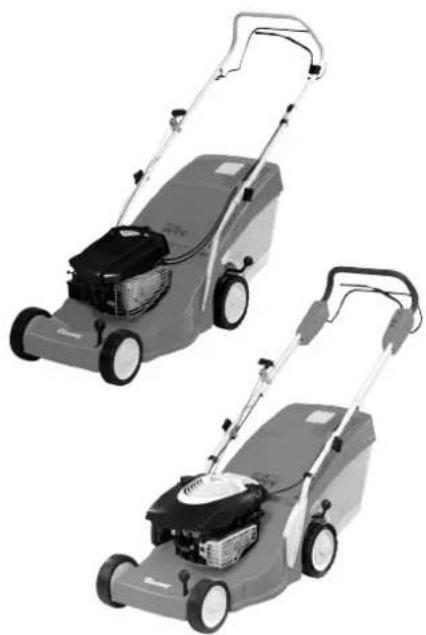

Appliance overview Assembling the handlebar 2= Press the plugs 13= into right and left parts of lower handlebar. 3= Insert bolt through 4= aperture in cable guide and fit 15= Motorstop cable and 14= drive cable (only for MB 443 T, MB 448 T, MB 448 TX) into the cable guide. A= Fit upper handlebar onto both parts of lower handle bar. Push 3= bolt (with cable guide) through bores from the inside towards the outside and fasten securely using 5= rotary handles Preparing the lawn mower for operation

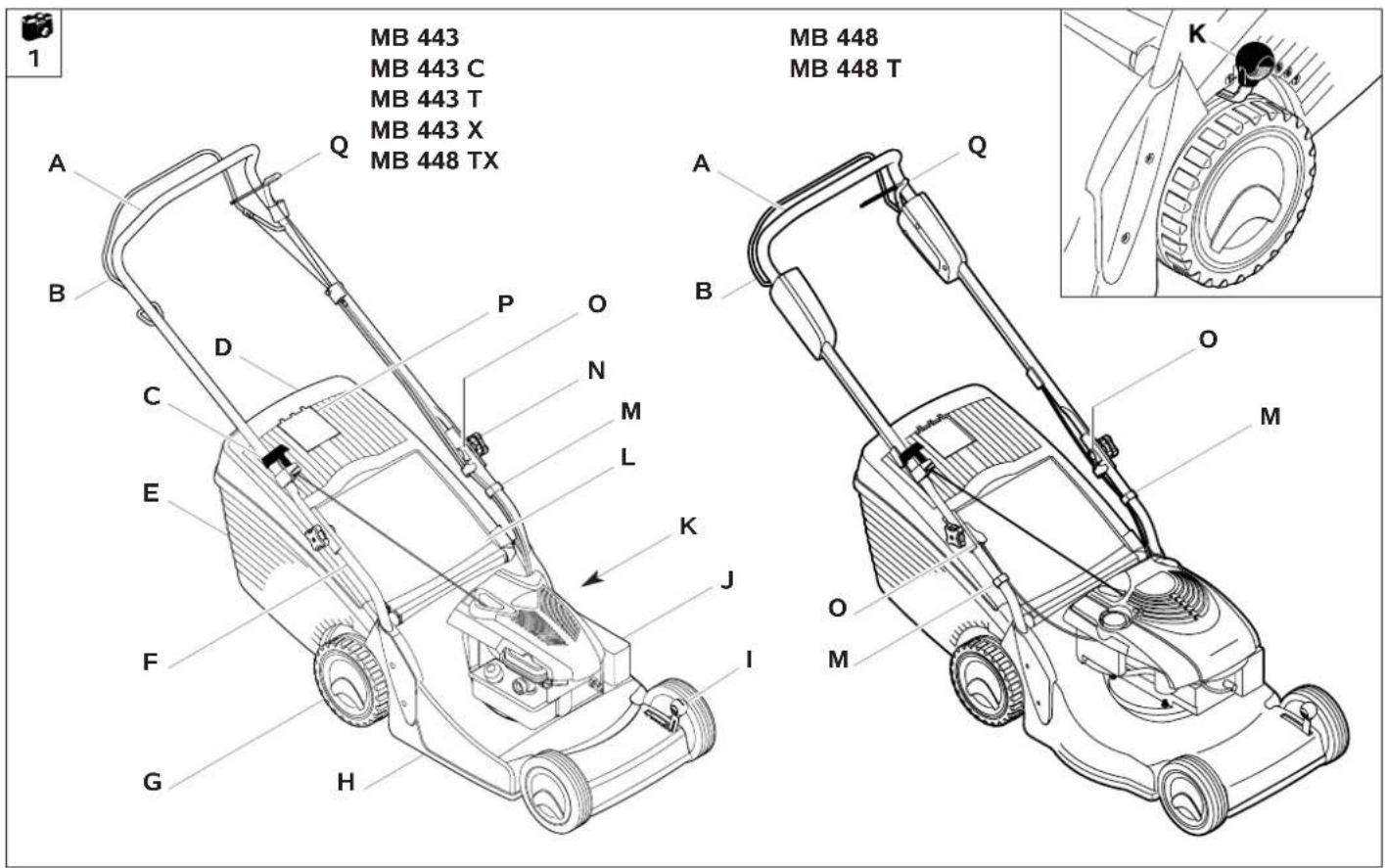

Appliance overview A Upper handlebar B Motorstop lever C Starter cable D Upper part of grass catcher bag E Lower part of grass catcher bag F Lower handlebar G Wheels H Housing I Cutting height adjustment Front axle J Engine K Cutting height adjustment Rear axle L Ejection flap M Cable clip N Rotary knob O Cable guide P Level indicator Q Wheel drive lever MB 443 T, MB 448 T, MB 448 TX

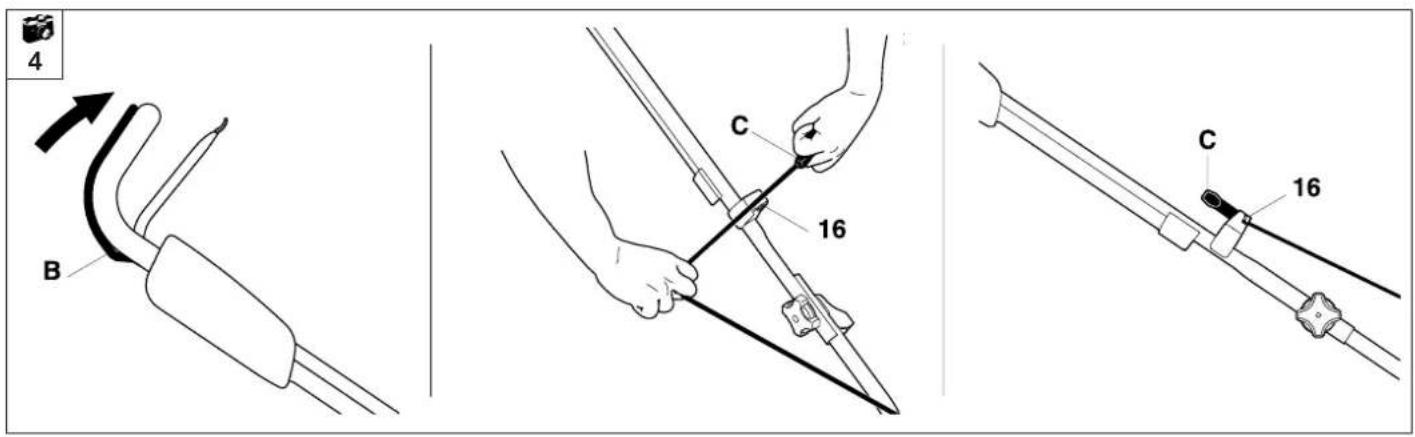

9= Secure cable (MB 443 X Cable tie) to the lower handlebar with cable clip as illustrated. Item designation Qty. 1 Basic unit 1 2 Plug 2 3 Bolt 2 4 Cable guide 1 (MB 448 T 2) 5 Rotary knob 2 6 Upper part of grass catcher bag 1 7 Lower part of grass catcher bag 1 8 Retaining plate 2 9 Cable clip / Cable tie 1 (MB 448 T 2)

• Instruction manual 1

• Instruction manual Engine 1 Standard equipment

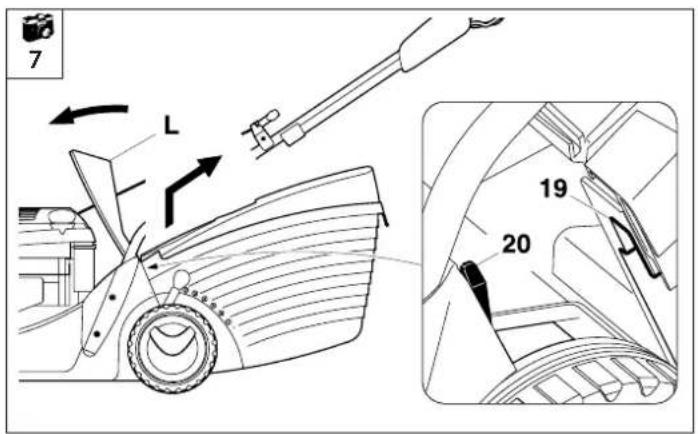

NOTE The machined grooves in the threads prevent the rotary handles from becoming completely detached from the bolts (safeguard against loss). Folding down the handlebar: Fold down the handlebar for cleaning the mower, for space-saving transport and for storage of the appliance: Risk of injury! The motor must be switched off and the spark plug socket disconnected prior to folding down the handlebar. No loads must be placed on the upper handlebar (e.g. work clothing hung over the handlebar). Danger of pinching! The handlebar may fold down inadvertently when the rotary knobs are released. For this reason, always hold the upper handlebar (A) with one hand at its highest point when you unscrew the rotary knobs. CAUTION6 0478 111 9912 I - EN Attaching and detaching the grass catcher bag L= Pull ejection flap upwards. Attaching: Attach grass catcher bag to the appliance with 20= snap-in hooks 19= in the apertures provided. Guide the ejection flap manually downwards onto the grass catcher bag. Detaching: Detach grass catcher bag from the snap-in hooks and remove. Close ejection flap again manually.

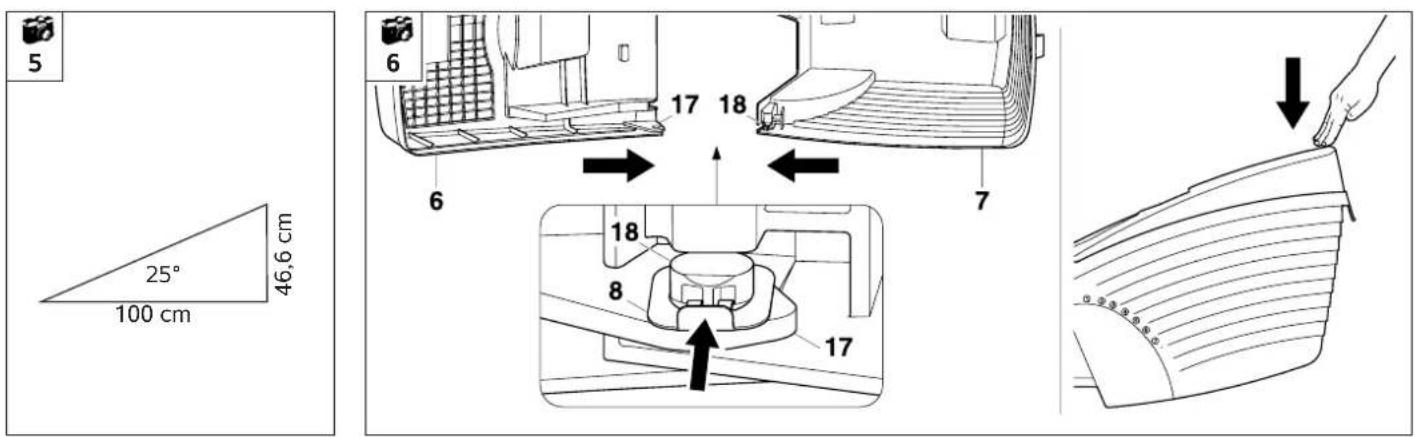

Assembling the grass catcher bag 6= Lay upper part of grass catcher bag and 7= lower part of grass catcher bag on a level surface. 17= Attach tabs 18= of the grass catcher bag upper part to retaining pins in the grass catcher bag lower part. 8= Press the tab downwards and guide the retaining plate into the aperture in the retaining pin. Press the retaining plate firmly inwards.

Repeat this procedure for the installation of the grass catcher bag on the opposite side. Close the grass catcher bag and allow the grass catcher bag upper part to engage in the lower part using slight pressure. NOTE Press the retaining plate inwards until it engages in the retaining pin. CAUTION Risk of injury. The engine must be switched off before attaching and detaching the grass catcher bag. Attaching the starter cable B= Press and hold motor - stop lever to release the engine brake. C= Slowly pull out starter cable and 16= fit into cable guide.

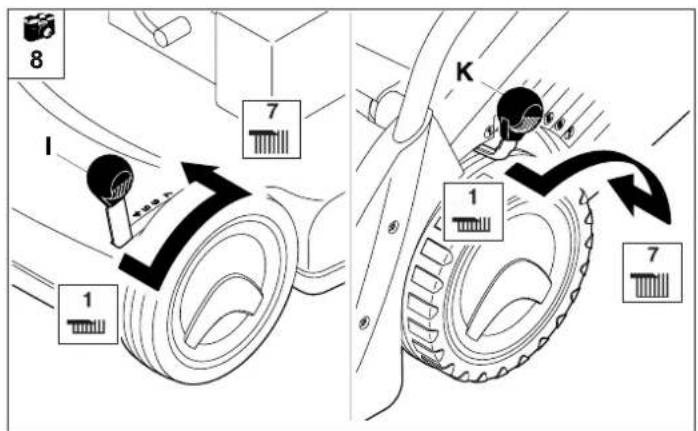

Adjusting the cutting height There are 7 cutting height adjustment settings ranging from 25 to 70 mm. Cutting levels 2 to 6 are standard. Level 1 = lowest cutting height Level 7 = highest cutting height I= The adjustment lever for front axle height adjustment is located next to the left front wheel. K= The adjustment lever for rear axle height adjustment is located next to the left rear wheel.

CAUTION Risk of injury. The engine must be switched off before adjusting the cutting height.7 0478 111 9912 I - EN DEENFRNL

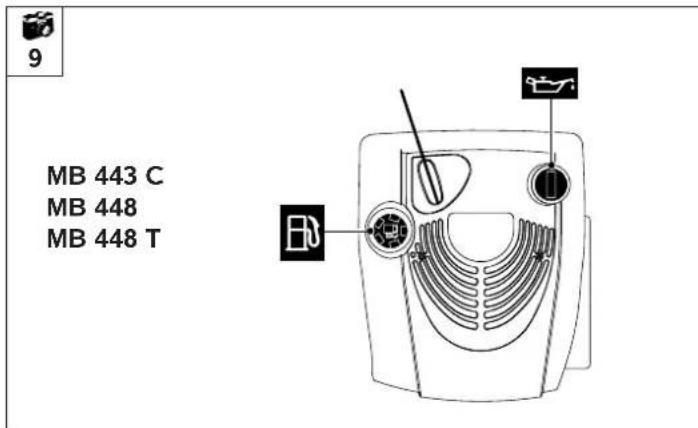

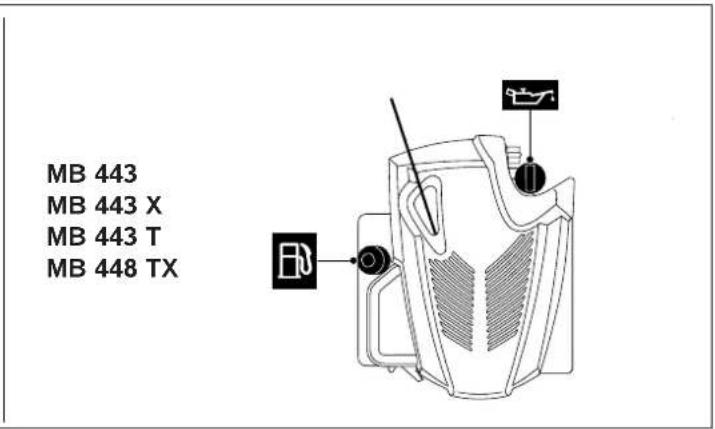

Fuel and engine oil Engine oil: Top up engine oil before initial start (oil dipstick). Please consult the engine instruction manual for the type of engine oil to be used and the filling quantity. Checking engine oil: Check engine oil level at regular intervals. Allow the mower to stand in the horizontal position for 2 min. so that all the oil can collect in the bottom of the engine. Screw the dipstick in fully to measure the level. The oil level must be within the marked field on the dipstick. Fuel: Recommendation: Fresh good quality fuel, normal unleaded petrol.

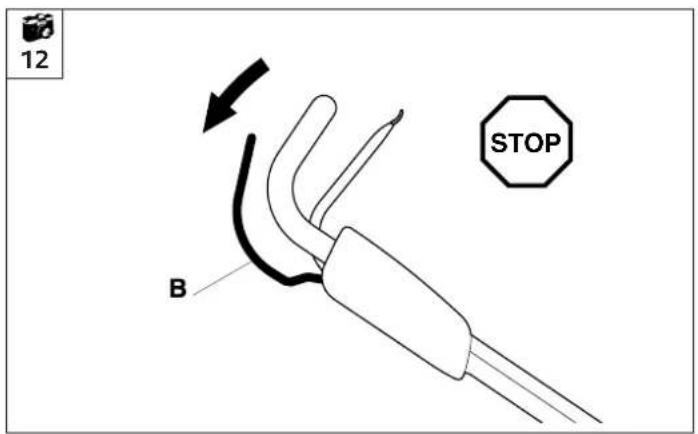

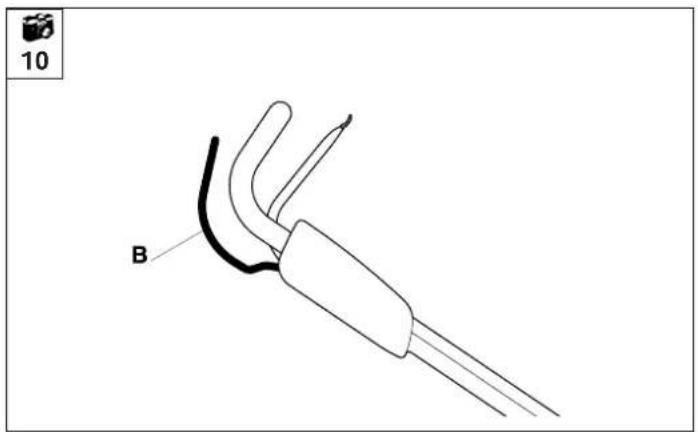

Motorstop lever The lawn mowers MB 443, MB 443 C, MB 443 T, MB 443 X, MB 448, MB 448 T, MB 448 TX are equipped with a motor stop device. B= The engine stops imme - diately when the motor - stop lever is released, the mowing blade comes to a complete standstill after a short run-down time. Safety device

Initial operation Notes on mowing Mowing on slopes For safety reasons, VIKING mowers with petrol engines must not be used on slopes with an incline of more than 25° (46.6 %). It is only permitted to mow across the direction of the gradient and never up or down the slope, in order to prevent loss of control of the lawn mower. Risk of injury! A slope inclination of 25° corresponds to a vertical height increase of 46.6 cm for a 100 cm horizontal surface.In order to ensure an adequate oil supply for the engine, the information in the accompanying engine instruction manual must be additionally observed when using the machine on slopes.

NOTE To ensure a perfect, thick lawn, mow regularly and keep the grass short. Do not cut too short in hot, dry conditions as the lawn will dry out or burn in the sun and become unsightly. The cutting pattern will be better with a sharp blade than with a blunt one. The blade must therefore be sharpened regularly (specialist). Do not mow wet grass or mow in the rain. For safety reasons, always use an undamaged grass catcher bag. CAUTION

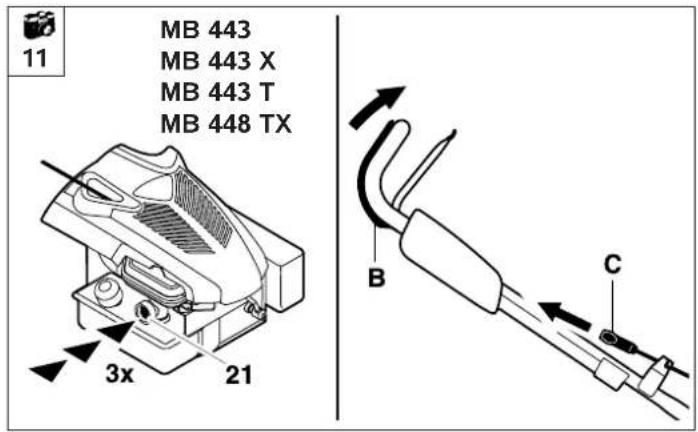

• Carefully inspect the complete area on which the appliance is to be used and remove any stones, sticks, wires, bones and other foreign objects. I= First, push front axle height adjustment lever and K= rear axle height adjust - ment lever in direction of the wheel and then allow to engage in the desired position (= cutting height). The cutting height indicators are located immediately next to the adjustment levers, on the housing or on the grass catcher bag. NOTE The cutting height settings on the front and rear axles should be identical. Different cutting heights result in a reduced collecting performance.8 0478 111 9912 I - EN B= Actuate and hold the motorstop lever on the upper handlebar. C= Pull out the starter cable slowly to the point of resistance and then pull vigorously to arm's length. Slowly release the cable so that it can gra dually be rolled up by the starter. Repeat until the engine starts. NOTE Do not start the engine in high grass or when the mower is set to the lowest cutting height, as otherwise the engine will be difficult to start. NOTE Thanks to a fixed throttle adjustment, the engine always operates at the optimum working speed. Starting the engine MB 443, MB 443 T, MB 443 X, MB 448 TX When starting a cold engine, first press the primer 21= three times. When starting a warm engine, it is not normally necessary to actuate the primer. In cold weather, however, it may be necessary to actuate the primer again (three times) when re-starting the engine. The primer must also be actuated three times when restarting after running empty and after refilling the tank.

• Re-filling with petrol must be performed before the engine is started. When the engine is running or is hot, the tank cap must not be removed and the tank must not be re-filled with petrol.

• Start the engine with care. Ensure that you keep your feet far enough away from the cutting tool.

• Risk of injury. Never put your hands or feet on or underneath cutting deck.

• Always wear robust shoes and long trousers when mowing. Never mow barefoot or in sandals.

• Never mow in the vicinity of other persons, particularly children, or animals. Stopping the engine Switching off the engine B= Release motorstop lever. The engine and blade come to a standstill following a brief run- down time.

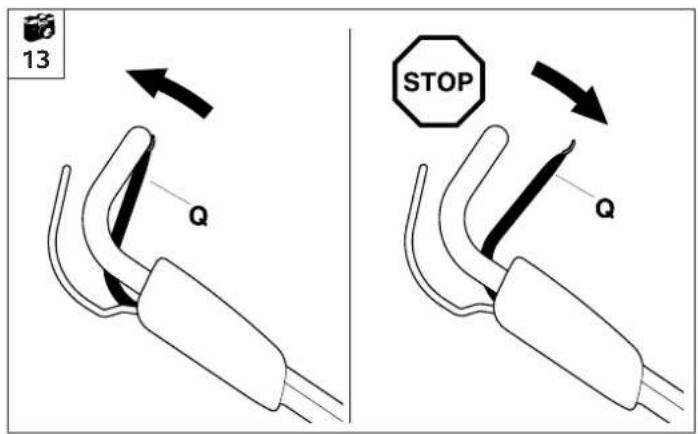

Wheel drive MB 443 T, MB 448 T, MB 448 TX Q= Pull wheel drive lever: The mower's wheel drive engages. Drive speed:

Release the wheel drive lever: The mower's wheel drive is disengaged.

Maintenance interval: Each time the appliance is used Clean the appliance thoroughly after mowing. Looking after your appliance carefully will protect it against damage and extend its service life. Clean the underside of the mower with water and a brush. Detach accumulated cutting deposits in the housing and in the ejection chute beforehand using a stick. Clean the mowing blade. Never spray water onto engine components, seals, bearing points or electrical parts such as switches. This would result in expensive repairs. Do not use aggressive cleaning agents. These cleaners can damage plastics and metals, impairing safe operation of your VIKING mower. If you are unable to remove the dirt with water, using a brush or a cloth, VIKING recommends the use of a special cleaner (e.g. STIHL special cleaner). Please note: Tilt up front of mower when carrying out cleaning or maintenance work. Never tilt to the side, otherwise petrol will run out. Empty the fuel tank (run empty), release the rotary handles and lift the ejection flap before tilting upwards.

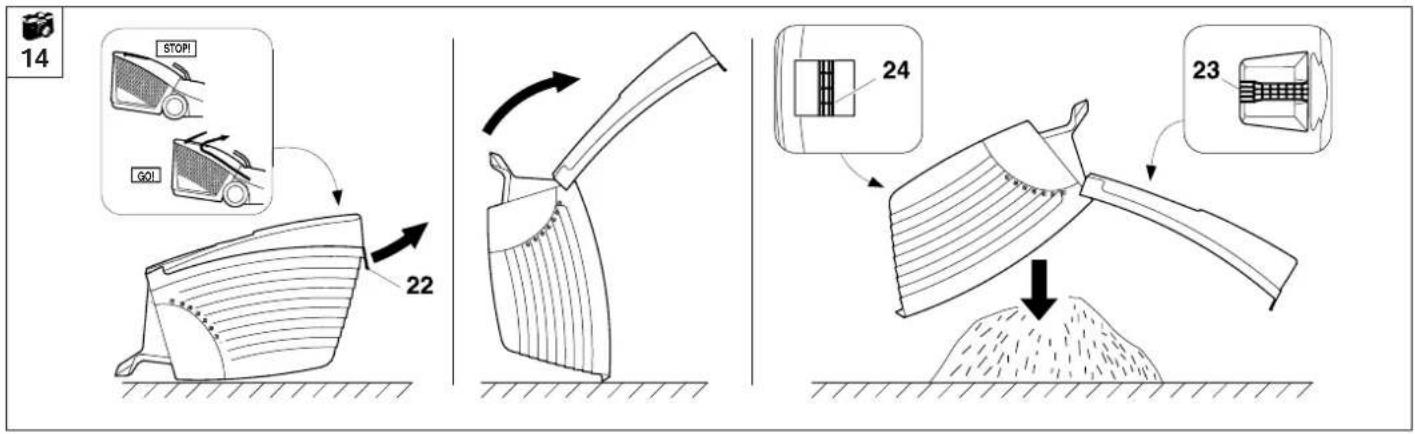

Cleaning the appliance Maintenance interval: See engine instruction manual Observe the operating and maintenance instructions con tained in the attached engine instruction manual. To achieve a long service life, it is always particularly impor - tant to maintain a sufficient level of oil and to change the oil and air filter regularly. The cooling ribs must always be kept clean to ensure that the engine is adequately cooled. Combustion engine Maintenance CAUTION Disconnect the spark plug socket before performing any maintenance or other work on the blade. Do not touch the blade until it has come to a standstill. Always allow the engine to cool before carrying out main - tenance and cleaning work. If you do not have the necessary expertise or auxiliary equipment, please always contact a specialist dealer. VIKING recommends that you have maintenance operations and repairs performed exclusively by a VIKING specialist dealer. VIKING recommends the use of original VIKING tools, accessories and spare parts. Risk of injury. Always wear gloves. Emptying the grass catcher bag If the level indicator closes (STOP position), the grass catcher bag is full and must be emptied. 22= Open the grass catcher bag at tab and fold the grass catcher bag upper part upwards. Fold back the full grass catcher bag. 24= The grass catcher bag can be emptied easily via the integral handle 23= on the grass catcher bag lower part and the integral handle on the grass catcher bag upper part. After emptying, close the upper part and lock back into position.

CAUTION Risk of injury. Always stop the engine before removing the grass catcher bag.10 0478 111 9912 I - EN Maintenance interval: Every 25 operating hours If mowing results deteriorate with time, the mowing blade is probably blunt. Removing the mowing blade For removal, 25= use a wooden block (approx. 60 x 60 mm) to counterhold the 26= mowing blade. 27= Remove blade attachment screw. Sharpening the mowing blade The following points must be observed when re-sharpening the mowing blade:

• Cool the mowing blade when sharpening, e.g. with water. The blade must not be allowed to display blue colouring, as this would reduce its cutting quality. Sharpening the mowing blades

The ball bearings of the wheels are maintenance-free. The gearbox is maintenance- free. Wheels and wheel drive

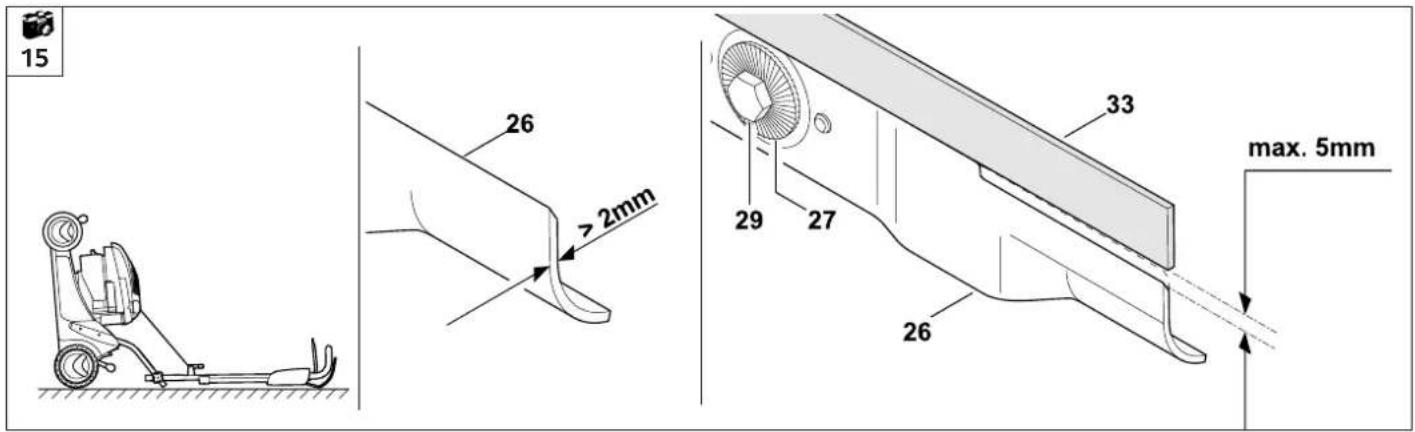

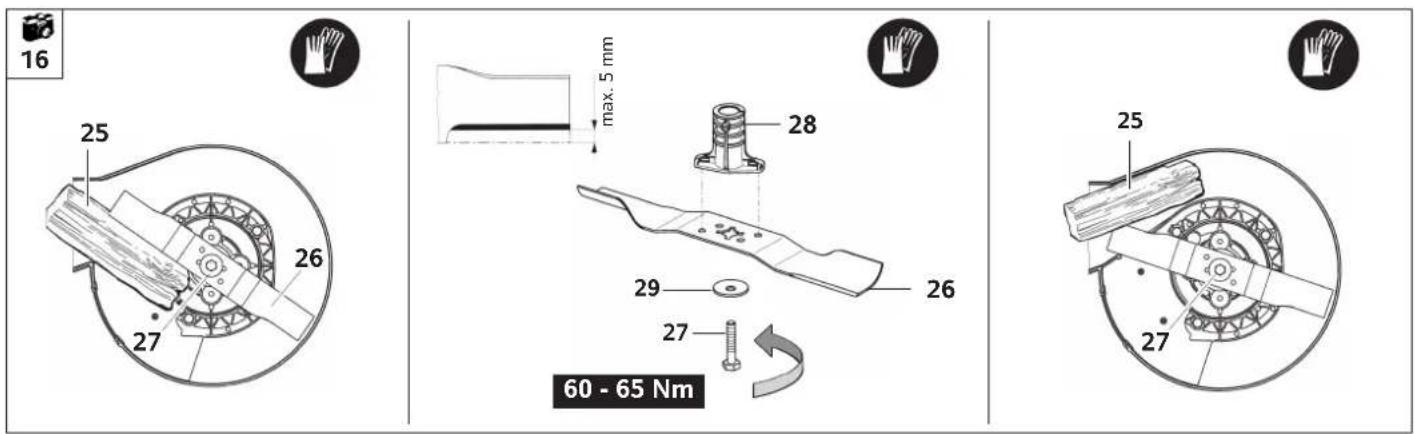

Mowing blade maintenance CAUTION Risk of injury! A worn blade may break off and cause serious injuries. The instructions for blade maintenance must therefore always be observed. Blades are subjected to differing degrees of wear depending on the location and duration of use. If you use the mower on sandy ground or use it frequently under dry conditions, the blade will be subjected to greater loads and will wear more quickly than the average. Always replace the blade fastening screw (27), retaining washer (29) when replacing the mowing blade. CAUTION Risk of injury! If you do not have the necessary expertise or auxiliary equipment, please always contact a specialist dealer. (VIKING recommends VIKING specialist dealers). VIKING recommends the use of original VIKING spare parts. Maintenance interval: Before each use Tilt the mower upwards into the cleaning position. 26= Clean the mowing blade and check it for damage (notches or cracks) and wear; replace if necessary. Wear limits: The blade thickness must be at least 2mmat any point. (Check using slide calliper). The blades may not be ground back by more than 5mmduring sharpening. When inspecting, place a 33= ruler against the front blade edge and check for wear. CAUTION If the supplied standard blade is not installed in the lawn mower, but e.g. the mulching blade, which is available as a special accessory, different wear limits apply.11 0478 111 9912 I - EN DEENFRNL

Installing the mowing blade Install the mowing blade with the curved edges pointing upwards. For installation, 25= use a wooden block (approx. 60 x 60 mm) to counterhold the 26= mowing blade. 28= Fit the mowing blade onto the blade mount and 27= tighten the blade fastening screw with 29= retaining washer to a torque of 60 - 65 Nm. CAUTION Observe the specified torque when tightening the blade fastening screw, as the secure attachment of the cutting mechanism depends upon it. Replace the retaining washer (29) each time the blade is installed. Additionally secure the blade fastening screw (27) with Loctite 243.

• Sharpen blades evenly to prevent vibration due to imbalance.

• Check blade for damage before installing. The blade must be replaced if notches or cracks are identified, if the blades are worn back by 5 mm, or if the blade is thinner than 2 mm at any point (wear limits). Maintenance interval: As required (wheel drive does not engage when the wheel drive lever is actuated) The cable is correctly adjusted in new units. The cable may have to be re-adjusted due to wear of the clutch or alteration of the cable length. Adjusting the drive cable MB 443 T, MB 448 T, MB 448 TX CAUTION Risk of injury! If the wheel drive cable is incorrectly adjusted, the mower may start to move unintentionally immediately when started and this may result in injury or damage to the appliance. The adjustment must be repeated (if necessary, contact a specialist dealer; VIKING recommends VIKING specialist dealers).

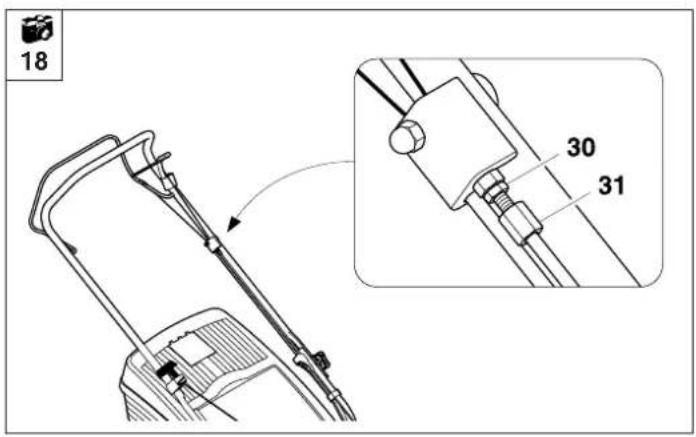

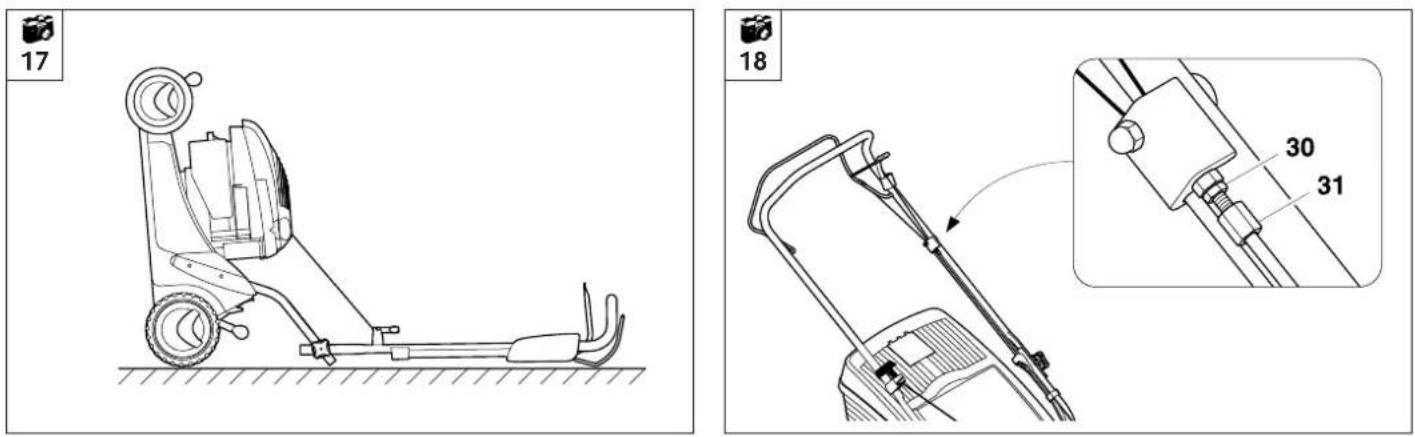

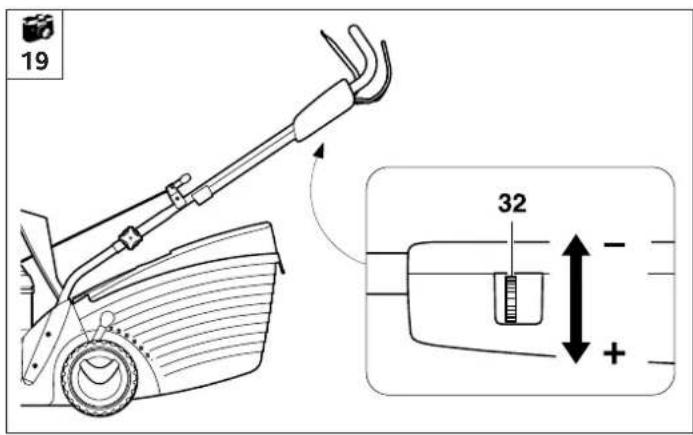

MB 443 T, MB 448 TX 30= Loosen the lock nut. 31= Loosen adjustment screw until the correct adjustment is achieved 31= Secure adjustment screw with 30= lock nut. MB 448 T The adjustment is made using an 32= adjustment screw located on the upper handlebar. The cable tension is increased by turning the adjustment screw in the "+" direction, turning it in the "-" direction reduces the tension. Correct adjustment: The driving wheels must lock after approx. one third of the lever travel. Actuate the drive lever while pulling the lawn mower backwards.12 0478 111 9912 I - EN Standard spare parts Mowing blade MB 443, MB 443 C, MB 443 T, MB 443 X

Environmental protection Lawn cuttings should be turned into com - post and should not be disposed of with the household waste. The appliance, its packaging and accessories are all produ - ced from recyclable materials and must be disposed of accordingly. By disposing of materials separately, and in an environ - mentally-friendly manner, valu - able resources can be re- used. For this reason, the appliance should be disposed of for recycling after completion of its useful life.

• Unscrew spark plug and pour approx. 3 ml of engine oil into the engine via the spark plug hole. Turn the engine several times with the spark plug removed. Caution: Keep the spark plug socket away from the spark plug hole due to danger of ignition. Re-install the spark plug.

• Cover the engine well and store the lawn mower in a dry, dust-free room in the normal position. Storage The storage room should be dry and be free of dust. The mower should also be stored out of reach of children. Any appliance faults must be remedied prior to storage in order to maintain a safe operating condition. Empty fuel tank and carburettor (e.g. by running empty). Winter break Note the following points when storing the mower for long periods:

• Carefully clean all external parts of the engine and mower, in particular the cooling ribs.

• Thoroughly lubricate/grease all moving parts.

• Empty fuel tank and carburettor (e.g. by running empty). The adjustment must be repeated (if necessary, contact authorised customer service). CAUTION Risk of injury! If, when pulling back, the driving wheels are locked when the drive lever is not actuated, the cable is adjusted incorrectly and the mower drive is permanently activated. Minimising wear and preventing damage Important information on maintenance and care of the product group Petrol Lawn Mowers Please always observe the following important information for the prevention of damage or excessive wear to your VIKING appliance:

Some parts of the VIKING appliance are subject to normal wear even when used properly and must be replaced in due time depending on type and duration of use. These include: - Blade - Grass catcher bag - V-belts (for MB 443 T, MB 448 T, MB 448 TX) NOTE The fastening elements of the mowing blade (e.g. blade fastening screw, lock washer) must be replaced when replacing the blade or when installing the blade. Spare parts are available from a VIKING specialist dealer.13 0478 111 9912 I - EN DEENFRNL

CE-Manufacturer's de cla - ration of conformity We, VIKING GmbH Hans-Peter-Stihl-Straße 5 A-6336 Langkampfen / Kufstein declare, that the machine, manually-operated lawn mower with combustion engine, Manufacturer's brand: VIKING Production identification: 6336 Type: MB 443.0 MB 443.0 C MB 443.0 T MB 443.0 X Production identification: 6356 Type: MB 448.0 MB 448.0 T MB 448 TX conforms to the following EC guidelines: 97/68/EC, 2000/14/EC, 2004/108/EC, 2006/42/EC The product has been developed and manufactured in conformance with the following standards: EN 836 Applicable conformity assessment procedure: Appendix VIII (2000/14/EC) Name and address of relevant, named location: TÜV Rheinland Product Safety GmbH Am Grauen Stein D-51105 Köln Compilation and storage of technical documentation: Johann Weiglhofer VIKING GmbH Measured sound power level: 94 dB(A) MB 443.0 MB 443.0 C MB 443.0 T MB 443.0 X 95 dB(A) MB 448.0 MB 448.0 T MB 448 TX Guaranteed sound power level: 96 dB(A) The year of manufacture and serial number appear on the identification plate of the machine. Langkampfen, 03.01.2011 VIKING GmbH Weiglhofer Research and Product Development Manager

2. Observance of the

information in this instruction manual The VIKING appliance must be used, maintained and stored with the care described in this instruction manual. Please refer to the engine manufacturer’s operating instructions for information on petrol and engine oil. Any damage caused by non- observance of the safety, operating and maintenance instructions is the sole responsibility of the user. This applies in particular to: - improper use of the product - product modifications not approved by VIKING - the use of tools or accessories which are not approved or suitable for the appliance, or are of inferior quality. - use of the product for sporting or competitive events - resultant damage due to continued use of the product with defective components

3. Maintenance operations

All work listed in the section “Maintenance” must be performed regularly. If these maintenance operations cannot be carried out by the user himself, a specialist dealer must be commissioned to do it. VIKING recommends that you have maintenance operations and repairs performed exclusively by a VIKING specialist dealer. VIKING specialist dealers regularly attend training courses and are provided with technical information. If these operations are neglected, faults may arise which are the responsibility of the user. These include: - corrosive and other resultant damage caused by incorrect storage - damage to the appliance through the use of inferior- quality spare parts. - damage due to untimely or inadequate maintenance or damage due to maintenance or repair work not performed in the workshops of specialist dealers.14 0478 111 9912 I - EN Fault Possible cause Remedy Illustra - tion Page - Engine will not start - Motorstop lever is not pressed - No fuel in tank; fuel line blocked - Inferior, dirty or old fuel in tank - Dirty air filter - Spark plug socket disconnected from spark plug; ignition lead incorrectly fastened to socket - Spark plug dirty or damaged; incorrect electrode gap - Engine is flooded due to several starting attempts - Mower housing is blocked - Press motorstop lever to handlebar - Top up fuel, clean fuel line - Always use fresh, good quality fuel, normal unleaded petrol; clean carburettor - Clean air filter - Connect spark plug socket; check connection between ignition lead and connector - Clean or replace spark plug; adjust electrode gap - Remove spark plug and dry; pull starter cord repeatedly with the spark plug removed - Clean the mower housing. (disconnect spark plug socket before cleaning) - Work at appropriate cutting height and mowing speed for mowing conditions - Clean mower housing (disconnect spark plug socket before cleaning) - Clean air filter - Clean spark plug - Re-sharpen or replace mowing blade - Empty fuel tank, clean fuel line and carburettor - Mowing grass which is too long or too wet - Mower housing is blocked - Dirty air filter - Dirty spark plug - Mowing blade is blunt or worn - Water in fuel tank and carburettor; carburettor blocked - Starting problems or deteriorating engine performance Troubleshooting

Fault Possible cause Remedy Illustra - tion Page - No drive when drive lever is actuated - Drive cable incorrectly adjusted - Readjust drive cable - Engine overheating - Cooling ribs are dirty - Oil level in engine too low - Clean cooling ribs - Top up engine oil - Poor cut, lawn turning yellow - Mowing blade is blunt or worn - The rate of feed is too high in relation to the cutting height - Re-sharpen or replace mowing blade - Reduce rate of feed and/or select correct cutting height - Ejection chute blocked - Mowing blade is worn - Mowing grass which is too long or too wet - Replace the mowing blade - Work at appropriate cutting height and mowing speed for mowing conditions (select correct cutting height) - Excessive vibration during operation - Blade fastening screws are loose - Engine mounting is loose - Blade imbalance due to incorrect re-sharpening or fracture - Tighten blade fastening screws (if necessary, contact authorised customer service) - Tighten engine mounting bolts - Re-sharpen (balance) or replace blade

dB(A) 82.5 82.5 84 84 / 83 Specified vibration characteristic in accordance with EN 12096: measured value a

Provide your VIKING specialist dealer with this instruction manual when you have maintenance operations performed on your VIKING product. Your VIKING specialist dealer will confirm the correct performance of the required service operations in the “Service schedule” section. Service schedule VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Model: MB Serial number: Handed over Date: VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date:18 0478 111 9912 I - EN VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date: VIKING dealer stamp Next service Date: Date:1 0478 111 9912 I - FR DEENFRNL
