MS 7020 - Steam cleaner Mesko - Free user manual and instructions

Product type	Steam cleaner (steam mop)
Brand	Mesko
Model	MS 7020
Power supply	220-240 V ~ 50 Hz
Rated power	1300 W
Water tank capacity	800 ml
Electrical insulation class	Class I (requires grounded outlet)
Main materials	Plastic, microfiber
Main functions	Steam cleaning, disinfection (8-15 seconds on surface)
Use	On sealed hard floors (tile, linoleum, vinyl), carpets/rugs with triangle, waxed surfaces with caution
Included accessories	Handle, shell, water tank, cleaning nozzle, triangle, microfiber cloth, water measuring cup
Cleaning and maintenance	Microfiber cloth machine washable; monthly descaling mandatory with descaling solution
Safety	Do not immerse, do not use without cloth, do not point at people/animals, do not use on raw wood
Repairability	Repair by authorized service only; damaged cord replaced by professional
Environment	Do not dispose with household waste; recycle via collection points

Frequently Asked Questions - MS 7020 Mesko

How to use the Mesko MS 7020 steam cleaner?

Attach the cleaning nozzle (J) to the shell (F), insert the handle (A), secure the microfiber cloth (K) with the string. Fill the water tank (D) with max 800 ml, plug into a grounded outlet (220-240V). Press the button (B) to release steam and move slowly over the surface. Unplug after use.

What types of floors can I clean with this steam mop?

Use it on sealed hard floors like tile, linoleum, vinyl. On carpets or rugs, install the cleaning nozzle on the triangle (L). Avoid raw wood and waxed surfaces (steam can remove wax). Always test on an inconspicuous area.

How to disinfect floors with this cleaner?

To disinfect, hold the mop on the surface for 8 to 15 seconds. Suitable for bathroom, kitchen, shower. Do not exceed 15 seconds to avoid limescale deposits.

What to do if the water tank fills poorly or leaks?

Never let the tank overflow (max capacity 800 ml). To remove the tank, lift it slightly and pull towards you. If leaks occur, check that the tank is properly engaged and the filter is not blocked.

How to clean and maintain the steam mop?

Unplug before cleaning. The microfiber cloth is machine washable. Wipe the appliance with a damp cloth. Perform monthly descaling: remove tank and filter, pour descaling solution, rinse thoroughly, then run 3 cycles of clear water.

Can I use cleaning products in the tank?

No. Never pour cleaning products into the water tank. Use only water. This could damage the appliance.

Does the steam mop heat up normally?

Yes, steam comes out hot. The cloth may be hot after use. Wait for it to cool before removing. Do not touch hot parts.

What safety precautions are important?

Use only on a grounded outlet. Do not leave the appliance plugged in unattended. Do not direct steam at people or animals. Do not use on raw wood, and store it upright in a dry, cool place.

Where to find spare accessories (cloths, filters)?

Original Mesko accessories, such as microfiber cloths and filters, are available at your dealer. Use only accessories recommended by the manufacturer.

What to do if the appliance does not produce steam?

Check that the water tank is filled (not empty) and properly installed. Make sure the plug is connected and the power button is pressed. If the problem persists, the appliance may be clogged; perform descaling. If nothing works, contact an authorized repair service.

USER MANUAL MS 7020 Mesko

3D rendering of a handheld vacuum cleaner with handle and base (no text or symbols visible)

MS 7020

ENGLISH

SAFETY CONDITIONS. IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.
3. The appliacable voltage is 220-240V, \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.
4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.
5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.
6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!
7. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.
8. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.
9. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.
10. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.
11. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.
12. Never use the product close to combustibles.
13. Do not let cord hang over edge of counter.
14. Do not immerse the motor unit in water.
15. Always unplug the mop from the power source after use. Do not pull the power cord.
16. Never handle the steam mop with wet hands or when not wearing shoes.

17. Never insert any objects into the mop nozzles. If any of the nozzles is blocked, do not use the mop.

18. Do not use the mop without placing the cleaning pad over the mop head. Do not use the mop when the water tank is empty.

19. Be especially cautious when using the steam mop on the stairs.
20. Store the device inside, in upright position and in a cool and dry place.
21. When using the mop, make sure that the surface to be cleaned is well lit.
22. Never pour any cleaning solutions into the water tank. They may damage the device.
23. Never block the steam nozzles. Never use the mop on soft surfaces because the steam nozzles may get blocked. Always clean the steam nozzles by removing all the fuzz, hair etc.
24. Use only the attached accessories recommended by the manufacturer.
25. Never direct the steam towards people or animals.
26. Do not use the steam mop on unprotected wood surfaces. The hot steam may remove the wax when you use the mop on waxed surfaces. Never leave the mop running on wood surfaces for a long period of time.
27. Be careful when using the mop on vinyl floors, linoleum or any temperature-sensitive surfaces. Always test the mop on a small floor area in an inconspicuous place. Before use, read the floor manufacturer's instructions for cleaning to make sure that the surface may be steam-cleaned.
28. The steam mop may be used for disinfecting floors in the bathroom, kitchen, shower, etc. To disinfect the area, hold the running mop on the surface being cleaned for at least 8 seconds but no longer than 15 seconds.
29. Leaving the steam mop running in the same spot without moving it for longer than recommended may result in accumulation of sediment. The sediment can be removed with a descaling solution or a few drops of vinegar.
30. Steam mop should be used only on sealed floors.

DESCRIPTION OF DEVICE

1. Attach the head (pic 1, J) to the body (pic 1, F).
2. Insert the handle (pic 1, A) into the body (pic 1, F).
3. Place the microfiber cloth (pic 1, K) on the head (pic 1, J) and fasten it by pulling the cord.
4. When using steam mop on a carpet place the head on the glider (pic 1, L).
   CAUTION! Never use steam mop without the microfiber cloth pad on.
5. To remove the water tank (pic 1, D) push it up and detached from the body as shown below (pic 3).
6. Pour two measuring cups (pic 1, M) of water into the water tank (pic 1, D). The maximum capacity for the water tank is 800ml. Caution! Never overflow the water tank, because it can cause water leakage!
7. Twist the upper cord wrap (pic 1, I) clockwise, unwarp the power cord and plug it into a grounded outlet.
8. Slowly pass over the surface to be cleaned pressing the trigger (pic 1, B) to release steam when needed. It is recommended to sweep or vacuum floor prior using steam mop.
9. When you are done using the mop unplug the power cord from the outlet, empty the water tank and carefully remove the microfiber cloth pad.
   WARNING! The microfiber cloth pad can be very hot.

CLEANING AND MAINTENANCE

1. Before cleaning unplug the mop from the power outlet.
2. Microfiber cloth pad can be washed in the washing machine. Steam mop should be used only with specially designed by manufacturer accessories - microfiber cloth pads and filters are available to purchase from your retailer.
3. Wipe the mop with a rug. Never immerse the unit in the water!
4. At least once a month clean the mop from the sediment:

a) detach the water tank and filter

b) prepare the descaling solution in the measuring cup

c) place steam mop on the surface, which not absorb water, like platic plate. Connect mop to the main outlet.

d) fill the mop slowly with descaling solution, pressing the trigger (pic 1, B) until you will see wet sign under the mop. Disconnect steam mop from the electricity for a few minutes.

WARNING: Descaling solution is very caustic.

e) rinse out the measuring cup accurately.

f) to clean the steam mop from the descaling solution, fill the water tank with water and generate steam like in normal use. Repeat three times. Device is made in class I of insulation and has to be connected only to power outlet

TECHNICAL DATA:

Power source: 220-240V \~50Hz

Power: 1300W

Device is made in class I of insulation and has to be connected only to power outlet with ground circuit. Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.

DEUTSCH

DESCRITPION DE L'APPAREIL (IMAGE N° 1)

BESCHRIJVING VAN HET APPARAAT

OPIS PRODUKTU (rys. 1)

White portable flat-screen heater with visible heat dissipation, no text or symbols on body

Quartz Heater MS 7710

Black rectangular electrical stove with two circular lamps and red indicator lights (no visible text or symbols)

Double hot plate MS 6509

White portable water heater with visible internal branding and control buttons (no text or symbols on body)

Electric Kettle MS 1276

Black-and-white photo of a standing electric fan with three blades and a stand (no text or symbols visible)

Standing Fan MS 7311

Close-up of a stainless steel kitchen scale with digital display (no visible text or symbols)

Kitchen Scale MS 3152

Black and white photo of a portable food processor with a red and green button (no visible text or symbols)

Sandwitch Maker MS 3032

Black and orange hairbrush with black and orange stripes (no visible text or symbols)

Hair Clipper MS 2830

Modern stainless steel kettle with black handle and side panel (no visible text or symbols)

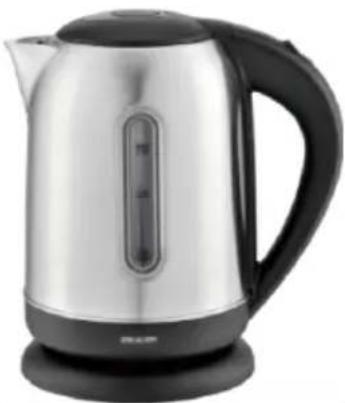

Electric Kettle MS 1288

Black and silver photo of a microwave grater with a control knob (no visible text or symbols)

Sandwitch Maker MS 3045

mesko

White analog pressure scale with a small dial and 'mesiko' label (no additional text or symbols)

Bathroom scale MS 8160

Red handheld device with a metallic stand and circular base (no visible text or symbols)

Milk Frother MS 4462

Black and silver hairbrush with a red button, no visible text or symbols

Professional pet hair clipper MS 2826

White and blue washing machine with handle and control panel (no visible text or symbols)

Washing machine MS 8053

Close-up of a small ceramic coffee maker with clear glass lid and black handle (no visible text or symbols)

Coffee Grinder MS 4465

Hand Blender MS 4619

Exterior view of a stainless steel-colored flatbread electric cooker with open lid (no text or symbols visible)

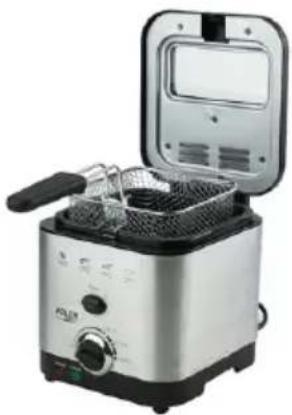

Deep Fryer 1,5L MS 4911

Red and black iron iron with steam iron, no visible text or symbols

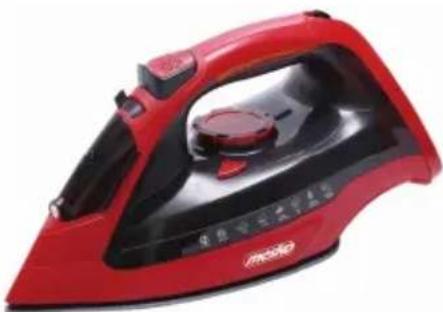

Steam Iron MS 5031
