MS 4613 - Blender Mesko - Free user manual and instructions

Product Type	Blender
Brand	Mesko
Model	MS 4613
Power	500 W
Capacity	1.5 L
Jar Material	Plastic (BPA-free)
Number of Speeds	2 + Pulse
Blade Material	Stainless Steel
Dimensions (H x W x D)	40 cm x 16 cm x 16 cm
Weight	1.2 kg
Cord Length	1.0 m
Safety Feature	Safety lock on jar
Dishwasher Safe Parts	Jar and lid (top rack)
Functions	Blending, mixing, pureeing, crushing ice
Cleaning	Wipe base with damp cloth; jar washable
Spare Parts Available	Yes (jar, blades, seals)
Repair Index	Not rated

Frequently Asked Questions - MS 4613 Mesko

How do I clean the Mesko MS 4613 blender?

Unplug the blender. Wipe the motor base with a damp cloth. The jar, lid, and blades can be washed in warm soapy water or placed on the top rack of the dishwasher. Dry thoroughly before reassembly.

Can I crush ice in this blender?

Yes, the MS 4613 is capable of crushing ice. Use the Pulse function in short bursts to avoid overloading the motor.

What is the maximum capacity for blending hot liquids?

Do not blend hot liquids above 60°C. Allow them to cool slightly to prevent pressure buildup and potential lid blow-off.

Why does my blender not start?

Check that the jar is properly seated on the base and the lid is locked. The blender features a safety interlock; it will not operate if assembled incorrectly.

Is the blender jar BPA-free?

Yes, the plastic jar is made from BPA-free materials for safe food contact.

What is the warranty period for the Mesko MS 4613?

Mesko typically offers a 2-year warranty from the date of purchase. Keep your receipt or proof of purchase.

Can I blend nuts or seeds?

Yes, you can blend soft nuts and seeds, but avoid very hard items like whole coffee beans. For optimal results, cut nuts into smaller pieces.

How do I replace the blade assembly?

Replacement blade assemblies are available from Mesko. To replace, unscrew the old blade unit from the jar and screw in the new one. Ensure the seal is in place.

Is the blender suitable for making smoothies?

Absolutely. The MS 4613 is designed for smoothies, shakes, and purees. Use the highest speed for creamy results.

What should I do if the blender vibrates excessively?

Excessive vibration may indicate an unbalanced load. Place the blender on a flat, stable surface. Reduce the quantity or cut ingredients into smaller pieces.

USER MANUAL MS 4613 Mesko

Product photo of a Lesko robotic brush (no visible text or symbols on body)

AD 4613

(GB) user manual

(F) mode d'emploi

SAFETY CONDITIONS. IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.

3. The appliacable voltage is 230V \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.

4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!

7. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.

8. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

9. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.

10. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

11. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

12. Never use the product close to combustibles.

13. Do not let cord hang over edge of counter.

14. Do not immerse the motor unit in water.

15. The attachments not recommended or not sold by the manufacturer should not be used because that may cause fire, electrical shock or injury.

16. Do not use the appliance for other than its intended use. The blades are very sharp!

Care is needed when handling them

1. Never blend hot oil or fat.

2. Keep fingers away from moving parts.

3. Do not cover vents.

4. Do not use with wet hands.

5. Never blend bones, ice, coffe or peanuts.

6. When changing accessories, be sure that device is NOT connected to electricity.
7. Short-time operating: Use the appliance for no longer than 50 seconds and leave it cooled down completely before using again about 4 minutes.
8. Before first use, clean the device.
9. When cleaning device, do not use aggressive detergent, it may damage the cover of the device.

PRODUCT DESCRIPTION (pic. 1)

A1) ON/OFF switch, I speed

A2) ON/OFF switch, II speed

B) motor

C) blender (removable)

USING THE DEVICE

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby

food as well as for mixing and milkshakes.

1. Turn the blender stick on the motor unit until it is locked.
2. Place the hand blender in the jug. Then press the two level control switch (A1) level I or (A2) switch level II.
3. Turn the blender stick off the motor unit after use.

CLEANING AND MAINTENANCE

Never put motor part into water and keep away from wet. Before cleaning always switch off and unplug from the socket.

1. Always unplug the appliance from the power supply before cleaning.
2. Do not immerse the motor unit in water or any other liquid.
3. Wipe the outside of the motor unit with only a slightly moistened cloth and polish with a soft dry cloth.
4. Wash the detachable accessories in soap water, such as blender sticks, gear boxes, whisk, bowl, jug, blade, ice crusher, vessel. Do not use scouring pads for the plastic materials. Rinse them with clear water and dry them. Do not place them in the dishwasher.
5. Do not clean with any abrasive scouring pad or steel wool, as this will damage the finish of the appliance.

TECHNICAL DATA

Power: 200W

Voltage: 230V\~50Hz

Max working time: 50 s

Time to rest of device: 4 min

Device is made in class II of insulation. Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.

DEUTSCH

DESCRIPTION DE L'APPAREIL (IMAGE 1)

(data sprzedaży)

SERWIS CENTRALNY

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Black outdoor grill with grating and side legs (no visible text or symbols)

ELECTRIC GRILL AD 6602

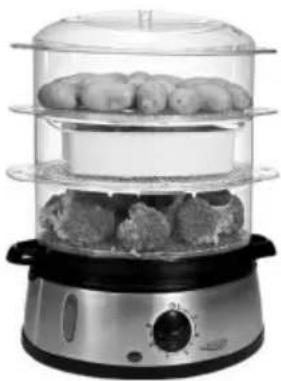

Steamed food heater with three-tiered dish, showing meatballs and a baking pan (no text or symbols visible)

STEAM COOKER AD 634

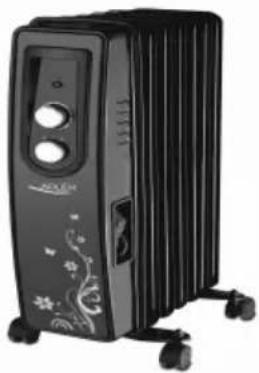

Black electric heater with floral decoration and control panel (no visible text or symbols)
