Product Type	Fan Heater
Brand	Mesko
Model	MS 7704
Dimensions (H x W x D)	25 x 20 x 15 cm
Weight	1.2 kg
Power Supply	220-240 V, 50/60 Hz
Heating Power	2000 W
Heating Levels	2 (1000 W / 2000 W)
Fan Function	Cool air only (summer mode)
Thermostat	Adjustable thermostat
Safety Features	Overheat protection, tip-over switch
Housing Material	Plastic with metal grille
Color	White / Black (depending on variant)
Noise Level	Approx. 45 dB
Control Type	Rotary knobs or push buttons
Oscillation	Yes (70° oscillation)
Protection Class	Class II (double insulated)
IP Rating	IP20
Cleaning	Wipe with dry cloth; do not immerse
Maintenance	Clean air inlet/outlet regularly
Spare Parts	Replacement heating element, fan motor
Repairability	Modular design; serviceable by qualified technician
Accessories	None included
Certifications	CE, RoHS

Frequently Asked Questions - MS 7704 Mesko

How to turn on the heater?

Plug the device into a power outlet. Set the mode selector to the desired heating level (1000W or 2000W) or fan-only mode. Adjust the thermostat to your preferred temperature. The heater will start automatically.

Can I use the heater in a bathroom?

No, this heater is rated IP20 and is not suitable for bathrooms or damp environments. Keep away from water.

How to clean the heater?

Always unplug the heater before cleaning. Use a dry or slightly damp cloth to wipe the exterior. Clean the air inlet and outlet grilles with a vacuum cleaner or soft brush to remove dust.

Why does the heater turn off suddenly?

The heater may have activated the overheat protection. Check if the air inlet/outlet are blocked. Let the device cool down for a few minutes, then restart. If it persists, contact service.

Does the heater have a remote control?

No, the MS 7704 does not come with a remote control. Controls are manual on the unit.

Can I use an extension cord?

It is recommended to plug the heater directly into a wall outlet. If necessary, use a heavy-duty extension cord with a minimum cross-section of 1.5 mm² and ensure it is fully unrolled.

How loud is the heater?

The noise level is approximately 45 dB, similar to a quiet conversation. It may vary slightly depending on the fan speed.

What is the warranty period?

The standard warranty is 2 years from the purchase date. Keep your receipt as proof of purchase.

Can I leave the heater unattended overnight?

It is not recommended to leave any heater unattended while sleeping. Always follow safety guidelines and turn off the heater when not in use.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com in PDF format. You can also request a translated version by providing your language preference and email address on the site.

USER MANUAL MS 7704 Mesko

White Les Kosovo electric heater with grid fan and control knobs (no visible text or symbols)

MS 7704

(GB) user manual

(F) mode d'emploi

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose."

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.

3. The applicable voltage is 230V, \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.

4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!

7. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

8. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.

9. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

10. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

11. Never use the product close to combustibles.

12.Do not let cord hang over edge of counter or touch hot surfaces.

1. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.

2. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30 mA. Contact professional electrician in this matter.

1. Never use this device close to water, e.g.: Under shower, in bathtub, or above sink filled with water.

2. If using the device in bathroom after use remove the power plug from the socket, because water proximity presents risk, even if the device is turned off.

3. Do not allow the device or power adaptor to wet. If the device falls into water, immediately remove the power plug or power adaptor from the socket. If the device is powered, do not put hands in the water. Have the device checked by the qualified electrician before using it again.

4. Do not touch the device or power adaptor with wet hands.

5. Place the fan heater only on flat, stable surface

6. Always turn the fan heater off and set the thermostat dial to minimum before removing the power plug from the socket.
7. Never use the fan heater in high humidity rooms – bathroom, shower room, swimming pools etc. The humidity can cause short circuit, and effect in damaging the device.
8. The operating fan heater needs to be under supervision and in sight all the time. If you are leaving the room with the fan heater, always turn the fan heater off. If the fan heater is not used, the power plug has to be removed from the power outlet.
9. Do not connect the fan heater to the automatic switching device, for example temperature controlling device or time switch.
10. Flammable materials, for example furniture, bedclothes, paper, clothes, curtains should be kept at least one meter from the fan heater.
11. Do not cover the device or put any objects on it while it is operating. Do not use the device to dry clothes.
12. The power cord should not be placed above the fan heater, and it should not touch or be placed near hot surfaces of the fan heater. Do not place the fan heater directly under the power outlet.
13. The heating surfaces can heat to a temperature of 60 °C or higher. The fan heater should be in a place that children and animals do not have access to.
14. The device is not intended to be installed or used in vehicles.
15. Some parts inside the device can be hot or cause sparking. Do not use the fan heater in places, where gasoline, paints or other flammable materials are used or stored.

DESCRIPTION OF THE DEVICE

1. Thermostat dial

2. Power switch/heating power selector

(a) - cold airflow

(b) - 1000W

(c) - 2000W

USING THE DEVICE

The fan heater has two levels of heating power.

Position 0 - device is switched off

Position ✗ - unheated air flow

Position • - 1000 W warm air flow

Position ●● - 2000 W hot air flow

On both heating levels the temperature can be adjusted using thermostat dial (1).

The device is protected against the overheating by the means of a thermal switch, which can power it off for a while. If this happens, unplug the device and wait couple of minutes. After a while you can continue to use the device.

CLEANING AND MAINTENANCE

1. Make sure the fan heater is not hot.
2. Before cleaning the device remove the plug from the electrical socket.
3. Keep the air inlet and outlet openings clean. Do not allow dust to collect on the openings.
4. Clean the housing using only dry or moist cloth.
5. Do not immerse the device in water!

TECHNICAL DATA

Voltage: 220-240V \~50Hz

Power: 2000W

This device is made in class II insulation and does not require grounding.

The device is compliant with the requirements of the following standards:

The Low Voltage Standard (LVD)

Electromagnetic compatibility (EMC)

The product is CE marked on the nameplate

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.

DEUTSCH

(a) - ar frio
(b) - 1000W
(c) - 2000W

BESCHRIJVING VAN HET APPARAAT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Black portable grill with mesh grille and side legs (no text or symbols visible)

ELECTRIC GRILL AD 6602

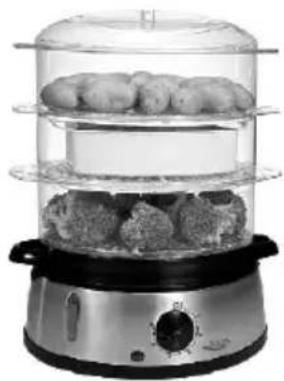

Steamed kitchen appliance with three-tiered steamer and food items (no visible text or labels)

STEAM COOKER AD 634

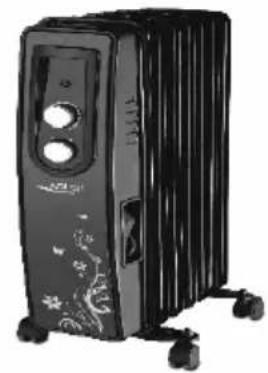

Black industrial air conditioner unit with floral decoration (no visible text or symbols)
