M3TM - Power bank APC - Free user manual and instructions

Brand	APC
Model	M3TM
Product type	Portable battery (Power Pack)
Battery technology	Lithium-ion
Battery capacity	3000 mAh
Nominal voltage	3.7 V
Input voltage	5 V
Maximum input current	1 A
Output voltage	5 V
Maximum output current	1 A (USB)
Charging time	3 h 30 (at 5 V / 1 A)
Operating temperature	0 °C to 40 °C
Input connector type	Micro-USB
Output connector type	USB Type A
LED indicators	Solid green (charged), Solid orange (charging a device), Blinking orange (overload), Alternating green/orange (charging)
Feature	Direct charging mode (charges the mobile device first, then the power pack)
Safety	Short-circuit protection, overload protection
Power button	Yes (to force charging)
Included cable	USB cable
Recycling	Dispose of used batteries at an appropriate center
Warranty	Contact your local APC by Schneider Electric reseller
Customer support	www.apc.com

Frequently Asked Questions - M3TM APC

How to charge the Power Pack M3TM?

Connect the provided micro-USB cable to the input port of the power pack, then connect the other end to a USB charger (5V/1A) or to a USB port of a powered-on computer. The indicator blinks green and orange during charging, then becomes solid green when charging is complete (approximately 3h30).

How long does it take to fully charge the device?

The charging time is approximately 3h30 with a USB charger delivering 5V/1A. This time may be longer if you use the direct charging mode (which charges a mobile device first before the power pack).

What devices can I charge with this power pack?

You can charge smartphones, portable media players, and tablets via the USB output port (5V/1A). Use the USB cable provided with your device or a compatible replacement cable.

What to do if the power pack does not charge my device?

Check that the USB charger works or that the computer is not in sleep mode. Try another micro-USB cable. If the problem persists, press the power button on the M3 to force charging. If nothing works, the replacement cable may be incompatible: use the original cable of your device.

What does the blinking orange LED mean?

A blinking orange LED indicates an overload condition: the USB output current exceeds the specified limit (1A). Disconnect the device being charged immediately to avoid damage.

Can I use a non-provided USB cable?

Yes, you can use other USB cables, but some replacement cables may not work correctly with the M3 battery pack. If the cable does not work, try pressing the power button or replace it with the original cable of your device.

How to recycle the battery?

Do not dispose of the battery with household waste. Place used batteries at an appropriate recycling center or return them to an approved collection point. For more information, contact your local APC by Schneider Electric reseller.

What to do in case of a malfunction?

If the battery no longer works after trying the troubleshooting solutions, contact your local APC by Schneider Electric reseller or an authorized service agency. Do not attempt to repair the device yourself, as it is not user-serviceable.

Where to find customer support?

You can visit the global APC by Schneider Electric website at www.apc.com for country-specific support. You can also contact your local reseller or an authorized APC service agency.

Can I charge my device and the power pack at the same time?

Yes, the direct charging mode allows charging the connected mobile device first, then the power pack itself. This extends the total charging time of the power pack. To charge only the power pack, disconnect any connected device.

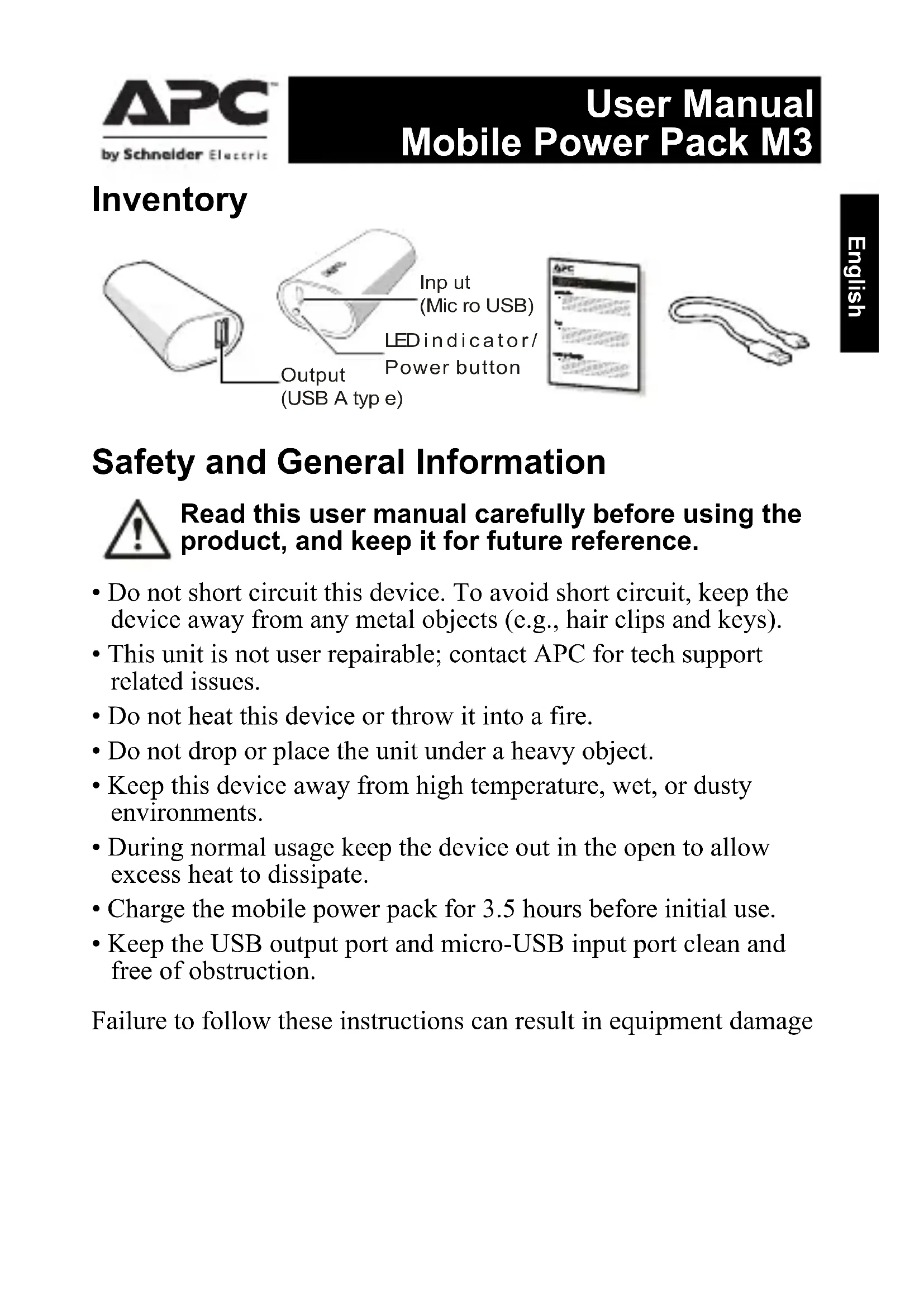

USER MANUAL M3TM APC

Mobile Power Pack M3

User Manual

Installationshandbuch

Guide d'utilisation

Manuale dell'utente

naydaHyMbI HyCKayIbIFblH

Manual do Utilizador

PykoBoDCTBO NOIb3OBaTeJIa

Kullanma Kilavuzu

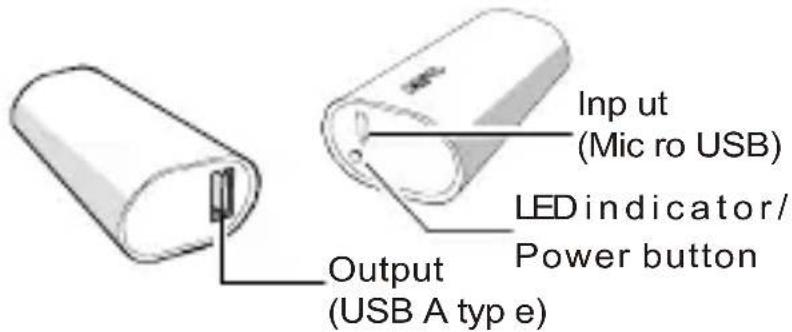

Inventory

Safety and General Information

Read this user manual carefully before using the product, and keep it for future reference.

• Do not short circuit this device. To avoid short circuit, keep the device away from any metal objects (e.g., hair clips and keys).
• This unit is not user repairable; contact APC for tech support related issues.
• Do not heat this device or throw it into a fire.
• Do not drop or place the unit under a heavy object.
• Keep this device away from high temperature, wet, or dusty environments.
• During normal usage keep the device out in the open to allow excess heat to dissipate.
• Charge the mobile power pack for 3.5 hours before initial use.
• Keep the USB output port and micro-USB input port clean and free of obstruction.

Failure to follow these instructions can result in equipment damage

Operation

Charging USB based devices (smartphones, portable media players and tablets)

Charge devices using the USB cable that came with the unit, or another USB charging cable.

Properly connect the mobile power pack with the device to be charged.

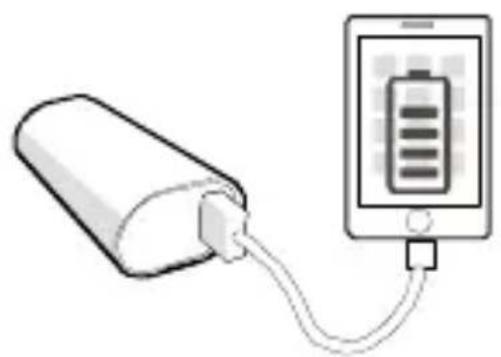

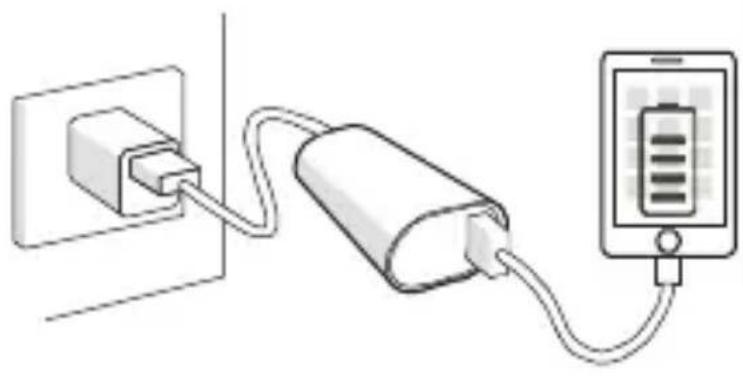

a. Charge a mobile device via the M3 power pack.

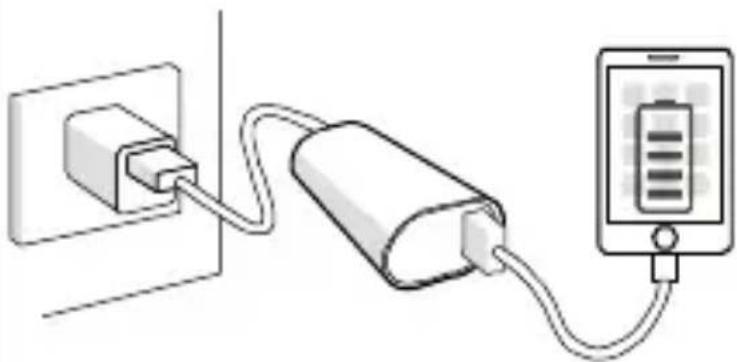

b.Pass through charging mode will charge the mobile device first, then charge the M3 power pack.

Charging the M3 Power Pack

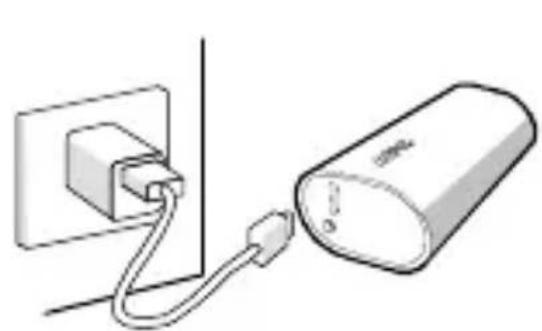

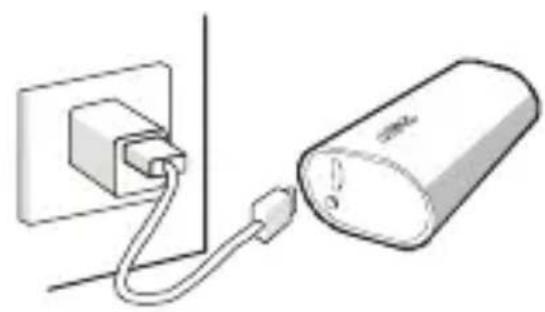

Charge via USB charger or computer

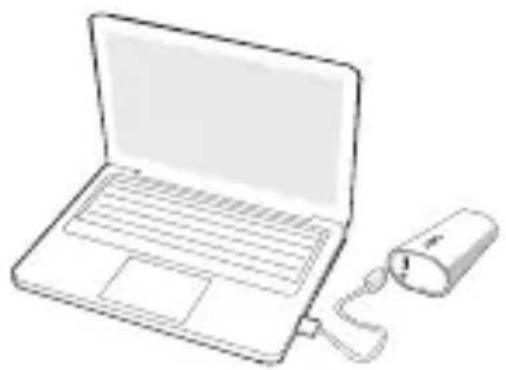

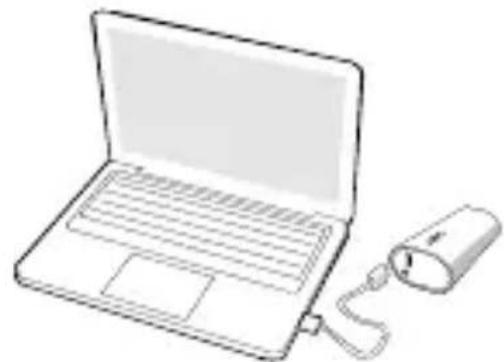

Connect the M3 power pack to a USB charger or to a USB port of a computer. (Note: computer must be in active mode.)

Status Indicators

LED Indication Status
Flashing alternately Green / Orange	Power Pack is being charged
Solid Green Fully charged
Solid Orange Power Pack is charging a device
Flashing Orange Overload condition

Specifications

Battery cell	Li-ion 3000mAh, 3.7V
Input current (maximum)	1A
Rated input voltage	5V
Output current	USB 1A maximum
Charge time at 5V/1A	*3.5 hours
Operating temperature	0°C~40°C (32°F ~ 104°F)

• The charging time will be longer under pass through charging mode.

Battery Recycling Information

Always dispose of used or spent batteries properly.

Return the spent battery to an appropriate facility for proper disposal and recycling.

Warranty

Contact your local APC by Schneider Electric dealer, an authorized APC by Schneider Electric service agency, or APC by Schneider Electric Customer Support.

Troubleshooting

Problem / Possible Cause Solution
The mobile power pack cannot be charged
USB charger may be malfunctioning or the computer is in sleep mode.	Try another USB charger or wake the computer from sleep mode.
The micro USB cable and connector contacts have worn out.	Try a new micro USB connector
The mobile power pack cannot charge some devices.
The mobile power pack may have failed to recognize and detect the devices connected to it.	Some after market USB cables may not work well with the M3 battery pack. To resolve this issue, press the power button on the M3 to start charging the device. If the battery pack still won't charge your device, replace the after market cable with the original cable that came with your device.
An overload condition has occurred and the M3 Orange LED is flashing.	The M3 is charging a device and its USB output current exceeds the specified range. Detach the device being charged from the M3 power pack.
The life of the mobile power pack has expired or a fault has occurred in it.	In case of a system fault, contact your local APC by Schneider Electric dealer or authorized APC by Schneider Electric service agency.

APC by Schneider Electric IT Customer Support Worldwide

For country specific customer support, go to the APC by Schneider Electric Web site, www.apc.com.
