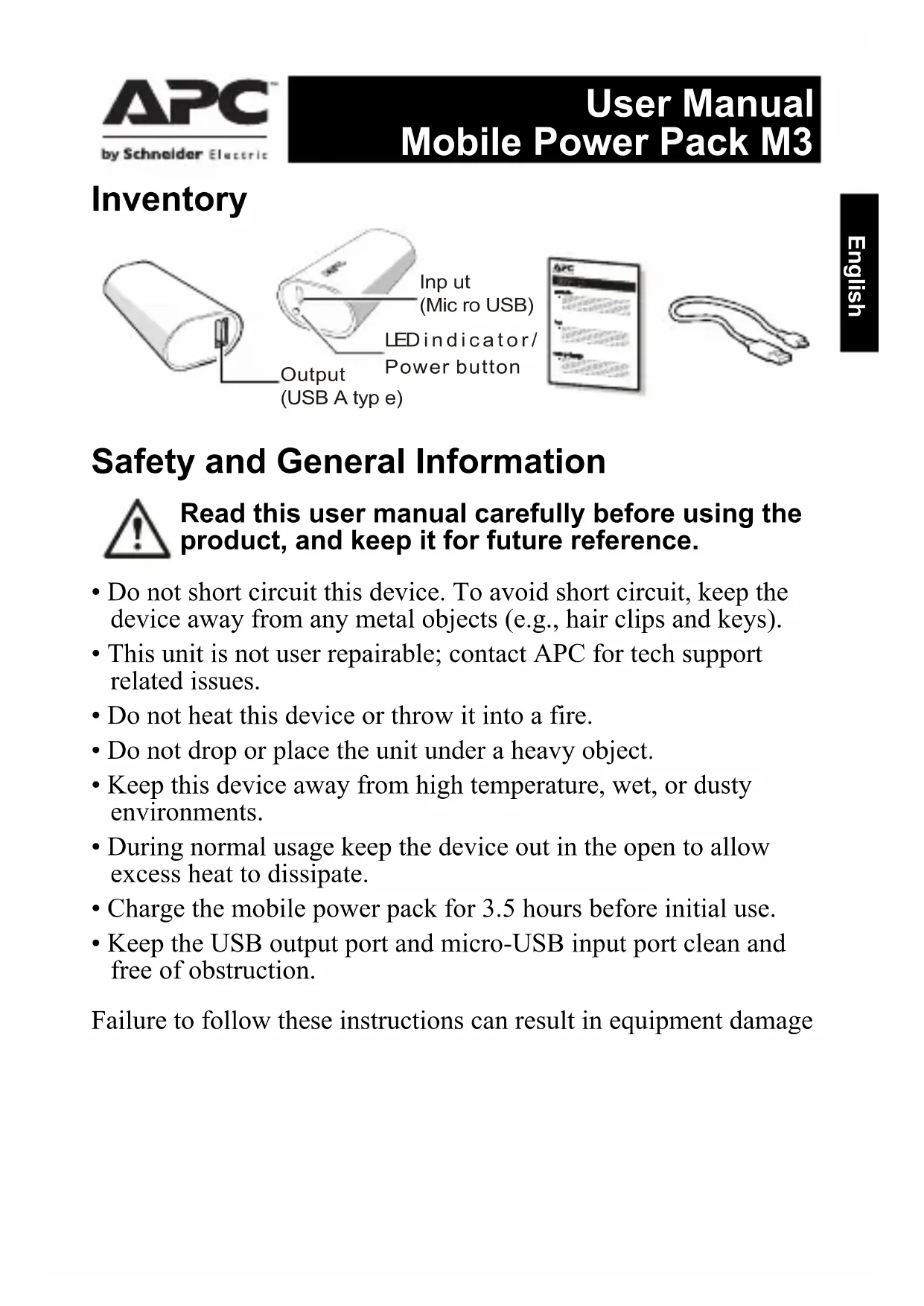

USER MANUAL M3SR APC

Mobile Power Pack M3

User Manual

Installationshandbuch

Guide d'utilisation

Manuale dell'utente

Safety and General Information

Read this user manual carefully before using the product, and keep it for future reference.

• Do not short circuit this device. To avoid short circuit, keep the device away from any metal objects (e.g., hair clips and keys).
• This unit is not user repairable; contact APC for tech support related issues.
• Do not heat this device or throw it into a fire.
• Do not drop or place the unit under a heavy object.
• Keep this device away from high temperature, wet, or dusty environments.
• During normal usage keep the device out in the open to allow excess heat to dissipate.
• Charge the mobile power pack for 3.5 hours before initial use.
• Keep the USB output port and micro-USB input port clean and free of obstruction.

Failure to follow these instructions can result in equipment damage

Operation

Charging USB based devices (smartphones, portable media players and tablets)

Charge devices using the USB cable that came with the unit, or another USB charging cable.

Properly connect the mobile power pack with the device to be charged.

a. Charge a mobile device via the M3 power pack.

b. Pass through charging mode will charge the mobile device first, then charge the M3 power pack.

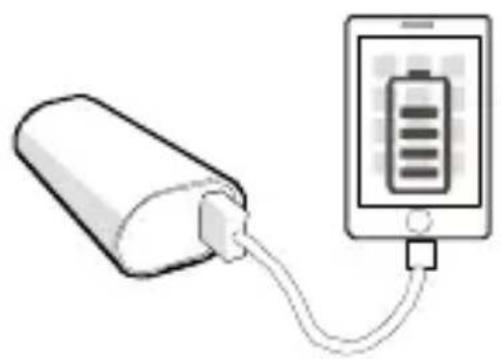

Illustration of a battery connected to an electronic device (no text or symbols)

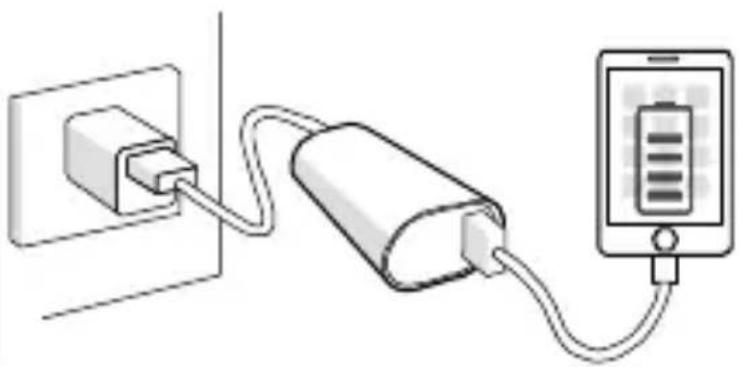

Diagram showing a power plug connected to a battery and a smartphone (no text or symbols present)

Charging the M3 Power Pack

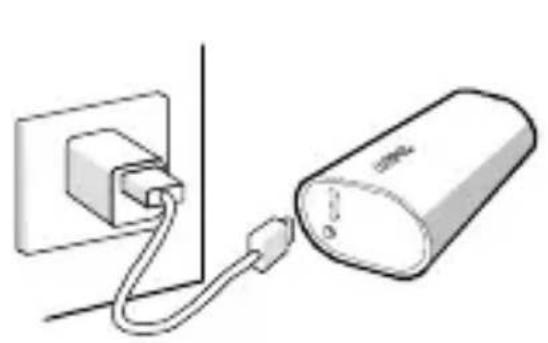

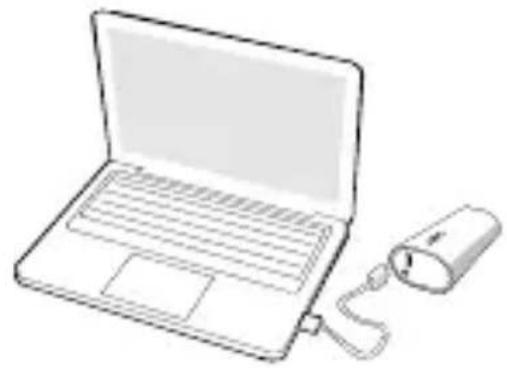

Charge via USB charger or computer

Connect the M3 power pack to a USB charger or to a USB port of a computer. (Note: computer must be in active mode.)

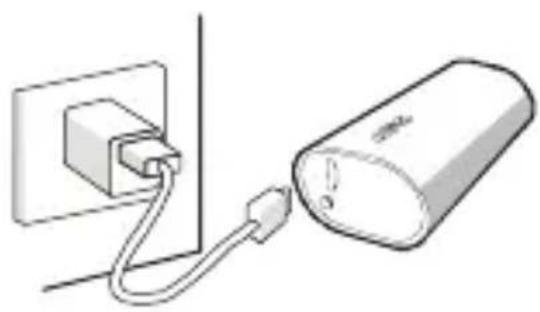

Simple line drawing of a plug inserted into a socket connected to a cylindrical battery (no text or symbols)

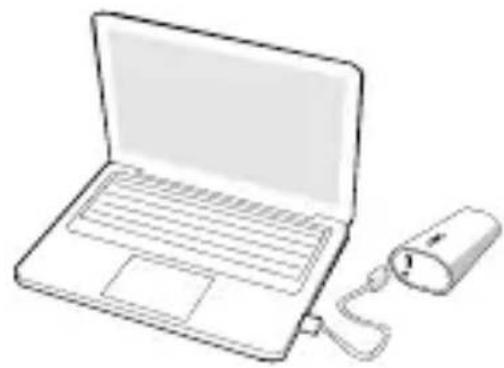

Line drawing of a laptop with a connected power cord (no text or symbols)

Status Indicators

LED Indication Status
Flashing alternately Green / Orange	Power Pack is being charged
Solid Green Fully charged
Solid Orange Power Pack is charging a device
Flashing Orange Overload condition

Specifications

Battery cell	Li-ion 3000mAh, 3.7V
Input current (maximum)	1A
Rated input voltage	5V
Output current	USB 1A maximum
Charge time at 5V/1A	*3.5 hours
Operating temperature	0°C~40°C (32°F ~ 104°F)

* The charging time will be longer under pass through charging mode.

Battery Recycling Information

Always dispose of used or spent batteries properly.

Return the spent battery to an appropriate facility for proper disposal and recycling.

Warranty

Contact your local APC by Schneider Electric dealer, an authorized APC by Schneider Electric service agency, or APC by Schneider Electric Customer Support.

Troubleshooting

Problem / Possible Cause Solution
The mobile power pack cannot be charged
USB charger may be malfunctioning or the computer is in sleep mode.	Try another USB charger or wake the computer from sleep mode.
The micro USB cable and connector contacts have worn out.	Try a new micro USB connector
The mobile power pack cannot charge some devices.
The mobile power pack may have failed to recognize and detect the devices connected to it.	Some after market USB cables may not work well with the M3 battery pack. To resolve this issue, press the power button on the M3 to start charging the device. If the battery pack still won't charge your device, replace the after market cable with the original cable that came with your device.
An overload condition has occurred and the M3 Orange LED is flashing.	The M3 is charging a device and its USB output current exceeds the specified range. Detach the device being charged from the M3 power pack.
The life of the mobile power pack has expired or a fault has occurred in it.	In case of a system fault, contact your local APC by Schneider Electric dealer or authorized APC by Schneider Electric service agency.

APC by Schneider Electric IT Customer Support Worldwide

For country specific customer support, go to the APC by Schneider Electric Web site, www.apc.com.

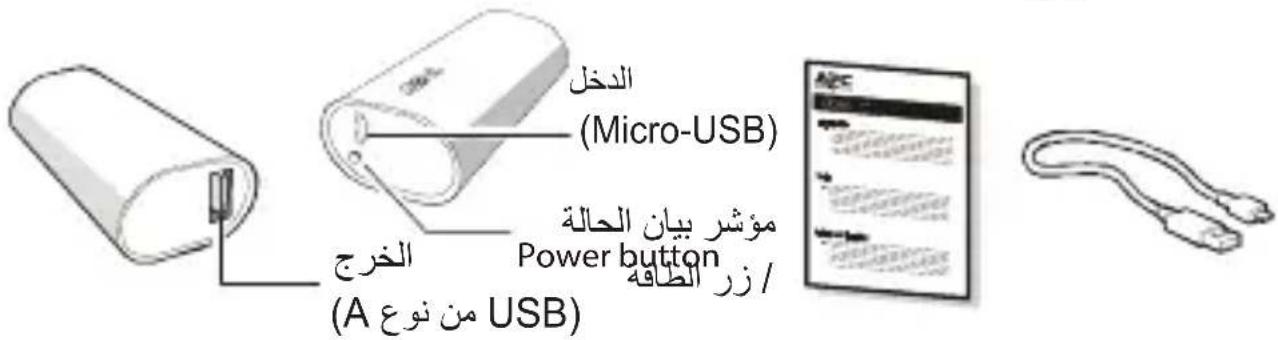

Lieferumfang

Eipgang (Micro-USB) LED Indicator/r/ Ein-/Austaste Ausgang (USB, Typ A)

Illustration of a battery connected to an electronic device (no text or symbols present)

Diagram showing a power plug connected to a battery and a smartphone (no text or symbols present)

Simple line drawing of a wall socket connected to a cylindrical battery (no text or symbols)

Line drawing of a laptop connected to a cylindrical device (no text or symbols)

Statusanzeigen

Illustration of a battery connected to an ATM device (no text or symbols present)

Diagram showing a power plug connected to a battery and a smartphone (no text or symbols present)

Simple line drawing of a wall socket connected to a cylindrical device (no text or symbols)

Line drawing of a laptop with a connected power cord (no text or symbols)

Voyants d'état

Illustration of a battery connected to an ATM device (no text or symbols present)

Diagram showing a power strip connected to a battery and a smartphone (no text or symbols present)

Carica del power pack M3

Simple line drawing of a wall socket connected to a cylindrical battery (no text or symbols)

Line drawing of a laptop connected to a power cord (no text or symbols)

Indicatori di stato

Illustration of a battery connected to a smartphone displaying a battery symbol (no text or labels)

Diagram showing a power plug connected to a battery and a smartphone (no text or symbols present)

Simple line drawing of a wall socket connected to a cylindrical battery (no text or symbols)

Line drawing of a laptop with a connected mouse (no text or symbols)

Indikátory stavu

Illustration of a battery connected to an electronic device showing a battery symbol (no text or labels)

Diagram showing a power plug connected to a battery and a smartphone (no text or symbols present)

Simple line drawing of a plug inserted into a wall connected to a cylindrical device (no text or symbols)

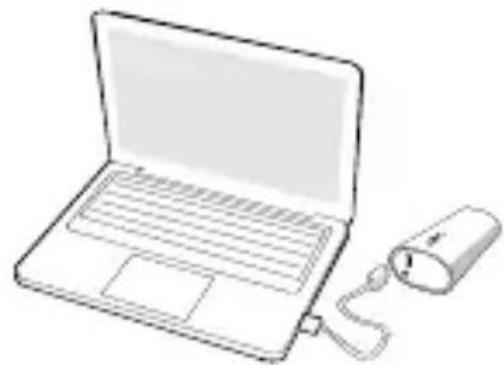

Line drawing of a laptop with a connected USB cable (no text or symbols)

Illustration of a battery connected to an ATM device (no text or symbols present)

Diagram showing a power plug connected to a battery and a smartphone (no text or symbols present)

Simple line drawing of a wall socket connected to a cylindrical battery (no text or symbols)

Line drawing of a laptop connected to a power cord (no text or symbols)

Állapotjelzők

Illustration of a battery connected to a smartphone displaying a battery symbol (no text or labels)

Diagram showing a power strip connected to a battery and a smartphone (no text or symbols present)

М3 куат блогын зарядтау

Simple line drawing of a wall socket connected to a cylindrical device with a cable (no text or symbols)

Line drawing of a laptop with a connected mouse (no text or symbols)

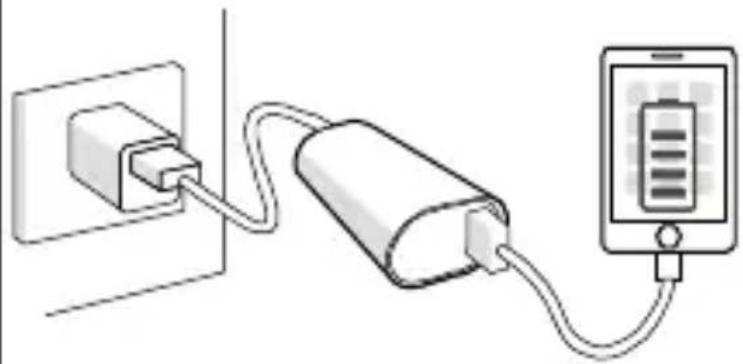

Күй көрсеткіштері

Illustration of a battery connected to a smartphone (no text or symbols)

Diagram showing a power plug connected to a battery and a smartphone (no text or symbols present)

Simple line drawing of a wall socket connected to a cylindrical battery (no text or symbols)

Line drawing of a laptop with a connected USB cable (no text or symbols)

Illustration of a battery connected to a smartphone showing its internal battery (no text or symbols present)

Diagram showing a power plug connected to a battery and a smartphone (no text or symbols present)

Simple line drawing of a wall socket connected to a cylindrical device with a cable (no text or symbols)

Line drawing of a laptop with a connected mouse (no text or symbols)

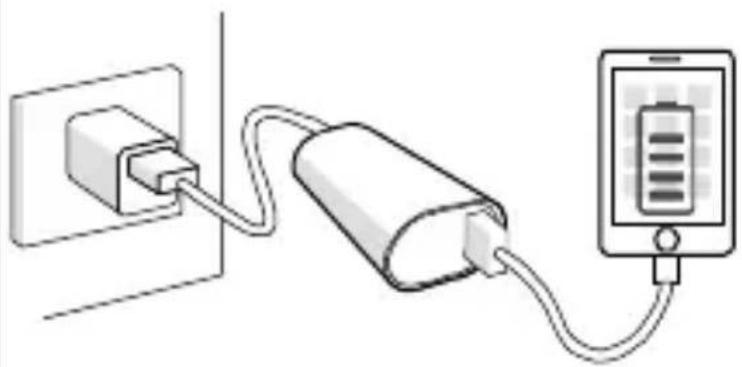

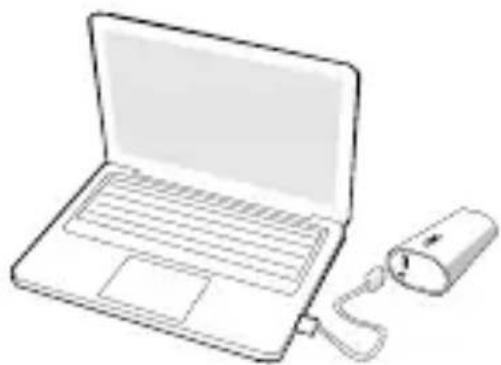

Kontrolki

Illustration of a battery connected to a smartphone displaying a battery symbol (no text or labels)

Diagram showing a power plug connected to a battery and a smartphone (no text or symbols present)

Simple line drawing of a wall socket connected to a cylindrical battery (no text or symbols)

Line drawing of a laptop with a connected USB drive (no text or symbols)

Illustration of a battery connected to a smartphone displaying a battery symbol (no text or labels)

Diagram showing a power strip connected to a battery and a smartphone (no text or symbols present)

Simple line drawing of a wall socket connected to a cylindrical device with a cable (no text or symbols)

Line drawing of a laptop with a connected USB cable (no text or symbols)

Індикатори стану

Illustration of a battery connected to an electronic device showing internal battery symbol (no text or labels)

Simple line drawing of a power plug connected to a battery and a smartphone (no text or symbols)

Simple line drawing of a wall socket connected to a cylindrical battery (no text or symbols)

Line drawing of a laptop with a connected power cord (no text or symbols)

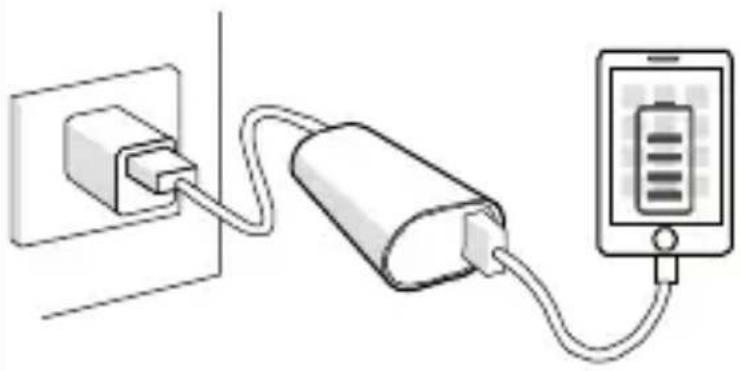

Stavové indikátory

Činnost' LED indikátora Stay

Illustration of a battery connected to a smartphone displaying a battery symbol (no text or labels)

Diagram showing a power plug connected to a battery and a smartphone (no text or symbols present)

Ladda M3 powerpacket

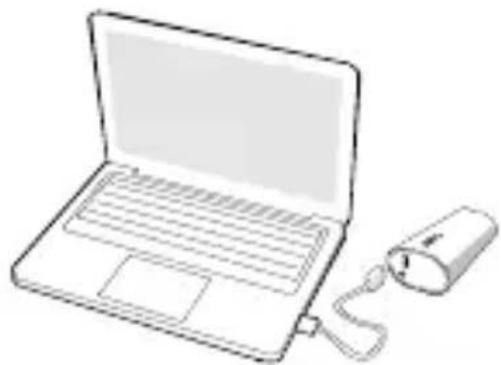

Ladda via USB-laddare eller dator
