M3BK - Power bank APC - Free user manual and instructions

Product type	Portable battery
Battery capacity	3000 mAh
Battery technology	Lithium-ion
Nominal voltage	3,7 V
Input voltage	5 V
Maximum input current	1 A
Maximum USB output current	1 A
Charging time (at 5V/1A)	3 h 30 min
Operating temperature	0 °C to 40 °C
Main functions	Charging USB devices (smartphones, tablets, media players); direct charging mode (charges the device first, then the power pack)
Maintenance and cleaning	Keep USB and micro-USB ports clean and unobstructed
Safety	Do not short-circuit; do not heat or throw into fire; do not drop or place under heavy objects; avoid high temperatures, humidity, dust; use in open air to dissipate heat
Warranty	Contact your local APC by Schneider Electric dealer or customer service
Battery recycling	Dispose of used batteries at an appropriate recycling center

Frequently Asked Questions - M3BK APC

How to charge the M3BK portable battery for the first time?

Charge the mobile Power Pack for 3h30 before first use using a USB charger or an active computer USB port.

How to charge a device with the M3BK?

Use the USB cable provided with your device or another USB charging cable. Properly connect the Power Pack to the device. Press the power button if necessary.

What does the green/orange flashing mean?

Alternating green and orange flashing indicates that the Power Pack is charging.

What to do if the portable battery does not charge?

Check the USB charger (try another one) or wake the computer from sleep mode. If the micro-USB cable is worn, try a new connector.

Why do some devices not charge?

The Power Pack may not recognize the device. Press the power button on the M3. If that doesn't work, replace the cable with the original cable provided with your device.

What does the flashing orange light mean?

A flashing orange light indicates an overload condition. This occurs when the USB output current exceeds the specification. Disconnect the device being charged.

What is the battery life?

Battery life depends on usage. In case of failure, contact your APC by Schneider Electric dealer or an authorized service agency.

How to recycle the portable battery?

Always dispose of used batteries properly. Return them to an appropriate recycling center.

Can I charge the M3BK and a device at the same time?

Yes, direct charging mode charges the mobile device first, then recharges the Power Pack. The charging time is then longer.

What should I do if a problem persists?

Contact your local APC by Schneider Electric dealer, an authorized service agency, or APC customer service. Visit www.apc.com for support.

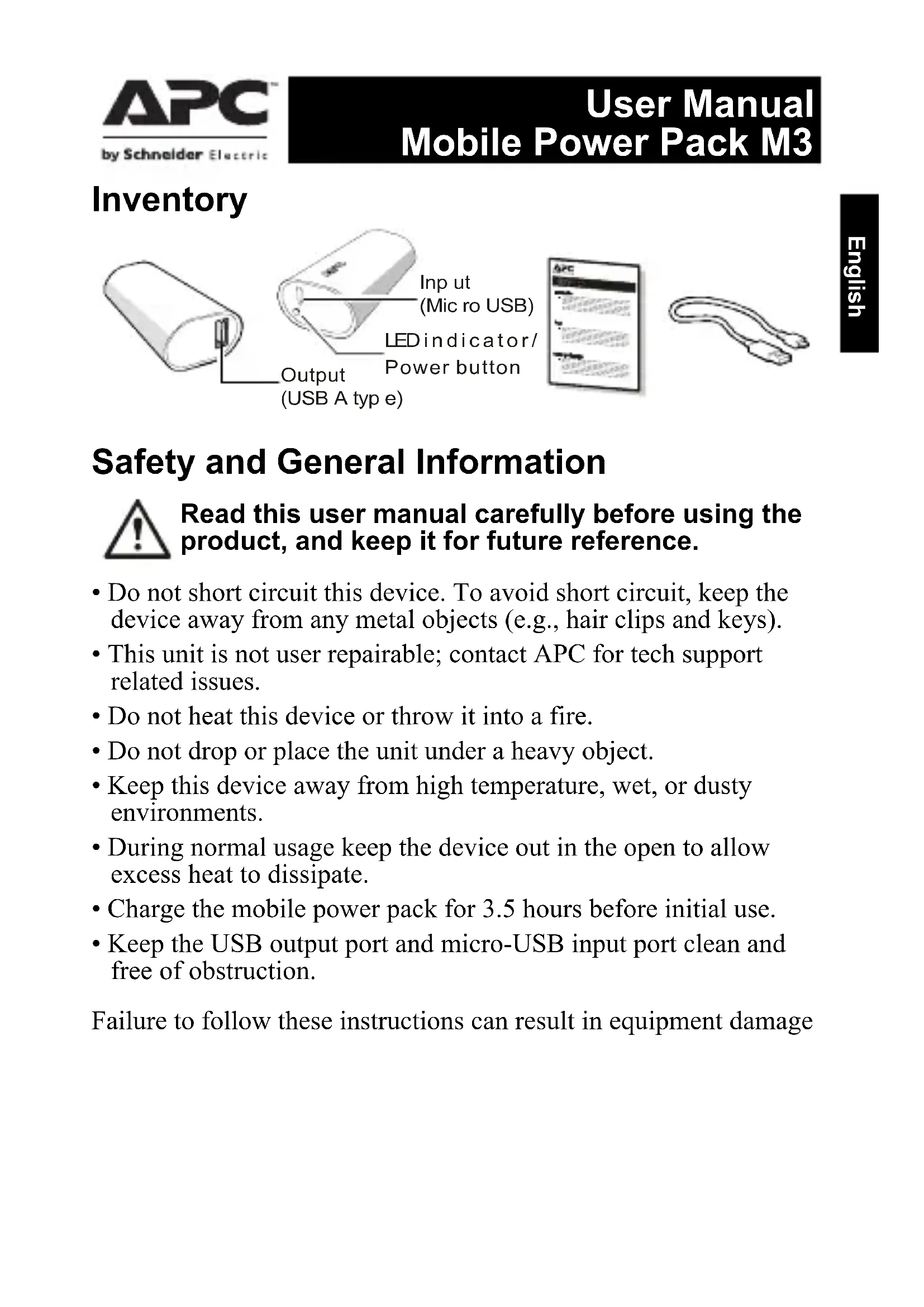

USER MANUAL M3BK APC

Mobile Power Pack M3

User Manual

Installationshandbuch

Guide d'utilisation

Manuale dell'utente

PykoBoDCTBO NOIb3OBaTeJIa

Kullanma Kilavuzu

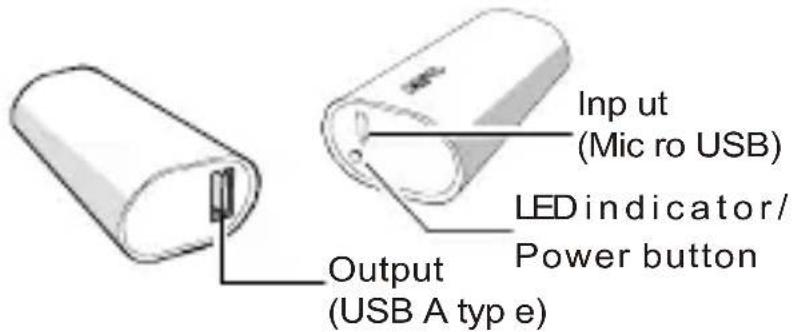

Inventory

Safety and General Information

Read this user manual carefully before using the product, and keep it for future reference.

• Do not short circuit this device. To avoid short circuit, keep the device away from any metal objects (e.g., hair clips and keys).
• This unit is not user repairable; contact APC for tech support related issues.
• Do not heat this device or throw it into a fire.
• Do not drop or place the unit under a heavy object.
• Keep this device away from high temperature, wet, or dusty environments.
• During normal usage keep the device out in the open to allow excess heat to dissipate.
• Charge the mobile power pack for 3.5 hours before initial use.
• Keep the USB output port and micro-USB input port clean and free of obstruction.

Failure to follow these instructions can result in equipment damage

Operation

Charging USB based devices (smartphones, portable media players and tablets)

Charge devices using the USB cable that came with the unit, or another USB charging cable.

Properly connect the mobile power pack with the device to be charged.

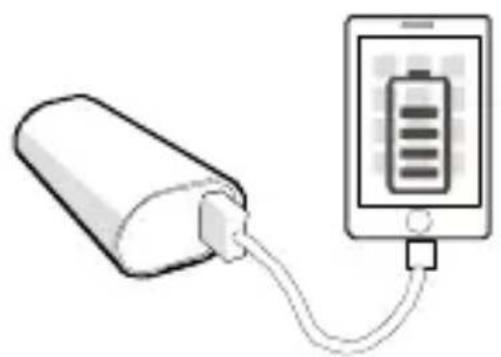

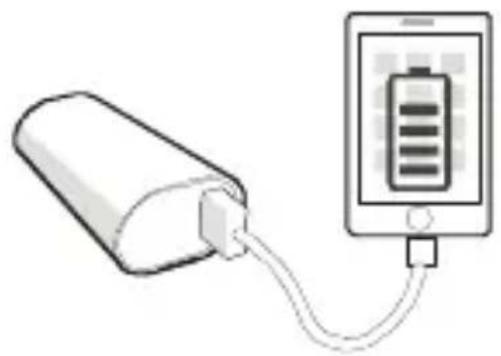

a. Charge a mobile device via the M3 power pack.

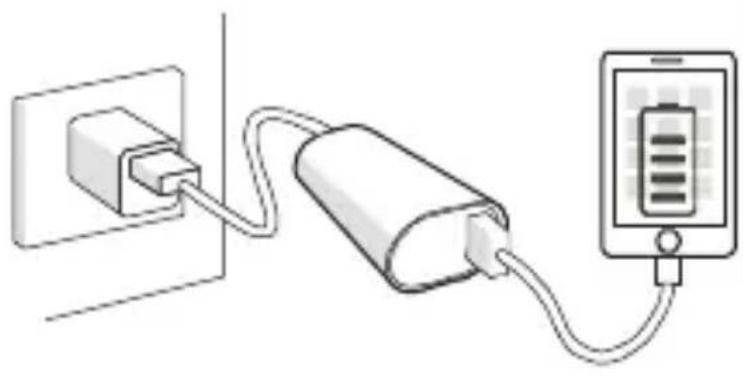

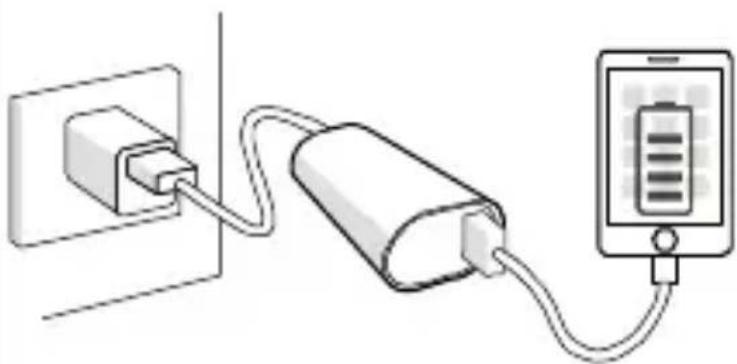

b.Pass through charging mode will charge the mobile device first, then charge the M3 power pack.

Charging the M3 Power Pack

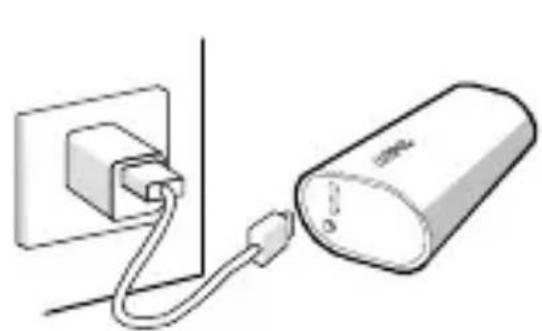

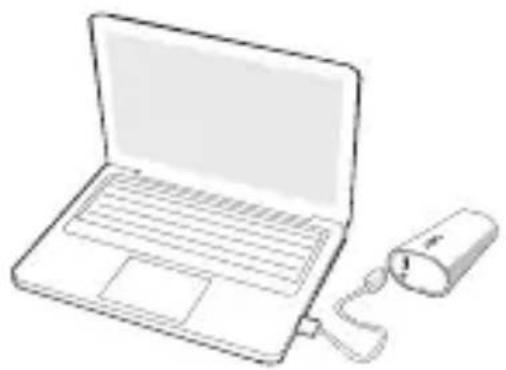

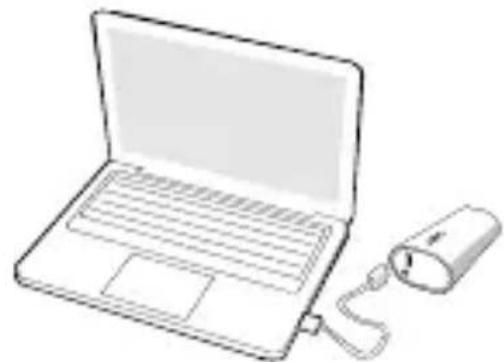

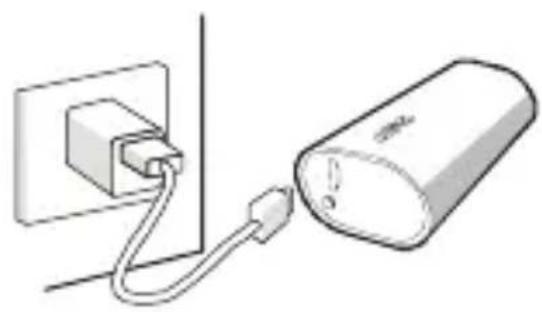

Charge via USB charger or computer

Connect the M3 power pack to a USB charger or to a USB port of a computer. (Note: computer must be in active mode.)

Status Indicators

LED Indication Status
Flashing alternately Green / Orange	Power Pack is being charged
Solid Green Fully charged
Solid Orange Power Pack is charging a device
Flashing Orange Overload condition

Specifications

Battery cell	Li-ion 3000mAh, 3.7V
Input current (maximum)	1A
Rated input voltage	5V
Output current	USB 1A maximum
Charge time at 5V/1A	*3.5 hours
Operating temperature	0°C~40°C (32°F ~ 104°F)

• The charging time will be longer under pass through charging mode.

Battery Recycling Information

Always dispose of used or spent batteries properly.

Return the spent battery to an appropriate facility for proper disposal and recycling.

Warranty

Contact your local APC by Schneider Electric dealer, an authorized APC by Schneider Electric service agency, or APC by Schneider Electric Customer Support.

Troubleshooting

Problem / Possible Cause Solution
The mobile power pack cannot be charged
USB charger may be malfunctioning or the computer is in sleep mode.	Try another USB charger or wake the computer from sleep mode.
The micro USB cable and connector contacts have worn out.	Try a new micro USB connector
The mobile power pack cannot charge some devices.
The mobile power pack may have failed to recognize and detect the devices connected to it.	Some after market USB cables may not work well with the M3 battery pack. To resolve this issue, press the power button on the M3 to start charging the device. If the battery pack still won't charge your device, replace the after market cable with the original cable that came with your device.
An overload condition has occurred and the M3 Orange LED is flashing.	The M3 is charging a device and its USB output current exceeds the specified range. Detach the device being charged from the M3 power pack.
The life of the mobile power pack has expired or a fault has occurred in it.	In case of a system fault, contact your local APC by Schneider Electric dealer or authorized APC by Schneider Electric service agency.

APC by Schneider Electric IT Customer Support Worldwide

For country specific customer support, go to the APC by Schneider Electric Web site, www.apc.com.

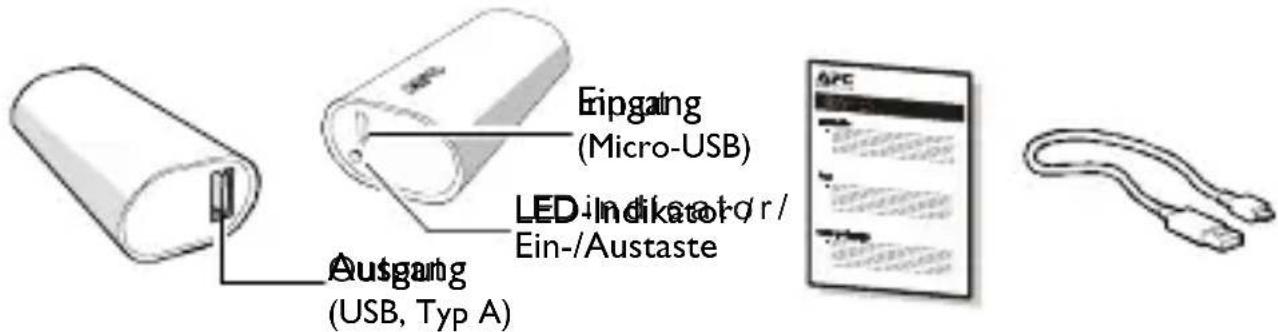

Lieferumfang
