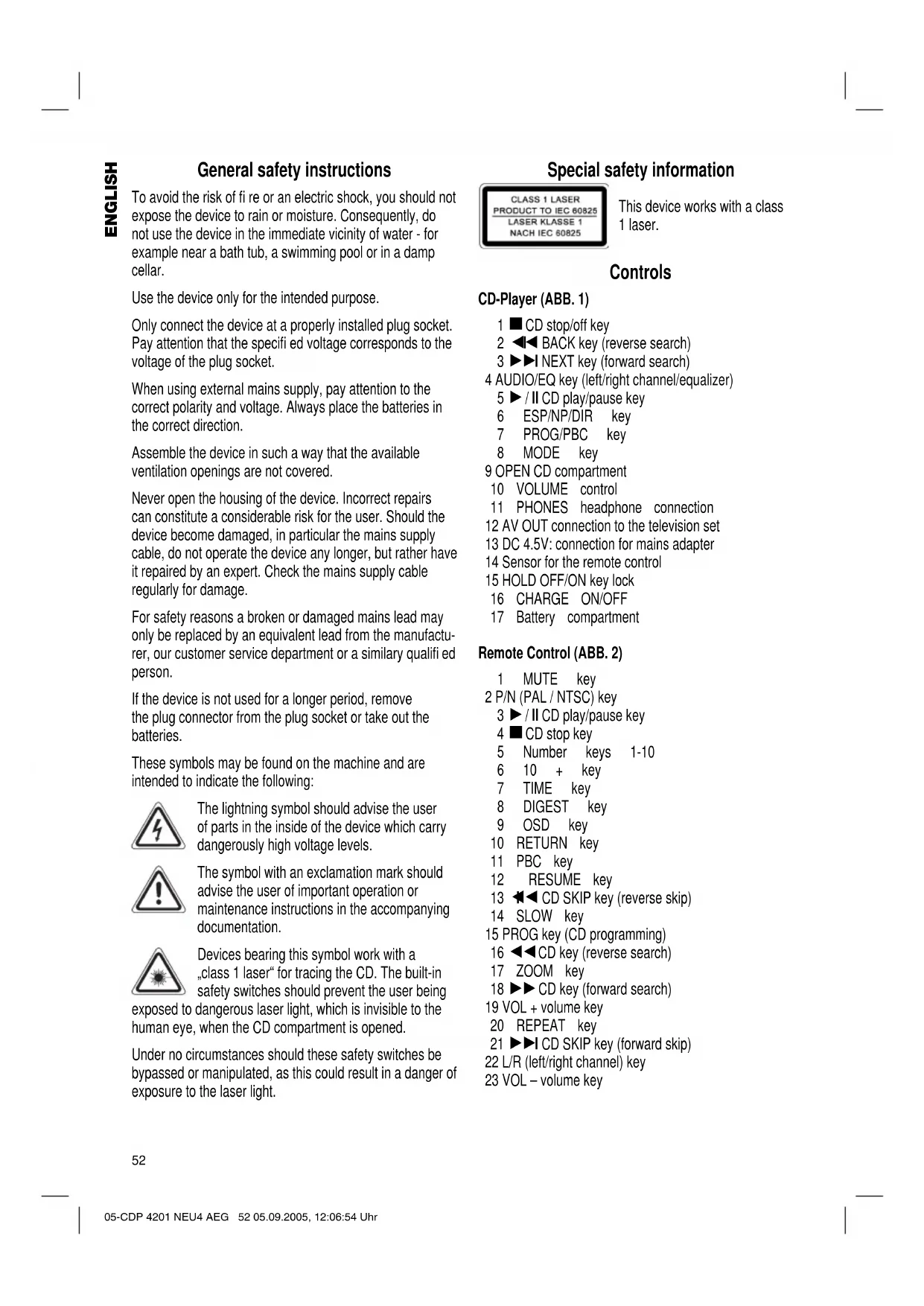

General safety instructions

To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.

Use the device only for the intended purpose.

Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.

When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.

Assemble the device in such a way that the available ventilation openings are not covered.

Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.

For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.

If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.

These symbols may be found on the machine and are intended to indicate the following:

The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.

The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.

Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being

exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.

Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.

Special safety information

This device works with a class 1 laser.

Controls

CD-Player (ABB. 1)

1 ■ CD stop/off key
2 ◀◀ BACK key (reverse search)
3 ▶▶▶I NEXT key (forward search)

4 AUDIO/EQ key (left/right channel/equalizer)

5 ▶ / II CD play/pause key
6 ESP/NP/DIR key
7 PROG/PBC key
8 MODE key

9 OPEN CD compartment

10 VOLUME control
11 PHONES headphone connection
12 AV OUT connection to the television set
13 DC 4.5V: connection for mains adapter
14 Sensor for the remote control
15 HOLD OFF/ON key lock

16 CHARGE ON/OFF

17 Battery compartment

Remote Control (ABB. 2)

1 MUTE key

2 P/N (PAL / NTSC) key

3 ▶ / II CD play/pause key
4 ■ CD stop key
5 Number keys 1-10
6 10 + key
7 TIME key
8 DIGEST key
9 OSD key

10 RETURN key

11 PBC key
12 RESUME key
13 ◀◀CD SKIP key (reverse skip)
14 SLOW key

15 PROG key (CD programming)

16 ◀CD key (reverse search)
17 ZOOM key
18 ▶▶CD key (forward search)
19 VOL + volume key

20 REPEAT key

21 ▶▶▶ I CD SKIP key (forward skip)
22 L/R (left/right channel) key
23 VOL - volume key

Headphones - Remote Control (ABB. 3)

A. PHONES

B. HOLD OFF/ON

C. PLAY/PAUSE

D. VOLUME

E. STOP/OFF

F. I ◀◀ BACK

G. ▶▶▶I NEXT

H. ESP/LR/DIR

Note: Some keys are to be found both on the device itself and on the remote control. Keys with the same designation have the same function.

In order to use the headphone remote control, please proceed as follows:

Connect the plug of the headphone remote control to the socket (11) on the device and then insert the plug of the headphones/earphones into the connection socket (A).

Messages in the Display (ABB. 4)

1 VCD / MP3 / CD Format

2 Track number

3 Playing time

4 Button lock display

5 ESP function

6 Battery replacement display

7 RAN - RANDOM function

8 PGM - PROGRAMM function

9 REP - Single repeat

10 REP ALL - All repeat

11 REP DIR - Album repeat

Initial Use of the Device

Inserting the Batteries (not supplied)

• Open the battery compartment (17) on the back.
• Insert two 1.5 V batteries of type AA. Ensure the correct polarity (see the bottom of the battery compartment or the imprint on the outside).
• If the device is not used for a prolonged period, please remove the batteries in order to avoid the leakage of battery acid.
• A battery symbol in the display indicates that the batteries need to be replaced. Always replace a complete set of batteries and not just one.

Note: Batteries should not be disposed of in the domestic waste. Please return used batteries to the appropriate collection points or the dealer where you bought them.

Batteries must never be thrown into a fi re.

Batteries in the Remote Control

The battery in the remote control is a long-life lithium cell. If the range of the remote control decreases, please proceed as follows:

• Open the battery compartment on the side of the remote control.
• Replace the cell with a battery of the same type. Ensure the correct polarity.
• Close the battery compartment.

Mains Operation

It is possible to operate the device using the mains power unit.

1. Insert the plug of the power unit into a correctly installed 230V, 50 Hz wall socket.
2. Connect the CD player to the power unit by inserting the plug of the power unit into the DC 4.5 V socket.
3. When using a power unit (DC 4.5V/700mA) ensure the correct polarity according to the inscriptions on the CD player.

Car Operating Mode

Thanks to the adapter cassette and the cigarette lighter adapter the CD player can be used on your car radio with the cassette adapter.

1. Insert the cigarette lighter adapter in the cigarette lighter and the jack at the end of the cable into the 4.5V/DC socket of the CD player.
2. Insert the jack of the adapter cassette into the AV OUT socket (12) of the CD player.
3. Switch on your car radio and insert the adapter cassette into the cassette deck. Make sure that the connector cable of the adapter cassette is inserted correctly into the cassette slot! The cassette mechanism may jam!

Some car radios may eject the adapter cassette immediately after inserting it. In this case fi t the cassette's connector cable along the slot and insert the cassette turned over on the other side. If the car radio ejects the adapter cassette again, the adapter cassette cannot be used.

General Operation

AUDIO/

Switches between loudspeaker settings: MONO L, MONO R, STEREO (only in VCD mode).

EQ (4):

Various sound modes are available (CLASSIC, DISCO, POP, JAZZ).

CHARGE

ON/OFF (16):

Switches on the charge function when the external power unit is connected.

⚠ Warning! Please ensure that there are no batteries inserted into the battery compartment, as otherwise there is a danger of explosion! Only the correct rechargeable batteries should be used! Note: Please use the charging sleeve supplied to make the contact with the battery.

HOLD (15): This blocks the functions of all keys on the device and is intended to protect against a key being activated accidentally. When the switch is pushed to the right the word "HOLD" appears in the display.

VOLUME (10): This is used to control the volume (19/23 on the remote control). In VCD mode this can only be adjusted using the remote control or on the television set itself.

AV OUT (12): For connecting to the television set with a video input socket. Please insert the black plug into the socket of the CD player, the yellow plug into the video input socket, the red plug into the right-hand loudspeaker input (R) and the wide plug into the left-hand loudspeaker input (L) of your television set.

DC 4.5V (13): For connecting to the mains adapter.

PHONES (11): For connecting to the headphones or earphones.

OPEN (9): For opening the CD compartment.

Infrared remote control

This is used for controlling the device without a cable connection from a distance of up to five metres. If the range decreases, the batteries need replacing. Please ensure that there are no objects blocking the direct path between the remote control and the infrared receiver of the device.

Switching Off

Switch the device off by pressing the ■ STOP key (1) (4 on the remote control) once, or twice if the device is running. Alternatively, do not operate the device for 10 seconds.

CD Keys

▶ / II Playback/

Pause (5/3): Playback can be brief y interrupted.

If the key is pressed again, playback continues from the same position.

■ STOP/OFF (1/4): Die CD is stopped. Pressing again switches the device off.

BACK (2)/

▶▶▶I NEXT (3): With these keys is possible to jump to the next or previous track. Keeping the key pressed starts the music search function.

ESP/NP/DIR (6): ESP in CD mode:

Deactivates / activates the anti-shock function when an audio CD is inserted (memory 40 +/- 5 seconds). If the player is jolted, the CD music data is read out continuously from an intermediate memory. Reading errors are corrected subsequently in the intermediate memory. When the anti-shock function is activated a bar appears in the display which slowly fills up. Press the ESP key again to deactivate this function.

DIR function only in MP3 mode:

When an MP3 CD is inserted, this key is used to select the various directories stored on the CD.

N/P function only in VCD mode:

Used to switch between the "NTSC" and "PAL" video output systems.

MODE (8): The following functions can be

selected with the MODE key: Press once =

"REP": The current track is repeated continuously. Press twice =

"REP ALL": The current CD is repeated continuously.

Press 3 times =

"RAN": All tracks are played back in random order.

Press 4 times =

All functions are cancelled. Normal playback is resumed.

Functions in Playback Mode of an MP3 CD:

Press once =

"REP": The current track is repeated continuously.

Press twice =

"REP DIR": The currently selected directory (the album) is repeated continuously.

Press 3 times =

"REP ALL": The entire CD is repeated continuously.

Press 4 times =

"RAN": All tracks are played back in random order.

Press 5 times =

All functions are cancelled. Normal playback is resumed.

CD Keys on the Remote Control

MUTE (1): Used for switching off the sound immediately. To cancel this function, press the MUTE key again.

P/N (2): Switches between the "NTSC" and "PAL" video output system.

TIME (7): With the TIME key you can enter the time from which playback is to start. When this key is pressed, the words GOTO --:-- appear on the screen. Please enter the corresponding fi gures. The fi rst set of fi gures represents the minutes and the second set the seconds. The fi gure "0" is entered using the "10" key.

DIGEST (8): When this key is pressed, the player subdivides the VCD fi le currently being played into nine parts of equal size and displays pictures on the screen at the same time. This may take a few minutes, depending on the size of the fi le. With the 1-9 number keys you can change to the desired section, which is then animated. Press the key again to continue from the selected section in full picture mode.

OSD (9): This displays the CD type, the functions - e.g. SINGLE REMAIN, the number of the track and the remaining playing time of the CD. Press the key up to five times and select between the various settings.

RETURN (10): Pressing this key stops CD playback. The main menu is displayed. This function can only be used if the CD that has been inserted is a video 2.0 CD and the PBC mode is activated (ON) (only in VCD mode).

PBC (11): Switches PBC on and off (only in VCD mode).

RESUME (12): If ■step key is pressed, CD playback is halted. If the RESUME

key is then pressed, playback resumes from the position where playback was interrupted (only in VCD mode).

SLOW (14): Switches on the slow motion function during the playback of video CDs. Each time the SLOW key is pressed, the speed is changed between 1/2x, 1/4x, 1/8x and 1/16x. To return to normal playback, press the ▶ / II key (only in VCD mode).

ZOOM (17): In order to enlarge a picture segment, press the key ZOOM during playback. The respective picture can be displayed using the ZOOM key in two different sizes. With the |◀◀▶▶| / ◀◀▶▶ cursor keys it is possible to locate the picture segment more accurately. To return to normal playback, press the ZOOM key until the word "RESTORE" appears (only in VCD mode).

REPEAT (20): See both tables. R/L (22): Switches between the loudspeaker settings: MONO L, MONO R, STEREO (only in VCD mode).

Playing CDs

1. Open the CD compartment with the OPEN key.

2. Insert a CD with the label facing upwards on to the central cone until it clicks into place. Then close the CD compartment.

3. Press the ▶ / II Play/Pause key (5) on the device in order to switch it on. The word "rEAd" appears in the display. The CD is now played back starting with the first track. The current song and the time that has elapsed are shown in the display.

4. In order to remove a CD, press the ■ STOP key, open the lid of the CD compartment with the OPEN key and carefully remove the CD. Always keep the lid of the CD compartment closed.

Note: When a disc is inserted incorrectly, "BAdisc" appears in the display. If no disc is inserted, the words "NO DISC" appear.

Playing back Music in MP3 Format

With this device it is possible to play back pieces of music in MP3 format. The device also supports all standard CD types: CD, CD-RW, CD-R. The active ESP function always appears in the display (memory 100 seconds); see item "ESP/NP/DIR".

Programmed Playback

This makes it possible to program any order of tracks. See the "PROGRAM" section in the tables below.

The device stops automatically after all programmed tracks have been played. If the ■ stop key is pressed once, playback is stopped and the program is deleted. It is also deleted once playback has finished or after approximately 10 seconds as soon as the device switches off automatically.

The programmed tracks can also be combined with the REPEAT function. After you have programmed and started the device, please press the REPEAT key up to three times to use the functions described in the "REPEAT" section.

Function Overviews

1. VCD Functions

• Please switch on your television set.
• Switch your television set to AV mode.
• witch on the device and insert a video CD, as described above.
• Press the/ II Play/Pause key.
• You can now watch the video clip on your television screen while the sound can be heard through your CD player.

Operation VCD Functions

Press (▶ / II)	1. The device is switched on and the disc searched.2. Pause during playback3. Playback is resumed.
Press STOP (■)	Playback is stopped.
Press (I◀◀ (2/13))	Skips to the previous track.
Press (▶▶I (3/21))	With this key you can skip to the next or next-but-one track etc.
Hold (I◀◀ / ◀◀ (2/16))	Keep this key pressed down to start the fast reverse search.
Hold (▶▶I / ▶▶ (3/18))	Keep this key pressed down to start the fast forward search.
Press MODE Switches between the simple repeat, repeat all and RANDOM function.
Press NP Switches between “NTSC” and “PAL” video output systems.
Press PBC (Playback Control)	Press once :PBC switched on, display on the screenPress twice :PBC switched off.
Press AUDIO/EQ	AUDIO function: selects between the settings left-hand channel, right-hand channel and stereo.

Operation VCD Functions

REPEAT Press once = “REPEAT 1”: The current track is repeated continuously. Press twice = “REPEAT ALL”: The current CD is repeated continuously. Press 3 times = “REPEAT CANCEL” All functions are cancelled. Normal playback is resumed.
PROGRAM	First pres■), then PROG. The words “PROG” and “TRK” appear in the display. Select the order with the I◀◀ / ▶▶I keys (key 2 = +10, key 3 =+1) or with the ◀◀ / ▶▶ keys (16/18). Select the order directly using the number buttons (5). For a two-digit number, fi rst the +10 key and then the units fi gure. Program- ming is already stored. Press (▶ / II).
SLOW Select between the speeds 1/2 ,1/4, 1/8, 1/16.
RESUME	Resumes from the same position after stop (see RESUME).
DIGEST	Shows the pictures in a small format (see DIGEST).
ZOOM	Used to enlarge a picture section (see ZOOM).
R/L	Switches between the audio channels.

1. CD, MP 3 Functions

Operation	Functions
	CD	MP3
Press (▶ / II)	1. Device is switched on and the disc searched.2. Pause during playback.3. Playback is resumed.
Press STOP (■)	Playback is stopped.
Press (I◀◀ (2/13))	Skips to the previous track.
Press (▶▶I (3/21))	With this key you can skip to the next or next-but-one track etc.
Hold (I◀◀ / ◀◀ (2/16))	Keep this key pressed down to start the reverse music search.
Hold (▶▶I / ▶▶ (3/18))	Keep this key pressed down to start the forward music search.
MODE on the device:REPEAT on the remote control:	Switches between simple repeat, DIR repeat (only MP3), repeat all. RANDOM function only using the key on the device.
CD MP3
Press ESP/DIR	Activates and deactivates the anti shock function.	Jumps to the next folder/directory (DIRECTORY).
Press AUDIO/EQ	EQ function: Use the I◀◀ / ▶▶▶I : keys to switch between the settings STAND, CLASS; DISCO; JAZZ; POP.
PROGRAM First press ( ■ ), then PROG. Select the order with the I◀◀ / ▶▶▶I keys (key 2 = +10, key 3 =+1). Press PROG again. The display switches to storage location P-02 etc.Or select the order directly using the number keys (5). For two-digit numbers first press the +10 key and then the units figure. Programming is already stored. Press (▶ / II)
	Store with the PROG key. Press ▶ / II)(only on the device).

Special Functions

MP3 – CDs: With this device it is possible to play back MP3 CDs. On such CDs up to 200 tracks can be stored. This device detects an MP3 CD automatically, thus retaining the sound quality. In order to play back such CDs please proceed as described under „Playing CDs“. Tracks can be programmed as described above under “Programmed Playback”.

VCD: This device has a video connection for video CDs. The formats CD, VCD, CD-R and MP3 disks can be played back. Your device detects the type of CD automatically. Connect the device to your television set using the video cable supplied. Press the OSD key (on the remote control). The menu appears on your television screen (if only a black and white picture can be seen, press the N/P key, with the CD compartment open if necessary).

Troubleshooting

Please note:

There are a number of different recording and compression methods, as well as quality differences between CDs and self-recorded CDs.

Furthermore, the music industry does not adhere to fixed standards (copy protection).

For these reasons it is possible that in rare cases there are problems with the playback of CDs and MP3 CDs. This is not a malfunction of the device.

Symptoms Course Solution
VCD can not be played back.	VCD is not inserted or inserted incorrectly.	Ensure that the disc is inserted with the label facing upwards.
VCD jumps during playback.	Check the disc for fi ngerprints, dirt or scratches.	Clean the disc starting at the centre with a soft cloth.
No colour. Colour system	incorrectly set.	Press the P/N key (2) and select the correct colour norm.

HSITON3

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on.

In Germany from March 23, 2006 on.

A. PHONES
B. HOLD OFF/ON
C. PLAY/PAUSE
D. VOLUME
E. STOP/OFF
F. I ◀◀BACK
G. ▶▶▶I NEXT
H. ESP/LR/DIR
