USER MANUAL MC 4450 IP AEG

press the iPOD OPEN/CLOSE button again.

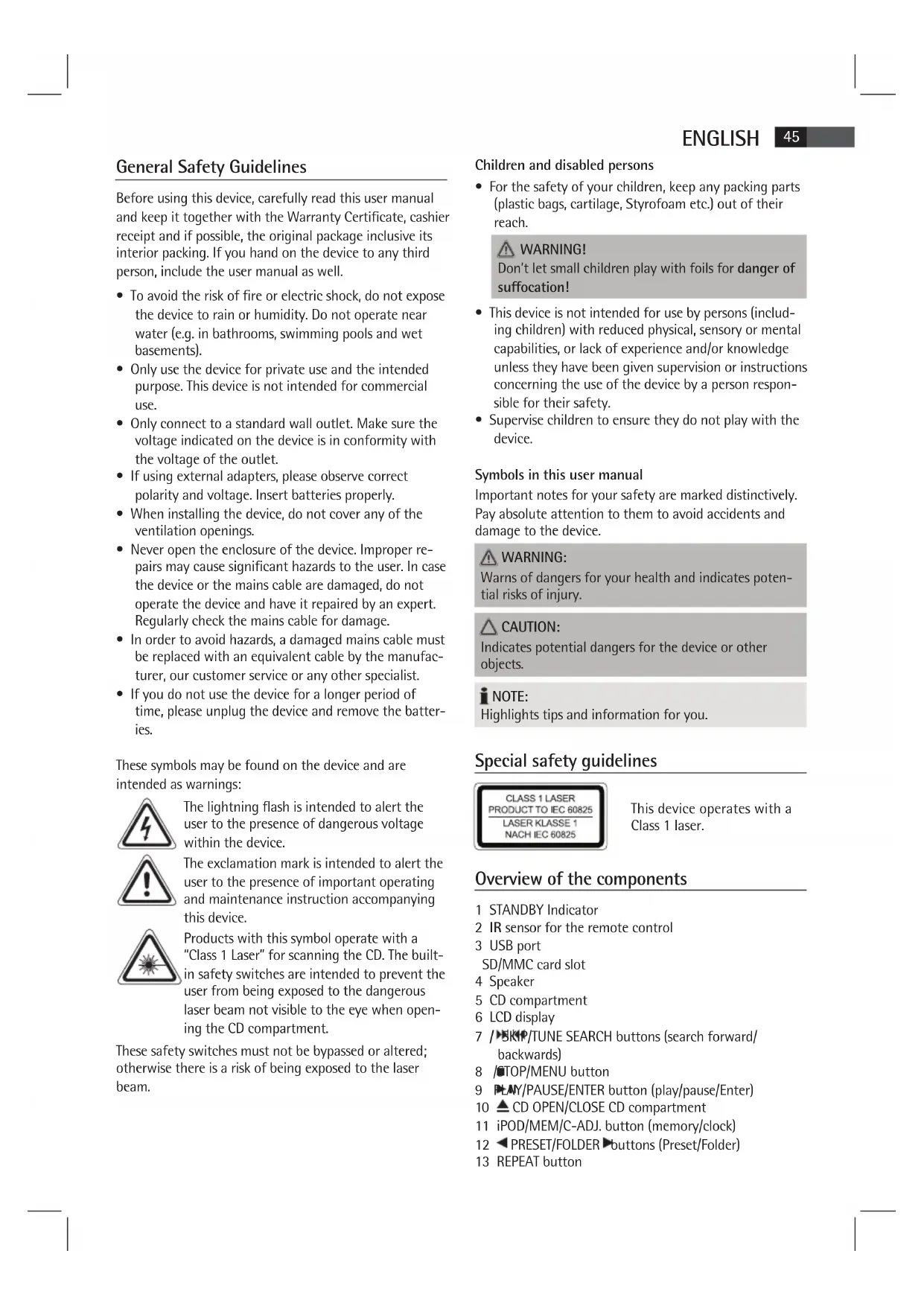

• To avoid the risk of re or electric shock, do not expose the device to rain or humidity. Do not operate near water (e.g. in bathrooms, swimming pools and wet basements).

• Only use the device for private use and the intended purpose. This device is not intended for commercial use.

• Only connect to a standard wall outlet. Make sure the voltage indicated on the device is in conformity with the voltage of the outlet.

• If using external adapters, please observe correct polarity and voltage. Insert batteries properly.

• When installing the device, do not cover any of the ventilation openings.

• Never open the enclosure of the device. Improper re- pairs may cause signicant hazards to the user. In case the device or the mains cable are damaged, do not operate the device and have it repaired by an expert. Regularly check the mains cable for damage.

• In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufac- turer, our customer service or any other specialist.

• If you do not use the device for a longer period of time, please unplug the device and remove the batter- ies. These symbols may be found on the device and are intended as warnings: The lightning ash is intended to alert the user to the presence of dangerous voltage within the device. The exclamation mark is intended to alert the user to the presence of important operating and maintenance instruction accompanying this device. Products with this symbol operate with a “Class 1 Laser” for scanning the CD. The built- in safety switches are intended to prevent the user from being exposed to the dangerous laser beam not visible to the eye when open- ing the CD compartment. These safety switches must not be bypassed or altered; otherwise there is a risk of being exposed to the laser beam. Children and disabled persons

• For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach. WARNING! Don’t let small children play with foils for danger of suocation!

• This device is not intended for use by persons (includ- ing children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person respon- sible for their safety.

• Supervise children to ensure they do not play with the device. Symbols in this user manual Important notes for your safety are marked distinctively. Pay absolute attention to them to avoid accidents and damage to the device.

Warns of dangers for your health and indicates poten- tial risks of injury. CAUTION: Indicates potential dangers for the device or other objects. NOTE: Highlights tips and information for you. Special safety guidelines This device operates with a Class 1 laser. Overview of the components 1 STANDBY Indicator 2 IR sensor for the remote control 3 USB port SD/MMC card slot 4 Speaker 5 CD compartment 6 LCD display 7 / SKIP/TUNE SEARCH buttons (search forward/ backwards) 8 /STOP/MENU button 9 PLAY/PAUSE/ENTER button (play/pause/Enter)

CD OPEN/CLOSE CD compartment 11 iPOD/MEM/C-ADJ. button (memory/clock)

iPOD OPEN/CLOSE Docking port compartment

Open/close docking port 21 Docking port compartment Rear view (not shown) FM ANT. aerial antenna Underside 22 mains switch Mains cable Remote control 1 FUNCTION (function Selection button)

CD OPEN/CLOSE button

• Read the manual thoroughly before operating the device!

• Choose a suitable location for the device. Suitable locations are dry, even and anti-slip surfaces on which you may operate the device easily.

• Make sure there is proper ventilation for the device!

• Remove, if necessary, the protection sheet from the display. Wall mounting You can also mount the device to the wall (mounting ac- cessories not supplied). CAUTION: Make sure beforehand whether there are cables in the wall which could be damaged! NOTE: Check the reach of the cable! To mount the device, make sure that an easily accessible plug outlet is available within reach of the power cable. The distance between the mountings for wall mounting is 240 mm.

• Drill two holes horizontally 240 mm apart.

• Fit rawlplugs and screws into the holes.

• Tighten the mounting screws until they protrude around 4 mm from the wall.

• Mount the device onto the screws. Check that it is secure. Power supply

• Connect the mains plug to a standard outlet, 230 V, 50 Hz.

• Make sure the voltage is in conformity with the rating plate.

• The time settings will be lost as soon as the power sup- ply has been interrupted.

• Use the mains switch (22) on the underside of the device to switch the device on. Setting the clock (during standby mode)

/ SKIP/TUNE SEARCH buttons (7/14) to select between 24-hour and 12-hour display setting. Conrm with iPOD/MEM/C-ADJ. NOTE: The 12-hour setting will result in the fol- lowing display AM = morning, PM = afternoon.

/ SKIP/TUNE SEARCH buttons to set the hours. Conrm with iPOD/MEM/C-ADJ.

5. Press iPOD/MEM/C-ADJ. again in order to save the

time settings.47 ENGLISH Insert/Replace Battery in Remote Control NOTE: Where necessary, the lithium cell in the battery com- partment of the remote has been tted with a protec- tive foil for transport. This extends the lifetime of the battery. Before initial use please remove this foil to prepare the remote for use. The battery in the remote is a long-life lithium cell. Should the range of the remote shorten during use, follow the steps below:

• Open the battery compartment on the underside of the remote.

• Replace the cell with a battery of the same type (CR 2032). Make sure the polarity is correct.

• Close the battery compartment. If the remote is not in use for a lengthy period of time, please remove the battery to prevent the battery acid from “leaking”.

• Do not expose batteries to intense heat or direct sunlight. Never throw batteries onto a re. Danger of explosion!

• Keep batteries out of the reach of children. They are not toys.

• Do not force batteries open.

• Avoid contact with metallic objects. (Rings, nails, screws etc.) Danger of short circuits!

• Short circuits may overheat or even ignite batteries. This may lead to combustion.

• When transporting the batteries, cover the terminals for your safety with an adhesive strip.

• If a battery leaks, do not rub the uid into the eyes or the skin. If acid comes into contact with the eyes, rinse with puried water and seek medical advice if symptoms persist. CAUTION: Batteries must not be disposed of in the garbage. Please bring used batteries to competent collection centers or back to the dealer. Transport securing device of CD compartment

• Turn on the device, please press the STANDBY/ON button (17/16).

• Open the CD compartment (5) by pressing the

OPEN/CLOSE button (10/2). The CD drawer opens to the left.

• Remove, if present, the transport securing device from the CD player before starting operation.

• Press CD OPEN/CLOSE button again to close the CD compartment. NOTE: The CD drawer cannot be opened in IPOD mode. iPod/iPhone Compatibility Due to the large variety of iPod and iPhone models and generations on the market, full compatibility cannot be guaranteed. Before connecting your iPod/iPhone, ensure that it has a compatible interface. Full compatibility of the remote functions also cannot be guaranteed. Operate your iPod/iPhone as normal, while it sits in the docking station. NOTE: Depending on the software version of your iPhone the following error message may be displayed: “This accessory was not developed for iPhone use. It is possible that noise occurs and signal strength is reduced.” In this case press “OK”. General operation NOTE: Some buttons you will nd on both the device and the remote control. Buttons with the same name result in the same functions. STANDBY/ON (17/16) Press STANDBY/ON button to switch the device into standby mode (display will show the time). Press this but- ton again to turn on the device. Volume (14/9) Adjust to your preferred volume level. The display will show “VOL” and a number. This will equal to the set vol- ume of “VOL MAX” or “VOL MIN”. Headphone jack (19) When listening via headphones, please use headphones with a 3.5 mm stereo jack plug which you will connect to the headphone jack. The speakers will be deactivated. Infrared remote control Wireless operation from a distance of up to 5 meters. If this range gets less, please change the batteries. Make sure there are no obstacles between the remote control and the sensor (2) on the device during operation.48 ENGLISH USB port This device has been designed in accordance with the latest USB state of the art technology. Due to the large variety of dierent USB memory tools on the market it is not possible to provide complete compatibility with all USB storage devices. In some rare cases there might occur, for that reason, errors when playing USB storage devices. That is not a malfunction of this device.

1. Open the cover (3) on the top of the device.

3. Plug a USB storage directly into the port.

4. If playback does not begin automatically: Please press

PLAY/PAUSE/ENTER (9/14) to start playback of the music les. Please refer to chapter “Playing CDs/MP3” for operation. CAUTION: Before removing the USB storage device, use FUNCTION button to switch to TUNER mode. SD/MMC card slot

1. Open the cover (3) on the top of the device.

2. If you wish to play les from a SD/MMC card, please

insert the card in the respective slot.

4. If playback does not begin automatically: Press

PLAY/PAUSE/ENTER (9/14) to start playback of the music les. Please refer to chapter “Playing CDs/MP3” for operation. LINE IN jack Connect analogue playback devices. When connecting to this jack you may also listen to the audio of other devices, such as MP3 or CD players etc., via the speakers.

1. Please connect the external device via 3.5 mm plug

3. Via the speakers you will listen to the audio of the

external device; use VOLUME +/- buttons (14/9) to adjust the volume. The CD buttons are not active.

4. For further functions please refer to the user manual

of the external audio device. NOTE: Set the volume of the external device to a proper au- dible level. Listening to the radio

1. Repeatedly press FUNCTION button (15/1) until the

3. The FM.ST control lamp ((ST)) (in the display) will

light up when the selected station is received with stereo quality. If reception is too poor and the station experiences static, the control lamp will icker. Try to improve reception by rotating and unwinding/wind- ing up the antenna. For FM stations you may use ID3/ MONO/ST button (18/15 on the remote) to switch between MONO and STEREO reception. In case of poor reception we recommend switching to MONO mode. Save/select station

4. When you have found the desired station, press the

iPOD/MEM/C-ADJ. button (11/4). MEMORY will light up in the display and the memory position will ash.

5. For choosing the memory position, please press

PRESET/FOLDER button (12/5).

6. Press iPOD/MEM/C-ADJ. to save the settings.

To select a stored station, please press PRESET or FOLDER button. Music Playback from iPod/iPhone (iPod/iPhone not supplied)

1. Press the FUNCTION button (15/1) repeatedly until

“IPOD” appears in the display.

iPOD OPEN/CLOSE button (16/3), to open the docking port compartment (21). The CD drawer opens to the right. NOTE: The docking port compartment cannot be opened in CD mode.

4. If an adapter has been supplied with your iPod, put it

onto the dock connector. You can only ensure that the iPod ts correctly into the iPod port if the adapter is plugged in.

5. Insert your iPod/iPhone into the dock.

CAUTION: Make sure that your iPod/iPhone is plugged upright into the port. Do not bend or tilt the iPod/iPhone whilst it is plugged into the port. This may cause damage to the dock or the iPod/iPhone.

7. Depending on the iPod/iPhone Model, rstly release

the button lock and start playing music if necessary with the PLAY/PAUSE/ENTER button (9/14).49 ENGLISH

8. Close the docking port compartment again. To do so,

press the iPOD OPEN/CLOSE button again.

9. Follow your iPod/iPhone manual for further use of the

controls. CAUTION: Stop playback before unplugging the iPod/iPhone from the port since the iPod/iPhone may otherwise be dam- aged. NOTE: If you have an incoming call when playing back music with the iPhone docked, then playback stops and you can hear the ring tone. iPod/iPhone Charging Your iPod/iPhone battery is charged as soon as the iPod/ iPhone is docked. To do this, the unit must be connected to the mains. NOTE:

• If the slot adapter has been supplied with your iPod, use it to ensure that your iPod ts correctly.

• Not all iPod/iPhone generations support the charge mode.

• The duration of the charging process depends on the iPod/iPhone which is used and its operating condition. Playing CDs/MP3 This is how to play a CD

1. Repeatedly press FUNCTION button (15/1) until the

CD OPEN/CLOSE button (10/2) to open the CD compartment (5). The CD drawer opens to the left. NOTE: The CD drawer cannot be opened in IPOD mode.

3. Place an audio CD with the label side facing to the

front on the spindle in the center, so that the CD locks mechanically. Then close the CD door by pressing the CD OPEN/CLOSE button again.

The display will show “Cd”, the number of tracks and total playback time. If playback does not begin auto- matically: Press PLAY/PAUSE/ENTER button (9/14) to start playback of the CD. The playback starts from the rst title on the CD. The display will show the cur- rent track and the lapsed playback time. For MP3 or a CD in MP3 format: The display will show “STOP”, the number of folder, e.g. 04, and the total number of tracks (e.g. 126). If playback does not begin automatically: Press the PLAY/PAUSE/ENTER button to start CD playback. The playback starts from the rst track and from the rst folder The current song, the current folder, the expired playing time, and “MP3“ are shown in the display. Use the PRESET or FOLDER buttons (12/5) to select the individual folders.

5. To remove a CD, please press STOP/MENU button (8)

(14 on the remote), open the CD compartment with CD OPEN/CLOSE button and carefully lift the CD. Always keep the CD door closed. NOTE:

• If a disc is not properly or not at all inserted, “READ- ING” will light up and the display will show “NO DISC” (no disc).

• Playback of CDs created by the user cannot be guaranteed due to the variety of available software and CD media equipments. Description of the control buttons PLAY/PAUSE/ENTER (9/14) You may temporarily stop playback and start again. The lapsed playback time will ash in the display. Pressing the button again will continue playback from the same posi- tion. In IPOD mode:

• First press the iPOD/MEM/C-ADJ button to activate the iPod-Menu. IPODMENU appears in the display.

• Now press the PLAY/PAUSE/ENTER button to acti- vate a function or to display the next menu. / SKIP/TUNE SEARCH (7/14) If an Audio CD, MP3, a CD is running in MP3 Format or in IPOD mode: With the SKIP/TUNE SEARCH button you may skip to the next or next but one track, etc. Press and hold this button to quickly search music (sound will be muted). You may operate the SKIP/TUNE SEARCH button as followed: Press 1 x = Starts current track again from the beginning. Press 2 x = Skips back to previous track. Press 3 x = Plays track prior to that, etc. Press and hold this button to quickly search music (sound will be muted).50 ENGLISH In IPOD mode:

• First press the iPOD/MEM/C-ADJ button to activate the iPod-Menu. IPODMENU appears in the display.

• Now press the / SKIP/TUNE SEARCH buttons to scroll up or down the iPod/iPhone menu. During radio mode: Tune the desired radio station. STOP/MENU (8/14) Pauses the CD or piece of music. In IPOD Mode:

• First press the iPOD/MEM/C-ADJ button to activate the iPod menu. IPODMENU appears in the display.

• Now press the STOP/MENU button to call up the iPod/iPhone menu or to return to the previous menu. NOTE: The Music App must already be started to do this. MUTE (11 on the remote) Quickly turn o the sound. The volume bars ash on the display. To cancel this function, press MUTE again. EQ (12 on the remote) (Preset equalizer function). There are dierent sound modes available (PASS CLASSIC, ROCK, POP, JAZZ). NOTE: During iPod/iPhone Music Playback For optimum sound, change the EQ setting on your iPod/iPhone as required. ID3/ST/MO (18/15) During FM radio mode: Switch between STEREO and MONO. For MP3s or a CD in MP3 Format: Stored ID-3 tag information will be shown as banner in the display. Press the button again to activate the function. REPEAT (13 on the remote) Press 1x: (REPEAT lights up) The current track will be repeated entirely. Press 2x: (REPEAT ALL lights up) The complete CD will be repeated entirely. Press 3x : All functions will be canceled. Normal playback will be continued. Only for MP3s and CDs in MP3 format: Press 1x: The current track will be repeated continu- ously (The display will show REPEAT). Press 2x: The complete CD will be repeated continu- ously (the display will show REPEAT ALL). Press 3x: The selected folder of the MP3 CD will be repeated continuously (the display will show REPEAT ALBUM). Use PRESET/FOLDER buttons (12/14) to select the individual folders. Press 4x: The function will be deactivated and the CD will be played in normal mode. RANDOM (6 on the FB) The display will show “RANDOM” and the number of the track that will be played rst. All tracks will be played consecutively in random order. PRESET/FOLDER (12/5) For MP3 or a CD in MP3 format: Press these buttons during playback to switch one folder up or down. The display shortly shows a message, e.g. ALBUM 02. Then the system automatically starts playback of the MP3 CD. When pressing the buttons during stop mode, the message will also shortly be shown in the dis- play. Then press PLAY/PAUSE/ENTER to start playback. During radio mode: Select a stored radio station. SLEEP (8 on the remote) When the device is switched on, you can set the time after which the device will turn into standby mode; set the time in 10 minutes intervals from 90 to 10 minutes. Repeatedly press this button until the display shows the desired time. When the function is activated, the display will show the symbol “ ”. The device will turn o automatically after the preset time. To display the remaining time, please press SLEEP but- ton. You may still reduce the time or deactivate (OFF) the function afterwards. TIMER (7 on the remote) You may program the device for it to turn o and on again after a certain preset time.

STANDBY ON button to switch into standby mode (time will be displayed).

• Conrm your input each time with the TIMER button. The current display to be set ashes on the display.51 ENGLISH NOTE: If no button is pressed within around 10 seconds, the device switches back to standby mode without saving the input.

3. After you have selected the turn-on volume, press

the TIMER button again. The device will switch into standby mode. “ ” will be displayed and the timer is activated. After the set time has been reached, the device switches to the selected mode. The volume increases slowly to the selected volume. Press TIMER to deactivate the timer function. “ ” will disappear from the display. NOTE: When the timer is deactivated, quickly press the TIMER button, the settings you have made are displayed. iPOD/MEM/C-ADJ. (11/4) Set the clock, store stations and program playback. Hold this button down for around 3 seconds, the time is shown briey on the display. Program Playback Program playback in desired sequence. (Only in CD/USB/ CARD mode)

show “ 00 P- 01” (“track” P- “memory position”) and MEMORY Use the buttons / SKIP/TUNE SEARCH (7/14) to select the desired track and press iPOD/ MEM/C-ADJ. button again. The display will change to memory position P- 02. For MP3s or CDs in MP3 format: The folder display „00“ ashes on the display alongside the MEMORY button. First select the desired folder us- ing the PRESET/FOLDER buttons (12/5).

3. Use the / SKIP/TUNE SEARCH buttons to select the

next track and press iPOD/MEM/C-ADJ. again. Repeat the steps until you have selected all tracks.

4. Press the PLAY/PAUSE/ENTER button (9/14).

Playback starts. The display will show the rst selected track number. Also use this button to temporarily stop playback.

5. Press STOP/MENU button once to stop playback. The

memory will be kept.

6. To play the memory again, rst press iPOD/MEM/C-

ADJ. button once followed by PLAY/PAUSE/ENTER.

7. To delete memory, please press STOP/MENU button

twice. The MEMORY display switches o. The device will stop automatically after all stored tracks have been played. The program sequence will be kept in the memory until you switch to another mode, remove the CD from the compartment or switch o the device. It is possible to combine program playback with the RE- PEAT function. After programming and starting playback, please press REPEAT button (13 on the remote) up to three times; the functions can be applied as described under “REPEAT”. Playback of music les in MP3 format This device allows the playback of music les in MP3 format. The device furthermore supports the common CD types: CD, CD-RW, and CD-R. Your device can play MP3 CDs. These are compressed CDs that can store up to 200 tracks. Your device automatically recognizes MP3 discs (the display will show total number of tracks and folders). Please refer to chapter “Playing CD/MP3” for playback of such CDs. You may program tracks as already described under “Program playback”. Please note: There are many burning and compressing methods, as well as dierences in quality of CDs and burnt CDs. Furthermore, the music industry does not apply xed standards (copy protection). For that reason there might, in rare cases, occur problems when playing CDs and MP3 discs. That is not a malfunc- tion of this device. Cleaning and maintenance

• Disconnect the mains plug before cleaning.
