| Product type | CD player/recorder with radio, cassette and USB |
| Brand | AEG |
| Model | MC 4432 CD |
| Net weight | 3,45 kg |
| Power supply | 230 V, 50 Hz |
| Power consumption | 18 W |
| Protection class | II |
| Radio frequency range | FM 87,5 ~ 108,0 MHz / AM 531 ~ 1635 kHz |
| Compatible audio formats | CD audio, CD-R, CD-RW, MP3 |
| Main functions | CD/MP3 playback, FM/AM radio, cassette, USB playback, AUX input |
| CD playback functions | Play, pause, stop, skip, search, repeat (1/ALL/ALBUM), random play, programming |
| Cassette functions | Play, fast forward/rewind, pause, eject |
| Connections | USB (front), AUX IN (3.5 mm jack), R/L speakers (rear), FM antenna |
| Display | LCD with display of titles, modes, stations |
| Controls | Buttons on the unit and remote control (included) |
| Audio features | Bass Boost ON/OFF, volume control, built-in speakers |
| Maintenance and cleaning | Wipe with a soft, slightly damp cloth without additives; unplug before cleaning |
| Safety | Class 1 laser, do not open the housing, avoid moisture, do not block ventilation slots |
| Repairability | Repairs exclusively by the manufacturer, after-sales service or qualified specialist |
| Included accessories | Remote control (CR2025 battery included); detachable speakers |
| Warranty | According to manufacturer's conditions (see warranty certificate) |
Frequently Asked Questions - MC 4432 CD AEG
User questions about MC 4432 CD AEG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cd player/recorder in PDF format for free! Find your manual MC 4432 CD - AEG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MC 4432 CD by AEG.
USER MANUAL MC 4432 CD AEG
AEG
Deutsch
Inhalt
Overview of the Components ......Page 3
Instruction Manual......Page 41
Technical Data Page 46
Język polski
Spis tres'ci
BASS BOOST OFF/ON (23)
▶II PLAY/PAUSE (8/6)
▶▶I/I◀◀ (SKIP +/SKIP -) (18/19/3)
D-47906 Kempen/Germany
10 Bandkeuzeschakelaar (FM ST. / FM / AM)
11 Cassettevak
12 II Pauzetoets - cassette
13 ■ ▲ Stop/uitwerptoets - cassette
14 ▶▶ Vooruittoets – cassette
15 ◀◀ Terugtoets – cassette
16 ▶ Weergavetoets - cassette
BASS BOOST OFF/ON (23)
▶ II PLAY/PAUSE (8/6)
▶▶▶I/I◀◀ (SKIP +/SKIP -) (18/19/3)
BASS BOOST OFF/ON (23)
$$ \begin{array}{c} \text {UKW (Stéréo) = FM ST., UKW = FM,} \ \text {ondes moyennes = AM (Mono)} \end{array} $$
20 Français
▶ II PLAY/PAUSE (8/6)
▶▶I/I◀◀ (SKIP +/SKIP -) (18/19/3)
23 Interruptor BASS BOOST OFF/ON
24 Lámpara de control POWER
BASS BOOST OFF/ON (23)
▶II PLAY/PAUSE (8/6)
23 BASS BOOST OFF/ON Interruptor
24 Lâmpada de controle POWER
BASS BOOST OFF/ON (23)
▶ II PLAY/PAUSE (8/6)
BASS BOOST OFF/ON (23)
▶ II PLAY/PAUSE (8/6)
▶▶I/I◀◀ (SKIP +/SKIP -) (18/19/3)

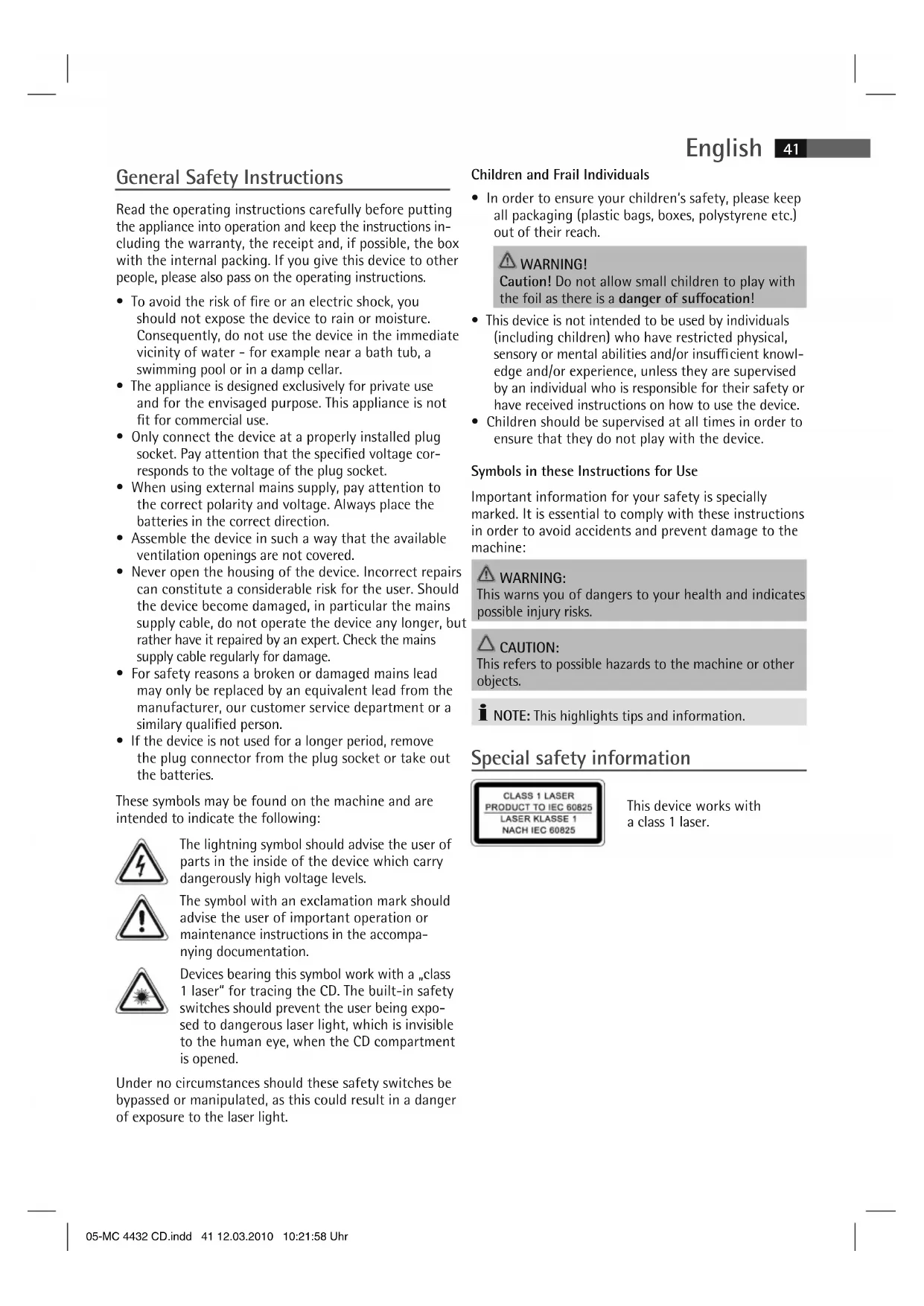

General Safety Instructions
Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.
- To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.
- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
- Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.
- When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.
- Assemble the device in such a way that the available ventilation openings are not covered.
- Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.
- For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
- If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.
These symbols may be found on the machine and are intended to indicate the following:
The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.
The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.
Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.
Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.
Children and Frail Individuals
- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
WARNING!
Caution! Do not allow small children to play with the foil as there is a danger of suffocation!
- This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
- Children should be supervised at all times in order to ensure that they do not play with the device.
Symbols in these Instructions for Use
Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:
WARNING:
This warns you of dangers to your health and indicates possible injury risks.
CAUTION:
This refers to possible hazards to the machine or other objects.
i NOTE: This highlights tips and information.
Special safety information
This device works with a class 1 laser.
42 English
Overview of the Components
1 CD compartment
2 LCD display
3 TUNING control
4 ▲ (open/close) CD compartment
5 IR Sensor for the remote control
6 VOLUME +/- (volume) buttons
7 AUX IN connection
8 ▶II (Play/Pause) button
9 ■ (Stop) button
10 Band selection switch (FM ST. / FM / AM)
11 Cassette compartment
12 II Pause button - cassette
13 ■ ▲ Stop/Eject button - cassette
14 ▶▶ Forward button - cassette
15 ◀◀ Reverse button - cassette
16 ▶ Playback button - cassette
17 FUNCTION Function selector switch
(TAPE/OFF / AUX IN / CD/MP3/USB / RADIO)
18 ▶▶▶I button (forward search)
19 I◀◀ button (reverse search)
20 USB connection
21 MODE button (repeat/random / memory)
22 CD/MP3/USB button
23 BASS BOOST OFF/ON switch
24 POWER control lamp
Reverse Side (not shown)
25 R/L Loudspeaker connections
26 AC Mains connection
27 FM ANT. throw-out aerial
Remote Control
1 FOLDER DOWN ▼/UP ▲ buttons (down/up album)
2 ■ STOP button
3 SKIP -/+ buttons (reverse search/forward search)
4 PROG button
5 MODE button (repeat/random)
6 ▶ II PLAY/PAUSE button)
Intended Use
This device is used for:
• The reception of radio programmes
- Playing back audio cassettes
- Playing back audio/MP3 CDs
• Sound playback from external audio sources.
It is intended exclusively for this purpose and may only be used as such. It may only be used in the manner described in these instructions for use. The device must not be used for commercial purposes.
Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury.
The firm ETV – Elektro-Technische Vertriebsgesellschaft mbH does not accept any liability for damage caused as a result of the use of this device contrary to its intended use.
Start-up of the device/Introduction
- Read the operating instructions thoroughly before the start-up!
- Select an appropriate location for the device, e.g. a dry, flat, non-slip surface on which the device can be easily operated.
- Make sure that the device is adequately ventilated!
- Connect the loudspeakers to the back of the music centre to the sockets market „Speaker R and L“ (25).
- Remove the protective film from the display if it is still present.
Power Supply
- Insert the plug into a properly installed 230 V, 50 Hz power socket.
- Please ensure that the mains voltage corresponds to the information on the type plate.
Inserting the Batteries
i NOTE:
The lithium cell in the battery compartment of the remote control has been secured for transport with a foil. This prolongs the lifetime of the battery. Before initial use please remove this foil so that the remote control is ready for operation.
The battery of the remote control is a long-life lithium cell. If the range of the remote control is reduced during use, please proceed as follows:
- Open the battery compartment on the back of the remote control.
- Replace the cell by a battery of the same type (CR 2025). Ensure correct polarity.
- Then close the battery lid.
If the remote control is not used for a prolonged period, remove the batteries in order to prevent battery acid leaking.
△ CAUTION:
Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.
WARNING:
- Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into the fire. There is a danger of explosion!
- Keep batteries away from children. They are not a toy!
- Do not open the batteries by force.
WARNING:
- Avoid contact with metallic objects. (Rings, nails, screws et cetera.) There is a danger of short-circuiting!
- As a result of a short-circuit batteries may heat up considerably or even catch fire. This may result in burns.
- For your own safety the battery poles should be covered with adhesive strips during transport.
- If a battery leaks do not rub the liquid into your eyes or mucous membranes. If hands come into contact with the liquid they should be washed thoroughly and eyes rinsed out with clear water; if symptoms persist please consult a doctor.
CD deck transport protection
- Please open the CD compartment (1) by pressing the ▲ (open) button (4).
- Remove the transport protection from the CD player if present before use.
General Operation
i NOTE:
Some keys are to be found both on the device itself and on the remote control. Keys with the same designation have the same function.
Volume
You can set the desired volume using the VOLUME+/-buttons (6).
BASS BOOST OFF/ON (23)
To increase or decrease the bass output.
The machine is switched off when the function selector switch (17) is turned to the TAPE/OFF position. Unplug the device.
AUX IN socket
To connect analogue replay devices. Via this socket you can also hear the sound of other playback devices such as MP3 players, CD players etc. through the loudspeakers.
- Please connect the external device with a 3.5 mm stereo jack plug to the AUX IN socket (7).
- Turn the function selection switch (17) to AUX IN.
- For the remaining procedure please see the operating instructions of the external sound source.
- Through the loudspeakers you now hear the sound from the external device; with the VOLUME+/- buttons (6) you can change the volume. The CD buttons do not have any function.
i NOTE:
Adjust the volume of the external device to a comfortable level.
USB Connexion (20)
This device has been developed in accordance with the latest technical developments in the USB field. Unfortunately the large number of different types of USB storage media on offer today makes it impossible to guarantee full compatibility with all USB storage media. For this reason there may be problems in rare cases with playing back from USB storage media. This is not a malfunction of the device.
- Turn the function selector switch (17) to the CD/MP3/USB.
- Insert a USB storage medium directly into the corresponding connection.
- Press the CD/MP3/USB button (22) in order to select USB mode. USB appears in the display.
- After a few seconds the total number of folders appears. Then the total number of tracks is displayed.
- Press the ▶II PLAY/PAUSE button (8/6) in order to start playback. The display then alternates between the current song or folder, the letters ▶MP3 and USB.
For operating instructions please see the section "Playing CDs/MP3s".
i NOTE:
If there is no CD in the CD compartment at the same time, the USB connection is automatically selected.
△ CAUTION:
Before you remove the USB storage medium turn the function selector switch (17) to the RADIO position.
Listening to the Radio
- Turn the function selector switch (17) to the RADIO position.
- Use the band selector switch (10) to select the desired frequency band.
- Tune in the desired station with the station adjustment knob TUNING (3).
- The FM.ST control lamp (ST) (in the display) only lights up when you have selected FM stereo and the station is being received in stereo quality. If reception is too weak and there is noise on the station being received, this lamp will flicker.
- Try to improve reception by turning and bending or twisting and altering the length of the antenna (27). Where reception is bad we recommend switching to FM.
$$ \begin{array}{r l} \text { VHF (Stereo) } & = \text { FM ST.,VHF } = \text { FM }, \ & \text { Medium wave } = \text { AM (Mono) } \end{array} $$
44 English
- An aerial is integrated into the device for the reception of AM stations. The machine can be aligned to the station by turning it. In this frequency band programs are transmitted in „mono" only.
Cassette Operation
Playing Cassettes
- Turn the function selector switch (17) to the TAPE/OFF position.
- Press the ■ ▲ stop/eject button (13) to open the cassette compartment (11).
- Push a recorded audio cassette, with the tape downwards and the listening side facing forwards, into the compartment (full reel to the left). Then close the cassette compartment again.
- Press the ▶ playback key (16) to listen to the tape.
- With the ■ ▲ stop/eject key you can stop playback.
- Wind the tape forwards or backwards if necessary in the direction of the arrow keys
▶▶ = forwards (14), ◀◀ = reverse (15).
- Always press the ■ ▲ stop/eject key when changing the direction or stopping the tape. This prevents damage to the machine and the tape.
- If the ■ ▲ stop/eject button is pressed again the flap of the cassette compartment opens.
- In order to interrupt playback briefly, press the II pause button (12). Pressing again continues playback.
Playing CDs/MP3
This is how you play a CD
- Turn the function selector switch (17) to the „CD/MP3/USB“ position.
- In order to open the CD compartment (1), press the DOOR OPEN button (4).
- Insert an audio CD with the printed side facing upwards on to the central cone so that the CD clicks into place and then close the lid of the CD compartment.
- After a few seconds the total number of songs/tracks is shown in the display.
i NOTE:
In the case of CDs in MP3 format the number of folders is briefly displayed at first.
- Press the ▶II PLAY/PAUSE button (8/6) in order to play the CD. The CD will play from the first title. The track currently being played, ▶DISC or ▶MP3 are shown in the display.
- In order to remove a CD, please press the ■ STOP button (9/2), open the CD compartment and lift the CD out carefully.
Always keep the CD deck closed.
i NOTE:
- With CDs in MP3 format the current track and folder are shown alternately in the display.
- If a disc is incorrectly inserted – or no disc has been inserted – the symbol „--“ and the word „NOd" (no disc) appear in the display.
- Playback of CDs produced by the user cannot be guaranteed due to the large variety of software and CD media available.
Description of the CD buttons
▶II PLAY/PAUSE (8/6)
You can briefly interrupt and resume playback using this button. The current track flashes in the display together with the ▶ symbol. Pressing again continues playback.
▶▶I/I◀◀ (SKIP +/SKIP -) (18/19/3)
With an audio CD or a CD in MP3 format playing:
With ▶▶▶I/SKIP + you can jump to the next or previous track etc.
- If the button is kept pressed down, the machine starts to search through the tracks (the sound is muted).
- If the button is kept pressed down in stop mode the machine quickly plays through the songs until the desired track is reached. When the ▶II PLAY/PAUSE button is pressed the track begins to play back.
The ◀◀◀/SKIP - button can be used as follows:
Press once = This jumps back to the previous track.
Press twice = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks (the sound is muted). If the button is kept pressed down in stop mode the machine quickly plays through the songs until the desired track is reached. When the ▶II PLAY/PAUSE button is pressed the track begins to play back.
■ STOP (9/2)
The CD stops.
MODE (21/5)
Only for the button on the device:
In stop mode for programming any order of tracks (see the section on "Programmed Play").
With an audio CD or a CD in MP3 format playing:
Press once = (the REP. emits a fixed light) the current track is repeated continuously.
English
Press twice = (the REP. ALL emits a fixed light) the whole CD is played continuously.
Press three times = the display contains the word RANDOM and the track number that is to be played first. All tracks are played back in random order.
Press four times = all functions are cancelled. The normal play mode is resumed.
Only for CDs in MP3 format
Press once = the current track is repeated continuously (REP. appears in the display).
Press twice = the whole CD is played continuously (REP. ALL appears in the display).
Press three times = the selected folder of the MP3 CD is repeated continuously REP. ALBUM appears in the display). With the FOLDER UP ▲/DOWN ▼ buttons (1 on the remote control) you can select the individual folders.
Press four times = the display contains the word RANDOM, MP3 and the track number that is to be played first. All tracks are played back in random order.
Press five times = the function is deactivated and the CD is played in the normal mode.
FOLDER UP ▲/DOWN ▼ (1 on the remote control)
Press these buttons during playback in order to move one folder upwards or downwards. The display, e.g. F 01, appears briefly. Then the CD begins to play back automatically. If this button is pressed in stop mode the display also appears briefly. Then start playback with the ▶II PLAY/PAUSE button (8/6).
CD/MP3/USB (22)
Selects the USB connection or the CD compartment.
Programmed Play
This can be used to program any desired sequence of tracks.
- Press the ■ STOP key (9/2).
- Press the MODE (PROG) key (21/4). The word PROG flashes in the display and "P01" (memory preset) appears. Use the ▶▶▶ I / I◀◀ (SKIP+/SKIP-) buttons (18/19/3) to select the desired track and then press the MODE (PROG) button again. The display changes to memory slot P02.
i NOTE:
In the case of CDs in MP3 format, press the FOLDER UP ▲/DOWN ▼ button (1 on the remote control), in order to change the folder.
- Select the next track with the ▶▶▶1 / I◀◀ (SKIP+/ SKIP-) key and press the MODE (PROG) key again. Repeat the procedure until all the desired tracks are selected.
i NOTE:
As soon as the storage capacity of the tracks to be programmed has been reached, the letters "FUL" appear in the display.
- Press the ▶II PLAY/PAUSE key (8/6). The playback starts. The selected track numbers are shown in the display in the correct order and the symbol ▶DISC or ▶MP3 and PROG light up. Press this button to pause briefly the playback.
- Press once the ■ STOP key to stop the playback while retaining the program.
- To play the programme back again, press the ▶II PLAY/PAUSE button.
- To delete the program, press the ■ STOP key twice. The PROG control lamp goes out.
The device stops automatically once the entire sequence of programmed tracks is completed. The abbreviation PROG goes off and the programmed order of tracks is deleted from the memory.
It is also possible to combine the programmed tracks with the REPEAT function. After you have programmed and started the device, please press the MODE button (21/5) up to three times and then you can use the functions as described under MODE".
Playing back Music in MP3 Format
With this device it is possible to play back pieces of music in MP3 format. The device also supports all standard CD types: CD, CD-RW, CD-R.
This machine of is able to play MP3 CDs. Up to 200 tracks can be compressed and stored on these CDs. Your machine detects an MP3 CD automatically (the total number of tracks and MP3s appears in the display). If you would like to play one of these CDs, proceed as described under „Playing CDs/MP3“. Tracks can be programmed as described under „Playing Back Programmed Tracks“.
Please note:
There are a number of different recording and compression methods, as well as quality differences between CDs and self-recorded CDs.
Furthermore, the music industry does not adhere to fixed standards (copy protection).
For these reasons it is possible that in rare cases there are problems with the playback of CDs and MP3 CDs. This is not a malfunction of the device.
46 English
Cleaning and Maintenance
- Always remove the mains plug before cleaning the machine.
- Any marks on the surface can be wiped off with a slightly damp cloth without any additives.
Troubleshooting
| Symptoms Course Solution | ||
| CD can not be played back. | CD is not inserted or inserted incorrectly. | Ensure that the disc is inserted with the label facing upwards. |
| CD jumps during playback. | Check the disc for fingerprints, dirt or scratches. | Check the disc for fingerprints, dirt or scratches. |
Technical Data
Model: MC 4432 CD
Power supply: 230 V, 50 Hz
Protection class:....II
Net weight: 3,45 kg
Radio section:
Frequency ranges: ....VHF / FM 87,5 \~ 108,0 MHz ....MW / AM 531 \~ 1635 kHz
This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.
Subject to technical changes without prior notice!
Meaning of the "Dustbin" Symbol
Protect our environment: do not dispose of electrical equipment in the domestic waste.
Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.
This helps avoid the potential effects of incorrect disposal on the environment and human health.
This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.
Information concerning where the equipment can be disposed of can be obtained from your local authority.
Język polski
BASS BOOST OFF/ON (23)
▶II PLAY/PAUSE (8/6)
▶▶I/I◀◀ (SKIP +/SKIP -) (18/19/3)
BASS BOOST OFF/ON (23)
▶ II PLAY/PAUSE (8/6)
▶▶I/I◀◀ (SKIP +/SKIP -) (18/19/3)
