USER MANUAL Swiss'x 100.01IS VALERA

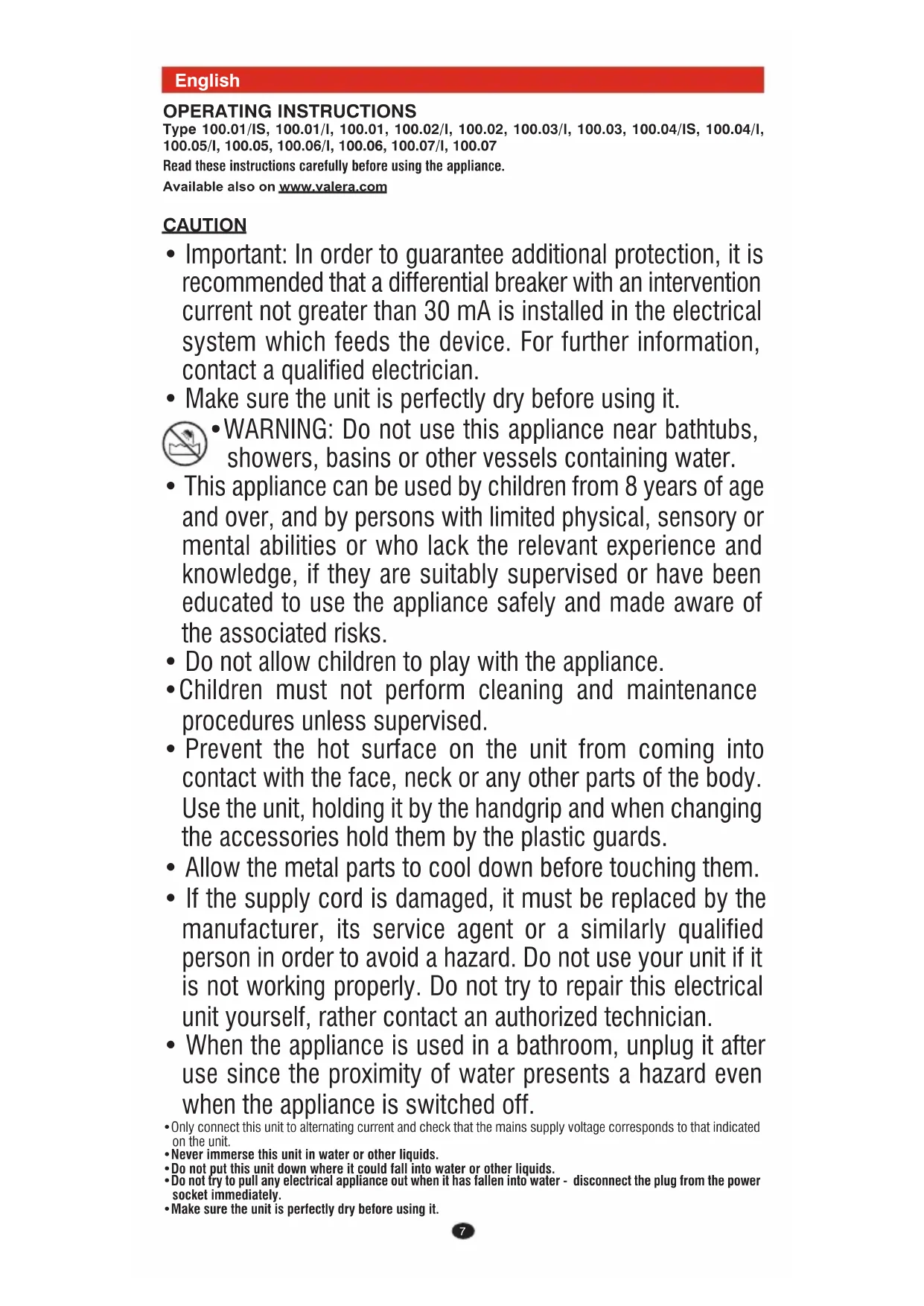

EN Hair StraightenerTranslation from original instructions 7

100.05/I, 100.05, 100.06/I, 100.06, 100.07/I, 100.07

Read these instructions carefully before using the appliance.

Available also on www.valera.com

• Important: In order to guarantee additional protection, it is

recommended that a differential breaker with an intervention

current not greater than 30 mA is installed in the electrical

system which feeds the device. For further information,

contact a qualified electrician.

• Make sure the unit is perfectly dry before using it.

•WARNING: Do not use this appliance near bathtubs,

showers, basins or other vessels containing water.

• This appliance can be used by children from 8 years of age

and over, and by persons with limited physical, sensory or

mental abilities or who lack the relevant experience and

knowledge, if they are suitably supervised or have been

educated to use the appliance safely and made aware of

the associated risks.

• Do not allow children to play with the appliance.

•Children must not perform cleaning and maintenance

procedures unless supervised.

• Prevent the hot surface on the unit from coming into

contact with the face, neck or any other parts of the body.

Use the unit, holding it by the handgrip and when changing

the accessories hold them by the plastic guards.

• Allow the metal parts to cool down before touching them.

• If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or a similarly qualified

person in order to avoid a hazard. Do not use your unit if it

is not working properly. Do not try to repair this electrical

unit yourself, rather contact an authorized technician.

• When the appliance is used in a bathroom, unplug it after

use since the proximity of water presents a hazard even

when the appliance is switched off.

•Only connect this unit to alternating current and check that the mains supply voltage corresponds to that indicated

•Never immerse this unit in water or other liquids.

•Do not put this unit down where it could fall into water or other liquids.

•Do not try to pull any electrical appliance out when it has fallen into water - disconnect the plug from the power

•Make sure the unit is perfectly dry before using it.

00060580 int feb2014:Layout 1 27/02/2014 9.12 Pagina 78

•Do not put the appliance on heat sensitive surfaces

•After use always switch the unit off and remove the

plug from the power supply socket. Do not pull on the

wire to remove the plug from the power supply socket.

Do not pull the plug out of the power supply socket

when your hands are wet.

•Always allow the unit to cool before putting it away and

never wrap the cord around the unit.

•Check that the cord has not been damaged from time

•Prevent the cord from coming into contact with the

metal parts while these are still hot.

•Use the unit on dry hair.

•Do not use this unit on wigs that have synthetic hair.

•The elements used to pack the unit (plastic bags,

cardboard box, etc.) must be kept out of reach of

children as they are a potential danger to them.

•This unit must only be used for the purposes for which

it is expressly intended. Any other use is to be

considered improper and therefore dangerous. The

manufacturer accepts no responsibility for damage

caused by improper or erroneous use.

•Do not use hair spray while the unit is running.

•Keep the plates clean and free of dust, hair spray,

•To avoid dangerous overheating, it is advisable to

unwind the entire length of the cord.

OPERATING INSTRUCTIONS PARTS

2. Straightening plates

4. Temperature adjustment controls

(Type 100.01/IS, 100.01/I,

100.01, 100.04/IS, 100.04/I, 100.07/I, 100.07)

8. X’Brush accessory (for models supplied with this

9. Thermocap accessory (for models supplied with this

10. Protective band (for models supplied with this accessory)

11. Heat-resistant carry pouch (for models supplied with this

Switching the appliance

To switch the appliance on, simply plug it in to an

electrical socket, then press and hold the O F switch (fig.

1, ref. 3) for one second. To switch it off, press and hold

the ON-OFF button (fig. 1, ref. 3) for one second again

and remove the plug from the socket.

Type 100.03/I, 100.03, 100.06/I, 100.06

To switch the appliance on, plug it in to an electrical

socket and move the switch (fig. 1, ref. 3) to “I”. To

switch it off, move the switch (fig. 1, ref. 3) to “O” and

remove the plug from the socket.

Let the appliance preheat for about 1 minute before

100.04/I, 100.07/I, 100.07

To select the operating temperature, switch on the

appliance and press the “+” or “-” control (fig. 1, ref. 4)

until the display (fig. 1, ref. 7) shows the desired

Different temperatures may be selected for different hair

types at intervals of 10°C, from a minimum of 120°C to

After the selected value has been blinking for a few

seconds, the display (fig. 1, ref. 7) will show the actual

temperature of the straightening plates (fig. 1, ref. 2).

When the temperature of the straightening plates is lower

than 110°, 3 dashes flash on the display.

Wait for the selected temperature to be reached, then

begin styling the hair.

Type 100.02/I, 100.02, 100.05/I, 100.05

Select the desired temperature using the corresponding

wheel (fig. 1, ref. 5): when the LED (fig. 1, ref. 6) stops

blinking, the appliance is ready to use.

AUTOMATIC DEACTIVATION OF SAFETY

(Not available for models 100.03/I, 100.03,

The appliance automatically switches off 60 minutes

after it was switched on:

- in 100.01/IS, 100.01/I and 100.01, 100.04/IS and

100.04/I, 100.07/I, 100.07 models, 5 minutes before

automatic deactivation, the display (fig. 1, ref. 7) shows

the temperature and the text “off” alternately.

When 60 minutes have elapsed, if the power button (fig.

1, ref. 3) has not been pressed again, the straightening

plates (fig. 1, ref. 2) will begin to cool down; the text

“Hot” appears on the display and remains visible until

the metal plates reach a lower temperature which will not

result in burns on contact with the skin.

- in 100.02/I and 100.02, 100.05/I and 100.05 models,

5 minutes before automatic deactivation, the LED (fig. 1,

ref. 6) blinks very slowly. When 60 minutes have

elapsed, if the power button (fig. 1,

ref. 3) has not been pressed again, the straightening

plates (fig. 1, ref. 2) begin to cool and the LED blinks

very slowly, until they have reached a lower temperature

which will not result in burns on contact with the skin.

MEMORY FUNCTION In 100.01/IS, 100.01/I, 100.01 100.04/IS and 100.04/I,

100.07/I, 100.07 models, when the appliance is switched

off, the last temperature setting is stored in the memory

and remains active the next time it is switched on.

ION FUNCTION (models 100.01/IS,

100.01/I, 100.04/IS, 100.04/I, 100.07/I only)

This product also has the “ION” function, which is

always active during operation. The appliance produces

a flow of negative ions.

The ion generator may emit a slight humming noise, but

this is perfectly normal.

Ions are electrically charged particles found in nature.

Negatively charged ions help to purify the air by

neutralising the positively charged ions that, by contrast,

reduce its quality by retaining in the atmosphere many

An abundance of negatively charged ions can be found

after a thunder storm or at the seaside or in the

mountains, close to waterfalls and waterways where the

feeling of well-being is due to the increased presence of

pure, natural, revitalising air.

Improved hydration of hair

Negatively charged ions help to maintain the proper

hydration of your hair.

00060580 int feb2014:Layout 1 27/02/2014 9.12 Pagina 89

Conditioning effect on the hair

Improved hydration assists with the conditioning of your

hair, has a regenerating effect and makes it softer and

easier to comb, with greater volume and shine.

No electrostatic charge or “fly away”

Negatively charged ions help to reduce static electricity,

the “fly away” effect and unwanted frizzles.

Important: never leave the appliance unattended when

•Recommended temperatures:

up to 150°C for fine, straight and coloured hair

up to 180°C for fine, wavy hair

up to 230°C for thick, curly hair

•Hair that has just been washed and dried can be

•The first few times you use this unit it is advisable to

practice on small areas of your hair.

This appliance is designed to smooth, straighten and

style your hair, leaving shinier. To use the appliance

proceed as follows: let the appliance heat until it reaches

the desired temperature. Separate your hair into sections

about 5 cm wide. Put one section at a time between the

smoothing irons and close the irons by exerting force on

To obtain a straightening effect: slide the irons slowly

through your hair from the roots to the ends (fig.4). If

necessary repeat this operation until the required effect

To obtain tight or loose curls proceed as shown in

Let your hair cool before combing or brushing.

Please note: prolonged and repeated use of the appliance

at high temperatures may result in a long-term

straightened effect. This means each individual hair will

struggle to regain its natural wave.

X’BRUSH ACCESSORY (for models

supplied with this accessory)

The X’Brush accessory was designed to achieve 3

results in a single action (fig. 3):

1. DETANGLING: the bristles detangle and guide the hair

between the plates for gentler, quicker straightening.

2. PERFECT STRAIGHTENING, thanks to the 5 layers of

tourmaline ceramic coating the plates.

3. MAXIMUM SHINE: the bristles stroke the hair while it

is still warm, smoothing the cuticles and eliminating

excess heat to straighten kinks.

Fit the accessory to the appliance as illustrated in fig. 2.

Proceed as illustrated in fig. 3 and 4.

Important: replace the accessory after use so that the

bristles are not crushed or bent, as their shape may be

Thermocap accessory (for models

supplied with this accessory)

Protective band (for models supplied

with this accessory)

The Thermocap accessory (fig. 1, ref. 9) and the

protective band (fig. 1, ref. 10) provide heat protection,

for use when closing the straightening plates (fig. 1, ref.

2) as the appliance is being put away after use.

CLEANING AND MAINTENANCE Always remove the plug from the power socket before

beginning to clean the unit!

Let it cool completely before cleaning it.

This unit can be cleaned using a damp cloth, but it must

never be immersed in water or any other liquid!

This appliance conforms to European

Directives 2004/108/EC, 2009/125/EC,

2006/95/EC and Regulation (EC) No.

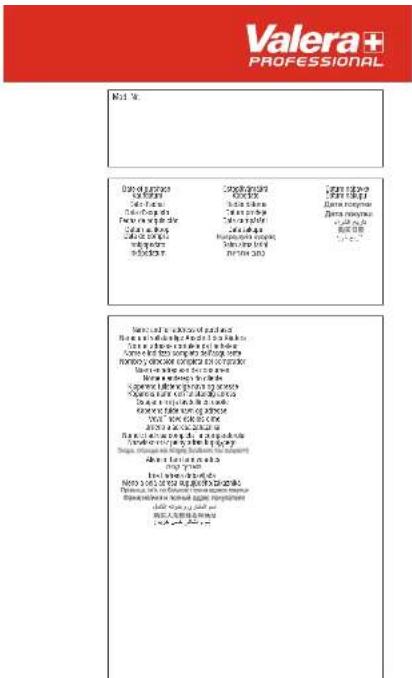

GUARANTEE VALERA guarantees the appliance you have bought at

following conditions:

1. The guarantee conditions for this appliance are as

defined by our dealer in the country of sale. In

Switzerland and in the countries subject to the

European directive 44/99/CE the guarantee period is

24 months for domestic use and 12 months for

professional or similar use. The guarantee period

starts from the date of purchase as stated on the

present guarantee card regularly filled out and

stamped by the dealer or on the sale’s invoice.

2. The guarantee is applicable only against submission

of the present guarantee card or the sale’s invoice.

3. The guarantee covers the elimination of all defects

arisen during the guarantee period resulting from

proven faults in material or workmanship. The

elimination of the defects will be made either by

repairing the appliance or exchanging it. The guarantee

does not cover any damage arising from incorrect

connection to the power supply, improper use,

breakage, normal wear and non-compliance with the

Instructions for Use.

4. All other claims of any nature, including those for

eventual damages outside of the appliance, are

excluded, unless our liability is legally mandatory.

5. The guarantee service is carried out free of charge; it

does not affect the expiry date of the guarantee.

6. The guarantee becomes void if repairs are undertaken

by unauthorized persons.

For UK only: this guarantee in no way affects your rights

under statutory law.

In case of defect, please return the appliance well packed

and together with the guarantee card regularly dated and

stamped to one of our Valera Service Centres or to the

dealer who will send it to the official importer for the

The symbol on the product or on its packaging

indicates that this product may not be treated as

household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical

and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential

negative consequences for the environment and human

health, which could otherwise be caused by

inappropriate waste handling of this product. For more

detailed information about recycling of this product,

please contact your local city office, your household

waste disposal service or the shop where you purchased

VALERA is a registered trade mark of

Ligo Electric S.A. - Switzerland

00060580 int feb2014:Layout 1 27/02/2014 9.12 Pagina 9BEDIENUNGSANLEITUNG Type 100.01/IS, 100.01/I 100.01, 100.02/I, 100.02, 100.03/I, 100.03, 100.04/IS, 100.04/I,

•Temperature consigliate:

(Type 100.01/IS, 100.01/I,

(Type 100.01/IS, 100.01/I, 100.01,

(Type 100.01/IS, 100.01/I, 100.01,

2004/108/EØF, 2006/95/EØF, 2009/125/EØF

(100.01/IS, 100.01/I,

(Type 100.01/IS, 100.01/I,

europene 2004/108/CE, 2009/125/CE,

(Tip 100.01/IS, 100.01/I,

(型号100.03/I, 100.03, 100.06/I,
