| Product type | Pneumatic angle grinder |
| Brand | Bosch |
| Model | 0 607 352 112 |
| Power supply | Compressed air |
| Nominal pressure | 6.3 bar (91 psi) |
| Air consumption under load | 14.0 l/s (29.7 cfm) |
| No-load speed | 7000 min-1 |
| Power output | 550 W (0.74 hp) |
| Max. wheel outer diameter | 125 mm (5 in) |
| Tool holder / Spindle thread | M14 |
| Hose connection | 1/4" NPT |
| Recommended hose inner diameter | 10 mm (3/8 in) |
| Weight (according to EPTA-Procedure 01/2003) | 1.6 kg (3.5 lb) |
| Main functions | Sanding, cutting, rough grinding, abrasive paper sanding |
| Switch type | Lockable switch (models 109/112/117/119) |
| Sound pressure level | 83 dB(A) |
| Sound power level | 96 dB(A) |
| Vibration (typical value) | 3.5 m/s2 (uncertainty K=1.4 m/s2) |
| Maintenance | Regular lubrication, cleaning of the air inlet filter, checking no-load speed |
| Safety | Protective cover, hand guard, emergency stop, use of gloves and goggles |
Frequently Asked Questions - 0 607 352 112 BOSCH
User questions about 0 607 352 112 BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee grinder in PDF format for free! Find your manual 0 607 352 112 - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 0 607 352 112 by BOSCH.
USER MANUAL 0 607 352 112 BOSCH
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
Read and understand all instructions. Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious personal injury.
Save these instructions.
The terminology "Pneumatic Tool" or "Tool" used in the following text refers to the so-called air tool in these operating instructions.
Work area
Keep work area clean and well lit. Cluttered and dark areas invite accidents.
Do not operate tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. During operation of the tool, its accessory can create sparks that may ignite the dust or fumes.
Keep bystanders, children, and visitors away while operating a tool. Distractions can cause you to lose control.
Pneumatic safety
Use compressed air of Quality Class 5 in accordance with DIN ISO 8573-1 and a separate maintenance unit near the tool. The compressed air supplied should be free of foreign material and moisture to protect the tool from damage, contamination, and rust.
Check the connections and air supply lines. All maintenance units, couplers, and hoses should conform to the product specifications in terms of pressure and air volume. Too low a pressure impairs the functioning of the tool; too high a pressure can result in physical damage and personal injury.
Protect the hoses from kinks, restrictions, solvents, and sharp edges. Keep the hoses away from heat, oil, and rotating parts. Immediately replace a damaged hose. A defective air supply line may result in a wild compressed air hose and can cause personal injury. Raised dust or chips may cause serious eye injury.
Make sure that hose clamps are always tightened firmly. Loose or damaged hose clamps may result in uncontrolled air escape.
Personal safety
Stay alert, watch what you are doing, and use common sense when operating a tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating tools may result in serious personal injury.
Use safety equipment. Always wear eye protection. Safety equipment such as a dust mask, non-skid
safety shoes, a hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
Avoid accidental starting. Be sure switch is off before connecting to the air supply. Carrying tools with your finger on the switch or connecting tools to the air supply with the switch on invites accidents.
Remove adjusting keys before turning the tool on. A key that is left attached to a rotating part of the tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
If dust extraction and collection devices are installed, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards.
Do not directly inhale the exhaust air. Avoid exposing the eyes to exhaust air. The exhaust air of the air tool may contain water, oil, metal particles, or contaminants that may cause personal injury.
Pneumatic tool use and care
Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
Do not use tool if switch does not turn it ON or OFF. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
Disconnect the air hose from the air supply before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.
Store idle air tools out of the reach of children and do not allow persons unfamiliar with the air tool or these instructions to operate the air tool. Air tools are dangerous in the hands of untrained users.
Maintain air tools. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the operation of the air tool. If damaged, have the air tool repaired before use. Many accidents are caused by poorly maintained air tools.
Keep the tool bits clean. Well cared for tool bits are easier to use and can be controlled better.
Use the air tool, accessories, and tool bits, etc., in accordance with these instructions and in the manner intended for the particular type of air tool, taking into account the working conditions and the work to be performed. Use of the air tool for operations different from those intended could result in a hazardous situation.
Service
Have your air tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the air tool is maintained.
2 SPECIFIC SAFETY RULES
FOR AIR ANGLE GRINDERS
DANGER
Avoid contact with a live wire. The tool is not insulated and contact with a live wire may result in electric shock.
Use suitable detectors to find hidden utility lines or call the local utility company for assistance. Contact with electric lines can lead to fire or electrical shock. Damaging a gas line can result in an explosion. Penetrating a water pipe will cause property damage or an electrical shock.
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction ac
tivities contains chemicals known to cause cancer, birth defects, or other reproductive harm.
Some examples of these chemicals are:
- Lead from lead-based paints,
- Crystalline silica from bricks and cement and other masonry products, and
- Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
Safety instructions for all operations
Safety warnings that are common for grinding, sanding, wire brushing, polishing, or abrasive cutting off operations
This air tool is intended to function as a grinder, sander, wire brush, polisher, or cut-off tool. Read all safety warnings, instructions, illustrations, and specifications provided with this air tool. Failure to follow all instructions listed below may result in serious injury.
Operations such as grinding, sanding, wire brushing, polishing, or cutting-off are not recommended to be performed with this air tool. Operations for which the air tool was not designed may create a hazard and cause personal injury.
Do not use accessories that are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your air tool, it does not assure safe operation.
The rated speed of the accessory must be at least equal to the maximum speed marked on the air tool.
Accessories running faster than their rated speed can fly apart.
The outside diameter and the thickness of your accessory must be within the capacity rating of your air tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
The arbor size of wheels, flanges, backing pads, or any other accessory, must properly fit the spindle of the air tool. Accessories with arbor holes that do not match the mounting hardware of the air tool will run out of balance, vibrate excessively, and may cause loss of control.
Do not use a damaged accessory. Before each use, inspect the accessory, such as the abrasive wheels for chips and cracks, the backing pad for cracks, tear, or excess wear, and the wire brush for loose or cracked wires. If the air tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the air tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
Wear personal protective equipment. Depending on application, use face shield, safety goggles, or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves, and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtering particles generated by your operation. Prolonged exposure to high-intensity noise may cause hearing loss.
Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of the workpiece or of a broken accessory may fly away and cause injury beyond the immediate area of operation.
Position the compressed air hose clear of the spinning accessory. If you lose control over the tool, the compressed air hose may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
Never lay the air tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the air tool out of your control.
Do not run the air tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing or your hair, pulling the accessory into your body.
Do not operate the air tool near flammable materials. Sparks could ignite these materials.
Further safety instructions for all operations
Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush, or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory, which in turn causes the uncontrolled air tool to be forced in the direction opposite to the accessory's rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material, causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on the direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.
Kickback is the result of air tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
Maintain a firm grip on the air tool and position your body and arm to allow you to resist kickback forces. Always use the auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
Never place your hand near the rotating accessory. The accessory may kick back over your hand.
Do not position your body in the area where the air tool will move if kickback occurs. Kickback will propel the tool in the direction opposite to the wheel's movement at the point of snagging.
Use special care when working corners, sharp edges, etc. Avoid bouncing and snagging the accessory. Corners, sharp edges, or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.
Safety warnings specific for grinding and abrasive cutting off operations
Always use a guard designed for the type of wheel you are using. The guard must be securely attached to the air tool and positioned for maximum safety, so the least amount of wheel is exposed toward the operator. Check routinely that the guard is in proper condition and is securely attached to the air tool. The guard helps to protect operator from broken wheel fragments and accidental contact with the wheel.
Use only wheel types that are recommended for your air tool and the specific guard designed for the selected wheel. Wheels for which theair tool was not designed cannot be adequately guarded and are unsafe.
Wheels must be used only for recommended applications. For example: do not grind with the side of a cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding; side forces applied to these wheels may cause them to shatter.
Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel, thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
Do not use worn down wheels from larger air tools. A wheel intended for a larger air tool is not suitable for the higher speed of a smaller tool and may burst.

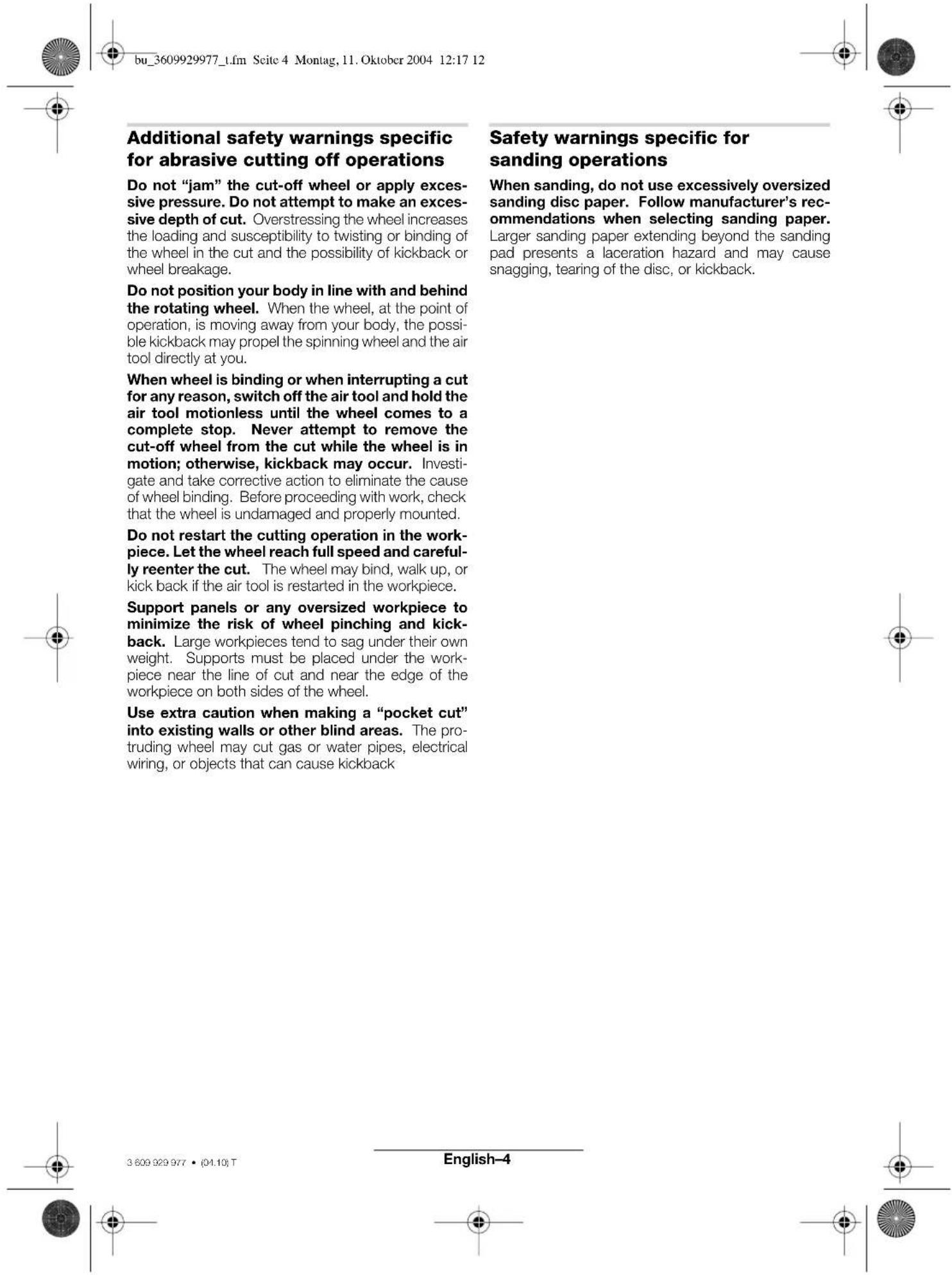

Intended Use
The tool is intended for grinding, cutting off, and wire brushing of metal and stone materials. With proper accessories, the tool can also be used for sanding.
Remarks regarding statics
When you want to perform cutting off operations in walls, you must comply with the country-specific regulations in order not to endanger the load capacity of the building structure. Therefore, prior to commencing work, consult the responsible structural engineer, architect, or the authorized site management.
Declaration of Conformity
We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 792, according to the provisions of the directive 98/37/EC.
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
i.v. vi. viii
| Measured sound values determined in accordance with EN ISO 15744. | 0.607352109 | 0.607352112 | 0.607352113 | 0.607352114 | 0.607352117 | 0.607352118 | 0.607352119 |
| Measured vibration values determined in accordance with EN 28662 and EN ISO 8662. | Typically, the A-weighted noise levels of the tool are:Sound pressure level dB(A) 81 83 81 83 81 81 83 83Sound power level dB(A) 94 96 94 96 94 94 96 96Measuring inaccuracy K = dB 3 3 3 3 3 3 3 | ||||||
| Wear ear protection!The typically weighted acceleration is m/s | 2 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Measuring inaccuracy K = m/s | 2 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |

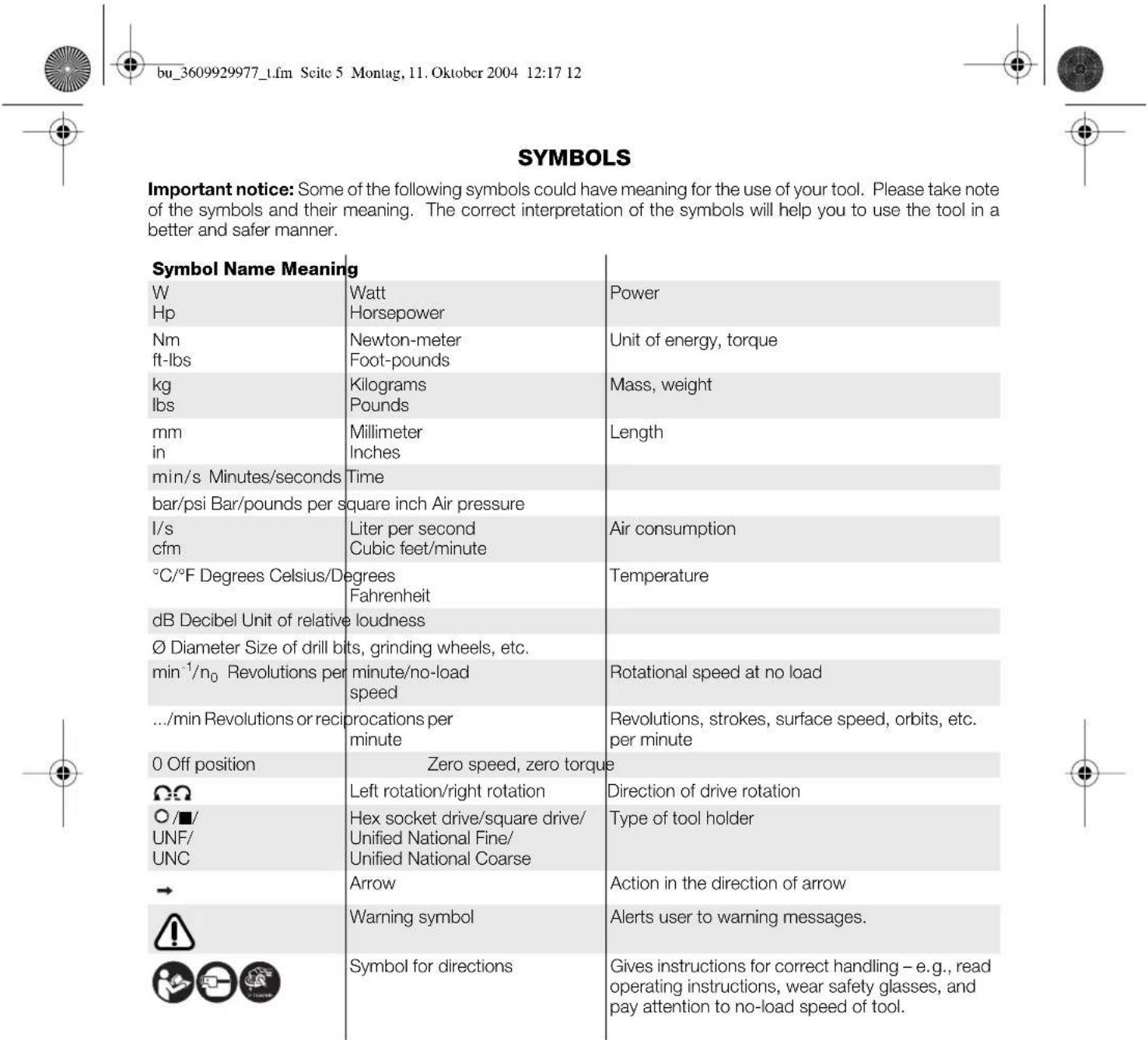

Product Specifications
Air Angle Grinder
| Article number 0 607 352 .... 109 ... 112 ..... 113 ... | 114 ... 117 ... 118 ... 119 ... 120 | ||||||||
| No-load speed min | -1 | 12000 | 7000 | 12000 | 7000 | 12000 | 7000 | 7000 | |
| Speed control | ● | - | ● | - | ● | ● | - | - | |
| Power output | W | 550 | 550 | 550 | 550 | 550 | 550 | 550 | 550 |
| Hp | 0.74 | 0.74 | 0.74 | 0.74 | 0.74 | 0.74 | 0.74 | 0.74 | |
| Max. outer diameter of the abrasive wheels | mm | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| in | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| Tool holder/Spindle thread | M14 | ● | ● | ● | ● | - | - | - | - |
| 5/8"-11 UNC | - | - | - | - | ● | ● | ● | ● | |
| Locking switch | ● | ● | - | - | ● | - | ● | - | |
| Deadman switch | - | - | ● | ● | - | ● | - | ● | |
| Rated pressure | bar/psi | 6.3/91 | 6.3/91 | 6.3/91 | 6.3/91 | 6.3/91 | 6.3/91 | 6.3/91 | 6.3/91 |
| Connecting thread | 1/4" NPT | ● | ● | ● | ● | ● | ● | ● | ● |
| Hose inner diameter | mm | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| in | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | |
| Air consumption under load | l/s | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 |
| cfm | 29.7 | 29.7 | 29.7 | 29.7 | 29.7 | 29.7 | 29.7 | 29.7 | |
| Weight in accordance with EPTA-Procedure 01/2003 | kg | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
| lbs | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | |

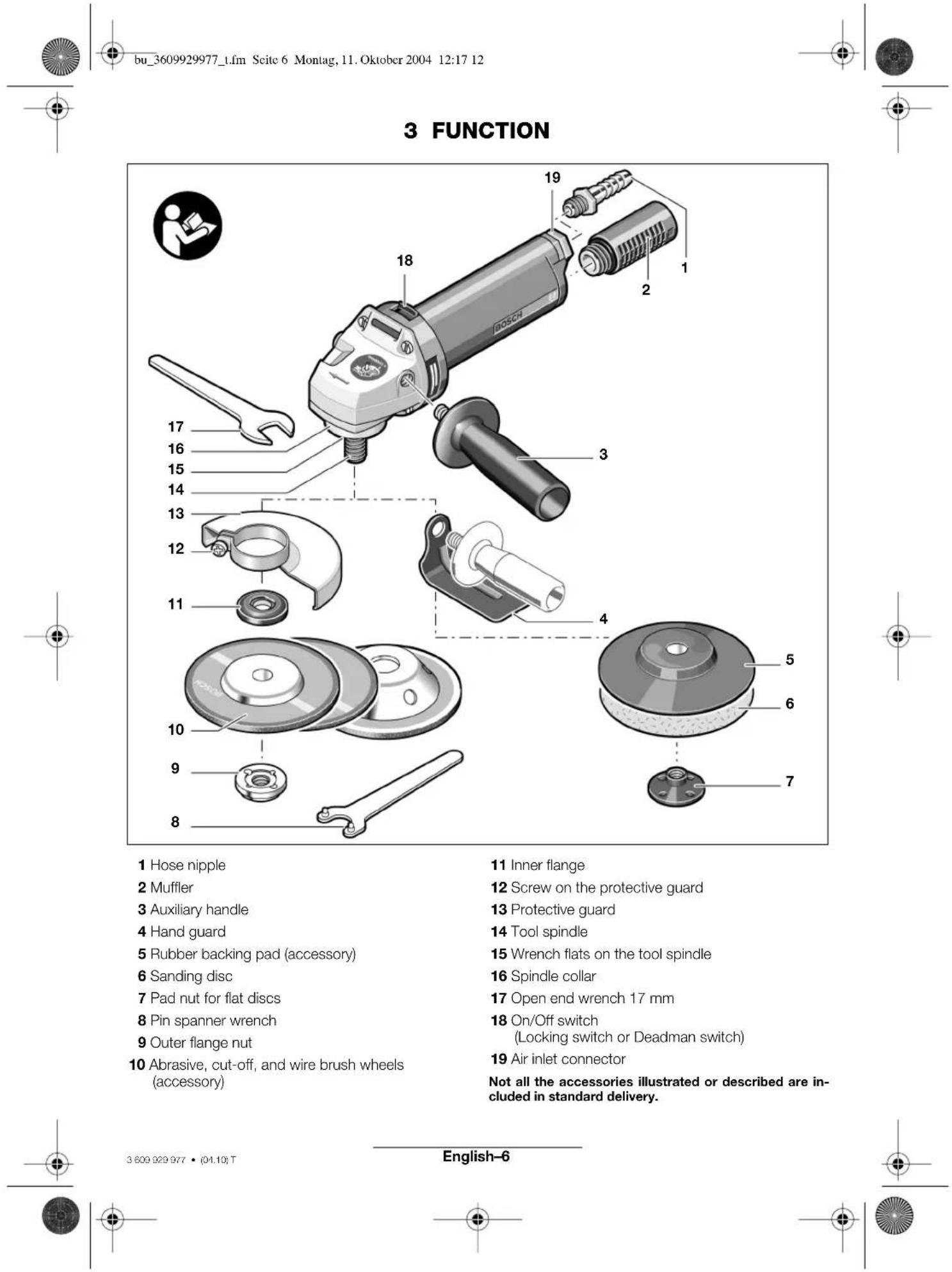

4 MOUNTING
Mounting the Protective Device
Before you mount the protective devices, insure that the air tool is not connected to the air supply.
When grinding and cutting off, always use the protective guard 13. When sanding, always install the hand guard 4 on the auxiliary handle 3. These protective devices are intended to protect you from broken fragments and accidental contact with the abrasive wheels.
Mounting the Protective Guard
Loosen the screw 12 and place the protective guard 13 on the spindle collar 16. Rotate it so that the closed part of the protective guard faces you during the working operation. Fix the protective guard in proper position by securely tightening the screw 12.
Auxiliary Handle
Screw the auxiliary handle 3 onto the right or left side of the head of the tool, depending on the kind of operation.
Hand Guard
For all work with the rubber backing pad 5, you should mount the hand guard 4 together with the auxiliary handle 3.
Exhaust Line
You can use an exhaust line to carry exhaust air away from your workplace and, at the same time, achieve optimal muffling. You also improve the operating conditions, because your workplace will no longer be contaminated by oil-containing air and there are no longer any raised dust or chips.
Unscrew the muffler at the air outlet 2 and replace it with the hose nipple 22. Loosen the hose clamp 20 of the exhaust hose 21 and attach the exhaust hose over the hose nipple 22 by firmly tightening the hose clamp.

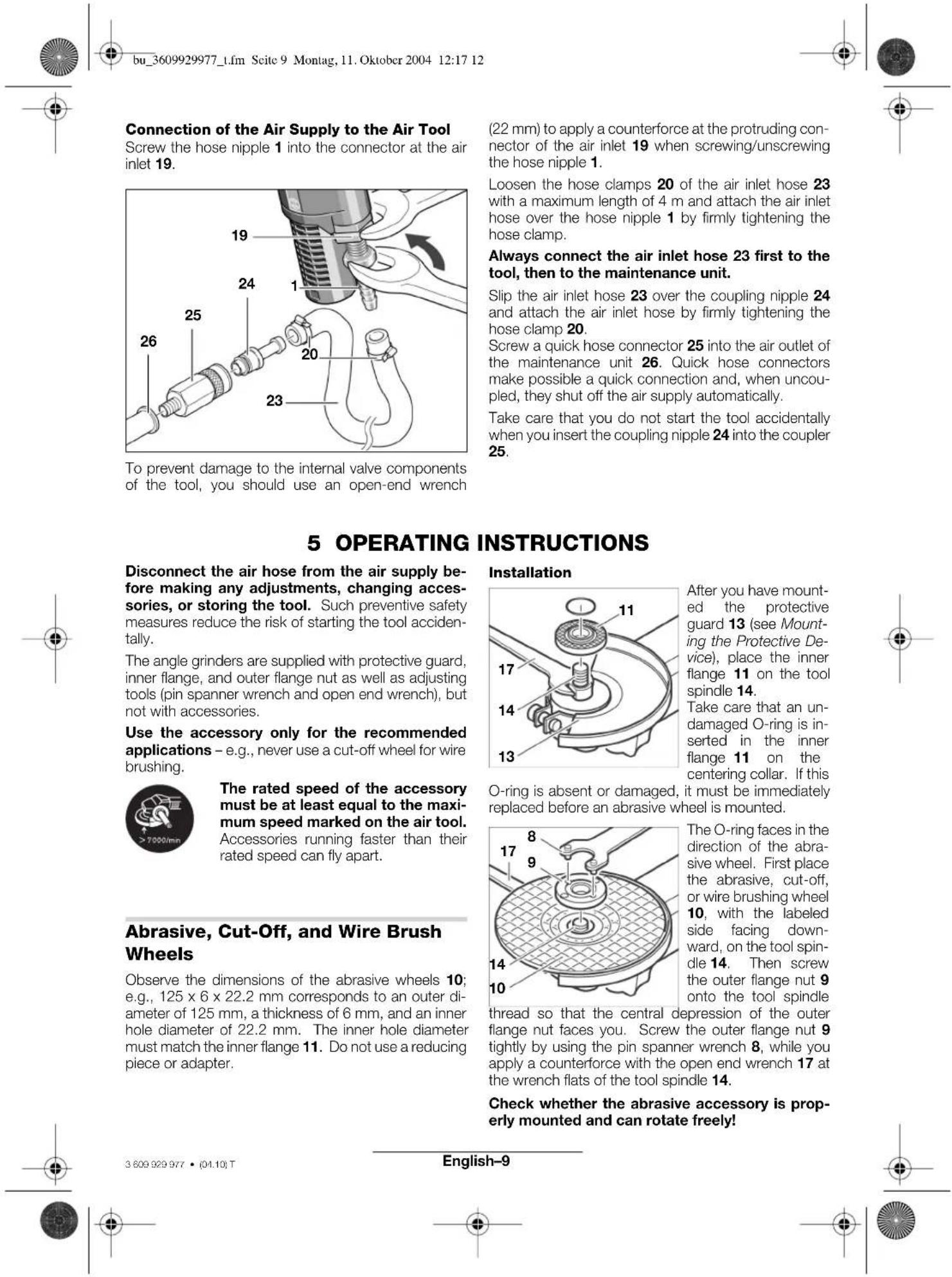

Connection to the Air Supply
The air tool is designed for an operating pressure of 6.3 bar (91 psi). For maximum performance, the inner diameter of the hose is 10mm with connection threads of 1/4^ NPT. To maintain full performance, use only hoses with a maximum length of 4m .
The supplied air must be free of foreign material and moisture to protect the air tool from damage, contamination, and rust.
The use of a compressed air maintenance unit is necessary.
This ensures optimum functioning of compressed air tools. Observe the operating instructions of the maintenance unit.
All fittings, connecting lines, and hoses must be dimensioned for the required air pressure and volume.
Avoid restrictions in the air supply resulting from, e.g., pinching, kinking, or stretching!
In case of doubt, measure the pressure with a pressure gauge at the air inlet with the tool switched on.

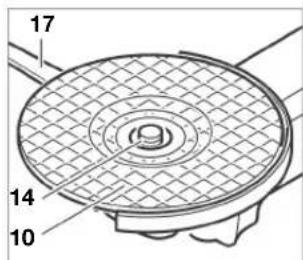

Removal
Caution! Accessories can become hot when the tool is operated for a longer time. Use protective gloves.
In order to remove the abrasive, cut-off, or wire brushing wheel 10, hold the tool spindle 14 firmly on the wrench flats with the open end wrench 17.
You can unscrew a stuck outer flange nut 9 from the tool spindle by using the pin spanner wrench 8, while you apply a counterforce on the wrench flats of the tool spindle with the open end wrench.
Subsequently, you can pull the abrasive, cut-off, or wire brushing wheel, as well as, in the case of angle grinders with M14 spindle thread, the inner flange 11, from the tool spindle. In the case of angle grinders with 5/8 -11 UNC spindle thread, the inner flange must be unscrewed from the spindle thread.

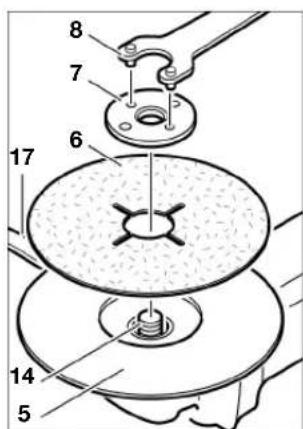

Sanding with the Rubber Backing Pad Installation
After you have mounted the hand guard 4 together with the auxiliary handle 3 (see Mounting the Protective Device), place the rubber backing pad 5 on the tool spindle 14. Then lay the sanding disc 6 on the rubber backing pad 5. Fix the sanding disc 6 in place on the rubber backing pad by placing the pad nut for flat discs 7 on the tool spindle 14 and using
the pin spanner wrench 8 to screw it securely onto the tool spindle, while you apply a counterforce on the wrench flats of the tool spindle 14 with the open end wrench 17. Take care that the pad nut for flat discs 7 is screwed into the depression of the rubber backing plate, so that it does not interfere with sanding and so that the sanding disc is held firmly in place.
Use exclusively sanding discs that fit the rubber backing pad!

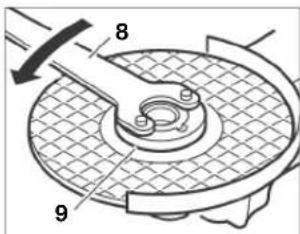

Removal
Caution! Accessories can become hot when the tool is operated for a longer time. Use protective gloves.
Use the pin spanner wrench 8 to unscrew the pad nut for flat discs 7 from the tool spindle 14, while you apply a counterforce on the wrench flats 15 of the tool spindle with the open end wrench 17.
Subsequently, you can pull the sanding disc 6 and the rubber backing pad 5 from the spindle.
Putting into Operation
The air tool operates optimally with a pressure of 6.3 bar (91 psi) measured at the air inlet with the tool running.
If, at a higher nominal pressure, the installed accessory rotates more rapidly than permitted, it may be destroyed and fragmenting parts may injure you.
Remove adjusting keys before turning the tool on. A key that is left attached to a rotating part of the tool may result in personal injury.
After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the air tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
Switching On/Off
If the tool does not run - for example, after not being used for a prolonged time - disconnect the air supply and turn the motor repeatedly using an open-end wrench 17 on the wrench flats 15 of the tool spindle. This eliminates adhesion forces.
Type 0 607 352 109/.. 112/.. 117/.. 119 Locking switch
Switching on: Slide the on/off switch 18 forward. Switching off: Slide the on/off switch 18 backward to release the locking and to switch off the tool.
Type 0 607 352 113/... 114/... 118/... 120 Deadman switch
Switching on: Press the on/off switch 18 and keep it pressed during the working operation. Switching off: Release the on/off switch 18.

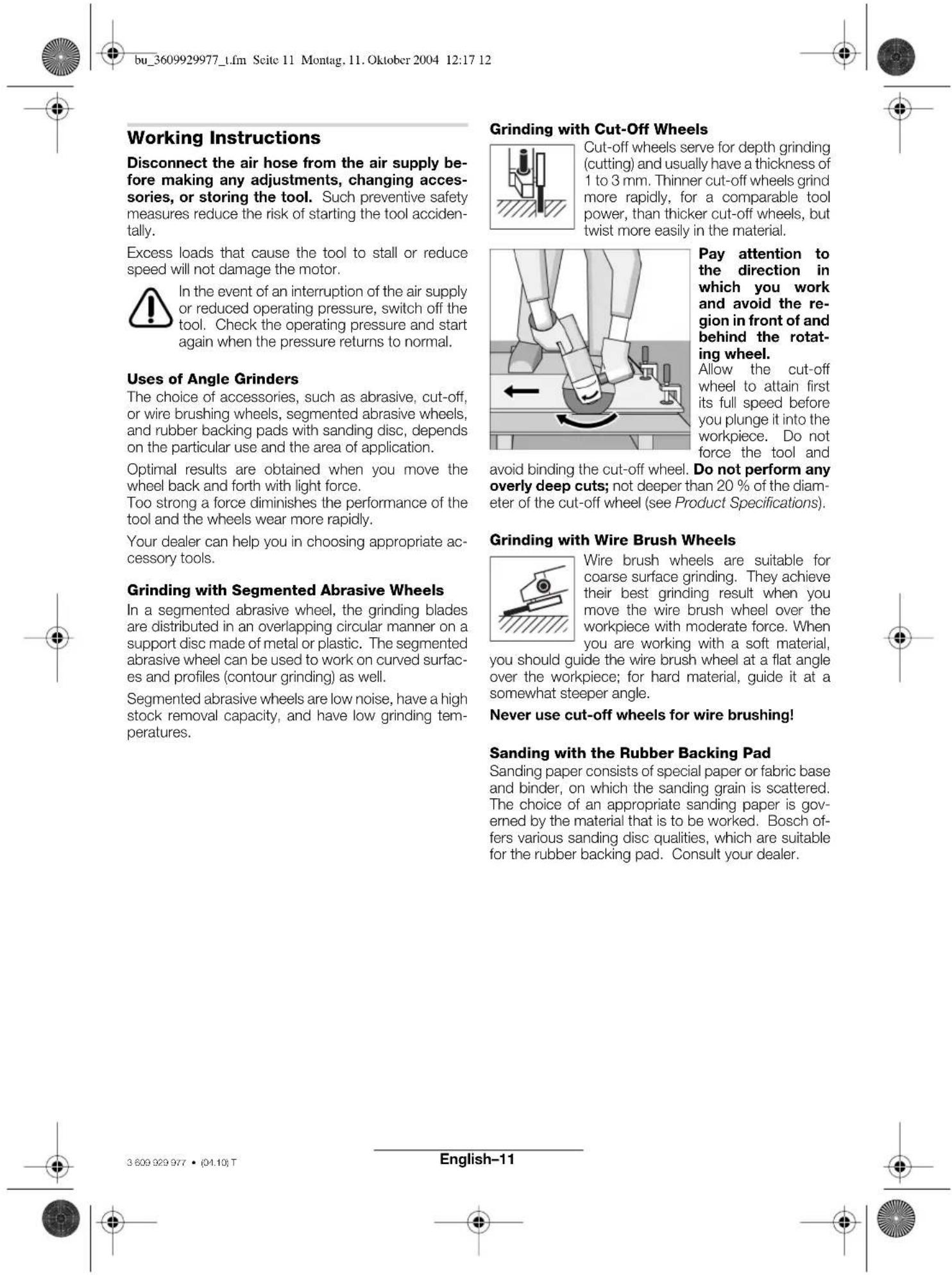

6 MAINTENANCE AND SERVICE
Maintenance
Disconnect the air hose from the air supply before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.
Routinely measure the no-load speed of the tool spindle. If the measured value lies more than 10% above the value given in the table Product Specifications, the tool should be inspected by an authorized Bosch customer service center. If the no-load speed is too high, the accessory can break; if the speed is too low, the work output is diminished.
Should the tool fail in spite of careful manufacturing and testing procedures, have the repairs performed by an authorized customer service location for Bosch power tools.
For inquiries and spare parts ordering, please include the 10-place article number on the nameplate of the tool.
Clean the screen of the air inlet regularly. For this purpose, unscrew the hose nipple 1 and remove dust and dirt particles from the screen. Then firmly remount the hose nipple.
To prevent damage to the internal valve components of the tool, you should use an open-end wrench (22mm) to apply a counterforce at the protruding connector of the air inlet 19 when screwing/un-screwing the hose nipple 1.
Water and dirt particles in the compressed air cause rust formation and lead to clogging of vanes, valves, etc. To prevent this, a few drops of motor oil should be placed in the air inlet 19. Reconnect the tool to the air supply and
let the tool run for 5-10 s while catching the oil that runs out with a rag. If the air tool is not used for a longer time, this procedure should always be performed.
All Bosch air tools that do not belong to the CLEAN series (a special kind of air motor that functions with oil-free compressed air), require a small amount of lubricating oil be mixed into the flow of compressed air. The compressed air oiler required for this is located at the compressed air maintenance unit connected to the tool (you may obtain further details on this from a compressor manufacturer).
You should use SAE 10 or SAE 20 motor oil for direct lubrication of the tool or for admixture at the maintenance unit (compressor).
After the first 150 hours of operation, the gearbox should be cleaned and lubricated by an authorized service center. This process should be then performed after every 300 hours of operation. After each cleaning, it should be lubricated with special gearbox grease.
Special gearbox grease 225 ml . . . . 3605430009
The motor vanes should be routinely inspected by trained personnel and, if necessary, replaced.
Have maintenance and repair work performed only by qualified specialists. In this manner, it can be ensured that the safety of the tool is maintained.
Any Bosch customer service center can perform this work quickly and reliably.
Dispose of lubricants and cleaning agents in an environment-friendly manner. Comply with the legal regulations.
Accessories
All tools can be equipped with abrasive, cut-off, and wire brushing wheels as well as with rubber backing pad with sanding disc.
Information about the complete quality accessory program can be found on the Internet at www.bosch-pt.com and
www.boschproductiontools.com or at your dealer.
Service
Robert Bosch GmbH is responsible for the delivery of the tool in accordance with the sales contract within the framework of the legal/country-specific regulations. For claims with respect to the tool, please contact the following location:
Fax 49(711)7582436
www.boschproductiontools.com
Disposal
Tool, accessories, and packaging should be sorted for environment-friendlyly recycling.
The plastic components are labeled for categorized recycling.
If your tool can no longer be used, deliver it to a recycling center or return it to a dealer - for example, an authorized Bosch service center.
Specifications subject to change without notice
1 CONSIGNES GENÉRALES DE SECURITÉ POUR OUTILLAGES PNEUMATIQUES
A VERTISSEMENT
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
i.v. vi. viii
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
i.v. vi. viii
6 SERVICE OG VEDLIKEHOLD
Vedlikehold
Steng lufttilforselen for du utforer maskininnstlinger, skifter tilbehorsdeler og hvis maskinen.
ike er i bruk over lengre tid. Disse tiltakene forbinder en utilisiktet igangsetting av maskinen.
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
i.v. vi. viii
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
