USER MANUAL Hottelfv719tk ELECTROLUX

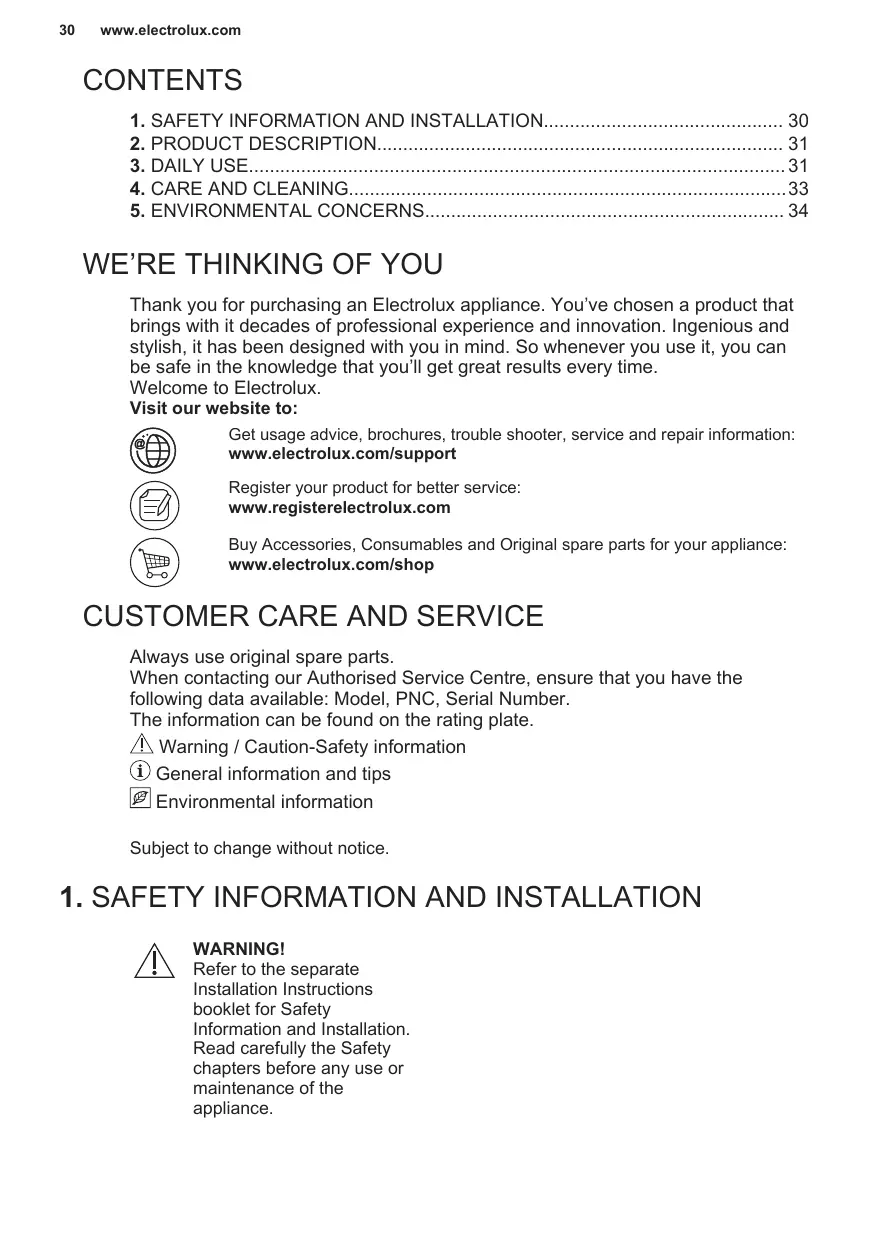

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux. Visit our website to: Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support Register your product for better service: www.registerelectrolux.com Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice.

1. SAFETY INFORMATION AND INSTALLATION

WARNING! Refer to the separate Installation Instructions booklet for Safety Information and Installation. Read carefully the Safety chapters before any use or maintenance of the appliance. ENGLISH

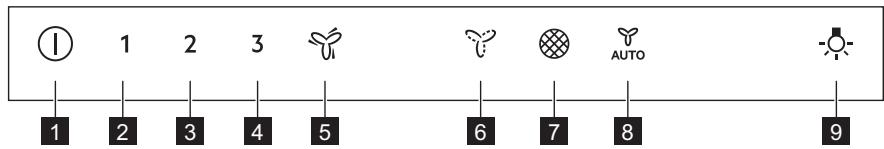

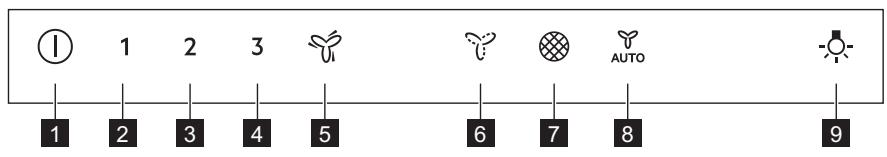

On / Off Turns the hood on and off.

First speed The motor switches to first speed level.

Second speed The motor switches to second speed level.

Third speed The motor switches to third speed level.

Maximum speed The motor switches to maximum speed level. Breeze The hood operates on the lowest speed. After 60 minutes the appliance turns off. Filter notification Reminds to change or clean the charcoal filter and clean the grease filter.

Hob²Hood Indicator of the function to control hood from hob.

Lamp Turns the lights on and off.

Check the recommended speed according to the table below. While heating up food, cooking with covered pots. While cooking with covered pots on multiple cooking zones or burners, gentle frying. While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners. While boiling and frying big quantities of food without a lid, big humidity. Refreshes the air in kitchen after cooking at a very low noise level. It can be activated and de-activated by touching the symbol. The function turns off automatically after 60 minutes. Use after cooking only.

www.electrolux.com It is recommended to leave the hood operating for approximately 15 minutes after cooking. The control Panel is a sensor field. To operate the hood touch the symbol exactly in the middle for at least 1 second. To operate the hood:

1. Turn on the appliance by pressing

symbol. the You can now activate the functions.

2. To activate the function touch the

symbol. minutes. After that time, the appliance returns to its previous speed settings. When the function is turned on, additional touch on does not have any effects.

3.4 Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease is turned on filter. The filter indicator for 30 seconds if the grease filter must flashes be cleaned. The filter indicator for 30 seconds if the charcoal filter must be replaced or cleaned. Refer to cleaning the grease filter in care and cleaning chapter. The hoods light works independently to other hood functions. To illuminate the cooking surface touch Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To turn off the appliance press the symbol again.

3.2 Hob²Hood function

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob. To reset the function touch seconds. To activate or deactivate function:

1. Switch on the control panel.

2. Make sure that the icons are turned

3. To activate function touch for 3

seconds. If the function is activated, the filter icon flashes five times.

4. To deactivate function touch for 3

seconds. If the function is deactivated, the filter icon For more information how to use the function refer to the hob user manual.

3.3 Activating Maximum Motor

Speed When you touch , the Maximum Motor Speed starts to operate for 8 for 3 turns on for 4 seconds. ENGLISH

4. CARE AND CLEANING

4.1 Notes on cleaning

Do not use abrasive detergents and brushes. Clean the surface of the appliance with a soft cloth with warm water and a mild detergent. Cleaning Agents After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels. Clean stains with a mild detergent. Clean the appliance and grease filters each month. Clean the inte‐ rior and grease filters carefully from fat. Fat accumulation or other residue may cause fire. Follow the instructions for cleaning the accessories when filter noti‐ fication is on. Refer to Filter notification in daily use chapter. Keep the hood Grease filters can be washed in a dishwasher. The dishwasher must be set to a low temperature and a short cy‐ clean cle. The grease filter may discolour, it has no influence on the per‐ formance of the appliance. Charcoal filter The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more frequently for particularly heavy usage.

4.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

1. Pull the cover to open it.

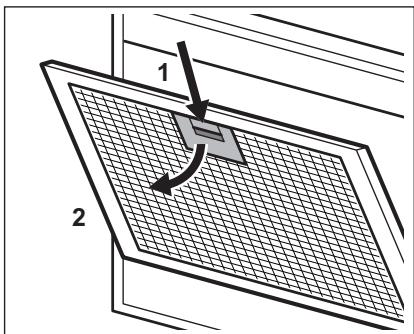

2. Press the handle of the mounting clip

on the filter panel underneath the hood (1).

3. Slightly tilt the front of the filter

downwards (2), then pull. Repeat the first two steps for all filters.

4. Clean the filters using a sponge with

non abrasive detergents or in a dishwasher.

www.electrolux.com The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

5. To mount the filters back follow the

first two steps in reverse order. Repeat the steps for all filters if applicable.

4.3 Replacing the charcoal filter

The charcoal filter must be replaced if the filter alarm is on. Refer to the filter notification in daily use chapter for more information about function. WARNING! The charcoal filter is NONwashable! The filter cannot be regenerated! To replace the charcoal filter: Refer to "Cleaning the grease filter" in this chapter.

2. Turn the filter counterclockwise (1)

To mount the filters back follow the steps in reverse order. In any case, it is necessary to replace the filters at least every four months.

4.4 Replacing the lamp

This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

1. Remove the grease filters from the

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. ESPAÑOL
