USER MANUAL TOPCLEAN BATA 1500 Ulsonix

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	Parameter value
Product name	Floor scrubber
Model	TOPCLEAN BATA 1500
Voltage [V]	24
Battery type	12 V / 38 A
Cleaning efficiency [m2/h]	1500
Squeegee width [mm]	580
Clean water tank [L]	15
Dirty water tank [L]	22
Brush motor [W]	400
Sucker motor [W]	550
IP protection class	IPX3
Dimensions [width * length * height; mm]	470*720*1200
Weight [kg]	60.65

Description

This product is designed to remove dirt, even the most stubborn one, which is widely used for making floors in supermarkets, warehouses, car dealerships, or even museums.

The user is liable for any damage resulting from unintended use of the device.

Operation

Control panel

A. Brush switch button: Press the switch to turn the brush motor on (I) or off (O)

B. Suction switch button: Press the switch to turn the suction engine on (I) or off (O)

C. Key switch: Rotate the key to turn the machine on (turn clockwise) or off (turn counterclockwise)

Cleaning and maintenance

Basic instructions

1. Although the machine is designed to be moisture-proof, under normal use, ensure that no water enters the electrical components to prevent short circuits or electric shocks. Avoid allowing water or detergent to contact the power plug or body circuits.
2. Do not attempt to disassemble the machine by yourself. If the motor or circuit is faulty, contact us or an authorized dealer for repairs.
3. Do not use excessive force. Use the plastic handles, levers, and control buttons gently to prevent unnecessary damage.
4. After each use, drain the clean and sewage water tanks, and clean the sewage tank and pipelines to prevent blockages.
5. Clean the squeegee after each use and dry it with a soft cloth.
6. If the machine is stored for an extended period, charge the battery regularly to maintain battery life.

Battery maintenance

1. Avoid placing the battery in a completely enclosed area; it should be in a ventilated space.

2. To extend battery life, recharge the battery promptly when it is low. Avoid storing the battery at a low or zero charge for prolonged periods, as this can lead to damage.

3. The allowable operating temperature range for the battery is -15°C to 50°C , with optimal lifespan achieved at 20°C to 25°C .
4. This is a maintenance-free sealed battery, requiring minimal upkeep. For batteries in a floating charge system, it is recommended to log the system's floating charge voltage and ambient temperature monthly. Record the floating charge voltage of each battery every six months, and, if there are significant discrepancies, perform a yearly balanced charge. Additionally, conduct a capacity discharge test without exceeding 50% of the rated capacity.
5. Recharge discharged batteries as soon as possible, as delays may make recharging difficult. For batteries in long-term storage, recharge at least once a year.
6. If the battery shows abnormal signs, such as a cracked casing, damage, or leakage, inspect it thoroughly, and replace the battery if necessary.

Battery precautions

1. Keep the battery away from sparks and flames to prevent the risk of explosion.
2. Clean the battery with a damp cloth; using a dry or synthetic cloth may create static electricity, potentially leading to an explosion.
3. Avoid using solvents like incense, coke water, perfume, gasoline, diesel, or other soluble organic cleaners, as they can damage the battery cover and may cause leaks, fire, or smoke.
4. Do not dismantle the battery. If sulfuric acid contacts skin or clothing, rinse immediately with water. For eye contact, flush with water and seek medical attention promptly.
5. When inspecting or maintaining batteries, wear rubber gloves, boots, and other protective gear to prevent electric shock.
6. Avoid installing the battery near any heat sources.

Disposing of used devices

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual, and packaging. The plastics used to construct the device can be recycled following their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Assembly and parts diagram

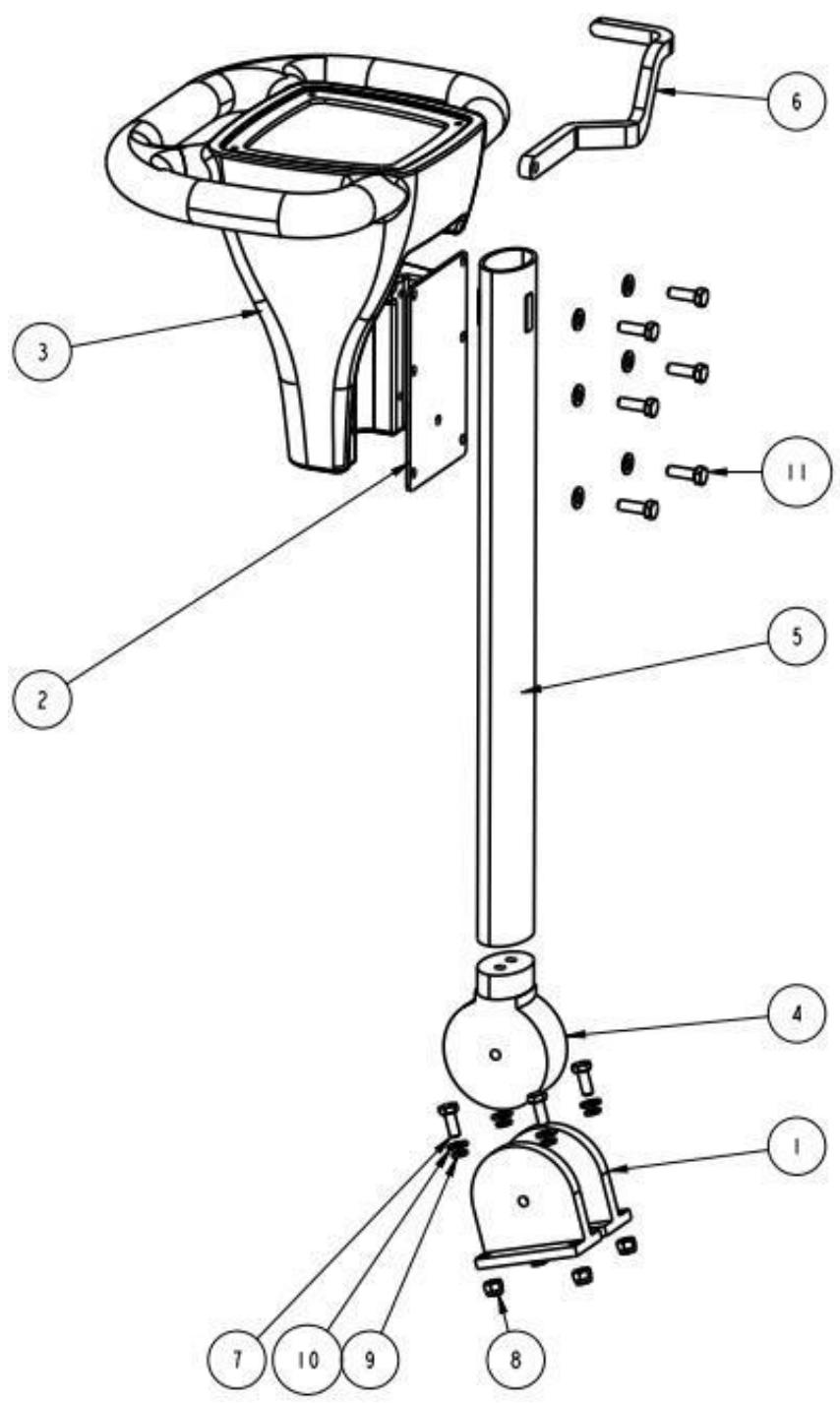

1. Electric cabinet

Part number	Description	Quantity
1	Aluminum seat	2
2	Operating lever pressing plate	1
3	Control box	1
4	Aluminum connecting rod	1
5	Aluminum rod 350	1
6	Operating lever	1
7	Hexagonal M8 * 20 stainless steel	4
8	Self-locking nut M8 stainless steel	4
9	Spring washer M8	4
10	Flat washer Φ 8* Φ 16 * 1.5 stainless steel	10
11	Hexagonal M8 * 20 stainless steel	6

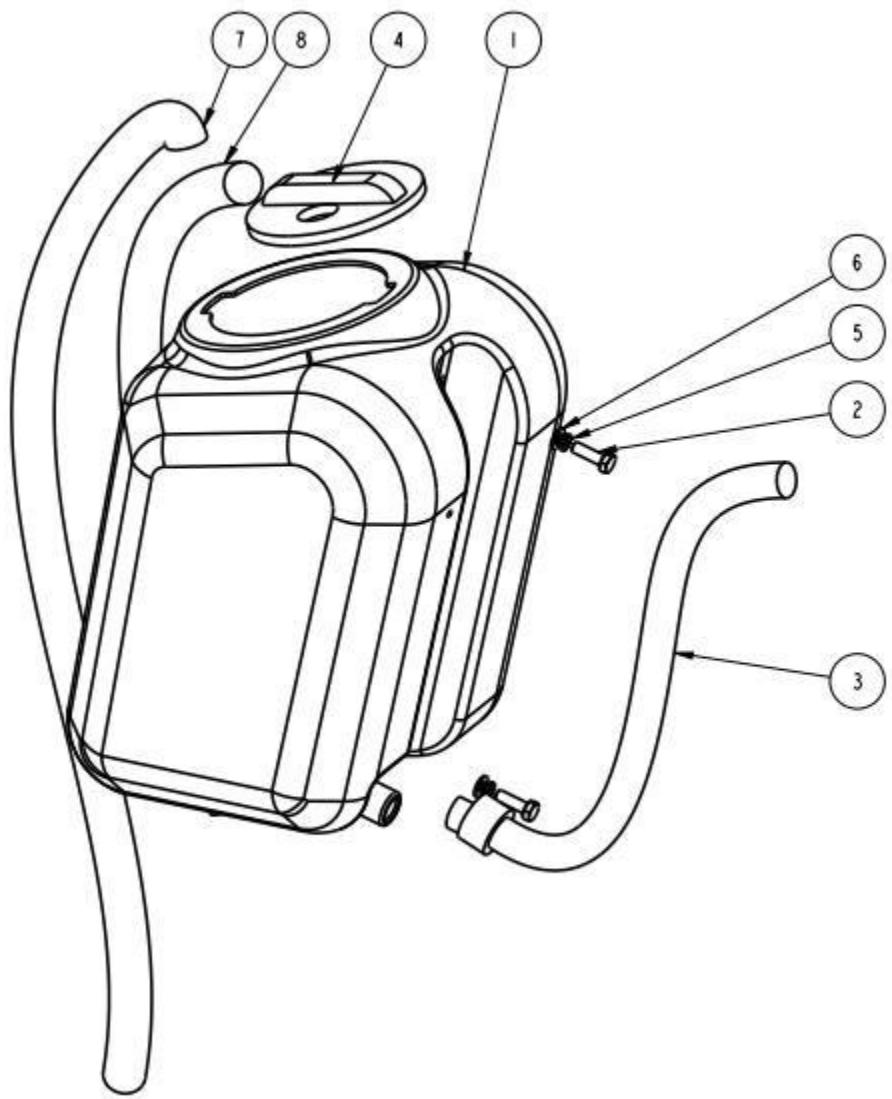

2. Recovery tank

Part number	Description	Quantity
1	Bilge tank	1
2	Hexagonal M8*20 stainless steel	2
3	Sewage pipe Φ 25*1200	1
4	Water tank cover	1
5	Spring washer M8	2
6	Flat washer Φ 8*Φ 16*1.5 stainless steel	2
7	Dirt suction pipe Φ 25*1400	1
8	Sewage pipe Φ 25*400	1

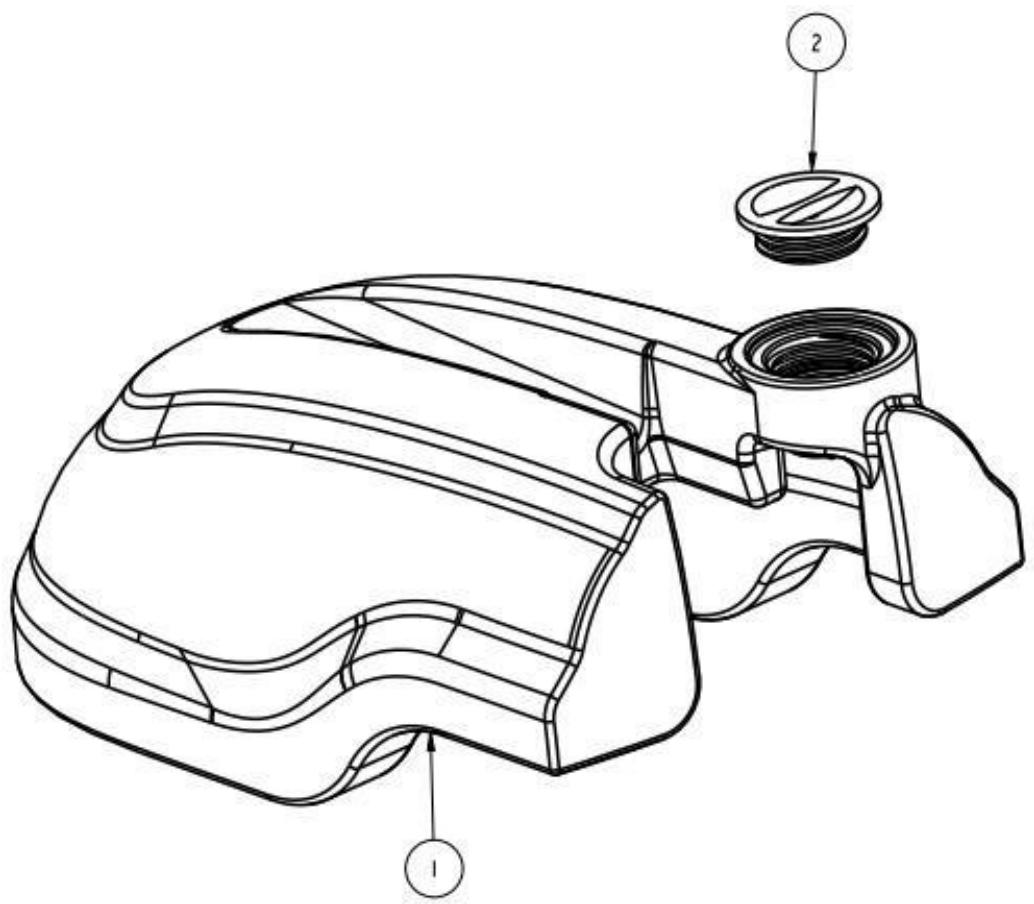

3. Solution tank

Part number	Description	Quantity
1	Clean water tank 350	1
2	Filler cap	1

4. Nose

Part number	Description	Quantity
1	Brush disc motor mounting plate	1
2	Brush disc motor 350	1
3	Pin brush disc buckle	1
4	Brush disc shield	1
5	Hexagon socket head cap screw M6 * 16 stainless steel	4
6	Spring washer M6 stainless steel	4
7	Flat washer Φ 6* Φ 12 * 1 stainless steel	4
8	Hexagonal M8 * 20 stainless steel	3
9	Self-locking nut M8 stainless steel	2
10	Large gasket M8*32*3	1

5. Frame

Part number	Description	Quantity
1	Base frame 350	1
2	Water absorbing motor layering	1
3	Suction motor 24V 500W two-layer end cover air outlet bottom with nozzle	1
4	Pickup connecting rod 350	1
5	Hexagonal M8 * 20 stainless steel	2
6	Self-locking nut M8 stainless steel	7
7	Hexagon socket head cap screw M6 * 16 stainless steel	2
8	Nut M6 stainless steel	2
9	Hexagonal M8 * 20 stainless steel	4
10	Spring washer M8	3
11	Copper sleeve Φ 8*Φ 12*9	2
12	Flat washer Φ 8*Φ 16*1.5 stainless steel	8

6. Support frame

Part number	Description	Quantity
1	Suction rack upper support	1
2	Suction rack connecting bracket 350	1
3	Copper sleeve 6* 10*6	2
4	Outer hexagon M6 * 25 stainless steel	2
5	Nut M6 stainless steel	2
6	Spring washer M6 stainless steel	2
7	Flat washer 6* 12*1 stainless steel	4
8	M5 * 16 cylindrical head hexagonal socket	2
9	Flat washer 5* 10*1 stainless steel	2
10	Casters 1 inch	1
11	M3 nut	1

7. Squeegee

Part number	Description	Quantity
1	Front rubber strip 350	1
2	Rear rubber strip 350	1
3	After suction strip 350	1
4	Pressing strip before suction raking 350	1
5	Suction raking main body 350	1
6	M5 * 25 cross pan head screw	6
7	Self-locking nut M5 stainless steel	6
8	Flat washer Φ 6 * 18 * 1.5 stainless steel	6

8. Battery connection instructions

Remark!!! It is necessary to connect the batteries before using them for the first time. Follow the instructions below:

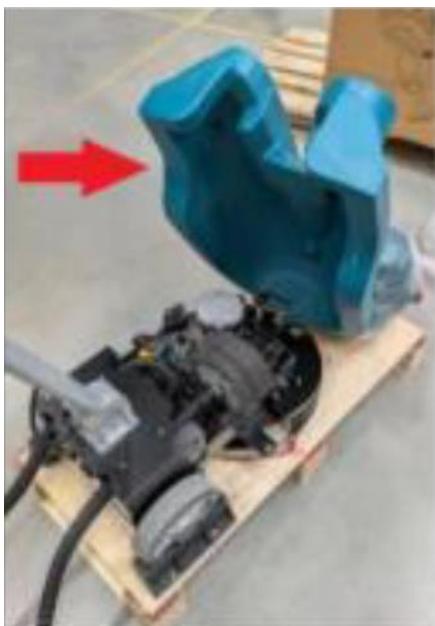

1. First, you need to lift the water tank. It is not attached to the device in any way.

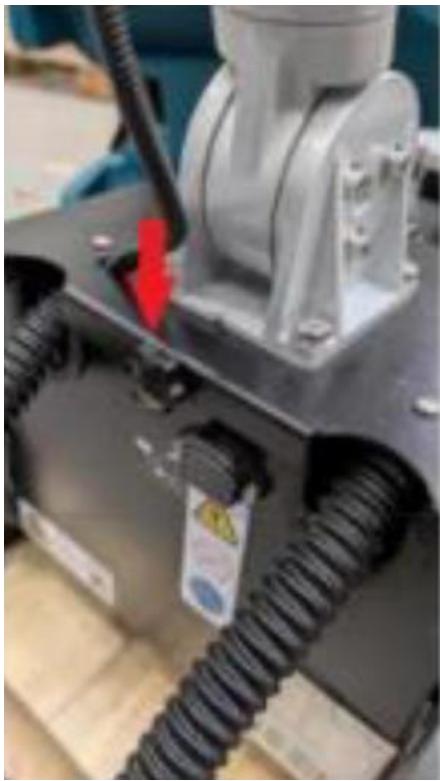

1. Then the black screw must be completely unscrewed.

1. Next, you need to open the top cover and find the two connectors.

1. Then, you need to connect these two connectors and close everything in reverse.

Précautions relatives aux batteries

Delnummer	Beskrivelse af apparatet	Antal
1	Aluminiumsæde	2
2	Trykplade til betjeningsarm	1
3	Elboks	1
4	Aluminiumsforbindelsesstang	1
5	Aluminiumsstang 350	1
6	Betjeningsarm	1
7	Sekskantet M8 * 20 rustfrit stål	4
8	Selvlåsende møtrik M8 rustfrit stål	4
9	Fjederskive M8	4
10	Flad skive Φ 8* Φ 16 * 1,5 rustfrit stål	10
11	Sekskantet M8 * 20 rustfrit stål	6

2. Opsamlingstank

Delnummer	Beskrivelse af apparatet	Antal
1	Bundramme 350	1
2	Vandabsorberende motorlag	1
3	Sugemotor 24 V, 500 W, to-lags endeafdækning, luftudgang i bunden med dyse	1
4	Tilslutningsstang 350	1
5	Sekskantet M8 * 20 rustfrit stål	2
6	Selvlåsende møtrik M8 rustfrit stål	7
7	Sekskantet indvendig sekskantskrue M6 * 16 rustfrit stål	2
8	Møtrik M6 rustfrit stål	2
9	Sekskantet M8 * 20 rustfrit stål	4
10	Fjederskive M8	3
11	Kobberbøsning Φ 8*Φ 12*9	2
12	Flad skive Φ 8*Φ 16*1,5 rustfrit stål	8

6. Støttebjælke

Delnummer	Beskrivelse af apparatet	Antal
1	Sugestativets øverste støtte	1
2	Sugestativets forbindelsesbeslag 350	1
3	Kobberbøsning Φ 6*Φ 10*6	2
4	Ydre sekskantbolt M6 * 25 rustfrit stål	2
5	Møtrik M6 rustfrit stål	2
6	Fjederskive M6 rustfrit stål	2
7	Flad skive Φ 6* Φ 12 * 1 rustfrit stål	4
8	M5 * 16 cylindrisk hoved med indvendig sekskant	2
9	Flad skive Φ 5* Φ 10 * 1 rustfrit stål	2
10	Hjul 1 tomme	1
11	M3-møtrik	1

7. Skraber

Delnummer	Beskrivelse af apparatet	Antal
1	Forreste gummiliste 350	1
2	Bageste gummiliste 350	1
3	Gummiliste bag sugeanordningen 350	1
4	Trykliste foran sugeanordningen 350	1
5	Sugeanordningens hoveddel 350	1
6	M5 * 25 krydshovedskrue	6
7	Selvlåsende møtrik M5 rustfrit stål	6
8	Flad skive 6 * 18 * 1,5 rustfrit stål	6

Artikkelnummer	Beskrivelse	Antall
1	Aluminiumssete	2
2	Trykplate for betjeningsspak	1
3	Styreskap	1
4	Aluminiumsforbindelsesstang	1
5	Aluminiumsstang 350	1
6	Betjeningsspak	1
7	Sekskantskrue M8 * 20 rustfritt stål	4
8	Selvlåsende mutter M8 rustfritt stål	4
9	Fjærskive M8	4
10	Flat skive Φ 8* Φ 16 * 1,5 rustfritt stål	10
11	Sekskantskrue M8 * 20 rustfritt stål	6

2. Oppsamlingstank

Artikkelnummer	Beskrivelse	Antall
1	Lensepumpe-tank	1
2	Sekskantskrue M8*20 rustfritt stål	2
3	Avløpsrør Φ 25*1200	1
4	Vanntankdeksel	1
5	Fjærskive M8	2
6	Flat skive Φ 8*Φ 16*1,5 rustfritt stål	2
7	Smusssugerør Φ 25*1400	1
8	Avløpsrør Φ 25*400	1

3. Løsningstank

Artikkelnummer	Beskrivelse	Antall
1	Rent vanntank 350	1
2	Påfyllingslokk	1

4. Nese

Artikkelnummer	Beskrivelse	Antall
1	Monteringsplate for børstemotoren	1
2	Børstemotoren 350	1
3	Pinne for børstelåsespenne	1
4	Børseskjold	1
5	Innvendig sekskantskrue M6 * 16 rustfritt stål	4
6	Fjærskive M6 rustfritt stål	4
7	Flat skive Φ 6* Φ 12 * 1 rustfritt stål	4
8	Sekskantskrue M8 * 20 rustfritt stål	3
9	Selvlåsende mutter M8 rustfritt stål	2
10	Stor pakning M8*32*3	1

5. Ramme

Artikkelnummer	Beskrivelse	Antall
1	Basisramme 350	1
2	Vannabsorberende motorlagdeling	1
3	Sugemotordeksel 24V 500W tolags endedeksel luftutløp bunn med munnstykke	1
4	Pickup-forbindelsesstang 350	1
5	Sekskant M8 * 20 rustfritt stål	2
6	Selvlåsende mutter M8 rustfritt stål	7
7	Innvendig sekskantskrue M6 * 16 rustfritt stål	2
8	Mutter M6 rustfritt stål	2
9	Sekskant M8 * 20 rustfritt stål	4
10	Fjærskive M8	3
11	Kobberhylse Φ 8*Φ 12*9	2
12	Flat skive Φ 8*Φ 16*1,5 rustfritt stål	8

6. Støtteramme

Artikkelnummer	Beskrivelse	Antall
1	∅vre støtte for sugestativ	1
2	Forbindelsesbrakkett for sugestativ 350	1
3	Kobberhylse Φ 6*Φ 10*6	2
4	Ytre sekskant M6 * 25 rustfritt stål	2
5	Mutter M6 rustfritt stål	2
6	Fjærskive M6 rustfritt stål	2
7	Flat skive Φ 6* Φ 12 * 1 rustfritt stål	4
8	M5 * 16 sylindrisk hode sekskantfatning	2
9	Flat skive Φ 5* Φ 10 * 1 rustfritt stål	2
10	Hjul 1 tomme	1
11	M3 mutter	1

7. Skrape

Artikkelnummer	Beskrivelse	Antall
1	Fremre gummiliste 350	1
2	Bakre gummiliste 350	1
3	Etterskyllingsliste 350	1
4	Trykkliste før sugharv 350	1
5	Sugharv hovedkropp 350	1
6	M5 * 25 kryss panhodeskrue	6
7	Selvlåsende mutter M5 rustfritt stål	6
8	Flat skive 6 * 18 * 1,5 rustfritt stål	6

1. Deretter må den svarte skruen skrus helt ut.

Ovaj proizvod namijenjen je uklanjanju prljavštine, čak i one najtvrdokornije, a široko se koristi za čišćenje podova u supermarketima, skladištima, autosalonima ili čak muzejima.

Broj dijela	Opis	Količina
1	Spremnik za otpadnu vodu	1
2	Šesterokutni vijak M8*20 od nehrđajućeg čelika	2
3	Cijev za otpadnu vodu 25*1200	1
4	Poklopac spremnika za vodu	1
5	Oprugasta podloška M8	2
6	Ravna podloška 8* 16*1,5 od nehrđajućeg čelika	2
7	Cijev za usisavanje nečistoća 25*1400	1
8	Cijev za otpadnu vodu 25*400	1

3. Spremnik za otopinu

Broj dijela	Opis	Količina
1	Spremnik za čistu vodu 350	1
2	Čep za punjenje	1

4. Prednji dio

Broj dijela	Opis	Količina
1	Montažna ploča motora četkaste ploče	1
2	Motor četkaste ploče 350	1
3	Kopča četkaste ploče s iglom	1
4	Štitnik četkaste ploče	1
5	Vijak s unutarnjim šesterokutom M6 * 16 od nehrđajućeg čelika	4
6	Oprugasta podloška M6 od nehrđajućeg čelika	4
7	Ravna podloška Φ 6* Φ 12 * 1 od nehrđajućeg čelika	4
8	Šesterokutni vijak M8 * 20 od nehrđajućeg čelika	3
9	Samozaključavajuća matica M8 nehrđajući čelik	2
10	Velika brtva M8*32*3	1

5. Okvir

Broj dijela	Opis	Količina
1	Osnovni okvir 350	1
2	Slojevitost motora za upijanje vode	1
3	Motor usisavanja 24V 500W dvoslojni završni poklopac izlaz zraka dno s mlaznicom	1
4	Spojna šipka za podizanje 350	1
5	Šesterokutni M8 * 20 nehrđajući čelik	2
6	Samozaključavajuća matica M8 nehrđajući čelik	7
7	Vijak s cilindričnom glavom i šesterokutnom uvrticom M6 * 16 nehrđajući čelik	2
8	Matica M6 nehrđajući čelik	2
9	Šesterokutni M8 * 20 nehrđajući čelik	4
10	Opružna podloška M8	3
11	Bakrena čahura Φ 8*Φ 12*9	2
12	Ravna podloška Φ 8*Φ 16*1,5 nehrđajući čelik	8

6. Nosivi okvir

Broj dijela	Opis	Količina
1	Gornji nosač usisnog stalka	1
2	Spojni nosač usisnog stalka 350	1
3	Bakrena čahura 6* 10*6	2
4	Vanjski šesterokutnik M6 * 25 nehrđajući čelik	2
5	Matica M6 nehrđajući čelik	2
6	Opružna podloška M6 nehrđajući čelik	2
7	Ravna podloška 6* 12 * 1 nehrđajući čelik	4
8	M5 * 16 cilindrična glava šesterokutna uvrtnica	2
9	Ravna podloška 5* 10 * 1 nehrđajući čelik	2
10	Kotačić 1 inč	1
11	Matica M3	1

7. Strugač

Broj dijela	Opis	Količina
1	Prednja gumena traka 350	1
2	Stražnja gumena traka 350	1
3	Stražnja usisna traka 350	1
4	Pritisna traka prije usisnog grabljanja 350	1
5	Glavno tijelo usisnog grabljanja 350	1
6	M5 * 25 križni vijak s okruglom glavom	6
7	Samozaključavajuća matica M5 nehrđajući čelik	6
8	Ravna podloška 6 * 18 * 1,5 nehrđajući čelik	6

8. Upute za spajanje baterija

Napomena!!! Prije prve upotrebe potrebno je spojiti baterije. Slijedite upute u nastavku:

1. Prvo morate podići spremnik za vodu. Nije pričvršćen za uređaj ni na koji način.

1. Zatim crni vijak mora biti potpuno odvijen.

1. Apoi, şurubul negru trebuie deşurubat complet.

1. Nato je treba črni vijak popolnoma odviti.

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
