Brand	Cecotec
Model	Conga Carpetclean 30000 Steam
Product type	Steam carpet cleaner vacuum
Power supply	Mains, 220-240 V ~ 50/60 Hz
Power	1600 W
Clean water tank capacity	1.5 L
Dirty water tank capacity	0.8 L
Steam function	Adjustable steam flow for deep cleaning
Power cord length	7 m
Weight	5.5 kg
Dimensions (W × D × H)	55 × 30 × 35 cm
Noise level	≤ 80 dB
Filtration system	HEPA filter to retain allergens and fine dust
Care and cleaning	Rinse the tanks after each use, wash the brushes with clean water
Safety	Child lock on the steam trigger, overheating protection
Spare parts and repairability	Spare parts available from the official Cecotec After-Sales Service
Included accessories	Floor nozzle, carpet brush, measuring cup, microfiber cloth
Usage	Household use only, do not use in professional environments
General information	Designed to effectively clean carpets and rugs with the power of steam
Warranty	2 years of legal warranty

Frequently Asked Questions - Conga Carpetclean 30000 Steam CECOTEC

How do I prepare the appliance before first use?

Before first use, remove all packaging. Check that the appliance is not damaged. Plug the cord into a grounded outlet and make sure the voltage matches that indicated on the rating plate.

How do I use the steam function?

Fill the clean water tank, plug in the appliance and wait about 30 seconds for steam to be produced. Adjust the steam flow according to the dirt and the type of surface to be cleaned. Only release steam when the appliance is in contact with the floor.

How do I clean the water tanks?

After each use, empty and rinse the dirty water tank with clean water. Let it air dry before reinstalling it. The clean water tank can be cleaned with a damp cloth and a little mild detergent.

What should I do if the appliance does not turn on?

Check that the power cord is properly plugged in and that the outlet works. Make sure the clean water tank is correctly installed and that the locking button is engaged. If the problem persists, contact the official Cecotec After-Sales Service.

How do I maintain the cleaning brushes?

After use, remove the brushes and rinse them with warm water to remove dirt residue. Let them dry completely before putting them back on the appliance. Clean the brushes thoroughly at least once a month to maintain their effectiveness.

What accessories are included with the Conga Carpetclean 30000 Steam?

The appliance comes with a hard floor nozzle, a carpet brush, a measuring cup for filling the clean water tank, and a microfiber cloth for finishing touches.

How do I descale the appliance?

To remove limescale, pour a mixture of white vinegar and water into the clean tank (one part vinegar to two parts water). Let it sit for 15 minutes, then rinse thoroughly. Perform this operation every 3 months.

What is the power of this steam vacuum?

The power is 1600 W, which provides a high steam flow for deep cleaning carpets and rugs. This power allows rapid heating of the steam.

How do I store the Conga Carpetclean 30000 Steam?

Empty and clean the tanks, unplug the appliance and wrap the cord around the hook provided for this purpose. Store the appliance in a dry place out of reach of children.

Is this appliance suitable for all floor types?

The appliance is designed mainly for carpets and rugs. For hard floors, use the appropriate nozzle without releasing steam, or use it only in suction mode. It is not recommended on raw wood or untreated laminate floors.

USER MANUAL Conga Carpetclean 30000 Steam CECOTEC

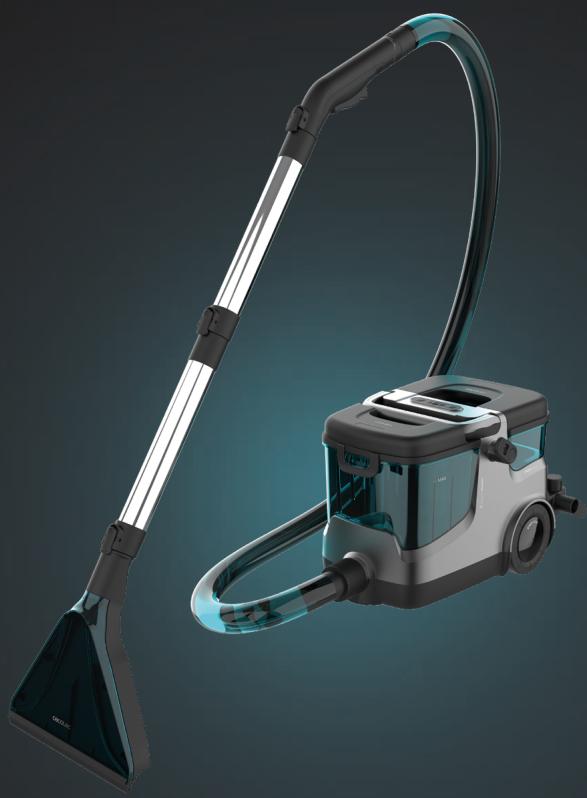

CONGA CARPETCLEAN 30000 STEAM

Limpiatapicerías /Upholstery cleaner

Safety instructions 7

1. Parts and components 51

2. Before use 52

3. Operation 52

4. Cleaning and maintenance 54

5. Troubleshooting 56

6. Technical specifications 57

7. Recycling of electrical and electronic

equipment 58

1. Technical support and warranty 58

2. Copyright 58

3. Simplified EU Declaration of Conformity 58

SOMMAIRE

EU01_122570 - Conga CarpetClean 30000 Steam

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have

been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Check the power cable regularly for visible damage. If the power cable is damaged, it must be replaced by the official Cecotec Technical Support Service or similar qualified personnel to avoid risks.
• The mains plug of the power cable must be removed from the base before cleaning or maintenance operations.
• WARNING: check that the upholstery cleaner and package are not damaged. Never use the device if it is damaged. Should it be the case, immediately contact Cecotec's Technical Support Service.
• Packaging material may be dangerous to children. Remove it and place it out of their reach.
• The upholstery cleaner plug must be connected to a grounded socket. If you do not have an earthed socket, an earthed installation must be carried out by a licensed electrician. In case of ungrounded use, Cecotec shall not be liable for any malfunction or damage that this may cause.
• Make sure that the mains voltage matches the voltage specified on the appliance rating label and that the wall outlet is earthed.
• Always use the plug provided with the appliance. Do not modify the plug provided with the appliance if it does not match the power socket.
• Do not operate the product if its cable, plug, or structure

show visible damage, do not operate properly, or produce unusual sounds or odours.

• In case of malfunctioning, repairs must be carried out by the official Cecotec Technical Support Service; otherwise, the warranty will be void.
• To unplug the device, pull from the socket, never from the cord.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.
• Disconnect the appliance from the electric circuit when it is not used.
• Disconnect the device from the power socket before carrying out any maintenance, cleaning, or transport.
• Do not use the device with pesticides, dyes, lubricants, or other liquids.
• Do not use the appliance to vacuum lit matches, cigarette butts, petrol gas, heat sources or hot ashes.
• Do not use the appliance without installing the waste-water tank.
• The device is designed to clean carpets and upholstery, do not use it for any other purpose.
• This device is designed for personal use only and is not suitable for commercial use.
• Do not place the device near sources of heat, flammable substances, etc.
• If any strange object blocks any of the parts or you vacuum any strange object, stop using the device, empty it, and clean it to be able to use it again.
• When the waste-water tank exceeds the maximum water

level, stop operation immediately and empty the waste-water tank before using the appliance again.

• If you want to use detergent, choose a low-foaming one and dilute it in water before spraying it on the object to be cleaned. Never pour detergent into the clean water tank.
• When using low-foaming detergent, test it on a small inconspicuous area first to ensure it will not leave any marks.
• Using the appliance on a shag carpet may block the air outlet, causing the vacuum cleaner to stop working.
• If there is too much foam or waste water in the lower part of the appliance during operation, stop using it immediately and clean the tank before using it again.
• Do not use a foaming detergent.

INSTRUCTIONS DE SÉCURITÉ

1. Control panel
2. Clean water tank
3. Rear wheel
4. Hose assembly
5. Carrying handle
6. Cable hook
7. Power cable
8. Dirty water tank
9. Suction inlet
10. Front wheel
11. Tube for accessories
12. Narrow shoe nozzle
13. Wide bristle nozzle
14. XXL nozzle

15. Accessory holder

16. Rubber brush cleaning tool

Indicators:

17		Power button:Press this button to switch the appliance on and off normally.
18		Cold water cleaning mode button:Uses water at room temperature to clean lightly soiled areas.
19		Hot water cleaning mode button:Uses water at 50°C for rapid stain removal and to refresh carpets and interior textile furnishings.
20		Steam cleaning mode button:Uses steam at 99°C to rapidly penetrate and remove persistent stains.

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Canister upholstery cleaner
• XXL nozzle
• Wide bristle nozzle
• Narrow shoe nozzle
• Two-part tube
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. OPERATION

Preparation before use

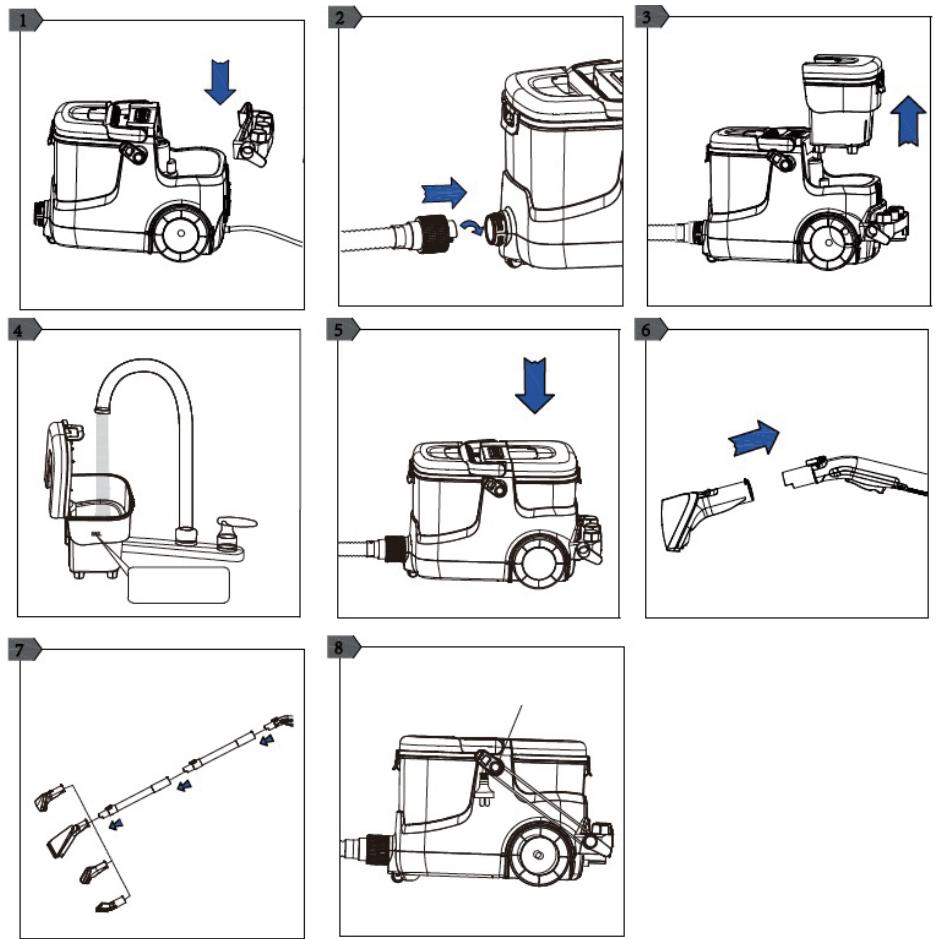

Fig. 2

1. Fit the accessory holder: Align the accessory holder with the corresponding raised slots on the appliance. Press down until it clicks into place (you will hear a «click»), as shown in step 1 of Figure 2.
2. Connect the hose assembly to the suction inlet: Insert the hose assembly into the suction inlet. Turn the threaded collar clockwise to secure it firmly.
3. Remove the clean water tank: Grip the clean water tank handle firmly and pull upwards to separate it from the main unit.
4. Fill the clean water tank: Open the clean water tank lid and fill it with clean water. Close the lid securely when the level reaches the level mark to prevent leaks.
5. Install the clean water tank: Align the clean water tank with the slots and insert it into the main unit. (Avoid shaking during installation to prevent leakage).
6. Connect the accessory to the hose assembly: Align the water outlet of the hose assembly handle with the connection of the rubber brush cleaning tool. Insert firmly until the tab clicks into position.

7. Select the accessory for the task: Select and use the appropriate accessory according to the cleaning task.

8. Secure the power cable: Secure the power cable properly before moving the appliance. (When necessary, rotate the cable hook to quickly release the power cable from the machine).

Use (cleaning procedure)

Fig. 3

1. Connect the power cable and press the power button on the control panel to start the appliance.

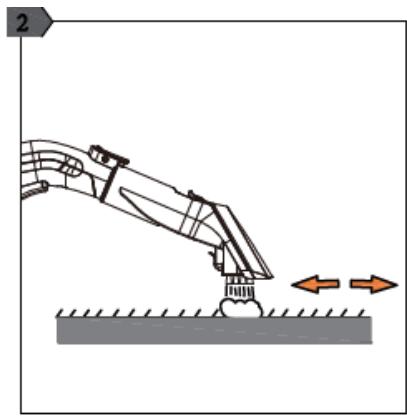

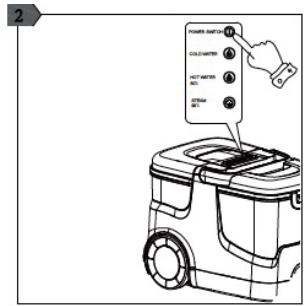

2. Press the corresponding mode button on the control panel; the indicator for that mode will flash. Select that mode to continue with the operation.
3. Place the cleaning accessory over the stain. Hold down the spray button to release water or steam (depending on the selected mode) and start cleaning.
4. Spray and suction (carpet/textile surfaces): Direct the spray towards the stain and spray water/steam to loosen it (for carpets and textile surfaces). Release the spray button, place the suction area of the accessory over the moistened area and press firmly against the textile surface to extract dirt and moisture.

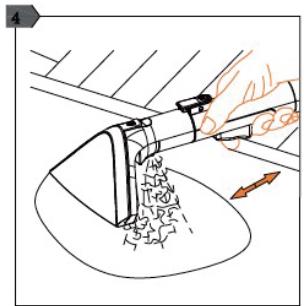

5. Scrub the accessory against the stain: Adjust the accessory position and scrub the stain with the brush bristles until residue is removed.
6. Finish and empty the tanks: Switch off the appliance with the power button, unplug the power cable and empty both the clean water tank and dirty water tank. Clean both tanks.

Stubborn stains

Fig. 4

For stubborn stains: first apply cleaner to the stain, then scrub for optimal results.

1. Application and brushing
2. Apply cleaner directly to the stain.
3. Using the wide bristle nozzle, gently brush the area to help release the stain from the fabric.
4. Removal
5. Pass the accessory using straight, slow passes to completely suction the stain and released liquid through the hose assembly into the dirty water tank.

Fig. 4

1. Cleaner
2. Stain
3. Released stain

Non-recommended cleaning products

• Neutral kitchen cleaner.
  – Strongly alkaline cleaner.
  – Strongly acidic cleaner.

Precautions regarding detergents and chemicals

• Do not add detergent directly to the clean water tank. Always check the type of detergent before use.

• Carefully follow the manual for detergent dosage and application method (always apply it directly to the stain).
  – Prohibited chemicals:

• Thinner-type solvents (e.g., acetone).

• Aniline-based solvents.
• Chloroform.
• Flammable cleaners. Risk warning: these products may damage the appliance or cause combustion risk.

4. CLEANING AND MAINTENANCE

Cleaning the clean water tank

Fig. 5

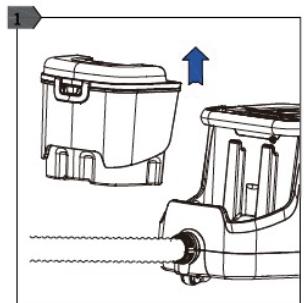

1. Remove the clean water tank in the direction indicated by the arrow in Figure 5.
2. Open and empty the tank. Clean immediately after each use to prevent bad odours or bacterial growth.
3. With the appliance switched on, keep the water outlet control of the hose assembly pressed until all residual water is discharged from inside the equipment, then switch it off.

Cleaning the dirty water tank

Fig. 6

1. Remove the dirty water tank in the direction indicated by the arrow in Figure 6.
2. Empty the tank: Open the tank lid and pour out all residual water. Clean immediately after each use to prevent bad odours or bacterial growth.
3. Clean the tank and lid.

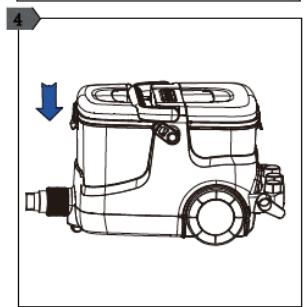

4. Replace the dirty water tank: Fit the dirty water tank into the main unit until it is completely secured.
5. Level indicator (P1/P2) and safety cut-off

6. When the liquid level (including foam) exceeds the MAX line in the tank (see step 5 in Figure 6):

7. The float valve is automatically activated.

8. The air inlet port is sealed.
   – Suction in the hose assembly ceases immediately.

- Mandatory actions:

• Stop the operation immediately.
• Switch off the appliance with the power button.

– Empty and thoroughly clean the dirty water tank.

- Safety purpose: prevents dirty water backflow which could damage internal components.

Maintenance and precautions for use

Fig. 7

1. After each use: Thoroughly rinse all removable components with clean water. Allow to air-dry completely before assembly or storage.
2. Remove accessories from the hose assembly and, if installed, from the tube for accessories.
3. Cleaning the nozzle: Remove and take off the protective cover to clean the interior.
4. Removing residue from the nozzle: If residue remains in the nozzle, use the rubber brush cleaning tool (9) to extract it.

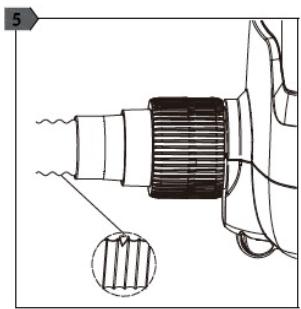

5. Inspect the hose assembly for cracks or leaks.
6. After use, remove the intake sponge and filter assembly. Replace them if damaged.
7. After cleaning:

– Ensure all components are completely dry before storing.
– Reinstall all parts correctly on the appliance.
- Store the product in a cool, dry place.
– Clean the intake sponge and filter assembly.

Fig. 7

1. Filter assembly
2. Intake sponge

Warnings:

Before carrying out maintenance, stop operation and unplug the power cable.
Do not splash water onto the main unit to avoid risk of electric shock.
Do not use detergents, solvents (e.g., thinners) or other chemical agents when cleaning the main unit.

Thermostat (thermal protector): this product incorporates a thermostat to prevent overheating. When the thermal protector is activated, the motor stops.

If this happens:

1. Switch off the appliance using the power button and unplug the power cable.
2. Allow the motor to cool for approximately 30 minutes.
3. The thermal protector will reset automatically. Switch on again to continue cleaning.

Warning: if the thermal protector continues to activate after performing the above steps, the product may require repair. Contact Cecotec's Official Technical Support Service.

1. TROUBLESHOOTING

Fault	Possible cause	Solution
No water output or reduced spray flow rate	The clean water tank is empty.	Add water to the clean water tank.
	The clean water tank is not properly installed.	Ensure the clean water tank is correctly fitted in position.
	Blockage in the nozzle.	Clean the nozzles.
Reduced or no suction	The dirty water tank is full.	Empty the dirty water tank.
	The filter at the bottom of the dirty water tank is blocked.	Clean the filter.
	The dirty water tank is not properly installed.	Check that there are no obstructions preventing the dirty water tank from sitting completely in its guides.
	The water tank lid is not properly installed.	Align the lid correctly with the dirty water tank and lock it with the handle.
	Nozzle or hose assembly is blocked.	Clear the obstruction.
Leaks	The water or foam level in the dirty water tank exceeds the “MAX” line.	Do not allow the level to exceed the “MAX” mark. Use little or no cleaning solution to avoid excessive foaming.
	Leak from the hose assembly nozzle (residual water remains in the duct after switching off).	After stopping vacuuming, keep the appliance running for a few seconds to ensure residual water is drawn into the dirty water tank.

No steam output / low steam volume	The clean water tank is empty.	Add water to the clean water tank.
	Heating has not finished.	Wait for the indicator to change from flashing to steady before steam output.
	The wide bristle nozzle sprays water instead of steam.	This is normal; when steam has not been used, some condensation forms in the steam line. Keep the spray activated from the hose assembly for 5–10 seconds and steam will begin to come out.
In steam mode, the indicator and temperature flash simultaneously	The thermostat has been activated.	Switch off the appliance and wait for the temperature to drop.
The indicator flashes continuously during heating.	Thermal protection has been activated.	Contact Cecotec's Official Technical Support Service.

Safety note: Before inspecting or cleaning, switch off the appliance and unplug the power cable.

6. TECHNICAL SPECIFICATIONS

Product: Conga CarpetClean 30000 Steam

Product reference: EU01_122570

Voltage: 220-240 V\~

Frequency: 50/60 Hz

Rated motor power: 1000 W

Rated heating power: 1200 W

IPX4

Technical specifications may change without prior notice to improve product quality. Made in China | Designed in Spain

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protect the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If you detect any problem with the product or have any queries, please contact Cecotec's Official Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

Product: Conga CarpetClean 30000 Steam

Productreferentie: EU01_122570

Spanning: 220-240 V \~

Frequentie: 50/60 Hz

6. TEKNIK ÖZELLIKLER

Ürün: Conga CarpetClean 30000 Steam

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

www.cecotec.es
