Download the instructions for your Rangefinder in PDF format for free! Find your manual GRL 400 H Professional - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GRL 400 H Professional by BOSCH.
USER MANUAL GRL 400 H Professional BOSCH
Off: BEECH-1179-001 Book Page 1 Thursday, August 5, 2010 10:03 AM


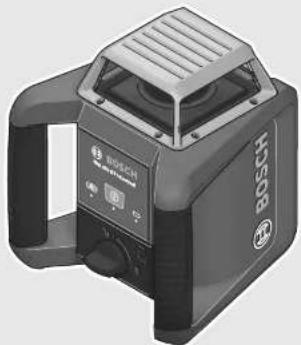

Exterior view of a mounted optical measurement device (no visible text or symbols)Robert Bosch GmbH
Power Tools Division
70745 Leinfelden-Echterdingen
Germany
www.bosch-pt.com
no Original draft proposals
6 | Deutsch
Sicherheitshinweise
Rotationslaser

Rotational Laser Level

Working safely with the measuring tool is possible only when the operating and safety information are read completely and the instructions contained therein are
strictly followed. Never make warning labels on the measuring tool unrecognisable. SAVE THESE INSTRUCTIONS.
▶ Caution – The use of other operating or adjusting equipment or the application of other processing methods than those mentioned here, can lead to dangerous radiation exposure.
The measuring tool is provided with a warning label in English (marked with number 14 in the representation of the measuring tool on the graphics page).

▶ Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself. This measuring tool produces laser class 2 laser radiation according to IEC 60825-1. This can lead to persons being blinded.
Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
▶ Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.
▶ Have the measuring tool repaired only through qualified specialists using original spare parts. This ensures that the safety of the measuring tool is maintained.
Do not allow children to use the laser measuring tool without supervision. They could unintentionally blind other persons or themselves.
▶ Do not operate the measuring tool in explosive environments, such as in the presence of flammable liquids, gases or dusts. Sparks can be created in the measuring tool which may ignite the dust or fumes.
▶ Do not open the battery pack. Danger of short-circuiting.

Protect the battery pack against heat, e.g., against continuous intense sun light, fire, water, and moisture. Danger of explosion.
Keep the battery pack not being used away from paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Charge the battery pack only with the battery charger specified in these operating instructions. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use only original Bosch battery packs with the voltage listed on the nameplate of your measuring tool. When using other battery packs, e.g. imitations, reconditioned battery packs or other brands, there is danger of injury as well as property damage through exploding battery packs.
18 | English
Battery Charger

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.
▶ Do not charge other batteries with the battery charger. The battery charger is only suitable for charging the Bosch battery/battery pack inserted in the rotational laser level. Danger of fire and explosion when charging other batteries/battery packs.
▶ Keep the battery charger clean. Contamination can lead to danger of an electric shock.
Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.
▶ Do not operate the battery charger on easily inflammable surfaces (e.g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.
▶ Children should be supervised to ensure that they do not play with the battery charger.
▶ Children or persons with mental or physical limitations may only use the charger under supervision or after having been instructed.
A thorough introduction reduces operating errors and injuries.
▶ Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.
Functional Description
While reading the operating instructions, unfold the graphics page with the illustration of the rotational laser level and battery charger, and leave it open.
Intended Use
Rotational Laser Level
The measuring tool is intended for determining and checking precise horizontal partitions. The measuring tool is not intended for vertical leveling.
The measuring tool is suitable for outdoor use.
Battery Charger
Use the battery charger only when you fully understand and can perform all functions without limitation, or have received appropriate instructions.
English | 19
Technical Data
| Rotational Laser Level GRL 400 H | |
| Professional | |
| Article number 3 601 K61 800 | |
| Working range (radius)1) | |
| - without laser receiver, approx. | 10 m |
| - with laser receiver, approx. | 200 m |
| Levelling Accuracy1) 2) | ± 0.08 mm/m |
| Self-levelling range, typically | ± 8 % (±5°) |
| Levelling duration, typically | 15 s |
| Rotational speed | 600 min-1 |
| Operating temperature | -10 ... +50 °C |
| Storage temperature | -20 ... +70 °C |
| Relative air humidity, max. | 90 % |
| Laser class | 2 |
| Laser type | 635 nm, <1 mW |
| Laser beam ∅ at the exit opening, approx.1) | 5 mm |
| Tripod mount (horizontal) | 5/8"-11 |
| Batteries (NiMH) | 2 x 1.2 VHR 20 (D) (9 A h) |
| Batteries (alkali-manganese) | 2 x 1.5 VLR20 (D) |
| Operating life time, approx. | |
| - Batteries (NiMH) | 30 h |
| - Batteries (alkali-manganese) | 50 h |
| Weight according to EPTA-Procedure 01/2003 | 1.8 kg |
| Dimensions (length x width x height) | 183 x 170 x 188 mm |
| Degree of protection | IP 65 (dust-proof and protected against powerful water jets) |
1) at 20 °C
2) alongside the axes
Please observe the article number on the type plate of your measuring tool. The trade names of the individual measuring tools may vary.
The measuring tool can be clearly identified with the serial number 13 on the type plate.
20 | English
Battery Charger
| Article number 2 610 A13 782 | ||
| Rated voltage | V~ 100-240 | |
| Frequency | Hz 50/60 | |
| Output voltage V= 7.5 | ||
| Charging current | A | 1.0 |
| Allowable charging temperature range | °C 0-45 | |
| Charging time | h | 14 |
| Number of battery cells | 2 | |
| Rated voltage (Rechargeable batteries) | V= 2 x 1.2 | |
| Weight according to EPTA-Procedure 01/2003 | kg 0.2 | |
| Protection class | ☐/II | |
Product Features
The numbering of the product features refers to the illustration of the rotational laser level and battery charger on the graphics page.
1 Automatic levelling indicator
2 On/Off button / shock-warning button
3 Shock-warning indicator
4 Variable laser beam
5 Exit opening for laser beam
6 Charge-control indicator
7 Battery pack
8 Battery compartment
9 Locking knob of the battery compartment
10 Locking knob of the battery pack
11 Socket for charge plug
12 Tripod mount 5/8"
13 Serial number
14 Laser warning label
15 Battery charger
16 Mains plug of the battery charger
17 Charge connector
18 Tripod*
19 Construction laser measuring rod*
20 Laser receiver*
21 Laser viewing glasses*
22 Measuring plate with stand*
23 Holder*
24 Case
* The accessories illustrated or described are not included as standard delivery.
Assembly
Power Supply of the Rotational Laser Level
Operation with Batteries/Rechargeable Batteries
Using alkali-manganese or rechargeable batteries is recommended for operation of the measuring tool.
To open the battery compartment 8, turn the locking knob 9 to position and pull out the battery compartment.
When inserting batteries, pay attention to the correct polarity according to the representation on the inside of the battery compartment.
Always replace all batteries at the same time. Only use batteries from one brand and with the identical capacity.
Shut the battery compartment 8 and turn the locking knob 9 to the position.
In case the batteries have been inserted incorrectly, the measuring tool cannot be switched on. Insert the batteries with correct polarity.
Remove the batteries from the measuring tool when not using it for extended periods. When storing for extended periods, the batteries can corrode and discharge themselves.









Operation with Battery Pack
Charge the battery pack 7 before using for the first time. The battery pack can only be charged with the battery charger 15 intended for it.
▶ Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V.
Insert the appropriate mains plug 16 for your mains supply into the battery charger 15 and allow it to engage.
Insert the charge plug 17 of the battery charger into the socket connector 11 of the battery pack. Connect the battery charger to the mains supply. Charging the empty battery pack takes approx. 14 h. The battery charger and the battery pack are protected against overcharging.
A battery that is new or has not been used for a longer period does not develop its full capacity until after approx. 5 charging/discharging cycles.
Do not charge the battery pack 7 each time after using, otherwise its capacity will be reduced. Charge the battery pack only when the charge-control indicator 6 flashes or lights up continuously.
A considerably reduced operating period after charging indicates that the battery pack is used up and must be replaced.
If the battery pack is empty, the measuring tool can also be operated off of the battery charger 15 when connected to a power supply. Switch the measuring tool off, charge the battery pack for approx. 10 min and then switch the measuring tool on again with the battery charger connected.
To change the battery pack 7, turn the locking knob 10 to position and pull out the battery pack 7.
Insert a new battery pack and turn the locking knob 10 to the position.
Remove the battery pack from the measuring tool when not using it for longer periods. When storing for longer periods, the rechargeable batteries can corrode and discharge themselves.
Charge-control Indicator
When the charge-control indicator 6 flashes red for the first time, the measuring tool can still be operated for approx. 2 h.
When the charge-control indicator 6 lights up red continuously, measurements are no longer possible. The measuring tool switches off automatically after 1 minute.
Operation
Starting Operation of the Rotational Laser Level
▶ Protect the measuring tool against moisture and direct sun light.
Do not subject the measuring tool to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the measuring tool can be impaired.
- Avoid heavy impact to or dropping down of the measuring tool. After severe exterior effects to the measuring tool, it is recommended to carry out an accuracy check (see "Levelling Accuracy of the Rotational Laser Level", page 23) each time before continuing to work.
Setting Up the Measuring Tool

Position the measuring tool on a firm surface or mount it to a tripod 18.
Due to the high levelling accuracy, the measuring tool reacts sensitively to ground vibrations and position changes. Therefore, pay attention that the position of the measuring tool is stable in order to avoid operational interruptions due to re-levelling.
22 | English
Switching On and Off
▶ Do not direct the laser beam at persons or animals (especially not at their eye level), and do not stare into the laser beam yourself (not even from a distance.) Immediately after switching on, the measuring tool sends out the variable laser beam 4.
For switching on the measuring tool, briefly press the On/Off button 2. The indicators 3, 1 and 6 light up briefly. The measuring tool immediately starts the automatic levelling. During the levelling, the levelling indicator 1 flashes green, the laser does not rotate and flashes.
The measuring tool is levelled in as soon as levelling indicator 1 lights up green continuously and the laser beam is steady. After the levelling is completed, the measuring tool automatically starts in rotational operation.
The measuring tool exclusively operates with fixed rotational speed in rotational operation, which is also suitable for use of a laser receiver.
When factory set, the shock-warning function is automatically switched on, and the shock-warning indicator 3 lights up green.
To switch off the measuring tool, briefly press the On/Off button 2. When the shock warning has actuated (shock-warning indicator 3 flashes red), briefly press the On/Off button once to restart the shock-warning function, and then again to switch off the measuring tool.
▶ Do not leave the switched on measuring tool unattended and switch the measuring tool off after use. Other persons could be blinded by the laser beam.
To save the batteries, the measuring tool is automatically switched off when not within the self-levelling range for more than 2 h or when the shock warning is actuated for more than 2 h (see "Automatic Levelling of the Rotational Laser Level", page 22). Reposition the measuring tool and switch it on again.
Automatic Levelling of the Rotational Laser Level
After switching on, the measuring tool checks the horizontal position and automatically compensates irregularities within the self-levelling range of approx. 8 % (5°).
When the measuring tool is inclined by more than 8 % after switching on or after a position change, levelling in is no longer possible. In this case, the rotor is stopped, the laser flashes and levelling indicator 1 continuously lights up red. Reposition the measuring tool and wait for it to re-level. Without repositioning, the laser is automatically switched off after 2 minutes and the measuring tool after 2 hours.
When the measuring tool is levelled in, it continuously checks the horizontal position. Automatic re-levelling takes place after position changes. To avoid faulty measurements, the rotor stops during the levelling process, the laser flashes and the levelling indicator 1 flashes green.

Shock-warning Function
The measuring tool has a shock-warning function; after position changes or shock to the measuring tool, or in case of ground vibrations, it keeps the measuring tool from levelling in at changed heights, and thus prevents vertical errors.
When factory set, the shock-warning function is activated after switching on the measuring tool (shock-warning indicator 3 lit). The shock warning is activated approx. 30 s after switching on the measuring tool or switching on the shock-warning function.
When the levelling-accuracy range is exceeded after a position change of the measuring tool or when heavy ground vibrations are detected, the shock-warning function is actuated: The rotation is stopped, the laser flashes, the levelling indicator 1 goes out and the shock-warning indicator 3 flashes red.
When the shock-warning function has actuated, briefly press the On/Off button 2. The shock-warning function is restarted and the measuring tool starts the levelling. As soon as the measuring tool is levelled in (the levelling indicator 1
continuously lights up green), it automatically starts in rotation operation. Now, check the height of the laser beam with a reference point and correct the height, if required.
When, after the shock-warning function has actuated, the function is not restarted by pressing On/Off button 2, the laser is automatically switched off after 2 minutes and the measuring tool after 2 hours.
To switch off the shock-warning function, press the On/Off button 2 for 3 seconds. When the shock-warning function has actuated (shock-warning indicator 3 flashes red), firstly press the On/Off button briefly, and then again for 3 seconds. When the shock-warning function is shut off, the shock-warning indicator goes out 3.
To switch on the shock-warning function, press the On/Off button 2 for 3 seconds. The shock-warning indicator 3 continuously lights up green, and the shock-warning function is activated after 30 seconds.
The shock-warning function setting is stored when switching off the measuring tool.
Levelling Accuracy of the Rotational Laser Level
Influences on Accuracy
The ambient temperature has the greatest influence. Especially temperature differences occurring from the ground upward can divert the laser beam.
The deviations play a role in excess of approx. 20 m measuring distance and can easily reach two to four times the deviation at 100 m.
Because the largest difference in temperature layers is close to the ground, the measuring tool should always be mounted on a tripod when measuring distances exceeding 20 m. If possible, also set up the measuring tool in the centre of the work area.
Accuracy Check of the Measuring Tool
Apart from exterior influences, device-specific influences (such as heavy impact or falling down) can lead to deviations. Therefore, check the accuracy of the measuring tool each time before starting your work.
A free measuring distance of 20 m on a firm surface between two walls A and B is required for the check. A reversal measurement must be carried out over both axes X and Y (each positive and negative; 4 complete measurements).
- Mount the measuring tool onto a tripod, or place it on a firm and level surface close to wall A. Switch the measuring tool on.

- After the levelling, mark the centre of the laser beam on wall A (point I).

- Rotate the measuring tool by 180irc , allow it to level in and mark the centre point of the laser beam on the apposing wall B (point II).









24 | English
- Without turning the measuring tool, position it close to wall B. Switch the measuring tool on and allow it to level in.

- Align the height of the measuring tool (using the tripod or by propping), so that the centre of the laser beam runs exactly against the previously marked point II on wall B.

- Rotate the measuring tool by 180irc without changing the height. Allow it to level in and mark the centre point of the laser beam on wall A (point III). Take care that point III is as vertical as possible above or below point I.
- The difference d of both marked points I and III on wall A amounts to the actual deviation of the measuring tool for the measured axis.
Repeat the measuring procedure for the other three axes. For this, turn the measuring tool prior to each measuring procedure by 90°.
On the measuring section of 2 × 20 m = 40 m , the maximum allowable deviation is: 40 m × ± 0.08 mm/m = ± 3.2 mm .
Consequently, the difference d between points I and III for each of the four individual measurements may not exceed 3.2 mm max.
If the measuring tool should exceed the maximum deviation in anyone of the four measuring procedures, have it checked at a Bosch after-sales service agent.
Working Advice
▶ Always use the centre of the laser line for marking. The width of the laser line changes with the distance.
Laser Viewing Glasses (Accessory)
The laser viewing glasses filter out the ambient light. This makes the red light of the laser appear brighter for the eyes.
▶ Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
▶ Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.
Working with the Laser Receiver (Accessory)
Under unfavourable light conditions (bright environment, direct sunlight) and for larger distances, use the laser receiver for improved finding of the laser beam 20.
Before working with the laser receiver, read and observe the laser receiver operating instructions.
Working with the Tripod (Accessory)
The measuring tool is equipped with a 5/8" tripod mount for horizontal operation on a tripod. Place the measuring tool via the tripod mount 12 onto the 5/8" male thread of the tripod and screw the locking screw of the tripod tight.
On a tripod 18 with a measuring scale on the elevator column, the height difference can be adjusted directly.
Working with the Measuring Plate (Accessory)

With the measurement plate 22, you can project the laser height onto a wall.
With the zero field and the scale, the offset or drop to the required height can be measured and projected at
another location. This eliminates the necessity of precisely adjusting the measuring tool to the height to be projected.
The measuring plate 22 has a reflective coating that enhances the visibility of the laser beam at greater distances or in intense sunlight. The brightness intensification can be seen only when viewing, parallel to the laser beam, onto the measuring plate.
Working with the Measuring Rod (Accessory)
For checking irregularities or projecting gradients, it is recommended to use the measuring rod 19 together with the laser receiver.

A relative millimeter scale ( ±50 cm) is marked on the top of the measuring rod 19. Its zero height can be preset at the bottom of the elevator column. This allows for direct reading of deviations from the specified height.
Work Examples
Checking the Depth of Building Pits (see figure A)
Position the measuring tool on a firm surface or mount it to a tripod 18.
Working with tripod: Align the laser beam to the requested height. Project or check the height at the target location.
Working without tripod: Determine the height difference between the laser beam and the height at the reference point with help of the measurement plate 22. Project or check the measured height difference at the target location.
When measuring over long distances, the measuring tool should always be set up in the centre of the work surface and on a tripod, in order to reduce interferences.
When working on unsafe ground, mount the measuring tool onto the tripod 18. Take care that the shock-warning function is activated, in order to avoid faulty measurements in case of ground vibrations or shock to the measuring tool.









26 | English
Overview of Indications
| Laser beam | Rotation of the laser | green red green red | |
| Switching on the measuring tool(1 s self-check) ● | ● | ● | |
| Levelling in or re-levelling 2x/s ○ 2x/s | |||
| Measuring tool levelled in/ready for operation ● | ● | ● | |
| Self-levelling range exceeded 2x/s ○ | ● | ||
| Shock-warning function activated ● | |||
| Shock warning actuated 2x/s ○ 2x/s | |||
| Battery voltage for ≤2 h operation | 2x/s | ||
| Battery empty ○ | ○ | ● | |
| 2x/s | Flashing frequency (twice per second) | ||
| ● | Continuous operation | ||
| ○ | Function stopped | ||
Maintenance and Service
Maintenance and Cleaning
Keep the rotational laser level and battery charger clean at all times.
Do not immerse the rotational laser level and battery charger into water or other fluids.
Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.
Particularly clean the surfaces at the outlet opening of the rotational laser level regularly and pay attention for any lint.
If the rotational laser level or battery charger should fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer services agent for Bosch power tools. Do not open the rotational laser level and the battery charger yourself.
In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the rotational laser level and battery charger.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:
www.bosch-pt.com
Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: +353 (01) 4 66 67 00
Fax: +353 (01) 4 66 68 88
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: +61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: +27 (011) 6 51 96 00
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: +27 (011) 4 93 93 75
Fax: +27 (011) 4 93 01 26
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: +27 (031) 7 01 21 20
Fax: +27 (031) 7 01 24 46
E-Mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: +27 (021) 5 51 25 77
Fax: +27 (021) 5 51 32 23
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: +27 (011) 6 51 96 00
Fax: +27 (011) 6 51 98 80
E-Mail: rbsa-hq.pts@za.bosch.com
People's Republic of China
Website: www.bosch-pt.com.cn
China Mainland
Bosch Power Tools (China) Co., Ltd.
567, Bin Kang Road
Bin Jiang District 310052
Hangzhou, P.R.China
Service Hotline: 400 8 26 84 84
Tel.: +86 (571) 87 77 43 38
Fax: +86 (571) 87 77 45 02
HK and Macau Special Administrative Regions
Robert Bosch Hong Kong Co. Ltd.
21st Floor, 625 King's Road
North Point, Hong Kong
Customer Service Hotline: +852 (21) 02 02 35
Fax: +852 (25) 90 97 62
E-Mail: info@hk.bosch.com
www.bosch-pt.com.cn







28 | English
Indonesia
PT. Multi Tehaka
Kawasan Industri Pulogadung
Jalan Rawa Gelam III No. 2
Jakarta 13930
Indonesia
Tel.: +62 (21) 46 83 25 22
Fax: +62 (21) 46 82 86 45/68 23
E-Mail: sales@multitehaka.co.id
www.multitehaka.co.id
Philippines
Robert Bosch, Inc.
28th Floor Fort Legend Towers,
3rd Avenue corner 31st Street,
Fort Bonifacio Global City,
1634 Taguig City, Philippines
Tel.: +63 (2) 870 3871
Fax: +63 (2) 870 3870
matheus.contiero@ph.bosch.com
www.bosch-pt.com.ph
Bosch Service Center:
9725-27 Kamagong Street
San Antonio Village
Makati City, Philippines
Tel.: +63 (2) 899 9091
Fax: +63 (2) 897 6432
rosalie.dagdagan@ph.bosch.com
Malaysia
Robert Bosch (S.E.A.) Pte. Ltd.
No. 8A, Jalan 13/6
G.P.O. Box 10818
46200 Petaling Jaya
Selangor, Malaysia
Tel.: +60 (3) 7966 3194
Fax: +60 (3) 7958 3838
cheehoe.on@my.bosch.com
Toll-Free: 1800 880 188
www.bosch-pt.com.my
Thailand
Robert Bosch Ltd.
Liberty Square Building
No. 287, 11 Floor
Silom Road, Bangrak
Bangkok 10500
Tel.: +66 (2) 6 31 18 79 - 18 88 (10 lines)
Fax: +66 (2) 2 38 47 83
Robert Bosch Ltd., P. O. Box 2054
Bangkok 10501, Thailand
Bosch Service – Training Centre
2869-2869/1 Soi Ban Kluay
Rama IV Road (near old Paknam Railway)
Prakanong District
10110 Bangkok
Thailand
Tel.: +66 (2) 6 71 78 00 - 4
Fax: +66 (2) 2 49 42 96
Fax: +66 (2) 2 49 52 99
Singapore
Robert Bosch (SEA) Pte. Ltd.
11 Bishan Street 21
Singapore 573943
Tel.: +65 6571 2772
Fax: +65 6350 5315
leongheng.leow@sg.bosch.com
Toll-Free: 1800 333 8333
www.bosch-pt.com.sg
Vietnam
Robert Bosch Vietnam Co. Ltd
10/F, 194 Golden Building
473 Dien Bien Phu Street
Ward 25, Binh Thanh District
84 Ho Chi Minh City
Vietnam
Tel.: +84 (8) 6258 3690 ext. 413
Fax: +84 (8) 6258 3692
hieu.lagia@vn.bosch.com
www.bosch-pt.com
Disposal
The rotational laser level, battery charger, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of the rotational laser level, battery charger and battery packs/batteries into household waste!
Only for EC countries:

According to the European Guideline 2002/96/EC, measuring tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or
used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
Batteries no longer suitable for use can be directly returned at:
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: boschservicecentre@bosch.com
Battery packs/batteries:

Ni-MH: Nickel metal hydride
Subject to change without notice.
30 | Français
Robert Bosch (France) S.A.S.
Pure geometric diagram with crosshair and circular shapes, no text or symbols present84 | Nederlands
12 Stativholder 5/8"
13 Serienummer
14 Laser-advarselsskilt
15 Ladeaggregat
16 Ladeaggregatets netstik
17 Ladestik
18 Stativ*
19 Baulaser-måleplade*
20 Lasermodtager*
21 Specielle laserbriller*
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Tel. Service Center: +45 (4489) 8855
Fax: +45 (4489) 87 55
E-Mail: vaerktoej@dk.bosch.com
Bortskaffelse
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: +46 (020) 41 44 55
Fax: +46 (011) 18 76 91
Avfallshantering
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
Robert Bosch Sp. z o.o.
Bosch Service Center PT
K Vápence 1621/16
692 01 Mikulov
Tel.: +420 (519) 305 700
Fax: +420 (519) 305 705
E-Mail: servis.naradi@cz.bosch.com
www.bosch.cz
Zpracování odpadů
Bosch Service Center
Str. Horia Măcelariu Nr. 30-34,
013937 Bucureşti
Tel. Service scule electrice: +40 (021) 4 05 75 40
Fax: +40 (021) 4 05 75 66
E-Mail: infoBSC@ro.bosch.com
40 m x ±0.08 mm/m = ±3.2 mm.
Robert Bosch Korea Mechanics and Electronics Ltd.
전동공구 사업부
OBJ_BUCH-1179-001.book Page 330 Thursday, August 5, 2010 10:16 AM


330 | 한국어
처리
| ● | ● | ● | (ش Gretingl,边缘的 Finanas (acctibar dati 1 ta) | ||
| ta/2x | ○ | ta/2x | tssoyia,a/o eagadae tssoyia | ||
| ● | ● | ● | tem tssoyia,edge daqinias/ jahazra to thegfini | ||
| ● | ○ | ta/2x | tem hyaawz,jbal thesoyia daqinian | ||
| ● | tem tshgminl thehizdinyon thepudm | ||||
| ta/2x | ○ | ta/2x | tem elaplaq thehizdinyon thepudm | ||
| ta/2x | jheid biptaraya,woafq ≥ 2 saaea tshgminl | ||||
| ● | ○ | ○ | albpatrery,faraghe | ||
| (tr#dd laqfcaan (mr#tien in theatian) | ta/2x | ||||
| tshgminl,msnmer | ● | ||||
| tem,ofnf a###ylnfne | ○ |
خدمة ومشورة الزبان
يَكَنْب مَرْكَرْ خَدَمَةِ الْزِبَائِنُ عَلَى الْأَسْتَّةِ المَطَروحَة بِصُدُدْ تَصْلِينَجِ وَصِبِنَانَةِ المُشَّجَ وَأَيْضُلًا يُخْص قَطْعِ الْغِينَارِ. سَتْجَدِ الرَسُومِ المُمْدَّدٍةِ وَالْمُعُلُومَاتِ عَنْ
قطع الغينار بموقع:
