Product Type	Teleconverter for NIKKOR AF-S/AF-I lenses
Brand	Nikon
Model	AF-S Teleconverter TC-20E III
Multiplication Factor	2× (doubles focal length)
Light Loss	2 stops (effective aperture divided by 2)
Mount	Front: specific to AF-S/AF-I NIKKOR lenses; Rear: Nikon bayonet mount
Dimensions	Approximately 66 mm diameter × 48 mm (extension); total length approx. 60 mm
Weight	Approximately 330 g
Optical Construction	7 elements in 5 groups (1 aspherical lens)
Diaphragm	Fully automatic
Exposure Measurement	By maximum aperture method (AI or microcomputer cameras) or by aperture stop-down (others)
Effective Aperture Range	f/4 to f/64 (with main lens f/2 to f/32)
Minimum Focus Distance	Same as the main lens
Autofocus Compatibility	AF-S/AF-I NIKKOR (some limited models, see instructions)
CPU Contacts	Yes, data transmission
Main Functions	Doubles focal length, autofocus, metering coupling, minimum aperture coupling
Maintenance and Cleaning	Clean CPU contacts; blow off lens; use a soft cloth with ethanol; avoid organic solvents
Safety	Do not look at the sun through it; do not use in presence of flammable gas; keep out of reach of children; avoid moisture
Supplied Accessories	Teleconverter cap, rear cap, soft case CL-0715
Repairability	Repairs only by a Nikon authorized technician
Storage	Cool, dry place, away from direct sunlight and chemicals (camphor, naphthalene)

Frequently Asked Questions - AF-S TELECONVERTER TC-20E III NIKON

Which lenses are compatible with the TC-20E III?

The TC-20E III is compatible only with AF-S and AF-I NIKKOR lenses. Check the list in the manual for exact models. Some lenses (like the 105 mm VR Micro) do not support autofocus.

How does light loss affect exposure?

Using the teleconverter reduces the effective aperture by 2 stops. For example, a lens set to f/2.8 becomes effectively f/5.6. Modern cameras compensate automatically; on older bodies, use wide-open metering or stop-down metering.

Can I use autofocus with all compatible lenses?

No. Autofocus works only if the effective aperture is f/5.6 or brighter. With a maximum aperture lens of f/4, autofocus is possible; with f/5.6, it is sometimes limited. Refer to the table in the manual for valid combinations.

How to clean the teleconverter?

Use a blower to remove dust. For stains, moisten a soft cloth with ethanol (alcohol) and wipe from center to outer edge. Never use solvents like benzene or thinner.

What safety precautions should be taken?

Never look at the Sun through the lens or viewfinder. Do not use the device near flammable gas. Keep small parts out of reach of children. If the device emits smoke or an odor, remove the battery and contact an authorized technician.

How to mount the teleconverter?

1. Turn off the camera. 2. Align the mounting index of the teleconverter with the lens index. 3. Turn the teleconverter counterclockwise until it clicks. To remove, press the unlock button and turn in the opposite direction.

Does the teleconverter affect image quality?

Yes, there may be a slight loss of sharpness and contrast. The TC-20E III uses an aspherical lens to minimize aberrations. Results depend on the lens and camera used.

Can I use the teleconverter with a zoom lens?

Yes, with some AF-S zooms like the 70-200 mm f/2.8. Autofocus may be limited depending on focal length and aperture. Check the list of compatible lenses in the manual.

How to store the teleconverter?

Attach the front and rear caps. Store it in a cool, dry place, away from direct sunlight and chemicals like camphor or naphthalene.

What is the warranty of the TC-20E III?

The warranty depends on the retailer and country. Nikon generally offers a one-year limited warranty. Check the warranty certificate provided with the product. Repairs must be performed by a Nikon authorized service center.

USER MANUAL AF-S TELECONVERTER TC-20E III NIKON

Touching the internal parts of the camera or lens could result in injury. Repairs should be performed only by qualified technicians. Should the camera or lens break open as the result of a fall or other accident, take the product to a Nikon-authorized service representative for inspection after unplugging the product and/or removing the battery.

Turn off immediately in the event of malfunction

Should you notice smoke or an unusual smell coming from the camera or lens, remove the battery immediately, taking care to avoid burns. Continued operation could result in injury. After removing or disconnecting the power source, take the product to a Nikon-authorized service representative for inspection.

Do not use the camera or lens in the presence of flammable gas

Operating electronic equipment in the presence of flammable gas could result in an explosion or fire.

Do not look at the sun through the lens or viewfinder

Viewing the sun or other strong light sources through the lens or viewfinder could cause permanent visual impairment.

Keep out of reach of children

Particular care should be taken to prevent infants from putting the batteries or other small parts into their mouths.

Observe the following precautions when handling the camera and lens

• Keep the camera and lens unit dry. Failure to do so could result in fire or electric shock.
• Do not handle or touch the camera or lens unit with wet hands. Failure to do so could result in electric shock.
• When shooting with back-lighting, do not point the lens at the sun or allow sunlight to pass directly down the lens as this may cause the camera to overheat and possibly cause a fire.
• When the lens will not be used for an extended period of time, attach both front and rear lens caps and store the lens away from direct sunlight. Failure to do so could result in a fire, as the lens may focus sunlight onto a flammable object.

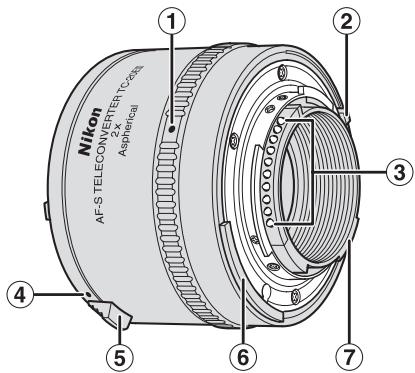

Nomenclature

① Teleconverter-camera index (p. 17)
② Minimum aperture signal post (EE servo coupling post)
③ CPU contacts (p. 19)
④ Lens mounting index (p. 16)
⑤ Lens release lever (p. 16)
⑥ Meter coupling lever
⑦ Maximum aperture coupling ridge

( ): reference page

Thank you for purchasing the AF-S Teleconverter. Before using this teleconverter, please read these instructions and refer to your lens' and camera's User's Manual.

■ Major features

• This teleconverter doubles the prime lens' focal length with a two-stop loss in effective aperture.
• Because your AF-S Teleconverter has CPU contacts, and features autofocus, meter coupling and minimum aperture coupling, you can fully take advantage of prime lens' features.
• This teleconverter employs aspherical lens, which minimizes optical interference of the prime lens.

Important

• This teleconverter is exclusively for the AF-S or AF-I NIKKOR lens (p.15); other lenses cannot be used.
• The functions of the lens attached depend on the camera in use. For details, refer to the lens' User's Manual.
  • Refer to the Focusing (p. 18) for available autofocus and focus assist.

■ Usable lenses

The following AF-S and AF-I NIKKOR lenses can be used with the TC-20E III:

AF-S VR Micro-Nikkor 105mm f/2.8G IF-ED*	AF-S NIKKOR 500mm f/4G ED VR*
AF-S VR Nikkor 200mm f/2G IF-ED	AF-S Nikkor 500mm f/4D IF-ED II*
AF-S NIKKOR 300mm f/2.8G ED VR II	AF-S Nikkor 500mm f/4D IF-ED*
AF-S VR Nikkor 300mm f/2.8G IF-ED	AF-I Nikkor 500mm f/4D IF-ED*
AF-S Nikkor 300mm f/2.8D IF-ED II	AF-S NIKKOR 600mm f/4G ED VR*
AF-S Nikkor 300mm f/2.8D IF-ED	AF-S Nikkor 600mm f/4D IF-ED II*
AF-I Nikkor 300mm f/2.8D IF-ED	AF-S Nikkor 600mm f/4D IF-ED*
AF-S Nikkor 300mm f/4D IF-ED*	AF-I Nikkor 600mm f/4D IF-ED*
AF-S NIKKOR 400mm f/2.8G ED VR	AF-S NIKKOR 70-200mm f/2.8G ED VR II
AF-S Nikkor 400mm f/2.8D IF-ED II	AF-S VR Zoom-Nikkor 70-200mm f/2.8G IF-ED
AF-S Nikkor 400mm f/2.8D IF-ED	AF-S Zoom-Nikkor 80-200mm f/2.8D IF-ED
AF-I Nikkor 400mm f/2.8D IF-ED	AF-S VR Zoom-Nikkor 200-400mm f/4G IF-ED*

* Autofocus cannot be used.

- Other lenses cannot be used. Do not attach other lenses since the rear elements of the lens will touch and may damage the elements in the teleconverter.

- Vibration reduction function can be used with the VR (Vibration Reduction) lens used with Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5, F100, F80-series/N80-series**, F75-series/N75-series** and F65-series/N65-series** camera body.

** The Nikon N80-series, N75-series and N65-series are sold exclusively in the U.S.A.

■ Recommended focusing screens

Nikon offers a variety of interchangeable focusing screens for Nikon F6 or F5 cameras, to suit any type of lens or picture-taking situation. Those recommended for your teleconverter/lens combination are listed on pages 144–145.

◎= Excellent focusing
○= Acceptable focusing

Slight vignetting or moire phenomenon affects screen image, but film image shows no traces of this.

●= Acceptable focusing

Split-image rangefinder, microprism or cross-hair area is dim; focus on the surrounding matte area.

( )= Indicates degree of exposure compensation required in Center-Weighted metering. See User's Manual of the camera body for more details.
☐= Exposure measurement not possible; teleconverter/screen combination permits only focusing operation.

Blank box means not applicable. Since type M screen can be used for both macro photography at a 1:1 magnification ratio or higher and for photomicrography, it has different applications than other screens.

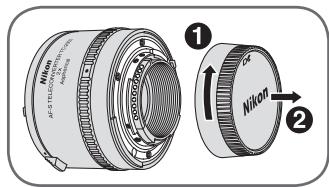

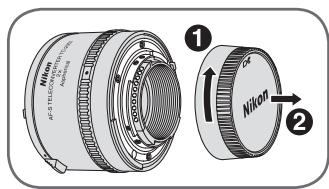

■ Attaching to the lens

When removing the lens from the camera body to attach the teleconverter, make sure that the camera's power is turned off and avoid direct sunlight.

To attach

Attach the teleconverter to the lens so that the teleconverter's lens mounting index is aligned with the aperture index on the lens. Taking care not to press the lens release lever, turn the teleconverter counterclockwise (with the lens facing away from you) until it clicks into place.

To remove

Slide back the teleconverter's lens release lever and turn the teleconverter clockwise (with the lens facing away from you) until the teleconverter's lens mounting index is aligned with the lens' mounting index.

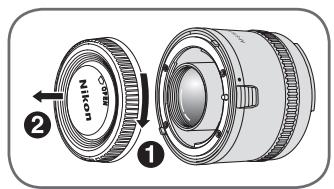

■ Attaching teleconverter to camera body

Make sure that the camera's power is turned off and avoid direct sunlight.

To attach

Attach the camera to the lens/teleconverter assembly so that the camera's mounting index is aligned with the teleconverter-camera index on the teleconverter. Taking care not to press the camera's lens release button, turn the camera body counterclockwise (with the camera body facing away from you) until it clicks into place.

- If your camera has a lift-up meter coupling lever, make sure that the meter coupling lever is correctly positioned. (For details, see your camera User's Manual.)

To remove

While pressing the lens release button on the camera body, turn the camera body clockwise (with the camera body facing away from you) until the teleconverter-camera index is aligned with the camera's lens mounting index.

■ Determining exposure

Using this teleconverter with a lens decreases the effective aperture by two stops.

• With AI-type cameras with/without CPU contacts: Determine exposure in the same manner as using the prime lens only. (However, exposure cannot be determined with the G-type lens.)
• With non-AI-type cameras: Perform stop-down method. (However, exposure cannot be determined with the G-type lens.)
• See your camera User's Manual for available exposure modes and metering systems.

Focusing

Camera	Camera's focus mode	Lens' focus mode
		M/A, A/M	M
Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5, F4-series, F100, F90X/N90s*1, F90-series/N90*1, F80-series/N80-series*, F75-series/N75-series*, F70-series/N70*1, F65-series/N65-series*, PRONEA 600i/6i*1 and PRONEA S	AF(C/S)	Autofocus with manual priority*2, Autofocus with auto priority*2	Manual focus (Focus assist is available*2)
	MF	Manual focus only (Focus assist is available*2)
Other AF (autofocus) cameras (except for F3AF*3)	AF(C/S) MF	Manual focus only (Focus assist is available*4)
Non-AF Nikon cameras		Manual focus only

*1 The Nikon N90s, N90, N80-series, N75-series, N70, N65-series and PRONEA 6i are sold exclusively in the U.S.A.
*2 Both autofocus and manual focus using electronic rangefinder are possible with an AF-S/AF-I NIKKOR lens having maximum aperture of f/2.8 (effective aperture of f/5.6) or faster.
*3 The Nikon F3AF camera cannot be used.
*4 Manual focus using electronic rangefinder is possible with an AF-S/AF-I NIKKOR lens having maximum aperture of f/2.8 (effective aperture of f/5.6) or faster, or maximum aperture of f/2 (effective aperture of f/4) with F-501/N2020 ^*5 attached.
*5 The Nikon N2020 is sold exclusively in the U.S.A. and Canadian markets.
- With the AF-S VR Micro-Nikkor 105mm f/2.8G IF-ED, the brightness of the image at the image sensor (or film plane) decreases as the reproduction ratio increases, and the effective aperture becomes larger (brightness diminishes).

Teleconverter care

• Be careful not to allow the CPU contacts to become dirty or damaged.
• Clean teleconverter's lens surfaces with a blower brush. To remove dirt and smudges, use a soft, clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner. Wipe in a circular motion from the center to outer edge, taking care not to leave traces or touch other parts of the lens.
• Never use organic solvent such as thinner or benzene to clean the teleconverter's lens.
• When storing the teleconverter, attach both the front and rear teleconverter caps.
• When the lens will not be used for an extended period of time, store it in a cool, dry place to prevent mold and rust. Be sure to store the teleconverter away from direct sunlight or chemicals such as camphor or naphthalene.
• Do not get water on the lens or drop it in water as this will cause it to rust and malfunction.
• Reinforced plastic is used for certain parts of the lens. To avoid damage, never leave the lens in an excessively hot place.

■ Standard accessories

• Teleconverter Cap
• Rear Lens Cap
  • Flexible Lens Pouch CL-0715

Specifications

Lens construction:	7 elements in 5 groups (1 aspherical lens)
Diaphragm:	Fully automatic
Exposure measurement:	Via full-aperture method with AI cameras or cameras having a CPU; via stop-down method for other cameras
Mount:	Front: Special mount for AF-S/AF-I NIKKOR lensRear: Nikon bayonet mount
Dimensions:	Approx. 66 mm (2.6 in.) dia. × 48 mm (1.9 in.) extension from camera's lens mounting flange; overall length is approx. 60 mm (2.4 in.)
Weight:	Approx. 330 g (11.6 oz.)

With a prime lens

Focal length:	Double that of a prime lens
Aperture coupling range:	f/2 - f/32(effective aperture f/4 - f/64)
Reproduction ratio:	Double that of a prime lens
Depth of field:	1/2 that of a prime lens
Minimum focusing distance:	Same as that of a prime lens

Specifications and designs are subject to change without notice or obligation on the part of the manufacturer.
