USER MANUAL BABYCOOK DUO BEABA

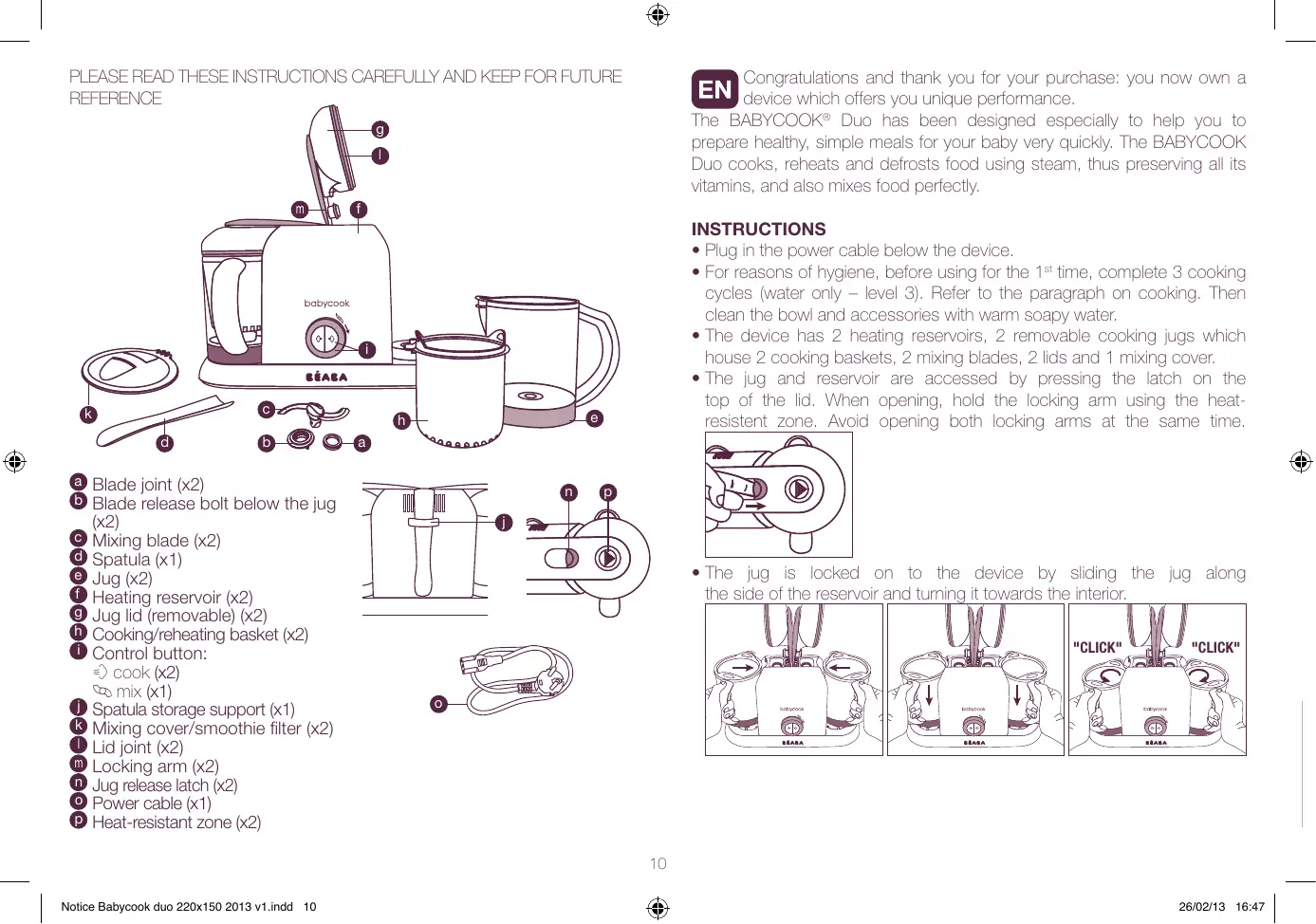

ongratulations and thank you for your purchase: you now own a C device which offers you unique performance. The BABYCOOK® Duo has been designed especially to help you to prepare healthy, simple meals for your baby very quickly. The BABYCOOK Duo cooks, reheats and defrosts food using steam, thus preserving all its vitamins, and also mixes food perfectly.

Please read these instructions carefully and keep for future reference g l

• Plug in the power cable below the device. • For reasons of hygiene, before using for the 1st time, complete 3 cooking cycles (water only – level 3). Refer to the paragraph on cooking. Then clean the bowl and accessories with warm soapy water. • The device has 2 heating reservoirs, 2 removable cooking jugs which house 2 cooking baskets, 2 mixing blades, 2 lids and 1 mixing cover. •T he jug and reservoir are accessed by pressing the latch on the top of the lid. When opening, hold the locking arm using the heatresistent zone. Avoid opening both locking arms at the same time.

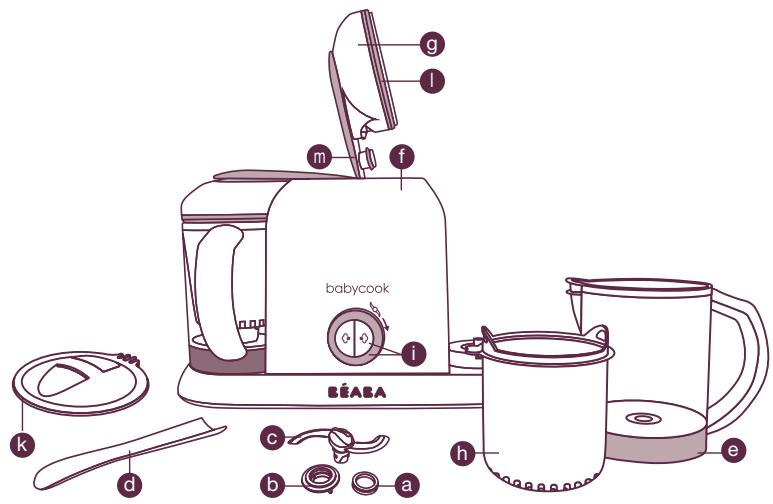

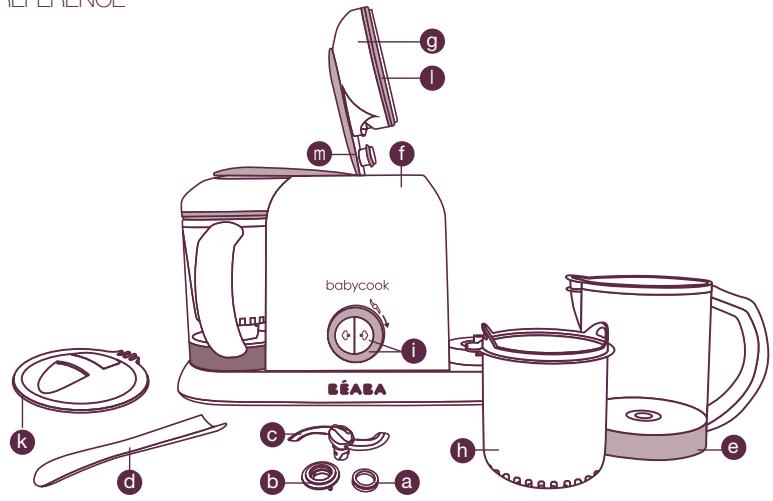

Blade release bolt below the jug (x2) Mixing blade (x2) Spatula (x1) Jug (x2) Heating reservoir (x2) Jug lid (removable) (x2) Cooking/reheating basket (x2) Control button: cook (x2) mix (x1) Spatula storage support (x1) Mixing cover/smoothie filter (x2) Lid joint (x2) Locking arm (x2) Jug release latch (x2) Power cable (x1) Heat-resistant zone (x2)

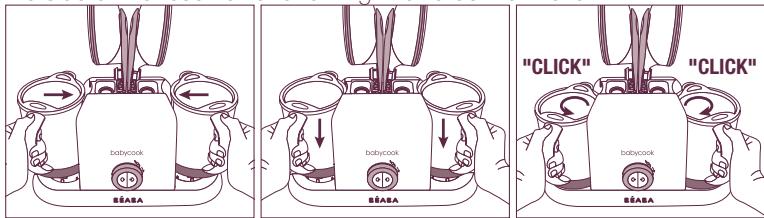

• The jug is locked on to the device by sliding the jug along the side of the reservoir and turning it towards the interior.

COOKING In the bottom part of the 2 jugs, you will see graduation marks from 1 to 3.

These levels help you measure the amount of water to be poured into the heating reservoir and determine the cooking time (refer to the cooking guide on page 15).

• Lock the cooking jug by pressing on the heat-resistant zone situated on the top of the locking arm. In order to avoid the risk of burning at the end of the cooking cycle, do not lock the lid with the palm of your hand. If the jug is not locked properly, the lid and the jug’s safety device will prevent the device from being switched on.

• The jug is removed using the spatula which may be passed through the jug’s handles, with the Beaba logo facing upwards.

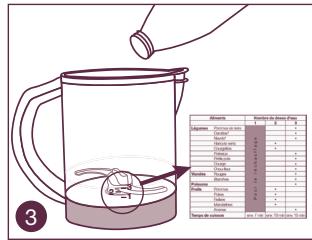

Dice the food to about 1cm x 1cm and place in the basket Measure out the water with the cooking jug (using the graduations 1-2-3). Always use water at room temperature with nothing added (salt, sugar, etc.).

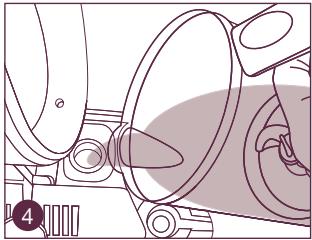

Pour water into the heating reservoir by placing the lip of the jug on the upper edge of the reservoir.

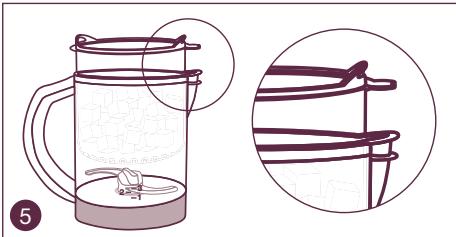

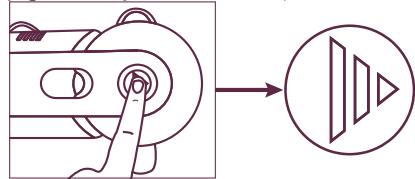

Place the basket in the jug, taking care to position the tongue of the basket in the lip of the jug. To ensure even cooking, it is recommended that you do not overload the basket. Lock the jug onto the device and close the lid of the jug. Plug in the device and press the right steam button if you are using the right-hand jug, or the left steam button if you are using the left-hand jug. A light and a sound signal shows when the cooking cycle starts. When cooking is completed, a sound signal is heard and the steam symbol on the button corresponding to your jug flashes. To stop it, press this button.

• The spatula is stored at the rear of the device.

CAUTION ! Handling the blade (very sharp), the jug and accessories after cooking must be done with great care, with any remaining condensation still being very hot after cooking.

N.B.: It is possible to cook in both jugs at the same time.

Remember to fill the right-hand heating reservoir if you ✔ are using the right-hand jug and the left-hand heating reservoir if you are using the left-hand jug.

Never immerse the electrical base in water.

Plug the device into a 220-240V~ socket. 11 Notice Babycook duo 220x150 2013 v1.indd 11

12-13. Release the lid and remove the basket using the spatula. Depending on the recipe, either keep the cooking water or discard it. 14. Empty the food into the jug and insert it on the device’s right-hand housing 15. Place the mixing cover horizontally over the jug using the Beaba spatula. Ensure that the cover is resting on the 6 lugs inside the jug so that it does not slip down when mixing. 16. Lock the jug’s lid 17. Plug in the device and turn the button to the right using pulses lasting a maximum of 5 seconds until you have obtained the desired consistency. 18-19. Open the lid and remove the mixing cover and remove the mixing lid using the Beaba spatula.

N.B: Although it is always best to use fresh fruit and vegetables which have a high quantity of vitamins, it is also possible to cook frozen fruit and vegetables which have been defrosted in one of the BABYCOOK Duo’s jugs or in the fridge (never defrost food at room temperature).

DESCALING • When the steam button turns red, it is necessary to descale the heating reservoir. • The heating reservoir must be descaled only with white vinegar. Ensuring the device is cold and not connected to the mains, pour a mixture of 110ml of water and 110ml of white vinegar into the heating reservoir. Leave for the night and then empty. Repeat the operation if necessary until all the lime has been removed. Connect the device to the mains and then complete two heating cycles using water only in the heating reservoir (3 measures – 200 ml) in order to rinse it well. Before the 2nd heating cycle, press on the steam button for a few seconds to reset the cycle counter. The steam button will turn white. Then clean the bowl and accessories with warm, soapy water. •N ever use a chemical descaler or a coffee machine descaler in the heating reservoir. •D escale 1 reservoir at a time

N.B.: It is possible to cook in both jugs at the same time. Remember to fill the right-hand heating reservoir if you are using the right-hand jug and the left-hand heating reservoir if you are using the left-hand jug.

• Always unplug the device before cleaning. •R inse any of the accessories in contact with food immediately with soapy water to avoid germs. • After cleaning the blade, ensure that the joint has been inserted correctly. • Babycook accessories are not suitable for sterilising. •T he jugs and their lids, baskets, mixing covers and blades are dishwasherproof. Prolonged dishwasher cleaning speeds increase ageing of the parts.

✔N B: Mixing is only possible in the right-hand position with either one of the jugs.

REHEATING and DEFROSTING • The food to be reheated or defrosted should be placed in a suitable container, and then placed in the cooking basket without a lid. • Measure 1 to 3 doses of water according to the amount of food to be reheated and then follow the cooking cycle instructions. • When the sound signals marks the end of the cycle, remove the container with a cloth (caution: the residual water is very hot at the end of the cooking cycle) and mix the contents with the Beaba spatula to obtain an even temperature.

Inserting the joint:

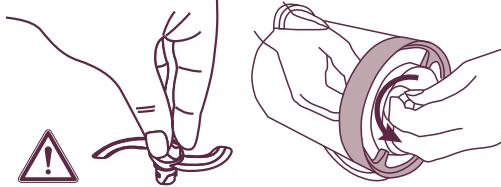

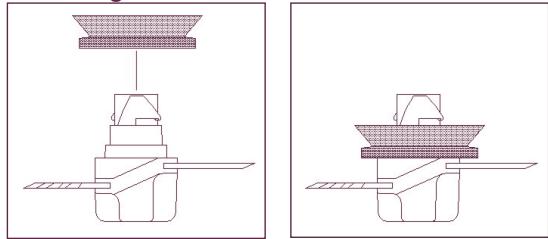

Placing the gasket on the blade

Flat part at the top

• Your device is designed for domestic use only. • Keep the BABYCOOK Duo out of the reach of children and always lock the jug’s covers so that the blades are inaccessible. • This device is not designed to be used by people (including children) with reduced physical, sensorial, or mental capacities, or people without experience or knowledge, unless they have been informed by a person in charge of their safety or supervision, of the instructions for using the device. • Always ensure that children do not play with the device. • Use the BABYCOOK Duo on a flat and stable surface. • Before use, always ensure that all the different parts of the device have been installed properly. • Do not place the device or accessories on a hot surface, near a naked flame or a source of water. • Do not place the device on a hotplate. • Do not put the jugs in the microwave. • The mixing blade must always be placed on the jug in cooking mode and mixing mode. Never place the jug on the base without having fitted the mixing blade. • Do not move the device or cover it when in use. • Do not carry the device by the jugs’ handles. • Never immerse the electrical base unit in water. • Do not exceed the water limits given on the jug and do not add water to the jug before mixing. There is a risk of very hot liquid being splashed when mixing.

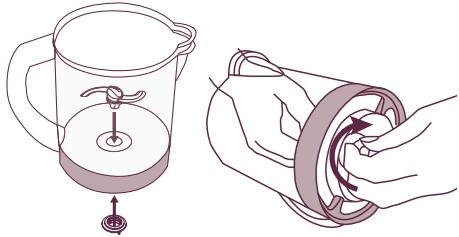

Repositioning the blade

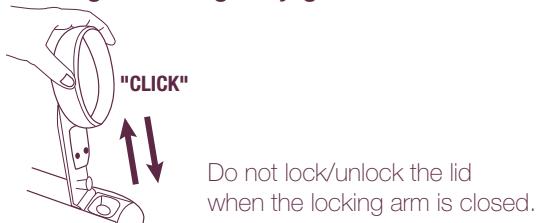

Do not lock/unlock the lid when the locking arm is closed.

13 Notice Babycook duo 220x150 2013 v1.indd 13

• Plug the BABYCOOK Duo into a 220-240V~ earthed socket. Check that the power supply for your device is suited to your electrical installation.

Unwind the power supply lead. Do not use an extension lead. For safety reasons, if the power supply lead is damaged, have it replaced by Beaba after-sales service or its certified national representative. Any connecting errors cancel the guarantee. • Never operate the BABYCOOK Duo in cooking mode without water in the reservoirs. • Never open the jug’s lid before the end of the cooking cycle. Burn risk. • Check regularly that the steam outlet hole is not blocked. • Handle hot parts with great care. Be careful of the steam released from the jug during cooking. • Always check the temperature of food before serving. • If the mixing cover is not used, food may be added to jug. Always check that the jug is empty before starting a new cycle. • Descale the heating reservoir regularly. • Use only water or white vinegar (for descaling) in the heating reservoir. Never put food, salt or any other non-recommended elements in the heating reservoir. • Never leave water in the reservoir. Empty any leftover water after each use. • Unplug the device when you have finished using it, when you are cleaning it, or when you are handling the blade. Do not unplug by pulling on the lead. • Do not use your device if it is not working properly or if it is damaged. In this event, contact Beaba's after-sales service directly or its certified national representative. • After extended periods of inactivity, the device switches off automatically.

The logo which appears on this product of a crossed out wheelie bin indicates that the product should not be disposed of in landfill with normal household waste. In order to avoid damaging the environment or human life, please separate this product from other waste in order to ensure that it is recycled in an environmentally safe manner. For further details on existing collection sites, please contact the local administrative authorities or the retailer from which you purchased this product.

Malfunction Steam cooking or mixing does not work

The lid does not close

My fruit and vegetables are not cooked at the end of the cycle

SPECIFICATIONS Voltage: 220-240 V ~ / 50-60 Hz. Power: 800 W (130 W motor)

It does not heat enough or the food is not cooked enough

There is a water leak under the jug

- Check that the jug is locked on the base and that the lid is positioned properly on the jug - Connect the Babycook to a 220V electricity supply - Check that the power cable is connected properly beneath the base of the device - Check that the lid’s joint is inserted properly (refer to the paragraph on inserting the lid’s joint) - Check that the lid is locked correctly to the locking arm - Check that the basket is positioned correctly in the jug Fill the jug again with water up to level 1, 2 or 3 according to the programme chosen and pour the water into the reservoir Descale the Babycook’s reservoir only with water and white vinegar (refer to the Descaling paragraph on page 12) - Check that the joint is mounted correctly on the blade (refer to the Maintenance paragraph on page 12) - Check the condition of the blade’s joint and replace it if necessary

Vegetables Potatoes Carrots* Turnips* Green beans Courgettes Leeks Peas Pumpkin Cauliflower Meat Red White Fish Fruit Apples Pears Strawberries Mandarins Pineapple Cooking time

Number of doses of water

about 9 mins about 15 mins about 20 mins

*cut into small cubes.

circa 9 min circa 15 min circa 20 min

Ung. 9 min Ung. 15 min Ung. 20 min
