USER MANUAL Milk Nomad BEABA

Black BEABA blender with digital display showing temperature reading of -37°C and +120°C (no text beyond branding)

Close-up of a white cosmetic jar with a flared rim (no text or symbols visible)

Close-up of a white plastic jar or container with no visible text or markings

Close-up of a white plastic cap or seal component (no text or symbols visible)

MILK NOMAD

FR Notice d'utilisation
EN Instructions
NL Handleiding
DE Gebrauchsanweisung
ES Folleto de Instrucciones
IT Istruzioni per l'uso
RU Инструкция по эксплуатации
PT Instrucoes de utilizacao
PL Instrukcja obsługi
cz Návod k použití
CN 使用说明书
CT 使用說明書
KR 사용설명서
AR الإرشادات

1 2 3 4 BÉABA a b c d 26 °C - +

Technical diagram showing exploded view of a device with labeled parts including a cable and connector, plus a close-up of the component.

Technical diagram of a mechanical component with numbered parts and exploded view, showing internal features and assembly.

Diagram of a USB cable with connector and port connections (no text or symbols)

QUICK START GUIDE

ŠEARA

BÁBA

Illustration of a baby bottle with a digital camera module and a rotating arrow indicating rotation (no text or symbols)

Hand pressing a button on a cylindrical device (no text or symbols visible)

Illustration of a bottle with a black circular cap and curved arrows indicating rotation or motion (no text or symbols)

BÉBA 26

BEEP 1° BEABA 37°C

1. CONSIGNES DE SÉCURITÉ

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

1. SAFETY INSTRUCTIONS

• Please follow the safety and operating instructions carefully to avoid injury.
• After use, the surface of the heating element remains hot for some time.
• The temperatures indicated are for information purposes. Always check the temperature of the food before feeding your child. Shake the bottle gently and check its temperature by pouring a few drops onto the inside of your wrist. Do not heat the water for too long..
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
  • This device must not be immersed
• Avoid spillage on the connector
• Only to be charge with a certified power supply with safety extra low voltage
• his appliance contains batteries that are only replaceable by skilled persons.

EUROPEAN MARKETS ONLY:

• This appliance can be used by children aged from 3 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep the appliance and its cord out of reach of children aged less than 3 years.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.

NON-EUROPEAN MARKETS ONLY:

• This appliance can be used by children aged from 3 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep the appliance and its cord out of reach of children aged less than 3 years.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.

CAUTION BURN RISK

• Incorrect use of the appliance may cause injury: always follow these instructions.
• Never launch a cycle without any water in heating unit.
• Never touch the heating plate with hand at the end of cycle.

POWER CONNECTION

• Switch off the appliance before assembling, dismantling or cleaning.
• Switch off the appliance if you leave it unsupervised.
• Do not use your appliance if the power cable is damaged*.
• Switch off the appliance if it is not working properly*.
• Switch off the appliance if it is damaged (fall, breakage, etc.) *.
  * Contact the Customer Service immediately.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or other similarly qualified person in order to avoid a hazard.

PRECAUTIONS

• Wash your hands well before handling your baby's products and food.
• Always use the appliance on a stable and even surface.
• Do not place the appliance near a heat source, hotplates, etc.
• Do not move the appliance or cover it when in use.
• Before preparing a bottle, consult a healthcare professional or your pediatrician for further information about food safety and preparation (water to use, storage, preparation method, etc.).
• Also refer to the instructions supplied with your milk for any specific recommendations.
• You can stop the cycle at any time by long pressing again on the “play/pause” button or switch off the appliance,

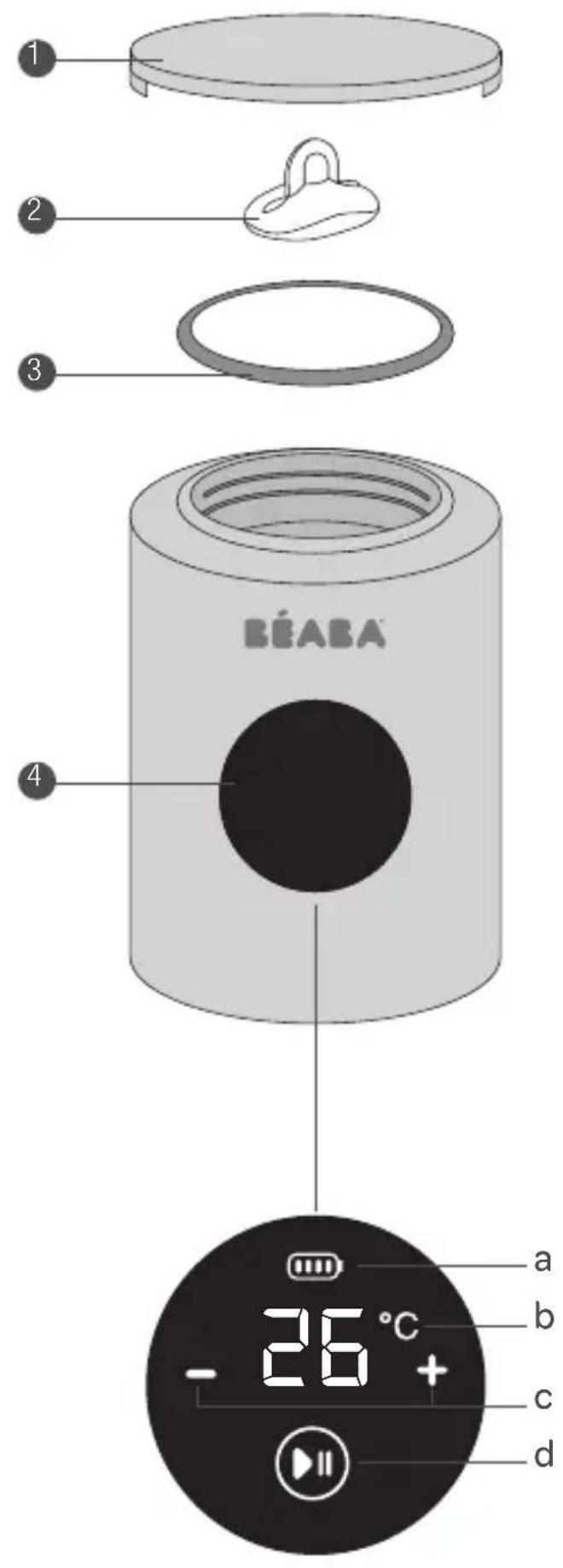

2. COMPONENTS

1 Lid
2 Stirring paddle
3 Silicone sealing ring
4 Control panel

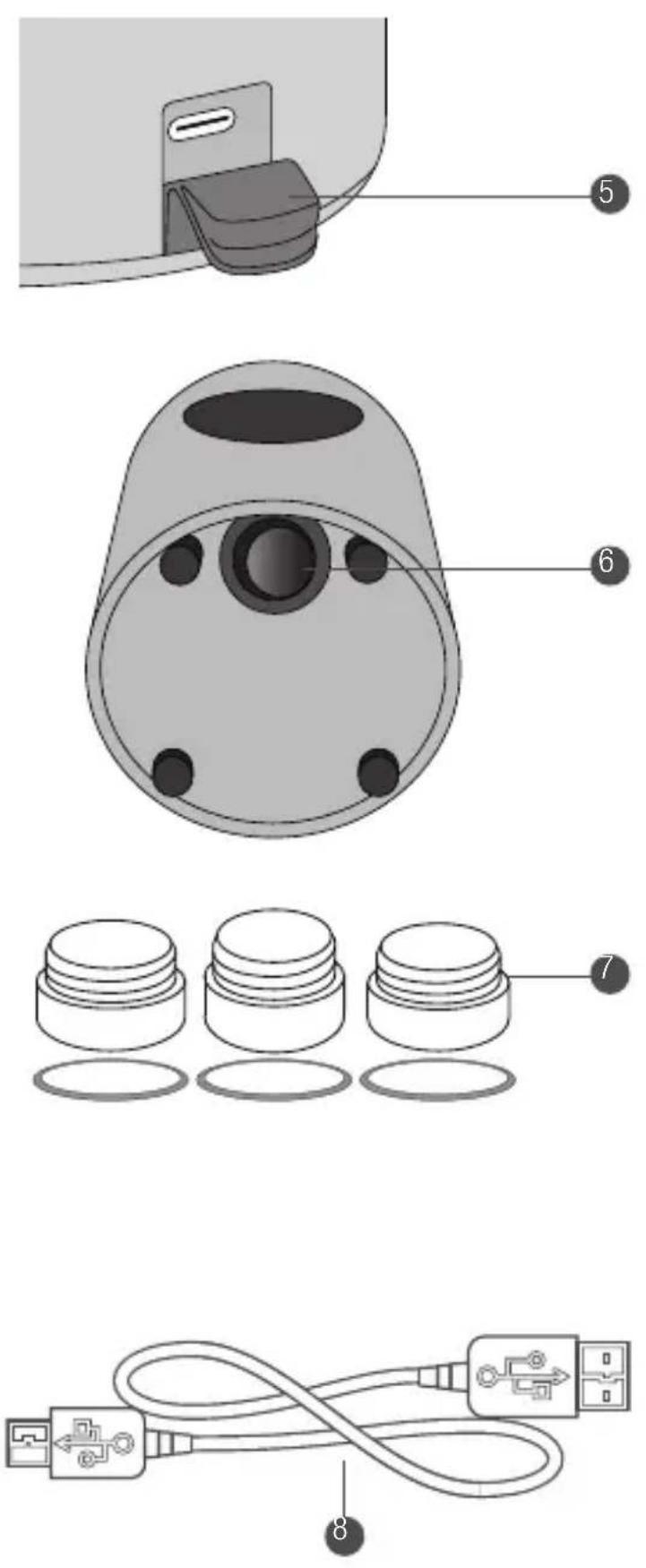

5 USB cable charging port

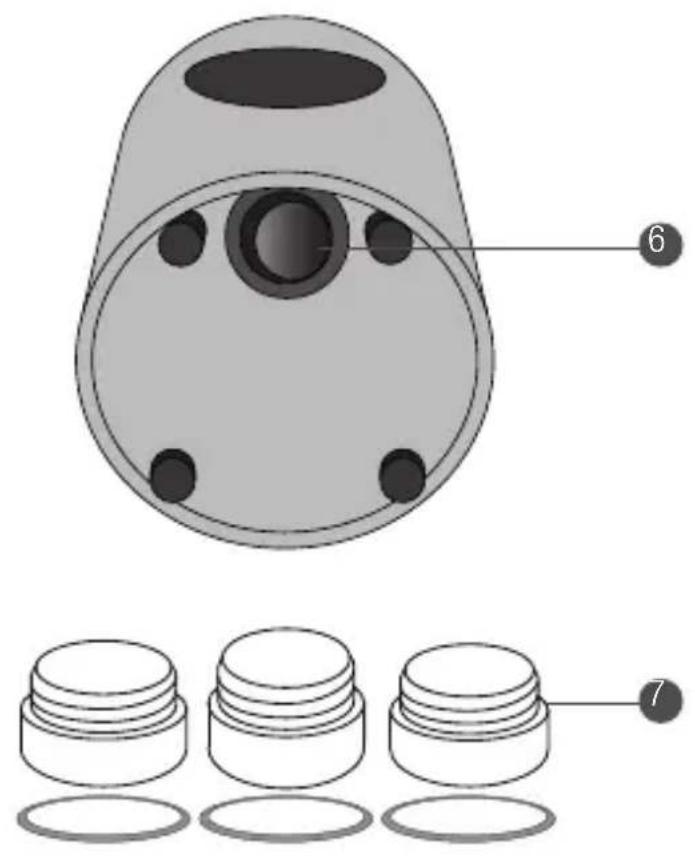

6 On/ Off button
7 Adapters included and sealing ring

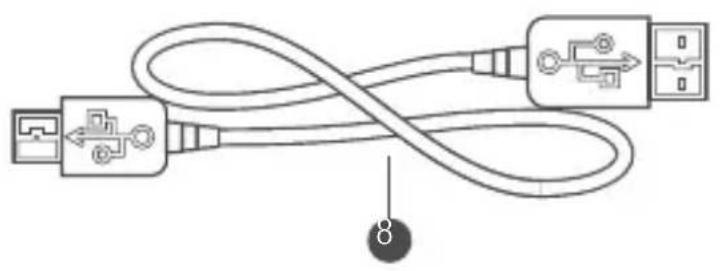

8 Charging cable

a. Battery indicator
b Temperature indicator
c Setting button +/-
d. Play/pause button

3. PROGRAMS OPERATION

BABY BOTTLE COMPATIBILITY

The base unit is compatible with MAM® baby bottles. It can be screwed directly to the warmer.

For other brands, use the bottle adapters :

		For Europe :# 911742	For Asia :# 911744	For America:# 911745
Adp. #1 Suavinex ^ , Dr Brown ^ wide neck included included included
Adp. #2 Philips Avent ^		included sold	separately included
Adp. #3 Nuk ^		included sold	separately sold separately
Adp. #4 Tommee Tippee ^		sold separately	included sold separately
Adp. #5 Comotomo ^		sold separately	sold separately included
Adp. #6 Pigeon ^ wide neck sold separately		included sold separately
Adp. #7 Hegen sold separately included sold separately
Adp. #8 Narrow neck : Pigeon, Dr Brown, Medela, Twinshake		sold separately	sold separately sold	separately

BATTERY POWER INSTRUCTION

- Battery Power Display:

In order to know current battery power, press On/Off button. The battery indicator on the screen shows the level of charge. The indicator will display 4 bars when the product is fully charged.

If there is not enough battery, the product will display E1, and it will no be possible to launch a heating cycle even if the product is plugged

- Low Power Display under working state:

When battery indicator is low, it has to be charged as below :

1. Connect the USB cable with USB power supply. The warmer will enter into charging mode and the bars inside the battery indicator will keep flashing
2. All common chargers can be used :

a. With standard charger (around 10W), it takes around 5 to 6 hours to fully charge
b. With fast charger (around 30W), it takes around 1h30 to fully charge

1. Once fully charged, you can get 6 uses out of each charge (based on 150ml bottle warming from room temperature to body temperature).

BEFORE FIRST USE

Before using the bottle warmer for the fist time, it is recommended to :

• fully charge the product using the USB-c cable included (plug not included)
• clean the heating surface and stirring paddle with a damp cloth or sponge. Wipe carefully.

HOW TO USE

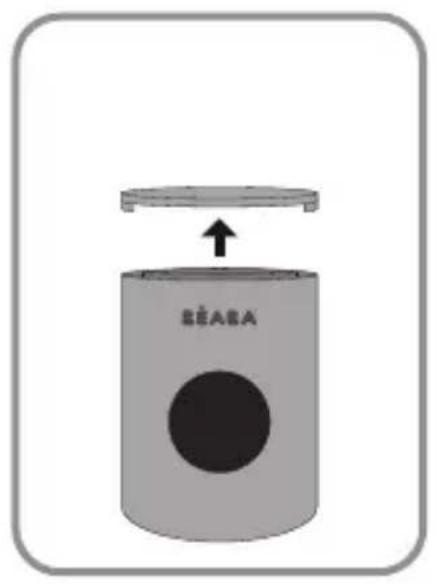

1. Take off the lid. It can be fixed on the bottom of the warmer
2. Make sure the silicone sealing ring and the stirring paddle are correctly in place.

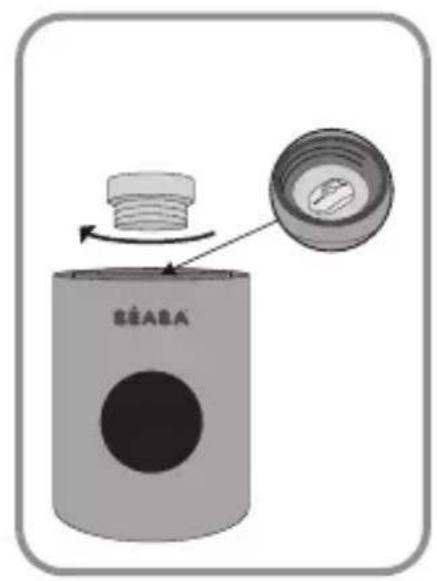

3. Choose the correct adapter for the bottle you are using
4. Take a prepared baby bottle (either water, breast milk or formula milk made up as per manufacturer guidelines). In the case of formula milk, shake it manually 5 times to start to homogenize the solution.

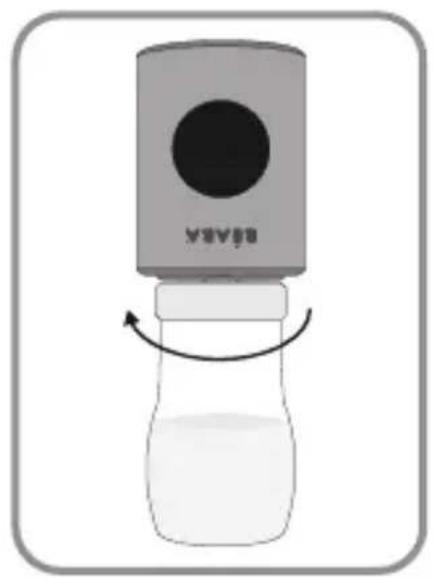

5. Put the warmer upside down and twist on the baby bottle securely.

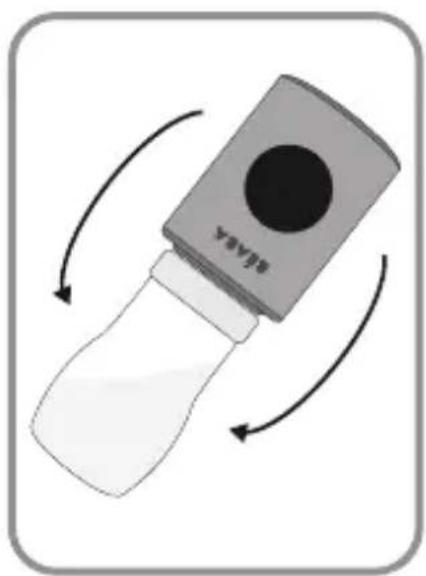

6. Rotate the warmer with installed bottle so that the content is in contact with the heating plate. Checkfos any leaks

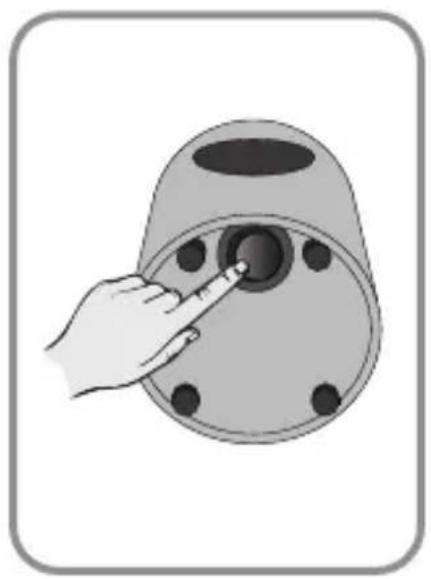

7. Press the on/off button to turn on the appliance. The screen will display the current temperature.
8. Select a temperature with the + and - settings button. The temperature can be adjusted from 21^ C to 49^ C with 2 degrees of increasing or decreasing intervals.

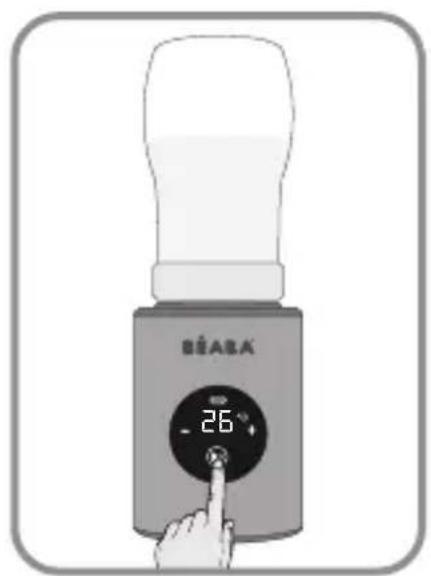

9. Once, the target temperature is selected, press the Play/pause button to launch the heating cycle. It will beep once, and the selected temperature will flash 3 times.
10. During the heating cycle, the stirring paddle will turn and the current temperature of the bottle is displayed on the screen.

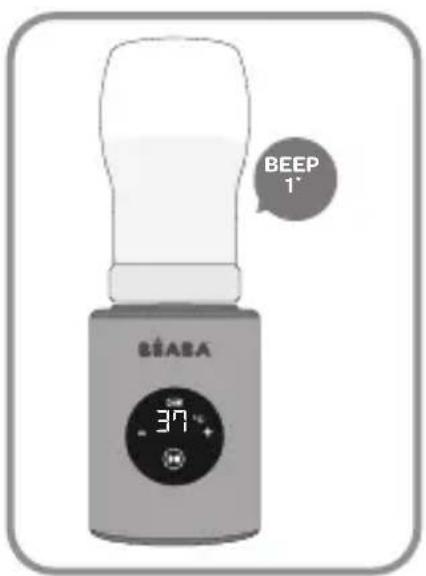

11. When the desired temperature has been achieved, it will beep 2 times, and stop the heating cycle.
12. Turn the unit so that the bottle is right side up. Unscrew the device from the bottle and turn it off.

Always check the milk's temperature before feeding

BE CAREFUL, RISK OF BURNING Take the bottle out immediately after timer run out to avoid overheating.

Always check that the temperature of the milk is not too high and that there is no risk of burning your child.

NOTE:

• After 2 minutes, if no operation on the appliance, it will automatically shift into a sleep mode. Press any button of the screen to restart the appliance

• By default, the appliance will use the previous setting

• In case of an error, the appliance will beep 5 times. Please report to the errors table to check the issue.

• After preparation, the bottle should be consume within 30 min. Discard any unfinished baby bottle, and do not reheat a second time.

Average heating time reference table

For reference, below are the average heating times to reach 37^ C according to the type of baby bottle that has to be warmed up

NOTE: The time indicated in the table below is tested with a fully charged battery product.

The actual heat holding time depends on various environmental or other factors.

Bottle type	Initial temperature	Volume of milk or water
		60 ml 120 ml 180 ml 240 ml
Glass	Fridge 1 min	30s 3 min 15s 4	min 45s 5 min 40s
	Room 1 min	15s 1 min 50s 2	min 40s 3 min 30s
Plastic	Fridge 1 min	30s 2 min 50s 4	min 5 min 20s
	Room 1 min	10s 1 min 45s 2	min 45s 3 min 15s

4. MAINTENANCE :

CLEANING

It's advised to wash and rinse the bottle warmer immediately after usage when the unit has cooled down

If you are heating milk, it's mandatory to wash the unit after each cycle.

• Always switch off the appliance before cleaning it and disconnect the USB charging cable and cover the USB port
• Ensure the heating surface is cooled
• Remove the adapter, the silicone sealing ring and the stirring paddle. Clean with warm soapy water and dry it.
• Clean the heating stainless steel surface of the warmer with a damp cloth or sponge.
• Use a brush for hard to reach area. Wipe carefully.
• Leave to dry after cleaning

Do not clean with abrasive cleaners.

Do not immerse in water.

Do not wash the control buttons and charging port with water.

DESCALING

Over time, limescale deposits may accumulate on the bottom of the tank, so it is recommended to descale when it's needed :

1. When the appliance is cold, remove the stirring paddle and the silicone sealing ring.

2. Pour a mixture of 15ml water and 15ml white vinegar or BEABA cleaning solution in the unit. Never use a chemical or a coffee machine de-scaler in the unit.

3. Wait few hours until all scale has dissolved

4. Empty the contents and rinse with clear water several times

5. Wipe it with a clean cloth.

6. SPECIFICATIONS

Model number BEA0213
Product Size 82 x 85 x 112mm
Current 6,75 ~ 7.0A
Max Power 14,8V / 100W
Net weight 460g
Battery Capacity 4* 3.7V , 2550mAh

Temperature for use and storage: 10 to 30°C.

This product is using a high-performance Li-ion battery. In order to optimize the battery life and performances please follow the following recommendations

• Avoid Extreme Temperatures: Store the battery in a cool, dry place away from direct sunlight, moisture, and extreme temperatures (below 10^ C or above 30^ C).
• Avoid Physical Damage: Handle the battery with care, avoiding drops, shocks, or crushing. A damaged battery can be hazardous and may cause a fire or explosion.
• Do Not Disassemble: Do not attempt to disassemble or modify the product or its battery, as this can cause damage or create a safety hazard.
• Dispose of Properly: When the battery reaches the end of its life, dispose of it properly according to local regulations and guidelines. Do not dispose of the battery in household waste or incinerate it.
• Before storage : charge the battery to at least 50% to avoid deep discharge that might damage the battery
• Monitor Battery Health: If the battery is damaged, swollen, or shows signs of leakage, stop using it immediately and contact our customer service department for assistance.

6. ENVIRONMENT AND RECYCLING

Directive DEEE 2012/19/EU

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection

7. PROBLEMS & SOLUTIONS

ERRORS TABLE:

If an abnormal situation happens, the appliance will beep 5 times and the play/pause button will flash red lights. The screen displays an error code.

CODE CAUSE SOLUTION
E1 The	battery remaining power is too low Charge the appliance through the USB cable before launching a cycle
E2 temperature of the battery is higher than 60 degree.		Let the appliance rest for 30 minutes at least to cool down before turning it on normally.
E3 The	temperature of the initial content is higher than the selected temperature on the appliance	Select a targeted temperature higher than the initial t° of the bottle content
E4 The	current flow in the product is too high Contact customer service
E5 The	stirring paddle is missing Install the stirring paddle
E6 The	appliance enters into boil dry protection to avoid overheating as there is no water	Let the appliance rest for a few minutes to cool down before turning it on normally.Make sure that a baby bottle is screwed before launching a cycle

TROUBLESHOOTING

The unit does not work Check if the product is ON, and if battery is chargedLet the unit rest for few minutes if it's overheating
The bottle is leaking Ensure that the sealing ring is correctly positioned and that the baby bottle is screwed on tightly
Why there is rusty point on the heating plate?	The scale deposits are caused by microelements in the water. Please clean the scale deposit to ensure the product can work normally
What happens if I forget to twist a baby bottle and launch a heating cycle?	Should you accidentally launch the warmer to operate without water; the boil-dry protection will automatically switch it off and the screen displays an error mode. If this should occur, allow the appliance to cool before twisting the babybottle and relaunch a cycle.
Can I use the warmer to heat up the bottle when the device is plugged in?	The heating function can be used normally even if the product is plugged in, but you need to ensure that the charge is sufficient to start a cycle (2 bars). This helps prevent the device from turning off before reaching the desired heating temperature.
How to display temperatures in Celsius or Fahrenheit?	To switch between the two systems, press and hold the + and - buttons simultaneously.

If the problems persist despite observing the advice above, contact customer Service.

8. WARRANTY - TERMS AND CONDITIONS

This product benefits of a warranty of 24 months on material and manufacturing defects, starting from the date of purchase (see sales slip).

The warranty provided with this portable bottle warmer does not cover:

• Misuse or failure to follow the instructions for use
• Normal wear and tear, including scratches, dents, or other cosmetic damage
  •Normal battery capacity loss over time
• Damages resulting from improper usage and storage of the battery.
• Damage caused by accidental drops, shocks, or other external factors
• Failure to properly clean and maintain the product
• Use of the product for purposes other than its intended use
• Use of non-original or non-approved accessories or spare parts

For further information on the help service visit the website www.beaba.com

LEES DEZE INSTRUCTIES AANDACHTIG DOOR EN BEWAAR ZE VOOR LATERE RAADPLEGING

1. VEILIGHEIDSINSTRUCTIES

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or restriction (no text present)

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or symbols)

SOLO PARA LOS MERCADOS EUROPEOS:

Symbol of a trash bin crossed with no visible text or labels

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or disposal (no text present)

7. PROBLEMAS E SOLUÇÕES

QUADRO DE ERROS:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Electrical and Electronic Equipment)2012/19/EU에 의거하여,

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Shun Kwong Commercial Building

8 Des Voeux Road West

Sheung Wan - Hong Kong

[e-mail]

www.beaba.com.hk

BÉABA

21 Rue du Moulin

01100 Bellignat - France

www.beaba.com

MADE IN CHINA

Available on the App Store GET ON Google Play

To activate your guarantee, download the Béaba & Me application on App Store or Google play.
