USER MANUAL Aspidoo BEABA
- Up until the age of 3 years, a baby is unable to blow his or her nose. Therefore, it is important to clean his or her nostrils regularly.
- The Aspidoo baby aspirator is designed exclusively for cleaning the nose and clearing secretion and must not be used for any other purpose.
- This product is designed solely for use at home. If the child has a nasal infection, it is necessary to consult a doctor.

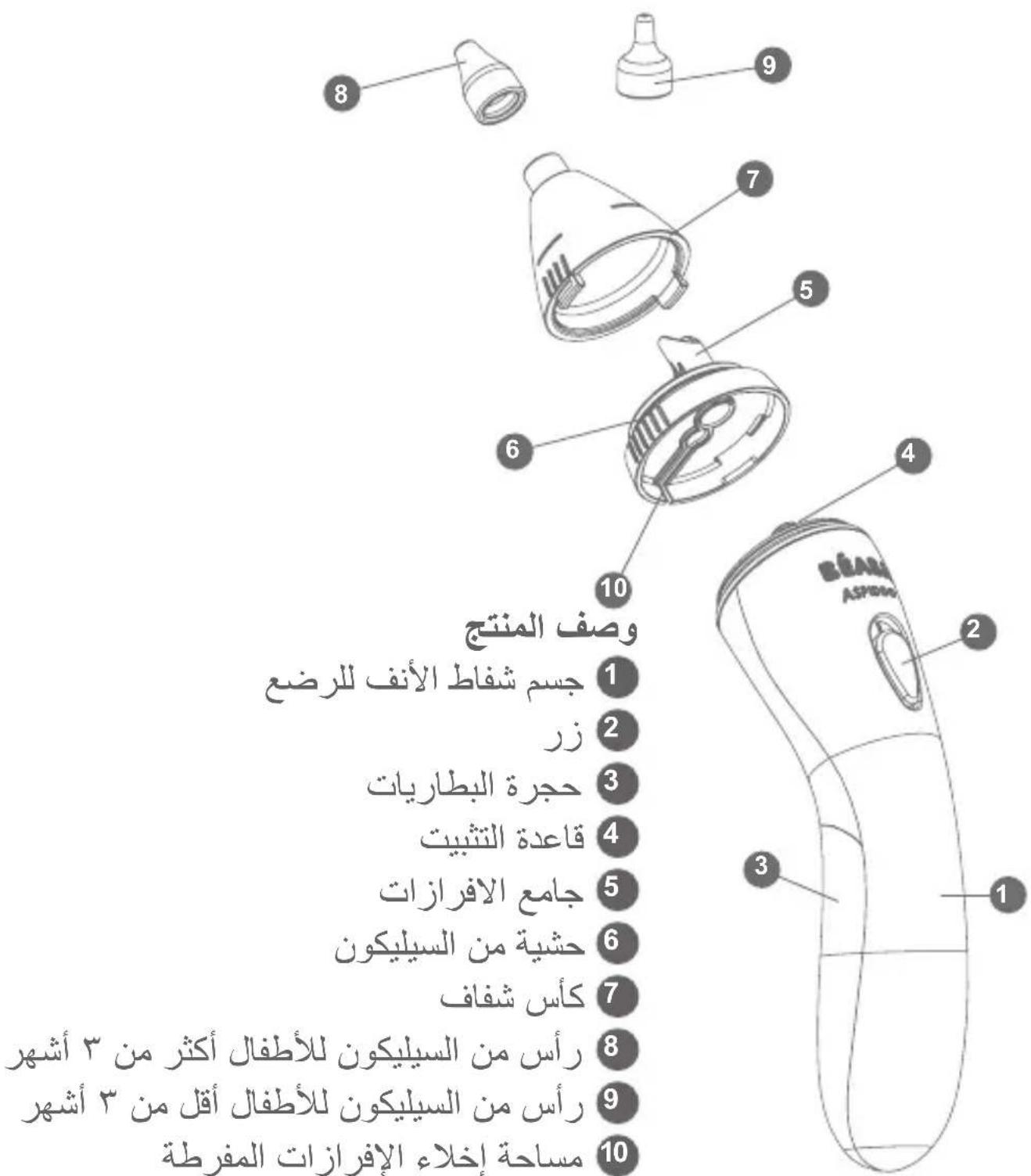

PRODUCT DESCRIPTION
Body of the baby aspirator
Switch
3 Battery compartment
4 Mounting base
5 Secretion collector
6 Silicone seal
7 Transparent cup
Silicone tip for over 3 months
9 Silicone tip for less than 3 months
10 Secretion overflow space
| SPECIFICATIONS |
| Model: Aspidoo |
| Maximum suction power : 70 kpa |
| Noise level: 58 dB |
| Storage temperature: -10°C ~ + 40°C |
| unit weight: 135 g |
| Power supply: alkaline batteries: 3 X AAA (LR03) 1.5 V |
| Battery life: 2 hours - 800 uses |
| Useful life: 5 years |
| Warranty: 2 years |
| This product is CE marked and complies with the provisions of the European Directive 2014/30/EU (EMC). |
The logo on this product representing a crossed-out wheel bin indicates that the product must not be disposed of along with standard household waste. In order to avoid damage to the environment or humans, please separate this product from other waste in order to ensure that it is recycled in a manner which is safe for the environment. For further details about existing collection sites, please contact the local administrative services or the retailer where you purchased this product.
GETTING STARTED

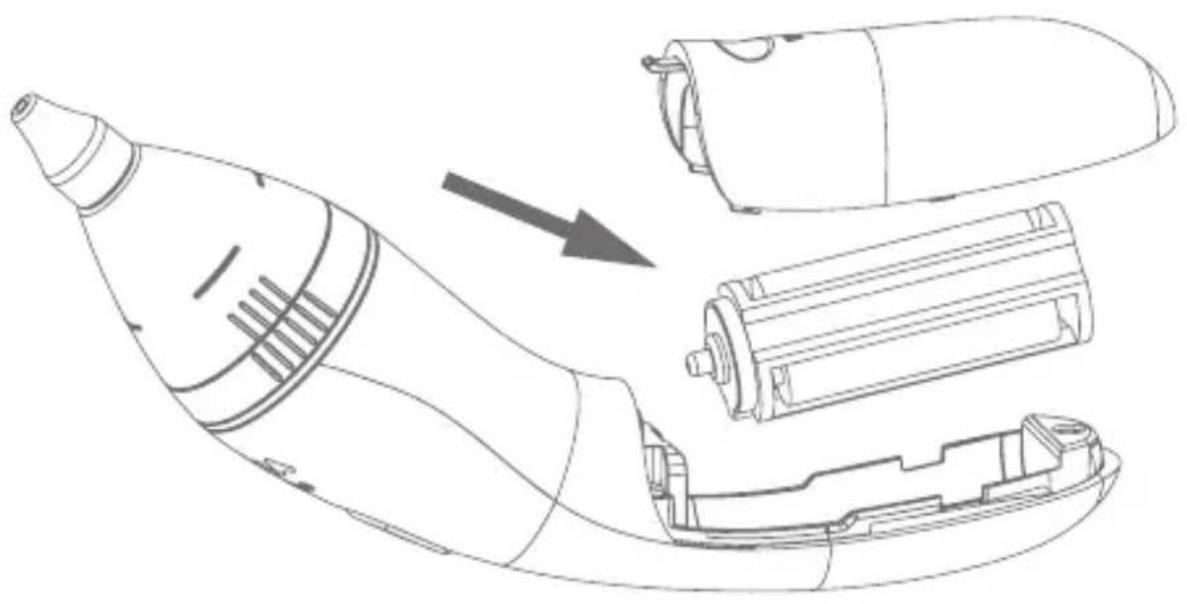

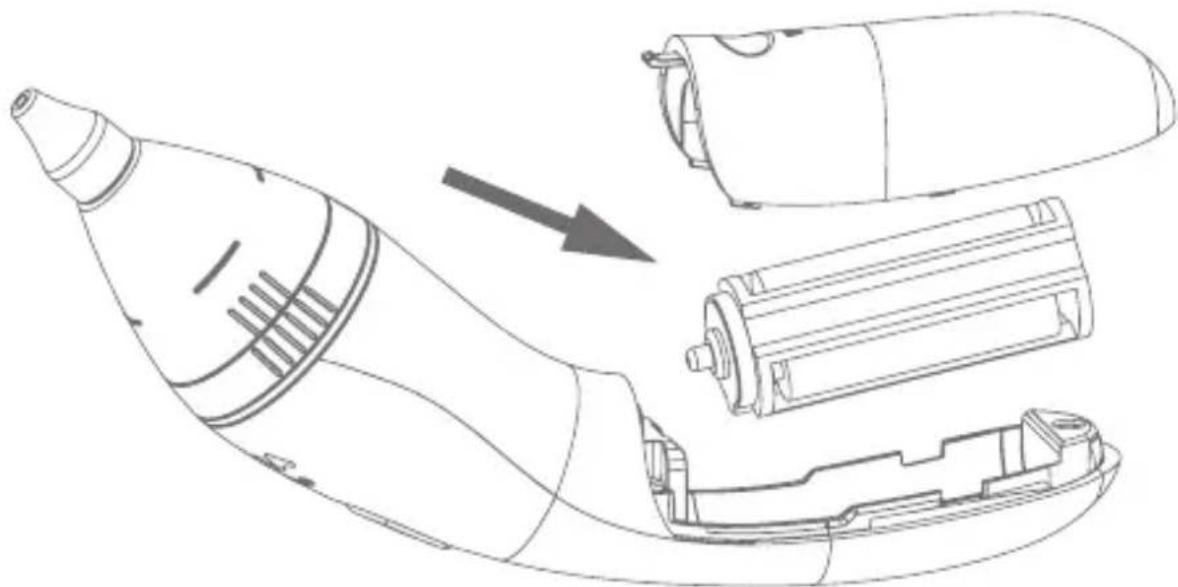

- Open the battery compartment by separating it from the body of the baby aspirator
- Remove the battery compartment

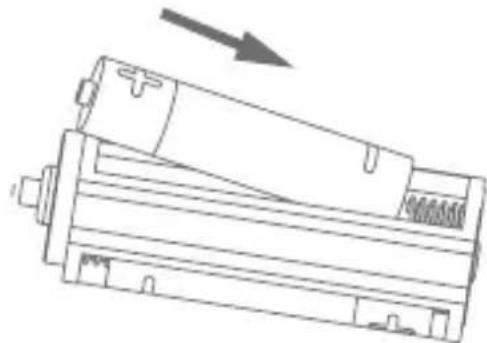

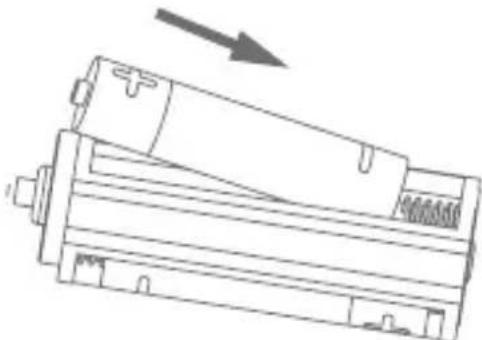

- Place the 3 batteries in the compartment following the directions indicated.
INSERT LR03 (AAA) BATT.
- Return the battery compartment to its original position.
- Slide the switch to put the baby aspirator into suction mode
INSTRUCTIONS FOR USE
After checking that the various parts which make up the terminal section have been correctly assembled: tip, cup and secretion collector, and after installing the batteries, please follow the instructions below:
- select the correct tip according to the child's age and the size of his or her nostrils.
- place the tip inside the nostril without inserting it too far (air must not be able to escape between the tip and the sides of the nostril).
- the tip must be positioned in line with the nostril (do not suck on the nasal wall)
- suck the secretions for a few seconds. To optimise suction, you can hold and release the opposite nostril while cleaning.
- use saline solution or a nasal spray to liquefy secretions.
- the secretions are now in the cup. Make sure you do not exceed the maximum level, otherwise any overflow will be automatically discharged through the drain hole.
Tip - 3 months
Tip + 3 months
Maximum level
CLEANING AFTER USE

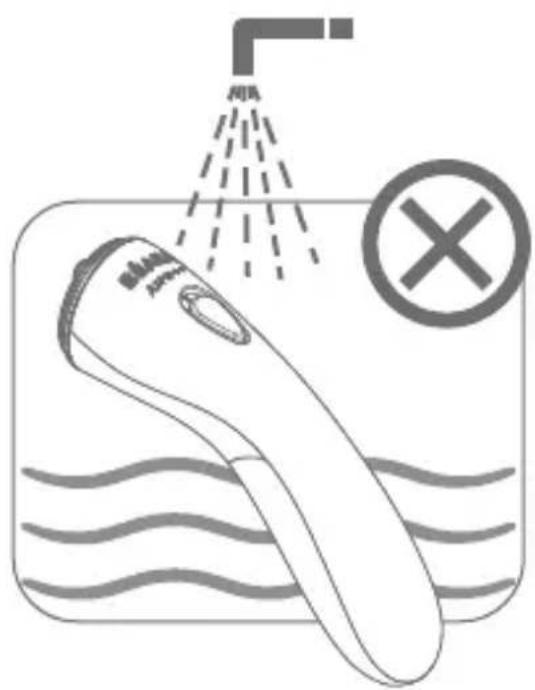

Before emptying and cleaning the device, it is essential to separate the terminal section from the body of the baby aspirator. Do not allow the body of the baby aspirator to come into contact with water.

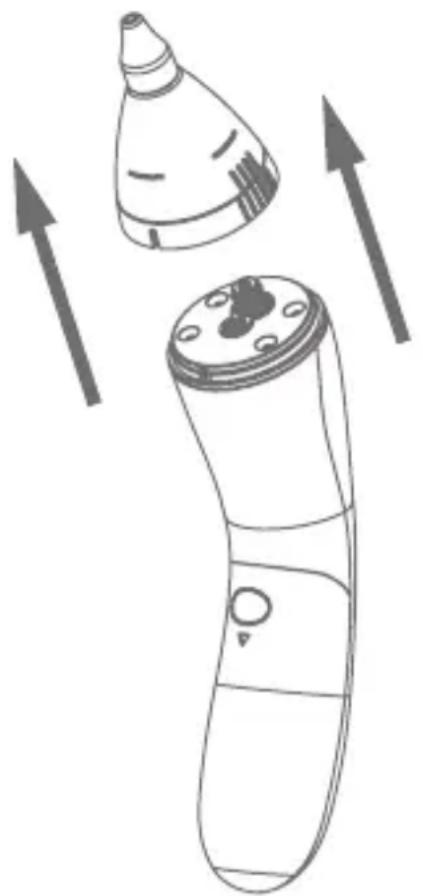

- SEPARATING THE TERMINAL SECTION: pinch the secretion collector with 2 fingers and pull the terminal section away from the body of the aspirator.

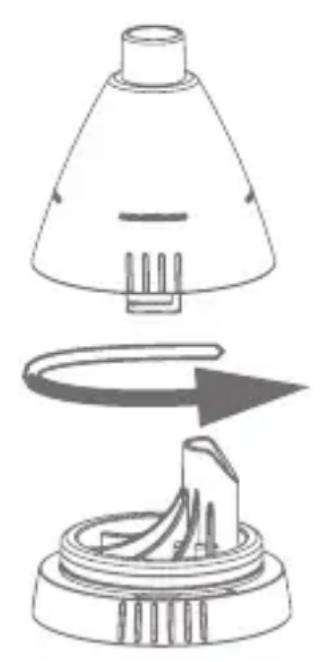

- UNSCREW The TRANSPARENT CUP: Turn The CUP to separate it from The secretion collector.

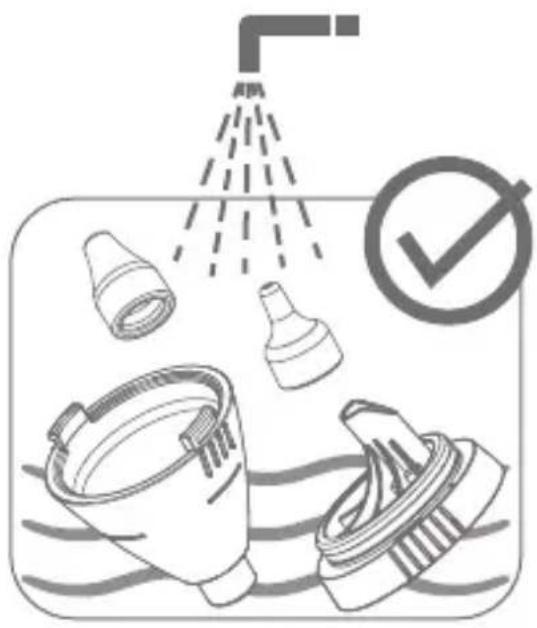

- Rinse the various parts in water. You can also put the cup and the collector in the dishwasher (be careful not to lose the silicone tips).
- After the separate parts have dried, the terminal section can be reattached to the body of the baby aspirator.
- Please note that the material used for the cup and the secretion collector is in ABS and cannot be sterilised at more than 80^ , otherwise there is a risk of it becoming deformed.
WARNING
- Do not use the Aspidoo for any purpose other than nasal cleansing
- For safety reasons, and due to the presence of small parts, keep the appliance out of the reach of children under 12 years of age.
- Do not push the silicone tips into the baby's nostril.
- Do not allow the body of the baby aspirator to come into contact with water or any other liquids.
- Do not undo the screws or seals as this may damage the aspidoo.
- Do not use the 0-3 month tip beyond this age to avoid the risk of it becoming trapped.
