USER MANUAL Minidoo BEABA

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

Line drawing of a cylindrical battery with internal components and mounting holes (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a tapered top and flange (no text or symbols)

Simple line drawing of a conical object with a flared top and tapered base (no text or symbols)

Embout + 3 mois

Niveau max

Simple line drawing of a conical flask with internal vertical bars and a pointed top (no text or symbols)

NETTOYAGE APRES UTILISATION

Diagram of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade being folded into a base with a curved arrow indicating rotation (no text or symbols)

Illustration of showerhead spraying water with no text or symbols

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

AVERTISSEMENTS

• Up until the age of 3 years, a baby is unable to blow his or her nose. Therefore, it is important to clean his or her nostrils regularly.
• The Aspidoo baby aspirator is designed exclusively for cleaning the nose and clearing secretion and must not be used for any other purpose.
• This product is designed solely for use at home. If the child has a nasal infection, it is necessary to consult a doctor.

DESCRIPTION baby aspirator artment e ector up over 3 months less than 3 months flow space

PRODUCT DESCRIPTION

1 Body of the baby aspirator
2 Switch
3 Battery compartment
4 Mounting base
5 Secretion collector
6 Silicone seal
7 Transparent cup
8 Silicone tip for over 3 months
9 Silicone tip for less than 3 months
10 Secretion overflow space

SPECIFICATIONS

Model: Aspidoo

Maximum suction power : 70 kpa

Noise level: 58 dB

Storage temperature: -10°C ~ + 40°C

unit weight: 135 g

Power supply: alkaline batteries: 3 X AAA (LR03) 1.5 V

Battery life: 2 hours - 800 uses

Useful life: 5 years

Warranty: 2 years

This product is CE marked and complies with the provisions of the European Directive 2014/30/EU (EMC).

The logo on this product representing a crossed-out wheel bin indicates that the product must not be disposed of along with standard household waste. In order to avoid damage to the environment or humans, please separate this product from other waste in order to ensure that it is recycled in a manner which is safe for the environment. For further details about existing collection sites, please contact the local administrative services or the retailer where you purchased this product.

GETTING STARTED

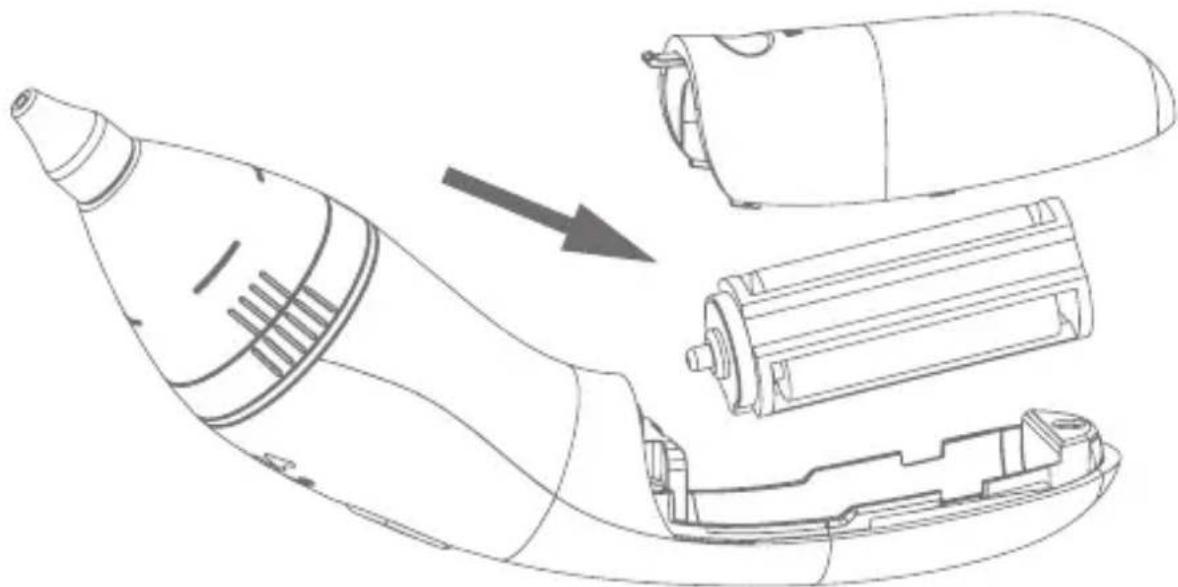

- Open the battery compartment by separating it from the body of the baby aspirator

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

- Remove the battery compartment

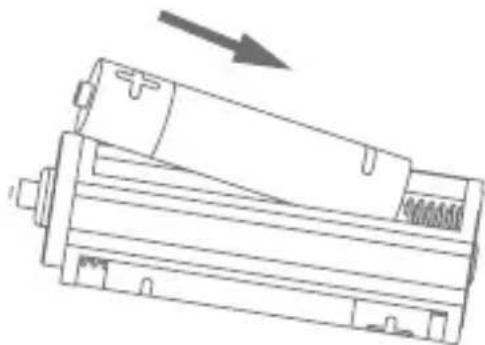

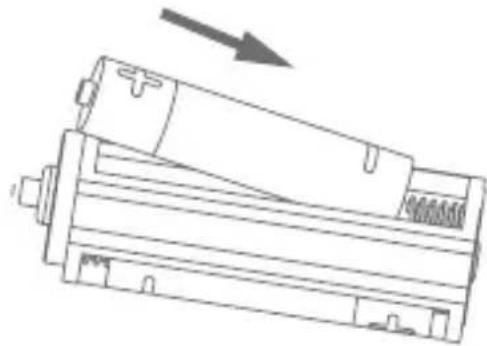

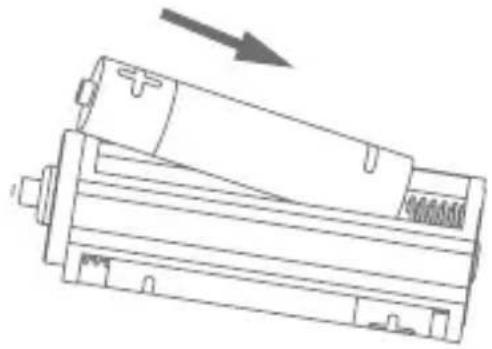

- Place the 3 batteries in the compartment following the directions indicated.

Line drawing of a cylindrical battery with internal components and mounting holes (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

• Return the battery compartment to its original position.
• Slide the switch to put the baby aspirator into suction mode

INSTRUCTIONS FOR USE

After checking that the various parts which make up the terminal section have been correctly assembled: tip, cup and secretion collector, and after installing the batteries, please follow the instructions below:

• select the correct tip according to the child's age and the size of his or her nostrils.
• place the tip inside the nostril without inserting it too far (air must not be able to escape between the tip and the sides of the nostril).
• the tip must be positioned in line with the nostril (do not suck on the nasal wall)
• suck the secretions for a few seconds. To optimise suction, you can hold and release the opposite nostril while cleaning.
• use saline solution or a nasal spray to liquefy secretions.

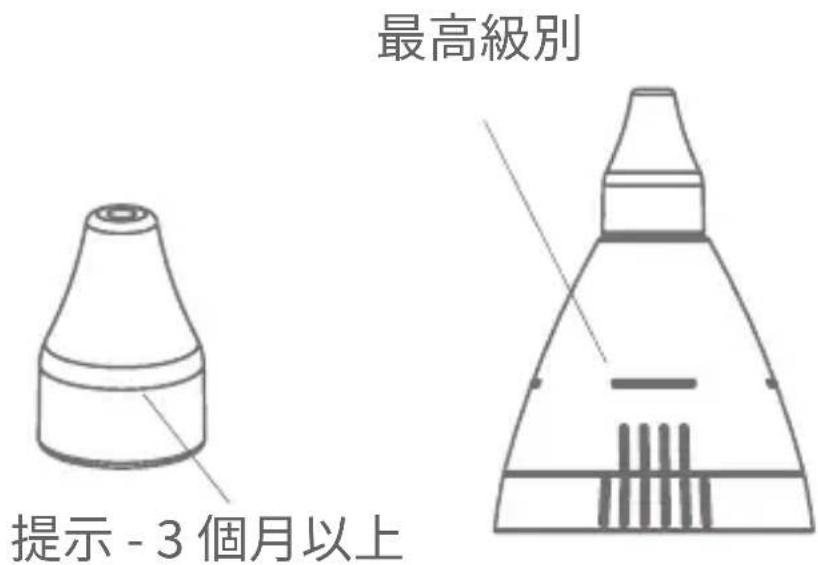

• the secretions are now in the cup. Make sure you do not exceed the maximum level, otherwise any overflow will be automatically discharged through the drain hole.

Tip - 3 months

Simple line drawing of a mechanical component with a tapered top and flange (no text or symbols)

Simple line drawing of a conical object with a flared top and tapered base (no text or symbols)

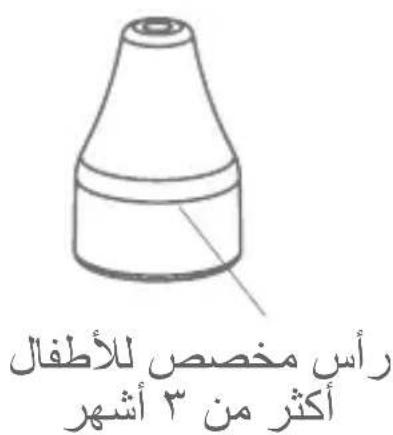

Tip + 3 months

Maximum level

Simple line drawing of a conical object with a handle and internal vertical lines (no text or symbols)

CLEANING AFTER USE

Before emptying and cleaning the device, it is essential to separate the terminal section from the body of the baby aspirator. Do not allow the body of the baby aspirator to come into contact with water.

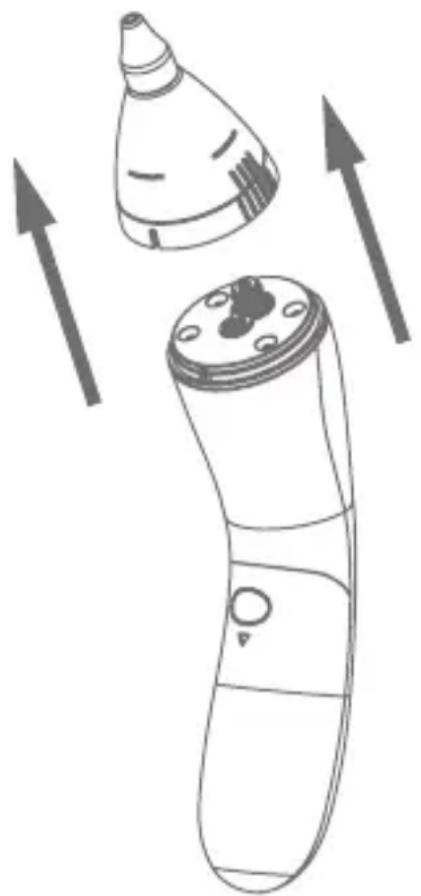

• SEPARATING THE TERMINAL SECTION: pinch the secretion collector with 2 fingers and pull the terminal section away from the body of the aspirator.

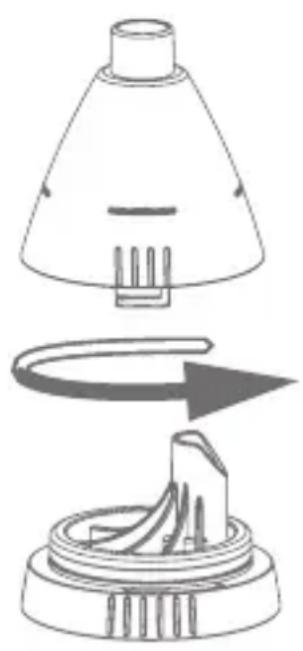

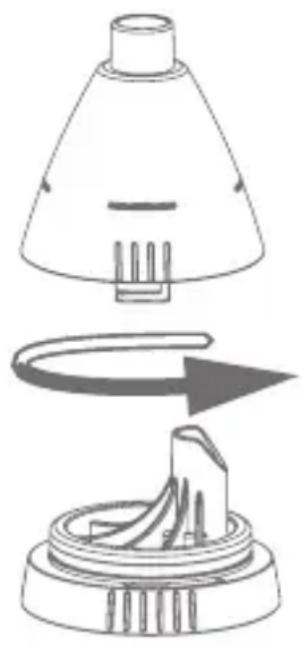

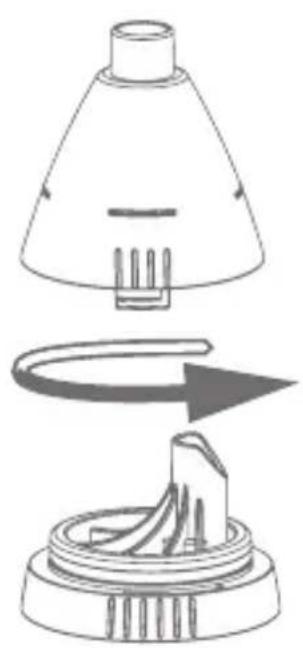

• UNSCREW The TRANSPARENT CUP: Turn The CUP to separate it from The secretion collector.

Diagram of a handheld device with three views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade being folded into a base, with no text or symbols present.

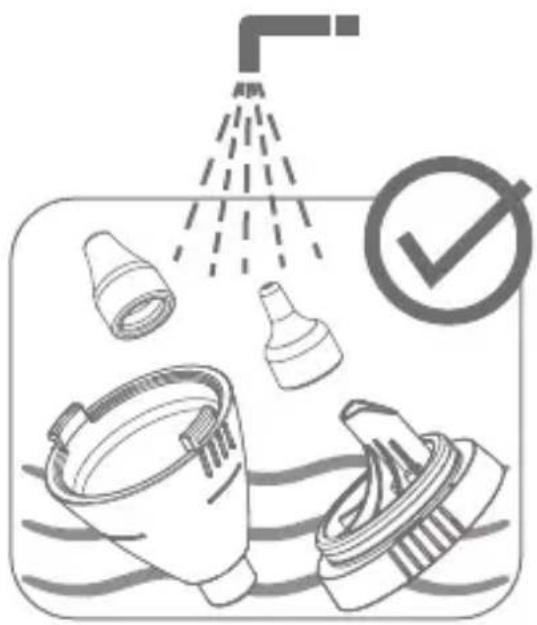

• Rinse the various parts in water. You can also put the cup and the collector in the dishwasher (be careful not to lose the silicone tips).
  • After the separate parts have dried, the terminal section can be reattached to the body of the baby aspirator.
• Please note that the material used for the cup and the secretion collector is in ABS and cannot be sterilised at more than 80°C, otherwise there is a risk of it becoming deformed.

Illustration of showerhead spraying water with no text or symbols

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

WARNINGS

• Do not use the Aspidoo for any purpose other than nasal cleansing
• For safety reasons, and due to the presence of small parts, keep the appliance out of the reach of children under 12 years of age.
• Do not push the silicone tips into the baby's nostril.

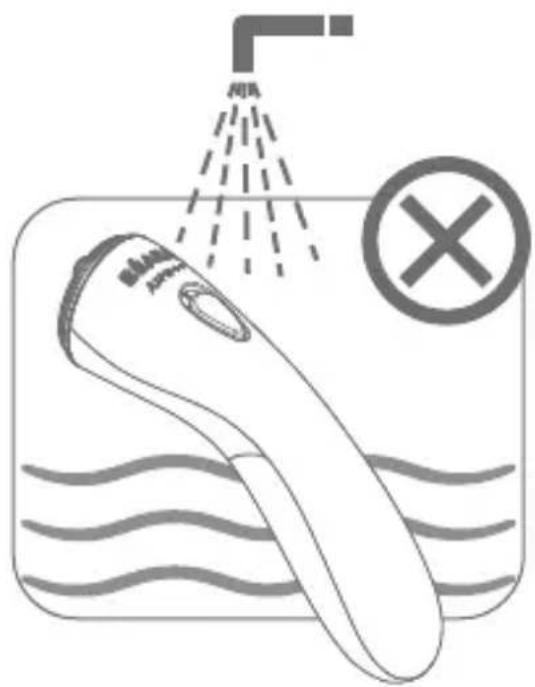

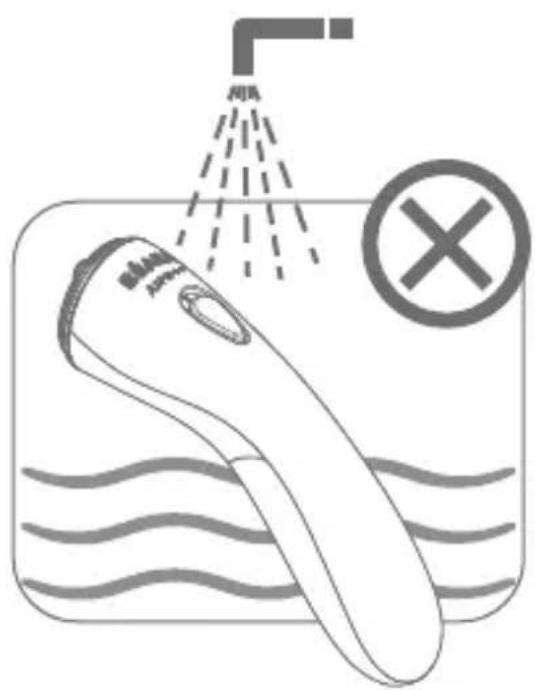

• Do not allow the body of the baby aspirator to come into contact with water or any other liquids.
• Do not undo the screws or seals as this may damage the aspidoo.
• Do not use the 0-3 month tip beyond this age to avoid the risk of it becoming trapped.

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

Line drawing of a cylindrical battery with internal components and mounting holes (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a cylindrical object with a pointed tip and a tapered base (no text or symbols)

Simple line drawing of a conical object with a flared top and tapered base (no text or symbols)

Simple line drawing of a conical flask with internal vertical bars and a pointed top (no text or symbols)

REINIGING NA GEBRUIK

Diagram of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade being folded into a base with a curved arrow indicating rotation (no text or symbols)

Illustration of showerhead spraying water with no text or symbols

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

WAARSCHUWINGEN

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

Line drawing of a cylindrical battery with internal components and mounting holes (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a tapered top and flange (no text or symbols)

Simple line drawing of a conical object with a flared top and tapered base (no text or symbols)

Simple line drawing of a conical container with a lid and internal striped pattern (no text or symbols)

Diagram of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade being folded into a base, with no text or symbols present.

Illustration of showerhead spraying water with no text or symbols

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

WARNHINWEISE

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

Line drawing of a cylindrical battery with internal components and mounting holes (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a cylindrical object with a pointed tip and a tapered base (no text or symbols)

Simple line drawing of a conical mechanical part (no text or symbols)

Émbolo + de 3 meses

Nivel máximo

Simple line drawing of a conical object with a handle and internal vertical lines (no text or symbols)

LIMPIEZA DESPUÉS DEL USO

Diagram of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade being folded into a base, with no text or symbols present.

Illustration of showerhead spraying water with no text or symbols

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

ADEVERTENCIAS

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

Line drawing of a cylindrical battery with internal components and mounting holes (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a tapered top and flange (no text or symbols)

Simple line drawing of a conical object with a flared top and tapered base (no text or symbols)

Bico + 3 meses

Nível máx.

Simple line drawing of a conical object with a handle and internal vertical lines (no text or symbols)

Diagram of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade being folded into a base, with no text or symbols present.

Illustration of showerhead spraying water with no text or symbols

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

AVISOS

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

Line drawing of a cylindrical battery with internal components and mounting holes (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a bottle-like object with a pointed tip and cylindrical body (no text or symbols)

Simple line drawing of a conical object with a flared top and rounded base (no text or symbols)

Simple line drawing of a conical flask with internal vertical bars (no text or symbols)

PULIZIA DOPO L'USO

Diagram of a handheld device with three views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade being folded into a base with a curved arrow indicating rotation (no text or symbols present)

Illustration of showerhead spraying water with no text or symbols

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

AVVERTENZE

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

Line drawing of a cylindrical battery with internal components and mounting holes (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a tapered top and flange (no text or symbols)

Simple line drawing of a conical object with a flared top and rounded base (no text or symbols)

Simple line drawing of a conical object with a handle and internal vertical lines (no text or symbols)

CZYSZCZENIE PO UŻYCIU

Diagram of a handheld device with three views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade being folded into a base with a curved arrow indicating rotation (no text or symbols)

Illustration of showerhead spraying water with no text or symbols

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

OSTRZEŻENIA

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

Line drawing of a cylindrical battery with internal components and mounting holes (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a tapered top and flange (no text or symbols)

Simple line drawing of a conical object with a flared top and rounded base (no text or symbols)

Макс. уровень

Simple line drawing of a conical object with a handle and internal vertical lines (no text or symbols)

Diagram of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade being folded into a base, with no text or symbols present.

Illustration of showerhead spraying water with no text or symbols

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

ПРЕДУПРЕЖДЕНИЯ

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

Line drawing of a cylindrical battery with internal compartments and a positive terminal (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a bottle-like object with a pointed tip and a tapered body (no text or symbols)

Simple line drawing of a conical mechanical part (no text or symbols)

提示 - 3 个月以上

最高级别

Simple line drawing of a laboratory flask with a stopper and three vertical tubes inside (no text or labels)

使用后清洁

Diagram of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade being folded into a base with a curved arrow indicating rotation (no text or symbols present)

Illustration of showerhead spraying water with no text or symbols

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

警告

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

Line drawing of a cylindrical battery with internal compartments and a positive terminal (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a tapered top and flange (no text or symbols)

使用後清潔

Diagram of a handheld device with three views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade being folded into a base with a curved arrow indicating rotation (no text or symbols present)

Illustration of showerhead spraying water with no text or symbols

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

警告

Line drawing of a hair dryer with internal components and an arrow indicating transformation (no text or symbols)

Line drawing of a cylindrical battery with internal components and mounting holes (no text or symbols)

INSERT LR03 (AAA) BATT.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a tapered top and flange (no text or symbols)

Simple line drawing of a bottle-like object with internal structure (no text or symbols)

Diagram of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Diagram showing a lampshade and its internal structure with a curved arrow indicating rotation (no text or symbols)

Illustration of showerhead spraying water with a checkmark symbol (no text or labels)

Diagram illustrating a showerhead spraying water with a warning symbol and cross mark

تحذيرات

Shun Kwong Commercial

Building

8 Des Voeux Road West

Sheung Wan,Hong Kong

[e-mail]

www.beaba.com.hk

BEABA UK

Becket House, 1 Lambeth

Palace Road, London SE1

7EU - UK

www.beaba.com

MADE IN TAIWAN

CE

To activate your guarantee,

download the Béaba & Me

application on App Store or

Google play.
