USER MANUAL BCC950 LOGITECH

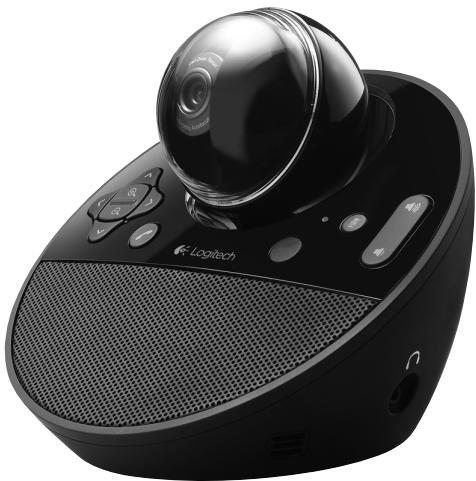

Getting started with BCC950 ConferenceCam Logitech for Business Getting started with BCC950 ConferenceCam Logitech for Business Logitech BCC950 ConferenceCam Logitech BCC950 ConferenceCam

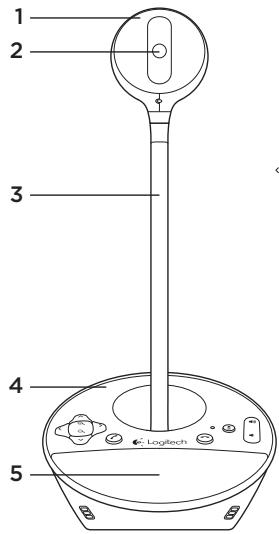

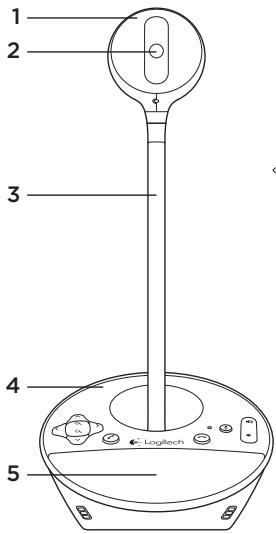

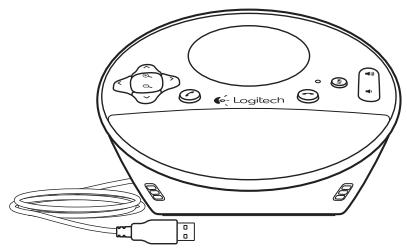

Webcam Autofocus lens Eye-level stand Speakerphone base Speaker Tilt English

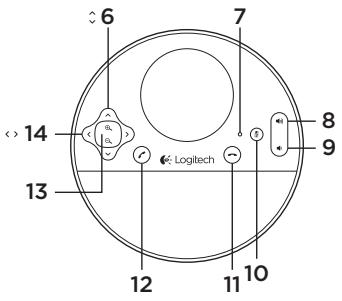

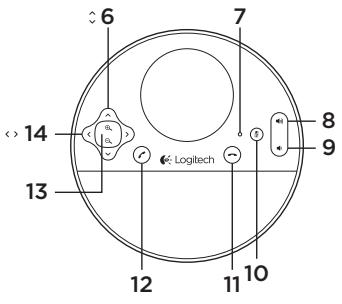

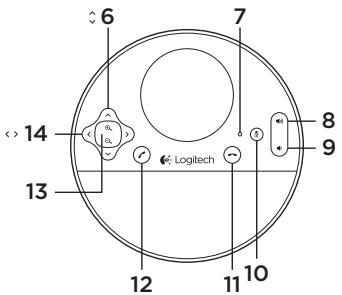

Activity light Volume up Volume down Mute Hang up Answer

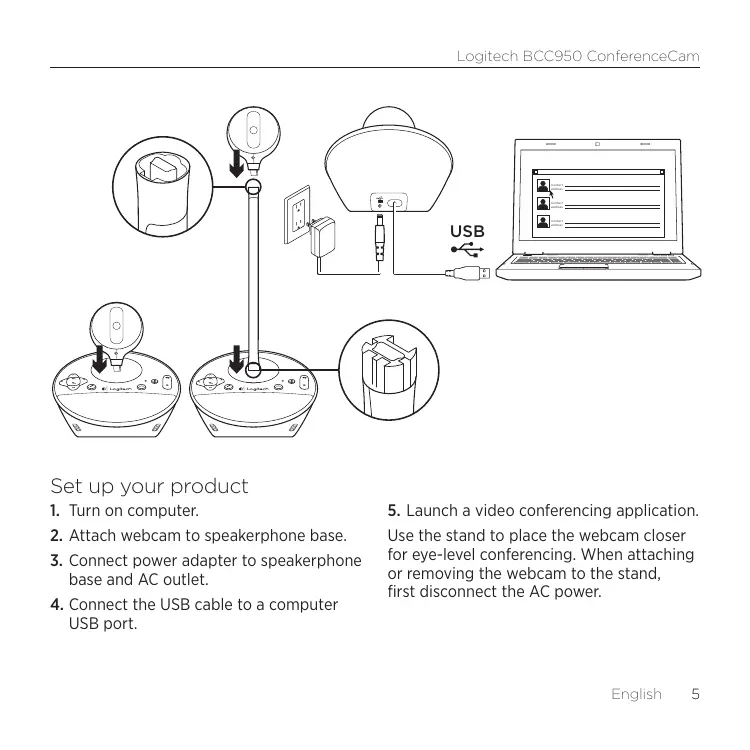

Zoom Pan Power port 3.5mm earphone jack Logitech BCC950 ConferenceCam Contact address Contact address USB Contact address Set up your product

1. Turn on computer.

2. Attach webcam to speakerphone base.

3. Connect power adapter to speakerphone

4. Connect the USB cable to a computer

5. Launch a video conferencing application.

Use the stand to place the webcam closer for eye-level conferencing. When attaching or removing the webcam to the stand, first disconnect the AC power. English

Logitech BCC950 ConferenceCam Use your product

• Video Use Pan, Tilt, and Zoom to adjust the image in the preview window of your video conferencing software. Press and release these controls for incremental adjustment. Press and hold for continuous adjustment. When live video is streaming, the webcam’s blue activity light is on.
• Caution Do not manually rotate the webcam (camera head). Doing so may damage the unit.
• Volume Use Volume Up and Down to adjust the volume.
• Calling Launch your video conferencing software. Use Answer to pick up a call and Hang up to end a call. Press the Mute button to mute audio. Usage notes: ––The Answer and Hang Up buttons may not work in some video conferencing software. Use your software to answer and end a call. ––To enable the answer and hang up features in Skype™, download and install the Skype software plug-in available from www.logitech.com/ support/bcc950.

English ––When using the ConferenceCam with Skype on Windows® XP or Windows® Vista, you must download and install the ConferenceCam driver from www.logitech.com/support/ bcc950.

• Optional earphones Plug optional earphones (not included with the BCC950 ConferenceCam) into the earphone jack for private calls.
• Speakerphone base activity light Blue: ConferenceCam is in an active call. Blinking blue: A call is being received. (The blue activity light on the speakerphone base may not work in some applications.) Red: Audio is muted. Blinking red: A USB connection is being made between the ConferenceCam and a computer. Logitech BCC950 ConferenceCam Troubleshooting ConferenceCam does not work
• Check the AC power connection.
• Check the USB cable connection. Use another USB port on your computer. Connect directly to your computer. Do not use a USB hub.
• If you are using the eye-level stand, remove the stand from the webcam and speakerphone base, and then attach the webcam directly to the speakerphone base. Sound or video issues
• Adjust the volume with Volume Up and Volume Down. Also check the volume setting on the Windows® taskbar. Press Mute to unmute the sound. Plugging earphones into ConferenceCam mutes sound through the speaker on the speakerphone base.
• Adjust the recording (voice) level using the Windows Control Panel. For Windows® 7 and Windows® Vista, go to Start > Control Panel > Sound > Recording tab. For Windows XP, go to Start > Control Panel > Sounds and Audio devices > Voice tab.

• Restart your video conferencing software.
• Check your router function and internet connection. (For more information, refer to your router or networking documentation.) Test your Internet connection speed. To learn how, go to www.logitech.com/support/bcc950.
• Specify the ConferenceCam as the default input/output device in video conferencing software. (For more information, refer to your video conferencing software documentation. Note: In many applications, the ConferenceCam’s webcam, speaker, and mic are listed separately. Each are identified by the ConferenceCam’s product name.)
• Specify the ConferenceCam as the default input/output audio device for your operating system: English

Logitech BCC950 ConferenceCam Windows® XP

1. Go to Start > Control Panel >

Sounds and Audio devices > Voice tab.

2. Choose “BCC950 ConferenceCam

Audio” in both the Voice playback and Voice recording areas. Click OK.

3. Go to the Audio tab. Choose “BCC950

ConferenceCam Audio” in both the Sound playback and Sound recording areas. Click OK. Windows® Vista and Windows® 7

1. Go to Start > Control Panel > Sounds >

2. Choose “BCC950 ConferenceCam

3. Click “Set Default,” and then click OK.

4. Select the Recording Tab.

5. Choose “BCC950 ConferenceCam

6. Click “Set Default,” and then click OK.

What do you think? Please take a minute to tell us. Thank you for purchasing our product. www.logitech.com/ithink

English Logitech BCC950 ConferenceCam
