Product Type	Dash Camera (DVR) with front, interior, and rear cameras
Brand	Navitel
Model	RC3 Pro
Processor	Mstar 8629Q
Display	3.16 inch, 820x320 pixels, touchscreen
Main Camera Sensor	GC4653
Main Camera Resolution	1920 x 1080 (Full HD)
Main Camera View Angle	135°
Interior Camera Sensor	F37
Interior Camera Resolution	1920 x 1080
Interior Camera View Angle	110°
Infrared Illumination (Interior)	Yes
Rear Camera Sensor	GC2053
Rear Camera Resolution	1920 x 1080
Rear Camera View Angle	106°
Recording Format	TS
Loop Recording	Yes (selectable duration)
G-Sensor	Yes (auto-locks video on impact)
Parking Monitor	Yes (1/2/5 fps, requires Navitel Smart Box Max)
GPS	Built-in GPS with speed and camera alerts
Wi-Fi	Yes (for app connection)
Memory Card Support	MicroSD up to 128 GB (Class U3 or above)
Power Connector	Mini-USB (5V)
Battery	Supercapacitor 1.5 F
Package Contents	Main camera, interior camera, rear camera, car charger, windshield mount, cables
Operating Temperature	-10°C to 60°C

Frequently Asked Questions - RC3 Pro Navitel

How do I install the memory card in the Navitel RC3 Pro?

Insert a high-speed microSD card (Class U3 or above, 8-128 GB) into the slot. Format the card inside the device via Menu > Format SD-card to avoid data errors.

How do I connect the Navitel RC3 Pro to my smartphone?

Download the Navitel DVR Center app (QR code in menu). Turn on Wi-Fi in the DVR settings, then connect your phone to the DVR's Wi-Fi network (password can be changed in menu). Open the app to control and view footage.

How does the parking monitor feature work?

Parking monitor records at 1, 2, or 5 fps from all three cameras. It requires constant power via the Navitel Smart Box Max to prevent battery drain.

What should I do if the GPS shows no signal?

Weak GPS signal may be due to bad weather or obstructions. Ensure the device has a clear view of the sky. If the issue persists, check your vehicle speedometer for reference.

How do I clean the camera lens?

Turn off the device. Use a soft, dry cloth to gently wipe the lens. Do not use chemicals or detergents.

How do I reset the Navitel RC3 Pro?

If the device is unresponsive, press the Reset button (located on the device) using a paperclip or similar object.

Can the Navitel RC3 Pro record audio?

Yes, you can enable or disable audio recording in the settings menu under Record Audio.

What type of power supply is required?

Use only the original car charger (5V). Connect it to the mini-USB port. Using other adapters may damage the device.

How does loop recording work?

Videos are saved as files of selectable duration. When the memory card is full, the oldest unprotected files are overwritten first.

Is the rear camera waterproof?

No, the rear camera is not waterproof. It should be installed inside the rear window of the car.

USER MANUAL RC3 Pro Navitel

Exterior view of a modern navigation device labeled 'NAVITEL' and 'RC3 PRO' (no additional text or symbols visible)

NAVITEL RC3 PRO

Portable Video Recorder

Úvod

Vážený zákazníku!

Google Play

App Store

QR code with a green circular logo in the center (no readable text or symbols)

AppGallery

cz Zadní kamera

Google Play

App Store

AppGallery

NAVITEL

NAVITEL RC3 PRO

Rückfahrkamera

Line drawing of a NAVITEL mobile phone receiver with lens and control panel (no text or symbols)

1. Videokabelanschluss

Google Play

App Store

AppGallery

Tagumine kaamera

Thank you for purchasing this NAVITEL® product.

NAVITEL RC3 PRO is a multifunctional high-definition DVR with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

EN

Device layout

1. Power Button
2. Micro SD slot
3. Menu
4. Display
5. Left
6. In-cabin camera
7. Right
8. Lens
9. OK
10. Speaker
11. Reset
12. Car windscreen holder
13. Power connector
14. Infrared light
15. Rear camera port(CAM-IN)

Package contents

Main camera	Camera sensor GC4653
	Video resolution 1920x	1080
	View angle 135°
In-cabin camera	Camera sensor F37
	Video resolution	1920x1080
	View angle 110°
	Infrared light Yes
Rear camera	Camera sensor GC2053
	Video resolution	1920x1080
	View angle 106°
Processor Mstar 8629Q
Display 3,16", 820x320, touchscreen
Recording format TS
MicroSD card capacity Max. 1		28 GB

Power connector mini-USB
CAM-IN micro-jack (2,5 mm)
Battery Superkapacitor 1,5 F
Power 5 V
Wi-Fi Yes
GPS-alert cameras / warnings / speed
Language	Czech, English, French, German, Hungarian, Italian, Polish, Romanian, Russian, Slovak, Spanish, Ukrainian

Note: complete set, appearance, technical characteristics, which do not change the general functionality of the device, can be changed by the manufacturer without prior notice.

Installation

1. Put the microSD card into the DVR. Use a high-speed SD card (Class U3 or above); capacity should be within 8-128 GB.

• To avoid malfunctions of the DVR and / or SD-card, don't insert and reTSe SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

• Secure the device on the windshield with the holder.

• Connect the car charger to the cigarette lighter socket.
• Connect the car charger to the DVR.
• Adjust the camera position.
• Turn the power on; check whether the device is installed correctly. If the device is installed correctly, the indicator will glow red; the device will start up and begin recording (indicated by flashing light).

Precautions

• Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
• Permissible ambient temperature in operating mode: -10°C to 60°C. Storage temperature: -20°C to 80°C. Relative humidity: 5% to 90% without condensation (25°C).
• Put the device away from fire sources to avoid explosion or fire.
• Do not expose the device to physical impacts.
• Avoid contacting the device with sources of electromagnetic radiation.
• Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.

Buttons

Button Functions
	Press and hold for 2 seconds to turn the device on.Press and hold for 3 seconds to turn the device off.In Record mode (REC), press to lock a file (protected file cannot be deleted or overwritten).
M	Press to enter Menu mode.
	In Menu, press to select the previous / next menu item.
	In Record mode (STBY), press to start recording.In Record mode (REC), press shortly to stop recording.In Record mode (REC), press and hold to lock a file (protected file cannot be deleted or overwritten).
Reset If the device is not responding, press to reset.

Touch controls

Tapping on the screen will activate the touch controls that will be displayed on the device screen.

Button Functions
	Press to enter Menu mode.
	Press to lock a file (protected file cannot be deleted or overwritten).
	Switching between modes of displaying information from cameras on the screen.

Device functions

Format SD-card	Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.
Record	Connect the device to an external power supply and it will start recording automatically. Press the OK button to stop recording. Press OK again to record another video. Each video will be saved automatically.
Loop recording	This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.
Record audio Record	video with or without sound.
Stamp This function	adds date stamp to the record.
LCD OFF	The device can automatically shut off the screen to reduce power consumption; time interval can be set in the Screen Saver menu.
G-sensor If the vehicle is hit by something, the DVR will automatically lock the current video.
Parking monitor*	In this mode, video recording is available at 1fps, 2fps or 5fps. Recording is conducted from all three cameras of the device simultaneously.
GPS location	Device supports built-in GPS chipset and GPS antenna, it can show longitude, latitude and other information on your current location. Press GPS Status to check GPS dates. Press On in the GPS Stamp menu to add GPS information to your files.

NAVITEL

NAVITEL RC3 PRO

APP support	You can see and share your videos and photos, taken by DVR, in your mobile phone through special app. The app is connecting via Wi-Fi network and should be installed on your mobile phone.
Perm.excess	Select an overspeed permission in the settings in the range from -5 to +25 km/h in increments of 5 km/h. If you exceed the set non-fined threshold, you will hear a sound notification.

*Important: The mode is available only when the DVR is connected to constant power through a device that prevents excessive battery discharge - NAVITEL SMART BOX MAX.

Note: Interior camera of device is specially optimized for continuous recording at difficult low-light conditions inside vehicle. We recommend that you keep preset mode "automatic black and white record". Recording will be performed with automatic on/off infrared illuminator in black and white mode. If you turn on mode "automatic switching of color recording to black and white", then when you turn ON/OFF infrared illuminator in transient modes of operation, slight distortion of some colors is possible, which doesn't significantly affect overall perception of recorded image. IR illumination is required for correct function of interior camera and sharp visible recording in cabin in low light conditions.

Navitel DVR Center app installation

1. Download and install Navitel DVR Center to your cell phone or tablet, follow your mobile device instructions. You can download application by scan QR code in DVR's Menu (App QR Code) with your cell phone.Choose Wifi in Settings menu, press On.
2. Turn on a Wi-Fi in DVR's Menu (Wi-Fi) and in your mobile device settings.
3. Run the app. Choose your DVR in the list. The DVR's information is in DVR's Menu (Wi-Fi Navitel)..
4. Connect your mobile device to the DVR through Wi-Fi. If necessary use the password. You can change it in DVR's Menu (Wi-Fi password).

5. Using the Navitel DVR Center you can:

6. update DVR's firmware;
   • control DVR functions in Settings menu: configure parking mode, impact sensor, video mode and format your SD card;

7. save, view, delete and send videos and photos as well as watch DVR's video in real time on the mobile device screen.

Google Play

App Store

AppGallery

NAVITEL

NAVITEL RC3 PRO

Rear camera

With the help of rear camera you can get a high-resolution image behind your car for safe parking or recording while driving. Modern double recording technology allows saving recordings both in front and behind the car for fixing any unforeseen situation.

Rear camera installation

1. Install the camera on the rear window inside the car and adjust the shooting angle.
2. Put the wire through the cabin.
3. Connect the wire to the rear camera port.

Note. It is strongly recommended that works on installing the camera should be done by qualified personnel with the necessary skills. Cable routing may require special tools or attachments. Make sure these works are safe.

The camera is not waterproof.

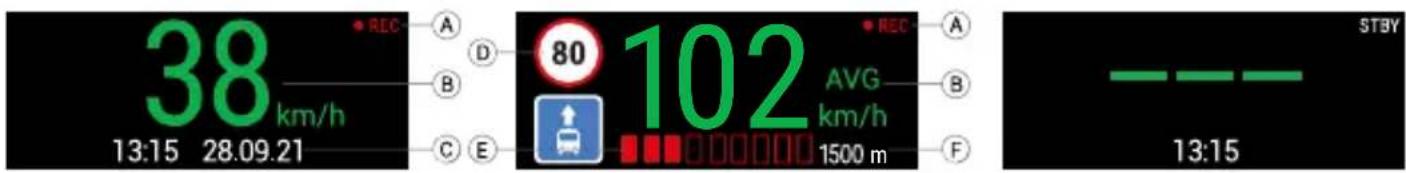

Digital Speed & Camera Info

The Digital speed feature is used to display time and vehicle speed calculated with the help of GPS signal [1]. Modes:

• Speed – current speed is displayed constantly [B],
• Speed + time - current speed [B] and time [C] are displayed.

The Camera info feature notifies the driver about cameras and warnings

(hereinafter – Cameras) along the way. When you turn on the Camera info, the current speed and time are displayed. With the approach to the nearest camera the following information is displayed [2]:

• current speed [B],
• camera icon [D],
  • dynamic progress bar indicating approach to the nearest camera [E],
  • distance to the camera [F].

All information is displayed on a black screen.

In Record mode (REC), ●REC or ● are displayed [A].

If the vehicle is still, 0 is displayed.

If there is no GPS-signal, - - - [3] is displayed.

Note. A weak GPS signal may be caused by bad weather conditions and other external factors. Please consult your vehicle speedometer.

[1] [2] [3]
