Product Type	Car Dash Camera (DVR)
Model	NAVITEL R285 2K
Processor	CV7327
Display	2-inch IPS, 320 x 240 pixels
Camera Sensor	GC4653
Video Resolution	2560 x 1440 (2K) at 30 fps
Recording Format	MOV
Viewing Angle	140°
Lens	6-layer glass
Memory Card	MicroSD (Class U3 or higher), up to 256 GB
Battery	180 mAh rechargeable
Power Supply	5V, 1.5A via USB-C
Audio Recording	Built-in microphone, can be turned on/off
Speaker	Yes
Loop Recording	Yes, overwrites oldest unprotected files
G-Sensor	Built-in, adjustable sensitivity; triggers protected recording on impact
Parking Mode	Yes, based on G-sensor activation
Protection Function	Lock button to protect current video from deletion
Photo Capture	Yes, by holding Down button for 3 seconds
Rear Camera Support	Yes (sold separately, compatible with NAVITEL Full HD)
Mounting	Windshield mount with suction cup
Package Contents	DVR, windshield mount, car charger (12/24V), electrostatic film, user manual, warranty card, gift voucher
Languages	Czech, English, Estonian, German, Hungarian, Latvian, Lithuanian, Polish, Romanian, Russian, Slovak, Ukrainian
Operating Temperature	0 to +35°C (operating), +5 to +45°C (storage)
Cleaning	Use soft cloth; avoid chemicals; turn off before cleaning lens
Safety	Use original charger; avoid heat, fire, physical impact; do not disassemble
Repair	Contact authorized service center; do not attempt self-repair

Frequently Asked Questions - R285 2K Navitel

What type of microSD card should I use?

Use a high-speed microSD card of Class U3 or higher with capacity between 8 and 256 GB. Format the card inside the DVR before first use to avoid data errors.

How do I start video recording?

When the DVR is connected to power, recording starts automatically. To stop, press the OK button. Press OK again to start a new recording.

How can I protect a video from being deleted?

During recording, press the Down (▼) button to protect the current file. Protected videos cannot be deleted or overwritten.

What is loop recording and how does it work?

Loop recording saves video as a series of files. When the memory card is full, the oldest unprotected files are automatically overwritten with new recordings.

How does the G-sensor work?

The built-in G-sensor detects sudden changes in speed, emergency braking, or impact. When triggered, the DVR automatically creates a protected recording that cannot be overwritten.

Is parking mode supported?

Yes, parking mode uses the G-sensor. If motion or impact is detected while parked, the DVR will start recording a protected video.

Can I attach a rear view camera?

Yes, the DVR has a port for a rear view camera. A compatible camera (e.g., NAVITEL Full HD) is sold separately. Connect it to the port labeled 'Rearview camera'.

How do I take a photo with the dash cam?

While in video recording mode (either recording or standby), press and hold the Down (▼) button for 3 seconds. A photo will be captured and saved automatically.

What should I do if the device stops responding?

Press the Reset button (located on the device) with a paper clip or similar object to restart the DVR.

Can I use the dash cam without a memory card?

No, a microSD card is required for recording. The DVR will not function properly without a card inserted.

USER MANUAL R285 2K Navitel

Black NAVITEL digital camera with purple lens and logo, no visible text or symbols on body

NAVITEL R285 2K

Portable Video Recorder

Úvod

Vážený zákazníku!

Vnější vzhled

2

cz Tlačítka

Tasten

Seadme skeem

Nupud

Thank you for purchasing this NAVITEL® product.

NAVITEL R285 2K is a multifunctional high-definition DVR with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

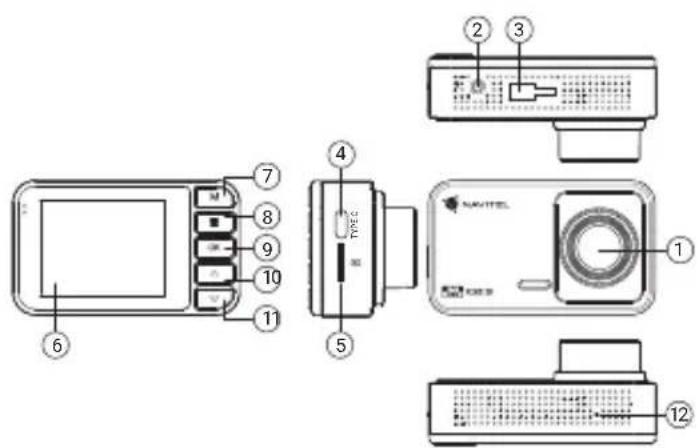

Device layout

1. Lens
2. Mode button
3. Rearview camera* port 8. Menu button
4. Mounting slot 9. OK button
5. Power port (USB-C) 10. Up button
6. MicroSD card slot 11. Down button
7. Display 12. Reset button

Package contents

• DVR NAVITEL R285 2K • Warranty card
- Windshield mount - Gift voucher
• Car charger 12/24 V • Electrostatic film
- User manual

* Rearview camera is not included in the package. Compatible rearview camera — NAVITEL Full HD.

Specifications

Model NAVITEL R285	2K
Processor CV7327
Display 2", 320 × 240,	IPS
Camera sensor GC4653
Recording format MOV
Video resolution 2560 × 1440 (2K)
View angle 140°
Lens 6 layers
Memory MicroSD card
MicroSD card capacity Max. 2	56 GB
Battery 180 mA·h

Power connector USB-C
Power 5 V, 1.5 A
Microphone Yes
Speaker Yes
Language	Czech, English, Estonian German, Hungarian, Latvian, Lithuanian Polish, Romanian, Russian, Slovak, Ukrainian*

Note. The package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
*Note. The list of voice alert languages may be changed by the manufacturer in future firmware updates.

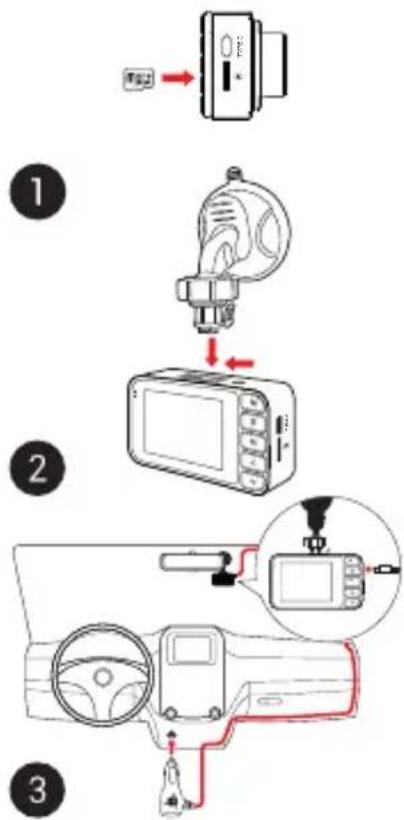

Installation of the DVR

1. Put the microSD card into the DVR. Use a high-speed SD card (ClassU3 or above); capacity should be within 8-256 GB.

• To avoid malfunctions of the DVR and/or SD-card, don't insert and remove SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. To format the SD-card in Menu select Format SD-card and confirm it.

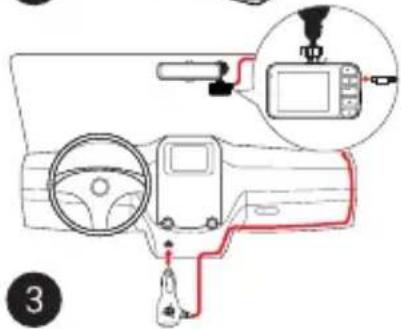

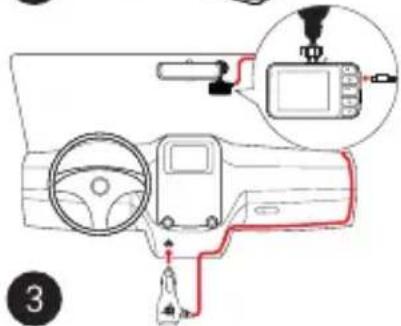

• Stick the electrostatic film on the windshield and fix the DVR over it with the mount.

• Connect the car charger to the cigarette lighter socket.
• Connect the car charger to the DVR power port (USB-C).
• Adjust the camera position.
• Turn the power on, check whether the device is installed correctly. If the device is installed correctly, the indicator will glow.

Buttons

Button Functions
	In Video Recording mode (STBY), press to select recorded file type. Select file type with , View mode will open.In View mode, press to display videos or photos captured by the rear view camera. Pressing again will return to Video Recording mode (REC).While viewing a file, press to return to selecting recorded files.In Menu, press to select the next menu item.
	In Video Recording mode (STBY), press to enter Menu. Press again to exit Menu back to Video Recording mode (REC).
	Press and hold for 3 seconds to turn the device on/off.In Video Recording mode (STBY), press to start recording (REC).In Video Recording mode (REC), press to stop recording (STBY).In View mode, press to view photo file or pause/resume video file.Press to confirm the action or to select a file/menu item.
	In Video Recording mode (STBY/REC), press to switch between full screen mode of the main or rear camera.In Video Recording mode (STBY/REC), press to protect video file (the protected file cannot be deleted or overwritten).In Video Recording mode (REC/STBY), hold button for 3 seconds to take a picture.In View mode, press [Up], to select previous/next file.In Menu, press [Up], to select previous/next menu item.
Reset If the device is not responding, press [Reset].

Device functions

Memory card formatting	Please format the memory card before using the DVR and in case of a data error. To format the memory card, in Menu select Format SD-card and confirm it.
Video recording	Once connected to the power supply, the DVR will start recording video automatically. Press OK to stop video recording. Press OK once again to record new video. Every video is saved automatically.
Photo capture	In Video Recording mode (REC/STBY), press and hold ▼ for three seconds to take a photo. Every photo is saved automatically.
Audio recording	Record video with or without sound. In Menu, turn microphone on/off.
Protected recording	In Video Recording mode (REC), press ▼ to protect the current recording. Protected videos can not be deleted or overwritten.
Loop recording	This function allows you to save video as a set of files. If the memory card runs out of space, the un files will be overwritten in the order in which they were created.
G-sensor	When the built-in G-sensor reacts to a sudden change in driving speed, emergency braking, impact, etc., the DVR automatically starts recording protected video. The sensitivity of the sensor is adjusted in the Menu.
Parking mode	Parking mode is based on the operation of a G-sensor. When the G-sensor is triggered, the DVR starts recording protected video file.

Precautions

• Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
  • Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the device away from fire sources to avoid explosion or fire.
• Do not expose the device to physical impacts.
• Avoid contacting the device with sources of electromagnetic radiation.
• Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.

EN

NAVITEL s.r.o. hereby declares that the device NAVITEL R285 2K is compatible with the European directive EMC 2014/30/EU.

The full text of Declaration of conformity is available at the following internet address:

www.navitel.cz/en/declaration_of_conformity/r285-2k

The up-to-date version of the user manual is available on the website https://navitel.com in the section Technical support > Instructions > Documentation.
