Product Type	Dashcam
Model	NAVITEL R35
Processor	GPCV1167
Camera Sensor	GC2053
Video Resolution	1920 × 1080 (Full HD)
Recording Format	MOV
View Angle	135°
Lens	6 layers + 1 IR
Display	1.47" IPS
MicroSD Card Capacity	Max. 128 GB (Class U3 or above)
Power Connector	USB-C
Power Input	5 V, 2.5 A
Microphone	Yes
Wi-Fi	Yes
Voice Alerts	English, Czech, Polish, Russian
G-sensor	Yes (automatic file protection)
Parking Monitor	Yes (requires NAVITEL SMART BOX MAX)
Loop Recording	Yes (adjustable duration)
Audio Recording	Optional (on/off)
Package Contents	DVR, car charger 12/24V, card reader, microfiber cloth, electrostatic film, user manual, warranty card, gift voucher

Frequently Asked Questions - R35 Navitel

How do I install the Navitel R35 dashcam?

First, insert a microSD card (Class U3 or above, 8-128 GB) into the slot. Then, stick the included electrostatic film on your windshield and mount the DVR over it using the mount. Connect the car charger to the cigarette lighter socket and to the DVR's USB-C power connector. Adjust the camera position and turn on the device. The display should light up indicating correct installation.

How do I format the SD card for the R35?

Format the SD card inside the DVR using the Navitel DVR Center mobile app. Connect the DVR to your smartphone via Wi-Fi, open the app, go to Settings — Format SD card, and confirm the action. This prevents data errors.

How do I connect the R35 to my smartphone via Wi-Fi?

Turn on Wi-Fi in your mobile device settings. Open the Navitel DVR Center app and select your DVR from the list. The DVR's Wi-Fi information is displayed in its menu under Wi-Fi Navitel. Connect using the password 12345678 or 1234567890 (you can change it later).

What is the default Wi-Fi password for the Navitel R35?

The default Wi-Fi password is either 12345678 or 1234567890. You can change it in the DVR's menu under Wi-Fi password.

How does the G-sensor work on the R35?

The G-sensor detects impact or sudden movement. When triggered during recording, it automatically locks (protects) the current video file. Protected files cannot be deleted or overwritten, ensuring they are preserved as evidence.

How do I enable parking monitor mode on the R35?

Parking monitor mode is available only when the DVR is connected to a continuous power supply via a NAVITEL SMART BOX MAX to prevent battery drain. In the app, you can choose between impact control (G-sensor triggers emergency recording) or continuous time-lapse recording at a user-defined frame rate.

What should I do if the R35 stops recording or freezes?

First, ensure the microSD card is properly inserted and formatted. If the device freezes, press and hold the power button for about 7-15 seconds to force a reset and restore factory settings. The current recording will be saved automatically.

Can I use a microSD card larger than 128 GB in the R35?

No, the Navitel R35 supports microSD cards up to 128 GB maximum. Using a larger capacity card may cause malfunctions or data errors. Always use a high-speed card of Class U3 or above.

How should I clean the lens of the Navitel R35?

Turn off the device before cleaning. Use a dry microfiber cloth (included) to gently wipe the lens. Do not use chemicals or detergents as they may damage the lens coating.

What is the operating temperature range for the R35?

The permissible ambient temperature in operating mode is 0 to +35°C. Storage temperature is +5 to +45°C. Relative humidity should be 5% to 90% without condensation at 25°C.

USER MANUAL R35 Navitel

Black Navitel digital camera with open lid and front-mounted lens (no visible text or symbols on body)

NAVITEL R35

Portable Video Recorder

cz Úvod

Vážený zákazníku!

Google Play

QR code with a green circular logo in the center (no readable text or symbols)

App Store AppGallery

Einleitung

Navitel DVR Center app installation

Google Play

App Store AppGallery

Sissejuhatus

Lugupeetud klient!

Täname, et ostsite NAVITEL® toote.

Google Play

App Store AppGallery

Introduction

Dear Customer!

Thank you for purchasing this NAVITEL® product.

NAVITEL R35 is a multifunctional high-definition DVR with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

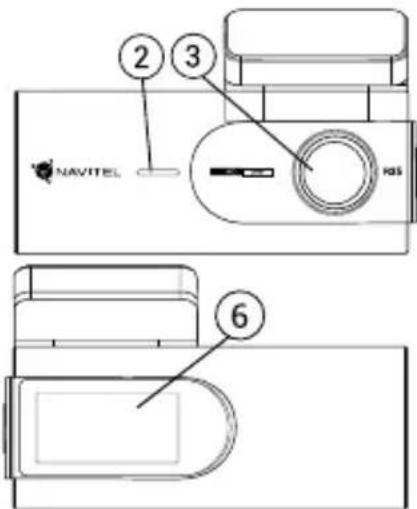

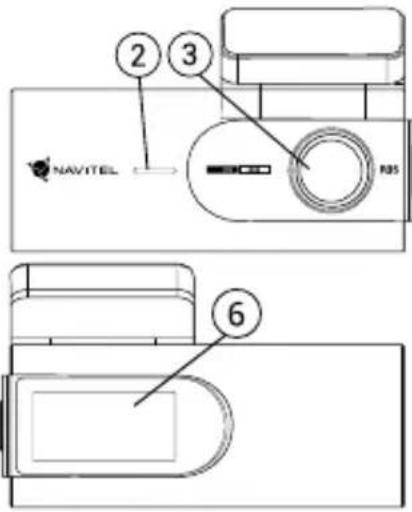

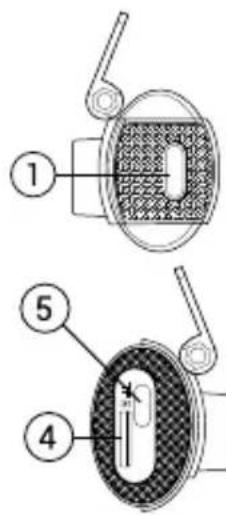

Device layout

1. Power button
2. Speaker

3. Lens

4. Memory card slot

5. USB-C port
6. Display

Package contents

• DVR NAVITEL R35
• Car charger 12/24 V
- Card reader
- Microfiber cloth

• Electrostatic film
• User manual
• Warranty card
• Gift voucher

Specifications

Model NAVITEL R35
Processor GPCV1167
Camera sensor GC2053
Recording format MOV
Video resolution 1920 × 1080 (Full HD)
View angle 135°
Lens 6 layers + 1 IR

Display 1.47", IPS
MicroSD card capacity Max. 128 GB
Power connector type USB-C
Power 5 V, 2.5 A
Microphone Yes
Wi-Fi Yes
Voice alerts English, Czech, Polish, Russian*

Note. Package contents, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
The compact video recorder is equipped with a micro-battery, which allows you to correctly save settings, Wi-Fi password, time and the last file when the external power is turned off. If you want to use security mode in a parking lot and record video after turning off the ignition in the car, we recommend using the NAVITEL SMART BOX MAX power controller.
* Note. The list of voice alert languages may be changed by the manufacturer in future firmware updates.

Installation

1. Put the microSD card into the DVR. Use a high-speed SD card (ClassU3 or above); capacity should be within 8-128 GB.

• To avoid malfunctions of the DVR and / or SD-card, don't insert and remove SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. To format the SD-card in Navitel DVR Center mobile application navigate to Settings — Format SD card.

• Stick the electrostatic film on the windshield and fix the DVR over it with the mount.

• Connect the car charger to the cigarette lighter socket.
• Connect the car charger to the DVR power connector (USB-C).
• Adjust the camera position.
• Turn the power on; check whether the DVR is installed correctly. If the DVR is installed correctly, the display will light up.

Precautions

• Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
• Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the device away from fire sources to avoid explosion or fire.
• Do not expose the device to physical impacts.
• Avoid contacting the device with sources of electromagnetic radiation.
• Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.

NAVITEL s.r.o. hereby declares that the device NAVITEL R35 is compatible with the European directive RED 2014/53/EU.

The full text of Declaration of conformity is available at the following internet address:

www.navitel.cz/en/declaration_of_conformity/R35

Buttons

Button Functions

(TWCA)

In Video Recording mode, press the button for a few seconds and then release it to turn off the device (the current recording will be saved automatically).In Video Recording mode, press the button to protect the current video file. Protected files cannot be deleted or overwritten. After finishing recording the protected file, the device will start recording the unprotected file.Press and hold the button for about 7-15 seconds to stop recording and reset to factory settings (the current recording will be saved automatically).

Device functions

Format SD-card	To format the SD-card, connect the DVR to your smartphone via Wi-Fi. Open Navitel DVR Center mobileapplicationand navigate to Settings — Format SD card. Confirm the action.
Video recording	When the external power is connected, the DVR will turn on and start recording video automatically.When the external power is disconnected, the DVR will save the recording and turn off.
Loop recording	This feature allows you to save a video as a set of files. You can set the duration of the recording in the mobileapplication.If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.
Audio recording Record video with or without sound.
G-sensor	If the vehicle is hit by something, the DVR will automatically lock the current video. Protected files cannot be deleted or overwritten.
Parking monitor*	In Parking mode, the user has access to the following modes: impact control and continuous time-lapse recording.Parking mode — impact control is based on the operation of the G-sensor: when it is triggered, an emergency file is written.Parking mode — continuous time-lapse recording. Records video continuously at a user-defined frame rate.

* Warning. The mode is available only when the DVR is connected to a permanent power supply through a device that prevents excessive battery discharge - NAVITEL SMART BOX MAX.

Navitel DVR Center app installation

1. Download and install Navitel DVR Center to your cell phone or tablet, follow your mobile device instructions. You can download application by scanning QR code in DVR's Menu (App QR Code) with your cell phone.
2. Turn on a Wi-Fi in your mobile device settings.
3. Run the app. Choose your DVR in the list. The DVR's information is in DVR's Menu (Wi-Fi Navitel).
4. Connect your mobile device to the DVR through Wi-Fi. To connect to the dashcam, use the password 12345678 or 1234567890. You can change it in DVR's Menu (Wi-Fi password).
5. Using the Navitel DVR Center you can:

- update DVR's firmware;

• control DVR functions in Settings menu.
