Product Type	Car Dash Camera
Brand	Navitel
Model	MR250
Dimensions (W x H x D)	6.4 x 5.2 x 3.8 cm
Weight	approx. 60 g
Power Supply	12-24 V DC via cigarette lighter adapter
Battery	Built-in rechargeable Li-Ion battery (200 mAh)
Recording Resolution	Full HD 1920x1080p @ 30 fps
Lens Angle	170° wide angle
Image Sensor	CMOS 2 MP
Night Vision	6 infrared LEDs for low-light recording
G-Sensor	Built-in 3-axis gravity sensor for event detection
Loop Recording	Yes, with adjustable clip length (1/3/5 min)
Storage	MicroSD card up to 32 GB (Class 10 or higher)
Display	2.0-inch TFT color LCD
Connectivity	Mini USB 2.0, AV Out
Mount	Suction cup and adhesive pad included
Main Functions	Video recording, photo capture, event lock, parking monitor (with optional hardwire kit)
Maintenance	Clean lens with microfiber cloth; format microSD card monthly
Safety	Do not operate while driving; mount securely to prevent obstruction of view
Spare Parts and Repairability	Contact Navitel support for spare parts; device is not user-serviceable
General Information	Language support: EN, CS, DE, ET, HU, LT, LV, PL, RO, RU, SK, UK

Frequently Asked Questions - MR250 Navitel

How do I install the Navitel MR250 dash cam in my car?

Clean the windshield area, mount the suction cup or adhesive pad, connect the power cable to the 12V adapter, route the cable along the headliner, and adjust the camera angle to capture the road.

What type of memory card does the MR250 support?

It supports MicroSD cards up to 32 GB, Class 10 or higher for smooth recording.

How do I enable parking mode?

Parking mode requires an optional hardwire kit. Connect the kit to constant power. The camera will automatically enter parking mode when ignition is off and record events triggered by G-sensor.

How does the G-sensor work and how can I adjust sensitivity?

The built-in G-sensor detects sudden impact or motion. When triggered, the current clip is locked and protected from deletion. Sensitivity can be adjusted in settings (low, medium, high).

Can I use the camera while charging?

Yes, the camera operates and records while connected to the power adapter. The built-in battery only serves as backup during brief power interruptions.

How do I format the memory card?

Go to the settings menu on the camera, select 'Format', and confirm. Always format the card before first use and regularly to maintain performance.

What should I do if the camera does not turn on?

Check the power connection: ensure the adapter is plugged in and the cable is secure. Try charging the battery via computer USB. If still unresponsive, reset the camera by inserting a paper clip into the reset hole.

How do I set the date and time?

In the settings menu, select 'Date/Time' and adjust using the buttons. The timestamp is embedded in the video file.

How to transfer videos to my computer?

Remove the MicroSD card and insert it into a card reader, or connect the camera to computer via USB cable (mass storage mode). Copy files from DCIM folder.

Does the MR250 support loop recording?

Yes, loop recording is enabled by default. When the card is full, older files are overwritten. Protected files (event locks) are never overwritten.

USER MANUAL MR250 Navitel

Side mirror with navigation screen displaying a highway scene, alongside a NAVTEL camera (no visible text or symbols on the device itself)

NAVITEL MR250

Digital Video Recorder

Úvod

Vážený zákazníku!

Line drawing of a mechanical valve component (no text or symbols)

NAVITEL

Einleitung

DE

Line drawing of a mechanical valve component (no text or symbols)

Sissejuhatus

Lugupeetud klient!

Täname, et ostsite NAVITEL® toote.

Line drawing of a mechanical valve component (no text or symbols)

NAVITEL

Introduction

Dear Customer!

Thank you for purchasing this NAVITEL® product.

NAVITEL MR250 DVR is a multifunctional high-definition digital video recorder with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

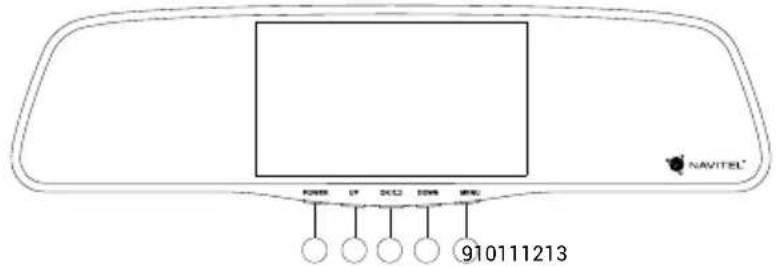

Device layout

1. Speaker 8. Camera
2. Clamps 9. Menu
3. Microphone 10. Down
4. microSD slot 11. OK
5. Rear camera port 12. Up
6. USB port 13. Power
7. Reset

Buttons

Button Functions
OK	In Video Recording mode, press to start recording; press again to stop.In Capture mode, press to take a picture.In Playback mode, press to select a file, or pause/resume a video. Hold for 3 seconds to switch between the selection of files from the front/rear camera.In the menu, press to select a menu item.
Menu	Press to access Settings menu. Press again to access Setup menu.Press and hold for 3 seconds to switch between Video Recording, Capture, and Playback modes.Press to exit any selected menu.In Video Recording mode, press to lock a file (protected file cannot be deleted or overwritten).
Power	Press and hold for 3 seconds to turn the device on/off.Press shortly to switch the screen on/off.
Up/Down	In the menu, press to highlight the next/previous menu item or file.In Video Recording mode press Down to turn the microphone on/off.In Video Recording mode press Up to show/hide screen with the view from rear camera.
Reset If the device is not responding, press to reset.

Note: The built-in battery is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off. For the full operation of the device in any mode, a constant power connection is required.

NAVITEL s.r.o. hereby declares that the device NAVITEL MR250 is compatible with the European directive EMC 2014/30/EU.

The full text of Declaration of conformity is available at the following internet address:

www.navitel.cz/en/declaration_of_conformity/mr250

NAVITEL

Specifications

CPU MSTAR MSC8328
Display 5” IPS
Recording format MOV
Video resolution	1080 FHD 1920x1080P/30 fps
Image format JPG
Image resolution 2048x1536
Storage microSD card
microSD card capacity 64 GB max
USB mini-USB 2.0

Power DC 5 V 1.5 A
Frequency 50 Hz/60 Hz
Battery	300 mAh 3.7VRechargeable battery
Working current 700 mA
Microphone/speaker Supported
Rear camera Supported
Language	Chinese simplified, Chinese traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Romanian, Russian, Slovak, Spanish, Ukrainian

Note: the specifications may change due to upgrades.

Device functions

Format SD-card

Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

Video Connect the device to an external power supply and it will start recording automatically. Press the OK button to stop recording. Press OK again to record another video. Each video will be saved automatically.

Photo In Video Recording mode, press and hold for 3 seconds Menu button to enter Capture mode, press the OK button to take a photo (it will be saved automatically).

Playback In Capture mode, press and hold the Menu button for 3 seconds to enter Playback mode. Select the file using the Up and Down buttons, then press OK to play/stop the file. You can switch between files from the front/rear camera by holding down the OK button for 3 seconds. The letter in the file name indicates the camera: F - front, R - rear.

Lock file In Video Recording mode, press Menu to protect the current recording. A key symbol will appear at the bottom of the screen. Protected files cannot be deleted or overwritten.

Capture menu Press Up/Down buttons to choose the size of pictures and exposure.

Sound Record Choose this option to record video with or without sound.

Loop recording This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.

G-sensor If this function is on, when vehicle is hit by something, the DVR will automatically lock the current video.

NAVITEL

Parking monitor In shutdown state, if vibration is detected, the device will turn on automatically and start recording. The file will be protected (locked). If nothing happens for over a minute, the device will shut down.

Reversing image When reverse gear is turned on and properly connected, the image from the rear view camera is displayed, at the same time recording from the front camera of the DVR stops and recording starts from the rear camera.

Stamp This function adds date stamp or device logo to the record. Click OK to select type of stamp or to switch the function off.

Screen saver The device can automatically shut off the screen to reduce power consumption; time interval can be set in the Screen Saver menu.

Rear camera mode When supplying +12 V to the red wire, the rear camera mode is activated. DVR starts displaying only the view from the rear camera with the parking lines on it.

Note: recommendations on how to connect this wire is given on the "Rear Camera" page of this manual.

DVR installation and starting

DVR installation

1. Put the SD card into the DVR. Use a high-speed microSD card (Class10 or above); capacity should be within 8-64 GB.

• To avoid malfunctions of the DVR and / or SD-card, don't insert and remove SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

• Install DVR on your car mirror with the clamps. Do not use excessive force to avoid any damages.

• Connect the car charger to the cigarette lighter socket. Connect mini-USB interface to the car charger with the charger cable.
• Adjust the camera position.

Starting

1. Turn the power on; check whether the device is installed correctly.
2. If the device is installed correctly, when engine starts, the device will start simultaneously and begin recording automatically.
3. When reverse gear is turned on and properly connected, the image from the rear view camera is displayed, at the same time recording from the front camera of the DVR stops and recording starts from the rear camera.

Precautions

1. Use only the original charger adapter. Using another adapter may negatively affect the device's battery.
2. Do not use the device in humid or hot environment.
3. Keep the lens clean.
4. Do not disassemble the device and do not perform repairs by yourself.
5. Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
6. Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).

Rear camera

With the help of rear camera you can get a high-resolution image behind your car for safe parking or recording while driving. Modern double recording technology allows saving recordings both in front and behind the car for fixing any unforeseen situation.

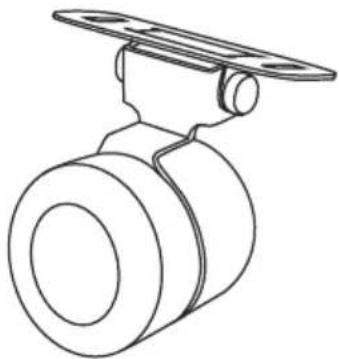

Rear camera installation

There are two options of using rear camera.

Option 1. DVR camera for getting view behind the car. Install the camera on the rear window with a sticker, put the wire through the cabin, connect the wire to the rear camera port.

Option 2. Combination of DVR camera and rear camera for back view when parking. Install the camera on the rear window inside the car, or outside on the license plate frame. In this case, it is required to apply +12 V when driving backwards. This will allow the device to automatically switch the image from the front to the rear camera in the parking mode.

Note: It is strongly recommended that works on installing the camera and connecting +12 V should be done by qualified personnel with the necessary skills. Cable routing may require special tools or attachments. Make sure these works are safe.
