USER MANUAL Skyfall Steinbach

Package contents/product components

1 Attachment screws for shower head
2 Allen wrench
3 Hose adapter
4 Drain cap
5 Teflon tape
6 Hose
Sealing ring of handheld shower

8 Mount of handheld shower
9 Handheld shower
10 Control dial
Faucet
Tank
13 Sealing ring
14 Shower head Operating instructions (not shown)

Required tools/materials (not supplied)

15 Attachment material (screws and wall anchors for your stone, concrete or wooden floor) or the Steinbach outdoor floor element

Optionally available

Steinbach outdoor floor element including attachment material (item no. 049028)

Contents

Overview. 2

Package contents/product components 12

General Information 14

Read and keep the operating instructions. 14

Explanation of Symbols 14

Safety. 14

General safety instructions. 15

Description. 15

Preparation. 16

Preparing the setup location and the connections. 16

Installation 16

Assembling the solar shower. 16

Setting up the solar shower. 17

Filling the tank. 17

Operation 18

Using the solar shower. 18

Cleaning 18

Disassembly 19

Draining the tank. 19

Dismantling the product 19

Storage 19

Troubleshooting 19

Technical data. 19

Spare parts. 20

Disposal 20

Disposing of the packaging 20

Disposal of the product 20

General Information

Read and keep the operating instructions

These operating instructions are a part of this solar shower (also referred to hereinafter as the "product"). They contain important information about start-up and operation.

Read the operating instructions and especially the safety instructions carefully before using the product. Non-observation of this operating instructions manual may lead to severe injuries or damage to the product.

Keep the operating instructions for further use. If you pass on the product to a third party, you must pass on operating instructions as well.

Intended use

This product is exclusively designed for outdoor showering.

This product is exclusively intended for private use and not suited for the commercial sector.

Only use the product as described in these operating instructions. Any other use is considered inappropriate and may lead to material damage or even injury. The product is not a toy.

The manufacturer or retailer will not assume any liability for damage caused by inappropriate or incorrect use.

Only use the product when it is firmly bolted down at a suitable location.

If the outdoor temperature drops below 50^ (10^) , the tank must be drained and the shower must be dismantled and stored in a dry, frost-free place.

Foreseeable misuse

Never use the product as a climbing frame or as a post for suspending washing lines or hammocks.

Explanation of Symbols

The following symbols are used in this operating instructions, on the product or on the packaging.

Here you will find useful additional information.

Only tighten by hand, not with tools.

Not drinking water!

Risk of damage! Do not open the packaging with sharp or pointed objects, such as cutters.

Caution! Hot water.

The product is not frost-proof and must be disassembled if temperatures drop to below 10^ .

Safety

The following signal words are used in these operating instructions.

WARNING!

CAUTION!

This signal symbol/word denotes a hazard with an average risk level that could lead to death or severe injury if it is not avoided.

This signal symbol/word denotes a hazard with a low risk level that could lead to mild or moderate injury if it is not avoided.

NOTICE!

This signal word provides a warning about potential material damage.

General safety instructions

Safety instructions for persons

WARNING!

Packaging materials pose a risk of suffocation!

Catching your head in the packaging foil or swallowing other packaging materials can cause death. There is a higher risk for children and mentally challenged persons who cannot estimate the hazard potential due to lack of knowledge and experience.

• Prevent children and mentally challenged persons from playing with the packaging materials.

CAUTION!

Risk of scalding!

In direct sunshine, the tank heats up and the water that comes out of the shower head can be very hot, depending on the faucet settings.

• Before showering, set the faucet between cold and hot.
• Check the water temperature before you stand under the shower head.
• Never leave children and persons with reduced physical, sensory or mental abilities (e.g. persons under the influence of alcohol) unattended in the vicinity of the product.

CAUTION!

Risk of infection!

Bacteria can multiply in the tank if the product is not used for longer periods.

• Drain the product before and after longer periods of non-use.
• Do not drink the water from the product.

NOTICE!

Improper use of the product may cause it to become damaged.

• Only use spare parts and accessories supplied or recommended by the manufacturer.
• Do not open the product. Leave repairs to a qualified service technician. Contact the service address on the back of the instruction manual for this purpose. All liability and warranty claims will be void when you carry out repairs yourself, the product is improperly connection or operated incorrectly.
• The shower head can become clogged with limescale. To prevent damage, check the shower head regularly and clean it if necessary.

Description

The tank 2 of the solar shower is filled with water via the connected garden hose. This water is heated by sunlight because the matt black surface of the tank reflects very little solar energy.

The solar shower has a cold water supply line leading directly to the faucet so that the water can be adjusted to the perfect temperature for showering.

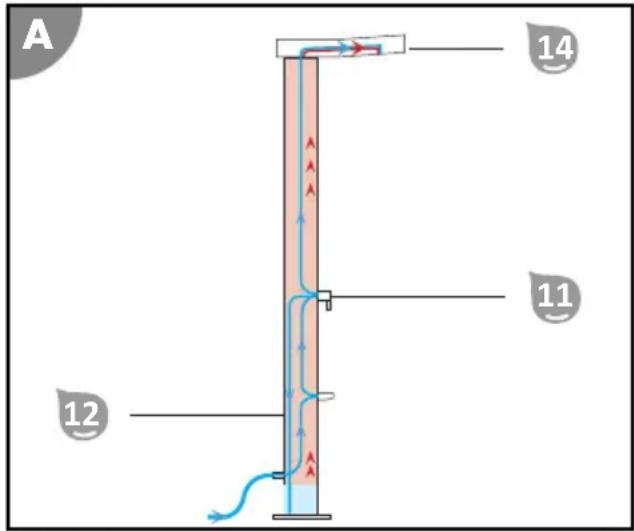

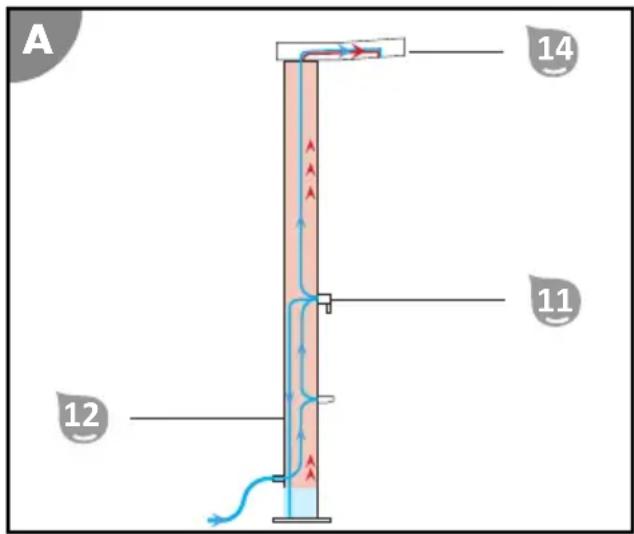

The illustration shows how a solar shower works:

The entire shower body is filled with water and works in a similar way to an electric water heater in which the heated water also collects at the top.

If hot water is needed, the faucet 11 at the base of the tank 12 is turned to let in cold water and the water in the top region, which has already been heated, is pushed out of the tank.

Any pressure that builds up due to the water heating up in the tank can therefore escape through the shower head 14. This causes water to drip from the shower head when the faucet is closed.

Preparation

Preparing the setup location and the connections

The shower must be anchored to the ground so that it can be used safely.

The safest place to use the shower is on a smooth, level concrete or wooden floor.

Careful selection and good preparation of the setup location makes it much easier to set up and use the shower. The following requirements must be met or considered:

• Water supply/drain, attachment and solar radiation
• Sturdy, level, waterproof and slip-proof floor, alternatively the floor element (item no. 049028)

CAUTION!

Risk of injury!

The product can topple.

• A second person who holds the product is required for installation.

To prepare the setup location, proceed as follows:

1. The second person positions the shower at the desired location and secures it so that it cannot topple over. Mark the drilling points through the holes in the base of the shower.
2. Detach the shower from the base.
3. Drill suitable holes for the selected attachment materials into the floor with an electric drill.
4. Put the attachment material (e.g. wall anchors) into the holes.

The setup location is prepared.

Installation

Assembling the solar shower

NOTICE!

• Tighten the individual parts by hand without using any tools to prevent the risk of damage during assembly.

The screw connections are self-sealing even before parts are screwed in so that you can align the individual parts properly. The openings of all water outlets (such as the shower head or cold water tap) should point downwards. If screw connections are not completely water-tight, wrap the thread in Teflon tape.

To assemble the solar shower, proceed as follows:

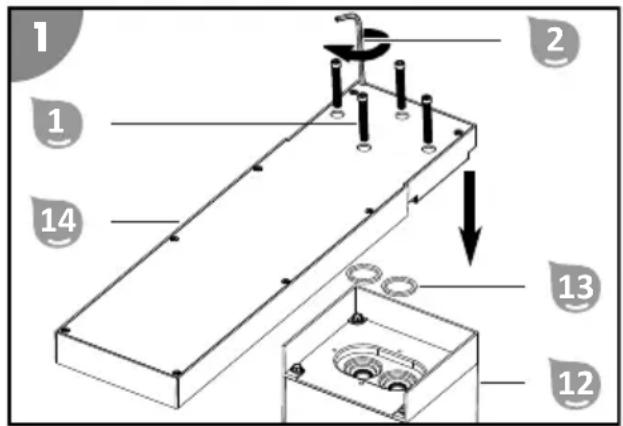

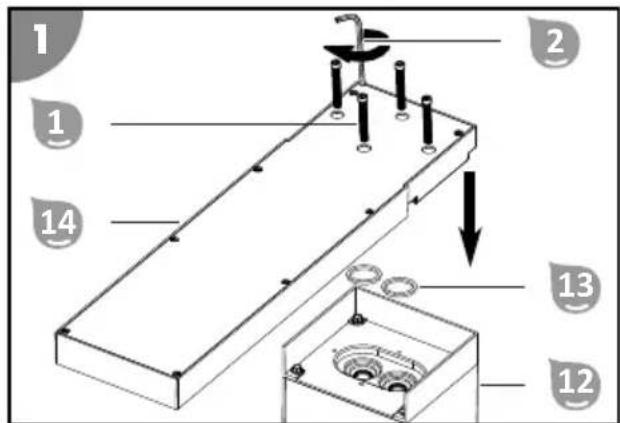

1. Put the sealing rings 13 into the opening in the top of the tank 12.
2. With an Allen wrench 2 and the attachment screws 1, screw the shower head 14 onto the tank 12.

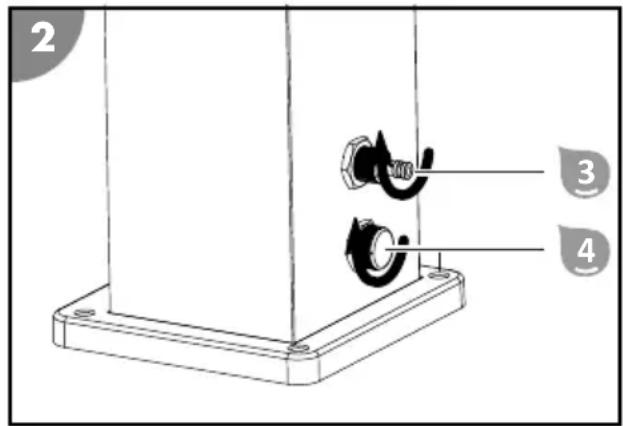

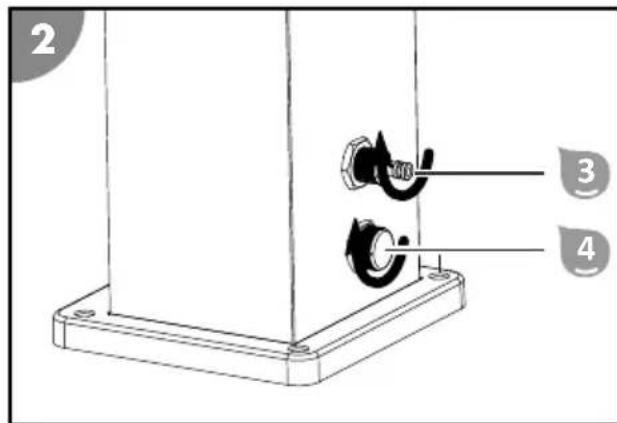

3. Screw the hose adapter onto the hose connection.

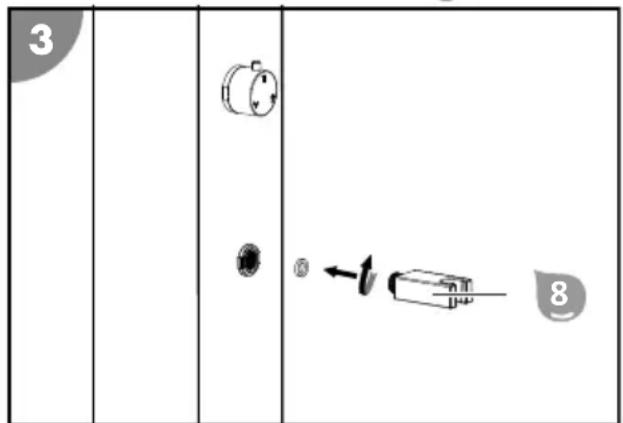

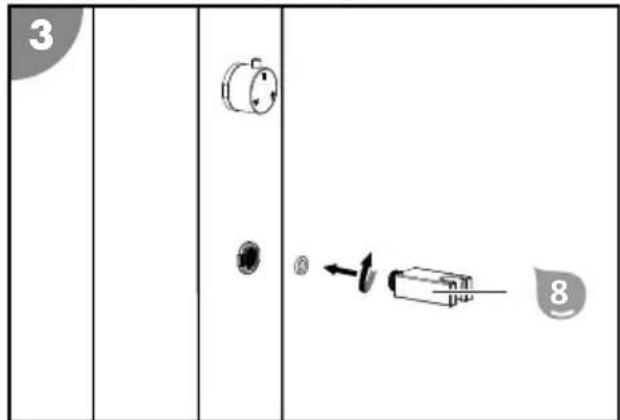

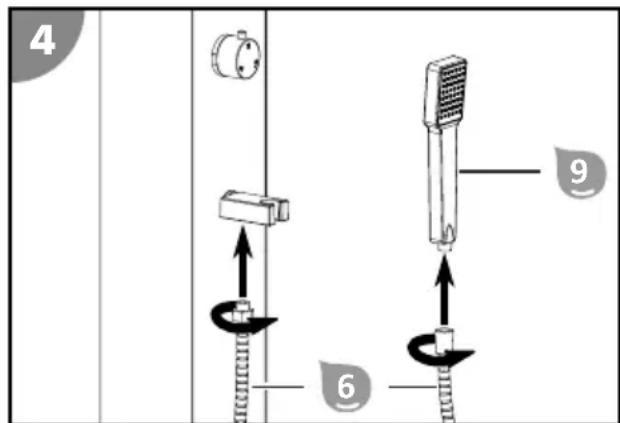

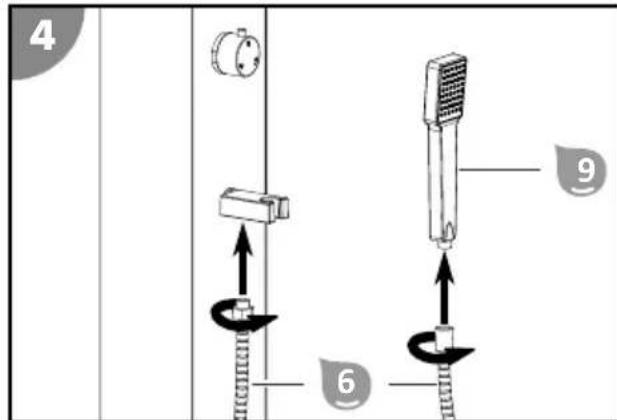

1. Place the sealing ring 7 on the thread of the mount for handheld shower 8
2. Screw the mount of the handheld shower into the tank.
3. Screw the hose onto the mount of the handheld shower.
4. Screw the hose onto the handheld shower 9
5. Put the handheld shower into the mount.

The solar shower is assembled.

Setting up the solar shower

Position the solar shower at the prepared setup location. Make sure that the solar shower is pointing in the correct direction.

The second person supports the shower while you screw the base of the shower into the floor with the correct attachment materials.

Filling the tank

To fill the tank of your solar shower, proceed as follows:

1. Connect a garden hose to the hose adapter 3 and the faucet of the water pipe. Position the garden hose so that no one can trip over it.
2. Turn on the water supply faucet. Turn the faucet all the way to the "hot" position and open it. In this position, the tank fills fastest. Water flows into the tank. It takes approx. 3 minutes for the tank to fill.
3. As soon as water runs consistently out of the shower head 14, close the shower faucet.
4. Turn off the faucet of the water pipe.

The tank is filled.

Operation

Using the solar shower

Observe the following before using your solar shower:

• Bacteria can multiply in warm water if the product is not used for longer periods. Risk of infection! The tank must be drained.

• The water temperature in the tank depends on the level of sunshine. In cloudy weather, the water will take longer to heat up. The water can become very hot in the case of intense sunlight.

• Remove obstacles from the showering area.

To use your filled solar shower, proceed as follows:

1. Connect a garden hose to the hose adapter 3 and the faucet of the water pipe.
   Position the garden hose so that no one can trip over it.
2. Turn on the water supply faucet.
3. Set the control dial to the desired shower setting. The control dial snaps into place with a "click" at the correct positions.
4. Turn the faucet to the center position (between hot and cold).
5. Open the faucet.
6. Turn the faucet left or right to set the water temperature.
7. Adjust the water quantity and the water temperature with the faucet.
8. After showering, close the faucet.
9. Turn off the faucet of the water pipe.

The shower is finished.

Sometimes a little water runs out of the shower head, even if the faucet is shut. This is due to the heating of warm water in the depressurized tank and is not a defect.

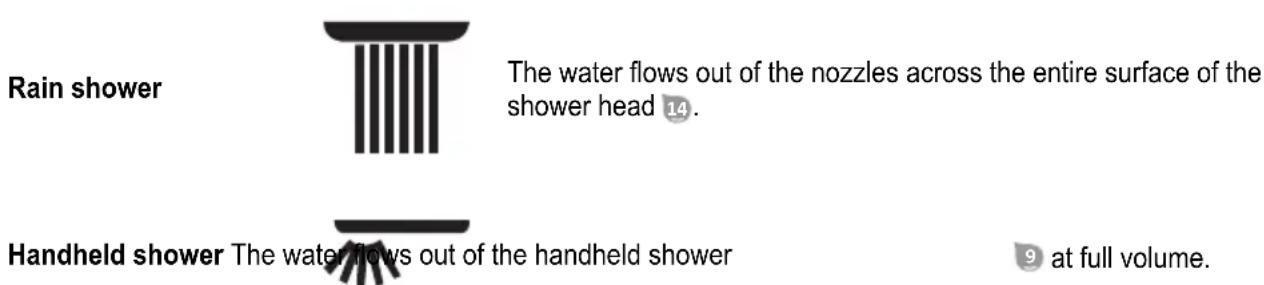

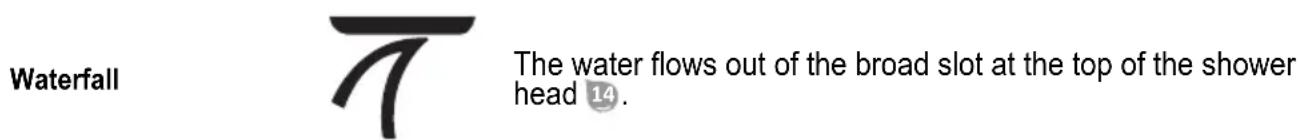

Available shower settings

Cleaning

Only clean the product with a standard bathroom cleaner, clear tap water and a lint-free cloth. Aggressive cleaning agents can damage the product. Dry the product with a lint-free cloth.

Disassembly

Draining the tank

Disconnect the solar shower from the water pipe. Open the faucet and unscrew the drain cap to drain the water from the tank.

Dismantling the product

Remove the attachment screws from the base of the product while the second person supports the product. Drain the remaining water from the tank and screw the drain cap into the tank.

Storage

After thorough cleaning and drying, store the product in a dry and frost-free place (= +5^) .

Troubleshooting

Fault description Cause Remedy
Water is still coming out of the shower head even after the faucet has been closed.	This is caused by the water heating up in the unpressurized tank.	It is not a defect!
Water is leaking from a screw connection.	The screw connection is not watertight.	Wrap the thread in Teflon tape.
There is no water coming out of the shower head.	No water is being supplied. Check the	water supply and the garden hose for damage and blockages.
The water coming out of the shower head is not hot.	The water temperature in the tank is too low.	Position the solar shower base in an area with plenty of sunlight.
The water has a bad smell or is discolored.	The filled solar shower has not been used for some time.	Drain the tank via the drain cap and refill it.

If the fault cannot be rectified, please contact an authorized specialist or the Steinbach support team.

Technical data

Model: 049096PPC62

Maximum operating water pressure: 5 bar, use a pressure regulator if required

Tank volume: 40 l

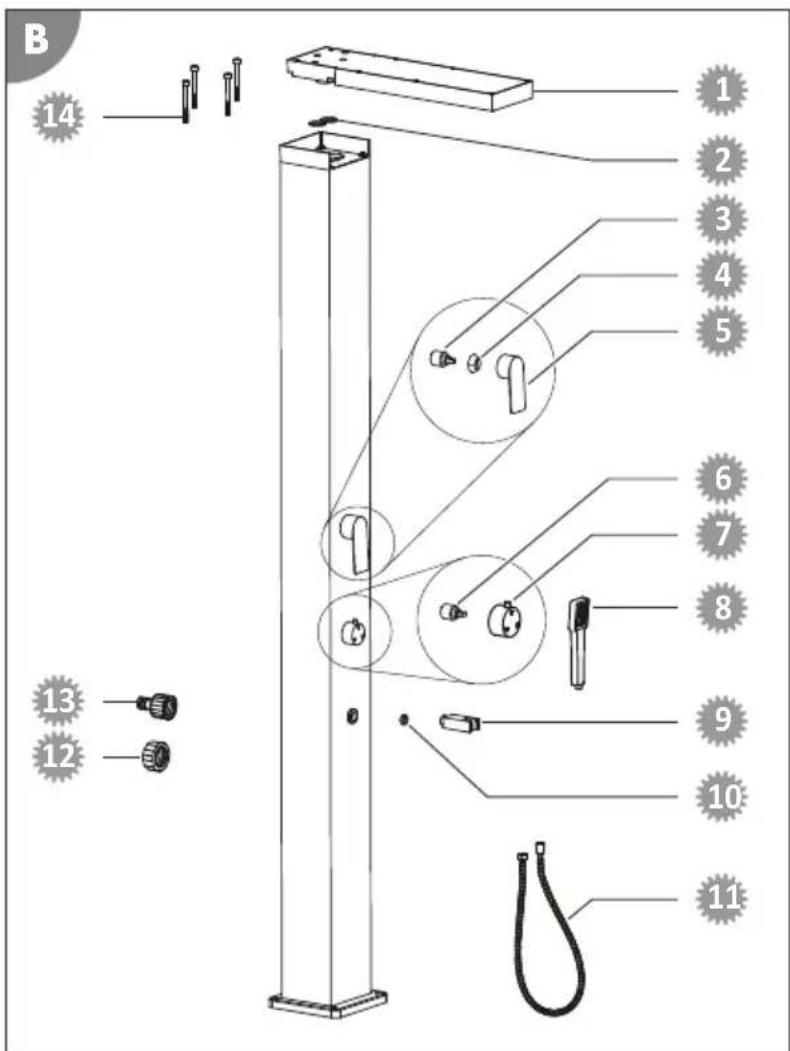

Spare parts

050016 - Shower head

049971 - O-ring for shower head

049966 - Mixer faucet cartridge

4 049950 - Rosette for Deluxe solar shower

050020 - Handle for single-lever mixer

6 050021 - Mixer faucet cartridge

050022 - Control dial

8 050024- Handheld shower

9 050023 - Mount for handheld shower

040979 - O-ring for mount of handheld shower

050025-Hose

12 049918 - Drain cap

0499071 - Hose adapter

049977 - Screws for shower head

Disposal

Disposing of the packaging

Sort the packaging before you dispose of it. Dispos of paperboard and cardboard with the recycled paper service and wrappings with the appropriate collection service.

Disposal of the product

Dispos of the product in line with the guidelines and regulations valid in your country.

0499071 - hadicovyadapter

3aTeHHeTa cAmo Ha pKa, He C HcHTpyMeHT.

Bε3 nIteɪHa Bɔda!

OnachocT OT nobpea! He oTbaprIte onakOBkata C octpn nnn 3aoCTpeH npEpmTe, KaTO HOKObe.

PpeDynpexkdenHe 3a ropeua Boga.

IpoDyKTbT He e yCTOuHB Ha 3aMp3BaHe n Tp6Ba Da ce DEMoHTnpa npn TempepaTyprn no1 10^

Бezonaachoct

B hactoata nHctpykua 3a ekcnnoataunce n3no3BaT cneHNTe cnHaHn dym.

PPEyPExKdEHNIE!

To3n CnHaIeH CnB0J/CnHAnHa Dyma O3HaayBa OnaCHOCTcBC CpeDHa CTeneH Ha pNCK, KOAYo, AKO He 6bJe N36eHata,MOKe Da DOBeDe Do CMbp TIN TeKko HapaHBAhe.

BHIMAHNE!

To3n CnHaJIeH CmB0J/CnHajHa Dyma O3HaJaBa OnaCHOCT C HnCKa CTeNEH Ha pNCK, KOrTO, aKO He 6bJe N36eHaTa, MoKe Da IOBeDe DO Jekn UIn CpeHN HapaHbAHn.

YKA3AHNE!

Ta3n CnHnHa Dyma npEynpeJdaBa 3a Bb3MOxHn MaTePnaHn UeTn.

06и yka3aHna 3a 6e3oNaChocT

Yka3aHn3a6e3oNaCHOCT3aXopa

PPEyPExKdEHNIE!

OnachocT O3aDyShaBaHe Upe3 onakOBbYeMaTepnan!

Oxbaaheto Ha IanaBata B onakOBbHNO fONIO NIN NORlbShaHeTo Ha dpytn ONAKObUHN Maepnann MoKe Da IOBeDe Do CmbpT Upe3 3aDywaBaHe. CneuaHNo 3a Deca, KaKTo n Xopa C yMCTBHeN YBpeXdAnH, KOITo B pe3yJTTaH NaIInCa H a 3HaHn I ONIT He MOrat da Ppeuenr pCKOBTe, Nopadn KoETO BA Ta3n Bpb3ka CbIeCTByBa NOBUnen PnCKOB NOTeHcuaJ.

• YBepete ce, Ye c OnaKOBbHnMaTePnaI He cn IrgpaT Deca n Xopa C yMCTBeHNyBpeJdaHn.

BHIMAHNE!

OnachocT OI3rapAHe C BpJa BOda!

Pe3epBoaPbT ce 3arpaB npn nHTeH3NBHa cIbHueBa CBeTJInHa N B 3aBNCIMOC T O NoIOKeHneTO Ha CMeCtTeJI, OT dUw nITaTa MOKe Da n3TeYe MHOrO ropeuBa BOda.

• NocTabete CmecnteHa cpeHa I03nua Mekdy CTydeHo I ropeo.
• PpOBepe Teempepatyata Ha BODaTa, npei Da 3acTaHe Te noD dyuN NITata.
  He octabraye deca n Xopa c HamaJeHN qn3uyeckn, ceH3OpHn nn yMCTBeHn cnocoboctn (HaNP.: Iua pOd Bb3deIcTBne Ha aIKoxoJ) Be3 Haad3Op 6n30 do npodykTa.

BHIMAHNE!

OnachoctOTnHΦekzra!

Ako npOdykTbT He ce n3noI3Ba IbJro BpeMe, B pe3epBoapa MOraT da ce pa3MHOxKaT 6akTepn.

• I3npa3HeTe npodykta, nped npedBnDnM nnn cJeD nbIg nepnoJHa Hen3NoJ3BaHe.
  He niiTe BOda ot npOdykTa.

YKA3AHNE!

HenpaBnHToI n3noJ3BaHe Ha npOdyKta MoKe da DoBeDe do nobpei no Hero.

• I3noI3BaIte cAmo pe3epBHN qactn IN npHaNEXKHOCTN, KOITO ca IOCTaBeHN NJIINpENOpbUaHNI OT npON3BOUNTEJI.
  He OTbaprIte npOdykTa, a Bb3IOxTe peMOHTa Ha cneUmaInCTn. 3a ueJaTc Ce CbbpKeTe c aIpeca Ha cepBn3a, IocOueH Ha rbp6a Ha pKOBODCTBOTO. B cnuyaHa cAmocToarTeJHO N3BbPWeH peMOHTn, HENpaBUNHO CBbp3BaHe IIN HeNpaBUNHa EKCIIIOaTauN, OT OxbBaT Ha rapaHcNra Tn OTROBOPHOCTTa Ce n3KJIIOuVBat BCNUKN rapaHcNOHH nPeTeHcNn.

• Гльва та на душа може да се за рбту с котлен камьк. 3a да п dedOTbpaTITe NOBpeДа, рedingно поверяbaite Гльва та на душа и я поисваite, ako e HeobxOdmo.

OnncaHne

Pe3epBoapbT 12 Ha coJapHnIyUc Ce nbJHn C BODa OT CbBp3aHn C Hero rpaAnHckn Mapkyu. BoaTa ce HarpBa OT cJbHueBNTe JbU, TbN KaTO UePHaTa MaToBA NOBbpxHOCT Ha pe3epBoapa Otpa3raBa MHOrO MaIKo CJIbHueBa eHeprn.

COnapHnT Duyu HMa DnpeKTeH Tpb6onpOBoD 3a NoJaBaHe Ha CTyDeHa BODa KbM CmecnteJr, KoETo OcnrypRa OTInuHOTOp epyuHpaHe Ha TemnpaTypaTa Ha BOdTaB dywa.

I3o6paXeHneTo noka3Ba KaK yHKUHOHpa coJapHnT dyu:

LJIINrKOpNcHaNyMa e NbJneH C BODa H ToI ΦyHKUOHNpa NOoBOHa eJeKTPnueeCKn BoJlep, npu KOnTO 3aToONHeHaTbODa ce Cb6npa CbIo rope.

Korato e HeobxOma TOnla BOna, CbC
cmeiteJHa NbHOTo Ha pe3epBoapa 12 ce
nycka cTydeHa BOna n OT pe3epBoapa ce
n3TJaCKBa TOnla BOna, KOrTO Beue e 3aqrTa B
rohpata My qact.

Taka BcKaBO HaIraHe OT HarpaBaHe B pe3epBoapa MoKe Da 6bDe OTBeDeHO pE3 dyu nITata 14. Toba BOIN Do o6pa3yBaHTo HA KaKN OT dyu nITata, KOrato CmecnteJrT e 3aTBOpeH.

Iodrotobka

Iodrotobka Ha mactoto 3a nHctanipane N Bpb3Kn

DyubT Tp6Ba Da e 3akpenen KbM OCHOBaTa, 3a Da e cta6nJEn H da ce n3noJ3Ba 6e3oNaCHO.

Dyubt ce nHctanipa Hai-CTaunno Bbpxpnu paBn Hennb3raunce 6eToHHn nnbpBeHN oCHOBN.

IobpnaT n36op n do6paT a no1roTOBka Ha mAcTOTO 3a IHCTaJInpaHe yIeCHyBaT 3HaUHTeHIO HnCTaJInpaHTo n o6cnyXbaHTo Ha du7a. Tp8Ba Da 6bDaT n3NbJIHeHn IIn B3EtN ppeDbNd CJIeHNTe N3NUCKBaHn:

• HaIyuHe Na BODOCha6JaBaHe n OTBODHЯBaHe, 3akpenBaHe n CJbHuYeBa CBeTJIHa
• Cta6nHa, paBHa, yctOuHbHa Ha BOda N HeNlb3raUa ce NOBbpxHO, aJItePHaTINBHO NOOBA HactnIka (ApT. No 049028)

BHIMAHNE!

Onachoct OT HapaHbAhe!

PpOdykTbT MoKe Da naDHe.

• 3a INHCTanaIaIraTa e Heo6XODIM BTOpN YOBek, KOITO da IbpxN npOdykTa.

3a da noDrotBnTe MrcTO 3a HnctaHnpaHe, npOceHnpaTe, KaKTo CJIeDbA:

1. BtopnT yOBek no3nIOHnpa Dywa Ha JeJahOTo MrcTo I ro NoCnrypBa CpeSy naDaHe. MapKnpaTe MeCTaTa 3a npobuHahe ppe3 OTBOpTe B OCHoBaTa Ha Dywa.
2. OTeTaPaHete DyaO t MrcToTO 3a HnctaJnpaHe.
3. ⅢποπλBaIte 6opMaùnHa, 3a προδηTe ΠoIxOДЯιTe OTBOPN 3a ɪsθρaHŋ 3akpeŋBaʌmATEpnaB B nɒda.
4. NocTabete KpenexHnTe eJemeHTN (HaNP. DIO6eJI) B OTBOpHTe.

Mycmomo 3a uHcmanupane e nodeombeHo.

Инстадиранe

Crno6BaHe Ha coJapnIyW

YKA3AHNE!

• 3aBnIte 3dpaBO OTdeHnTe Yactn Ha pbka, 6e3 Da n3noJ3BaTe HNCTpyMeHTn, 3a da n36erHeTe OnaCHOCTTa OT NOBpeDa No Bpeme Ha MOHTaxa.

BnHTOBnTE Bp3Kn yNtBTHaBt OSe npEi 3aBnHTBaHeTo Do yNop, TaKa Ye da MoKeTe Da nOpabHnTe OTdeHNITE Yactn npaBnHNo. OTbOpNTe Ha BCnKc CbIeCTByBaUu N3XoDn 3a BODa (HaNP.: dyw nITaTa IIN KpaHa 3a CTyDena BODa) Tp6Ba Da couat HADOly. Ako BNHTOBnTE Bp3Kn He ca HanbJInHO yNtBTHehNi, yBnTIpe3bata C TeFIOHOBA JeHtA.

3a da crno6nte conapnry duy, npoueepaTe, kaKTo cJeDbA:

1. NocTabete ynnbTHnHTe npbCTeHn 13 B OTBopa B rOpHaTa qacT ha pe3epBoapa 12.
2. 3aBnTe duu nntaTa 2 Ha pe3epBoapa 1 C KInou C BbTppeWeH WeCTOCTe H 14 N BNHTOBeTe 3a 3aKpenBaHe 12.
3. 3aBnTe aanTepa 3a Mapkya 3 Ha npncbEduHInTeJHHeJeMeENT 3a Mapkya.

1. NocTabete ynnbTHnTeHnna npbcTeH 7 Bbpydpbjkaa3a pbuen dyu8
2. 3aBnIe Ibpxkaa 3a pbyeH nyu B pe3epBoapa.
3. 3aBnIe Mapkya Ha IbpXkaHa npbYHnI dyu.
4. 3aBnIe Mapkya KbM pBChnA dyu 9
5. NocTaBeTe pUHHa DyuB bDpKaHa.

Conapnmu m dyu e canaoben.

HcTaInpaHe Ha coIapnY dUw

IocTaBeTe cOnapHnry Duy Ha NODrOtBeHOTo MrcTO 3a IHCTaJIuPaHe. BHMaBaTe cOnapHnry Duy da e opneHTnpaH BKeJaHaTaNOCoka.

BtopnT YOBek Ibpxk Ndywa, DOKATO 3aBnBaTe OCHOBaTa Ha dywa KbM OCHOBaTa C NOMOuTa Ha KpeNexHm MaTePnAIn.

Hamblahe ha pe3epBoapa

PpoeHpaIte, KaKTo cJeBa, 3a Da HanbHnHe pe3epBoapa Ha coNaHnA duw:

1.ПикpenTe rpaHnckm Mapkyu KbMaAnTepe3aMapkyua 3И КраHa Ha BOOnpoBOHaTa Tpb6a. IocTabeTe rpaHnckm Mapkyu, TaKa Ye Da He PpeDcTbIyBa OnaCHOCT OT CnBBAHe.
2. OTBOpTe KpaHa 3a Boda. 3aBbPteTe CmecnteTn 11 DOKpaH Ha no3uNra ,ro OTbOpeTe. B Ta3n no3uNra pe3epBoapbT ce nbJInn Hau-6bp3o. BoDaTa nOTnua B pe3epBoapa. HanbJBaHeTo Ha pe3epBoapa npodbljXaba OKoI0 3 MmHyTu.
3. LOM BODATA NOTEU paBHomepHO OT dyu NITaTa 14, 3aTBOpTe CmecnteJIa.
4. 3aTBOpete KpaHa 3a BOdaTa Ha BOdONpOBoHHaTa Tpb6a.

Pe3epoapbmeHaHbJIHeH.

06cnyxBaHe

I3noJ3BaHe Ha coJapHnA dUw

Ipei Da n3non3BaTe Baunra coJapen dyu, o6bphete BnMaHne Ha cneHoto:

• Ako npodykTbT He ce n3noJ3Ba dIbIro BpeMe, B TOnJaTa BOJa MORa Tda Ce pa3MHOxat 6aKTePnN MHKPOOPraHn3Mn, IMa OnaCHOCT OT INHcEKeu! Pe3epBoApbT Tp8Ba Da ce n3npa3Hn.
• Tempepatpata Ha BODaTa B pe3epBoapa 3aBnCn OT CJIbHueBOTo N3JIbUbaHe. PIn O6NaHObpeMe BOdaTa ce 3arpaBa No-DbJnro BpeMe. PIn INHTeH3INBHa CJIbHueBa CBETnHa BODaTa MoKe da 6bDe MHOrO ropeuca.
• OTrpaHete BCnUKN npenTCTBnO 30HaTa Ha Dyua.

PpoeDpaIte, KaTcO CneIBa, 3a Da n3nON3BaTe HAnbJIHeHn cOnapeH nyw:

1. PnKpeTe rpaHnckm Mapkyu KbMaanTepa 3a Mapkyua 3 n KpaHa Ha BOOnpOBOHaTa Tpb6a. IocTabeTe rpaHnckm Mapkyu, Taka Ye da He npedctabna OnaCHOCT OT CnBaHe.
2. OTbopete KpaHa 3a Boda.
3. NocTabete Bbptrauncepepynatop Ha JekaHata HacTpoKa Ha NywaBbptrauncepe pynatop ce fNkCnpa B npabnHnTe No3uCn C ,ppaKba
4. NocTabete cmeCnTeTna Ha cpeHaTa no3nua (MeKdy ropeuio n CTydeHo).
5. OTBOPeTe CmecnteJIa.
6. 3aBbptete Cmecntela HaJIbBO NJIH HADcHO, 3a da perylnpate TemnepaTpaTa Ha BODaTa.
7. PpomeHeTe KOJIInueCTBOTO Ha BOdaTa N TEMpePaTypaTa Ha BOdaTa CbC CmecnteJIA.
   8.Cnei n3noJ3BaHeTo Ha dywa 3aTBOpTe CmecnteJIa.
8. 3aTBOpete KpaHa 3a BOJaTa Ha BOOnpOBoHHaTa Tpb6a.

B3emaHemo ha dyu e 3aebpuueHo.

Iopn npn 3aTbOpEn Cmecnten NOHkora MoKe Da Teue BODa OT dyu NITata. TOba e cIeCTBnE OT 3arpyBaHeTo Ha ropeaTa BODa B pe3epBoapa 6e3 HaNraHe n He e DeΦeKT.

HaInuHn HacTpoKn 3a Dya

IbXIOBENdUwBoaTaTeueHcuaTaNOBbpxHOCTOTIO3HTeHaDyWnITaTa

14.

PbueH Duy BodaTa Teue n3uTo ot puchnA dyu

Bɔdonna

Bodata n3TuHa npe3 uPOKnA uNtB OCHOBaTa Ha duu NITATA 14.

Почистванe

IounCTBaIte npOdykTa c obNKHOBeH npenapat 3a 6aHI, YnCTa Teuaa BODa N KbPna, KOrTO He OCTaBnBlaCInHKn. ArpeCINBHnte npOcNCTBaUe npenapatm MOra Da nobpeJr npOdykTa. IocSyweTe npOdykTa C KbpNa, KoTTo HE OCTaBnBlaCInHKn.

Демонох

N3npa3BaHe Ha pe3epBoapa

Pa3kaye CoIapHnry Duy OT BODonpoBOnHaTa Tpb6a. OTBopeTe CmecnteJn pa3BnTe KanaQkata 3a I3npa3BaHe, 3a Da n3nycheTe BOdTa OT pe3epBoapa.
