USER MANUAL Poolrunner Battery Basic 2.0 Steinbach

Poolrunner Battery Basic

Package contents/components

Top part
Filter unit
Bottom part

4 Hook
5 Charger

Instruction manual (not shown)

Components

6 Handle
Water discharge nozzle
Wheel
9 Dirt flap

10 Locking clip
ON/OFF switch
Charging socket
13 Cleaning strip

Contents

Overview 2

Package contents/components. 17

General Information 19

Explanation of Symbols 19

Safety 20

Unpacking and checking the package contents 21

Description 22

Description of the pool cleaner. 22

Preparation 22

Charging the rechargeable battery 22

Basic settings 23

Operation 24

Cleaning the pool. 24

Switching off the device 25

Cleaning 26

Cleaning the device. 26

Storage 26

Troubleshooting 27

Technical data. 28

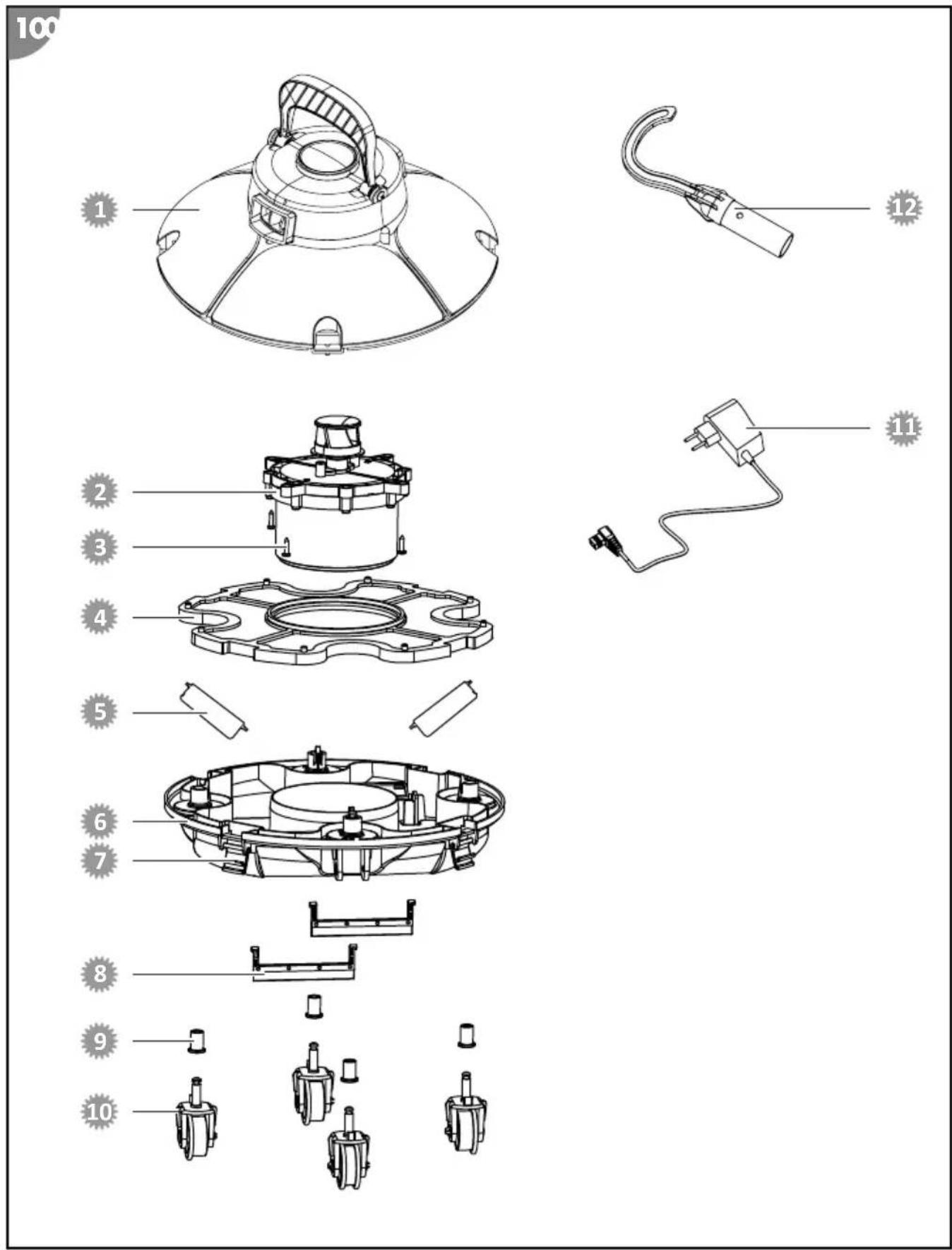

Spare parts. 29

Declaration of Conformity 30

Disposal 30

General Information

Read and keep the operating instructions

These operating instructions are part of the Pool Runner Battery Basic pool cleaner (in the following also called "device"). It contains important information about startup and operation. Read the operating instructions and especially the safety instructions carefully before using the device. Non-observation of these operating instructions can lead to severe injuries or damage to the device.

Keep the operating instructions for further use. If you pass on the device to a third party, you must pass on these operating instructions as well.

Intended use

This device is exclusively intended for the maintenance cleaning of private foil pools with a foil thickness of < 0.4 mm and a smooth and level floor without any obstacles (such as folds, floor drains, steps or stairs).

The cleaning performance may be limited in pools made of alternative materials (such as GFK, stainless steel or tiles) due to the surface structure.

The device is not suitable for the removal of large sediment quantities that occur in pools with biological water treatment (such as eco swimming pools or natural pools).

This product is exclusively intended for private use and not suited for the commercial sector. Only use the device as described in these operating instructions. Any other use is considered inappropriate and may lead to material damage or even injury. The device is not a toy.

The manufacturer or retailer will not assume any liability for damage caused by inappropriate or incorrect use.

Explanation of Symbols

The following symbols are used in these operating instructions, on the device or on the packaging.

Here you will find useful additional information.

Risk of damage!
Do not open the packaging with sharp or pointed objects, such as cutters

Lithium-ion batteries in equipment or lithium-ion batteries packaged with equipment. Pool cleaner

This symbol provides information about the energy efficiency of external power adapters.

Only use the charger indoors

Electrical device with double insulated housing (protection class II)

Safety

The following signal words are used in these operating instructions.

WARNING!

This signal symbol/word denotes a hazard with an average risk level that could lead to death or severe injury if it is not avoided.

CAUTION!

This signal symbol/word denotes a hazard with a low risk level that could lead to mild or moderate injury if it is not avoided.

NOTICE!

This signal word provides a warning about potential material damage.

General safety instructions

Safety instructions for persons

WARNING!

Danger to children and persons with reduced physical, sensory or mental capacities (such as partially disabled persons/older persons with reduced physical and mental capacities) or persons lacking experience and knowledge (such as older children).

Improper handling of the device can lead to severe injury or damage to the device.

• Only allow others to access the device after they have read and comprehended the entire manual or have been instructed about the intended use and the associated risks.
• Never let persons with reduced physical, sensory or mental capacities (such as children or drunk people) or a lack of experience and knowledge unsupervised near the device.
• Never allow children and persons with limited physical, sensory or mental capacities or persons lacking the respective experience and knowledge to operate the device.
• Do not let children clean or service the device.
• Children are not allowed to play with the device or with the power cable.
• Do not operate the device when impaired (e.g. under the influence of drugs, alcohol or medication).

WARNING!

Risk of injury through insufficient qualification!

Insufficient experience or skills for handling the required tools and insufficient knowledge of regional or normative regulations for the required work can lead to severe injuries or material damage.

• Assign all work whose risks you cannot estimate due to insufficient personal experience to a qualified expert.

Additional safety instructions for chargers

Use and handling of the charger

• Only connect the charger if the mains voltage of the socket matches that on the type plate.
• Only connect the charger to an easily accessible socket so that you can quickly disconnect it in the case of a fault.
• Always ensure sufficient ventilation while charging the rechargeable battery. Gases might be released.
• Only use the charger to recharge rechargeable batteries approved by the manufacturer.

• Do not recharge non-rechargeable batteries.

• A cracked or otherwise damaged rechargeable battery must not be connected to the charger.

• Protect the charger from any kind of moisture.
• Only use the charger indoors. Never operate it in damp rooms or in the rain.
• Never use the charger in environments with explosive or flammable materials. Risk of fire and explosion.
• Do not place any objects on the charger and do not cover the charger.
• Do not install the charger close to a heat source.
• Regularly check the charger for damage.
• Do not use a damaged charger until it has been repaired.
• Do not take the charger apart. Repairs must only be carried out through a licensed technical customer service.
• Do not use the charger if it has been subjected to blows or knocks or if it was dropped.
• Disconnect the charger from the mains after each use.
• Disconnect the charger from the mains before cleaning, servicing, storing and transporting it and let it cool down completely.
  Only charge the rechargeable battery with chargers recommended by the manufacturer. A charger that is suited for a certain type of rechargeable battery poses a risk of fire if it is used with other types of rechargeable batteries.

Unpacking and checking the package contents

WARNING!

Packaging materials pose a risk of suffocation!

Catching your head in the packaging foil or swallowing other packaging materials can cause death. There is a higher risk for children and mentally challenged persons who cannot estimate the hazard potential due to lack of knowledge and experience.

• Prevent children and mentally challenged persons from playing with the packaging materials.

Description

Description of the pool cleaner

The battery-operated pool cleaner cleans your filled pool in automatic mode to keep it clean.

Strongly curved transitions from the floor to the wall of the pool can affect the autonomous functioning of the robot, depending on the radius and angle of impact as well as the speed of the robot.

The positions of the wheels 8 influence the travel path of the pool cleaner.

The removable filter unit 2 filters the water and collects deposits in the pool.

The optional cleaning strips 13 can improve the cleaning result depending on the degree of soiling.

When the rechargeable battery is drained, the pool cleaner stops cleaning.

Preparation

Charging the rechargeable battery

WARNING!

Risk of fire!

Charging at a temperature below 10^ leads to chemical damage to the cell and can cause a fire.

• Charge the rechargeable battery at room temperature.

NOTICE!

Incorrect charging and discharging can significantly impair the performance of the rechargeable battery.

• Charge the rechargeable battery completely before using the device for the first time.
• Recharge the drained rechargeable battery completely within 12 hours.
• Fully recharge the rechargeable battery at least once every three months, even if the device was not used during this time.

NOTICE!

Charging the rechargeable battery in a wet or moist charging socket leads to corrosion of the contacts.

• Only connect the charger to the device if the charging socket is dry.

NOTICE!

The handle might become damaged if the device is stored on its head.

• Never set down the device on its head.

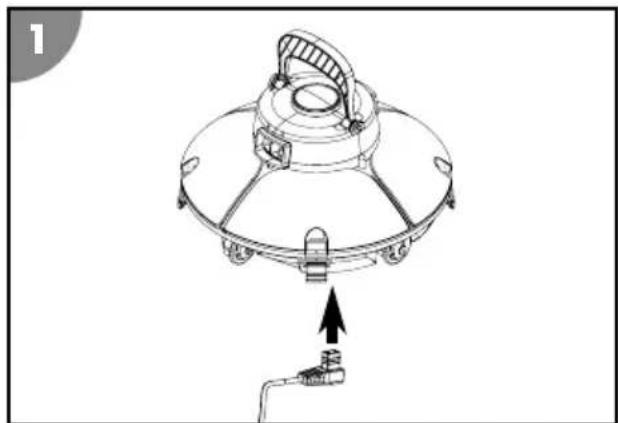

Charging process

1. Switch off the device before charging.
2. Connect the charger to the device.
3. Plug the charger into a socket. The charge control indicator is lit red. The rechargeable battery is charging.
4. When the charge control indicator is lit green, disconnect the charger from the power supply and the device.

The rechargeable battery is charged.

Basic settings

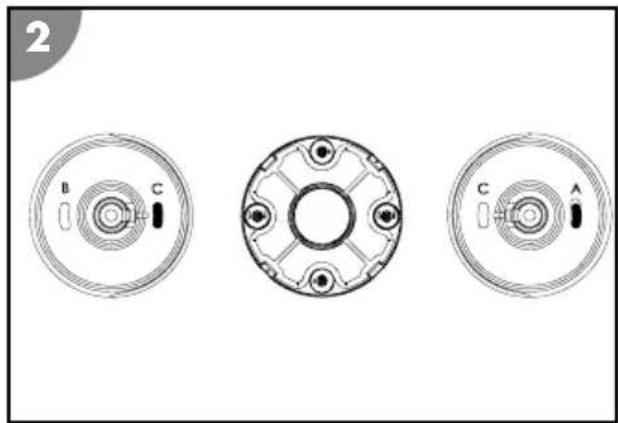

Adjusting the wheels

You can adapt the working radius by adjusting the wheels.

We recommend the following settings:

C-A: Setting for most pools (standard setting)
B-C: Setting for large pools
B-A: Setting for small pools

1. Press the retaining lug away from the half axle and pull off the wheel.
2. Insert in the wheel with the catch so that it snaps into place at the respective letter for the selected setting.

The wheels are set.

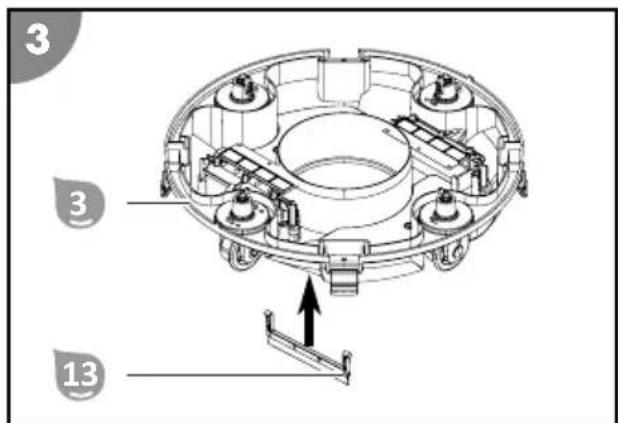

Attaching the cleaning strips

Cleaning strips can improve the cleaning of your pool, depending on the conditions on site, such as type and quantity of dirt or surface structure of the bottom. Only operate the device with the cleaning strips attached if this leads to a better cleaning result.

1. Insert the cleaning strips 13 into the suction channels on the bottom of the bottom part 3
2. Make sure that the cleaning strips have properly engaged and have a tight fit.

The cleaning strips are attached.

Detaching the cleaning strips

1. Pull on the frames of the cleaning strips 13 and take them out of the bottom part 3

The cleaning strips are detached.

Operation

WARNING!

Do not operate while swimming! Mortal danger!

Hair or clothing can be sucked in or trapped by the cleaning element, hold persons under water and, in extreme cases, prevent them from resurfacing.

• Never operate the device while there are persons in the pool.
• Prevent any access to the pool as long as the device is in operation.

Check the following before each use:

Is there visible damage on the device?
- Is there visible damage on the control elements?
- Do all individual parts function?
- Are the accessories in perfect condition?
Are all cables in perfect condition?

Do not start up a damaged device or damaged accessories. Have them checked by the manufacturer or its customer service or a qualified service technician.

Cleaning the pool

Observe the following before cleaning your pool:

• Remove any cover or foil from the pool.
• Remove obstacles (such as a ladder) from the pool.
• Switch off the filter system at least one hour before the start of cleaning so that particles in the water can settle on the floor.

Proceed as follows to clean your pool:

1. Insert the filter unit.
2. Place the device in the pool and switch it on.

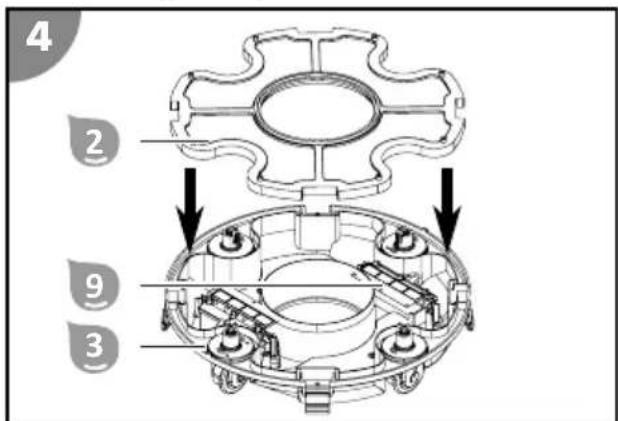

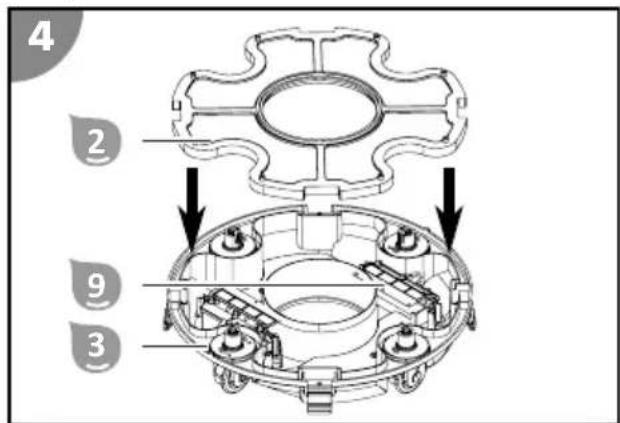

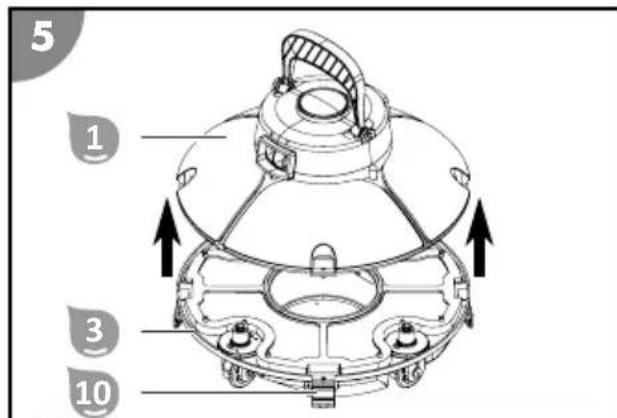

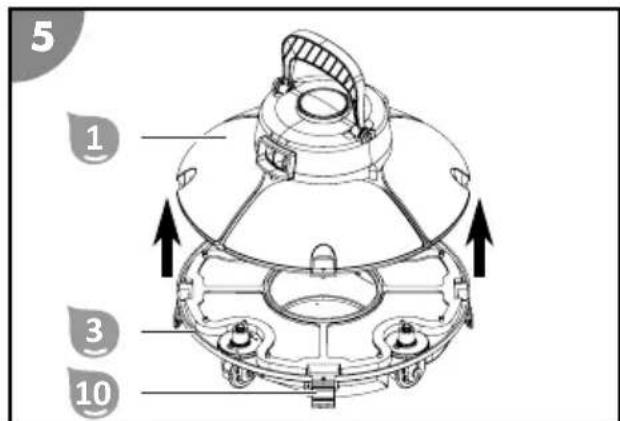

Inserting the filter unit

1. Make sure that the dirt flaps are closed before inserting the filter unit.
2. Insert the filter unit into the bottom part in the correct position with the guide lugs pointing upwards.
3. Place the top part 1 in the correct position on the bottom part 3. In doing so, pay attention to the guide lugs on the marked locking points.
4. Close all clips 10.

The filter unit is inserted.

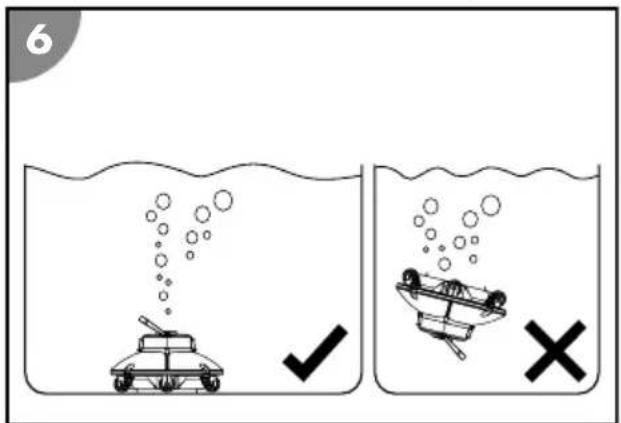

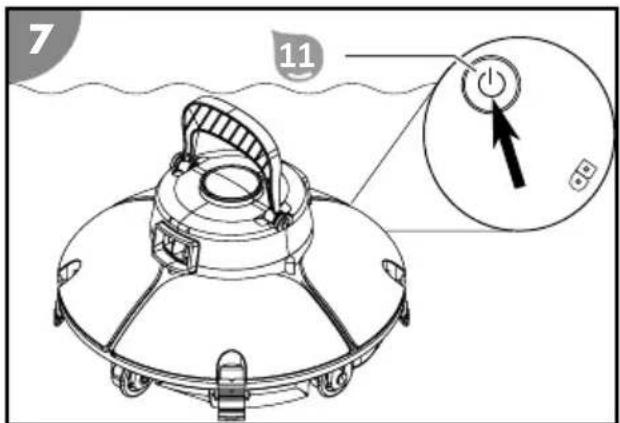

Placing the device in the pool and starting cleaning

1. Hold the device by the handle and lower it slowly into the water (tipped slightly forward) until all the air has escaped.
2. Press the ON/OFF switch on the bottom until it snaps into place. If the ON/OFF switch is pressed when the device is not in the water, it beeps and does not turn on. The device switches on 15 seconds after it is lowered into the water.
3. Then let the device sink to the bottom of the pool. Make sure that the device lands on the bottom of the pool on its underside and that cleaning can start without obstruction towards the center of the pool.

The device is in the pool and starts cleaning with a time delay.

Cleaning stops automatically if the rechargeable battery dies. Press the ON/OFF switch to stop cleaning early and to switch the device off.

Switching off the device

Proceed as follows to switch off the device:

1. Lift the device out of the pool and switch it off.
2. Clean the filter unit and the device.

Lifting the device out of the pool

1. Slowly pull the device by the handle to the surface using the hook 4 and a telescopic rod (not included).
2. Grab the device by the handle and turn it upside down while slowly lifting it out of the water. This way you ensure that the dirt collected in the filter does not wash out again.
3. Hold the device upside down above the water surface. After 10 to 15 seconds, most of the water that has collected in the housing has drained back into the pool.
4. Press the ON/OFF switch on the bottom until it snaps into place.

The device is switched off.

1. Set down the device next to the pool.

The device is lifted out of the pool.

Clean the device after each use to ensure continued trouble-free operation.

Cleaning

Only clean the device with a standard bathroom cleaner, clear tap water and a lint-free cloth. Aggressive cleaning agents can damage the device. Dry the device with a lint-free cloth.

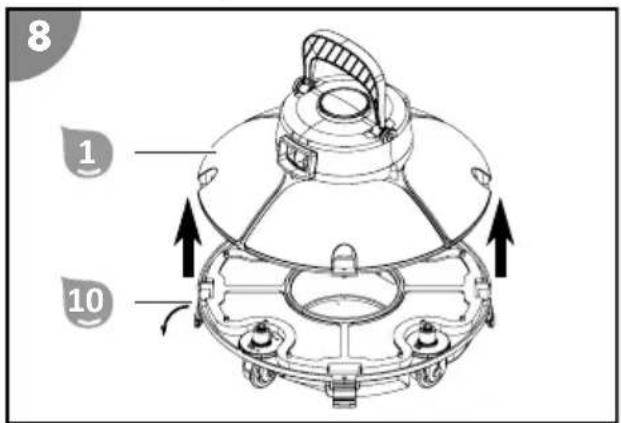

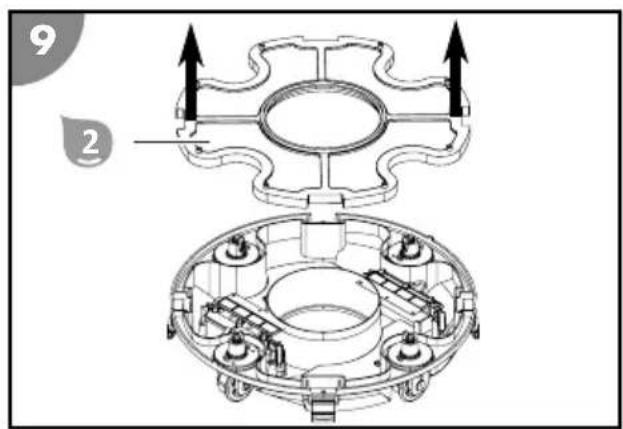

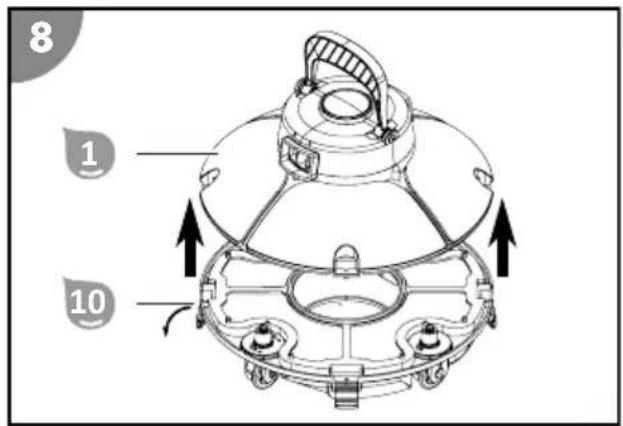

Cleaning the device

1. Open all locking clips 10.
2. Take the top part 1 off.
3. Remove the filter unit 2
4. Thoroughly rinse the filter unit with plain tap water.
5. Rinse the device after each use with plain tap water inside and out.

The device is clean.

Storage

NOTICE!

The handle might become damaged if the device is stored on its head.

• Never set down the device on its head.

• Thoroughly clean the device (see section "Cleaning").

• Let all parts dry completely.
• Fully charge the device.

Recharging is required after at latest 3 months due to self-discharge.

1. Then store the device and its accessories in a dry and frost-free place (≥ +5^) without direct sunlight.

Troubleshooting

Fault description Cause Remedy
The device cannot be switched on. The rechargeable battery is drained. Change the rechargeable battery.
The rechargeable battery is defective.	Contact customer service.
The ON/OFF switch has been pressed out of the water. The device beeps but does not switch on.	Place the device in the water and wait 15 seconds until the device turns itself on.
The charge control indicator is not lit.	The charger is defective. Contact customer service.
The device beeps. The device is out of the water. Place the device in the water.
The device continues beeping after it has been placed in the water.	The device is defective. Contact customer service.
The device cannot reach all spots. The wheel setting does not fit the pool size.	Adjust the wheels to fit the pool size.
The pool has a special shape. Adjust the wheels. Select the setting for small pools.
The water circulation of the pool is switched on.	Switch off the filter system of the pool.
The device does not turn around at the pool wall.	The handle, the water discharge nozzle or the cleaning strip is stuck.	Remove the obstruction, remove the cleaning strips or contact customer service.
The device floats up or turns in a circle on the pool floor.	Too much air in the housing. Let all air escape.
The salt content is too high and the device has more buoyancy.	Set the correct salt content. See section "Technical data".
The rechargeable battery runtime is shorter than expected.	The water circulation of the pool is switched on.	Switch off the filter system of the pool.
The water temperature is too low. Only use the device under the permissible operating conditions. See section "Technical data".
The rechargeable battery was not completely charged.	Charge the rechargeable battery completely.
The pool floor is not level. Only use the device in pools with a level floor.

If the fault cannot be rectified, please contact an authorized specialist or the Steinbach support team.

Technical data

POOL CLEANER CHARGER

Model: HJ1101JS Model: HT-A56-12610EB

Item number: 061208 Rated power: 29 W

Width of cleaning element: 200mm (7.9 in.) Operating voltage and

frequency:

100-240 V\~, 50/60 Hz

Speed: max. 16 m/min (53 ft./min.) Output voltage: 12.6 V

Immersion depth: max. 2.0 m (6.5 ft.) Safety class: IP20

Filter mesh: 180~ m

Safety class: IPX8

App control not available POOL

Pool size - floor area: max. 10m^2 (108 sq.ft.)

Salt content in water (salt < 0.5% electrolysis):

Water temperature: 10^ to 35^ (50°F to 95°F)

Ambient temperature: 10^ to 40^ (50°F to 104°F)

RECHARGEABLE BATTERY

Type of rechargeable Lithium-ion battery:

Rechargeable battery 2,600 mAh capacity:

Charging time: 3 to 4 hours

Battery running time: up to 60 min.

Spare parts

061298 - rotating top assembly + top part

061296 - locking clip

061419 - motor unit

061288 - cleaning strip

061286 - screw, 3.9 x 16

061289 - wheel socket

061293 - filter insert

061290 - wheel

061294 - dirt flap

061418 - charger

061297 - bottom part

061292 - hook

Declaration of Conformity

You can request the complete text of the EU Declaration of Conformity from the address stated at the end of this instruction manual.

Disposal

Disposing of the packaging

Sort the packaging before you dispose of it. Dispse of paperboard and cardboard with the recycled paper service and wrappings with the appropriate collection service.

Disposing of used appliances

Applicable in the European Union and other European countries with separate collection systems for recyclable materials.

Used appliances do not belong in the household waste!

If the device can no longer be used, each consumer is obligated by law to drop off used appliances separate from the household waste at a municipal collection point. This ensures that used appliances are recycled properly and negative effects on the environment are avoided. Therefore electrical appliances are marked with the above symbol.

Batteries and rechargeable batteries must not be disposed of in the household waste!

You, the consumer, are obligated by law to deposit all batteries and rechargeable batteries, regardless of whether they contain hazardous substances* or not, at a collection point in your community/your district or at a retailer so that these can be disposed of in an environmentally-friendly fashion.

• marked with: Cd = cadmium, Hg = mercury, Pb = lead, Li = lithium

Akkumulator feltoltese 92

Alapbeallitasok. 93

Hasznalat 94

A medence tisztlitasa

* a kovetkez' jellel van ellatva: Cd = Kadmium, Hg = Higany, Pb = Olom, Li = Lithium

JIITNeBO-IOHH6aTePNB 6aTePN,ONAKOBH3aeHNO C 10nCTBaHe Ha 6aceHN

To3n cIMBOJ daBa
HhOpMaun 3a
eHeprInHaTaeKtNBHOCT
Ha BbHsHn 3axpaHbAun
yctpoiCTBa.

3apAHDHTO yCTPOIcTBO da ce n3PON3Ba cAmO B 3aKpNTn NOMeUeHn

EneKtpnuecknypeDn C DBOHNO 30JnpaH KOpNyc (Knac Ha 3aunTa II)

Бezonachoct

B hactoata nHctpykua 3a ekcnnoataunce n3no3BaT cneHNTe CnHaHn Dym.

PPEyPExKDEHNE!

To3n CnHaHe n CmB0J/CnHnHa Dyma O3HaayBa OnaCHOCTcBC CpeDHa CTeneH Ha pNCK, KOYTO, aKO He 6bJe N36eHaTa,MOKe Da DOBeDe Do CMBp TIN TeKo HapaHbAhe.

BHIMAHNE!

To3n CnHaJIeH CmB0JI/CnHajHa Dyma O3HaJaBa OnaCHOCT C HnCKa CTeNEH Ha pNcK, KOrTO, aKO He 6bJe N36eHaTa, MoKe Da IOBeDe DO JIeKN IJIN CpeDNH HapaHbAHn.

YKA3AHNE!

Ta3n CnHnHa Dyma npEynpeKdaBa 3a Bb3MOxHn MaTePnaHn UeTn.

06и yka3aHna 3a 6e3oNaChocT

Yka3aHn3a6e3oNaCHOCT3aXopa

PPEyPPEXDEHNE!

Onachoctn 3a Deu a N Iua c HamaJeHn cN3UeCKn, CeTbHN nIyymCTBeHn cnoc6hOCTn (HaNPmep Iua c YacTHUHn yBpeKdAHHa, NO-Bb3paCTHn Iua c OrpaHnueHn cN3UeCKn mEHTaHn CnoCo6HOCTn) nIi JInca Ha ONIT n 3HaHna (HaNPmep no-roJemn Deua).

HenpaBnHaTa paBoTa c yCTpoiCTBOTo MOKe npuHn TeKKn HapaHbAHn nIIN uTeN Ha yCTpoiCTBOTo.

• Pa3peweTe DoCTbI Ha dpyrN Iuca Do yctpoiCtBOTo eDba CneI KaTO ca npoeyn HAnbJIHO n ca pa36paJI N CMNCbJa Ha HAcTOraIcTO pBKOBoDCTBO IJN Ca IHCTpyKTIpaHn 3a CbO6pa3eHa c PpeDHa3HaueHHeTo YNOTpeBa n CBp3aHInTe C TOBA ONAChOCTN.
• Hnkora He octabray Te Xopa C HamaJIeHN 3nueckN, CeTUBH Nnn yMCTBeHN cnocoboctn (HaNP. Deua NNn PnraHn Xopa) nn Jnncs Ha ONNT n 3HaHna (HaNP. deca) B 6n30ct Do yCTPOINCTBOTo 6e3 NaD3Op.
  Hnkora He n03BoJraBaiTe Ha deca nn Jn Iuca C haMaJIeHN qn3NuCeKn, CETNBn nn JMCTBeHn cNoCo6HOCTn nn Jn JInCa Ha ONI NT 3HaHna Da n3NOJ3BAT YCTPOINCTBOTO.
  He donyckaIte nouchTbaHeto n noDpBxkaTa da ce N3BbPwBaT ot dea.
  -Да He ce donycka deca da ngparr cypea nnn npncbeneHnTeHnna Ka6eJ.
  He n3noJ3BaIte yCTpOInCTBOTO, aKo He ce ChyBcTBaTe Do6pe (Ha np. NOd Bb3JeICTBnETo Ha HapKOTUci, anKOxOJI nn MeDnKAMeHTN).

PPEyPExKDEHNE!

OnachocOT HapaHbAHe B pezytat Ha Iunca Ha KBaJIuΦnKauzra!

IINCBaIOnIT IINu yueHnI npN 6opabeHe C Heo6xOJIMN INCTpyMeHTN IINCBAU3HaHnOTHOCHO pernoHaJIHn IIN HOpMaTUBHn pa3npoe6b3a Heo6xOJIMN pOpeCNOHaJIHnDeHocTN MoKe Da DoBeE Do Ha-NcePNO3HN HapaHraBaHHN IIN MaTePnaJIHn UeTI.

• Bb3naraTe BCNUKn paBOTn, YNtO pNCKOBe He MOXeTe Da npeueHNTe qpe3 DocTaTbueH JnueH ONIT, Ha KBaINuΦnUpaHN CneunAInCTn.

Доьнтели уka3аня 3a 6e3oanachocT ha 3apdHn yctpoiCTBa

N3noJ3BaHe npa6Ota cbc 3apAHOTo yCTPOIcTBO

• CbpxeTe 3aprHOTO yCTPOIcTBo cAmO aKO MPexOBTO HAnpeXHeH He KOHTaKTHaT a KyTnCbOTBcTBA Ha nHΦOpMaunra TaBpXy TINOBaTaBeJa.
• Cbbp3BaIte 3apraHOTO yCTpOcTBo cAmo KbM JecHO DoCTbNHa KOHTaKTHa KyTna, 3a da MoKeTe 6bp30 Da r N3KnIOuHTe OT eNEKtpnueckata MpeKa B CnyaHa aBapnA.

-BuHaHn OcNpyraBaiTe DoCTaTbUHO BeHTNJaCnI np3apeJdaHe Ha akymyIaTOPHaTa 6aTePn. CbIeCTByBa OnaCHOCT OT 06pa3yBaHe Ha ra3OBe.
-Използвайтесярдноустбю само за зapекдане на одобpenOT npoиьдгелakymу latopнбateри.
- He 3apekdaIte He3apekdaIcu ce 6aTeepu.
- HanykaHa nIIN NOBpeDeHa no Dpyr Naunn akymyIaTOPHa 6aTePnR He Tp8Ba da 6bJe Cbbp3aHa KbM 3apdHOTO yCTPOIcTBO.
- Na3eTe 3apnHOTO yCTPOINCTBO OT BCKaKbB BnD BnaRa.
- 3no3BaTe 3apdHTo yctpoCTBO cMo B 3akpnT NomeeHn. Hkora He ro 3no3BaTe BbB BJaXH NOMEeHn nn npn DbXd.
- Hnkora He n3noJI3BaIte 3apJHOTO yCTPOJCTBO B CpeJa C ekCnIO3NBHN JINBb3PNaMeHIMMaTePnaJI. CbIeCTByBa ONaCHOCT OT NOXAp NJI EKCNIO3NIA.
- He nocTabraIte HnkaBn IpeMeTn Bbpx 3apdHoto yCTPOcTBO n He ro NOKpBaIte.
- He nocTaBraTe 3apJdHToTo yCTpOuCTBO B 6JIIn3OcT Do IIN3TOUHNK Ha TOnJIiHa.
- PeIDOBHO npOBepaIe 3apJHOTO yCTPOJCTBO 3a NOBpeN.
- He i3no3BaIte NOpeDeHO 3apAnHO yCTpoiCTBO, DOKaTo He 6bJe nonpaBeHO.
- 3apraHnOTo yCTpoiCtBO He Tp8oBa Da ce pa3rno6Ba. PemOHTHn DeHocTn Moar Ta Ce H3BbPWBa CAmO OT OTOpuAH TexHnueckn CepBn3.
- He n3no3BaIte 3apAHOTo yCTpoiCtBO npn n3laRaHe Ha ydApn nn ydaPn BbLnH, nnn CneI n3nyckaHe.
-ИзклочаиTe 3apdHOTO yCTpoNcTBO OT eJNEKtpnueckaTa Мржа спд BCЯka ynoTppe6a.
-Ппсдп почиствае, Тхнческо обслухвае, Сьхpaанец и ТраHCNoptupahe, ИЗКЛЮЧЕТа ЗapяДНOTO устpoистBO OT eNEKTPИчecKaТа Мржа И ГО OCTaBeTe Да ce OXlaДи HanbЛHо.
3apejdaTe akymyaTohata 6aTePncaMo cbc 3apAnu yctpoNCTBa, KOnTO ca npenOpbuaHOn OT npOn3BoDnteJ. Ipu u3no38aHe Ha 3apHO ycmpoucmeo, Koemo e npedHa3NaheO 3a onpeDeHen mui akymyamopHu bamepuu, cbuecmByBa onachocm npu u3no38aHe c dpyuakymyamopHu bamepuu.

Pa3oNaKOBaHe n npOBepKa Ha o6XBaTa Ha doCTaBkata

PPEyPExEHEIe!

OnachocT O3aDywaBaHe Upe3 onakOBbueH MaTepnaI!

O6xbaaHTo Ha rnaBata B onakobbUHO fOpno nIIN noTbuaHeTo Ha npytn ONaKOBbHn MaTePnAn MoKe Da IIOBeDe Do CmbpT Upe3 3aDywaBaHe. CneuAnHo 3a Deua, KaKTo n Xopa C yMCTBeHN YBpeXdAnH, KOINT B pe3yJITat Ha JInca Ha 3HaHn I ONIT He MOrat da PpeCenr T pCKOBTe, NopadN KoETo B Ta3N Bpb3ka CbIeCTByBa NOBnWeH pCKOB NOTeHnAn.

• YBepete ce, Ye c OnaKOBbHnMaTePnaI He cn nrgaT deca I Xopa C yMCTBeHNyBpeXdaHn.

Onncahne

OncaHne Ha ypeDa 3a nouchTbaHe Ha 6aceHH

3axpaHbAHnT c akymyIaTOPHa 6aTePnIy ypeI 3a NOUcTBaHe Ha 6aceHn I3NbJIHraBa pyTHHOTO NOYCTBaHe Ha BaIeN IbJIeN C BOJa 6aceH N ABTOMaTuYe H pexIM.

CnHIO n3BNTte npexoOn OT NOa KbM cTeHaTa Ha 6aceHa Morat Da BNOuAT aBOHOmHaTa pa6Ota B 3aBNCIMOCT OT paDnUca N bTbJa Ha yDapa, KaKTo I OT CKOpocTTa Ha po6Ota.

I03uHnTe Ha KOJIeHaTa 8 OKa3BaT BnHHe Bbpy NbTg Ha IpemecTbaHe Ha ypeDa 3a NOUcTbaHe Ha 6aceHn.

CbaJraemnT 2 HnItpnpa B0daTa n Cb6npa OTnaHnTa ot 6aceHa.

IpeDnaraHHTe KaTo OOnuN noUcTBaun e3NuTeTa 13 Moar Da nOdo6pT pe3yJTTaTa OT NOUcTBaHETo, B 3aBNCIMoCT OT CTeneHTa Ha 3aMbpcraBaHe.

Ako akymylaTophata 6aTePnE e n3ToeHa, ypeBt 3a NOUcTbaHe Ha 6aceHn IpeKpaTBA IONUCTBaHETo.

PojrotoBka

3apekdahe Ha akymyntophata 6atepna

PPEyPPEXDEHNE!

Onachoct ot noxap!

3apejdahe npTtempepatypa noD 10^ C ue doBede do xmueckn nobpeHn KaTeKaTa MoKe da npedn3Bnka noxap.

• 3apekdaTe akymyataopHaTa 6aTepeHn pni cTaNHa TemnepaTpa.

YKA3AHNE!

HenpaBnHTo 3apeXdaHe n pa3peXdaHe MoKe Da NOBnRe He6naRopnTHO Bbpxy efeKTHBHaTa pa6Ota Ha akymylaTopHata 6atePn.

• Ппдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳н. Наньлно.
• 3apeTe HAnbIHO n3ToUeHaTa akymyIaTOPHa 6aTepeRn B paMKeTe Ha 12 Yaca.
• 3apeKdaiTe HAnbIHO akymyIaTOPHaTa 6aTeepn INoHe BeHbX Ha BCEKn TpN Meceua, DOpN aKO npe3 To3N nepnoD ypeDbT He e 6nI n3nON3BaH.

YKA3AHNE!

3apekdaheTo Ha akymyIaTopHaTa 6aTePn, KOrato 6yKca 3a 3apeXdaHe e MOKpa IIN BlaJxHa, BOIN DO NOBIIeHa KOpO3NHa KOHTaKTtTe.

• Cbbp3BaIte 3apraHOTO yCTpOINCTBO KbM ypeHa, cAmO KOraTO 6yKcata 3a 3apeJdaHe e cyxa.

YKA3AHNE!

Pbkoxbatkata moke da 6bnde noBpeDeHa npn cbxpaHHe B o6bpHato nIOJoxHne.

• Hnkora He noctabryte ypea B o6bphato noloxhe.

3apexkdahe

1.ИЗклочеуpeда п dedи заразданe.
2. Cbpxte 3apnHOTo yCTPOIcTBO cypeda.
3. BkIIOUeTe 3apAHOTo yCTPOINCTBO B KOHTaKT. KoHmpOnHama lamna 3a 3apeXdahe cemu e cepEeHO. AkymyamopHama bamepu ce 3apeXda.
4. Korato KoHTponHaTa lamma 3a 3apeKdaHe CBetHE B 3eNEHO, N3KNIOUte 3apdHOTO yCTpOietBO OT 3axpaHbAHeTo n ypeDa.

Akymyamophama 6amepu e 3apedeha.

OchOBHn HacTpoiKn

HactpoBaHe Ha KOJIeJaTa

Pa60THnI rpaDnyc MoKe da ce peryJnpa Upe3 HacTpoBbHe Ha KOneJaTa.

PpeOpBvBaT ce cIeHnTe HaCtpoiKn:

C-A: Hactpoika 3a noBeyTo 6aceHn (CTaHdapTHa Hactpoika)
B-C: Hacpoka 3a roJemn 6aceHn
B-A: HactpoKa 3a MaKn 6aceHn

1.ИЗТЛЯСКАЕЗACTОРЯВАЦИЗьБOT UENCEJIHATAOCиИЗДБРNAITEKONEЛOTO.
2. NocTabete KOJenoto c 6noknpoBkata taka, ye CbuaTda ce qnknpa Ha cbOTBeTCTBaUaTa Ha n36paHata HAcTpoKa 6yKba.

Konenama ca Hacmpoehu.

MOnTnpaHe Ha noUcTbAunTe e3nueTa

B 3aBnCmOCT OT yCNOBnraTa Ha MAcTo, KaTo HAnp. BnDa N KOJIneCTBOTo HAtpyNaHO 3aMbpcBaHe IIN NOBbpxHOCTHaTc TpyKTypa Ha NoIOBaTa NOBbpxHOCt, NOUcTBaIuTe e3NuTe MoRat Da NoIO6pT NOUcTBaHETo Ha BaIgN 6aceH. Pa6OTe c UpeDa cAmO C npIKpeHn NOUcTBaIu E3NuTe, aKO Taka 3a6eJr3BaTe NOD6peh pe3yIITAT OT NOUcTBaHETo.

1.BkapaTe NOUcTBaUNTe e3NHTa 13B 3acMyKbAUNTe KaHAnOT DOJHaTa CtpaHa Ha DOJHaTa Yact 3.
2.YBepete ce,ye noHCTBaunTe e3nueTa 13 ca HAnbIHO uKcnpaHn cTaNJHo CToAun.

Noucmbaume e3uema ca MohmupaH.

DemOHnPaHHe Na noUncTbaunTe e3nueTa

1. XbaHete n H3TeTJeTe paMKaTa Ha NOUcTBaUHTe e3NueTa 13, 3a Da rN CBAJNTe OT DOJHaTa 3 Yact.

Noucmbaume e3uema ca demohmuha.

06cnyxBaHe

PPEyPPEKDEHNE!

Onachoct 3a kNBota npu pa6ota no BpeMe Ha Kbnahe!

Kocata nnn dpexnte morat da 6bdaT BcmykaHn nn 3axbaHaTH O T NOUCTBaun eIemEHT, a B ekCTpeMHn cnyan da 3aBpXaT Xopata noD BOa n da 6bDaT Bb3npenrTCTBAHN da N3nlyBat Ha NOBbpxHOCTTa.

• Hnkora He n3noJ3BaIte ypeia,doKaTO B baceHa mAmXopa.
• PpeoTbpaTe BcKaKbB DoCTbn Do baceHa,doKaTo ypeBbT pa60n.

PpeiBcraKa ynoTpe6a npOBepTe cneHTo:

• IMa JI N BVDIMN UETN NO YCTPOINCTBOTO?
  -Има Ли Видими Шети NO eJemeHTnte 3a упавленье?
• Iocoueha Jn e cyHKcua Ta Ha OTdennHte Yactn?
  -ПинадлжноТеВбурчсьстогпси ca?
• Bcunk Ka6eI IIN caB 6e3ynpueHc bctoHne?

He BbBexJaTe B EKcNlOaTaunia NOBpeJeHO yCTpoiCTBO IN pInHaJNeXHocTn. OcTaBeTe 3a npOBepKa n peMOHT OT Ipon3BOUnteIa,OTdela 3a o6cnykBaHe Ha KJIneHTn INI KBaINOpuPAH CneuaJIaNT.

Почистван На басян.

Ipei nOuHCTBaHe Ha 6aceHa, o6bPHeTe BHMaHne Ha cJeHOTO:

• OtctpaheTe eBentyaHn nokpntna, pecn. fonna ot 6aceHa.
• OtctpaHete npenTCTBnTa (HaNP. cTbJ6a) ot 6aceHna.
• N3KIOUeTe cHNTbPHaTc CnCTema NoHe Yac IpeDn HauAnOTO Ha NOuNCTBaHETO, 3a Da MOraT 3AmbpcraBAHrTa BbB BODaTa Da ce YTarT Ha DbHOTo.

Pn noHCTBaHe Ha Baun HpOeHnpaTe, KaKTo cJeDbA:

1. NocTaBete ΦNITbPnIa 6JIOK.
2. NocTabete yctpoiCTBOTO B 6aceHa I rO BKJIIOUeTe.

NoctabareHaΦnntbphn6Jok

1. YBepTe ce, Ye 3aunTHnTe KnaHn Cpeu y 3ambpcraBaHe ca 3aTbOpEn, npei Da noCTaBnte cnTbpHn6nK.
2. NocTabete 6Iok B npabnHO noIOXeHne B DOHaTa Yact C HapabnaHTe 3b6u, coyeu Haore.
3. NocTaBete rOpHaTaaCT B nPaBnHNO noJoxHe Bbpxy DoJnHaTa 3 aCt. Ppi TOBa BHMaBaIte HAnpabJIbRaUHTe 3b6u Da cBbNaHAt C MapKnpaHnte TOnK Ha cNkCupaHe.
4. 3aTbOpTe BCnUKn fNkCnpaun cKo6n 10

ΦunmbpHnarm bNOK e nocmaeH.

IocTabraHe Ha ypeBa B 6aceHa n cTapTnpaHe Ha nouchTaBHeTo

1. XbaHeTe 3dpabo ypeDa 3a pbkoXBaTKaTa 6 n rno notone Te 6abHO (neko HAKIOHe HAnpei) BbB BOdaTdo NbIHO u3nyckaHe Ha Bb3dyxa.
2. HatncheTe npeBknHouBaTeTn ON/OFF 11 ot donHaTa CtpaHa,doKaTo Tc ce fHKCuPa c upaKbaHe. Ako n3KnHouBaTeTn ON/OFF ce hatahe n3BbH BODaTa,ypebT n3daBA 3ByKOB CnHaI He ce BKJIOUBA.

Ypeobm ce akmuupa 15 cekydu cned nocmaehe bbe boda.

1. Octabete ypeBt da notbHe Ha IbhOTO.

YBepete Ce, Ye DoHnHaTc TpaHa Ha ypeDa DOKOCBa DbHOTo Ha 6aceHa, N Ye NOuHCTBaHETO MOKe Da 3aNoUHe 6e3npenrTCTBeHO B NocOka KbM ueHTbpa Ha 6aceHa.

Ypeobm e nocmaeB e baceuHa u cmapupa noucmeaHemo c omloxeh cmapm.

IOnuCTBaHTo Ce npekpatra BA bTOMaTHUHO, KOraTO akymyNaTOPHaTa 6aTePnE e NOuTuN3TOUeHa. 3a Da npekpatnte npexDeBpeMeHHo NOuCTBaHTo N da N3KIOUHTe UpeDa, HATNCHe TnpEBKnIOUbaTeTaN/OFF

I3BexkaHe Ha ypeDa OT ekCnloatauia

3a da n3BeDeTe ypeDa oT ekCnIooatauia, npoueDnpaIte, KaKTo cneDbA:

1.ИЗbaДeTe yCToPoiCtBOTO OT baceHa n To n3KJIIOUeTe.
2. NouicTeTe qnntbphn8 bOK u ycTPOIcTBOTO.

I3BaXdAHe Ha ypea oT 6aceHa

1.C NOMOuTa Ha Kykata n TeNeCKOnuH eHn pBt (He e B O6XbTa Ha DoCTaBkata) 6 N3DbpaNte 6abHo ypeDa KbM BOdHaTn NOBbpxHOCT.

1. XBaHTe ypeDa 3a pbKoXBaTKaTa 6 Iro 3aBbPTeTe HAO6paTHO DOKaTO 6aBHO IIOBnIraTe OT BOdATo. TOBa rapaHTnpa, Ye 3aMbpcBaHeto, Cb6paHO BbB dNITbpa, He MOKe Da 6bIe IpomITO OTHOBO.

3.ДрьжTe ypeHa HAO6paTHo NaB BoDHaTa NOBbpxHOCT.

Cne 10-15 cekynn noeeto ot cb6paata ce B kopnyca boda ce OTTu a obaTHo B 6aceHa.

1. HatncheTe npBkIouBaTeJr ON/OFF 10 donHaTcTpaHa,doKaTo Tc ce fKcapa c upaKaBaHe.

Ypeobme u3KnIOueH.

1. NocTabete ypeda do 6aceuHa.

Ypeobme u3eadeH om baceuHa.

IOnuCTBaIte ypea cneB Bcya ynoTpe6a, 3a da CTe cnrypHn, Ye ue npoDbJIkaBa da cyHKUOHNpa npabNlHO.

Почистванe

Почиствашие урEDA с обикноев пpenapat 3a 6ани, чіста Teчаши BAДа и Кьрпа, която He OCTавьласинки. ArpeсивнITE поистваши пpenapatni Moratда пореду урEDA. Порсушete урEDA с Кьрпа, К氧TO He OCTABA власинки.

Почистване на урEDA

1. OTbopete BCnUKN Kcnpaun cko6n 10.
2. CbaIeTe roPHaTa YacT 1.
   3.CBaJnteФnITbPHn6nOK 2.
   4.ИЗМЛТЕОБИНОФПТБРИЗБLOКСЧИСТАТЕАДА.
   5.ПомИВай Teурета спд BCЯуnotpe6a c bnctpa Teuaа BOДa.

Ypeobm enoucmeH.

CbXpaHHe

YKA3AHNE!

Pbkoxbatkata moKe da 6bde NOBpeDeHa pRn CbXpaHeHne B o6bphato nIOxkeHne. Hnkora He noCTaBraTe ypeDa B o6bphato nIOxkeHne.

1. NouncTeTe ⅢaTeHNO yCTpoNCTBOTO (BnKTe rnaBa "NouctBaHe").
2. OctaBeTe BCnUckn YacTn Da N3cbXHaT HAnbJHo.
3. 3apeTe Hnblno 6aTepnraHa yctpoCTBOTO. Iopadncamopa3pejdahe e Heo6xoDmO ppe3apejdaHe MaKc. Ha BceKn 3 Meceua.
4. Cnej TOBa npn6epTe ycTPOINCTBOTo n HcROBnTe npHAnJLeXHOCTn Ha cyxo n 3aunTeHO OT 3aMpb3BaHe MrcTo (≥ +5^) 6e3 npraKa cnbHueBa CBETNIHa.

YnpabJIeHHe Ha He e HAnuHo

PnIIOJKeHneTo

BACEH

Pa3mep Ha 6aceHHa - MaKc. 10 m²

ПLOUн ДьHOTO:

CbDpKaHHe Ha con BB <0,5%

BODaTa (COnHa

eNeKtpoN3a):

Tempepatya Ha BodaTa: 10^ - 35^

TemnepaTypa Ha OKoJHaTa 10°C - 40°C

cpea:

AKYMNYATOPHA BATEPNA

TnakymyIaTopHa NITneBO-NOHHa

batapeia:

KanaHTHa 2600 mAh

akymylaTophata batepna:

BpeMe Ha 3apeKdane: 3-4 yaca

PpOdbJNKeTJIHOCT Ha 60 MNHyTN

pa60ta:

Pe3epBn yactn

1 061298 - Bbptyca ce kya + roha yact

061296 -фнксраца ckoba

061419 - motopen arperat

061288 - nouchTbaio e3nue

061286 - BnHT 3,9x16

9 061289 -Втулka на кoleлOTO

4 061293 - Фильтураш[eleměměT

061290 - koJIeNo

061294 - 3aunTHa KlaNa cpeu y 3ambpcBaHe

061418 - 3apdno yctpoicTBO

6 061297 - Довна част

12 061292 - kyka

Декларачnia 3a сьOTВETCTBNE

ПьлнгТTekт Ha Deкларцураза 3a CBOTBETCTBne Ha EC moxe da 6bde n3nckan Ha NOCOUHЯ B kpar Ha HACTOJTO pbkOBODCTBO aDPEC.

I3xBbPJIaHe

N3XBbPJIaHe Ha onaKOBkaTa

I3XbPnTe ONAOBkA tCnopeBnDa N. I3XbPnTe BennaneTo n KApToHa B OTnAbuNTe 3a xapTna, fOJINoTO npN MaTePnAnITE 3a peunKnipaHe.

I3XBbPnHe Ha n3Jra3No OT ynoTpe6a yctpoiCTBO

PpIIOKIMOB Ebponeckn CbIO3 n npytn ebponeckn ctpaHn Cbc cnCTemn 3a pa3dienHO cb6npaHe Ha peuKInpyem MaTepnai.

N3Je3JN OT yNoTpe6a ycTpoiCTBa Da He ce N3XBbPJIr 3aeDHO C 6nTOBn OTnaDbu!

Ako ypeBbT Beue He MoKe Da ce N3No13Ba, BCEKn NOTpe6nteI e 3aDbJXeH NO 3aKOH Da H3XBbPnA N3Ne3Nt OT ynoTe6ba YcTPOcTBa OTdEHNo OT bHTOBnTe OTnAdBuH, HAnp. Da Tn PpeJaDe Ha NyHKT 3a BTOpUHN CypOBuH NBB CBOrTa O6UnHa/act Ha rpaDa. ToBa rapaHTnpa IpaBUNHO peuKInpae Ha N3Je3NITE OT ynoTe6ba YcTPOcTBa N36BraHeTo Ha HeraTNBHnTe B3DeiCTBnB BbpxO OKONHaTa CpeDa.

3aTObA eNeKtpOypeDnte ca 06o3HaueHn C rOpHnCmB0J.

OTnabnte ot 6aTeepnte n akymyNatopHnte 6aTeepn He Tp6Ba da 6bDaT cb6paHn B 6HTOBNTe OTnabt!

Kato noTpe6nteBn Cte 3aKOHOBO 3aIbJxHn Da c6bnpate BCuKn 6aTepn n AkymyIaTOPHn 6aTePnn, He3aBNCmO OT TOBa daJIIN CbIbPkAT BpeHN BeUecCTBa* IINI He, B cb6npaTeHe NpHK TBB BaWata O6uHa/rgaDCN paOH INI IN B TbprOBCKn Obekt Taka, Ye cb6npaHTo Ha OTNaDbUHTe Da 6bDe ekONOrnHo.

*MapKnpaHO c: Cd = kaDMn, Hg = XnBaK, Pb = oNoBO, Li = JInTm
