USER MANUAL 249422 PRINCESS

Exterior view of a PrinCESS coffee maker with glass and milk being poured (no text or symbols visible on the machine itself)

Espresso Machine

With Milk 01.249422.01.001

EN User manual 4
NL Gebruikshandleiding 12
FR Mode d'emploi 21
DE Benutzerhandbuch 30
ES Manual del usuario 40
PT Manual do utilizador 49

IT Manuale d'uso 58
sv Bruksanvisning 68
PL Instrukcja obsługi 76
cs Uživatelská příručka 86
SK Používatel'ská príručka 94

A

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

B

21 20 19 18

C

Diagram illustrating the process of a device's mounting mechanism, showing step-by-step assembly with MAX indicator.

D

E

Rotate the coffee powder funnel about 45 degrees so that the funnel's tab aligns with the water outlet opening.
Insert into the water outlet Rotate 45° to the right

User manual

Espresso Machine with milk

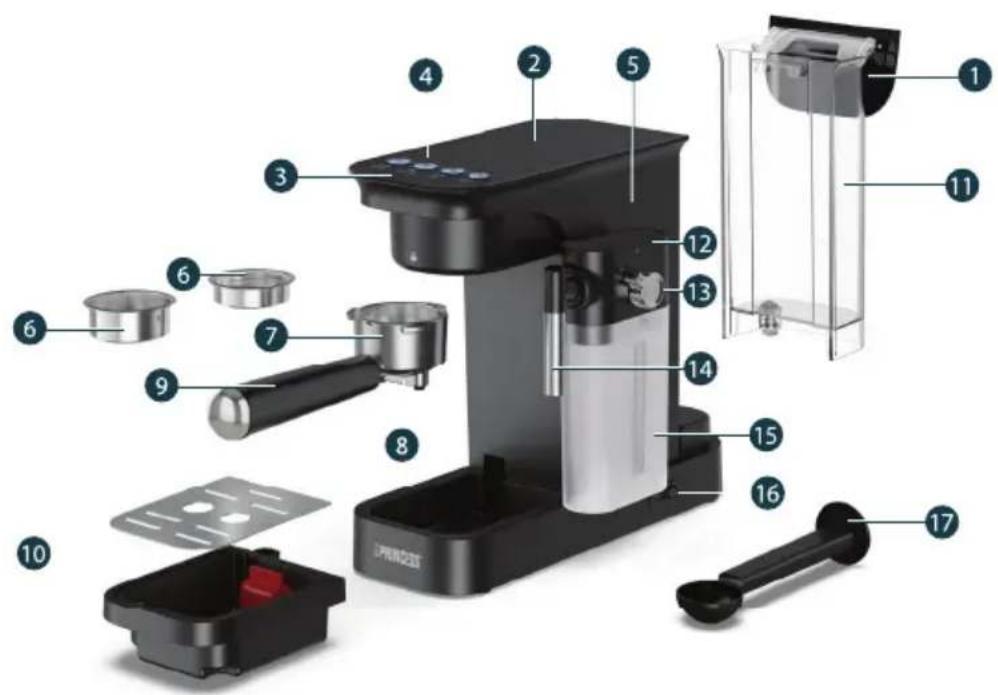

Main parts (see image A)

1 Water tank Lid
2 Top lid
3 Functional buttons
4 Light guide cover
5 Main unit
6 Filter

7 Filter basket
8 Coffee / Foam head
9 Handle
10 Drip tray
11 Water tank
12 Milk tank lid

13 Milk tank knob
14 Foam tube
15 Milk tank
16 Power button
17 Coffee scoop

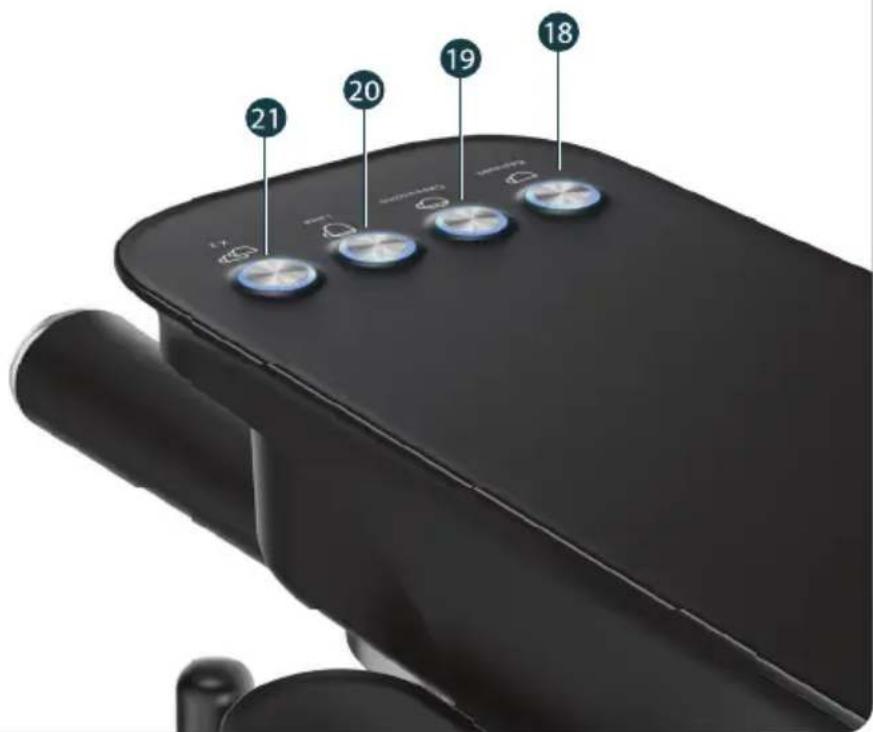

Function selection (see image B)

18 Espresso function
19 Cappuccino function

20 Latte function
21 Double cup function

SAFETY

Safety precautions

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
• The user must not leave the appliance unattended while it is connected to the supply.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• For the first operation, it is advisable to read the manual carefully beforehand and keep it properly for future use.
• If abnormal noise, smell, smoke or any other failure or

breakage is found during the operation, you should turn off the switch and unplug it. Then contact with your service center for repair. Do not repair by yourself.

• Be careful not to get burned by the steam.
• Do not touch the hot surface of appliance (such as steam wand, and the steel mesh just boiling). Use handle or knobs.
• Do not let the coffee maker operate without water.
• Do not remove the metal funnel when appliance in brewing coffee or making steam.
• Use only original accessories from the manufacturer to ensure safe and proper operation.
• Clean and maintain the machine regularly to keep your coffee tasting good and extend the machine's life.
• This coffee machine is for indoor use only. Do not use it outside.

WARNING

Safety hazard due to unintended use:

• Only use the appliance as described in this user manual.
• Never use the appliance if there are visible signs of damage or defects. Always replace a damaged or defective appliance immediately.
• Never make any adjustments to the appliance. Adjustments may affect safety, warranty and proper operation.
• Switch off the appliance before attaching any accessories, cleaning it, or dealing with any disturbance.
• Do not turn on the appliance when it is not filled with water.

Electric shock hazard due to short-circuiting:

• Always plug the coffee machine into a properly grounded outlet to avoid electric shock.
• Never immerse the motor unit in water or any other liquid. Only clean the motor unit with a soft, damp cloth.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised technician.
• Never lift the appliance by the power cable. Lifting the appliance by the power cable may damage the power cable. Only lift the appliance by holding the base.
• Never replace the power cable yourself. Always let the manufacturer, its service agent or a similarly qualified person replace the power cable.
• Always unplug the power cable when the appliance is not in use or unattended, and before cleaning.
• Always check if the voltage stated on the type plate of your appliance matches your mains voltage before use.

Safety hazard for children:

• Keep the appliance and accessories out of reach for children.
• Children should be supervised to ensure that they do not play with the appliance.

Fire hazard due to overheating:

- Always place the appliance on a stable, flat, heat, and moisture resistant surface.

- Never leave the appliance unattended when in use. Only use the appliance under supervision. Switch off the appliance and remove the power cable from the power outlet when you leave the room.

Fire hazard due to short-circuiting:

• Do not use the coffee machine in hot, humid, or magnetic environments. Keep it away from fire, stoves, or other appliances like fridges.
• Place the machine on a flat surface with at least 5 cm of space on the sides and 20 cm behind it. Don't let the cord hang over the edge.
• Never use the appliance in the immediate surroundings of a bath, a shower or a swimming pool.
• Never drop the appliance and avoid bumping. Excessive vibrations can lead to loosened connections and can influence proper functioning of the appliance. Stop using the appliance if the appliance has been dropped.

Safety hazard due to sharp parts:

- There is a sharp needle in the upper side of the capsule adaptor. Prohibit putting a hand or finger on any part near that needle after the adaptor is removed.

CAUTION

- Do not operate the machine with an empty water tank.

NOTICE

Risk of damaging the appliance:

• Never use aggressive chemical cleaning agents that can damage the appliance when cleaning the appliance.
• Keep the appliance and cord away from heat, direct sunlight, water, moisture, sharp edges etc.

FOREWORD

About this document

This user manual contains all the information for correct, safe, and efficient use of the appliance. Ensure you have fully read and understood the instructions in this user manual before you use the appliance.

Always store this user manual in a safe place near the appliance for future reference.

Original instructions

This manual is originally written in English. All other languages are translated documents.

General symbols

Symbol Description
	Applicable in France:The product or packaging can be recycled and components must be disposed of separately.Follow the local regulations.
	Applicable in Italy:The product or packaging can be recycled and components must be disposed of separately.Follow the local regulations.
	This product complies with conformity requirements of the applicable European regulations or directives.
	The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.
	The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.
	This symbol is used for marking materials intended to come into contact with food in the European Union as defined in regulation (EC) No 1935/2004.

APPLIANCE DESCRIPTION

About this appliance

The Princess 01.249422.01.001 is a coffee machine capable of preparing espresso, cappuccino, latte, and milk foam. It features single and double cup options, a dedicated milk tank for frothing, and supports ground coffee brewing.

Intended use

This appliance is intended for indoor use only.

This appliance is intended exclusively for domestic, non-commercial use.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels, and other residential type environments;
• bed and breakfast type environments.

Any use of the appliance other than described in this user manual is regarded as misuse and may cause injury or damage to the appliance and void the warranty.

Technical specifications

Appliance name Espresso Machine with milk
Article number 01.249422.01.001
Power supply 220-240V~ 50-60Hz
Power 1400 W
Power consumption in off-mode (W) 0 W
Power consumption in standby mode (W) < 0.3
Time needed to reach low power mode < 30 min

BEFORE FIRST USE

• Take out the coffee machine from the packaging box and check if the accessories are complete.
- Clean all detachable components thoroughly.
- Fill the water tank A ⑪ with fresh water up to the MAX level.
- Open the milk tank lid A 12, fill it with milk to the MAX level, close it securely, and attach it to the right side of the machine. Warning: Make sure the milk tank is properly installed. If not, excessive internal pressure during milk foam preparation may cause the tank to be ejected.
- Before using the machine, rinse it 2–3 times with clean water following the Latte preparation steps, but without adding any coffee powder.

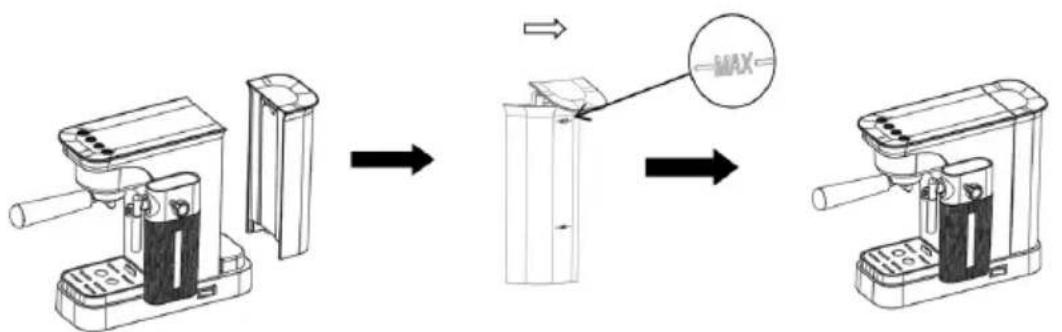

Filling the water tank A11

- To fill the water tank A 11, open the lid C1 and lift the tank out. Fill it with fresh water, making sure not to exceed the MAX mark. Reinstall the tank A11 and ensure it is properly seated. Alternatively, you can fill the tank while it remains installed (see image).

Note: A small amount of water at the bottom of the tank is normal and can be removed with a clean sponge.

Important: Never operate the machine without water. Refill promptly when the level is low.

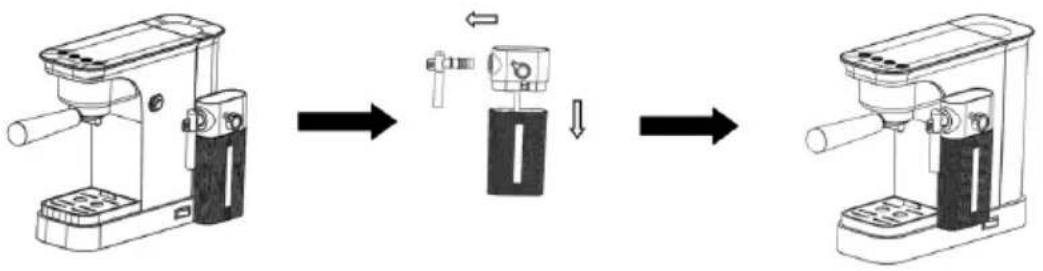

Adding Milk to the milk tank A15

- Remove the milk tank A 15 as shown in the product diagram, then lift the lid D 12 and pour in 3% full-fat milk at approximately 8°C. Close the lid securely and reinstall the container. When the milk tank is correctly installed, the Cappuccino and Latte indicators will turn ON (see image).

Preheating and self-check

• Plug the coffee machine into a power socket. After a one-second buzzer alert, the machine will run a self-check, with the button indicators lighting up sequentially. When the coffee function light starts flashing, the machine is preheating. Once the temperature reaches the set level, the light stays on, indicating that preheating is complete and the machine is ready for use.
• Warning: If the self-check detects an abnormality, all corresponding indicator lights will flash (see protection details), and the buzzer will sound continuously for 5 seconds. The coffee machine will not operate, and the buttons will be disabled. After 30 seconds of alarm, the machine will automatically switch to standby mode, and all indicator lights will turn off.

Reminder: How to Install and Remove the Milk Tank

1. After preheating, if the milk tank is not installed, the Espresso button light will stay on, while the Cappuccino and Latte button lights will flash as a reminder. During this time, the Cappuccino and Latte functions are disabled. Once the milk tank is installed, both lights will remain on, and the functions will become active.
2. After preheating, if the milk tank is removed, the buzzer will sound three times. The Cappuccino and Latte button lights will flash rapidly three times, then switch to slow flashing. At this point, both functions are disabled.

USE

Brewing Functions

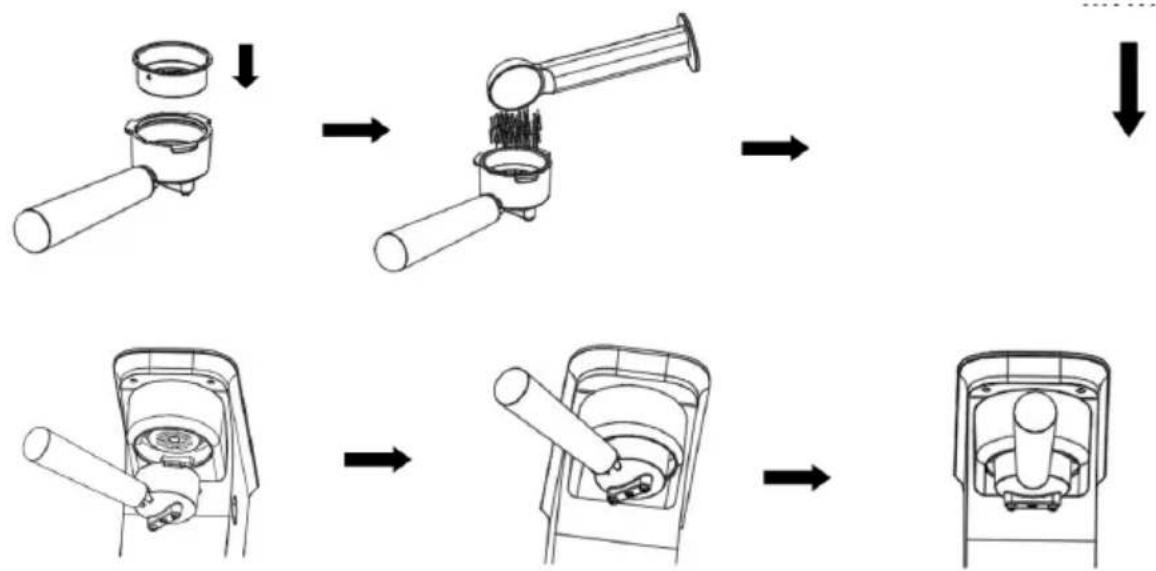

- Insert the filter basket A ⑦ into the funnel, ensuring it passes through the opening and then rotate it slightly to lock it in place (see image E). Add the desired amount of coffee powder into the filter cup.

Brewing functions are available only after preheating is complete.

• Button order (left → right): Espresso B 18, Cappuccino B19, Latte B20, Double Cup B21.
• When a coffee type is selected, its button flashes; the other three coffee buttons turn OFF.
• Double Cup B 21 is OFF by default (single-cup mode).
• To brew two cups, press the desired coffee button and, within 3 seconds, press Double Cup B21. The Double Cup indicator turns steady ON.
  • After 3 seconds, brewing starts automatically.
• To cancel a pending selection (before brewing starts), press the same function button again.

Selecting the Right Cup

Choose a cup size appropriate to the target volume:

Function Operation Coffee / Beverage	volume (ml)	Recommended cup size (ml)
Espresso Espresso (single) 30-50 100-150
Espresso - Double Espresso + Double cup 60-90 100-150
Cappuccino Cappuccino (single) 50-110 200-300
Cappuccino - Double Cappuccino + Double cup	120-200	200-300
Latte	Latte (single)	90-150
Latte - Double	Latte + Double cup	180-250

Tip: Center the cup beneath the funnel/milk outlet and ensure capacity is sufficient to prevent overflow.

Espresso Function

• With preheating complete, press Espresso B 18.
• After 3 seconds, the Espresso button B ^18 shows a breathing (pulsing) light and the other coffee buttons turn OFF.
• If desired, press Double Cup B 21 within 3 seconds (its indicator turns steady ON).
• The pump starts; coffee flows from the funnel into the cup until the preset volume is reached.
• Brewing finishes; the machine returns to standby, the buzzer beeps once, and all three coffee function lights turn steady ON to indicate completion.

Note: Pressing other buttons during Espresso brewing has no effect.

Cappuccino Function

• Press Cappuccino B 19 and wait 3 seconds to begin. Note: If the milk tank is not connected, the button is inactive.
• The Cappuccino button B 19 shows a breathing (pulsing) light, other coffee buttons turn OFF.
• For a double, press Double Cup B 21 within 3 seconds (indicator turns ON).
• Place a suitable cup on the drip tray A 10 under the outlets.
• Milk is foamed and dispensed through the milk tube A 14 into the cup.
• When the target milk volume is reached, the machine automatically cools to coffee temperature. Cooling water/steam is discharged into the drip tray A10.
• Coffee then dispenses from the funnel into the cup until complete.
• The machine returns to standby, the buzzer beeps once, all three coffee function lights turn steady ON, and the cleaning prompt (Double Cup light) begins to flash.

WARNING: Do not remove the milk tank during operation burn hazard.

Latte Function

Follows the same sequence as Cappuccino, with milk-to-coffee ratios tailored for Latte:

- Requires milk tank connected and preheating complete.

• Latte button 2120 shows a breathing (pulsing) light, others turn OFF. Double Cup can be selected within 3 seconds.
• Milk foam dispenses first, the system cools automatically, coffee is dispensed, the buzzer beeps once at completion, indicators turn steady ON, and the cleaning prompt flashes.

Standalone Milk Foam Function

Produces milk foam only (no coffee extraction).

• With the milk tank connected and preheating complete, press and hold the Latte button B 20 for 3 seconds to start.
• The Latte button B 20 shows a breathing (pulsing) light and other buttons turn OFF.
• Place a cup under the milk outlet tube.
• Discharge of hot water/steam to the drip tray A 10 during heating is normal.
• Milk is foamed and dispensed until the set volume is reached (approx. 200 ml).

CLEANING AND MAINTENANCE

To keep your espresso machine working well and your coffee tasting great, follow these cleaning steps every 2 to 3 months:

1. Self-clean program

- When the device is in standby mode or the cleaning indicator light is flashing, fill the milk tank A15 with water up to the MAX position. With the milk tank closed and the heating function enabled, press and hold the Double Cup button B21 for 3 seconds to enter the cleaning mode. The water pump starts working, and the cleaned water flows out through the milk outlet tube until the cleaning process is completed. The machine returns to the preheating state, and the three indicator lights slowly flash. This indicates that the cleaning function has been completed. And it is program for clean the milk tank.

1. Descale the machine

- Fill the water tank A 11 to the MAX level and add one packet of descaling agent or citric acid. Ensure the milk tank A 15 is closed and in place. Press and hold the Espresso B 18 and Latte B 20 buttons simultaneously for 3 seconds to activate the descaling mode. The machine will circulate water through the coffee outlet and milk outlet in repeated cycles. This process runs for 6 cycles and then automatically returns the machine to the preheating state.

• Use a coffee machine descaling agent. Mix it with water in a 4:1 ratio (4 parts water to 1 part descaler), or follow the instructions on the product label.
• If you don't have a descaling agent, you can use citric acid instead. Mix 100 parts water to 3 parts citric acid.

Important: After the cleaning process is completed, it is necessary to remove any remaining citric acid or cleaning agent from the machine. Wash the machine with clean water 2-3 times according to the coffee/hot water preparation process: There is no need to add coffee powder when cleaning the coffee machine.

Scale Removal Reminder

- The coffee machine tracks the number of brewing cycles. When it reaches 300 uses, the Espresso B ^18 , Cappuccino B ^19 , and Latte B ^20 lights will slowly flash in sequence as a reminder to perform descaling.

Note: This reminder does not stop the machine from operating. However, the lights (Espresso, Cappuccino, Latte, and Double Cup) will continue flashing slowly in sequence until the descaling process is completed

STORAGE

Unplug the device whenever it is not in use. Allow it to cool, then store it in a safe, dry location. Never wrap the cord around the appliance. This will cause the cord to wear and break prematurely. Handle the cord carefully and avoid jerking, twisting, or straining it, especially at plug connections.

TROUBLESHOOTING

Problem Possible cause Possible solution
No coffee comes out	Water tank is emptyFilter baskets A7 are blockedFoam head A8 is blockedWater tank is not properly placed	Fill the water tankClean the filter basketClean the foam headReposition the water tank correctly
Coffee leaks from the portafilter	Seal ring is dirtyCoffee grind is too fineCoffee is tamped too tightlyCoffee grounds are on the rim of the filter basketSeal ring is damaged	Clean the silicone seal ringUse espresso-grade coffee grindTamp the coffee more gentlyWipe off excess grounds before insertingContact after-sales service for replacement
Coffee is not hot enough	Machine is not fully heatedMachine or cup is not preheated	Wait for the power indicator light to stay on Preheat the machine and cup before brewing
Pump is too noisy	Water tank is emptyWater tank is not properly placed	Fill the water tankReposition the water tank correctly
Coffee is weak or watery	Coffee is not tamped firmlyNot enough coffee in the basketCoffee grind is too coarse	Tamp the coffee more firmlyAdd more coffee groundsUse a finer espresso grind
Coffee is too strong or dark	Coffee is tamped too tightlyToo much coffee in the basketFilter basket is blockedCoffee grind is too fineFoam head is blocked	Tamp more lightlyUse less coffee groundsClean the filter basketUse espresso-grade grindClean the brewing head
Portafilter won't lock into place	Too much coffee in the basketMechanical issue with locking system	Use less coffee groundsContact after-sales service
No milk foam	Steam nozzle A8 is blockedScale buildup in steam system	Use the cleaning needle to unclog the nozzleAdd a small amount of vinegar to the water tank and run a cleaning cycle
No foam was produced after frothing the milk	The milk is not cold enough Make sure the milk is at least 8°C
Double cup indicator flashing	Milk tank cleaning reminder	Press and hold the double cup B21 button for 3 seconds to start the milk tank cleaning process
Sequence displayed: “Espresso”, “Cappuccino”, “Latte”, “Double cup” continuously	This alert notifies the user that the machine needs to be cleaned.	Just follow the provided steps to descale the machine
Initial use without adding coffee or milk	If the water pump has been dry for an extended period, it may not draw water or brew coffee when the tank is empty	Press and hold the Double Cup button for 3 seconds to activate the cleaning function

DISPOSAL

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

For spare parts and more information about the appliance, please visit www.princesshome.eu

Gebruikshandleiding

BESCHRIJVING APPARAAT

Over dit apparaat
