USER MANUAL 244000 PRINCESS

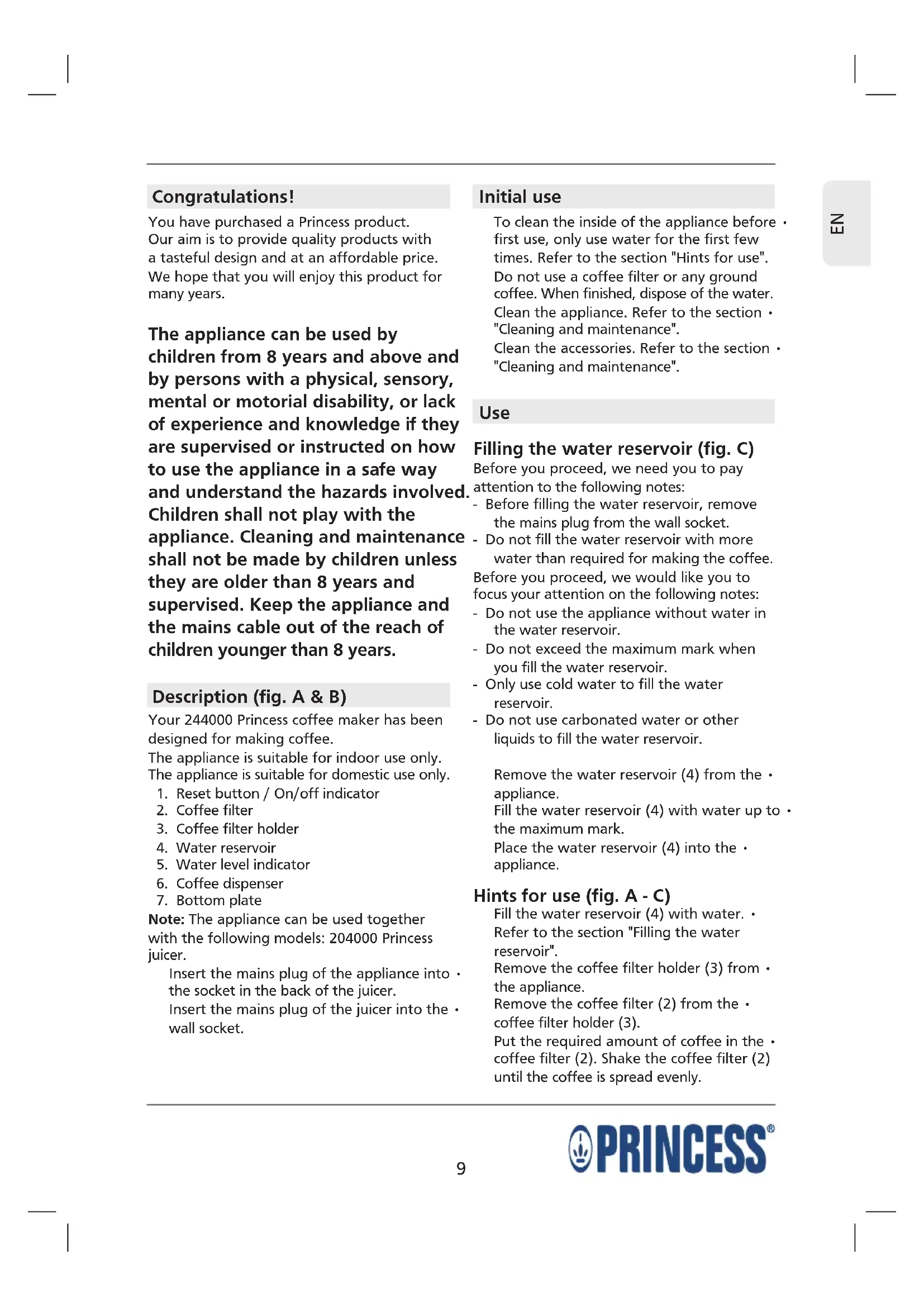

Congratulations! You have purchased a Princess product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years. The appliance can be used by children from 8 years and above and by persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge if they are supervised or instructed on how to use the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and the mains cable out of the reach of children younger than 8 years. Description (fig. A & B) Your 244000 Princess coffee maker has been designed for making coffee. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

3. Coffee filter holder

Note: The appliance can be used together with the following models: 204000 Princess juicer. Insert the mains plug of the appliance into • the socket in the back of the juicer. Insert the mains plug of the juicer into the • wall socket. Initial use To clean the inside of the appliance before • first use, only use water for the first few times. Refer to the section "Hints for use". Do not use a coffee filter or any ground coffee. When finished, dispose of the water. Clean the appliance. Refer to the section • "Cleaning and maintenance". Clean the accessories. Refer to the section • "Cleaning and maintenance". Use Filling the water reservoir (fig. C) Before you proceed, we need you to pay attention to the following notes: - Before filling the water reservoir, remove the mains plug from the wall socket. - Do not fill the water reservoir with more water than required for making the coffee. Before you proceed, we would like you to focus your attention on the following notes: - Do not use the appliance without water in the water reservoir. - Do not exceed the maximum mark when you fill the water reservoir. - Only use cold water to fill the water reservoir. - Do not use carbonated water or other liquids to fill the water reservoir. Remove the water reservoir (4) from the • appliance. Fill the water reservoir (4) with water up to • the maximum mark. Place the water reservoir (4) into the • appliance. Hints for use (fig. A - C) Fill the water reservoir (4) with water. • Refer to the section "Filling the water reservoir". Remove the coffee filter holder (3) from • the appliance. Remove the coffee filter (2) from the • coffee filter holder (3). Put the required amount of coffee in the • coffee filter (2). Shake the coffee filter (2) until the coffee is spread evenly.10

Place the coffee filter (2) in the coffee filter • holder (3). Place the coffee filter holder (3) into the • appliance. Place the bottom plate (7) onto the • bottom of the appliance. Place an empty coffee cup onto the bottom • plate (7) under the coffee dispenser (6). Insert the mains plug into the wall socket.• To switch on the appliance, press the reset • button (1). The on/off indicator (1) comes on. The appliance starts making the coffee. Before you proceed, we need you to pay attention to the following notes: - Do not remove the water reservoir while the water is boiling. - Do not remove the coffee cup from the bottom plate while making coffee. If the process is completed, the appliance • switches off automatically. The on/off indicator (1) goes off. Remove the mains plug from the wall socket.• Allow the appliance to cool down • completely. Cleaning and maintenance Before you proceed, we need you to pay attention to the following notes: - Before cleaning or maintenance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or any other liquids. Before you proceed, we would like you to focus your attention on the following notes: - Do not use aggressive or abrasive cleaning agents to clean the appliance. - Do not use sharp objects to clean the appliance. Regularly check the appliance for possible • damage. Clean the outside of the appliance with a • soft, damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth. Clean the coffee filter and the coffee filter • holder in soapy water. Rinse the coffee filter and the coffee filter holder under running water. Thoroughly dry the coffee filter and the coffee filter holder with a clean, dry cloth. Clean the water reservoir in soapy water. • Rinse the water reservoir under running water. Thoroughly dry the water reservoir with a clean, dry cloth. Clean the bottom plate in soapy water. • Rinse the bottom plate under running water. Thoroughly dry the bottom plate with a clean, dry cloth. Descaling the appliance (fig. A - C) The appliance must be descaled after every 25 uses. If the appliance must be descaled, use a suitable descaling agent. Special descaling agents are available from our service station. Note: Princess will not be responsible for any damage caused by descaling agents. Damage caused by not regularly descaling the appliance is not covered by the guarantee. Before you proceed, we need you to pay attention to the following notes: - Before descaling the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or any other liquids. Before you proceed, we would like you to focus your attention on the following notes: - Be careful when descaling the appliance to prevent damage to furniture or clothing. - Do not use vinegar or vinegar concentrate to descale the appliance. - Do not use citric acid to descale the appliance. Fill the water reservoir (4) with a suitable • descaling agent. Place a coffee cup onto the bottom plate • (7) under the coffee dispenser (6). Insert the mains plug into the wall socket.• Switch on the appliance using the reset • button (1).11

Let the appliance run until 1/3 of the • descaling agent is in the coffee cup. Remove the mains plug from the wall socket.• Let the descaling agent work for • approximately 30 minutes. Insert the mains plug into the wall socket.• Let the appliance run until the remaining • descaling agent is in the coffee cup. Rinse the appliance with clean water:• - Fill the water reservoir (4) with clean water up to the maximum mark. - Place an empty coffee cup onto the bottom plate (7) under the coffee dispenser (6). - Switch on the appliance using the reset button (1). - Let all water run out of the appliance. Remove the mains plug from the wall socket.• Allow the appliance to cool down • completely. Clean the appliance. Refer to the section • "Cleaning and maintenance". Storage Put the appliance and the accessories in • the original packaging. Store the appliance with the accessories in • a dry and frost-free place, out of the reach of children. Safety instructions General safety Read the manual carefully before use. • Keep the manual for future reference. Only use the appliance and the accessories • for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual. Do not use the appliance if any part or any • accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Children should be supervised to ensure • that they do not play with the appliance. The use of this appliance by children or • persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance. Do not use the appliance near bathtubs, • showers, basins or other vessels containing water. Do not immerse the appliance in water or • other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again. This appliance is intended to be used in • domestic and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-and- breakfast type environments. Electrical safety Before use, always check that the mains • voltage is the same as the voltage on the rating plate of the appliance. The appliance is not intended to be • operated by means of an external timer or separate remote-control system. Connect the appliance to an earthed wall • socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 x 1 mm

Make sure that water cannot enter the • contact plugs of the mains cable and the extension cable. Always fully unwind the mains cable and • the extension cable. Make sure that the mains cable does not • hang over the edge of a worktop and cannot be caught accidentally or tripped over. Keep the mains cable away from heat, oil • and sharp edges.12

Do not use the appliance if the mains cable • or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Do not pull the mains cable to disconnect • the mains plug from the mains. Disconnect the mains plug from the mains • when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance. Safety instructions for coffee makers Do not use the appliance outdoors.• Do not use the appliance in damp • environments. Only use the appliance in frost-free • environments if the appliance is filled with water. Place the appliance on a stable and flat • surface. Place the appliance on a heat-resistant and • splash-proof surface. Do not place the appliance on a hob.• Do not place the appliance on hot surfaces • or near open flames. Make sure that the appliance does not • come into contact with flammable material. Keep the appliance away from heat sources.• Be careful with hot water and steam to • avoid burns. Store the appliance in a dry place when • not in use. Make sure that children do not have access to stored appliances. U.K. Wiring instructions The wires in the mains lead are coloured in accordance with the following code: BLUE NEUTRAL BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or and is coloured GREEN or GREEN/YELLOW. Warning! This appliance must be earthed. Disclaimer Subject to change; specifications can be changed without further notice.13
